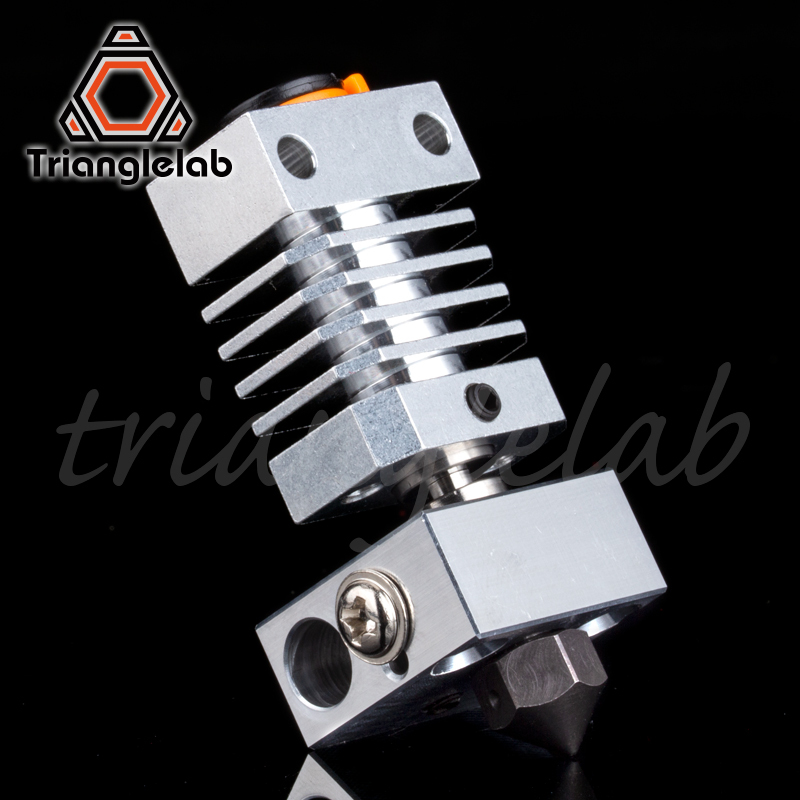

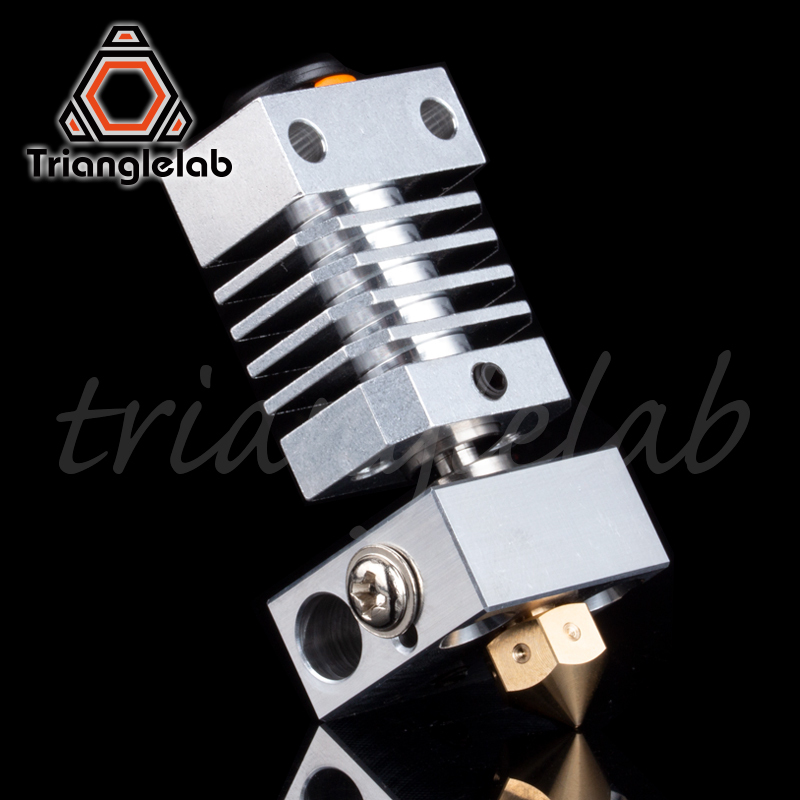

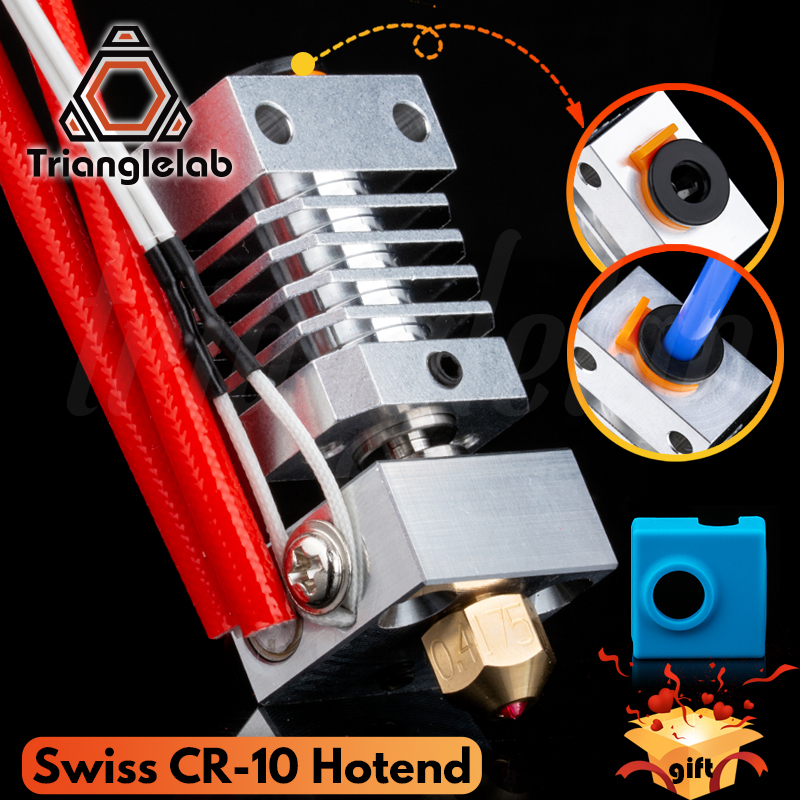

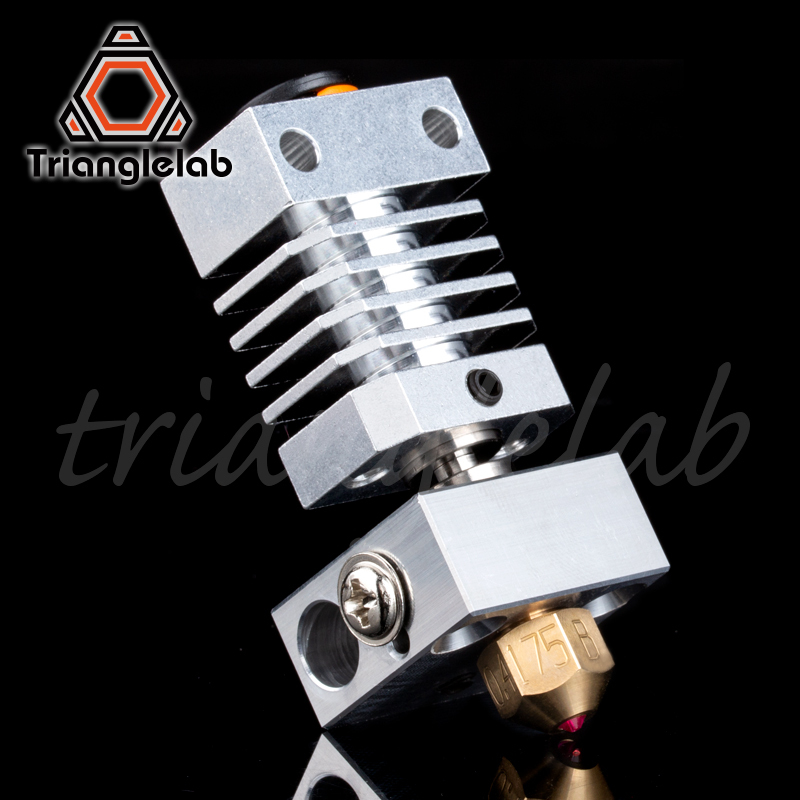

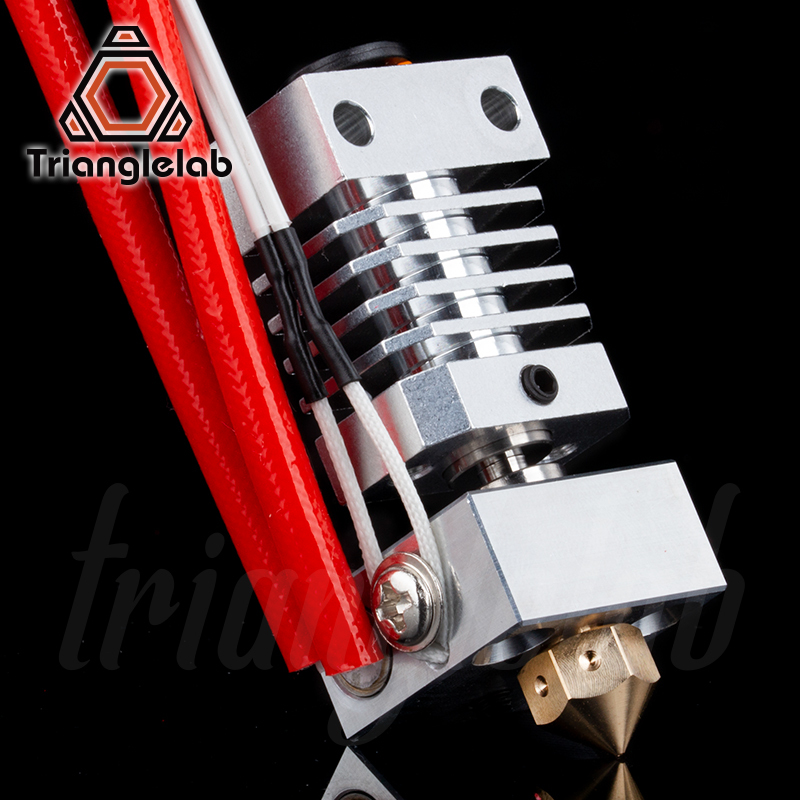

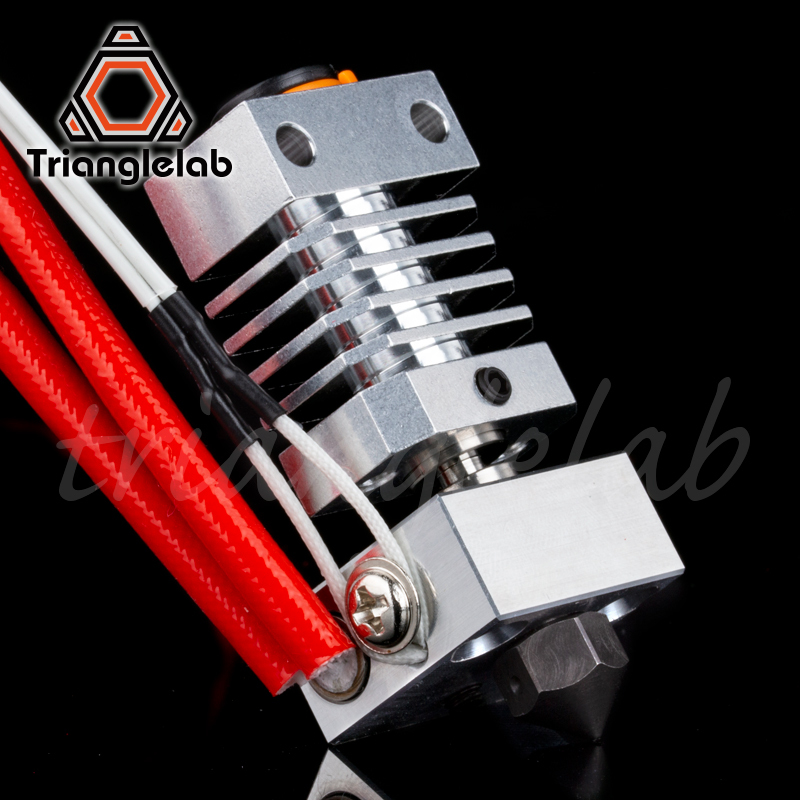

Trianglelab Swiss CR10 hotend
This product only supports 1.75mm filament!!!
▉Compatible:
Compatible with CR-10S
Compatible with CR-10S -S5
Compatible with CR-10S -S4
Compatible with CR-10
Compatible with CR-10 -MINI
Compatible with CR-20
Compatible with CR-20 PRO
Compatible with Ender2
Compatible with Ender3
Compatible with Ender3 PRO
Compatible with TronXY X5S
Compatible with Tevo Tornado
Compatible with Alfawise U20
*13:100k Hisens 3950 1% up to 300°C for hotend "Simple ONE " &"Hotend "All In ONE"
#define TEMP_SENSOR_0 13
https://github.com/MarlinFirmware/Marlin/blob/1.1.x/Marlin/thermistortable_13.h
Recommended slicer setting:
retraction speed over 80MM/S
retraction length 2.5-4MM
If you are facing PLA clogging problem, please try the followings:
1. Increase the retraction speed. The speed may have being limited in the firmware try to change it. G-command "M203 E200"
2. Increase the extruder acceleration. Check your firmware settings. G-command "M201 E9000"
3. Reduce the retraction length. It depends on your machine setup.
4. Increase the nozzle temperature by 5-10 degrees.
5. Do not install the 2 screws for support the heatblcok like the stock hotend on the CR-10 printer.
6. Make sure that there is no gap between the heatsink and the heat breaker.
CR-10 HeatSink X 1
CR-10 Titanium alloy heat break X 1
CR-10 Heater Block X 1(Silicone Socks Gift)
*Compatible 100K B3950 Thermistor OR 104GT-2 Thermistor
*0.4MM Nozzle (We offer 3 types of options) X 1
The following is the full version of the option, please pay attention to choose the correct voltage.
Thermistor (NTC 100K B3950) X 1
Heater Cartridge(12v or 24v) X 1
*We do not recommend installing the locking screw for the BLOCK. The screw will cause more heat to be transferred to the CR10 HeatSink, potentially affecting your cooling system.
*Please read the following list of explanations for each package carefully.
SET Brass nozzle kit:
·CR-10 HeatSink X 1
·CR-10 Titanium alloy heat break X 1
·CR-10 Heater Block X 1
·0.4MM MK8 Brass Nozzle X 1
SET Hardened Steel kit:
·CR-10 HeatSink X 1
·CR-10 Titanium alloy heat break X 1
·CR-10 Heater Block X 1
·0.4MM MK8 Hardened Steel Nozzle X 1
SET Ruby Nozzle kit:
·CR-10 HeatSink X 1
·CR-10 Titanium alloy heat break X 1
·CR-10 Heater Block X 1
·0.4MM MK8 Ruby Nozzle X 1
SET 12V Brass Hotend:
·CR-10 HeatSink X 1
·CR-10 Titanium alloy heat break X 1
·CR-10 Heater BlockX 1
·0.4MM MK8 Brass Nozzle X 1
·Thermistor(NTC 100K B3950) X 1
·Heater Cartridge 12V X 1
SET 24V Brass Hotend:
·CR-10 HeatSink X 1
·CR-10 Titanium alloy heat break X 1
·CR-10 Heater BlockX 1
·0.4MM MK8 Brass Nozzle X 1
·Thermistor(NTC 100K B3950) X 1
·Heater Cartridge 24V X 1
SET 12V Hardened Steel Hotend:
·CR-10 HeatSink X 1
·CR-10 Titanium alloy heat break X 1
·CR-10 Heater BlockX 1
·0.4MM MK8 Hardened Steel Nozzle X 1
·Thermistor(NTC 100K B3950) X 1
·Heater Cartridge 12V X 1
SET 24V Hardened Steel Hotend:
·CR-10 HeatSink X 1
·CR-10 Titanium alloy heat break X 1
·CR-10 Heater BlockX 1
·0.4MM MK8 Hardened Steel Nozzle X 1
·Thermistor (NTC 100K B3950) X 1
·Heater Cartridge 24V X 1
SET 12V Ruby Hotend:
·CR-10 HeatSink X 1
·CR-10 Titanium alloy heat break X 1
·CR-10 Heater BlockX 1
·0.4MM MK8 Ruby Nozzle X 1
·Thermistor(NTC 100K B3950) X 1
·Heater Cartridge 12V X 1
SET 24V Ruby Hotend:
·CR-10 HeatSink X 1
·CR-10 Titanium alloy heat break X 1
·CR-10 Heater BlockX 1
·0.4MM MK8 Ruby Nozzle X 1
·Thermistor(NTC 100K B3950) X 1
·Heater Cartridge 24V X 1
CR-10 Hotend(Hardened Steel Nozzle)
CR-10 Hotend(Brass Nozzle)
CR-10 Hotend(Ruby Nozzle)
CR-10 Hotend Kit(Brass Nozzle)
CR-10 Hotend Kit(Hardened Steel Nozzle)
CR-10 Hotend Kit(Ruby Nozzle)
