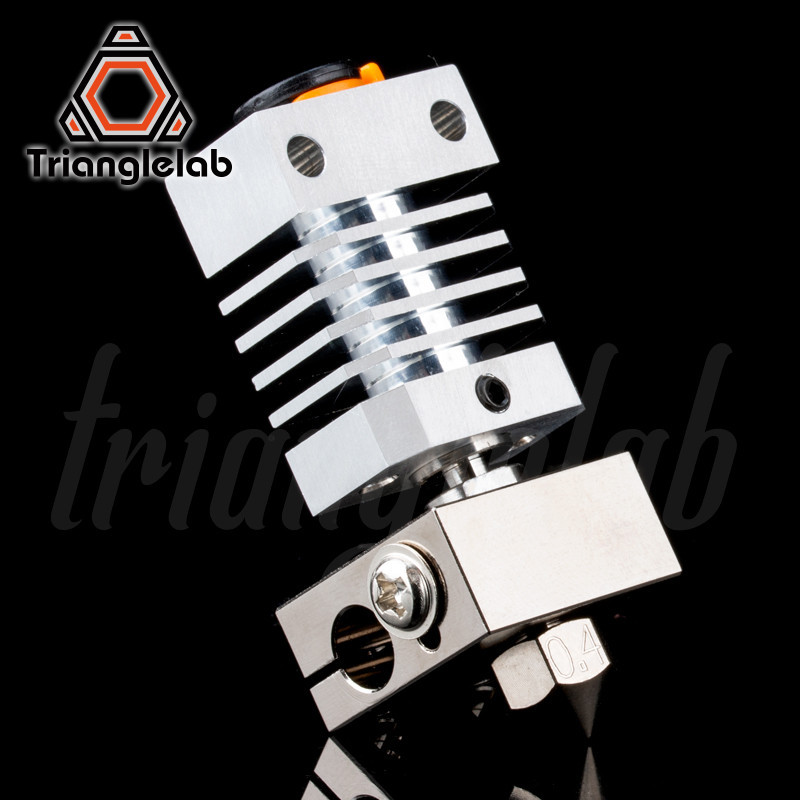

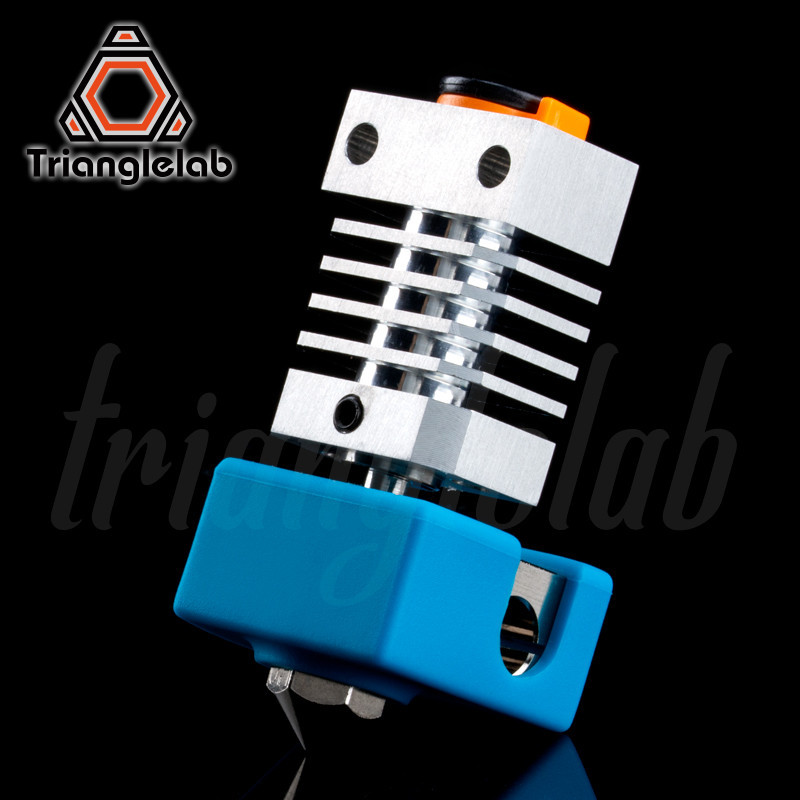

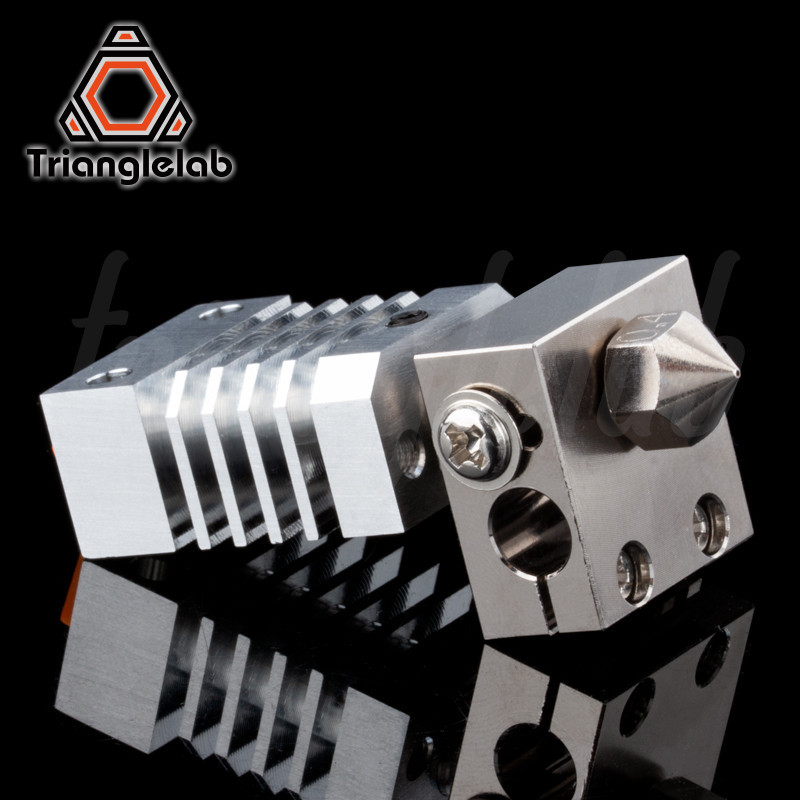

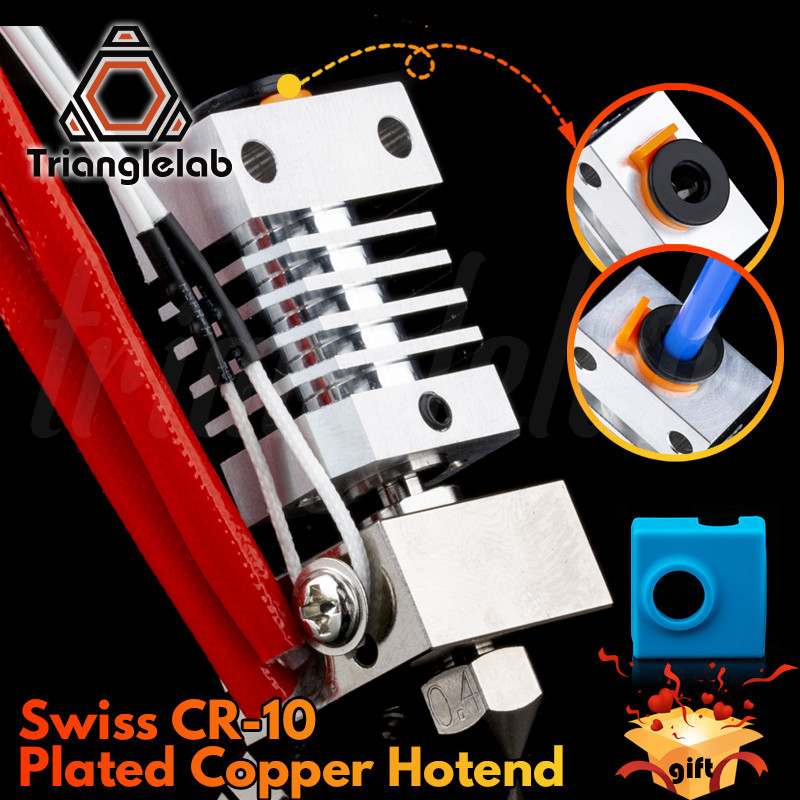

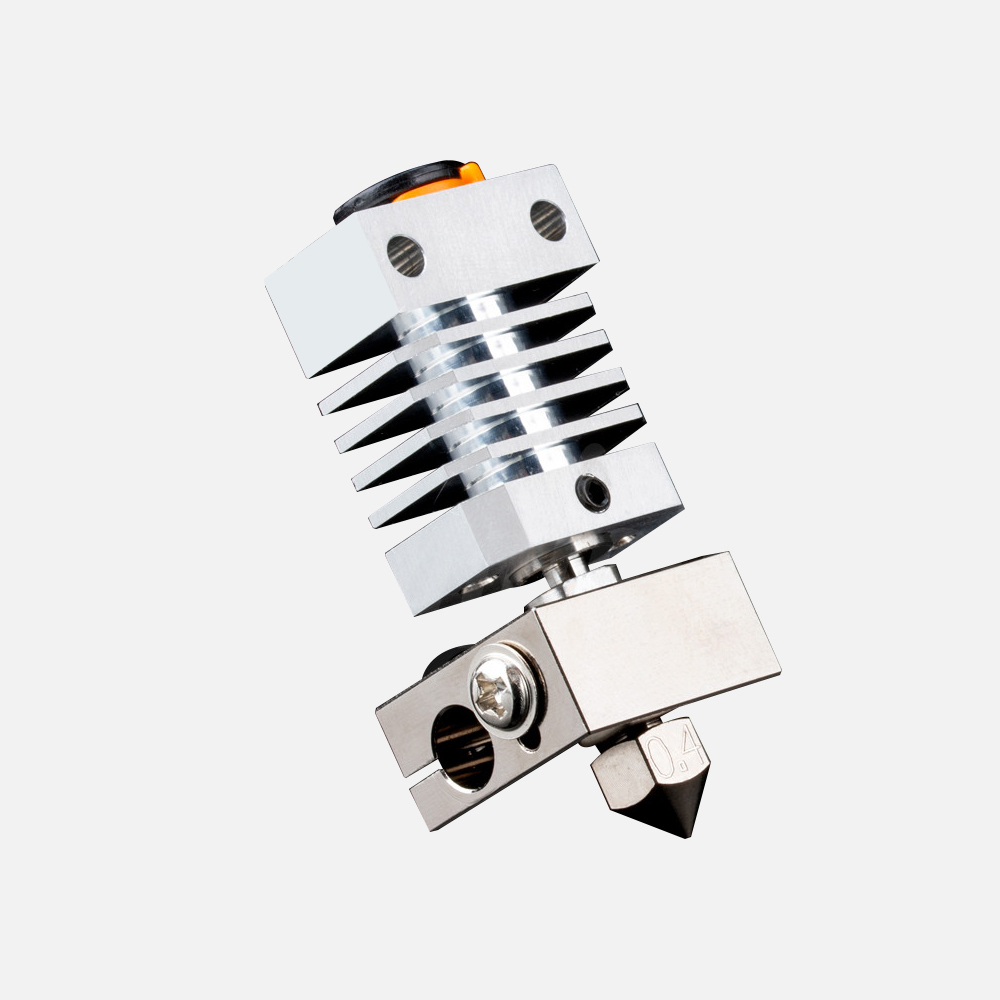

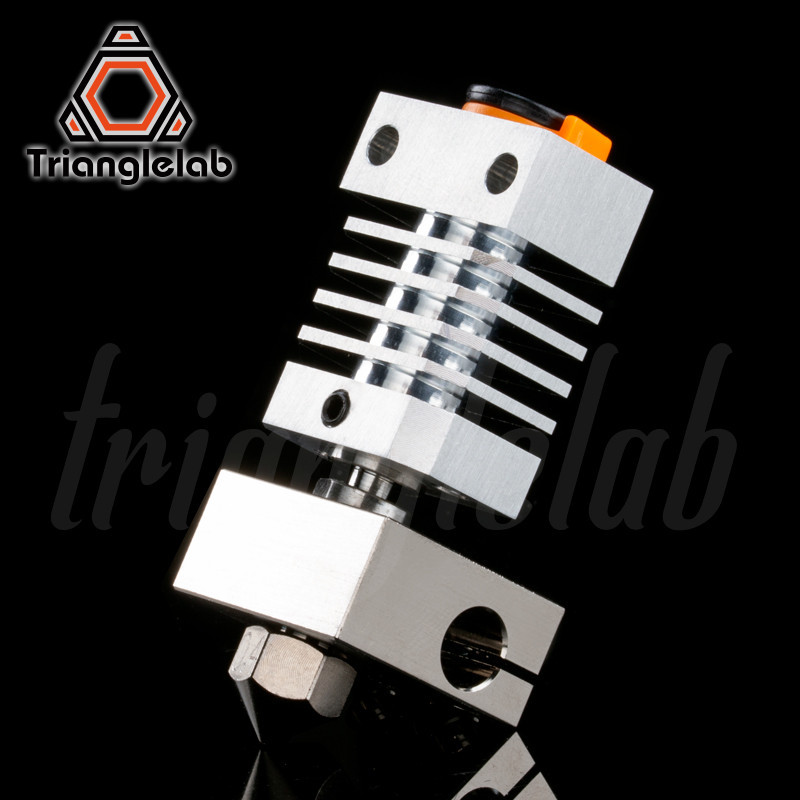

Swiss cr10 plated copper hotend

Trianglelab CR10 Plated Copper HOTEND High temperature for Ender3/Ender3 pro/CR-10/CR-10S Print PETG PEEK PEI ABS carbon fiber
0.0 (0 Reviews)
$49.90 $47.40
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • size:
    12V CR10 Plated Copper hotend
    24V CR10 Plated Copper hotend
Quantity
-
+
  • Description
  • Before ordering, please note that all our products do not include tax, you need to declare your own tax!
  • If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.
  • Technical questions e-mail:[email protected]
  • Sales questions e-mail:[email protected]
  • The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.

  • Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

To purchase a tax-included products, please click the link below:https://trianglelab.aliexpress.com/store/1654223
Features:
It is resistant to high temperatures and is not easily deformed, and has excellent heat transfer capability. Ideal for high temperature printing.
You can refer to the following description of the Plated Copper Nozzle.

Plated Copper description(same principle as plated copper nozzle):
These nozzles are engineered for ultimate high temperature performance. Made from a special high temperature copper-alloy with a softening point of well above 500°C, and with much-increased thermal conductivity these copper nozzles are perfect for high temperature applications, while working perfectly with everyday filaments like PLA, ABS and spoolWorks EDGE.

In addition to high temperature performance these nozzles have an advanced nickel based plating, considerably reducing the adhesion of plastic to the nozzle. This is great for everyday filaments keeping things clean and shiny, but is particularly important at temperatures above 300°C where a silicone sock can't be used.

Copper has more than 3x the thermal conductivity of brass, and the copper alloy we use has been hardened and treated to reduce the oxidation that occurs in copper at high temperatures. The higher thermal conductivity will also slightly increase your heat-up times, and can provide tighter temperature control.

This copper-alloy is very temperature resilient, and will not start to soften or anneal until way beyond 500°C, making it perfect for the high-temperature printing that other nozzles can't handle.

▉Warning
*If you plan to print high temperature materials, the temperature is over 290℃. Please replace the thermistor, we recommend you use the PT100 chip's thermistor cartridge, or the PT1000 chip's thermistor cartridge.
*High temperature PT100 thermistor Cartridge, Please click here to buy.

*High temperature PT1000 thermistor Cartridge, Please click here to buy.

Size:
0.4mm/1.75mm
Compatible:
Compatible with CR-10S
Compatible with CR-10S -S5
Compatible with CR-10S -S4
Compatible with CR-10
Compatible with CR-10 -MINI
Compatible with CR-20
Compatible with CR-20 PRO
Compatible with Ender2
Compatible with Ender3
Compatible with Ender3 PRO
Compatible with TronXY X5S
Compatible with Tevo Tornado
Compatible with Alfawise U20
▉Marlin Firmware Configuration
*13:100k Hisens 3950 1% up to 300°C for hotend "Simple ONE " &"Hotend "All In ONE"
#define TEMP_SENSOR_0 13
https://github.com/MarlinFirmware/Marlin/blob/1.1.x/Marlin/thermistortable_13.h
What's in the box:

Trianglelab - MK8 Plated Copper Nozzle(0.4MM)             X 1

Trianglelab - CR-10 Plated Copper Heat Block                X 1

Trianglelab - CR-10 Heat Block Silicone Socks(Gift)         X 1

Trianglelab - Tianium alloy CR-10Heat Break                  X 1

Trianglelab -  SWISS CR-10 Heatsink                             X 1

Trianglelab - Heating Cartridge 6X20MM 40W(Gift)         X 1

Trianglelab - Thermistor Cartridge 100K 3950(Gift)         X 1

*The gift does not calculate the price,if you can not use it,please discard it directly.

*If you plan to print high temperature materials, the temperature is over 290. Please replace the thermistor, we recommend you use the PT100 chip's thermistor cartridge, or the PT1000 chip's thermistor cartridge.

*High temperature PT100 thermistor Cartridge,Please click here to buy.

*High temperature PT1000 thermistor Cartridge,Please click here to buy.



NOTE:

We found that many customers do not know how to properly install the nozzle.
Remember the core issues in the installation process.
Just make sure your nozzle and HEAT BREAK front end are tight and sealed. Otherwise, the filament will leak along the screw holes.

Photo display:

Please enjoy the excellent quality of art.

*Durable, non-stick, high temperature performance nozzles. This copper alloy is very temperature resilient, and will not start to soften or anneal until way beyond 500°C, making it perfect for the high-temperature 3D printing that other nozzles can't handle.





PEEK( USE MK8 RUBY NOZZLE)

PEI 1010 (USE Hardened steel V6 NOZZLE)
PEI Mixed material (Plated Copper Test)
