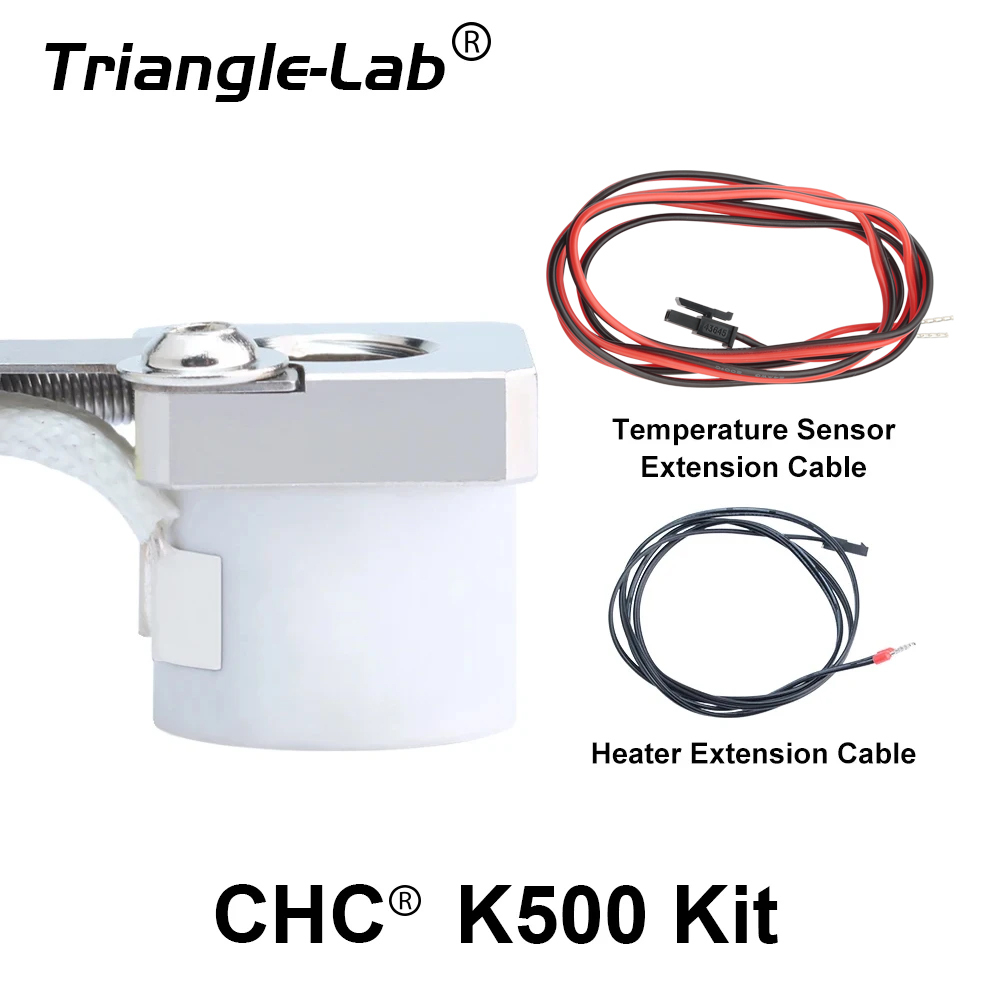

CHC K500 Ceramic heating rings

Trianglelab CHC Kit Built-in K500 Thermocouple for ender 3 V6 hotend CR10 CR-10 CR-6 SE mk3s TD6 TR6 3d printer hotend
Limited Offer!
0.0 (0 Reviews)
$29.96 $25.91 6% OFF
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • size:

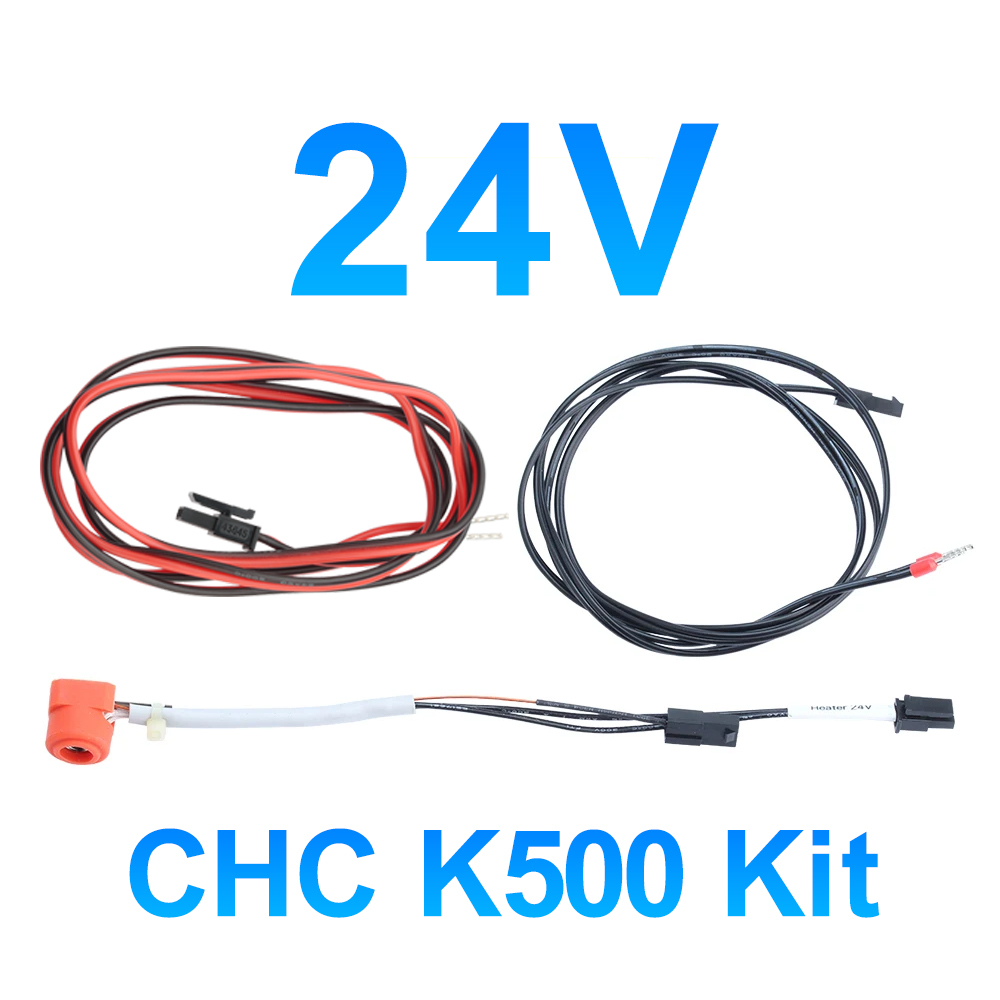

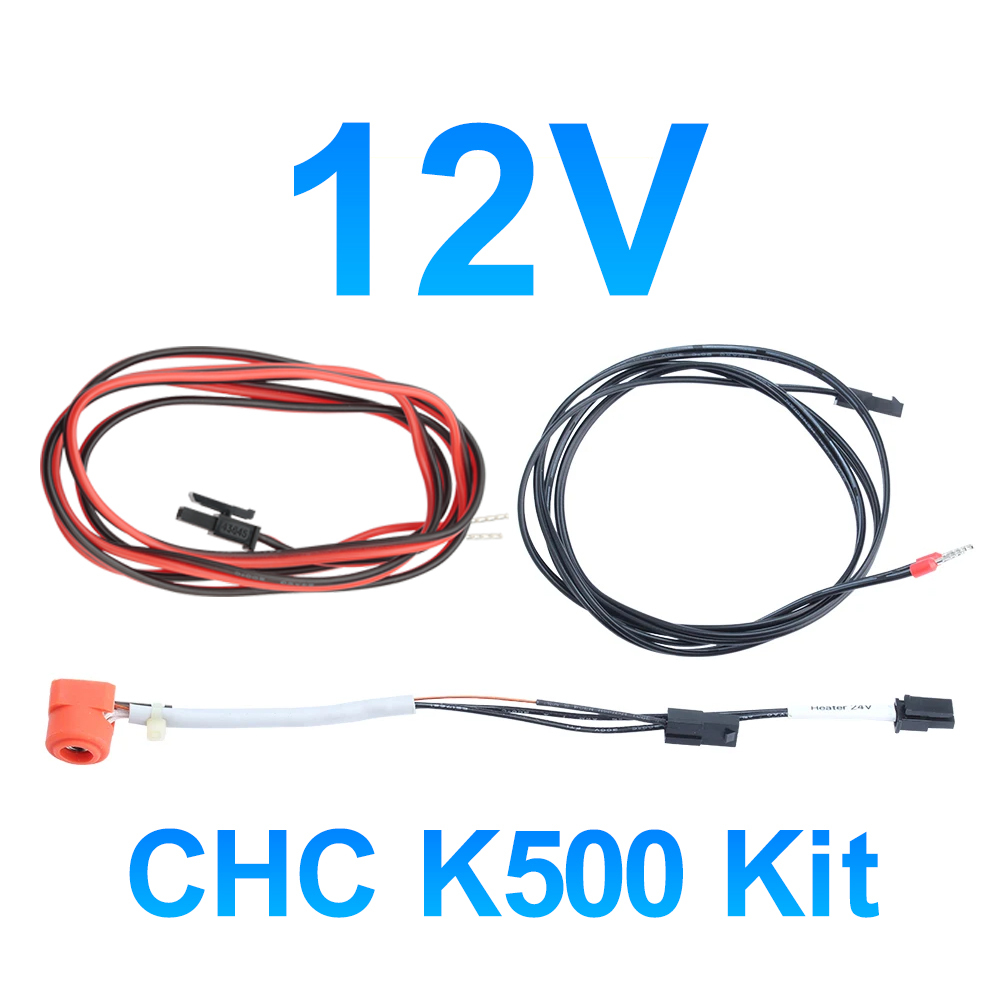

    CHC K500 12V
    CHC K500 24V
Quantity
-
+
  • Description
  • Before ordering, please note that all our products do not include tax, you need to declare your own tax!
  • If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.
  • Technical questions e-mail:[email protected]
  • Sales questions e-mail:[email protected]
  • The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.

  • Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

  • To purchase a tax-included products, please click the link below:https://trianglelab.aliexpress.com/store/1654223

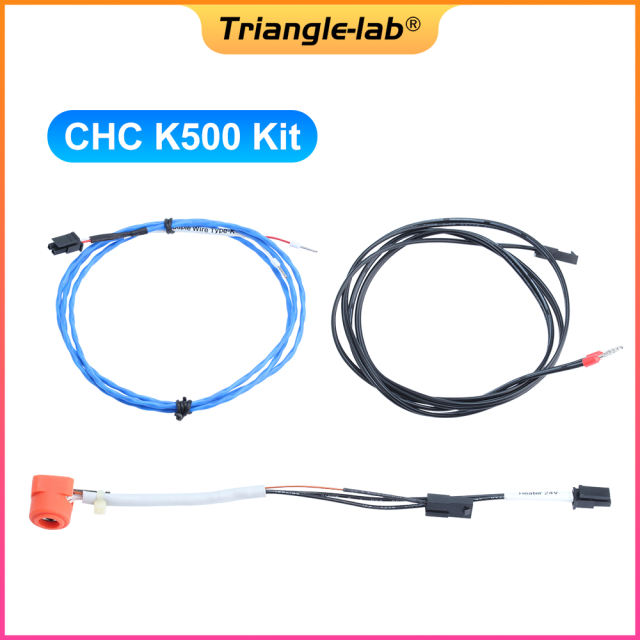

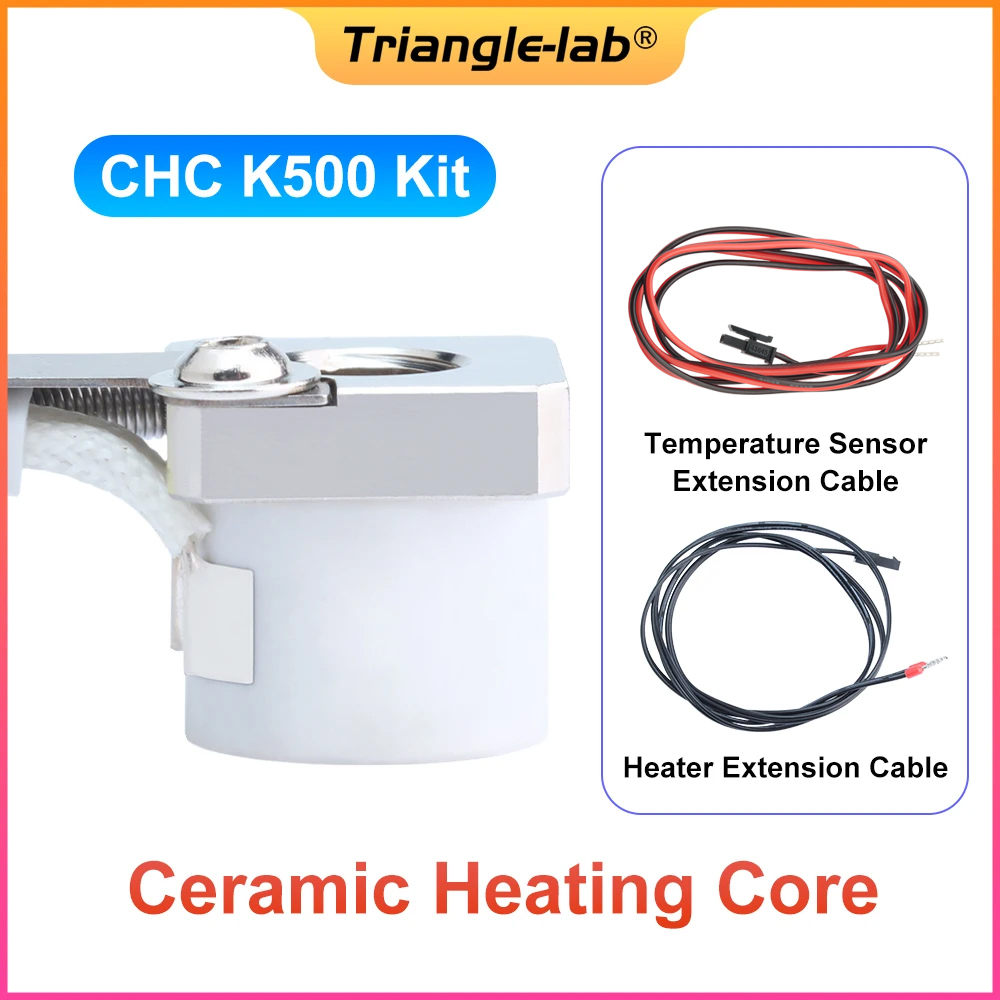

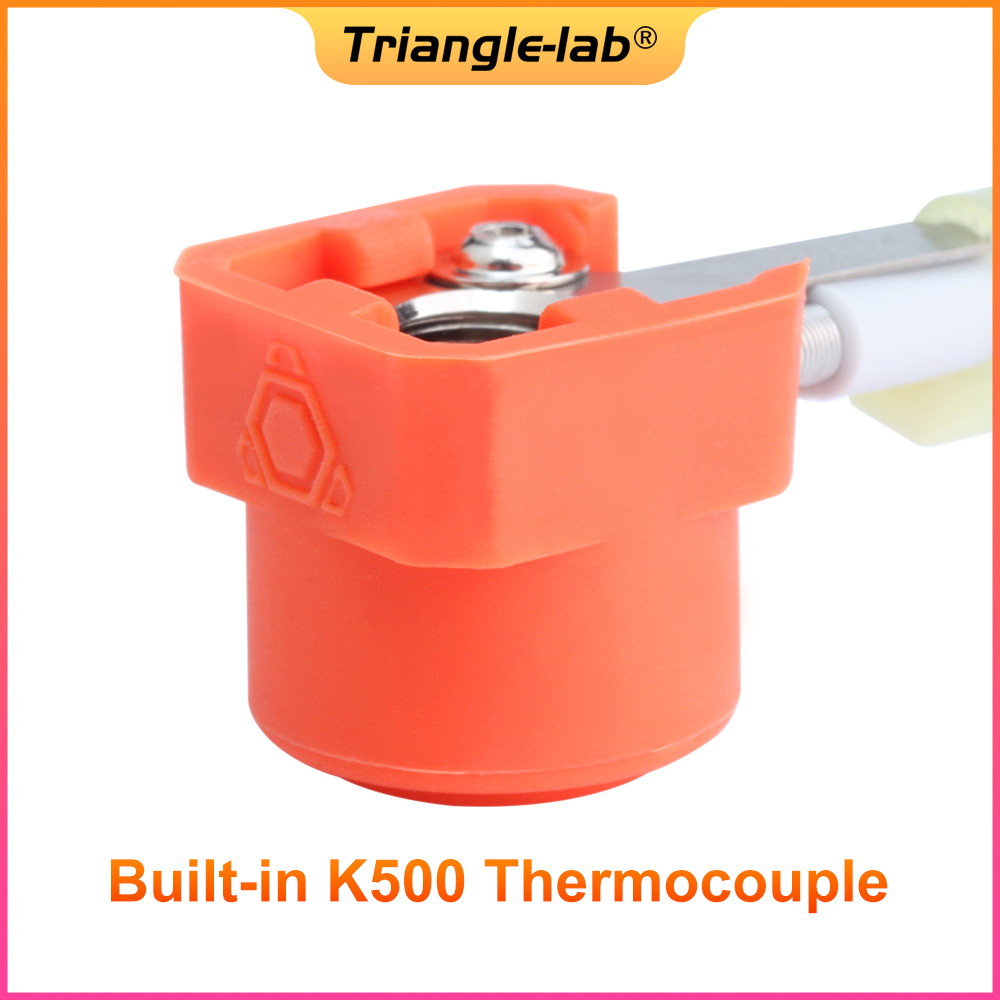

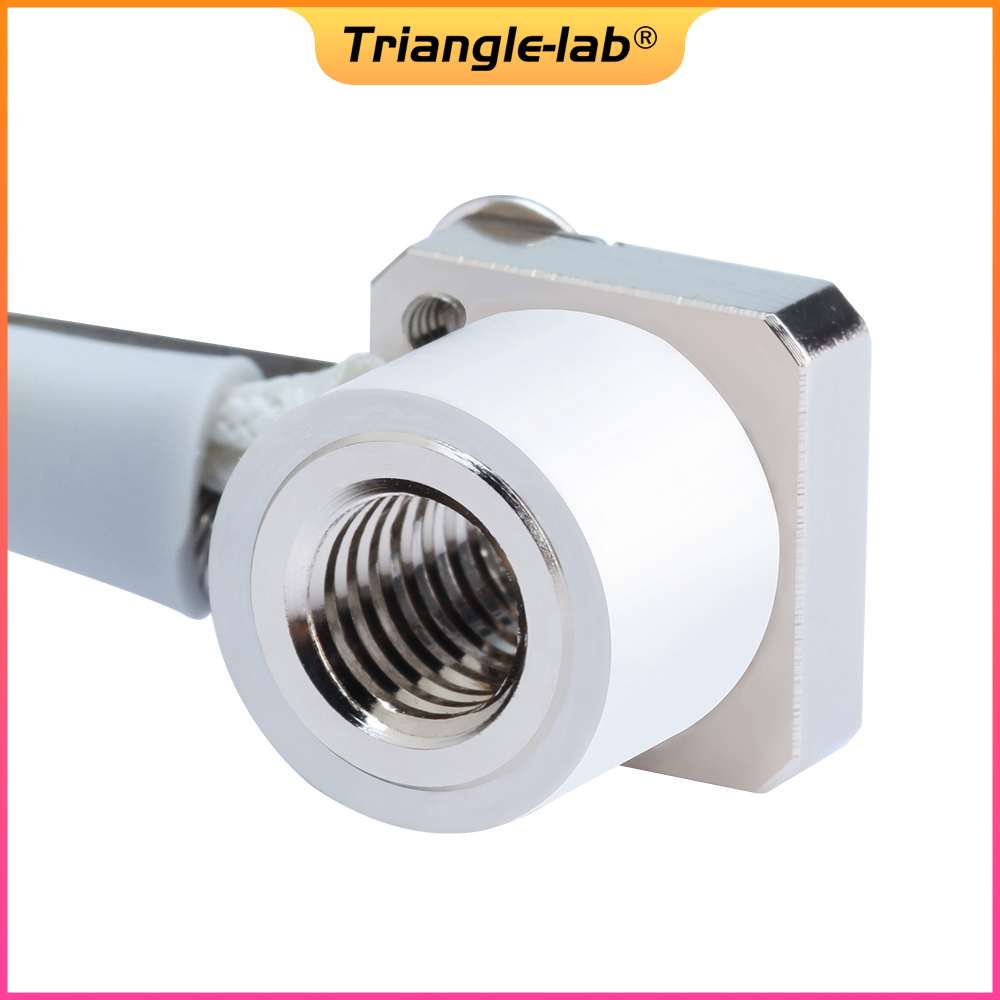

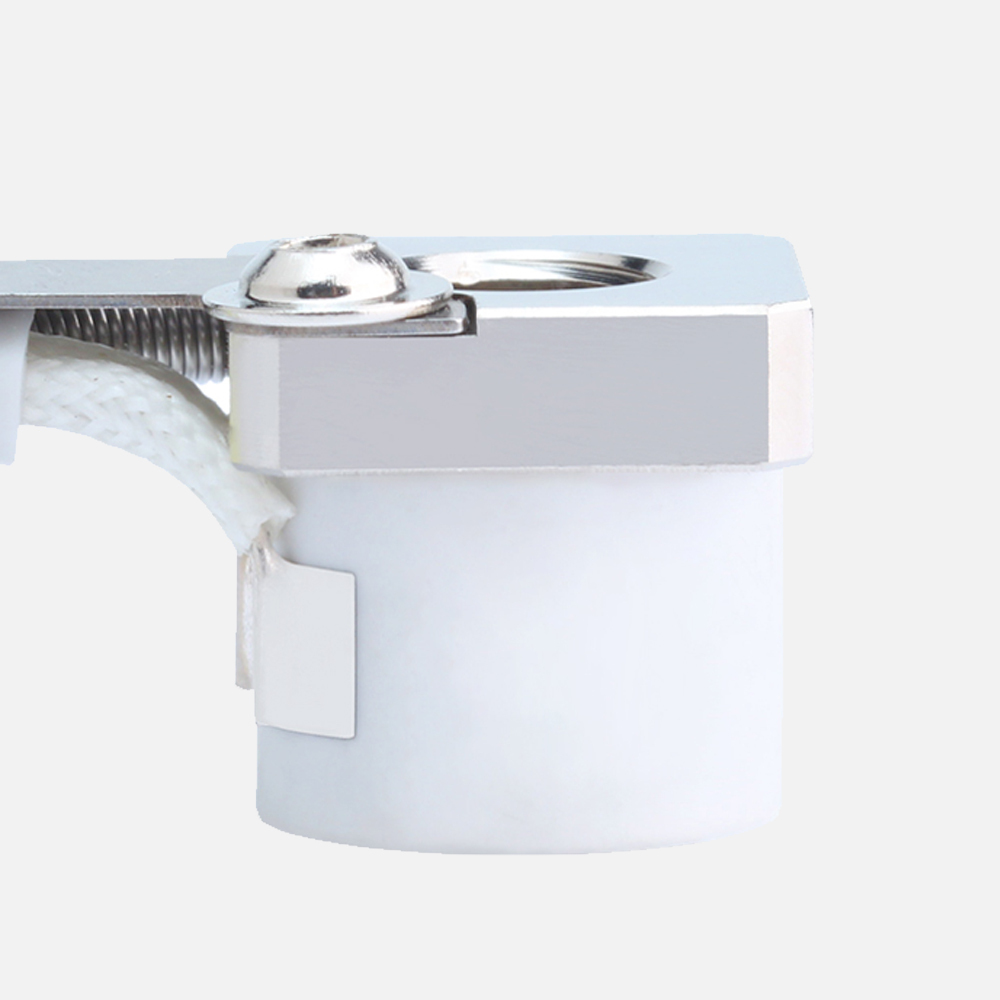

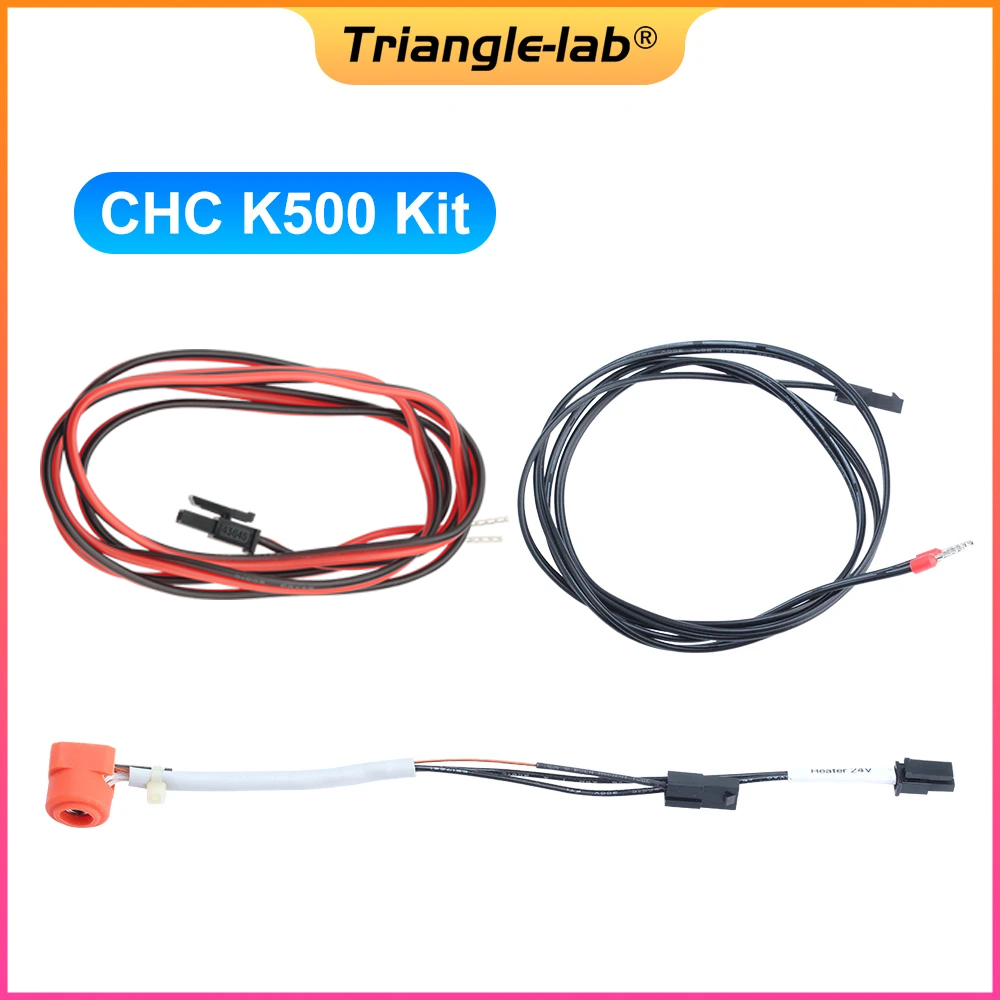

Trianglelab Ceramic Heating Core KIT(Built-in K500 Thermocouple)

▉Technical details:Please click here!

▉K500 thermocouples:Please click here!

▉Compatible:

V5/V6 Hotend,CR10 Hotend,Hemera Hotend,Matrix Extruder,Titan Aero,DDB V6 Hotend KIT,TD6 Hotend,TD6S Hotend,TR6 Hotend,CHC Mini Hotend.

Supports temperatures up to 300℃

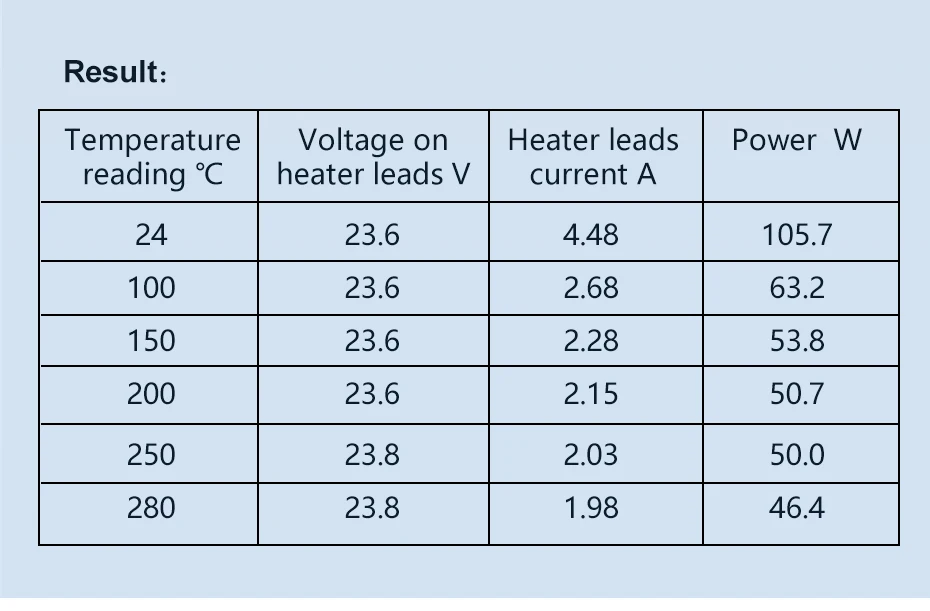

ID09L08-60W ceramic heater power test

Roomtemperature 24℃

Controller BoardMKS BASE V1.4

Resistance at room temperature  9~10Ω    24V 57.6~64W

Resistance at room temperature  3~4Ω    12V 36~48W

Controller Boardpowervoltage24V DC

Firmware marlin2.0

No Firmwareheater power limiting

Read the temperature from the LCD

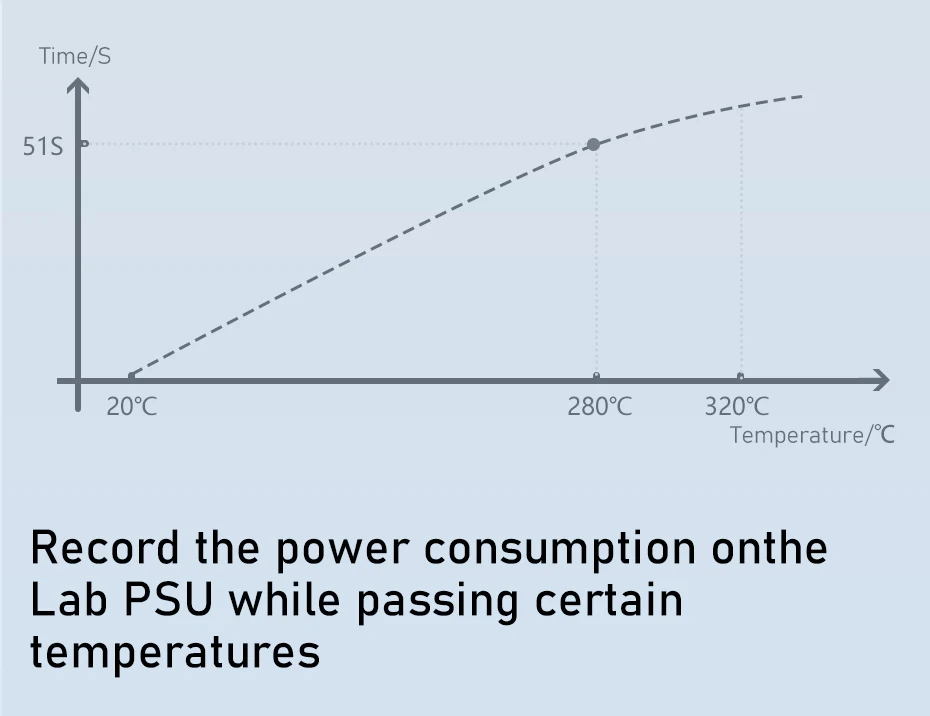

Record the power consumption onthe Lab PSU while passing certain temperatures

Please note that the temperatures in the table are thermistor embedded in the melting zone not the actual temperatures of the heating element especially at low temperatures.

The power in the table above has been deducted from the consumption of the controller board and LCD 1.03W.

▉Features:

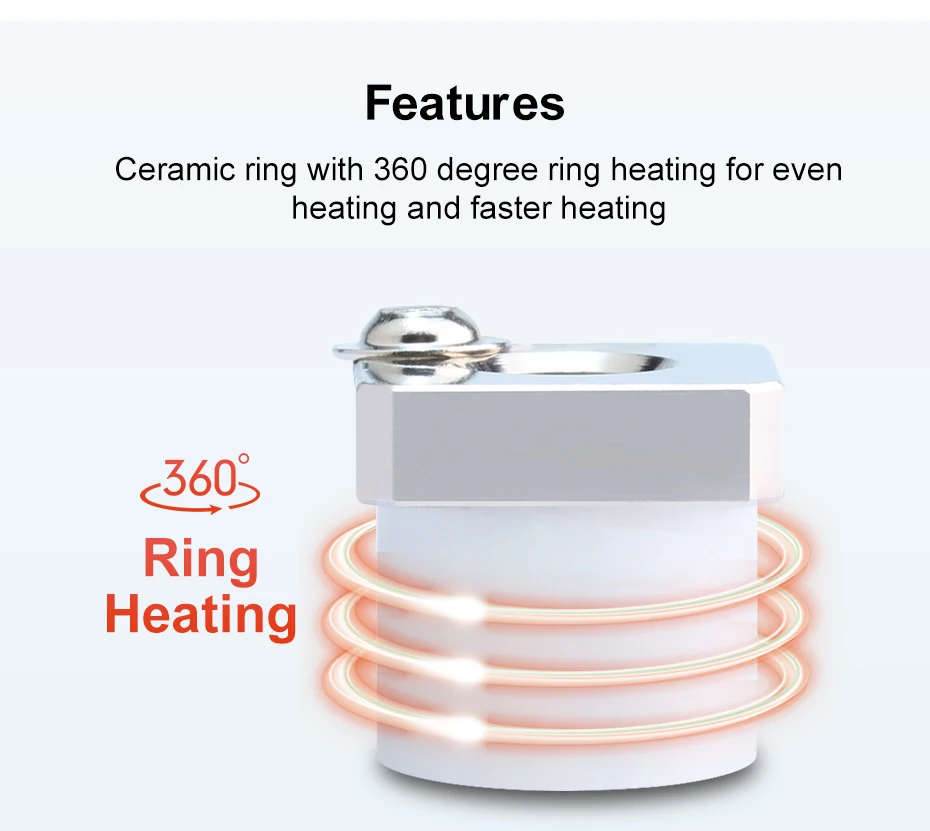

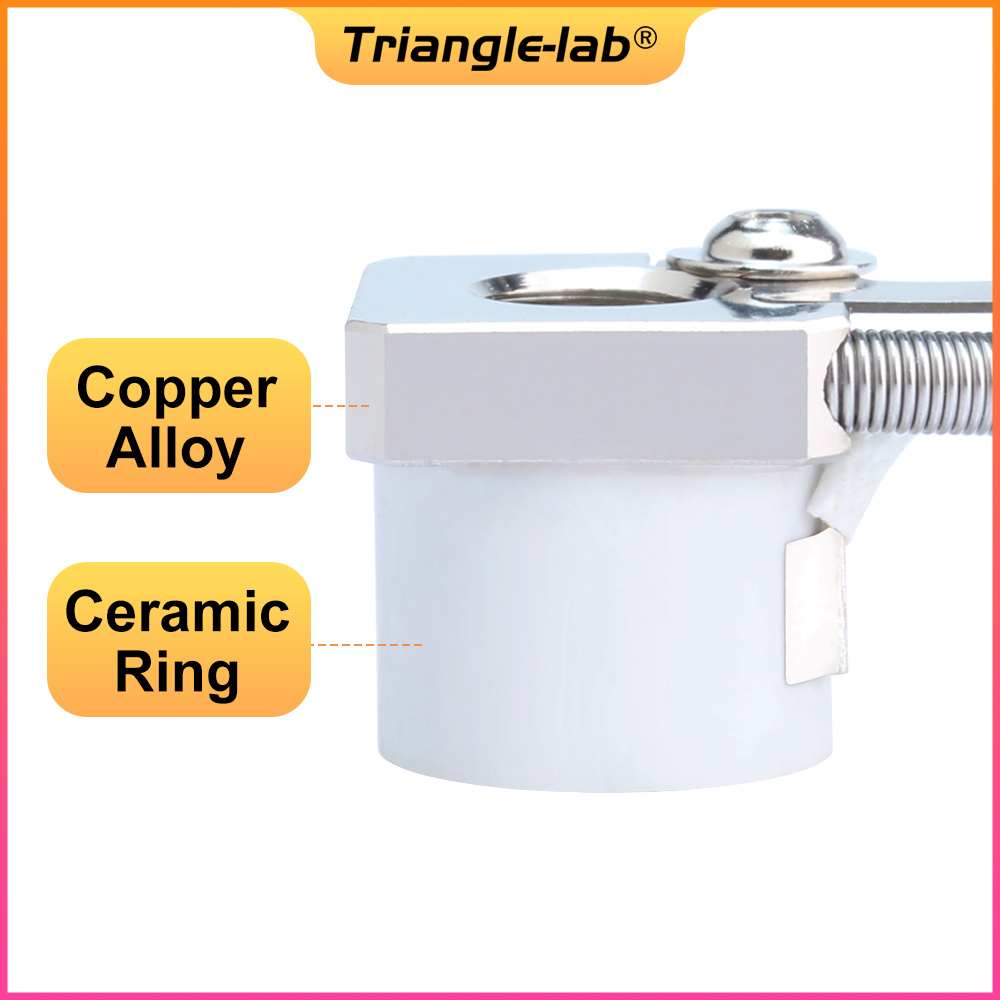

Cylindrical ceramic heaters can be optimized and symmetrically heated materials

The thermistor is directly installed in the BLOCK to obtain a more realistic temperature reading when the material comes out of the hot end

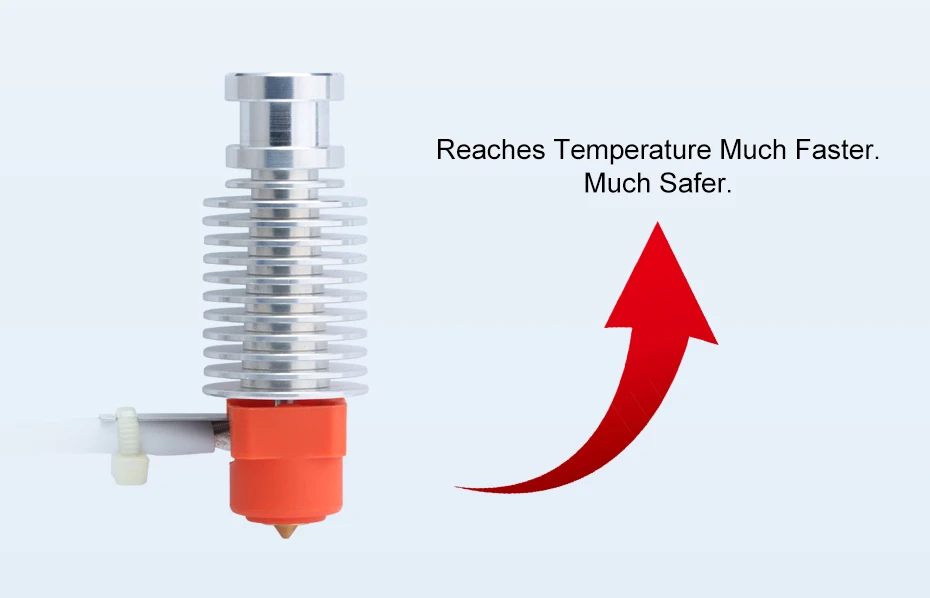

Lightweight design, suitable for fast printing

Small compression size

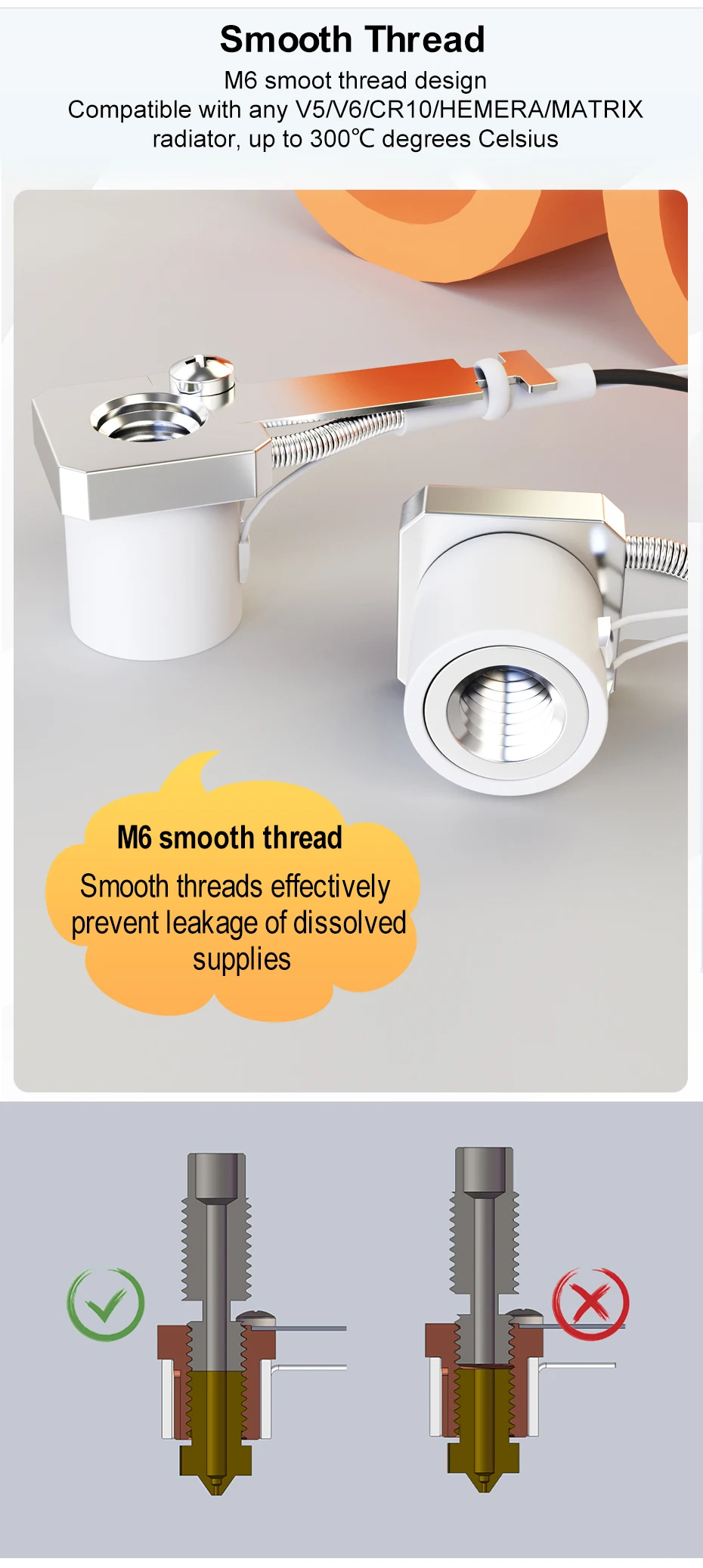

Compatible with any V5/V6/CR10/HEMERA/MATRIX radiator, up to 300℃ degrees Celsius
