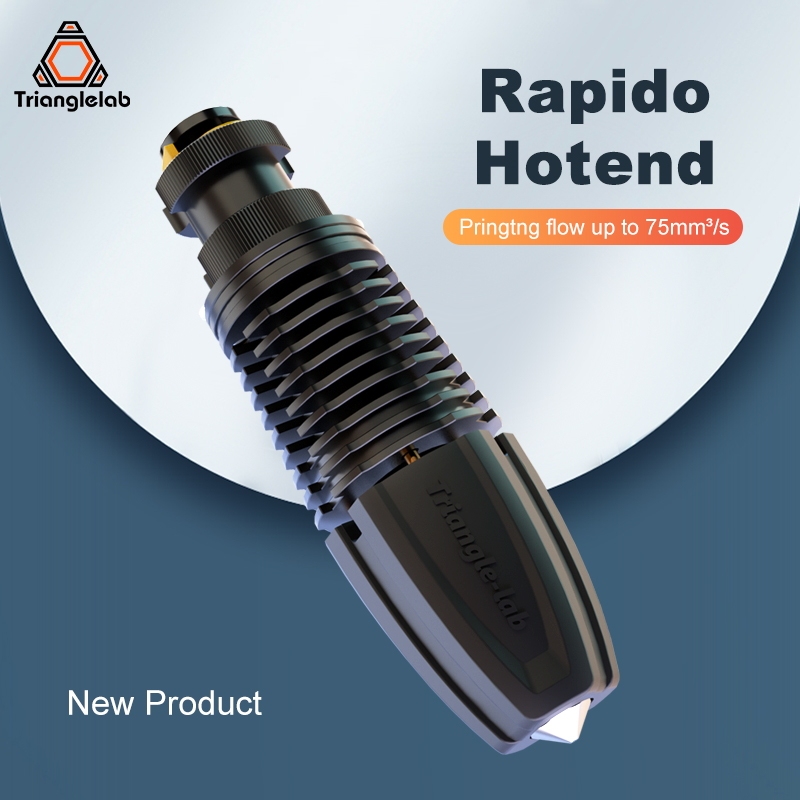

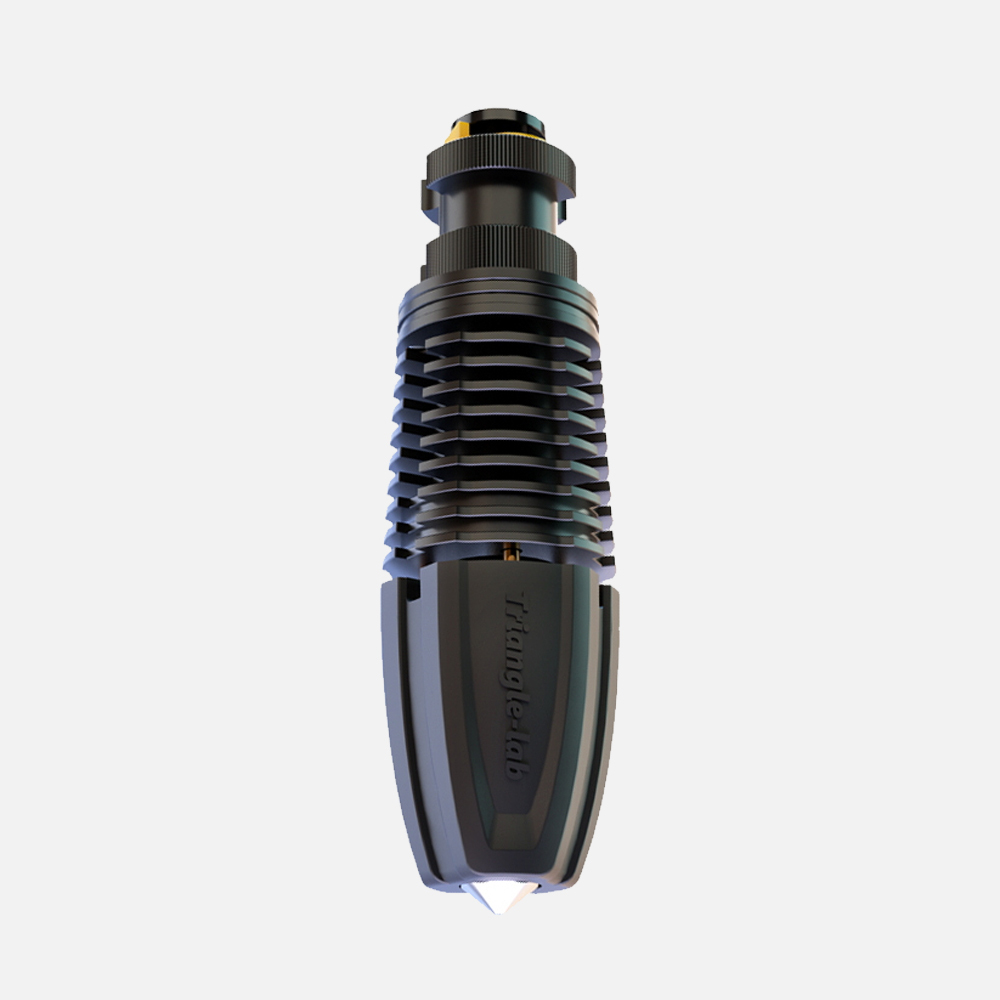

Trianglelab Rapido Hotend
█ Describe

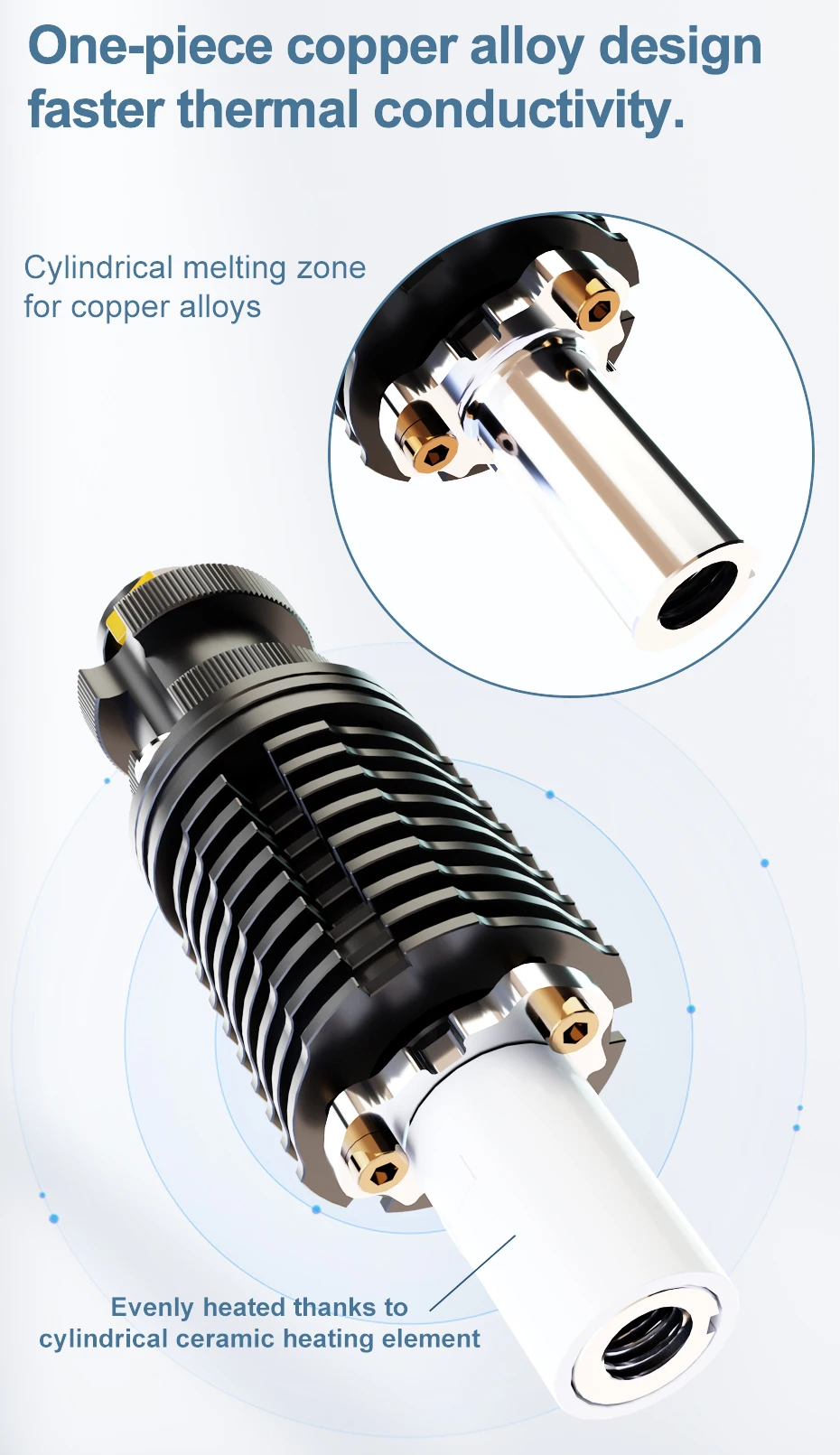

Rapido hotend has a unque copper alloy cylindrical melting zone wrapped in a high-powered ceramic heating element so that it has a more uniform heating section and a shorter heat transfer path. Therefore, greater flow and heating efficiency can be achieved.

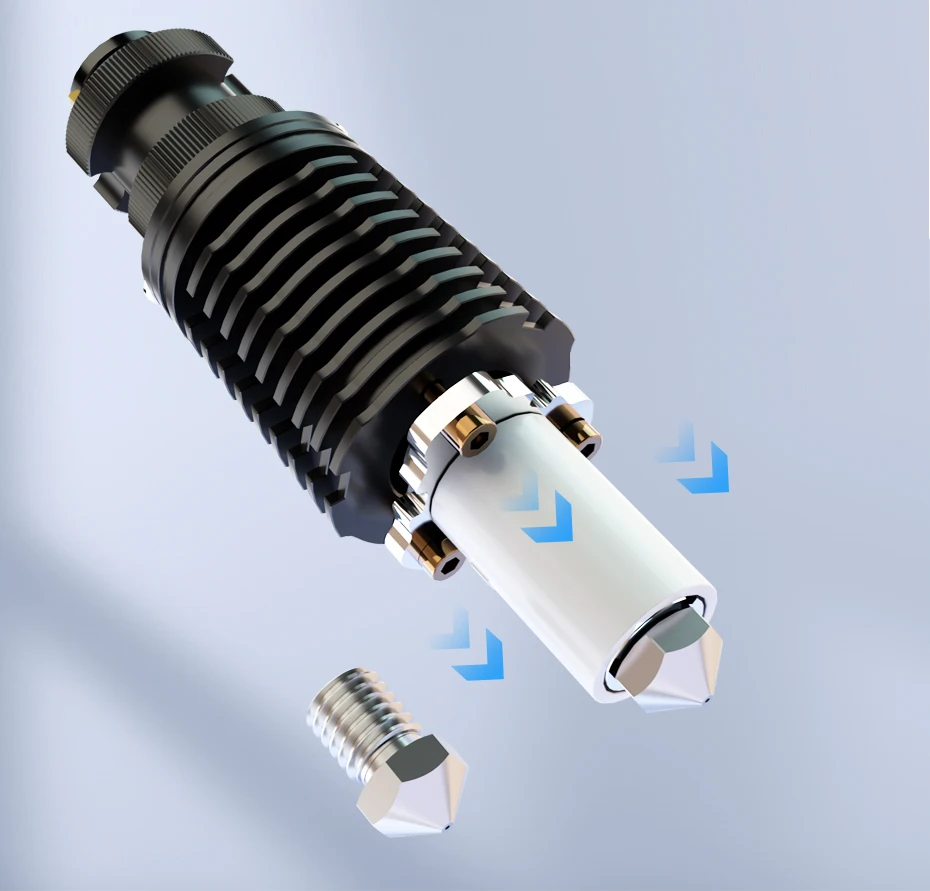

The thin-walled surgical-grade stainless steel heat breaker and three titanium screws make the entire structure more robust. With the heat sink firmly in place, the nozzle can be changed with one hand, and the heat breaker will not be easily damaged by collisions during printing.
The detachable groovemount adapter allows for dual use of groove mount and screw mount. The rapido hotend has 16mm bolt circle diameter mounting screw hole same as the dragon hotend. Pre-set nozzle thread depth keeps leaks from happening again.
The rapido hotend has the same overall dimensions as the Volcano hotend with V6 or compatible nozzles installed by default. it can be used as a direct replacement for the Volcano hotend while having a higher flow rate (up to 45mm³/s) and the same extrusion accuracy than the Volcano.When the rapido hotend is fitted with a volcano nozzle and melting zone extender, it has a even higher flow rate (up to 75mm³/s) while maintaining a relatively small size and weight.

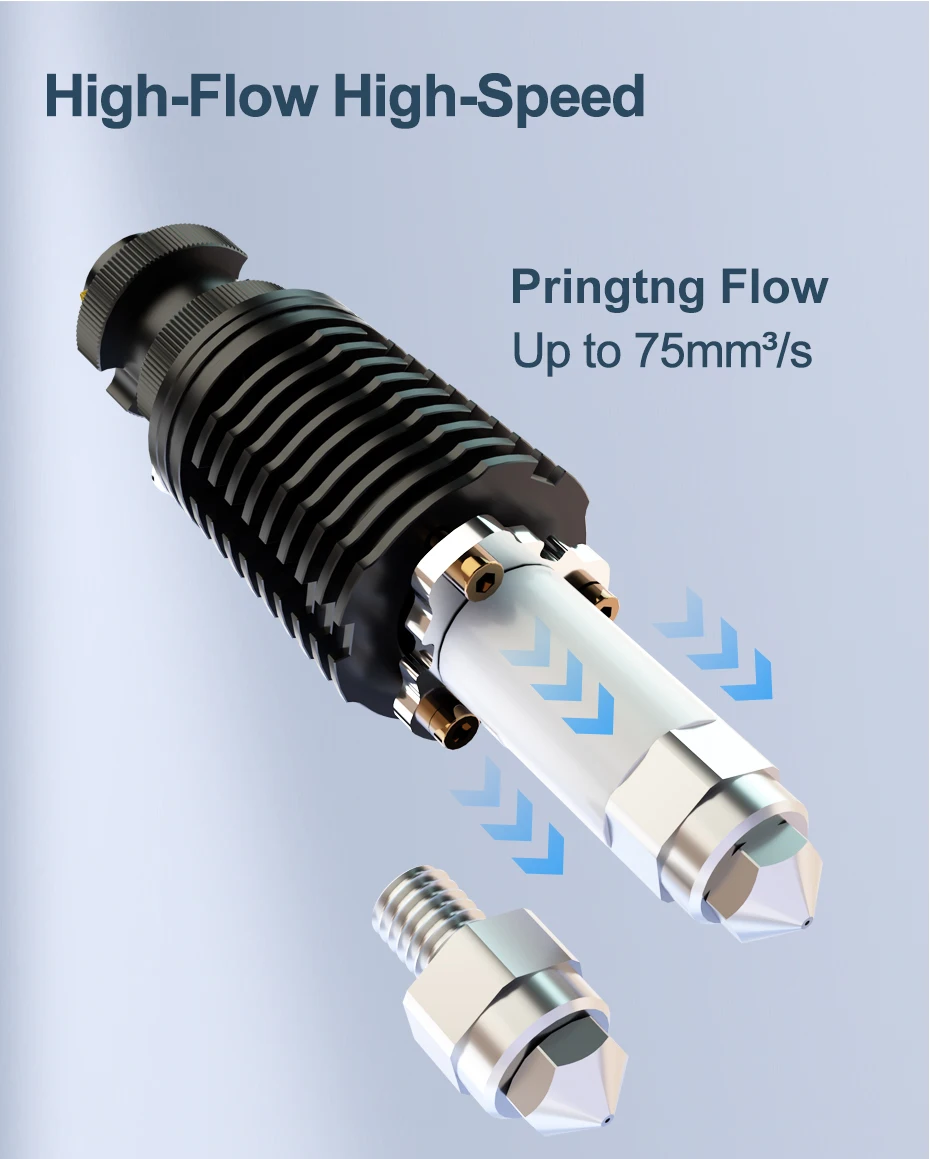

High-Flow High-Speed
Pringtng flow up to 75mm³/s
High Heater Capacity
High power cylindrical ceramic heating element up to 115W
24℃-280℃ less than 51 seconds
One Hotend Two Configuration
More information about Rapido Hotend
1.https://trianglelab.net/u_file/2111/01/file/Rapido-hotendcylindricalceramicheaterpowertest-f063.pdf
2.https://trianglelab.net/u_file/2111/01/file/Rapidohot-endMaximumPracticalFlowRateTest-5d73.pdf
3.https://trianglelab.net/u_file/2111/01/file/RapidohotendCapabilityTest-4483.pdf
4.https://www.youtube.com/watch?v=JiuDVpVh8DM

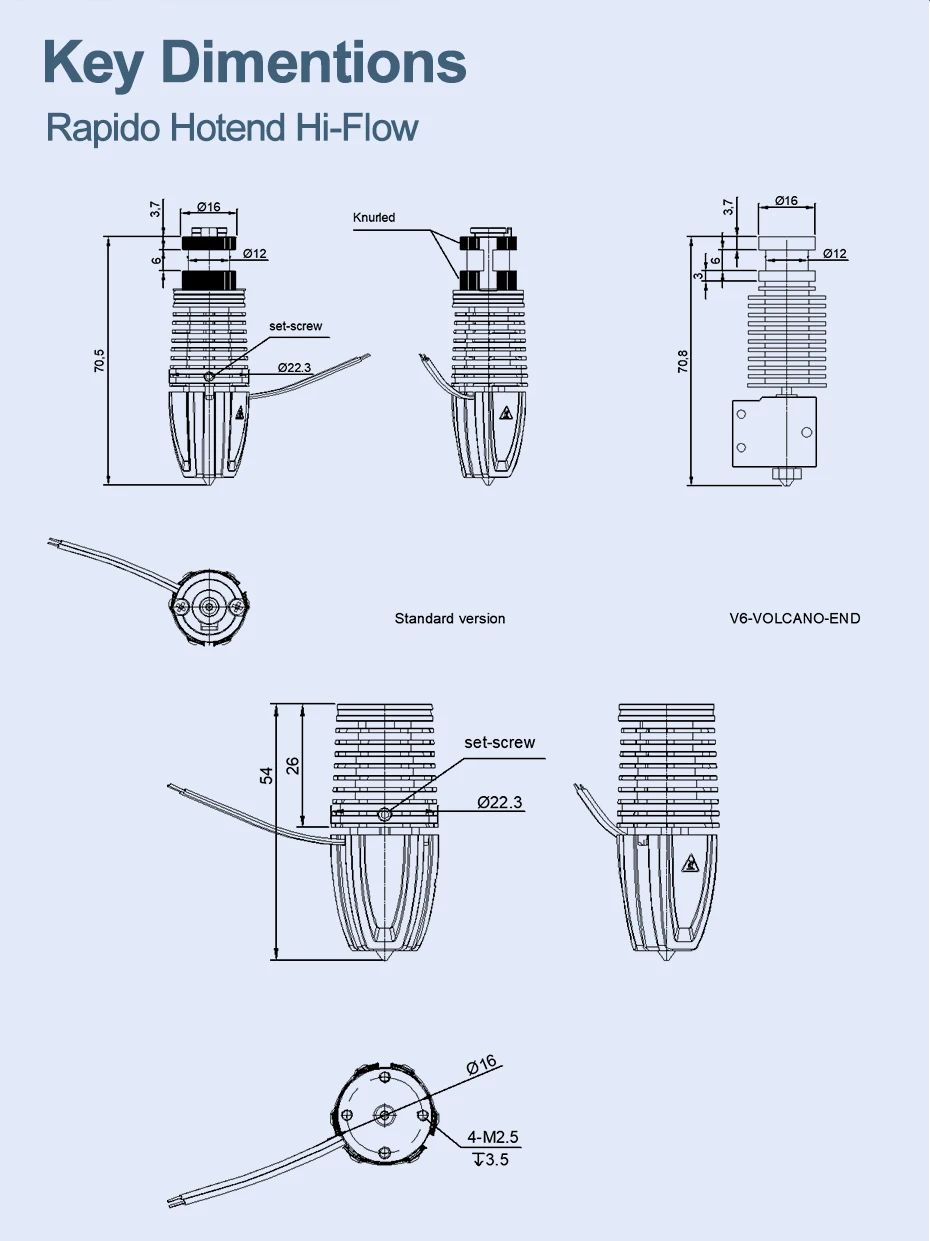

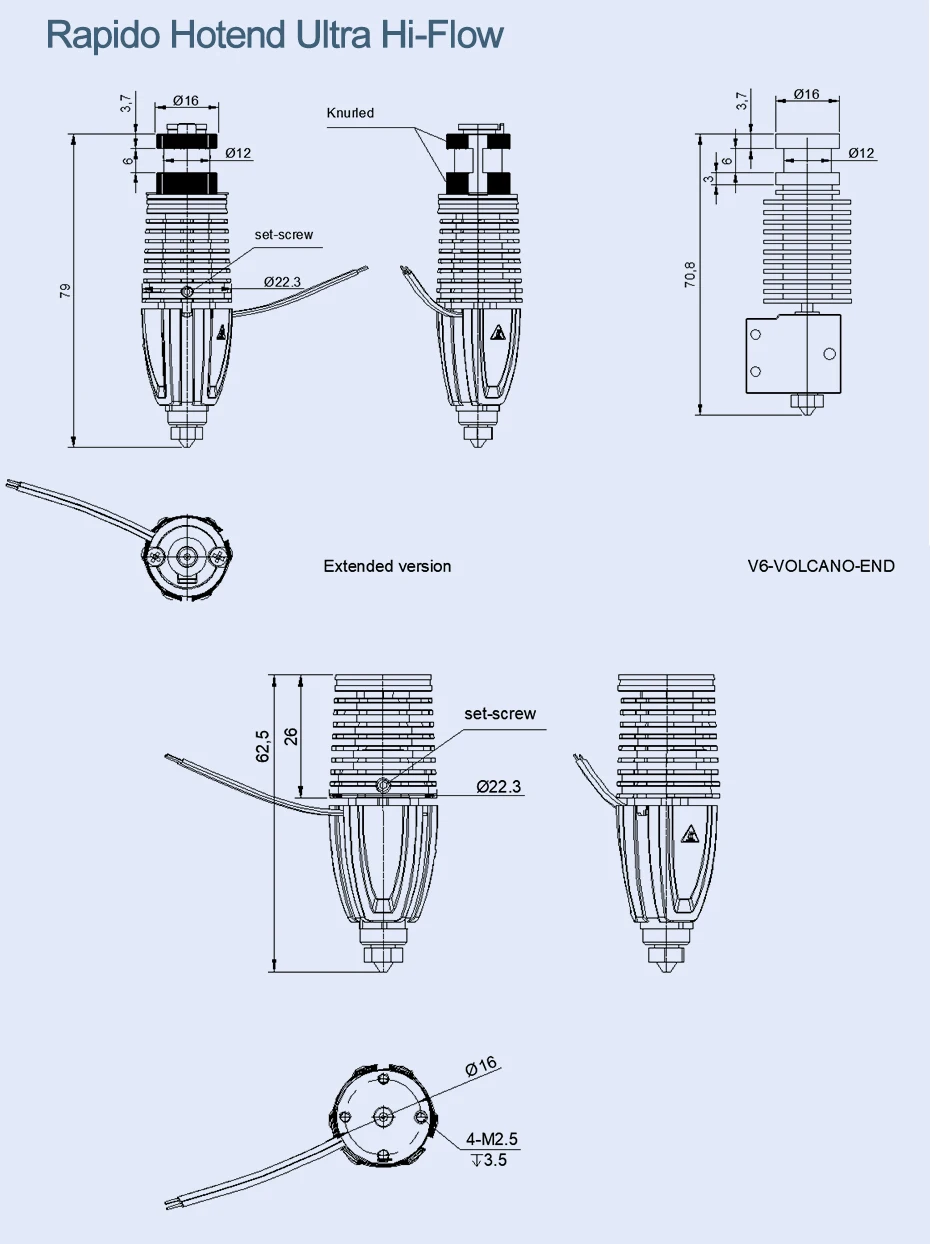

Key Dimentions

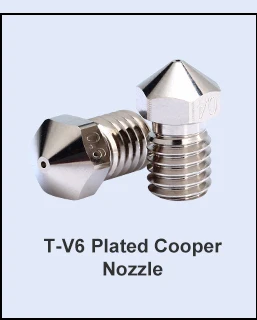

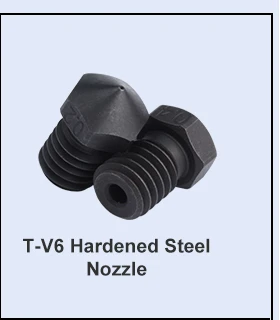

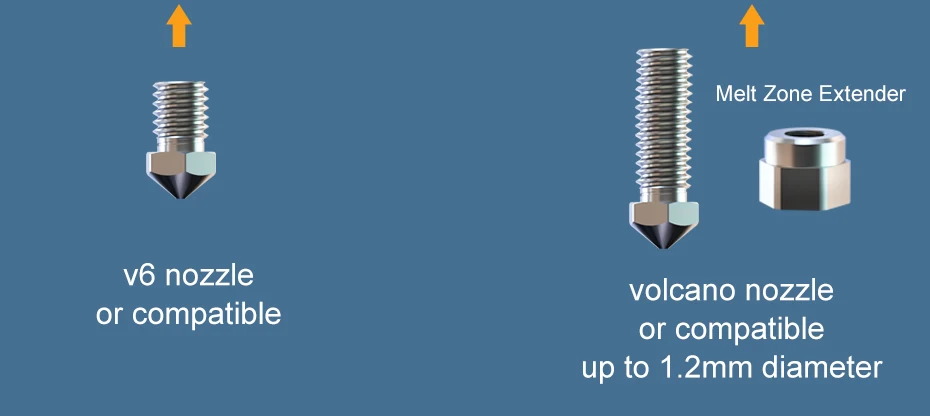

Compatible Nozzles
If you would like to purchase the nozzle pictured below, please click on the image！
About the Rapido Hotend

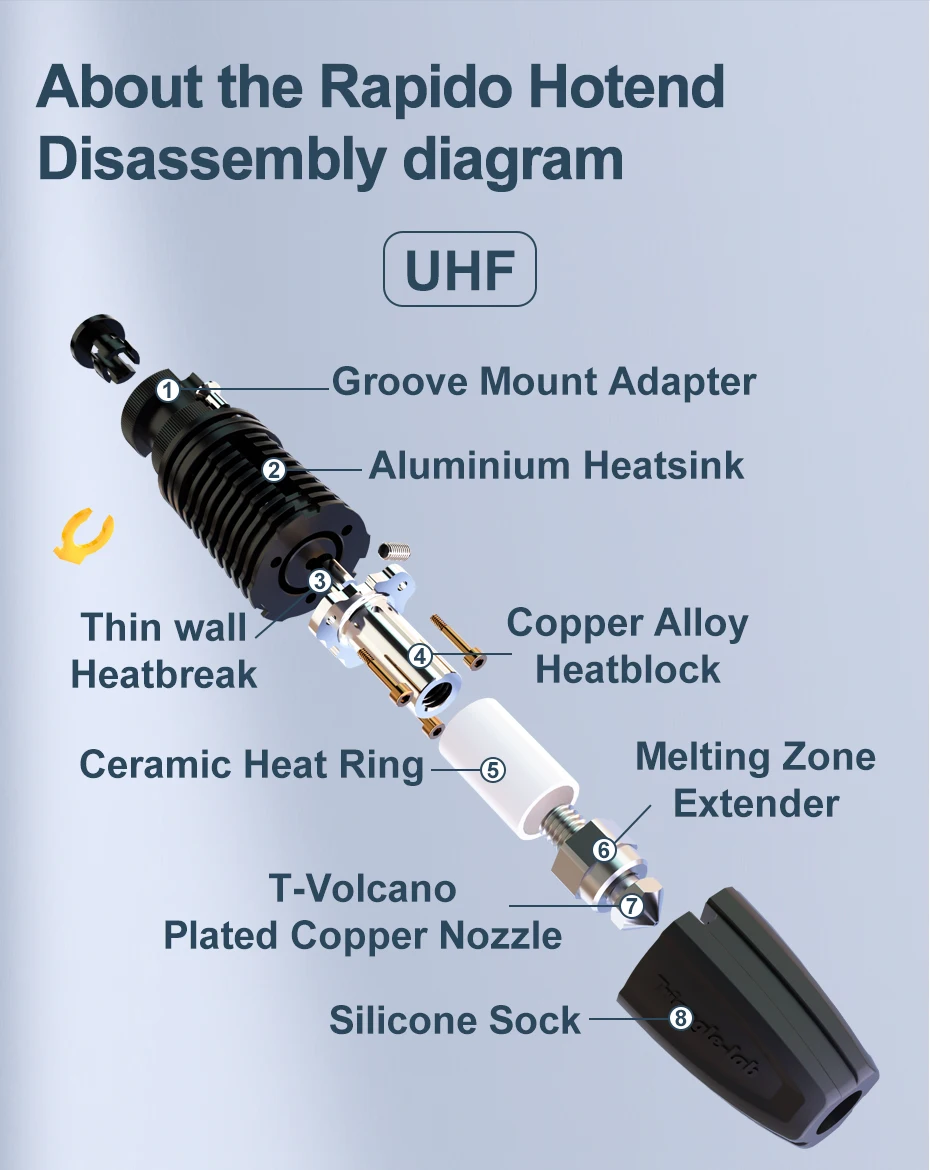

Disassembly diagram
1.Groove Mount Adapter 2.Aluminium Heatsink
3.Thin Wall Heatbreak 4.Copper Alloy Heat Block
5.Ceramic Heat Ring 6.Melting Zone Extender
7.T-Volcano Plated Copper Nozzle 8.Silicone Sock

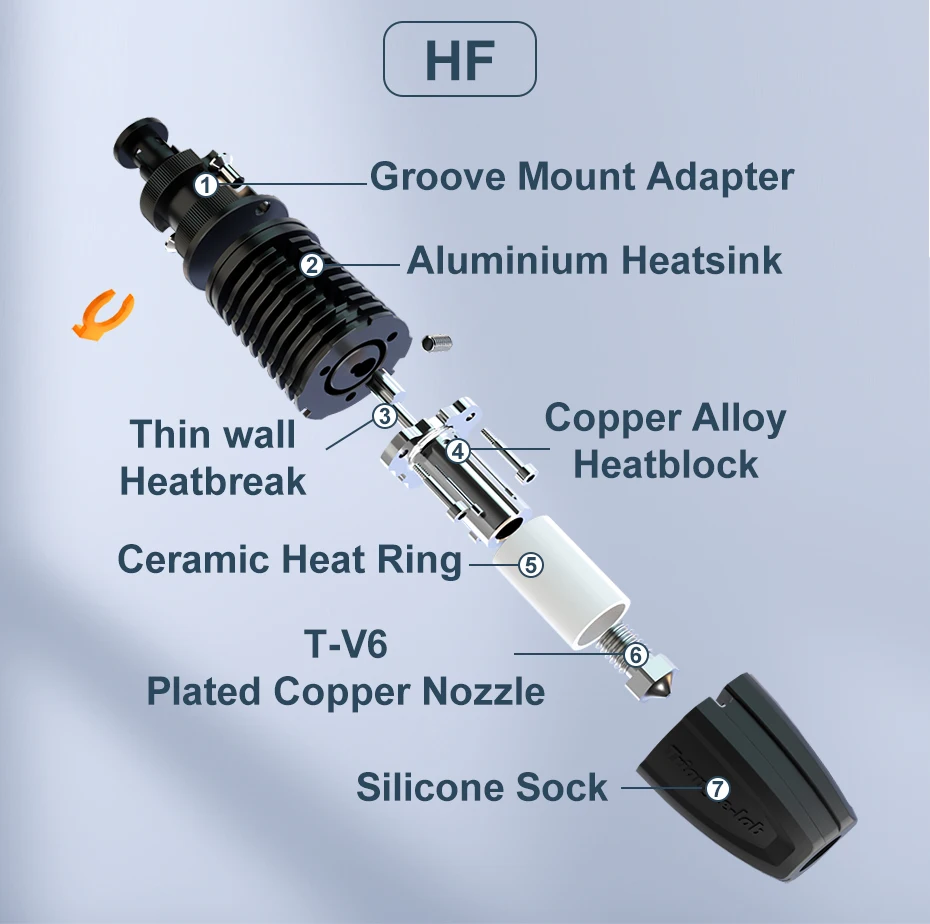

1.Groove Mount Adapter 2.Aluminium Heatsink
3.Thin Wall Heatbreak 4.Copper Alloy Heat Block
5.Ceramic Heat Ring 6.T-V6 Plated Copper Nozzle
7.Silicone Sock
What's in the box

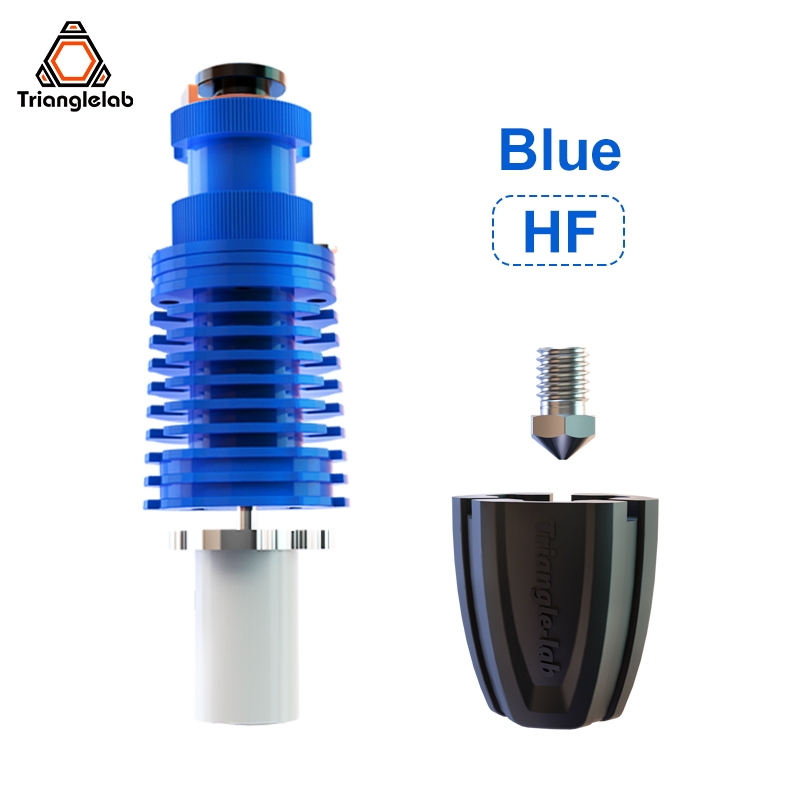

Ste1:High Flow Rapido Hotend
Rapido-hotend Pre-assembled x1
Groove Mount Adapter x1
M2.5x5 screws x4
M2.5x8 screws x4
Tube Collet with Clips x2
T-V6 Plated Copper Nozzle 0.4 x1
Hexagon Wrench kit x1

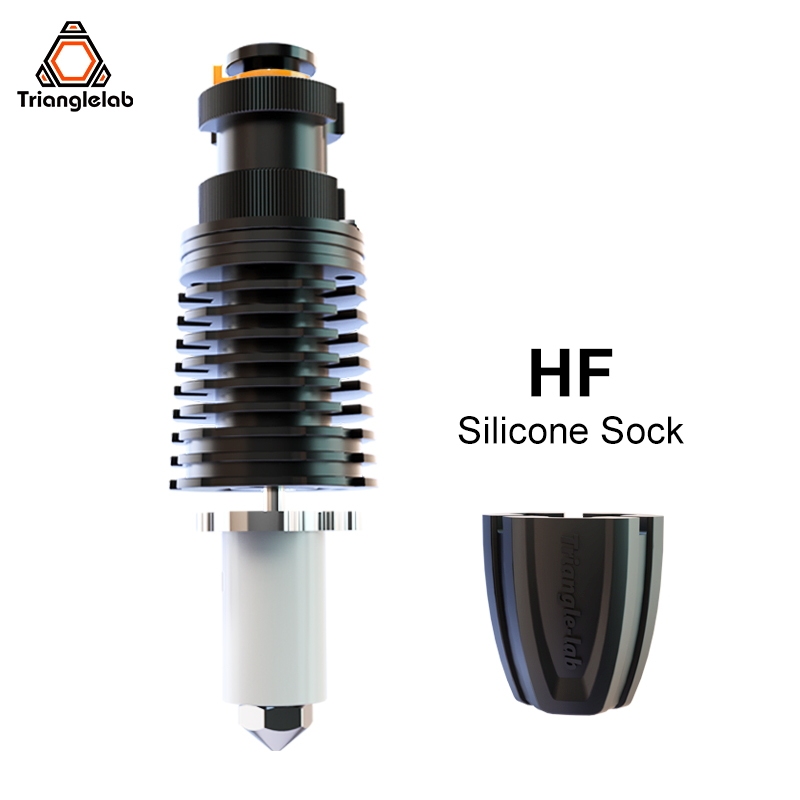

HF Silicone Sock x1
Thermistor extension cable x1
Heater extension cable x1

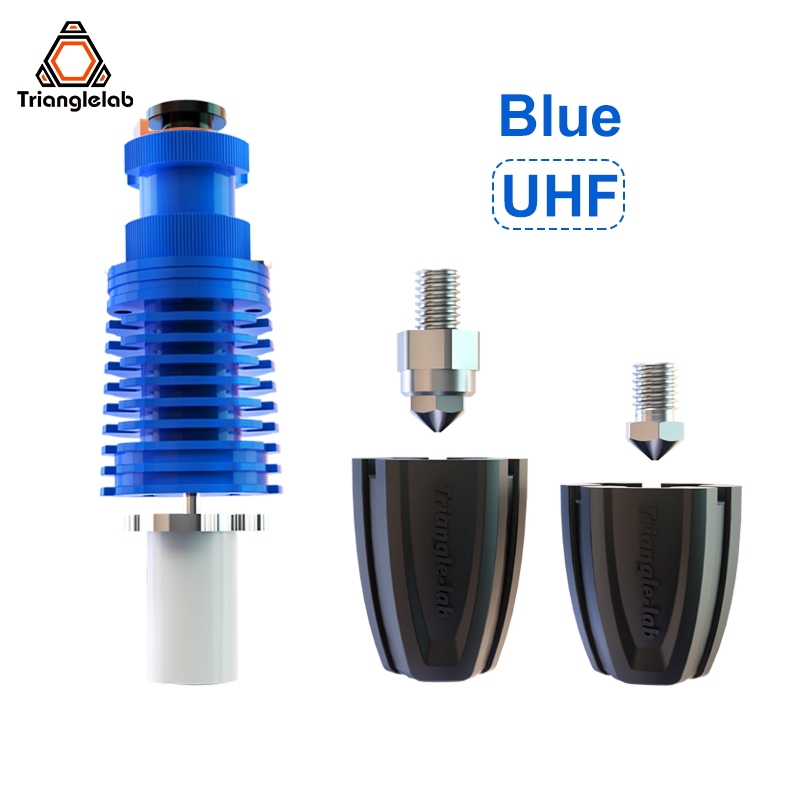

Ste2:Ultra High Flow Rapido Hotend
Rapido-hotend Pre-assembled x1
Groove Mount Adapter x1
M2.5x5 screws x4
M2.5x8 screws x4
Tube Collet with Clips x2
T-V6 Plated Copper Nozzle 0.4 x1
HF Silicone Sock x1
T-Volcano Plated Copper nozzle 0.6 x1

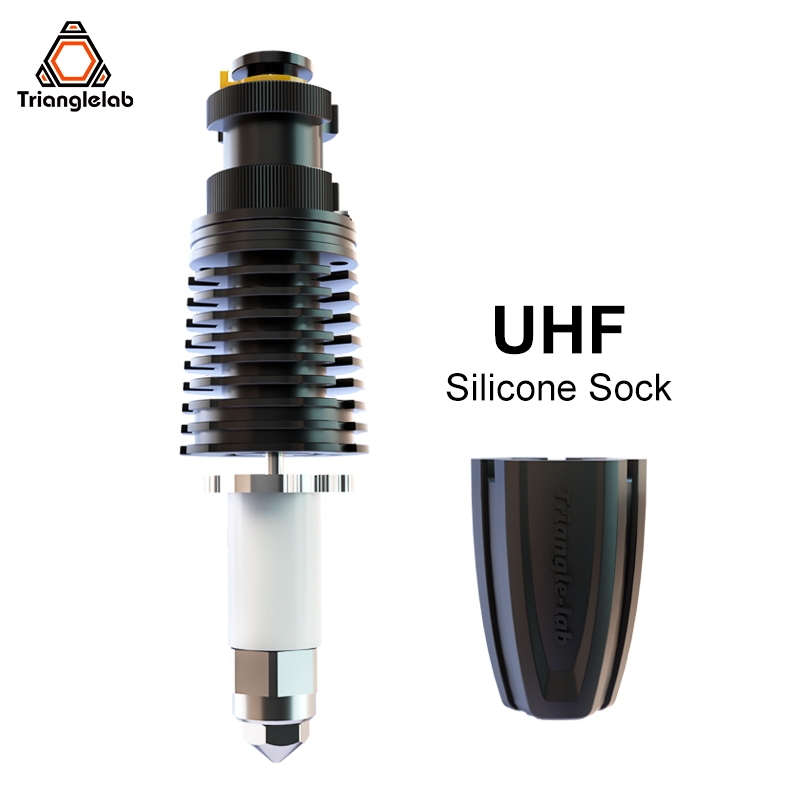

UHF Silicone Sock x1
Melting zone extender x1
Hexagon Wrench kit x1
Thermistor extension cable x1
Heater extension cable x1
