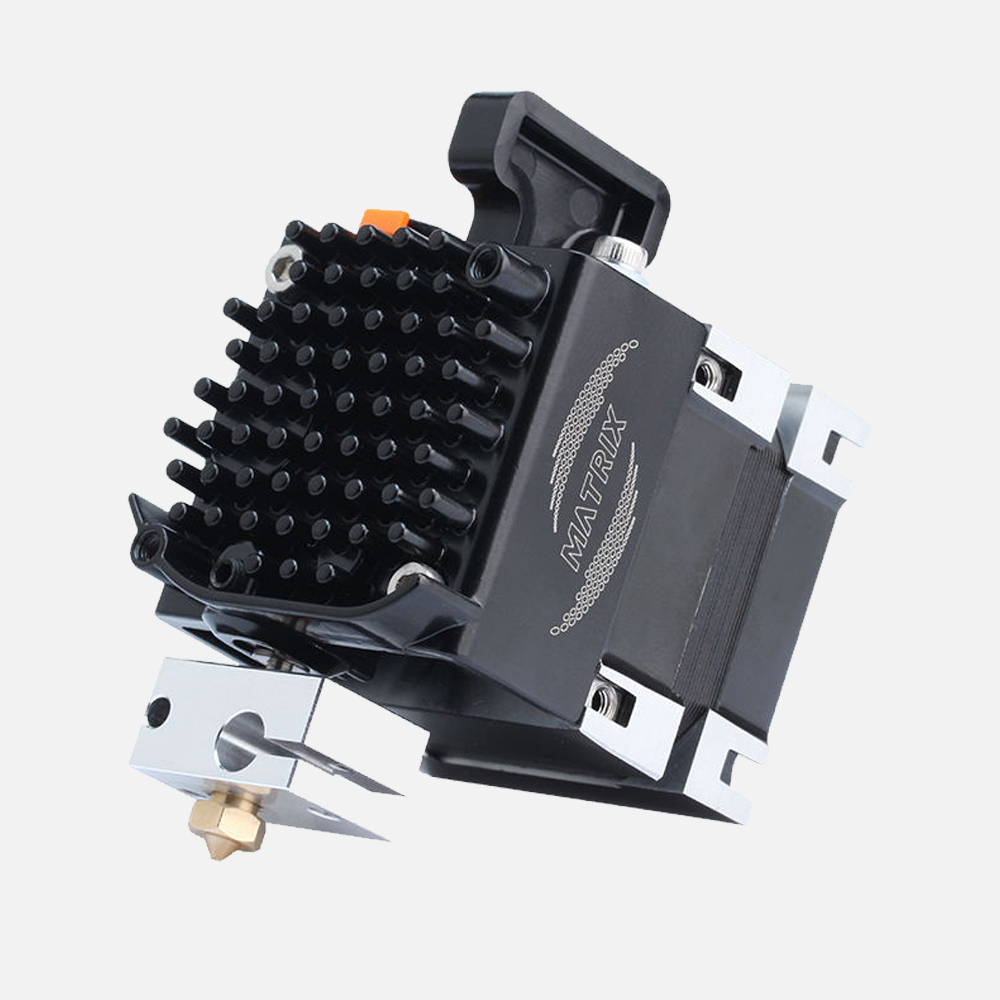

Matrix Extruder Lite

Note
All products purchased on this website are not include tax, including and not limited to: Consumption tax, Value added tax, customs duties, etc,
Before placing an order, please check your country's policies and regulations on online shopping taxes.
The amount you pay does not include tax and you will need to pay it yourself.
To purchase a tax-included products, please click the link below：
https://trianglelab.aliexpress.com/store/1654223

If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.

The trianglelab has always been concerned about product quality. We are developing products and working hard to improve the quality. We will not abandon our reputation because of many cheap products on the market. It is believed that only high quality products can ensure the quality of your work and bring safety to your work.
Some of our products may be more expensive than others, but please believe in our quality and believe that you will not regret when you receive the goods.

If you want to know more. Please wait a few days. We will add more details soon.



▉About logistics description:

Because the package contains strong magnets, ordinary logistics cannot be transported. So no matter which kind of logistics you choose. We will modify the logistics you choose. The package will be transported by air transportation of special dangerous goods, or other logistics. We will ensure that your package arrives as soon as possible. Thanks for your trust.



▉Name:

Matrix Extruder Lite

▉Installation guide:
https://drive.google.com/drive/folders/1K_Jj4JfczDlKiNnwk-SYakOIQqm4zllD?usp=sharing
*We prepare the ender3/CR10/Artillery X1 and other printer brackets in the network disk.
▉Release Notes:
Matrix Extruder Lite is about 100g lighter than Matrix Extruder, which is a big improvement. Although the MOTOR of Matrix Extruder Lite is much shorter, it still maintains a high torque. To ensure that it can cope with the use of various filaments.
However, Matrix Extruder Lite is not applicable to many adapter brackets in the Internet. We believe that through a period of customer training. More people will share the bracket of Matrix Extruder Lite.
▉Highlight:
·dual drive with adjustable tension idler
·very short filament path
·thin-walled bi-metal heat breaker
·compact extrusion system
▉Compatible:
Compatible with Prusa
Compatible with Ender 3 /3 PRO/ 5
Compatible with CR-10/CR-10S
Other models can find brackets here. Search for the term HE?ER?(Sorry I have to cover this term. You should know how to search.)
https://www.thingiverse.com/
◆Summary
Drive type: Dual drive with adjustable tension idler
Max printing temperature: 285°C(upgradable to 450°C)
Mass: 300.2g(Including HOTEND and fan)
Nominal steps per mm(16x): 335.4 steps per mm(further calibration required)
Motor current: 1.2A
Filament diameter and tolerances: 1.75±0.05mm

Max pushing force: 6.1kg Generic PLA 10mm/min @24V Driver

◆XYZ Dimensions

53.7mmx78.7mm



◆Hotside Compatibility

V6       Volcano      Super Volcano

Electrical
Heater power 40W                         12/24V optional
Fan 40x40x10mm DC Ball Bearing    12/24V optional
Thermistor Semitec 104NT-4-R025H42G
Motor

▉What's in the box:

Trianglelab -Matrix Extruder Lite X 1

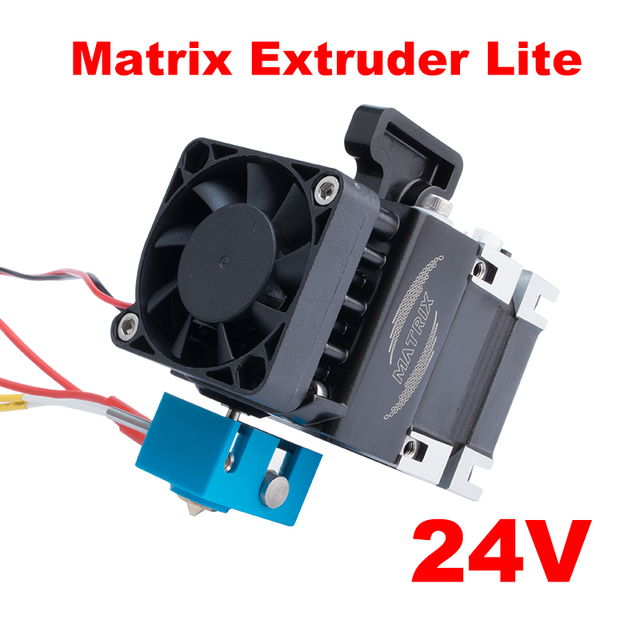

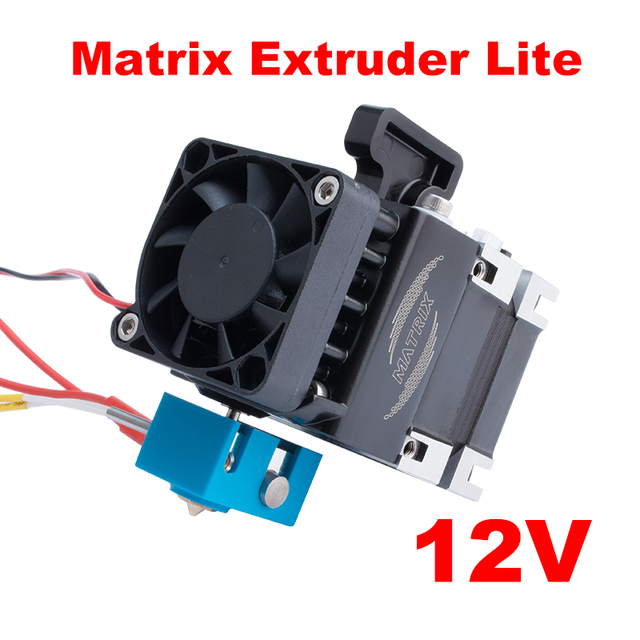

*Friendly reminder. Choose the right voltage*

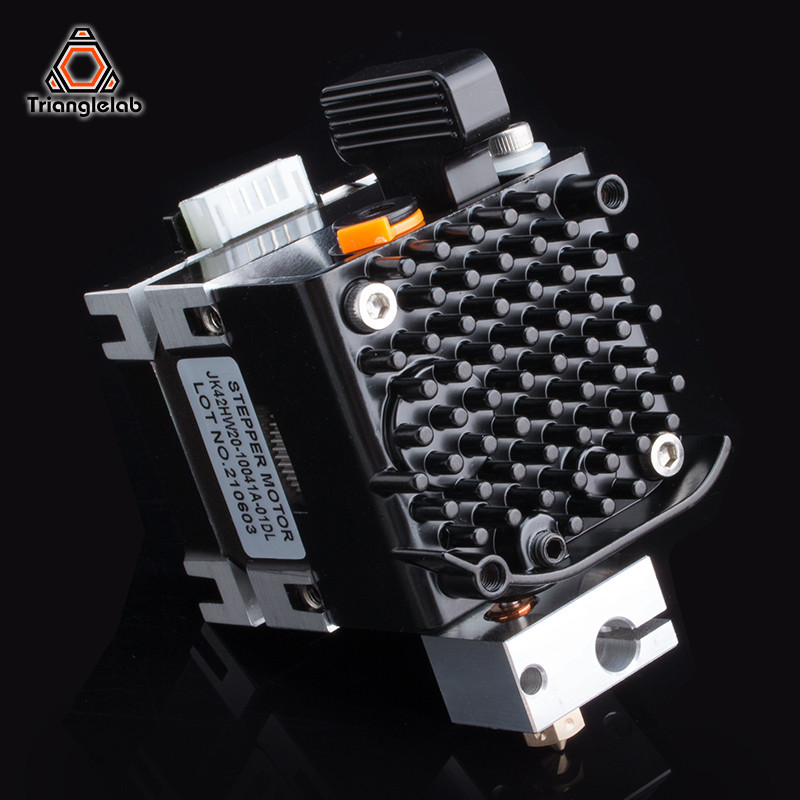

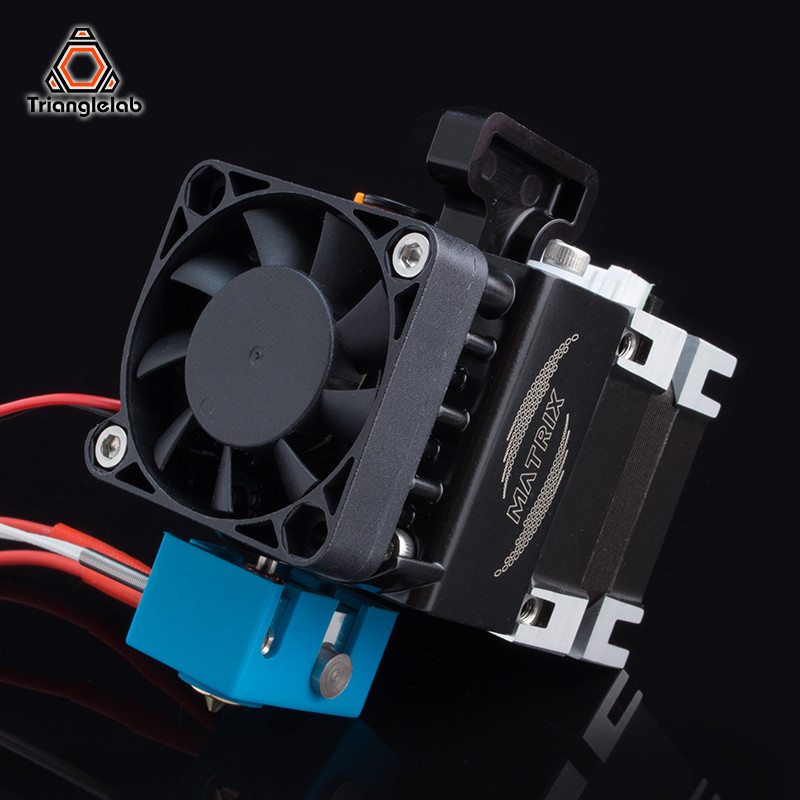

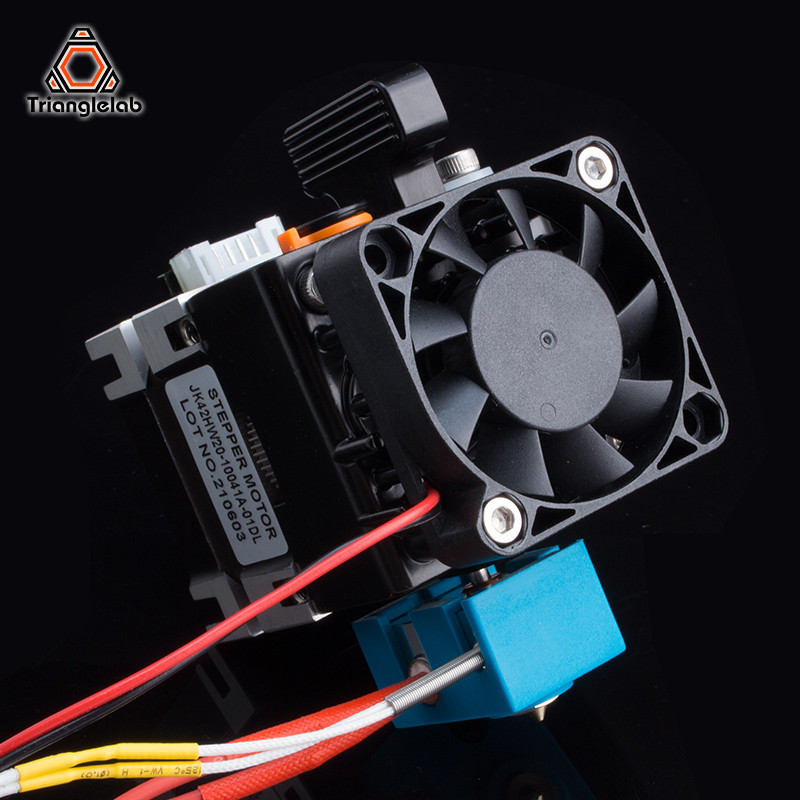

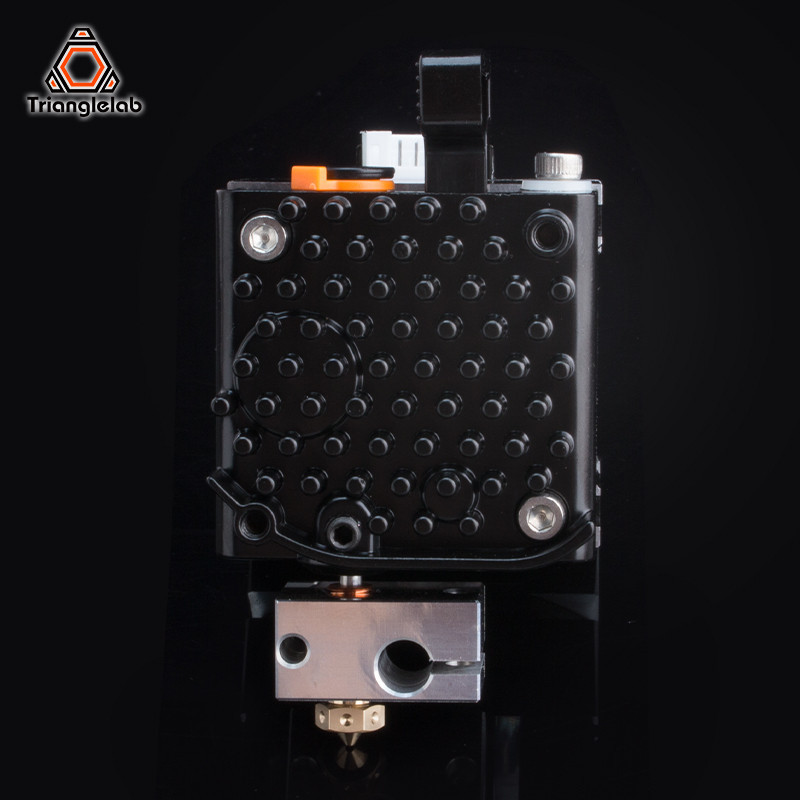

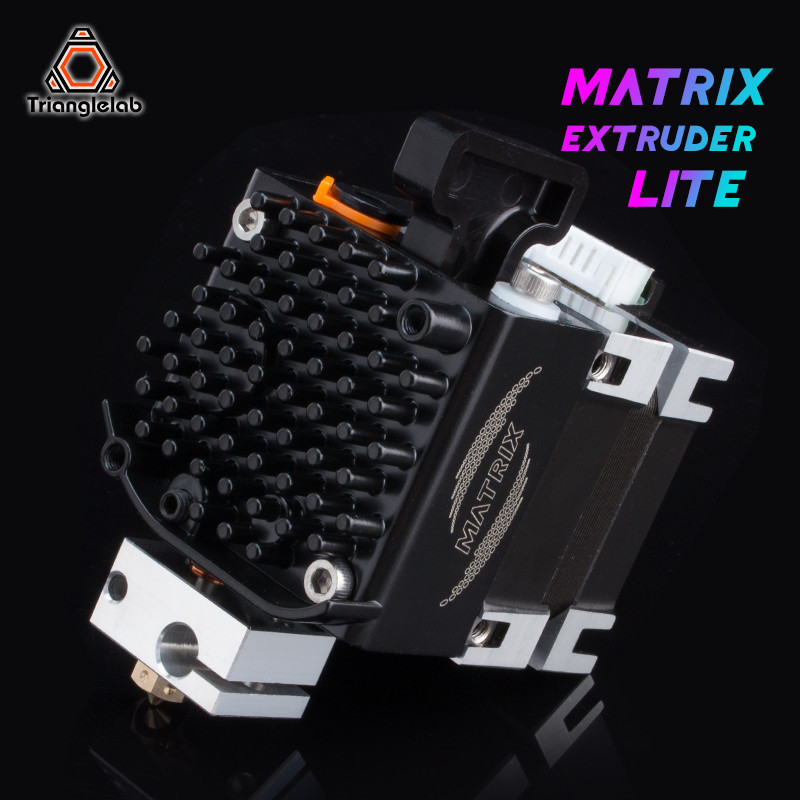

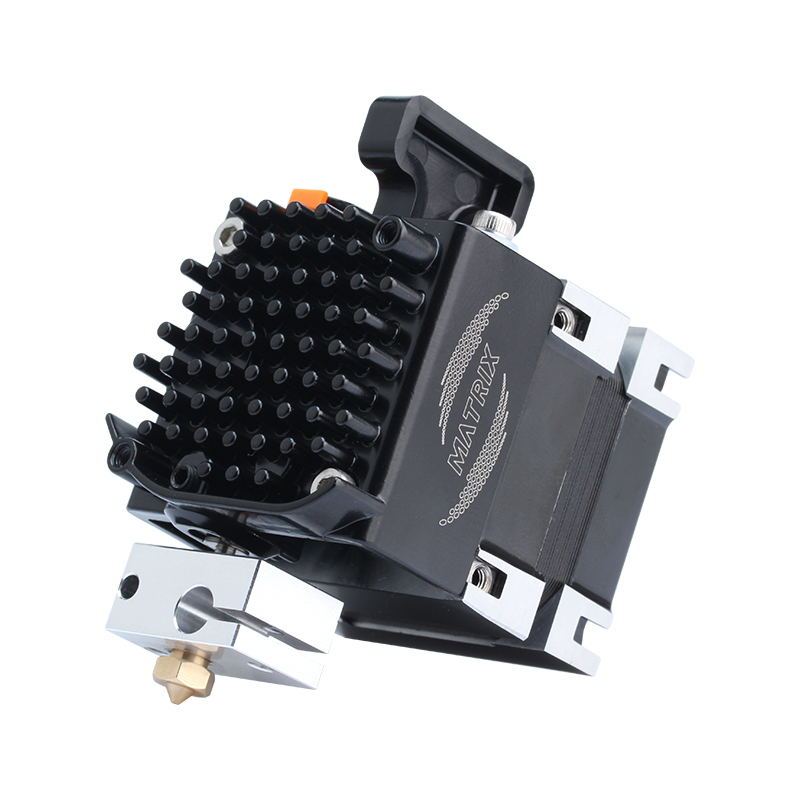

▉Photo display:

▉Test machine printing effect display:

*The machine models participating in the test are:

A:Ender 3

B: CR-10S

C:X1
