TMC2226 V1.0(TMC2209)
Name: ☀
Support from BIG TREE Company.
https://github.com/MarlinFirmware/Marlin/pull/14215?fbclid=IwAR1QJDcuRzzhg7TihQcsfGTyx4UPcmtfhqhRw0gCzRL5gfqj5ZMC36wpN5M
We are first one let Marlin 2.0 add support for BIGTREETECH TMC2209(TMC2226) V1.1 UART:
https://github.com/bigtreetech/BIGTREETECH-TMC2209-V1.2
TMC2209 V1.2 GitHub/Manual:
We have upgraded TMC2209(TMC2226) V1.1 to V1.2
Important! Installation Notes:☀
The TMC2226 are an excellent option like the TMC2209, and even recommended with respect to the TMC2209 if you are going to mount them in an electronics with little cooling. These will offer one more point of thermal resistance and cooling.
The TMC2226 drivers are an update of the TMC2209, with identical technical specifications but with the HTSSOP package (like the TMC2225). These already have StallGuard technology and offer us the possibility of mounting our printer without limit switches in X and Y (Sensorless).
Note:
Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.
The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.
, please contact us. We need to discuss the freight with you.If you need to send UPS/Fedex/TNT/DHL
TMC2209 V1.2(TMC2226) VS TMC2208, more of these functions:
1. blocking rotation detection
Stallguard--TMC2209(TMC2226) provides a load and loss of speed detection technology
2. Current dynamic adjustment
Coolstep--TMC2209(TMC2226) provides a current dynamic regulation technology that saves up to 75% of electrical energy.
TMC2209 V1.2(TMC2226):
Stepper Motor Driver based on a Trinamic TMC2209(TMC2226)
- Hardware compatible with StepStick and Pololu A4988
- Step/Dir interface with microstep interpolation(up to 256 microsteps)
- stealthChop2 - for quiet operation and smooth motion
- spreadCycle - highly dynamic motor control chopper
- coolStep - current control for energy savings
- stallGuard4 - sensorless motor load detection
☀What's in the box:

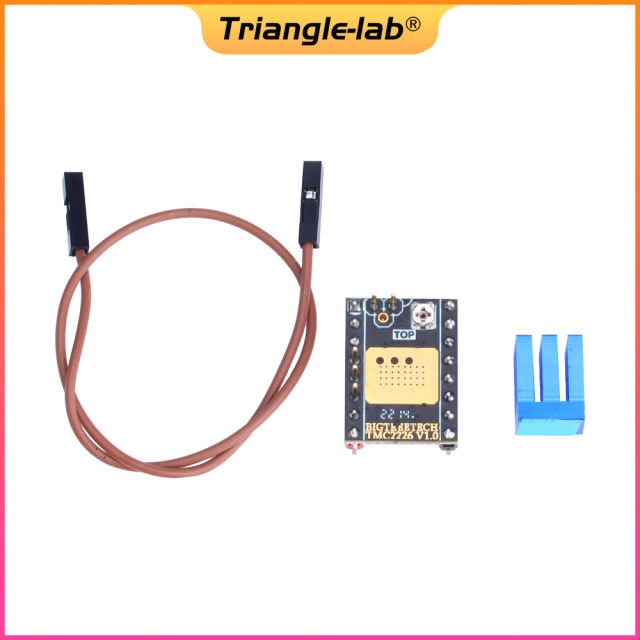

TMC2226(TMC2209 V1.2) X 1/3/4/5(Your purchase quantity)

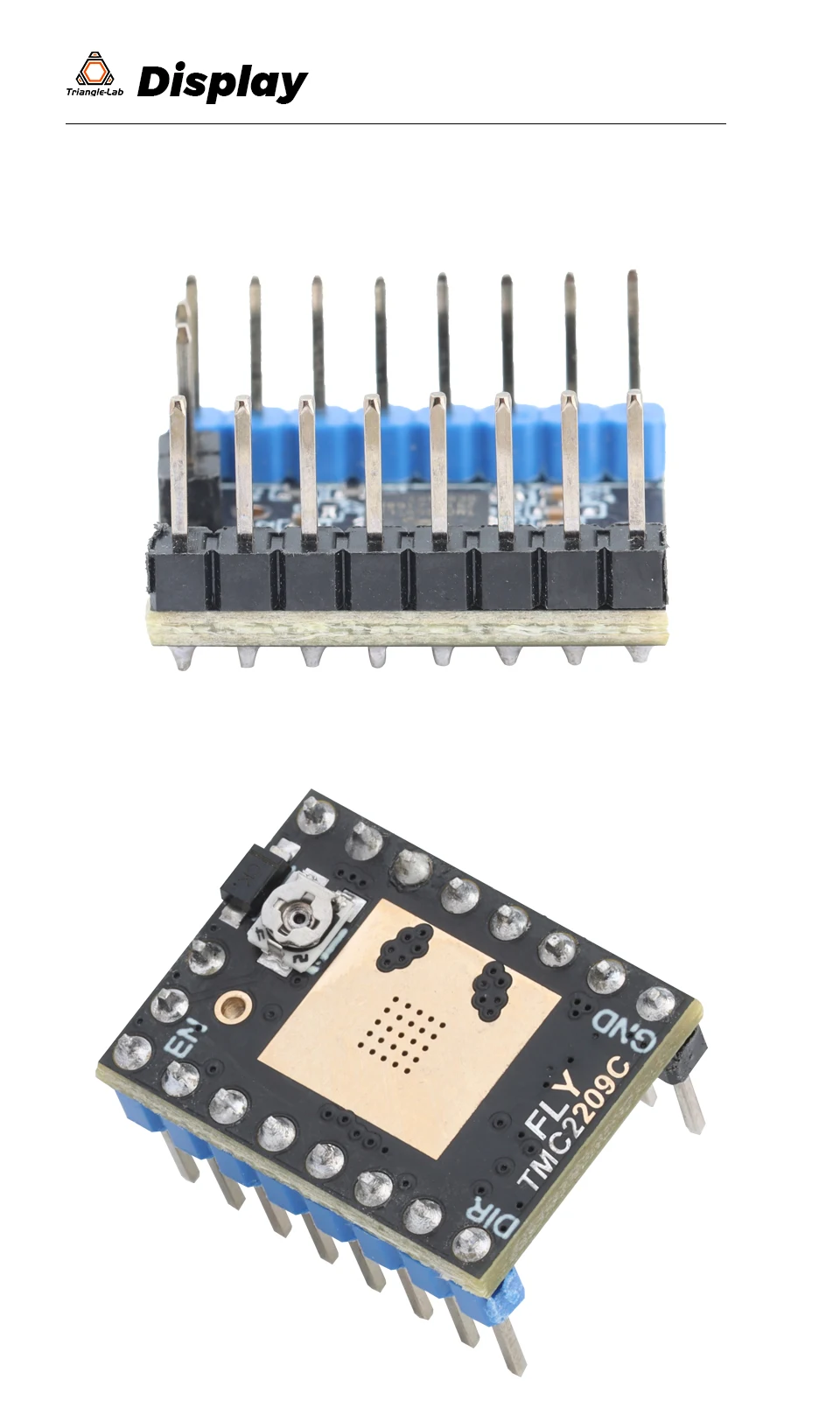

☀Photo display:
Please enjoy the excellent quality of art.
PEI 1010(USE Hardened steel V6 NOZZLE)
PEI Mixed material(Plated Copper Test)
☀Size:
☀TMC2209(TMC2226)/TMC2209V1.2/TMC2208 difference:
What is the difference between TMC2208 and TMC2209(TMC2226) SilentStepSticks?
(1)TMC2209(TMC2226) SilentStepSticks have output drivers with a lower power dissipation and a higher current is possible.
(2)TMC2209(TMC2226) SilentStepSticks feature coolStep and stallGuard4(optimized for stealthChop).
(3)TMC2209(TMC2226) SilentStepSticks can be switched between stealthChop and spreadCycle mode via a configuration pin(SPREAD).
(4)TMC2209(TMC2226) SilentStepSticks drivers have the v2 pinout(Vref and DIAGO swapped).
