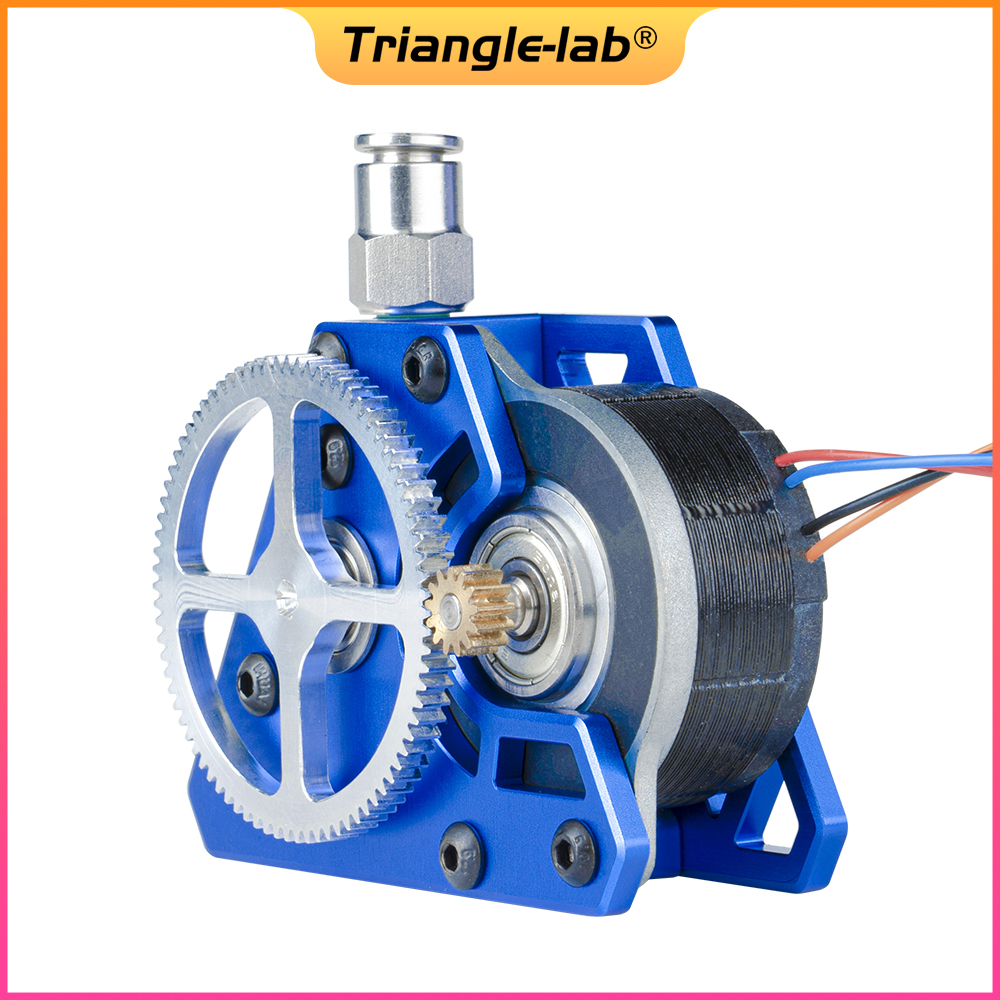

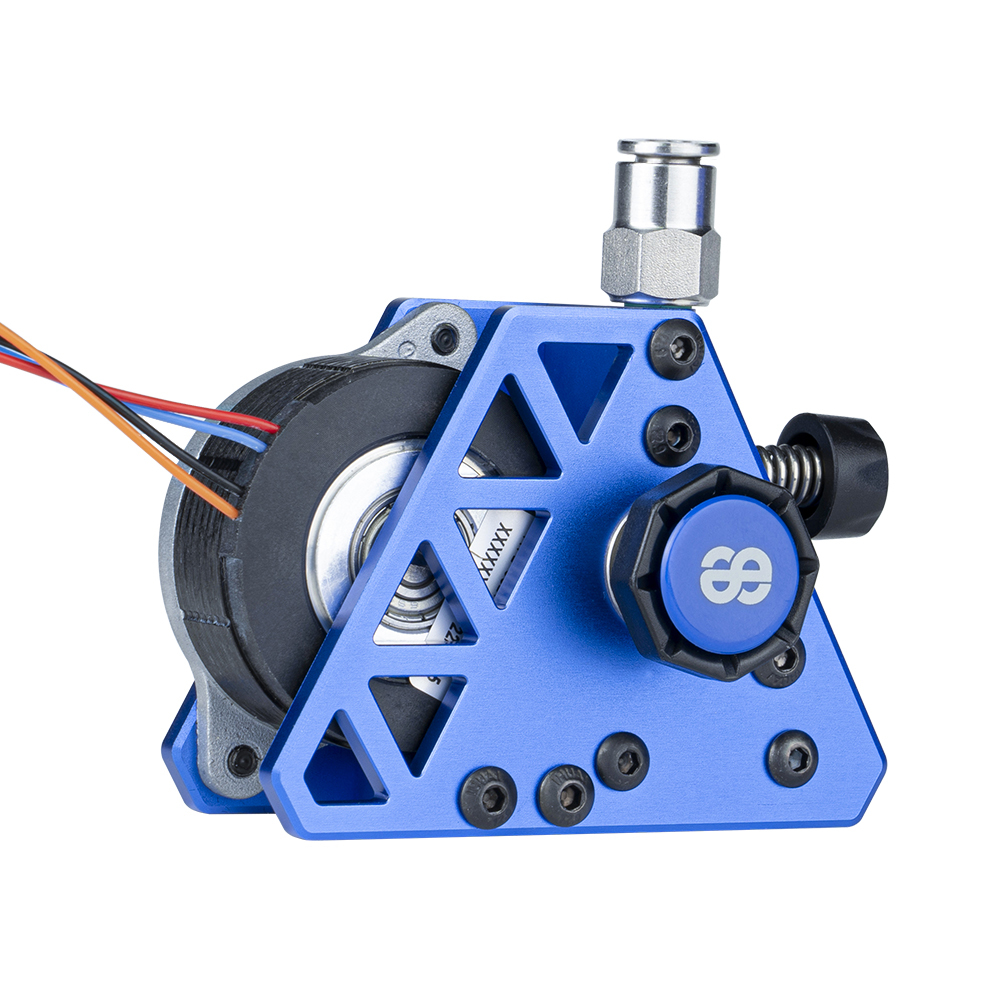

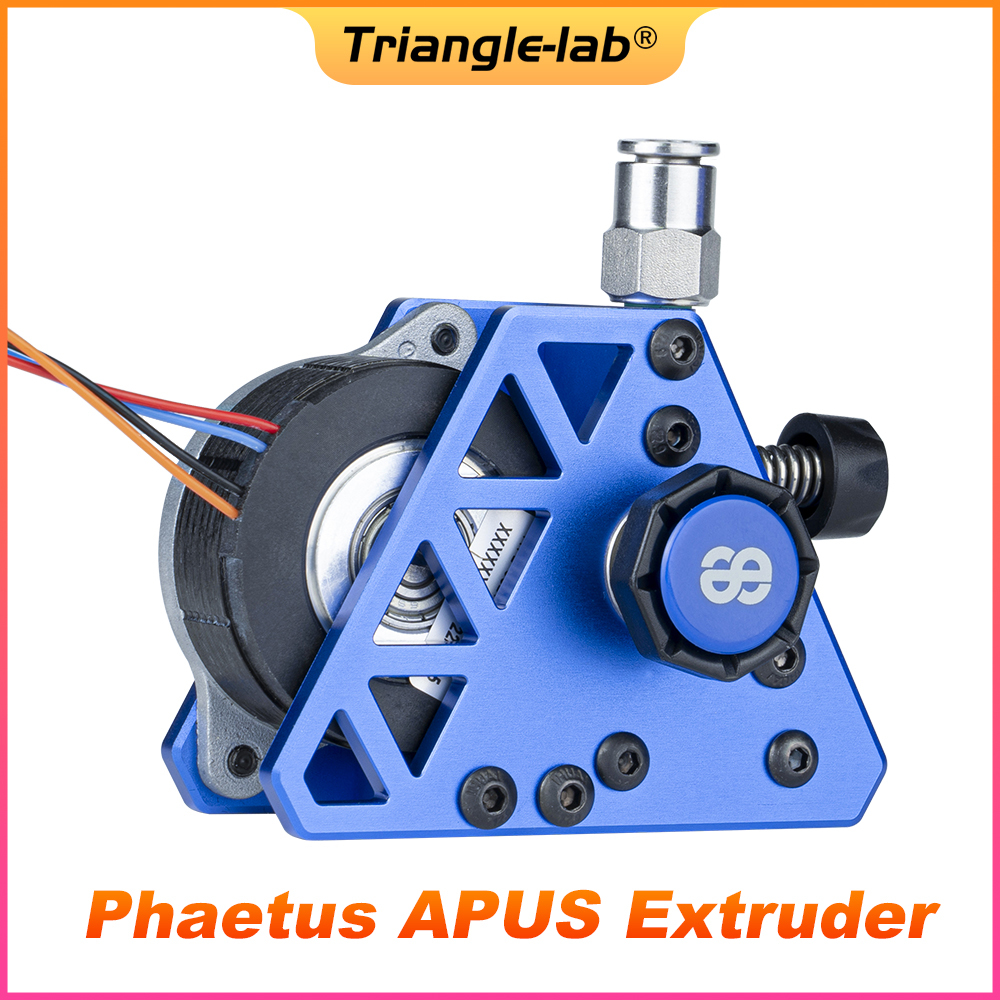

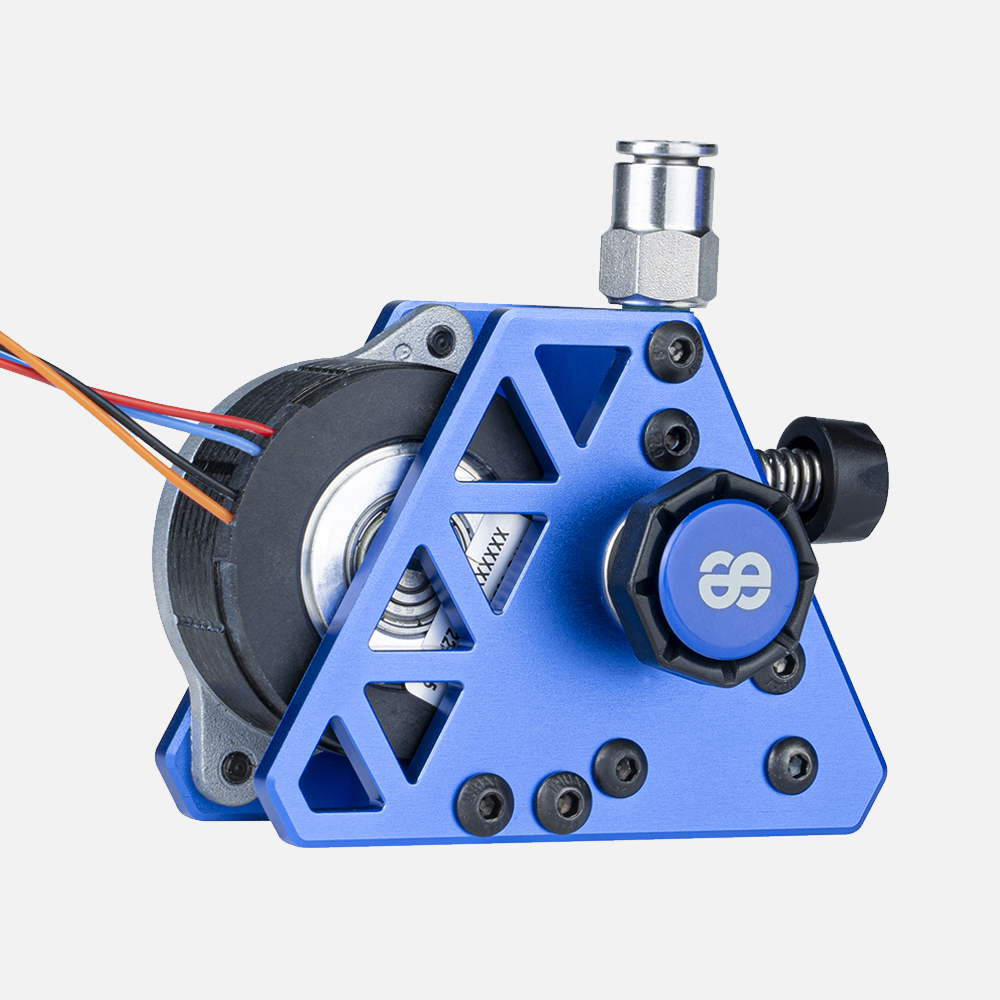

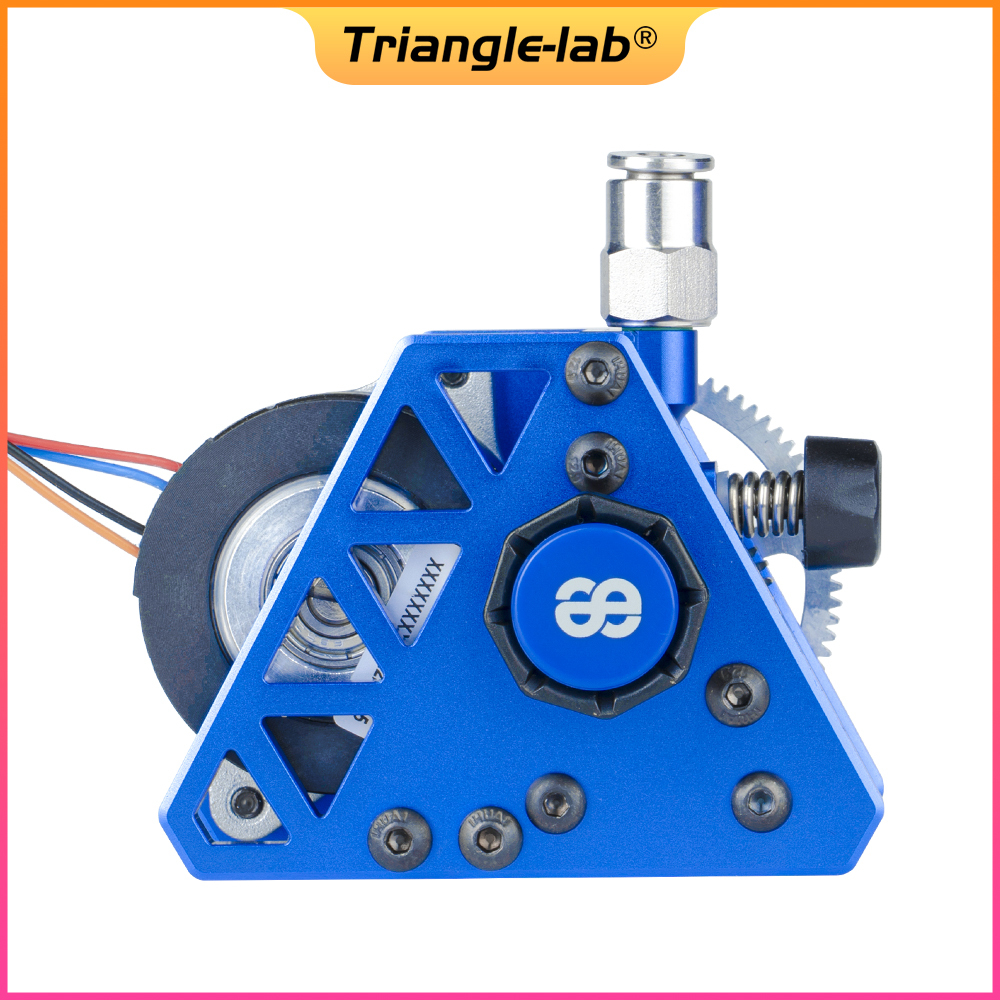

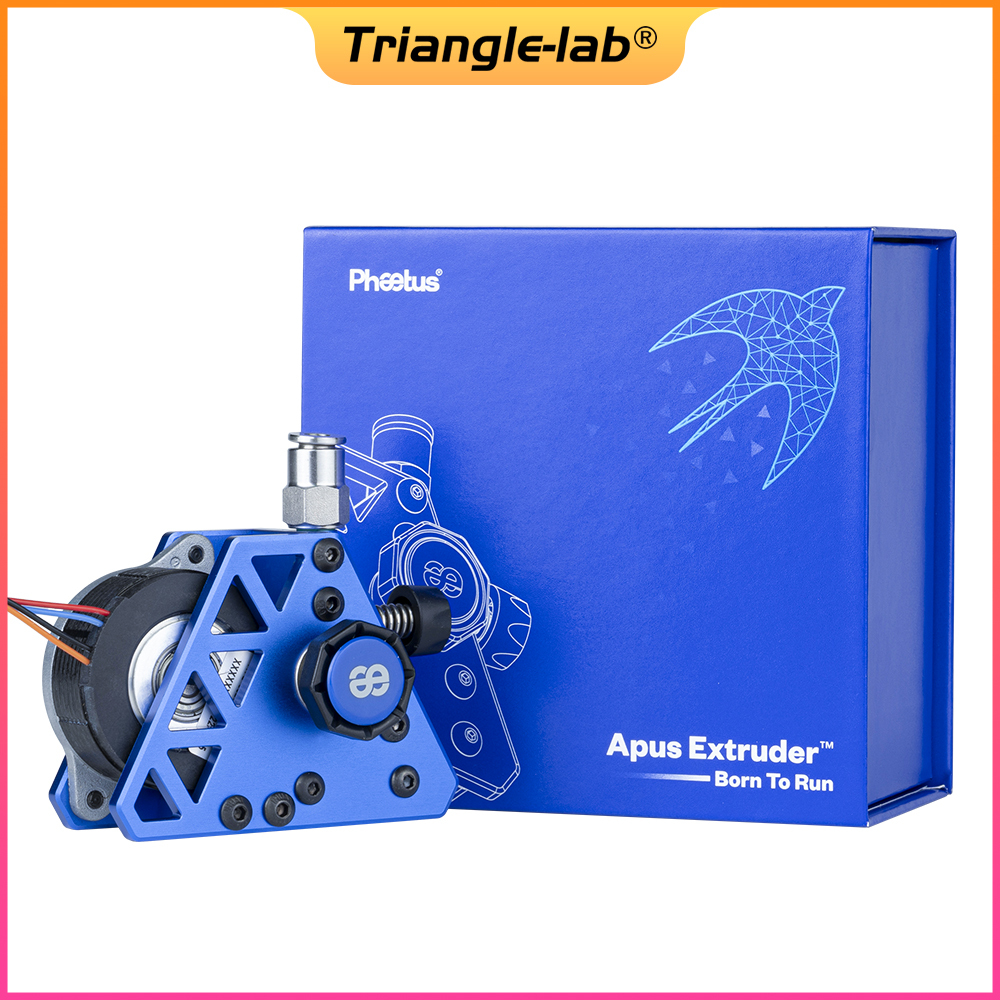

Phaetus APUS Extruder

Phaetus APUS Extruder

▉Description:

Filament size: 1.75mm

Product Size (mm): 67*64*42

Product Net Weight: 155g

Product Appearance: Blue

Applicable Filaments: Compatible with all thermoplastic filaments including but not limited to PLA, ABS, PETG TPU, PP, PC, PA PEEK and PEI as well as typical composite fibre filaments such as PLA-CF, ABS-CF, PETG-CF and PA-CF/GF. Composite filaments such as steel, wood, boron carbide, tungsten and fluorescence materials can be processed by the extruder.

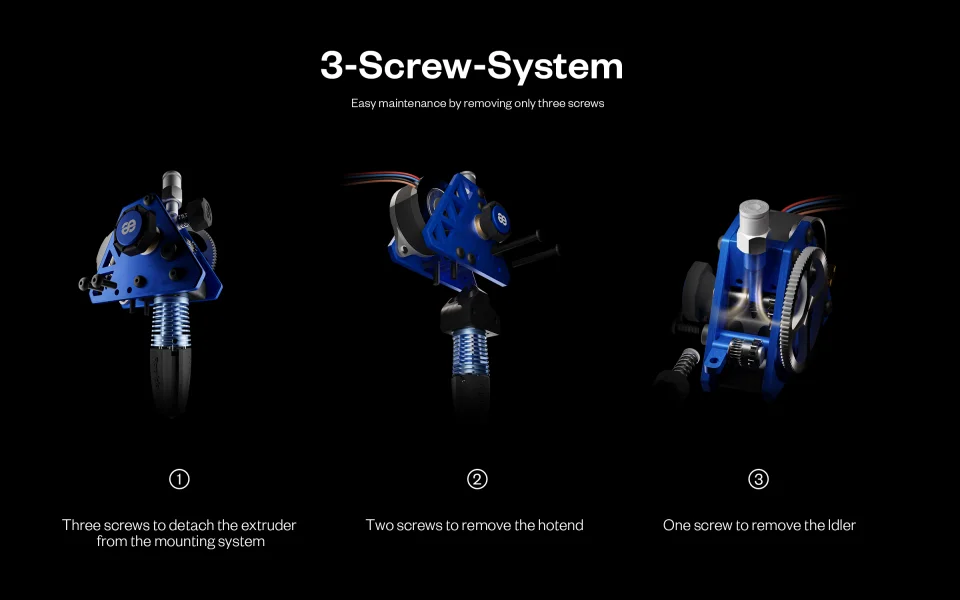

▉3-Screws-System:

Easy maintenance by removing only three screws

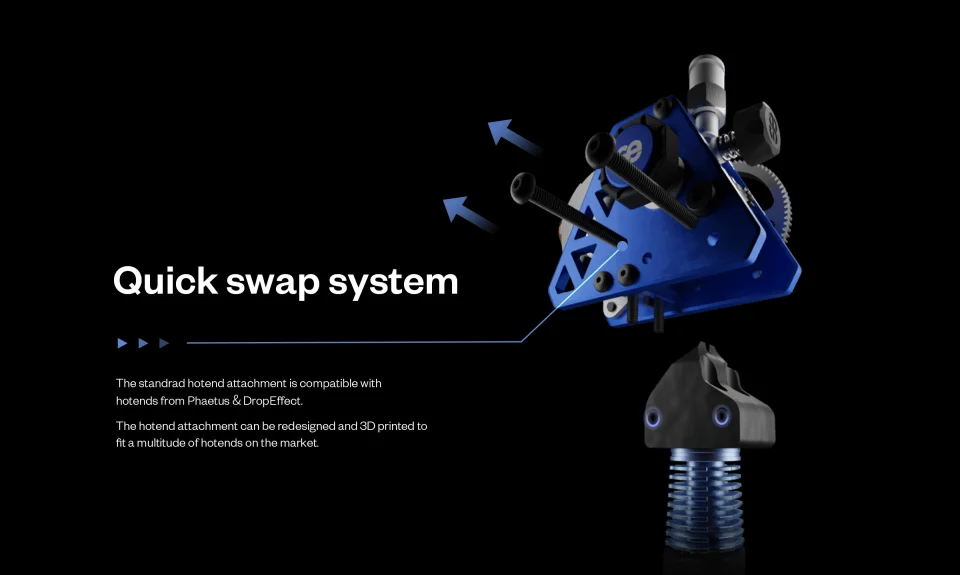

▉Quick swap system:

The standrad hotend attachment is compatible with hotends from Phaetus & DropEffect.

The hotend attachment can be redesigned and 3D printed to fit a multitude of hotends on the market.

▉Small Nema 14 stepper motor:

Rated Current: 1.0 A.

Holding Torque: 0.12 Nm

Temperature Rise: Less Than 55℃

Max Operating Temperature: 130℃

Weight: 85g

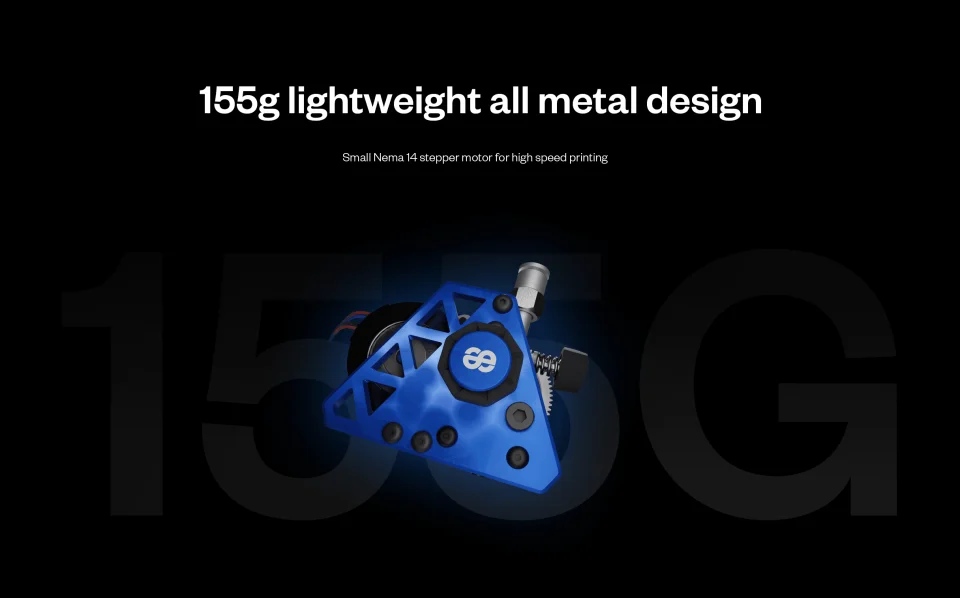

▉155g light weight all metal design:

155g light weight design of the aluminium frame ensures heat dissipation of the stepper motor.

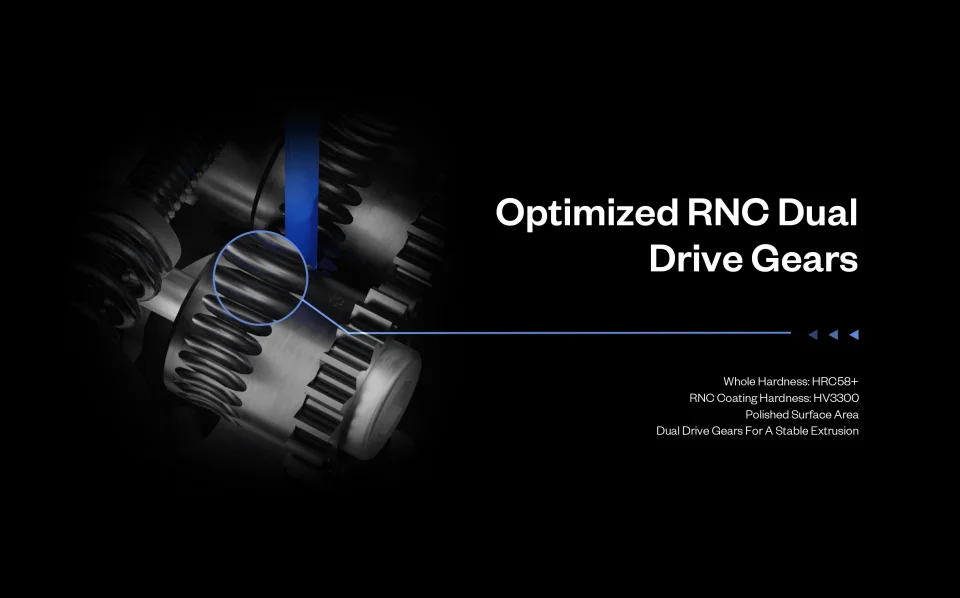

▉Optimized RNC Dual Drive Gears:

Whole Hardness: HRC58+ RNC

Coating Hardness: HV3300

Polished Surface Area Dual Drive

Gears For A Stable Extrusion

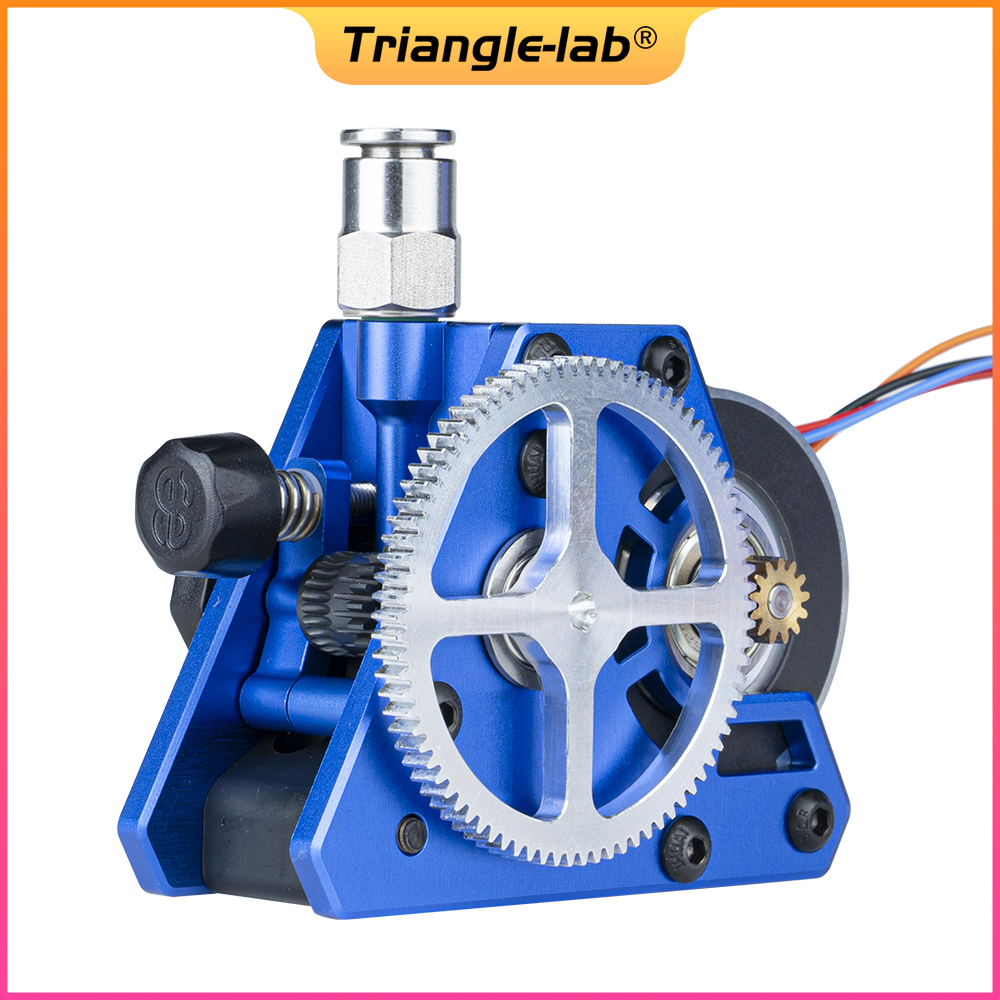

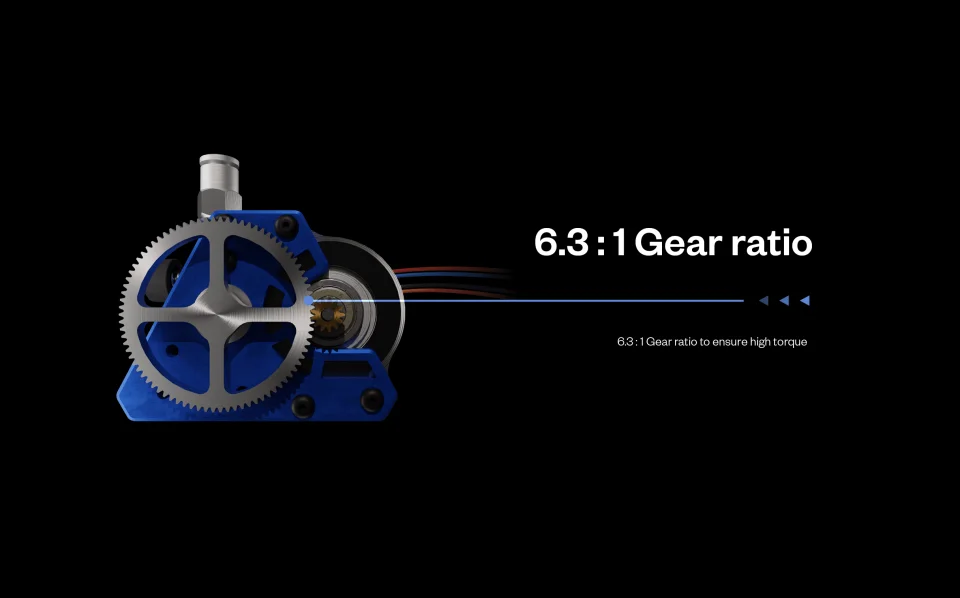

▉6.3 : 1 Gear ratio:

6.3 : 1 Gear ratio to ensure high torque

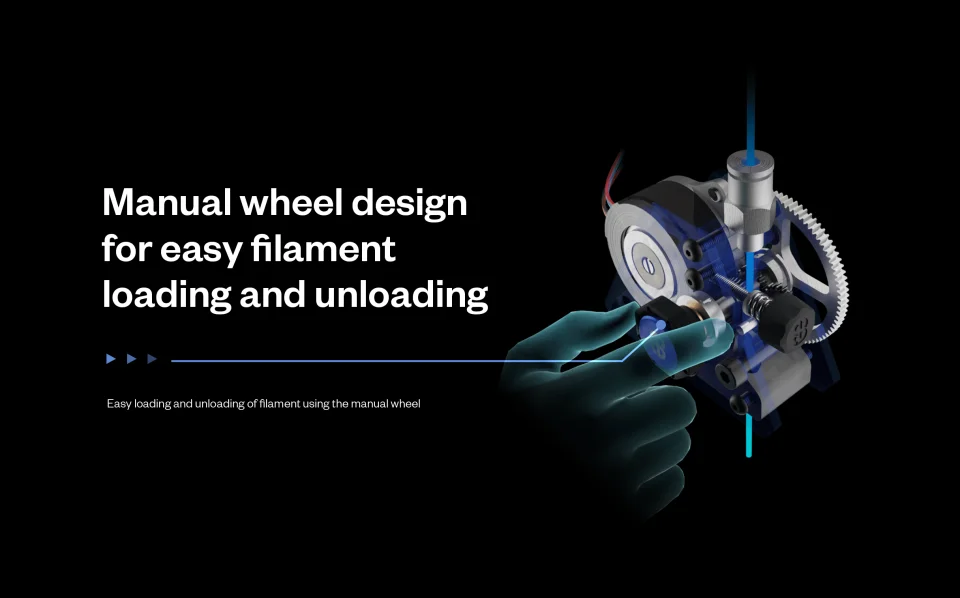

▉Manual wheel design for easy filament loading and unloading:

Easy loading and unloading of filament using the manual wheel
