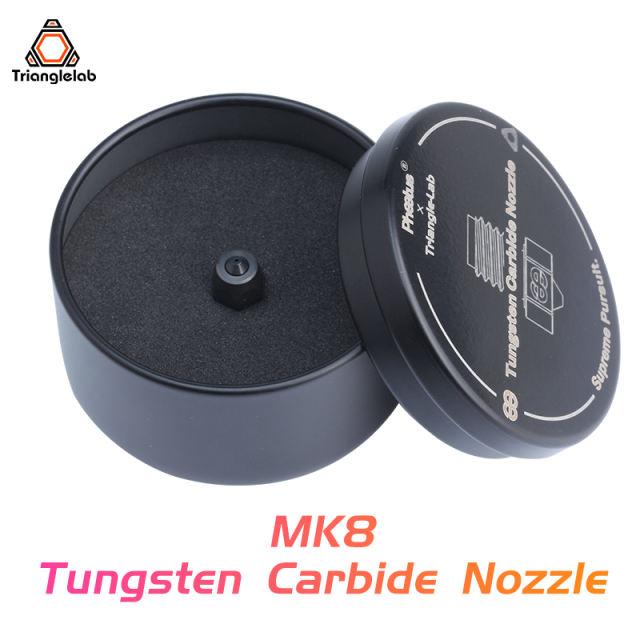

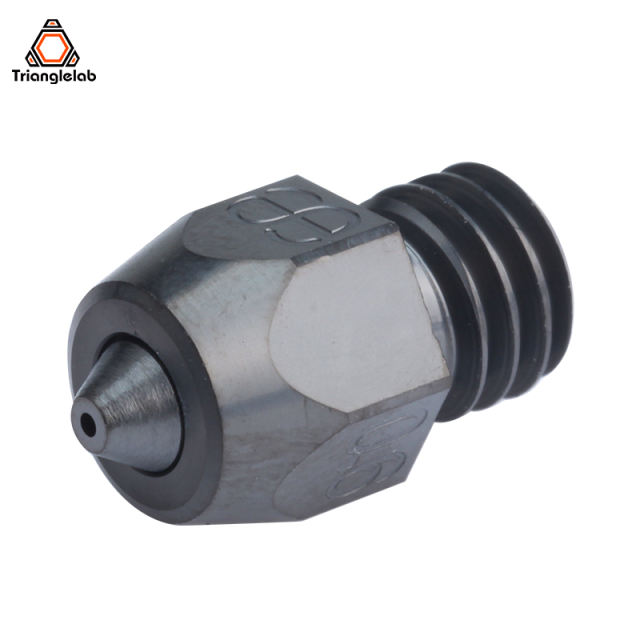

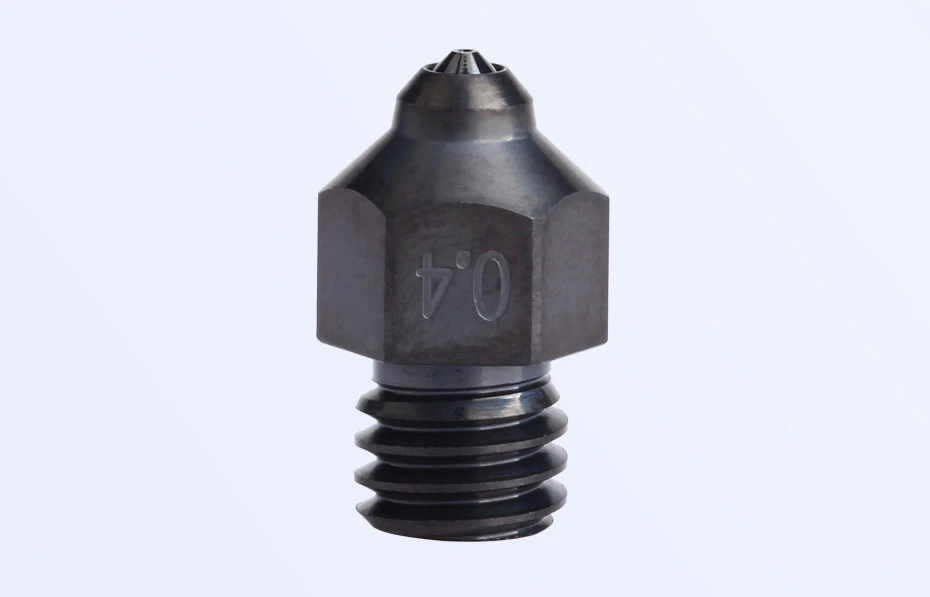

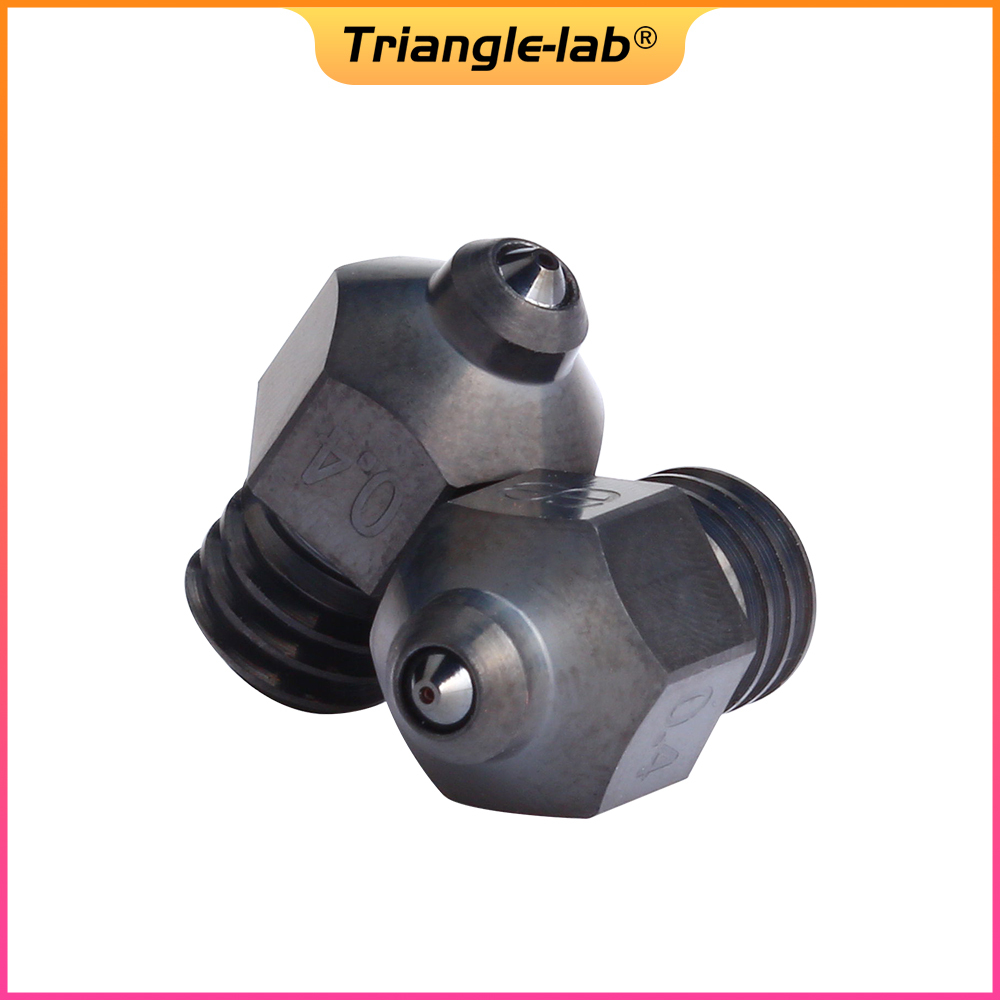

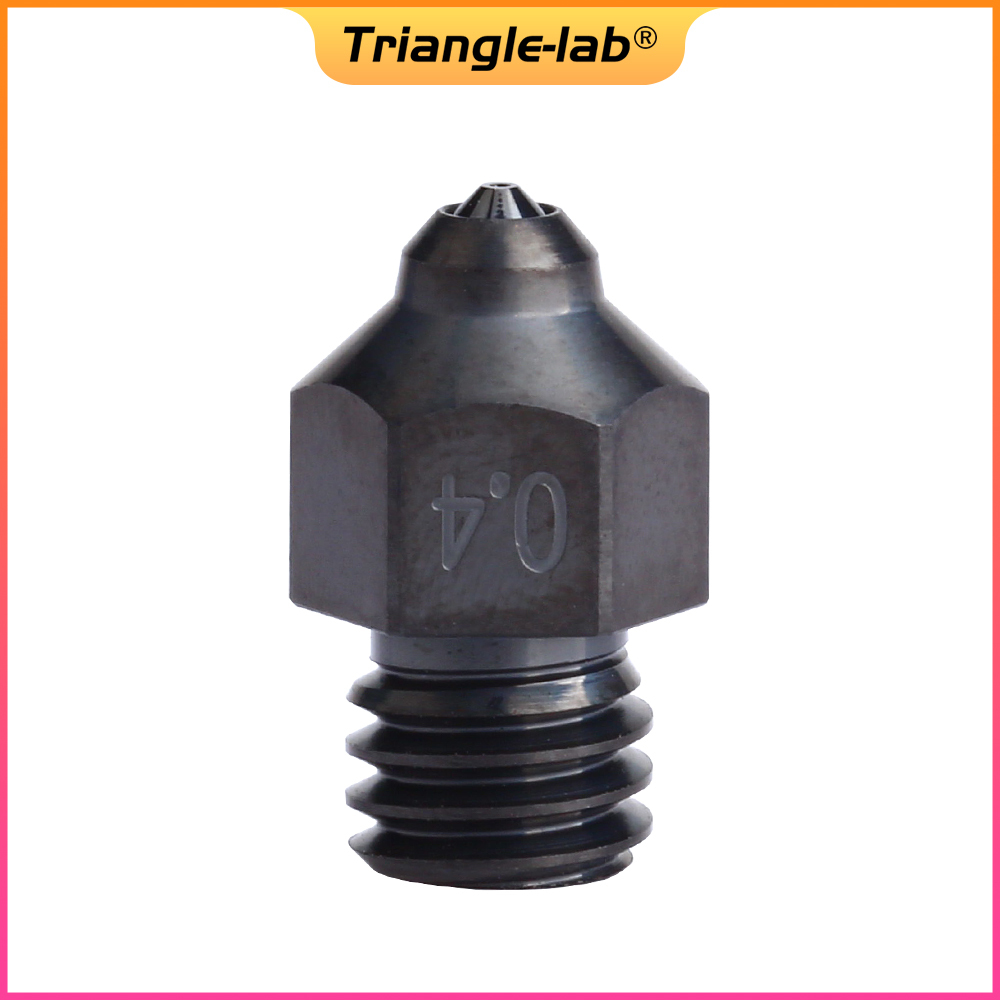

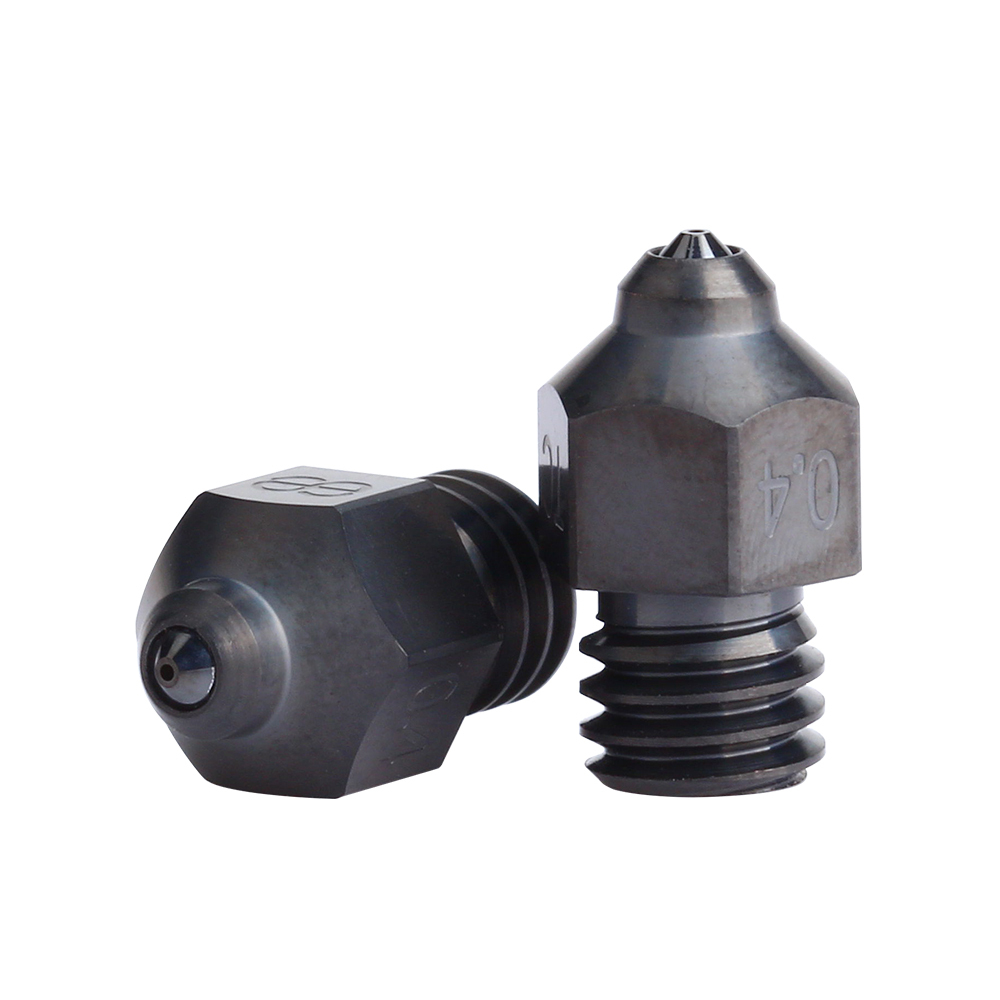

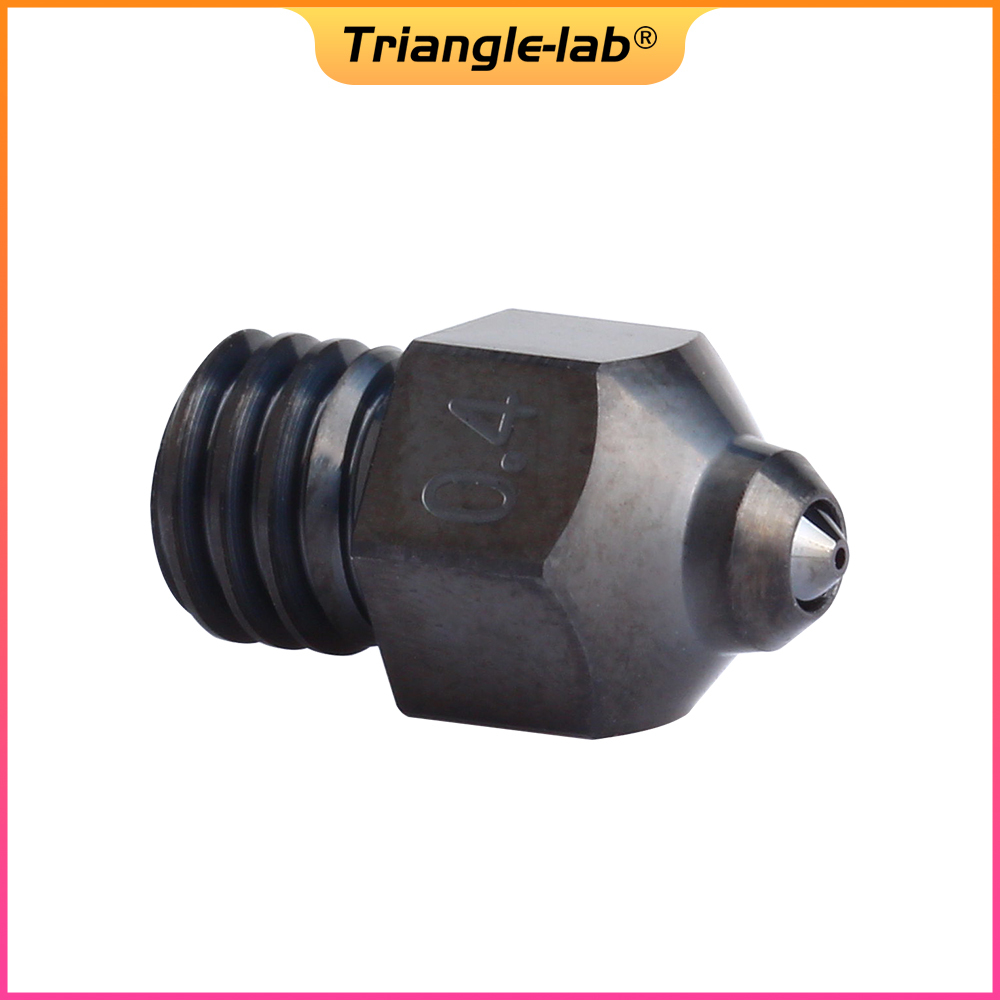

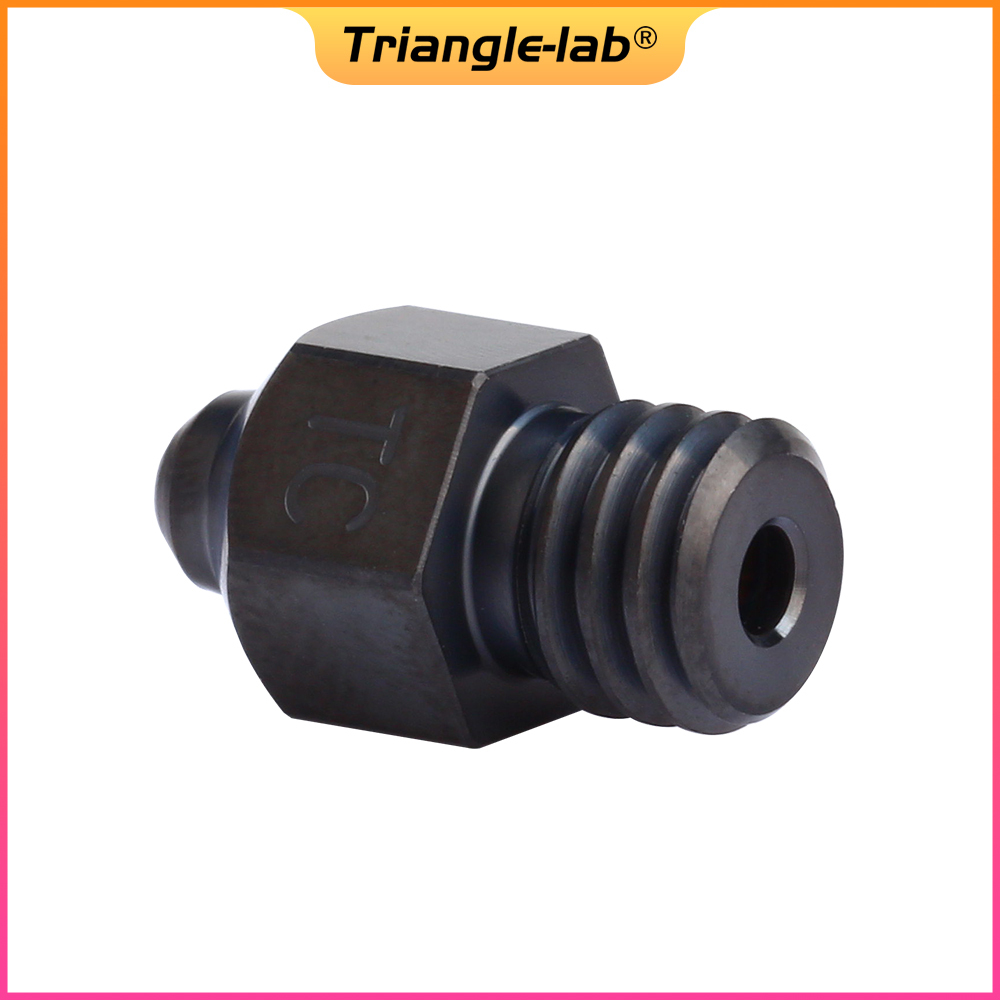

MK8 Tungsten Carbide Nozzle

5.0 (0)
$59.46 $69.96
Trianglelab Phaetus collaboration MK8 Tungsten Carbide Nozzle Super Wear-Resistance DLC coating for ENDER3 CR10 CR5 Cr6 SE Bluer
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • size:
    0.4mm
    0.6mm
    0.8mm
Quantity:
Availability: In Stock
  • Description
Note
All products purchased on this website are not include tax, including and not limited to: Consumption tax, Value added tax, customs duties, etc,
Before placing an order, please check your country's policies and regulations on online shopping taxes.
The amount you pay does not include tax and you will need to pay it yourself.
To purchase a tax-included products, please click the link below:
https://trianglelab.aliexpress.com/store/1654223
Trianglelab x Phaetus
This is a Trianglelab and Phaetus co-branded Tungsten Carbide Nozzle.New product experience, better product quality!

▉Description:
1.Super Wear-Resistance | Using the world's leading ultra-high hardness tungsten carbide (hardness > 2700Hv (up to 2900Hv)), super wear resistance ensures long-term printing without wearness of nozzle hole and tip flat.

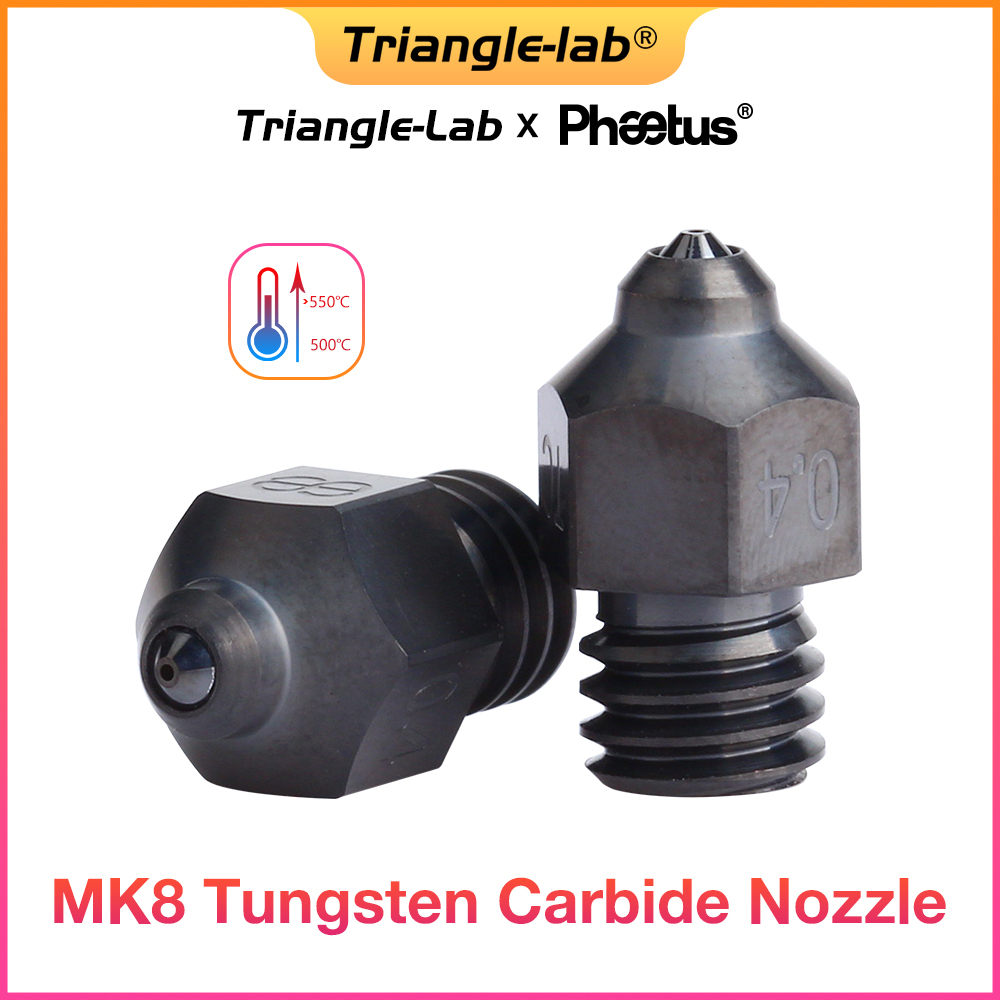

2.High Temperature Performance | Composed of tungsten carbide and copper alloy with super hardness and excellent conductivity, maximum printing temperature can be 550℃
3.Low Pushing Force | Tungsten Carbide Nozzle with high purity more than 99.98% and high thermal performance keeps an even temperature of nozzle tip during printing, thus guaranteeing a stable extrusion.
4.Faster Speed | Due to the high thermal performance of the nozzle in general, the printing speed can be pushed even further without sacrificing the quality. Unique passageway in the nozzle improves the flow rate at the inner hole faster.
5.Low Friction | The whole nozzle is applied with DLC coating after adding a hard and smooth nickel plating layer. Surface friction coefficient is as low as 0.05 which makes the nozzle with clean printing, without plastic sticking to it.


▉Material:

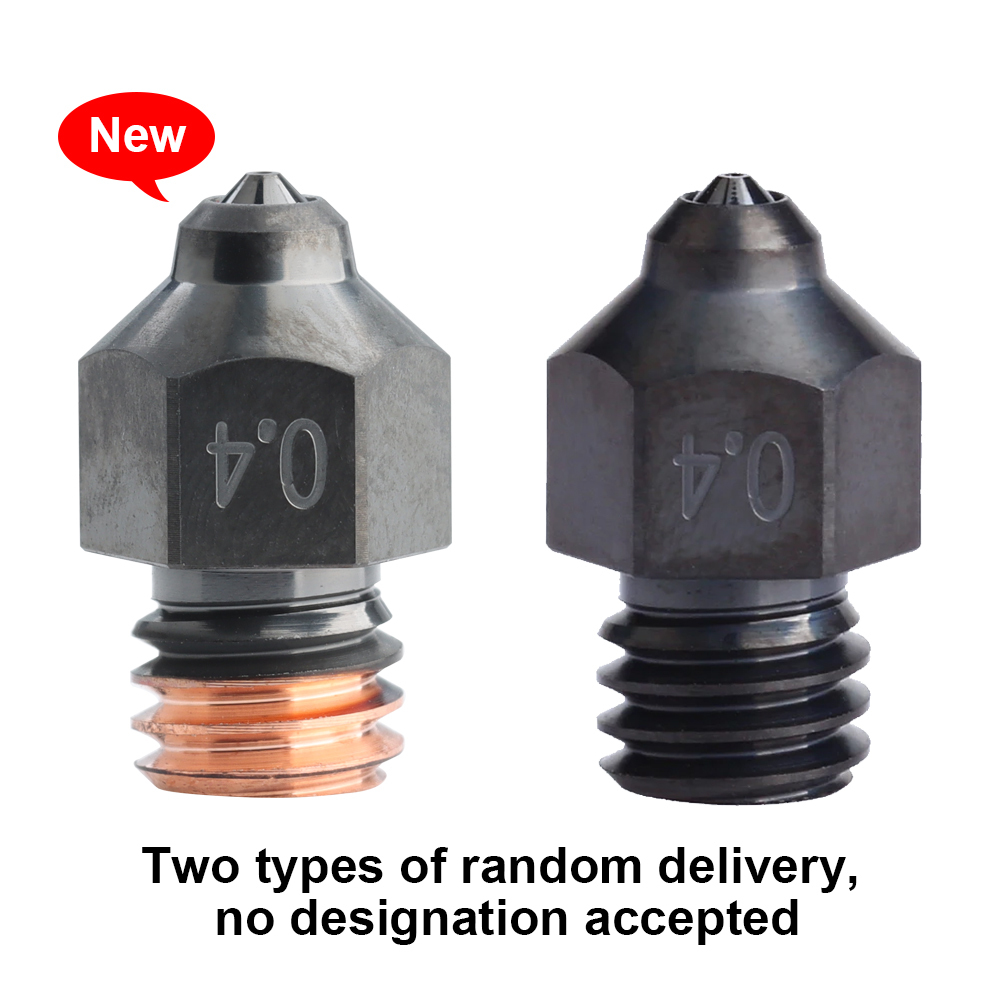

1.Nozzle is tungsten carbide
2.Body is copper alloy
with nickel plating + DLC
(hardened).


▉DLC coating:
1.Friction coefficient is only 0.05, effectively avoiding molten plastic sticking to the nozzle;
2.Coating thickness 2.0μm, without effects on any dimension accuracy;
3.Maintaining good lubrication and wear-resistance up to 300℃;
4.Strong adsorption capacity, coating hardness HV2200;
5.Stable chemical properties, non-toxic, non-corrosive and insoluble in other solvents.

▉Nozzle Performance Comparison:
▉Size:

▉Display:
