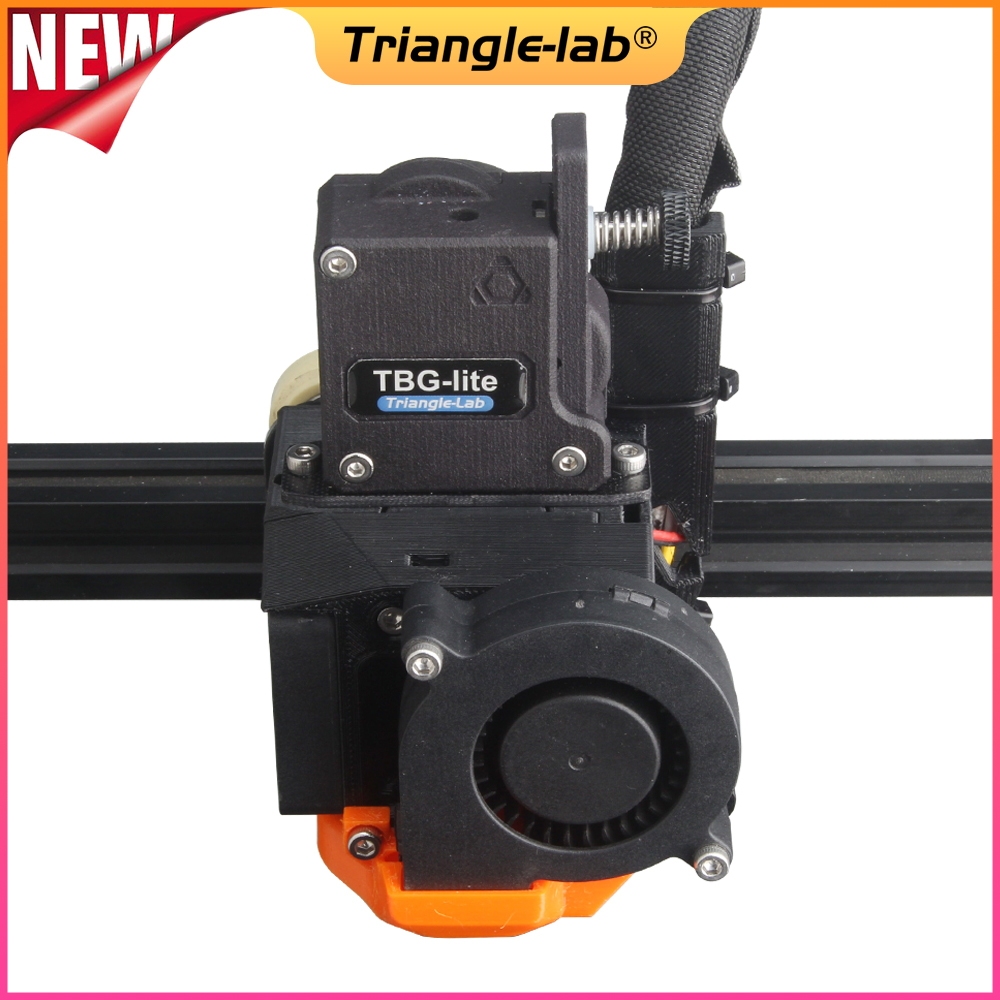

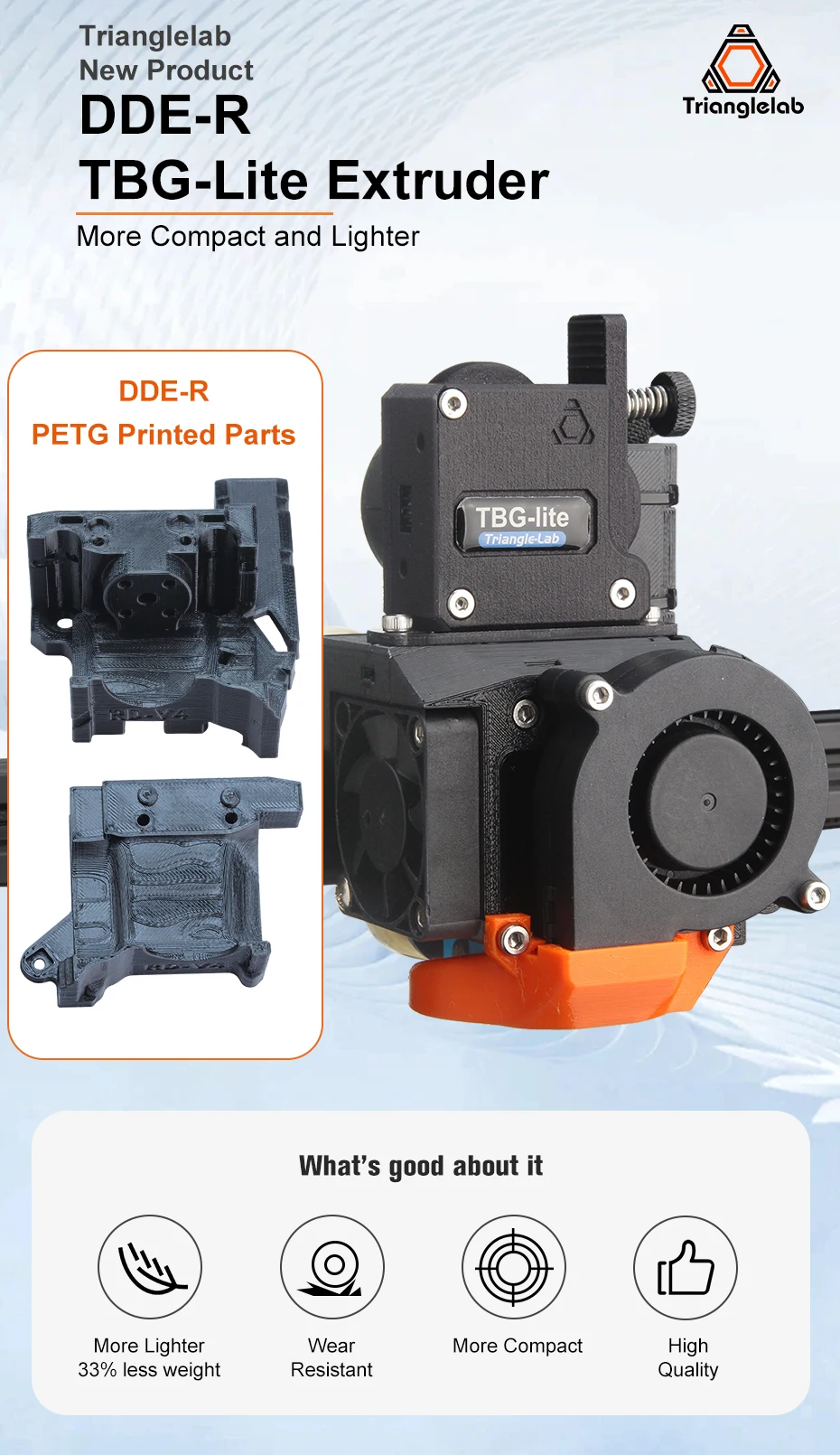

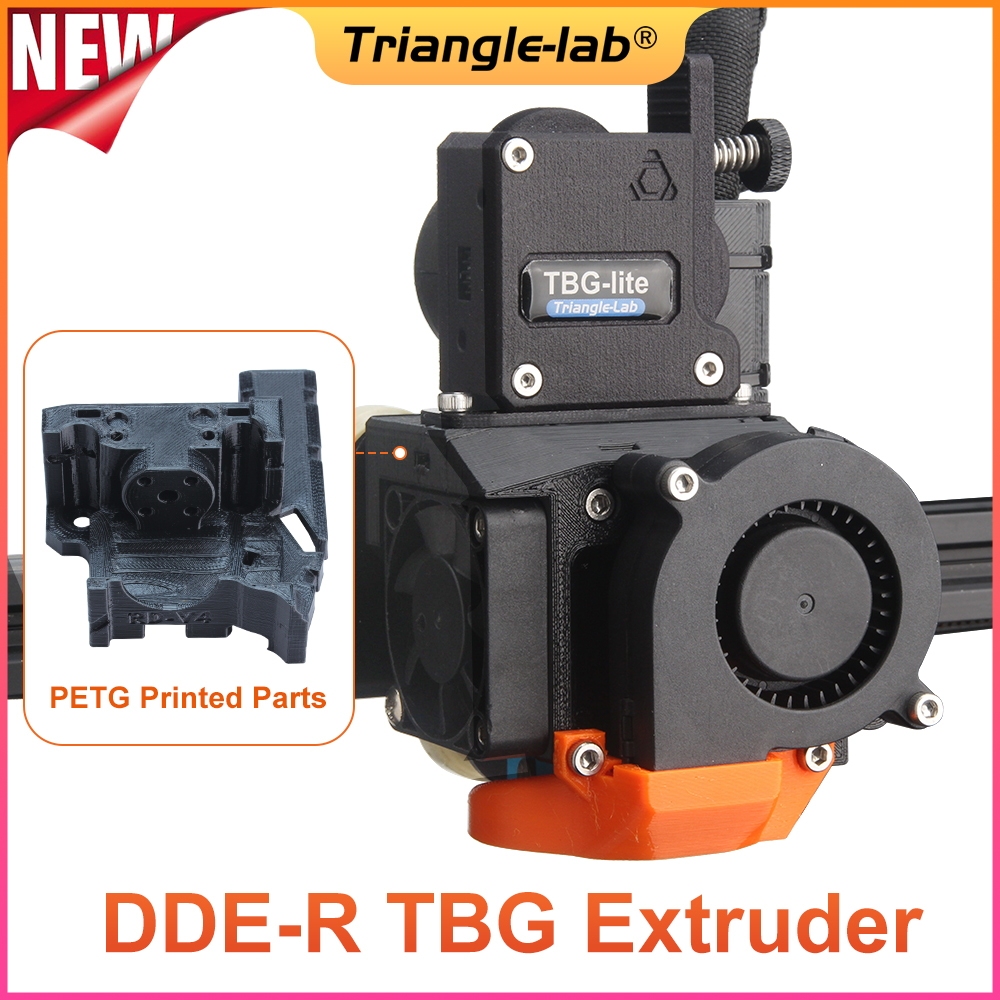

DDE-R TBG-Lite Extruder

Note
All products purchased on this website are not include tax, including and not limited to: Consumption tax, Value added tax, customs duties, etc,
Before placing an order, please check your country's policies and regulations on online shopping taxes.
The amount you pay does not include tax and you will need to pay it yourself.
To purchase a tax-included products, please click the link below：https://trianglelab.aliexpress.com/store/1654223

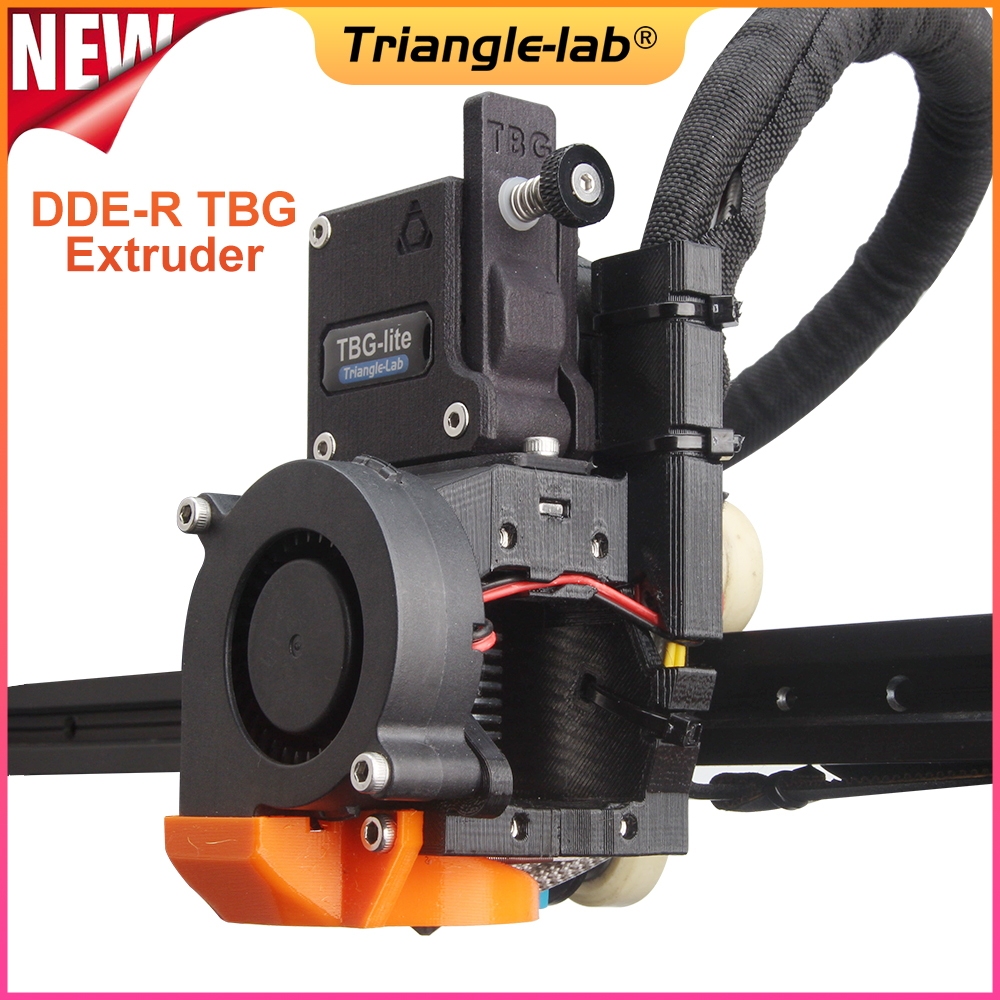

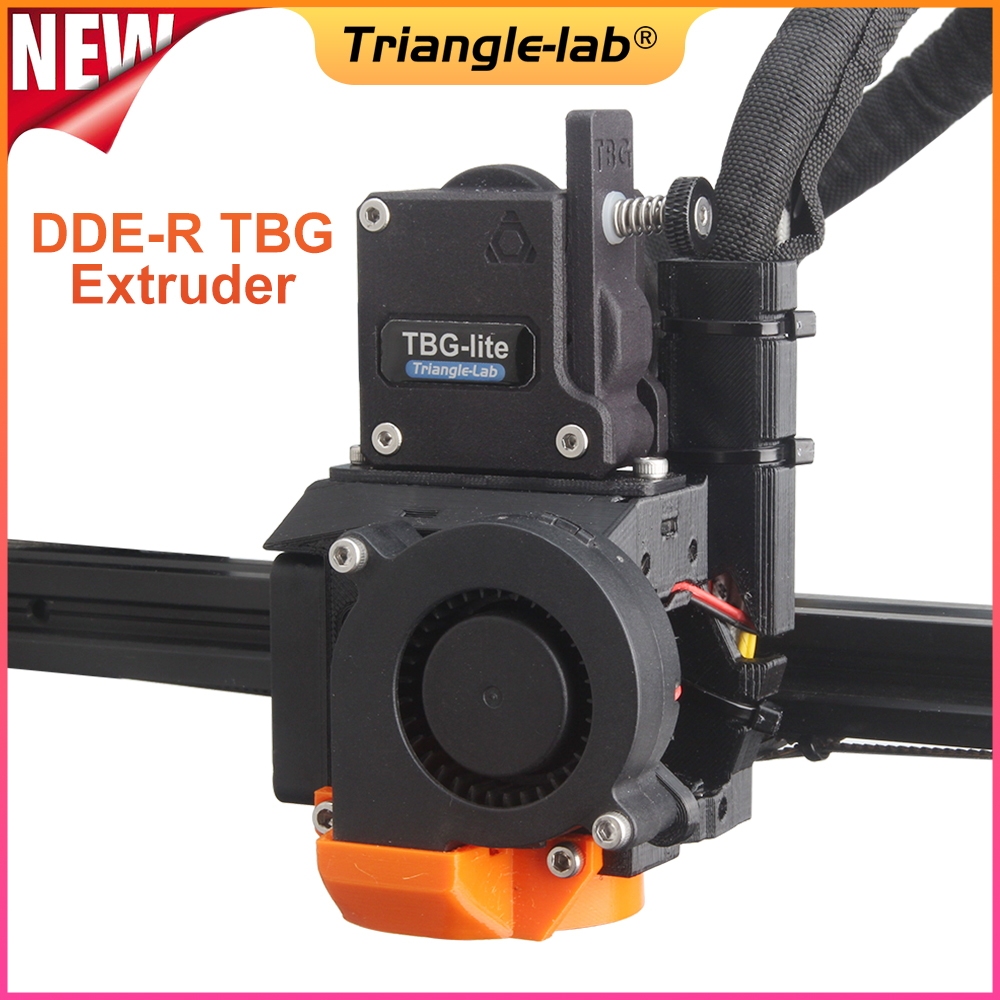

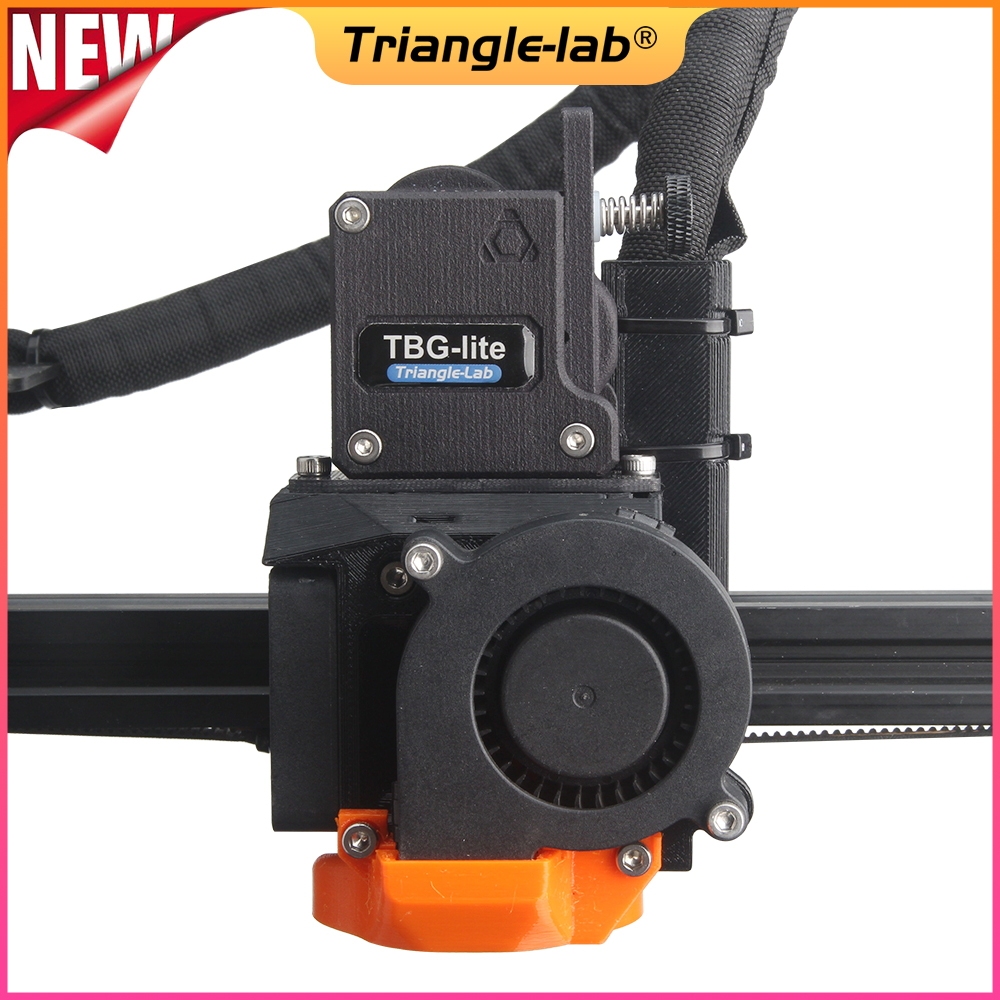

DDE-R TBG Extruder

Warning:

Please check the instructions provided before purchasing. This product requires you to modify the cable. Need to patiently solder some cables and look at the circuit diagram. If you are not willing to do so. Then please do notpurchasing.

Installation tutorial & STL & DDE-R Packaging List:

Please click here!

Features:

Trianglelab DDE-R Extruder,Compatible with Dragon hotend, This will be a very amazing 3D printer upgrade kit. It can effectively improve the performance of your 3D printer. You may be shocked by such high upgrades. But it did. Please throw away the old extrusion head system on your machine. We welcome any creator to create a unique high performance monster.

Compatible:

Ender 3,CR10,CR10 S PRO,
And similar machines.*The connection line requires a little hands-on ability.
Alfawise u20 needs a backplane,click here to buy backplane.

Note

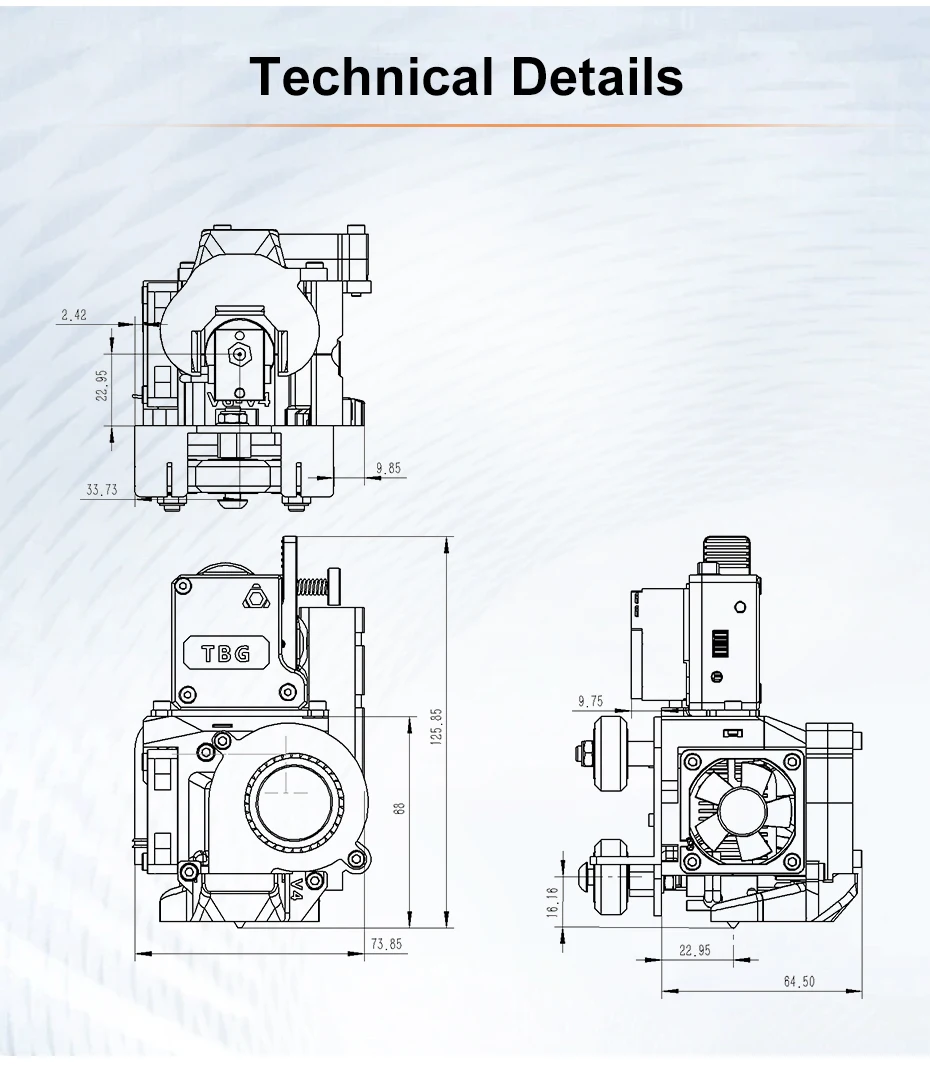

This kit fits some early models of the Ender3 CR10/S&PRO Ender5 and some other brands that cloned Creality printer. All of these printers must have the same or similar X-axis sled back plate. See drawing down below.

Composition

High quality component parts.

1.TBG-Lite Extruder

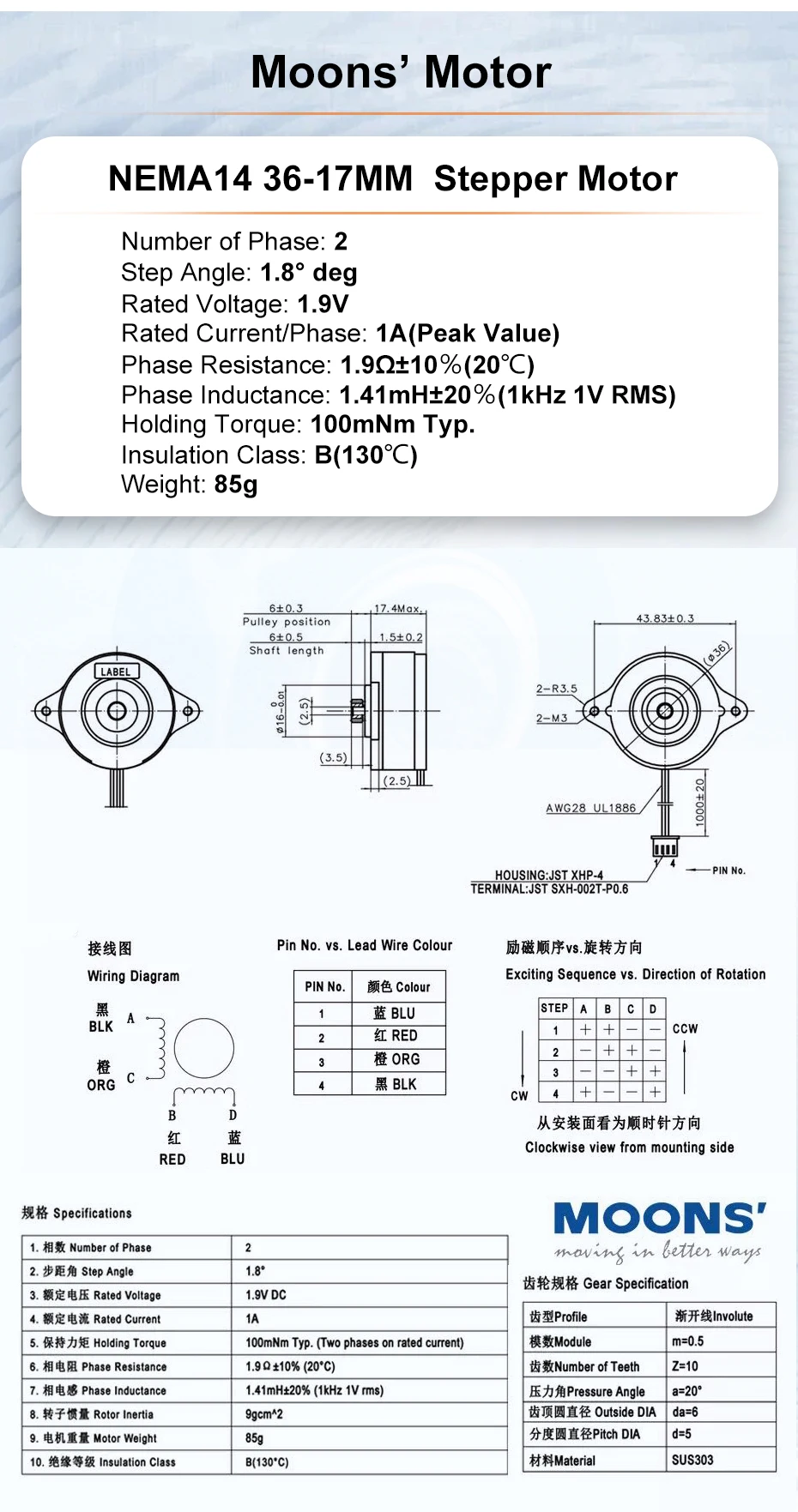

2.Moons' motor stepper motor

3.DDE V2.0 Basic Kit

The new DDE V2.0 extruder,it is possible to print even more precise 3D printed parts.

Hotend

Compatible with Dragon hotend,Rapido hotend,TD6S hotend,
V6DM hotend.

Details

Compatible not only with v6 heat block,but also with volcano heat block.

Compatible with CHC Kit,CHC Pro.

Excellent compatibility

Compatible with DDB Extruder,Orbiter Extruder 2.0,TBG-Lite Extruder.

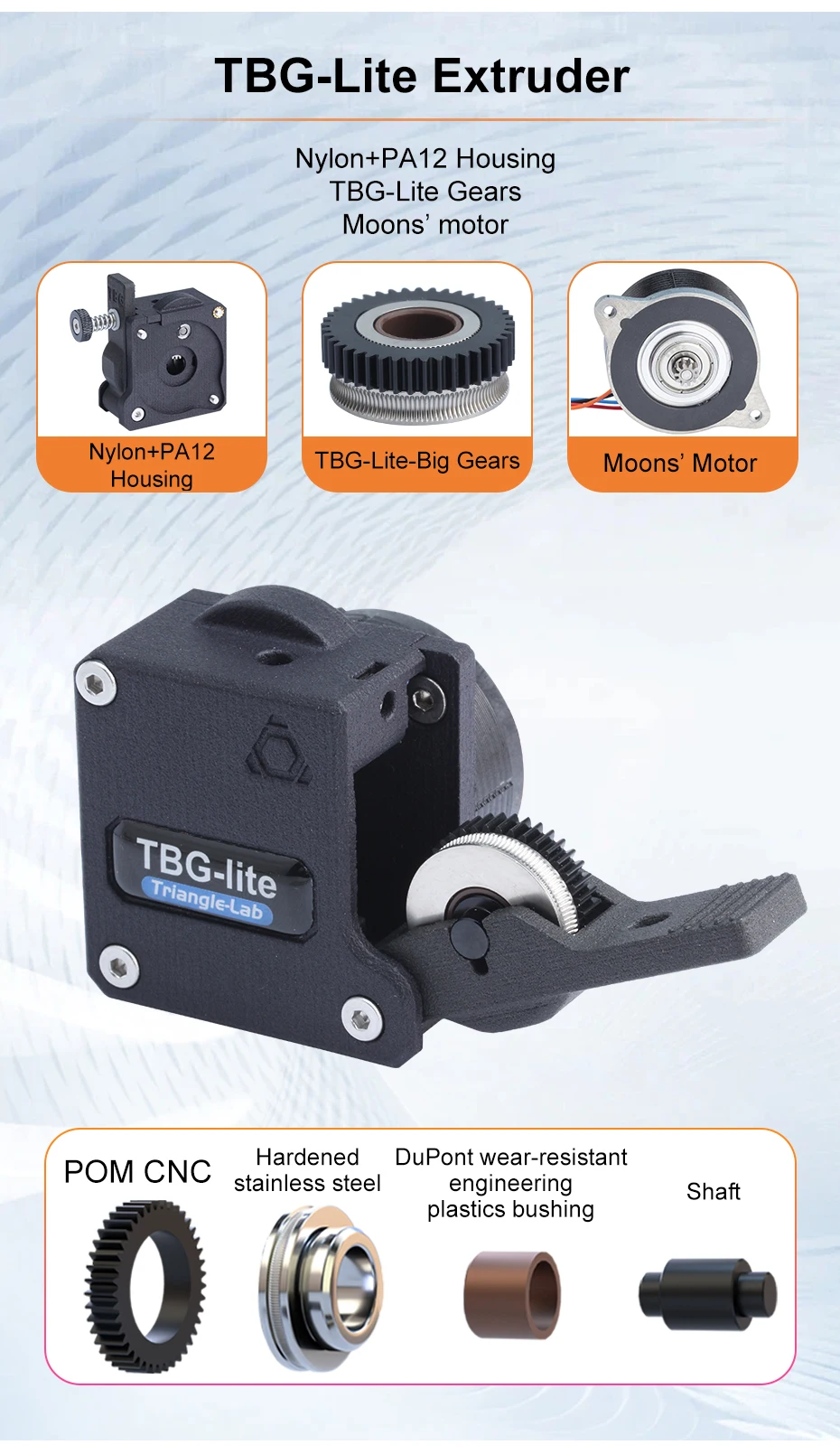

TBG-Lite Extruder

Max pushing force: 8.2kg PETG @10mm/min

Reduction ratio is 11.53125:1

Steps pre mm:615(16x)

Weight:142g

TBG-Lite Big Gears

Larger drive wheels, for increased filament grip.

The entire internal main structure of the TBG Extruder consists of three large gears. The huge gears and the super dense teeth enable a better bite on the filament. More gripping power.

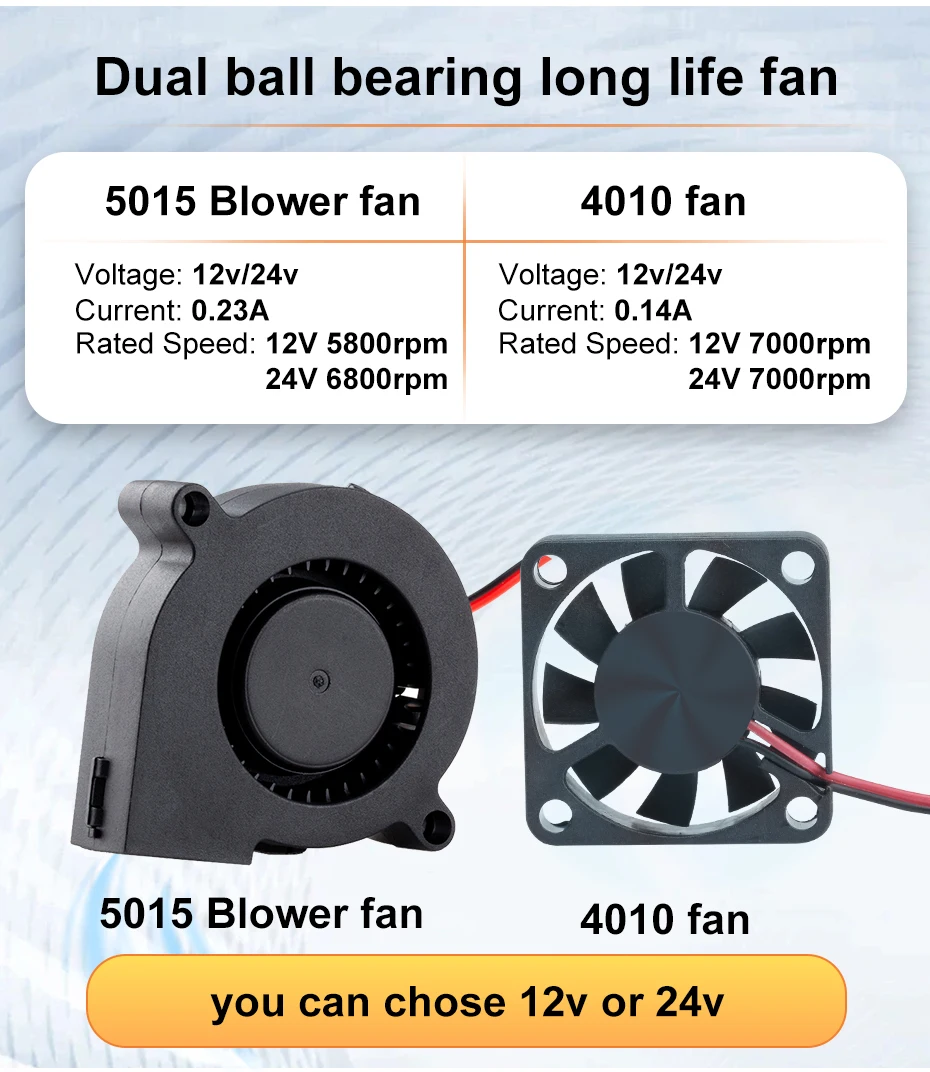

Dual ball bearing long life fan

5015 Blower fan,4010 fan

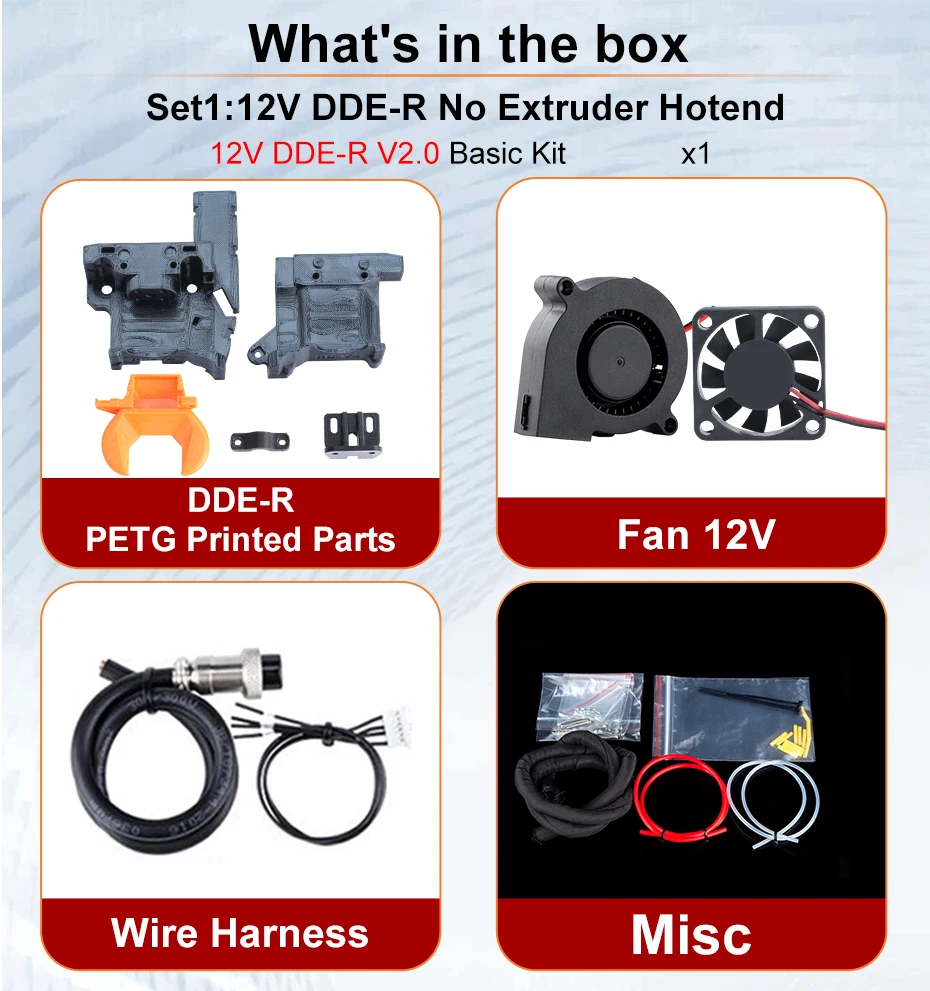

What's in the box

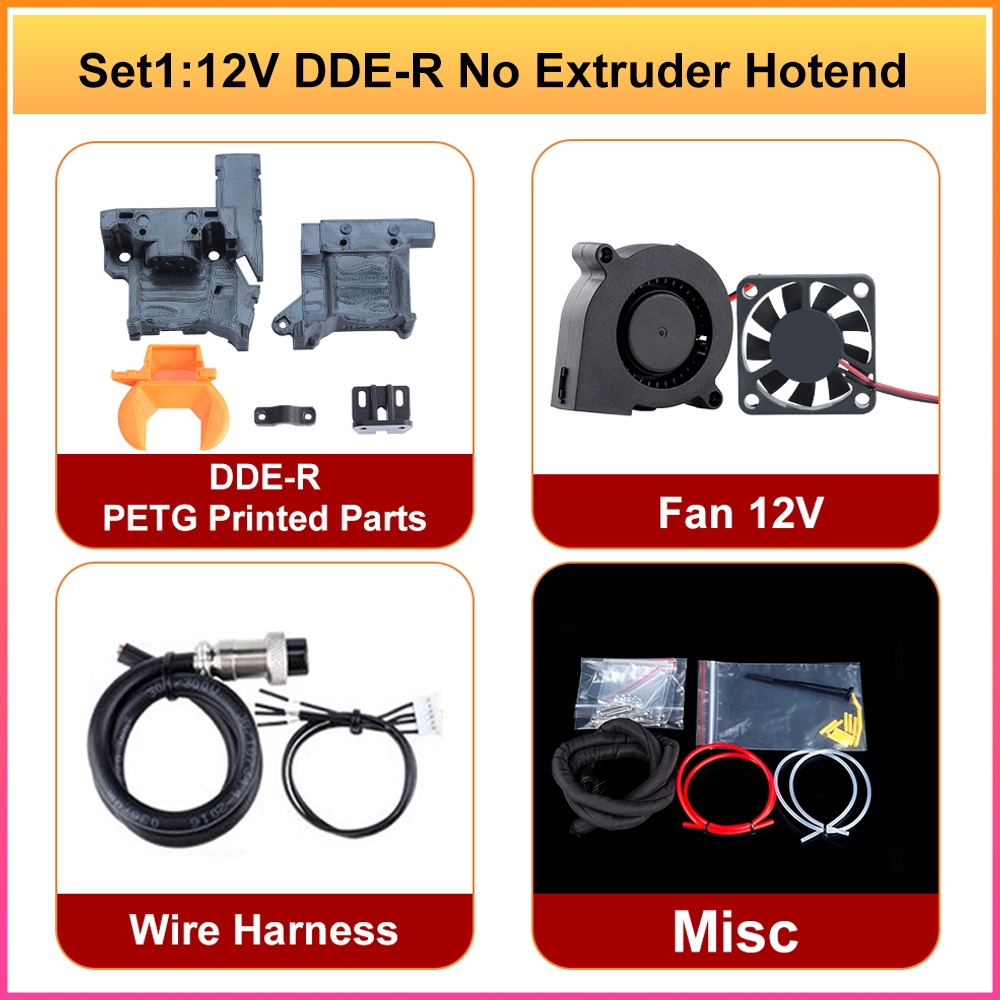

Set1:12V DDE-R No Extruder Hotend

12V DDE-R V2.0 Basic Kit

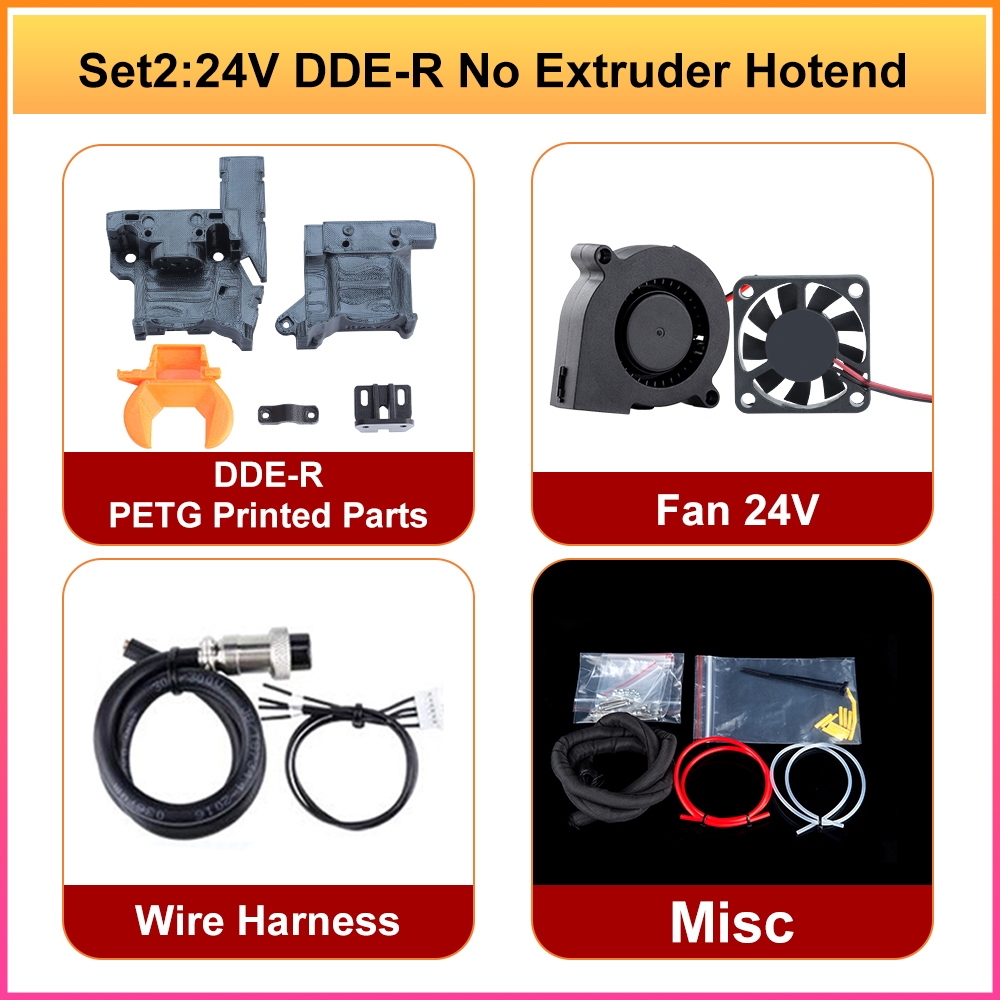

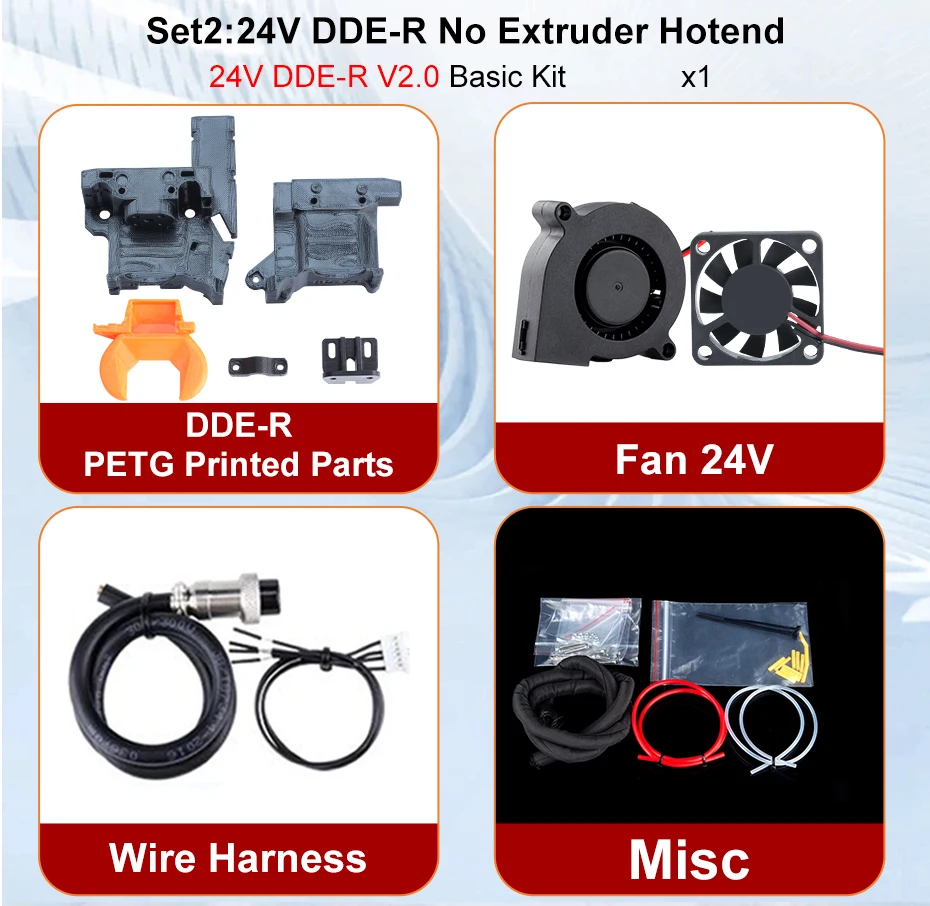

Set2:24V DDE-R No Extruder Hotend

24V DDE-R V2.0 Basic Kit

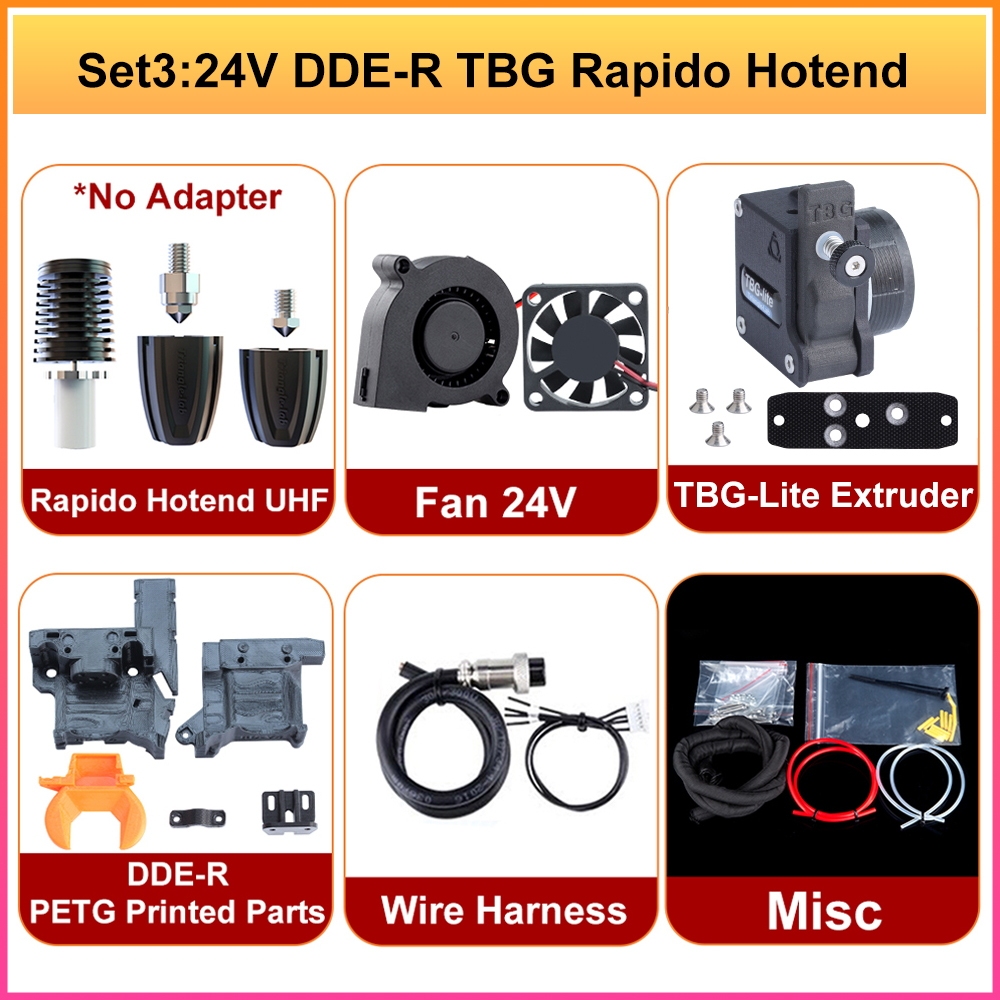

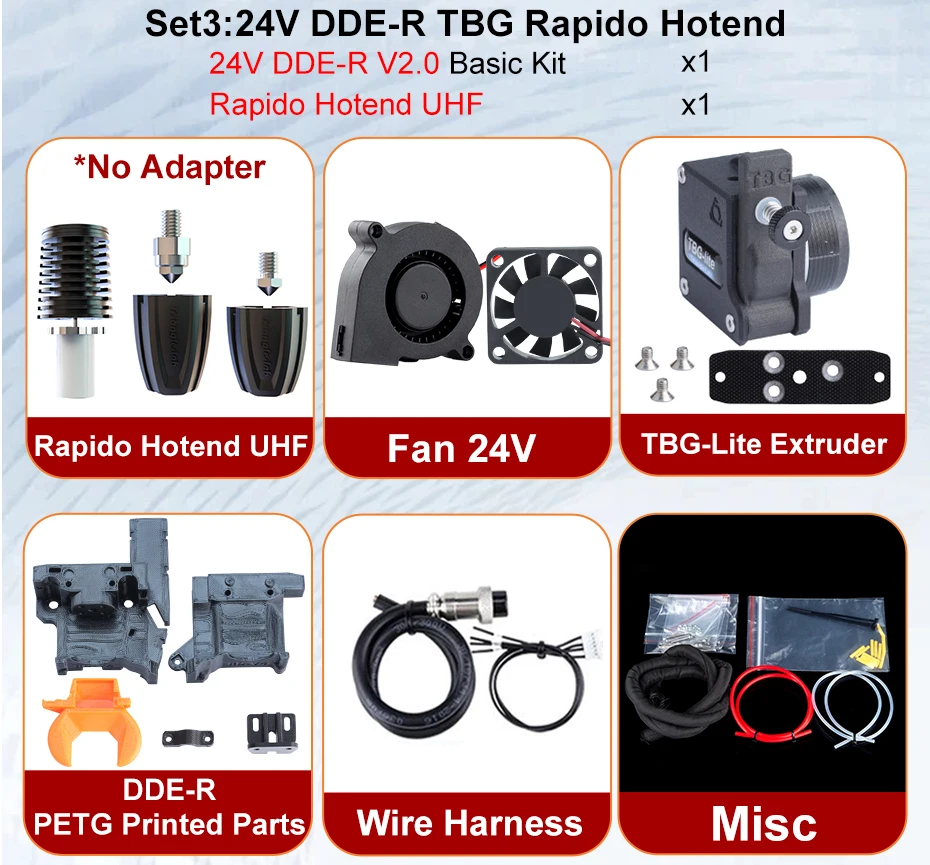

Set3:24V DDE-R TBG Rapido Hotend

24V DDE-R V2.0 Basic Kit

Rapido Hotend UHF

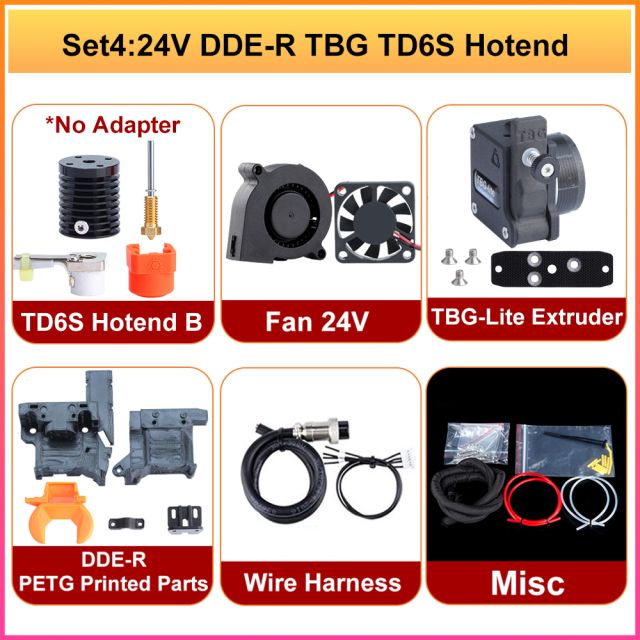

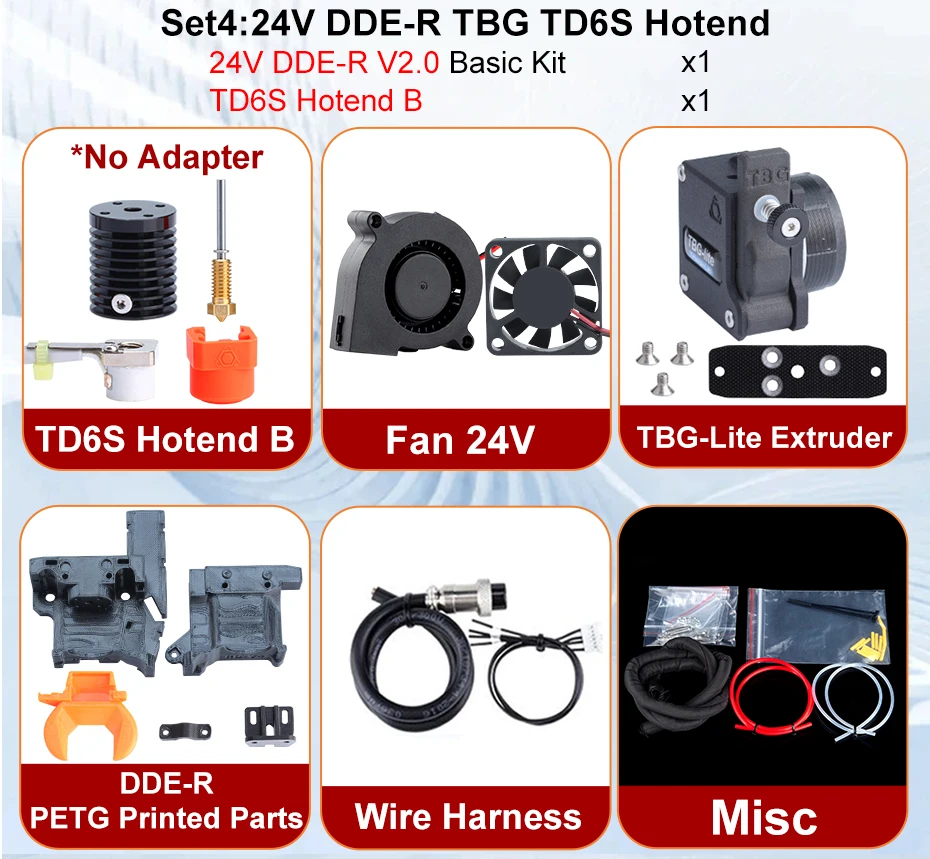

Set4:24V DDE-R TBG TD6S Hotend

24V DDE-R V2.0 Basic Kit

TD6S Hotend B

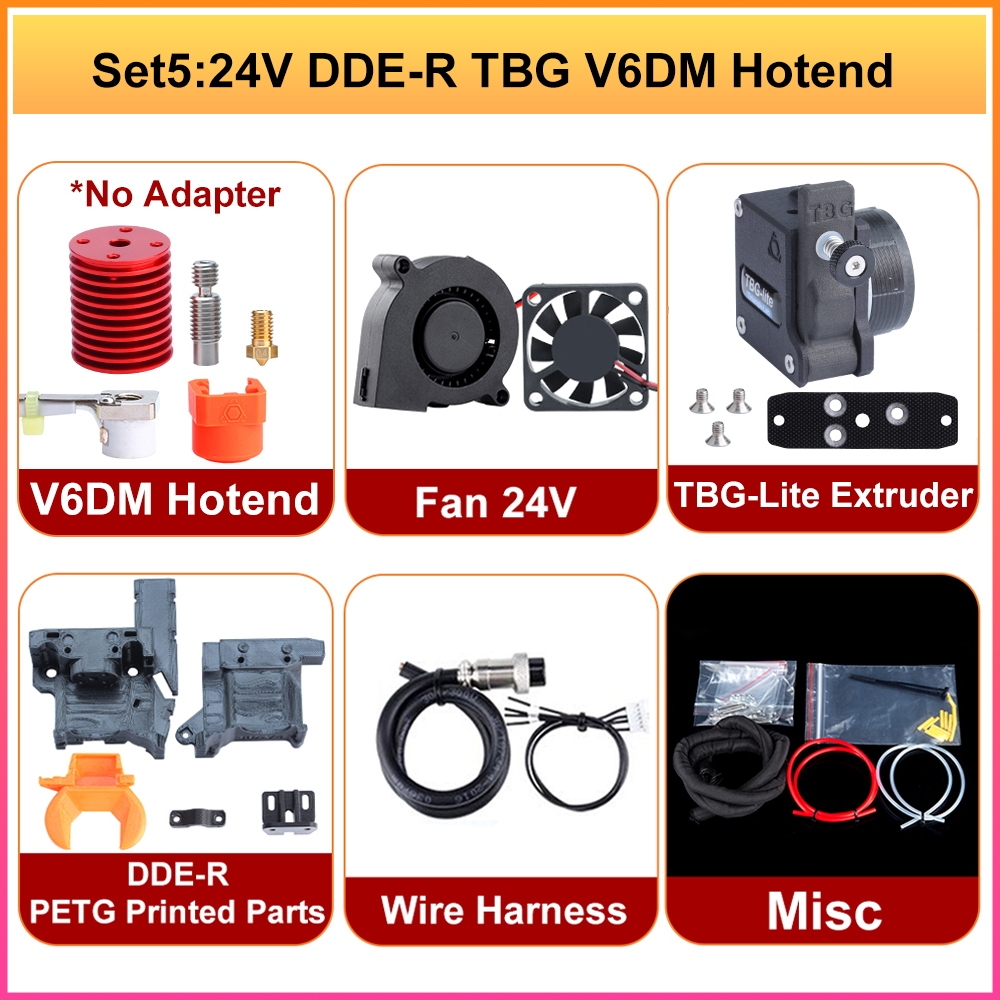

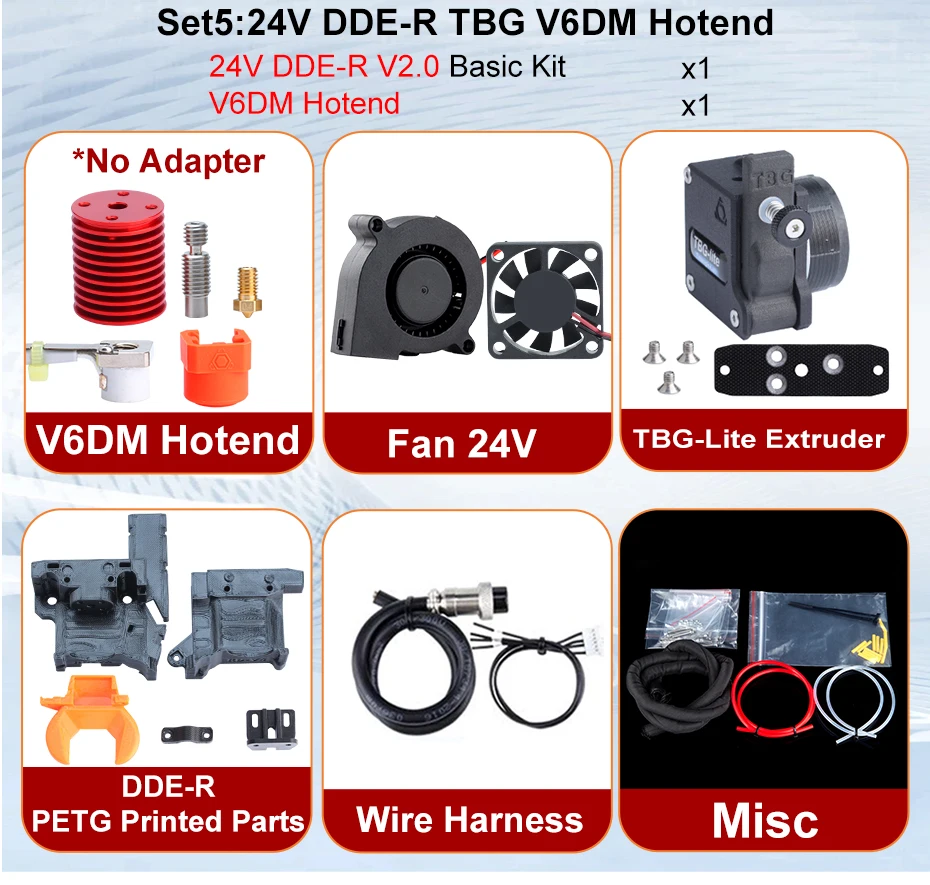

Set5:24V DDE-R TBG V6DM Hotend

24V DDE-R V2.0 Basic Kit

V6DM Hotend B
