CHCB-LC OTC Liquid Cooling Kit

SKU:
Trianglelab CHCB-LC OTC Liquid Cooling Kit for Creality K1 K1C K1MAX High temperature printing compatible with carbon fiber ABS
Limited Offer!
5.0 (1 Reviews)
25 Sold
$21.90 $20.15
-8%
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Set:
    Set A Only LC KIT
    Set B LC OTC ZS0.4MM
Quantity
-
+
  • CHCB-LC OTC Liquid Cooling Kit
  • CHCB-LC OTC Liquid Cooling Kit
  • CHCB-LC OTC Liquid Cooling Kit
  • CHCB-LC OTC Liquid Cooling Kit
  • CHCB-LC OTC Liquid Cooling Kit
  • CHCB-LC OTC Liquid Cooling Kit
  • CHCB-LC OTC Liquid Cooling Kit
  • CHCB-LC OTC Liquid Cooling Kit
  • CHCB-LC OTC Liquid Cooling Kit
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Before ordering, please note that all our products do not include tax, you need to declare your own tax!

  • If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.

  • Technical questions e-mail:[email protected]

  • Sales questions e-mail:[email protected]

  • The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.

  • Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.
     Installation Instructions:
    https://drive.google.com/drive/folders/1tfzJ5GWTS0HhToLl3sTRC4qZD0Ol5SQ7

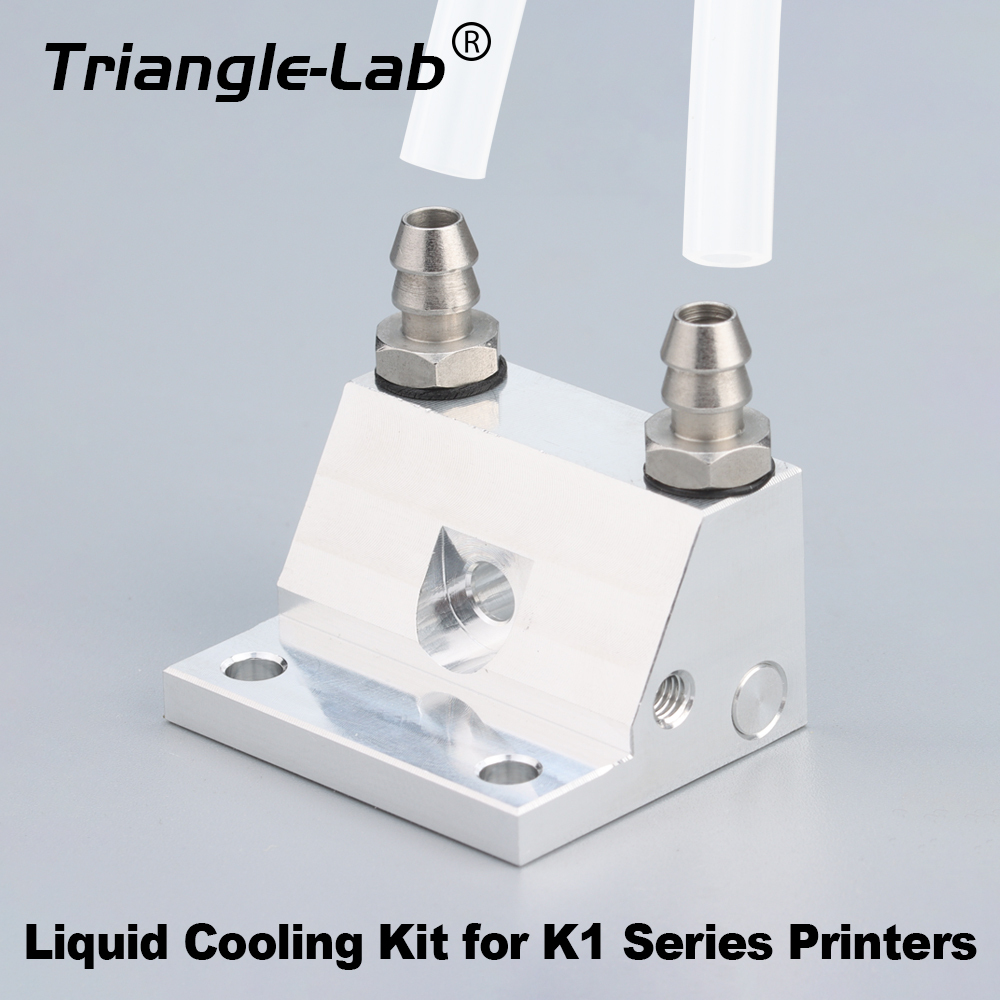

█ Name:Liquid Cooling Kit for KI Series Printers

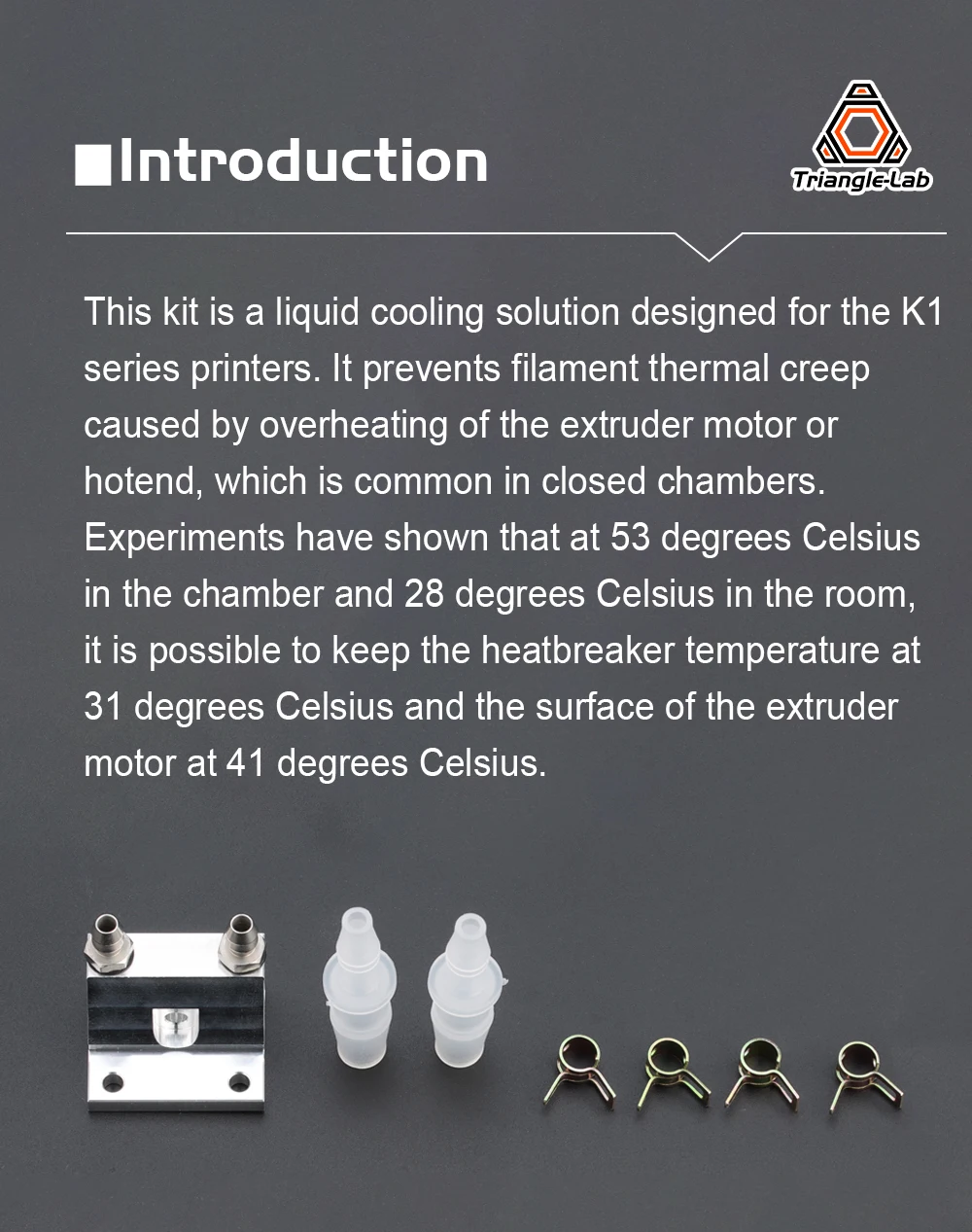

█ Introduction
This kit is a liquid cooling solution designed for the K1series printers. It prevents filament thermal creep caused by overheating of the extruder motor or hotend, which is common in closed chambers. Experiments have shown that at 53 degrees Celsius in the chamber and 28 degrees Celsius in the room, it is possible to keep the heatbreaker temperature at 31 degrees Celsius and the surface of the extruder motor at 41 degrees Celsius.

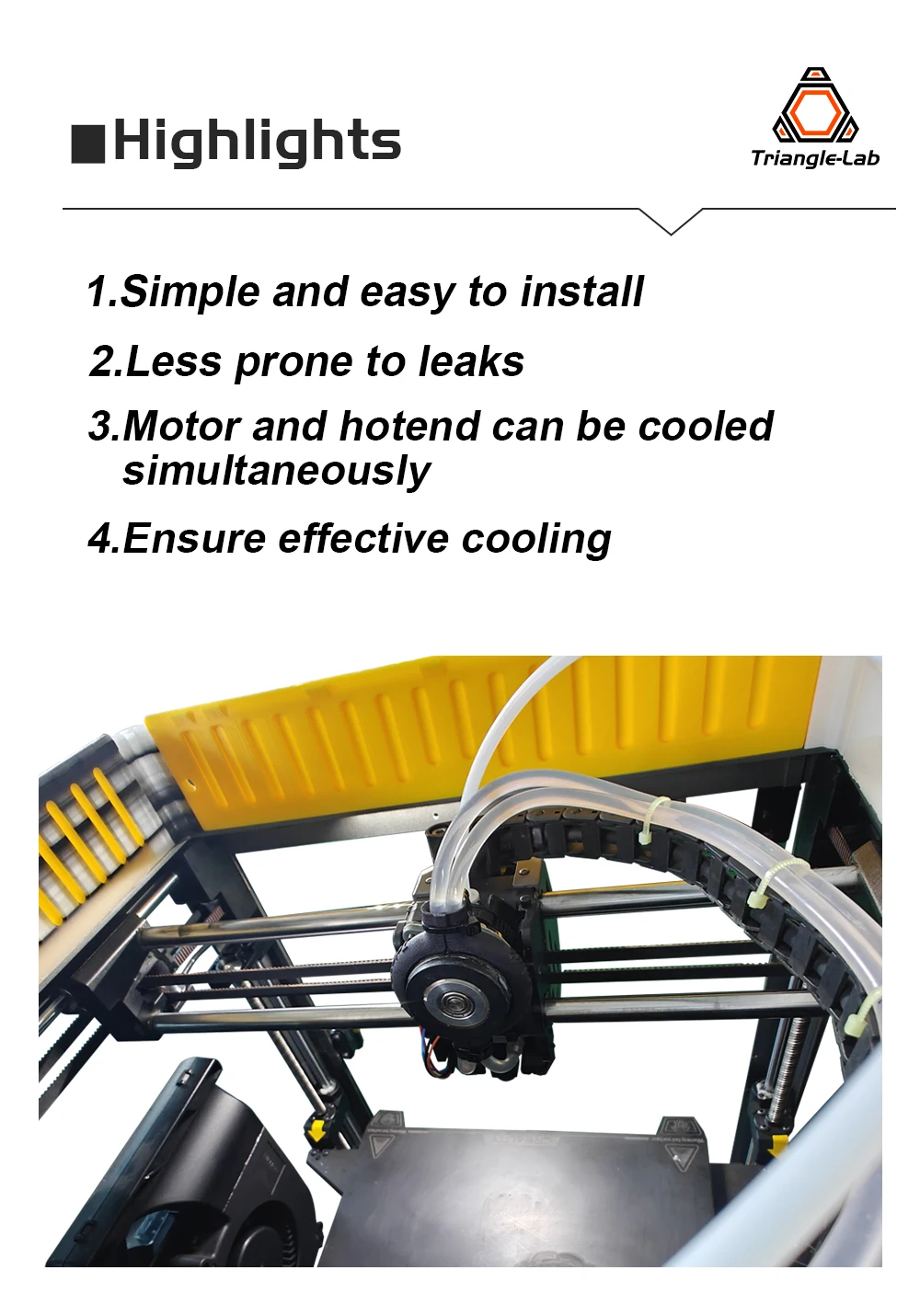

█ Highlights
1.Simple and easy to install
2.Less prone to leaks
3.Motor and hotend can be cooled simultaneously
4.Ensure effective cooling

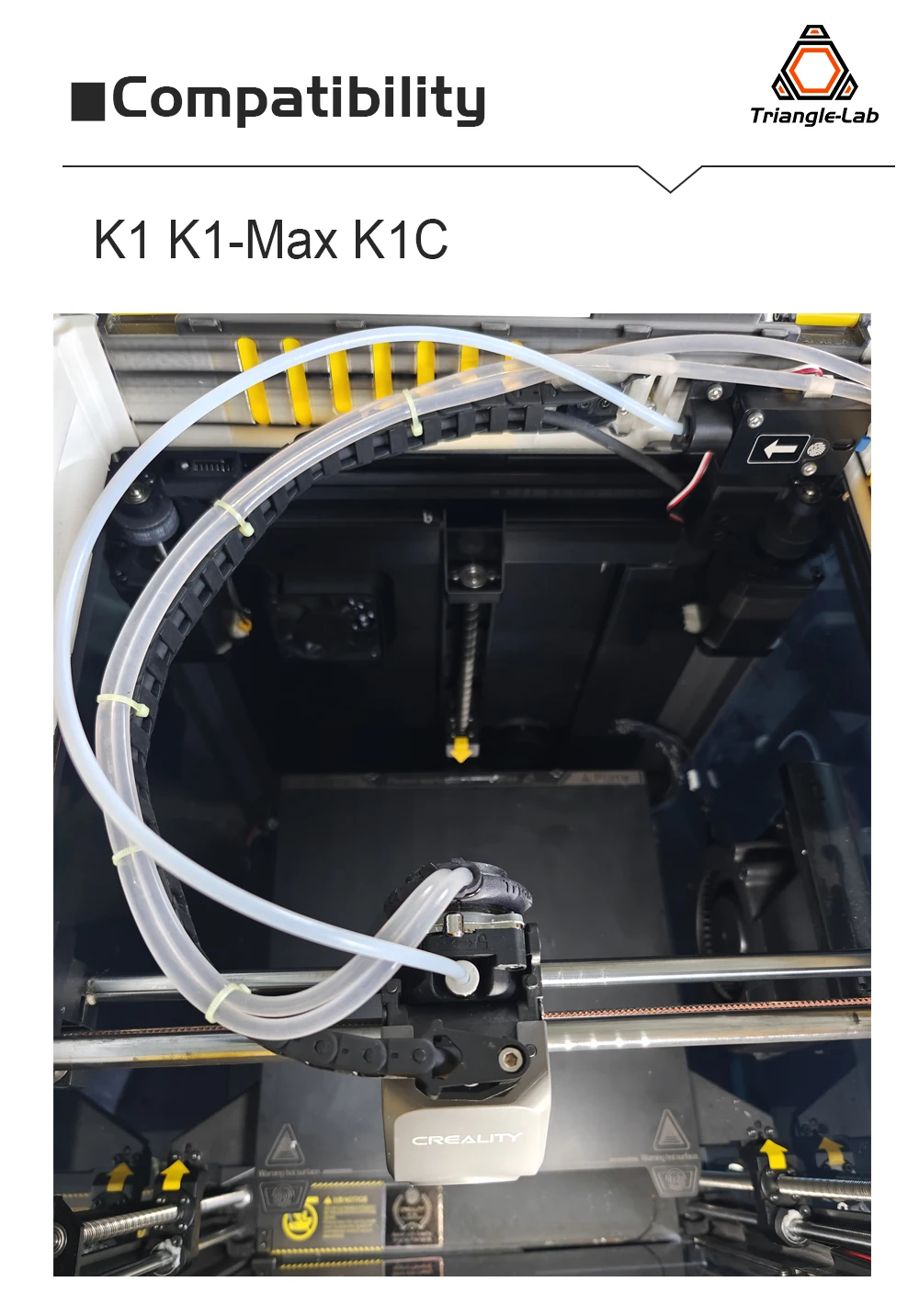

█ Compatibility
K1 K1-Max K1C

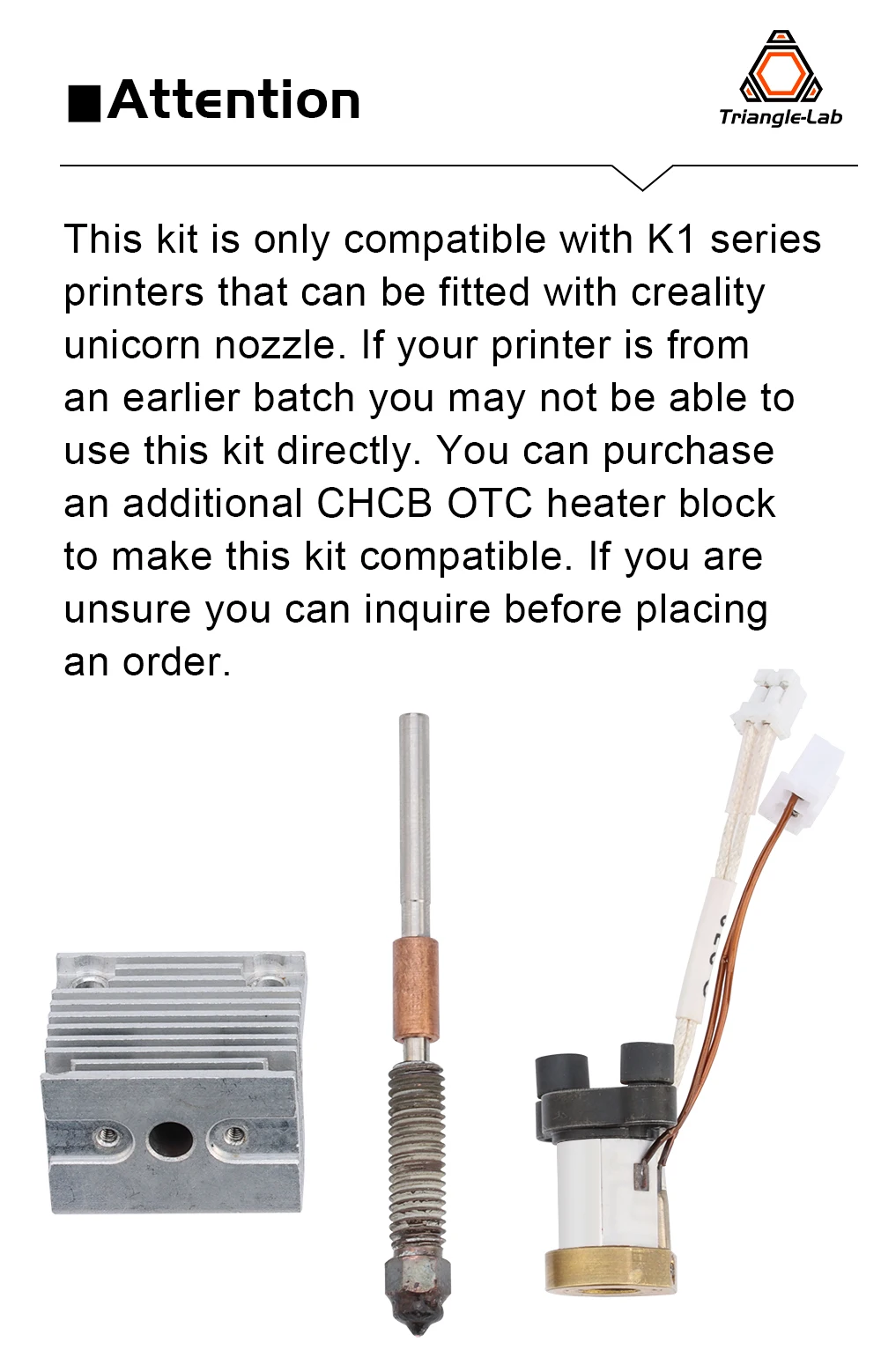

█ Attention
This kit is only compatible with K1 series printers that can be fitted with creality unicorn nozzle. If your printer is from an earlier batch you may not be able to use this kit directly. You can purchase an additional CHCB OTC heater block to make this kit compatible. If you are unsure you can inquire before placing an order.

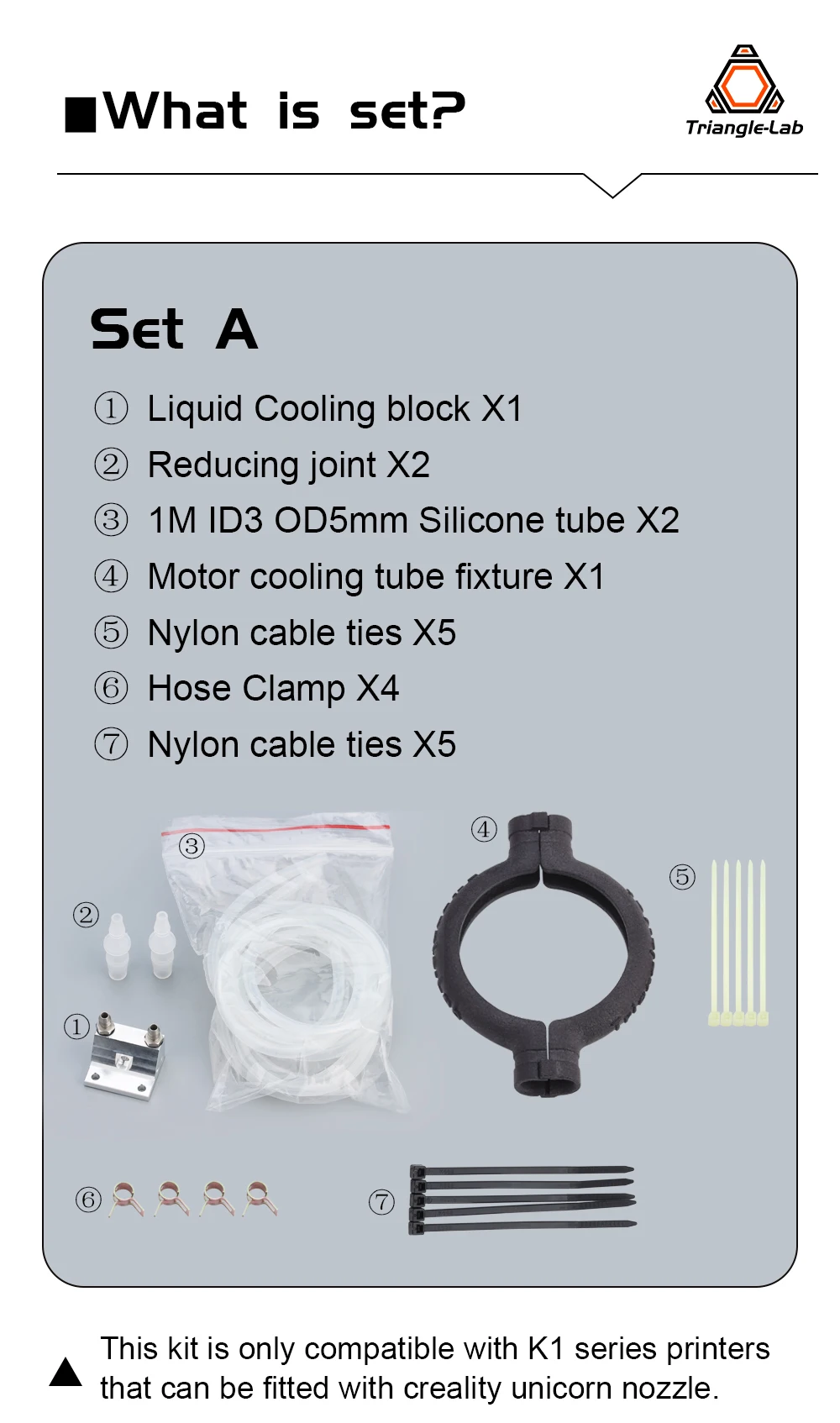

█ What is set?

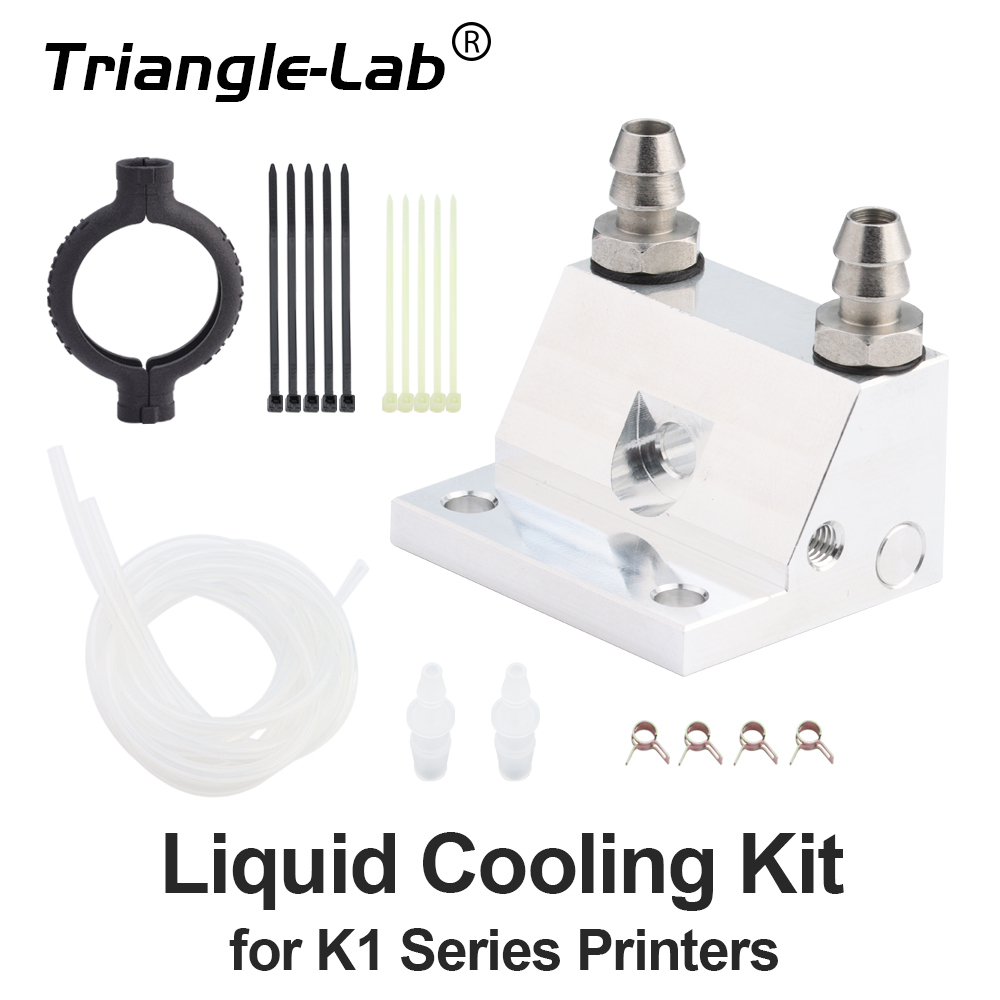

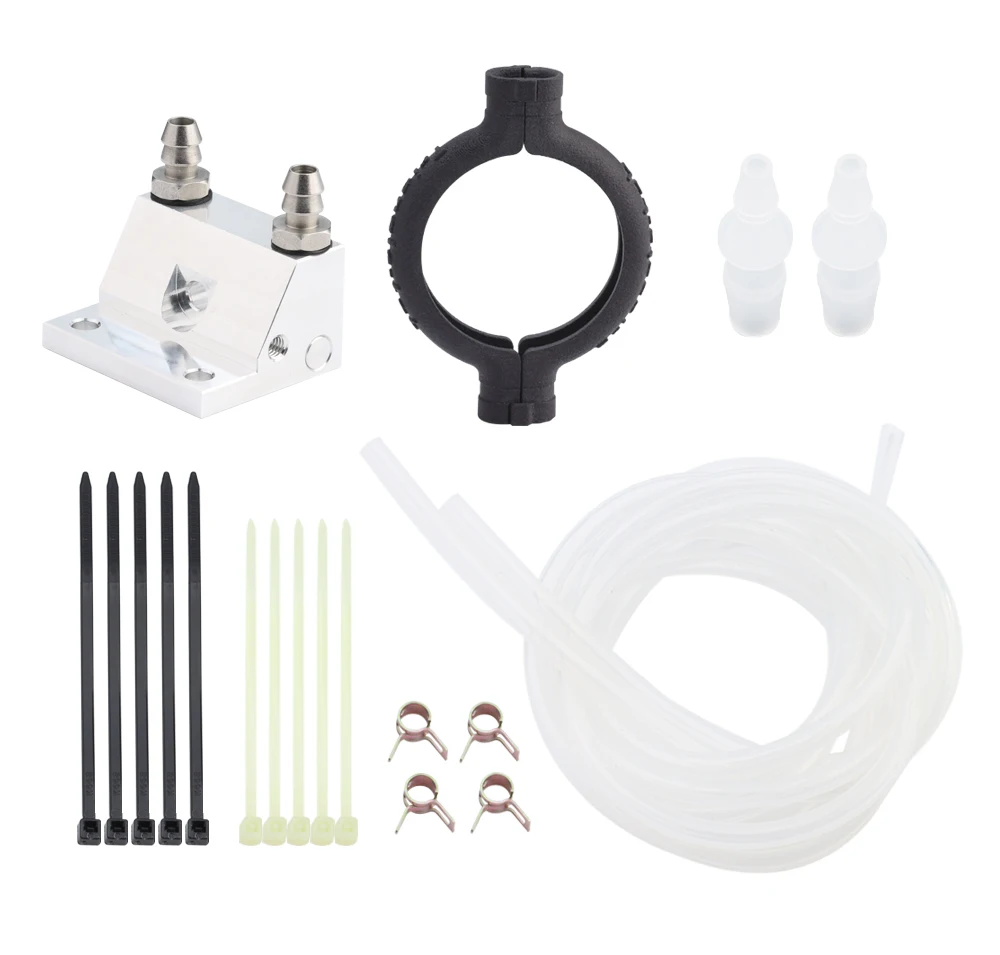

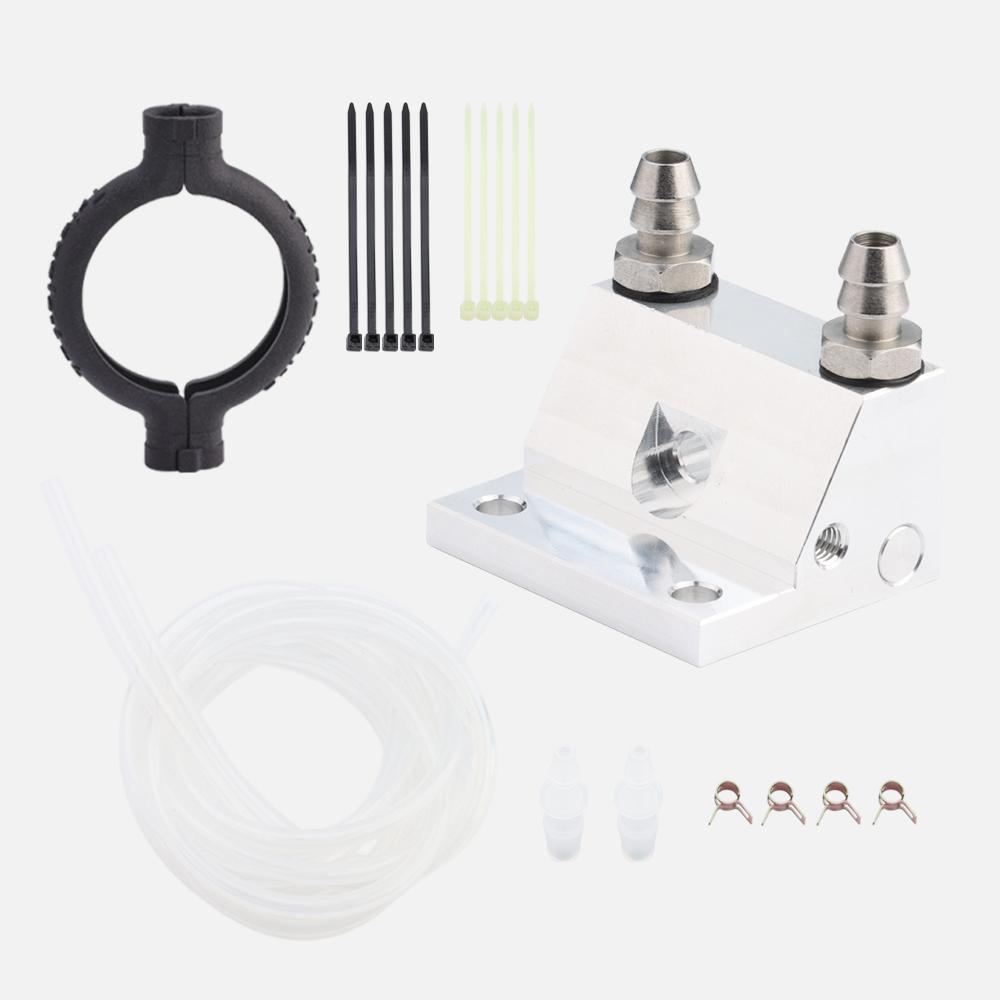

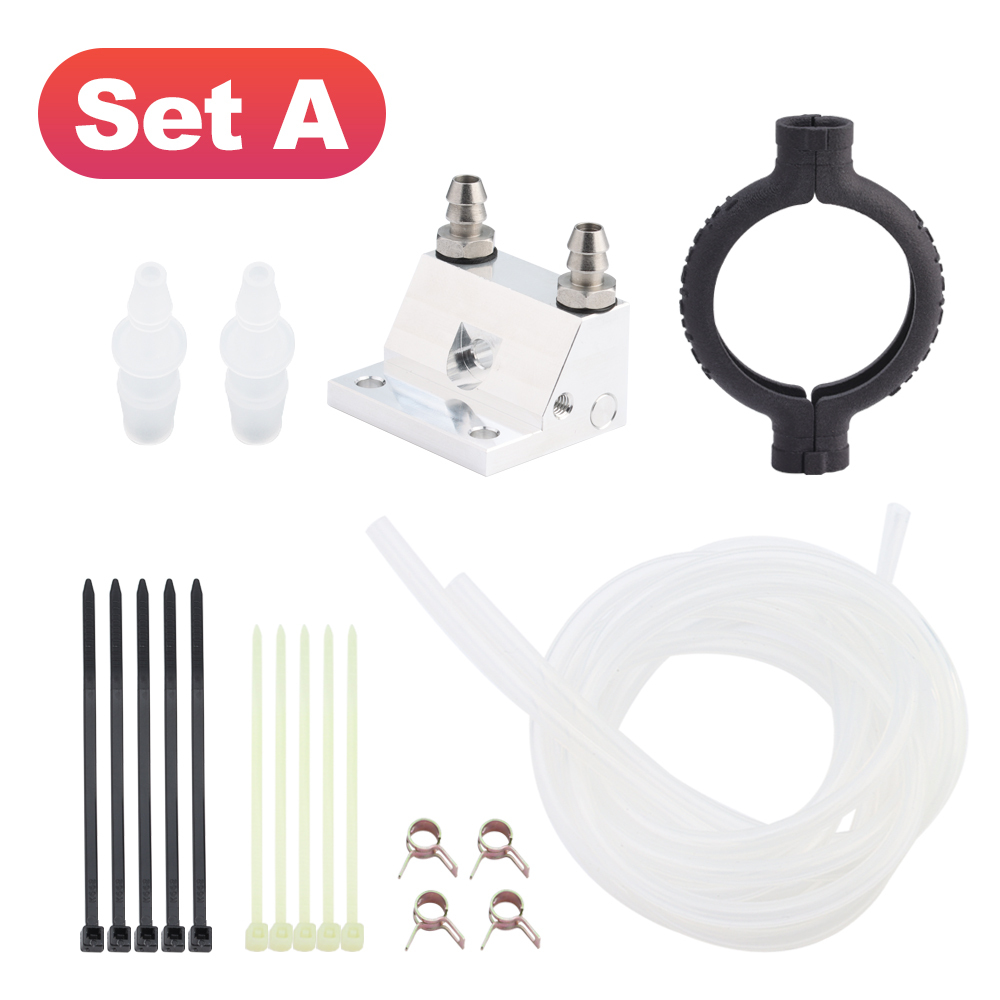

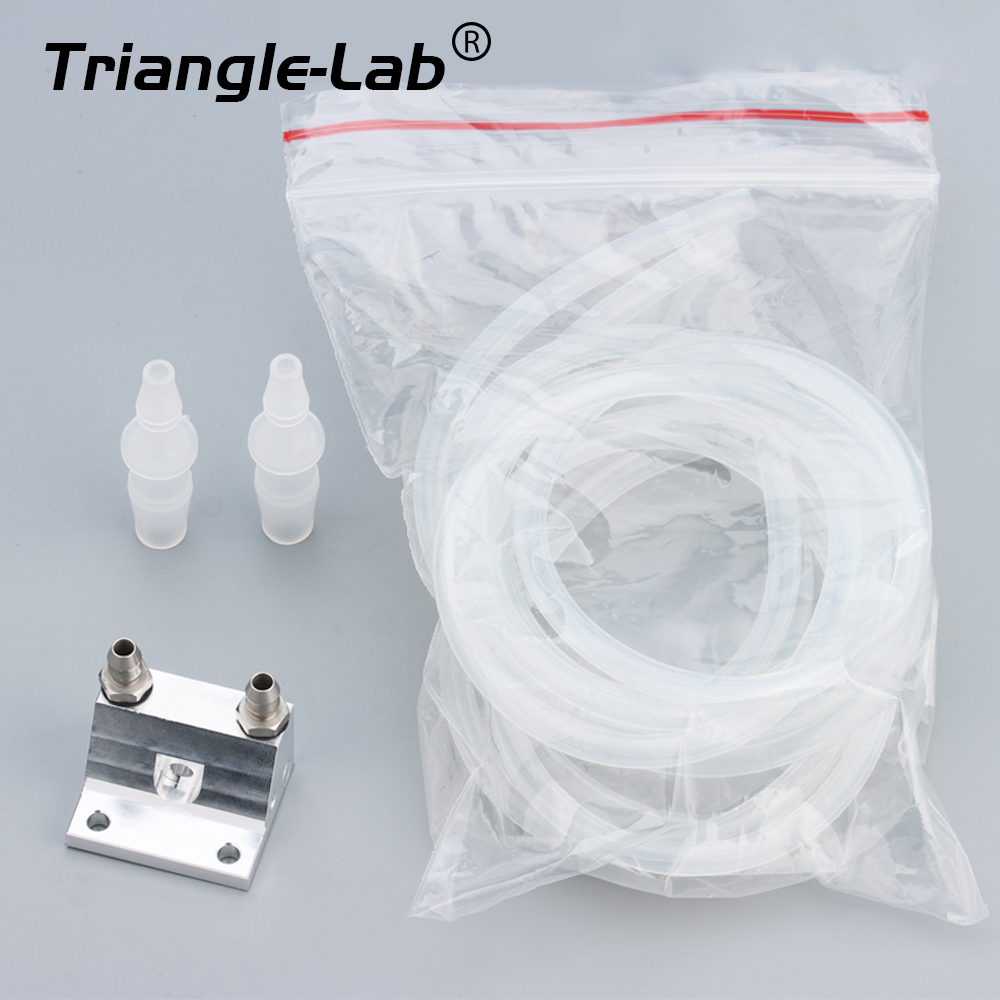

Set A

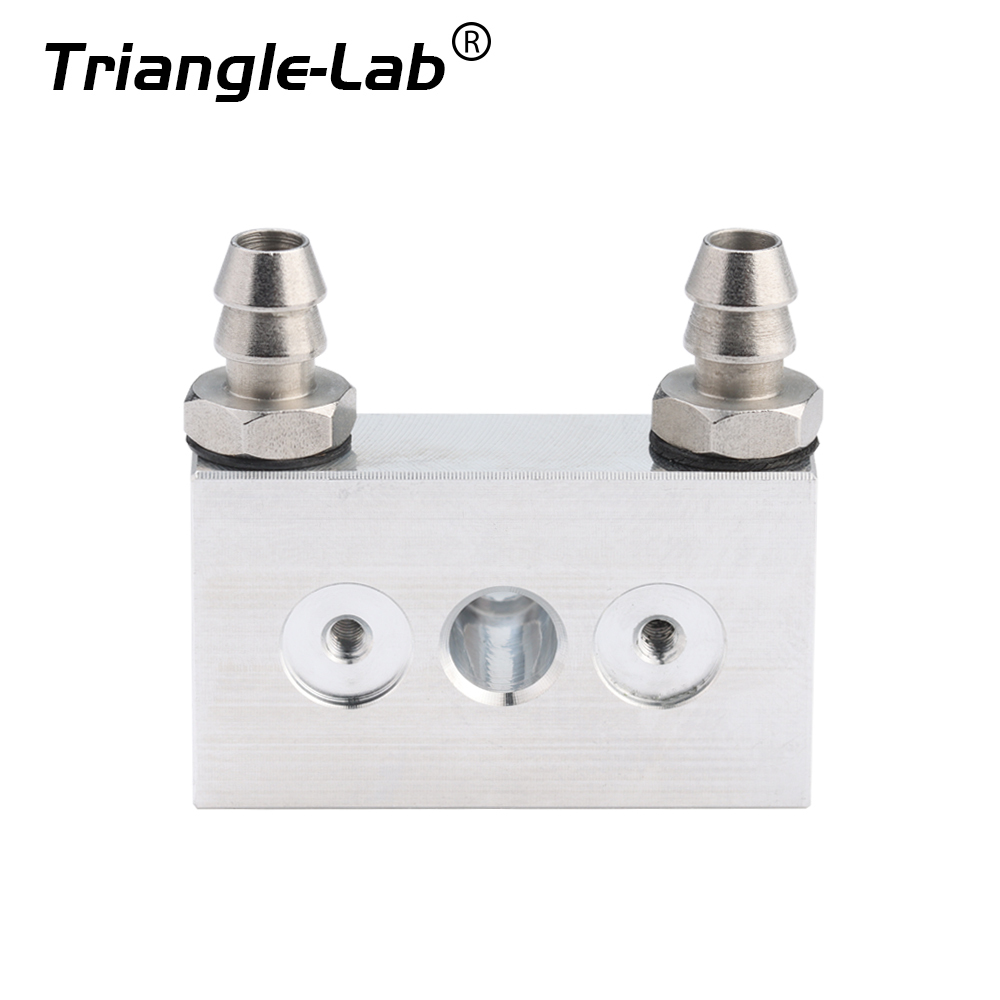

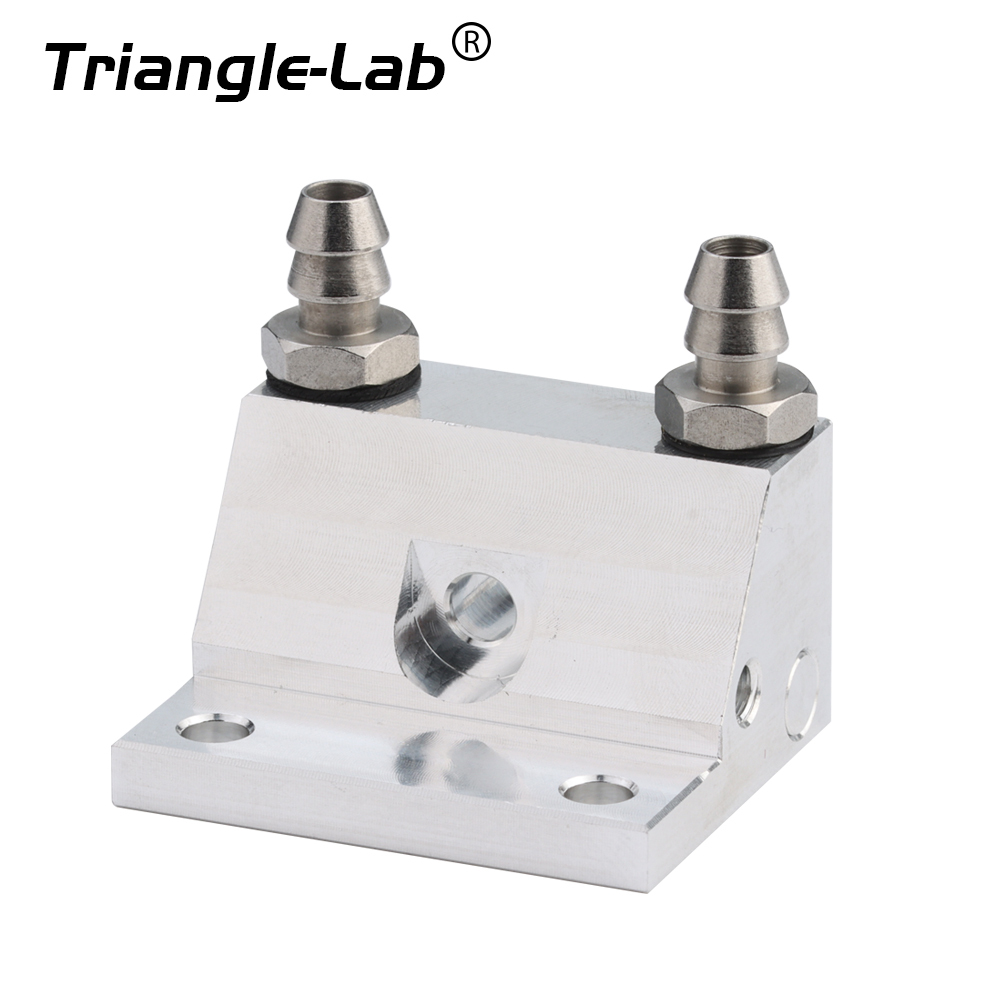

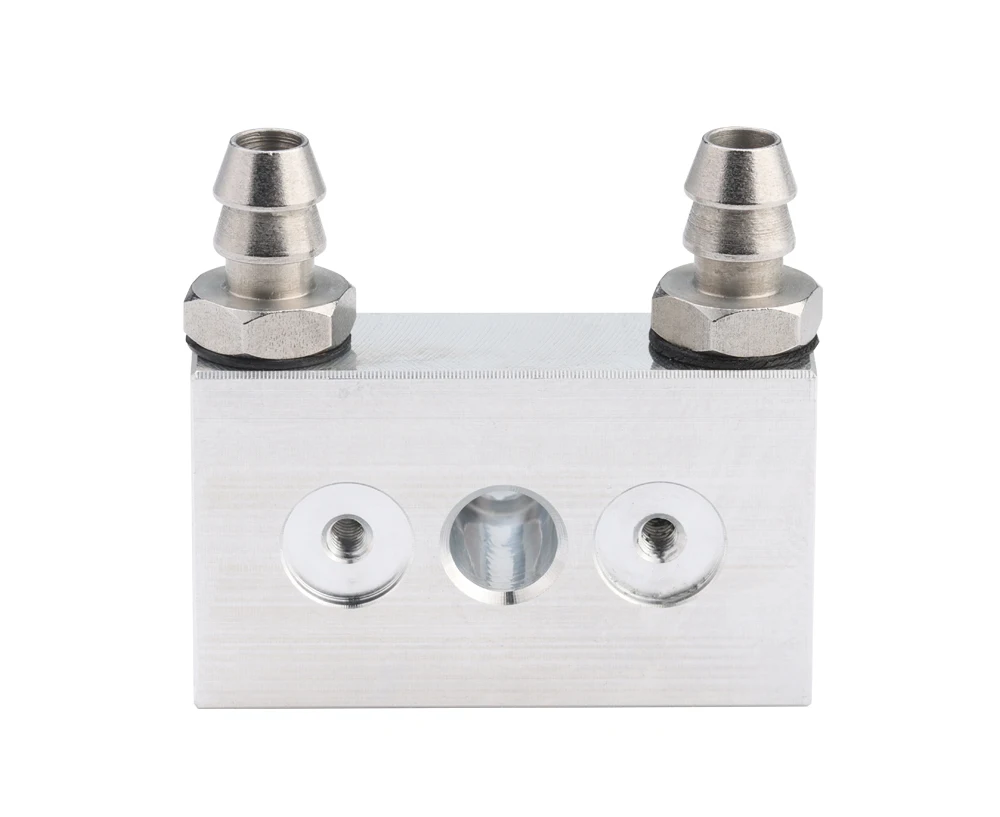

① Liquid Cooling block X1
② Reducing joint X2

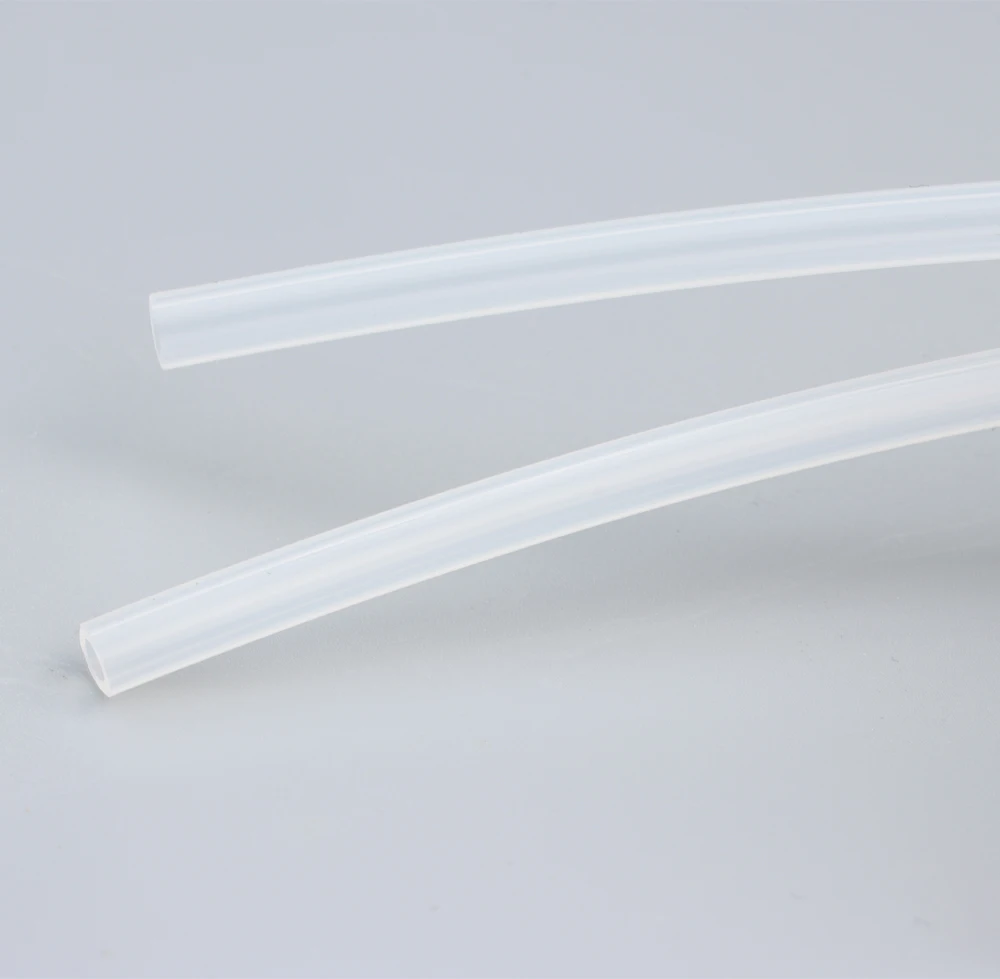

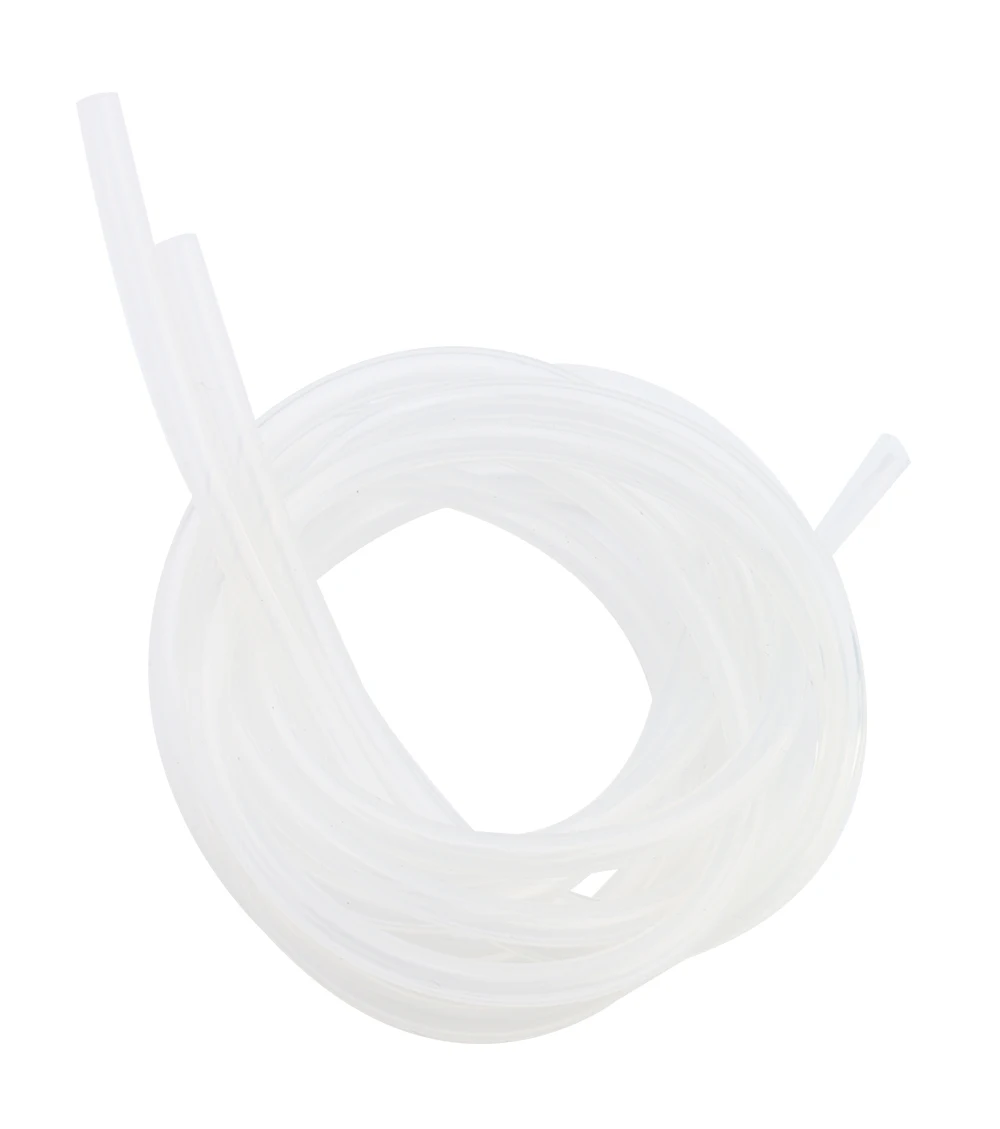

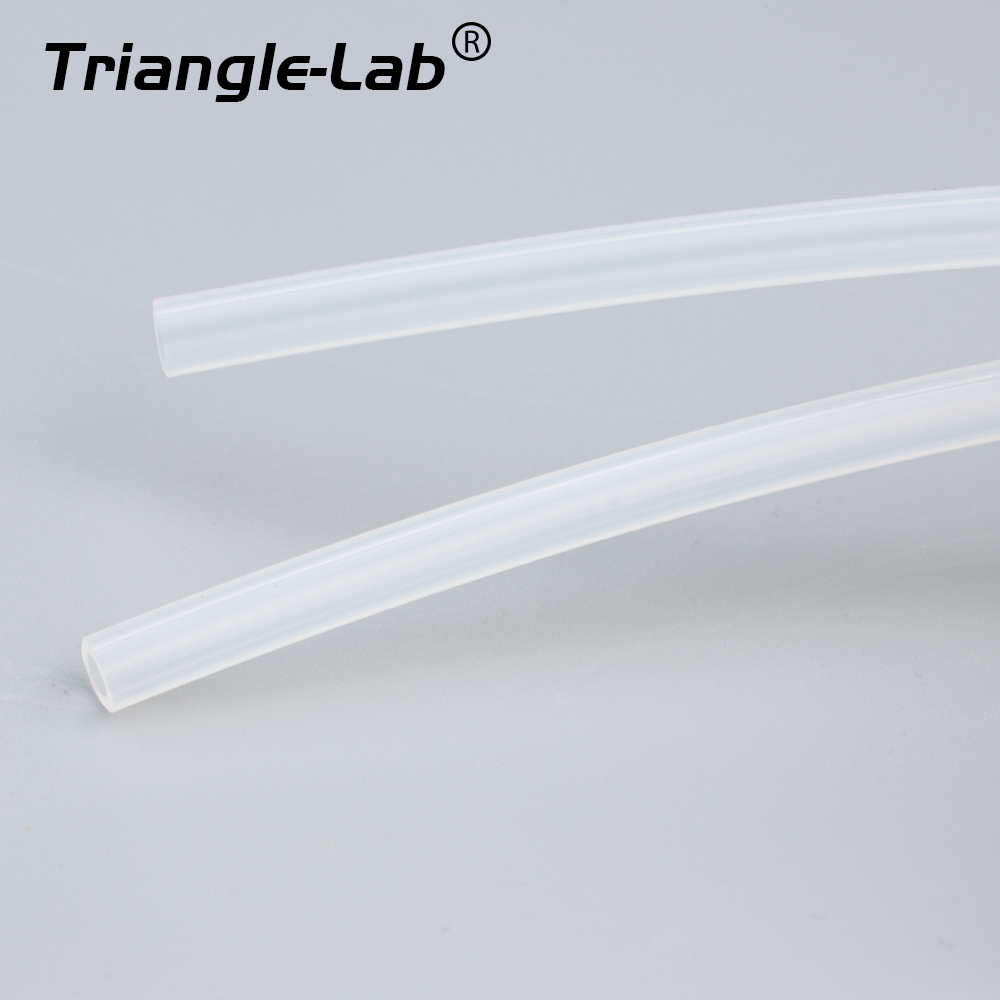

③ 1M ID3 OD5mm Silicone tube X2

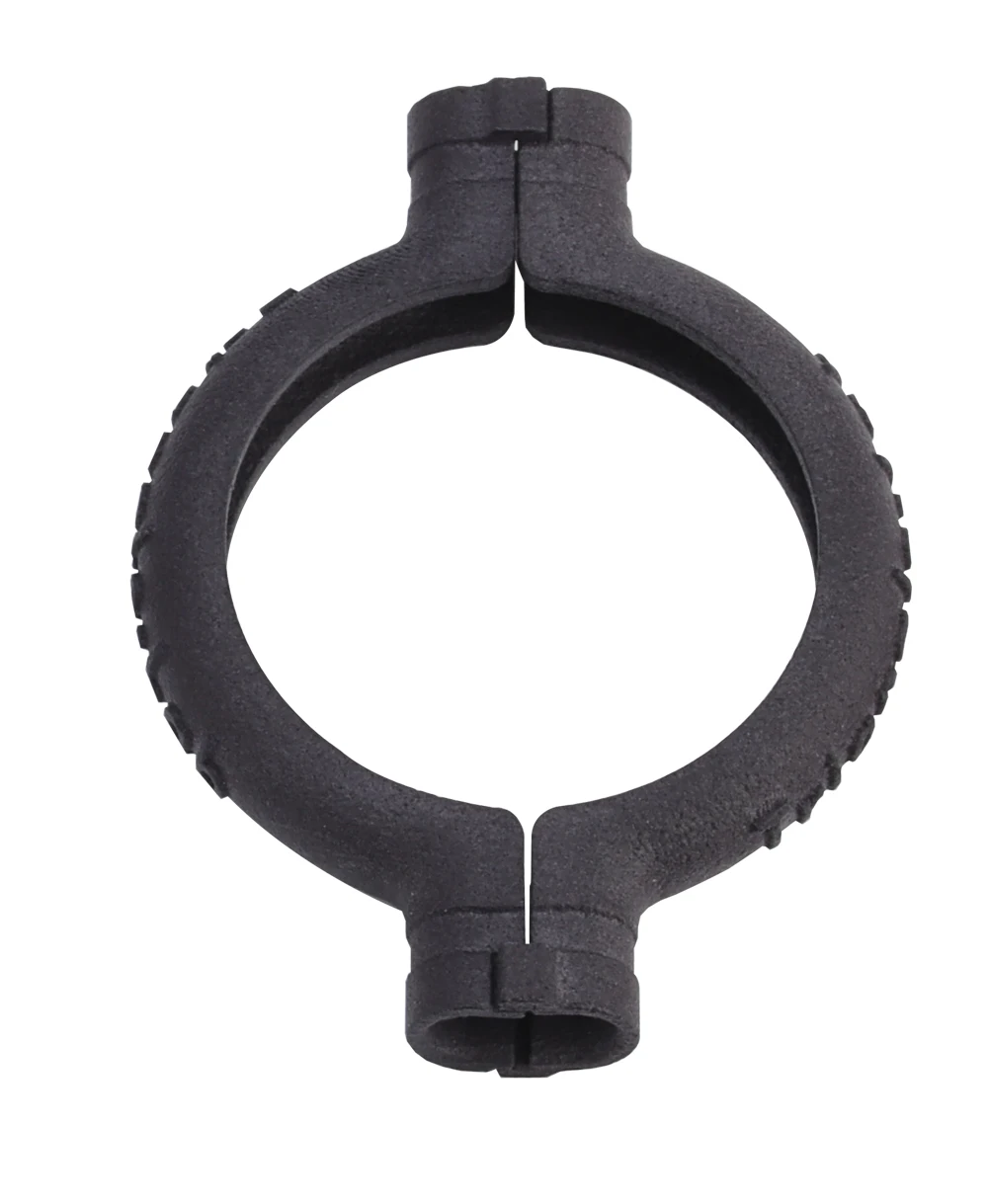

④ Motor cooling tube fixture X1
⑤ Nylon cable ties X5
⑥ Hose Clamp X4
⑦ Nylon cable ties X5

This kit is only compatible with K1 series printers that can be fitted with creality unicorn nozzle.

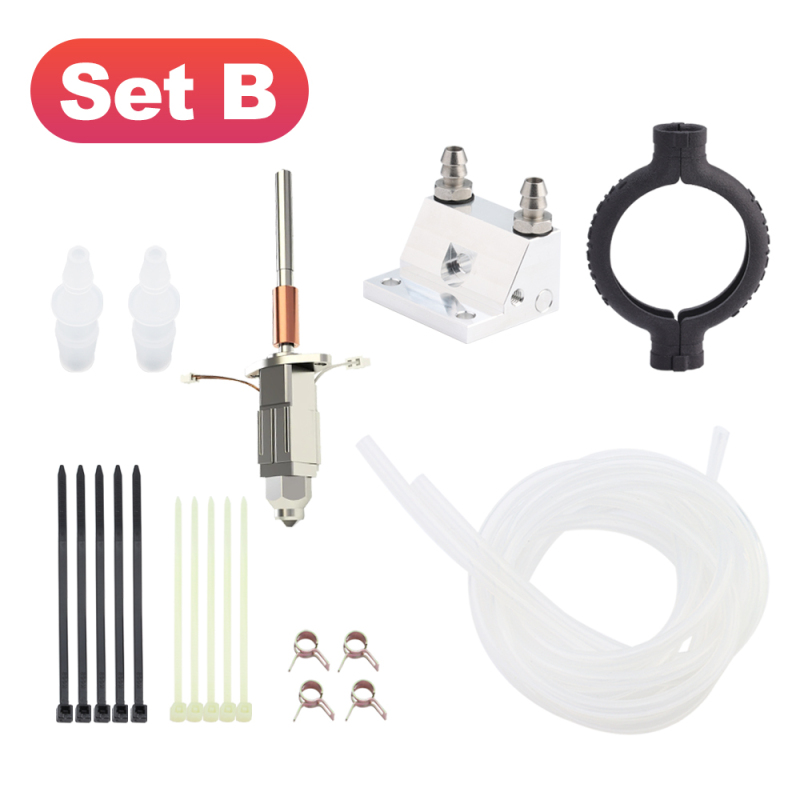

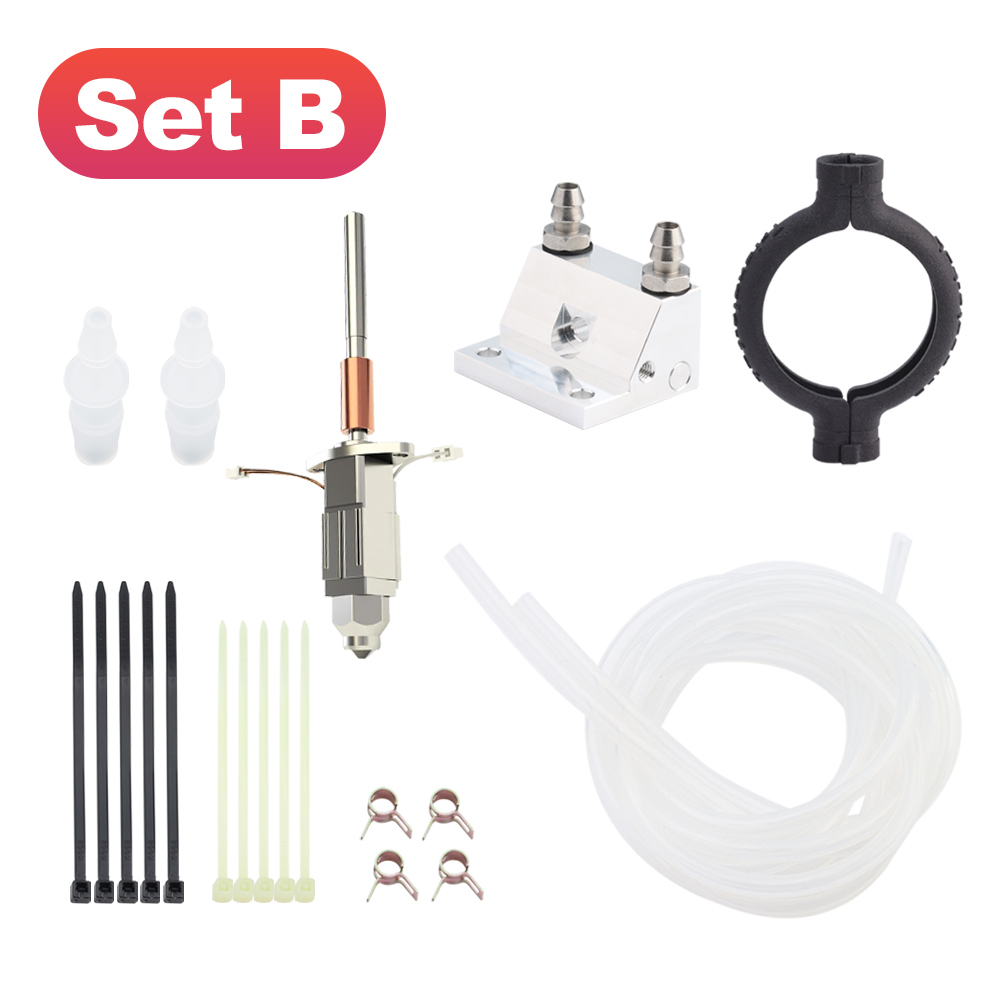

Set B
① Liquid Cooling block X1
② Reducing joint X2
③ 1M ID3 OD5mm Silicone tube X2
④ Motor cooling tube fixture X1
⑤ Nylon cable ties X5
⑥ Hose Clamp X4
⑦ Nylon cable ties X5
⑧ CHCB-OTC K1C Hotend 0.4mm X1
█ Warning
This kit does not include a water pump and radiator. The pump, reservoir and radiator ​used in general PCs are compatible. If you don't want to DIY, you can consider purchasing our liquid cooling module.
https://www.aliexpress.com/item/32850217541.html
█ Testing Report
Room temperature:28℃
ABS Printing
Top cover closed
Back fan outlet blocked
Side fan off
Bed temperature: 100℃
Hotend temperature: 265℃
Chamber temperature: 60℃
Extruder motor up surface temperature: 49℃
Heat breaker(cold side) temperature: 33℃
█ CHCB-OTC K1C
CHCB-OTC K1C Hotend*1
MK8 ZS Standard Nozzle 0.4mm*1
CHCB-OTC SOCKS*1
Thermistor: 100K B3950

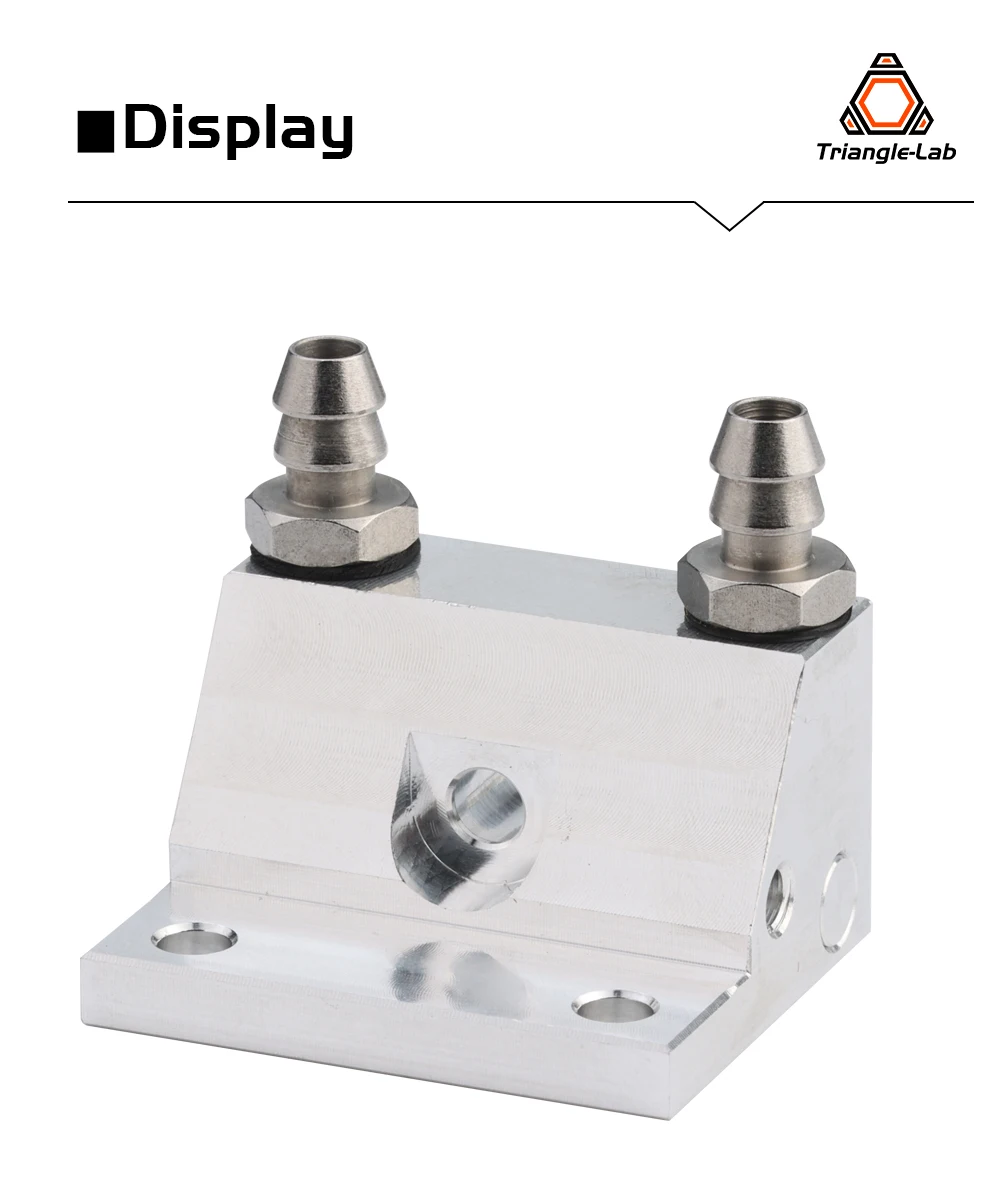

█ Display
