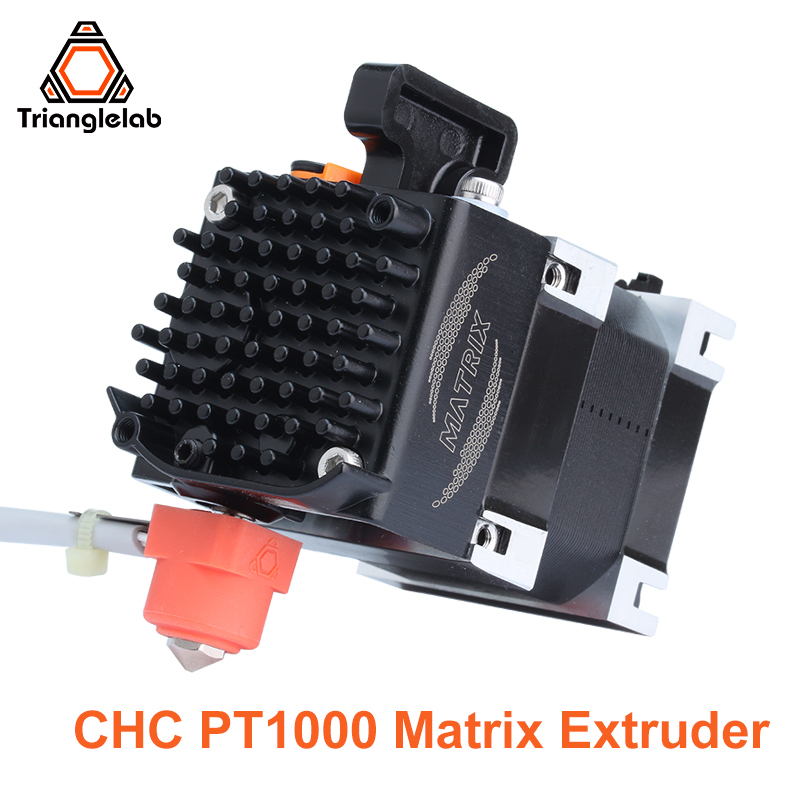

CHC PT1000 Matrix Extruder

Trianglelab CHC PT1000 Matrix Extruder Hotend Ceramic Heating Core Direct Drive 3D Printer For Ender3 CR10 BLV VORO 2.4
0.0 (0 Reviews)
6 Sold
$98.68 $88.81
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
  • size:
    12V CHC Matrix
    24V CHC Matrix
Quantity
-
+
  • Description
Note
All products purchased on this website are not include tax, including and not limited to: Consumption tax, Value added tax, customs duties, etc,
Before placing an order, please check your country's policies and regulations on online shopping taxes.
The amount you pay does not include tax and you will need to pay it yourself.
To purchase a tax-included products, please click the link below:
https://trianglelab.aliexpress.com/store/1654223
CHC PT1000 Matrix Extruder

Parameter
Max printingtemperature:285°C(upgradable to 450°C)
Mass:357g(including hotside)
Dimensions:66.7x44x78.7mm
Nominal steps per mm(16x): 335.4 steps per mm
(further calibration required)
Motor current:1.2A
Filament diameter and tolerances:1.75±0.05mm
Max pushing force:8.6kg Generic PLA
10mm/min @24V Driver

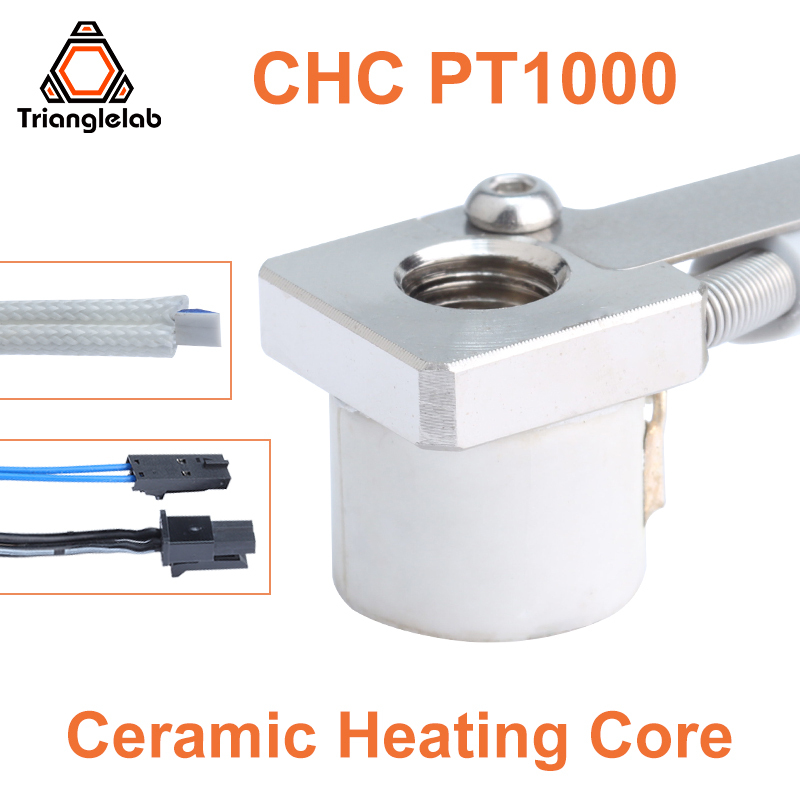

CHC PT1000

*Built-in PT1000 Thermistors

Supports temperatures up to 350℃

Matrix Bi-metal Heatbreak

Only Compatible with Trianglelab - Matrix Extruder

Matrix Gear

Wear resistant

High temperature resistant

Matrix Shell

robust

abrasion resistant

Matrix Motor

Number of Phase:2

Step Angle:1.8° deg.

Rated Voltage:2.73V

Rated Current/Phase:1.3A(Peak Value)

Phase Resistance:2.1Ω±10%(20℃)

Phase Inductance:3.8mH±20%(1kHz 1V RMS)

Holding Torque:3.0kg.cm
Insulation Class:B(130°);80K

Max
Weight:220g

4010DC 24V Fan

ow noise

What's in the box

Matrix Extruder Pre-assembled           x1

CHC PT1000 Ceramic Heating Core   x1

T-V6 Plated Copper 0.4mm Nozzle     x1

4010DC 24V Fan                                 x1

CHC Silicone Sock                              x1
