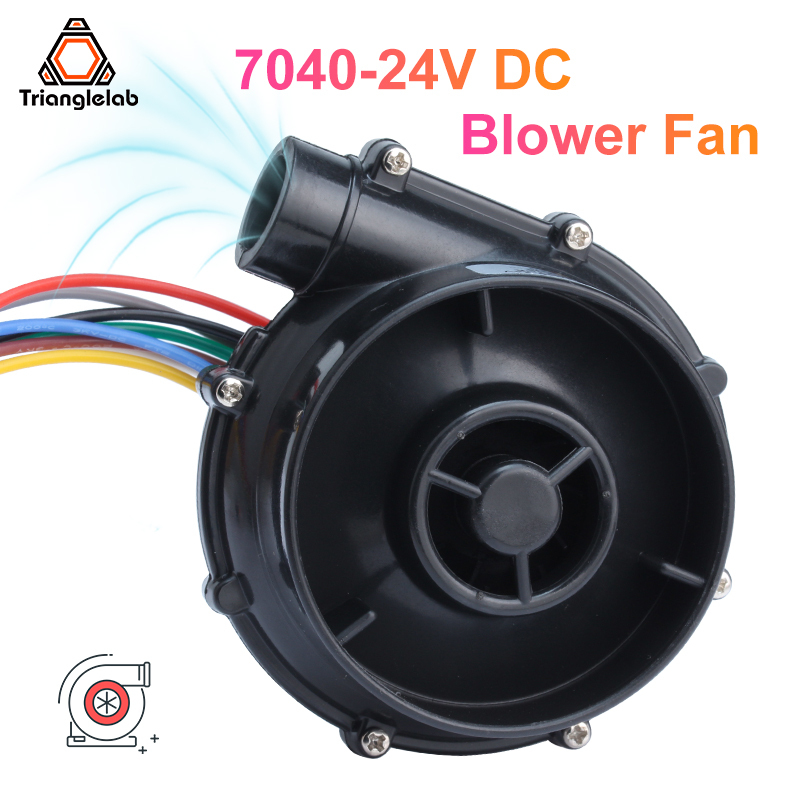

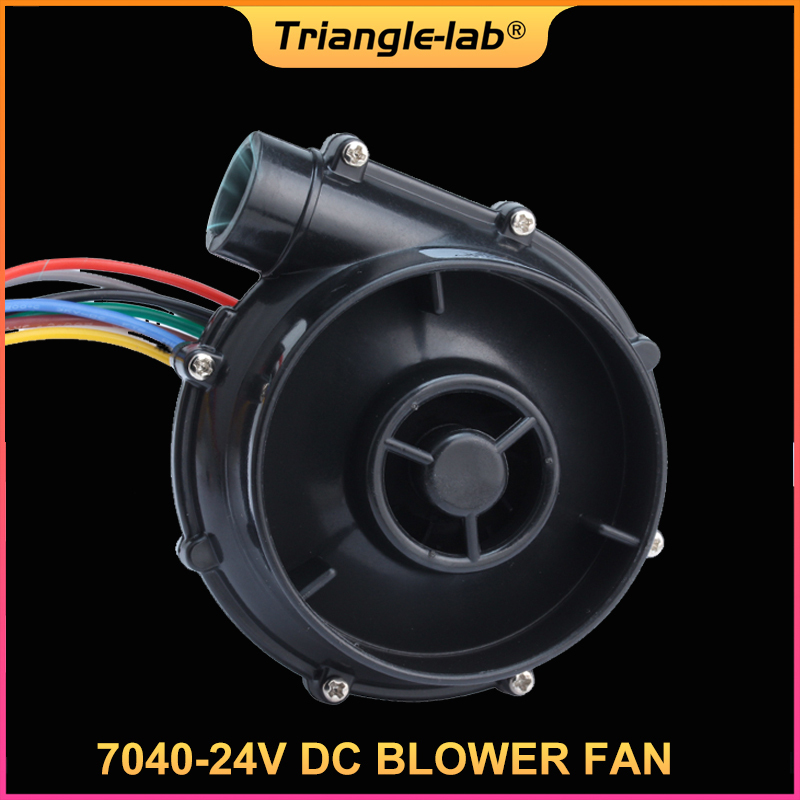

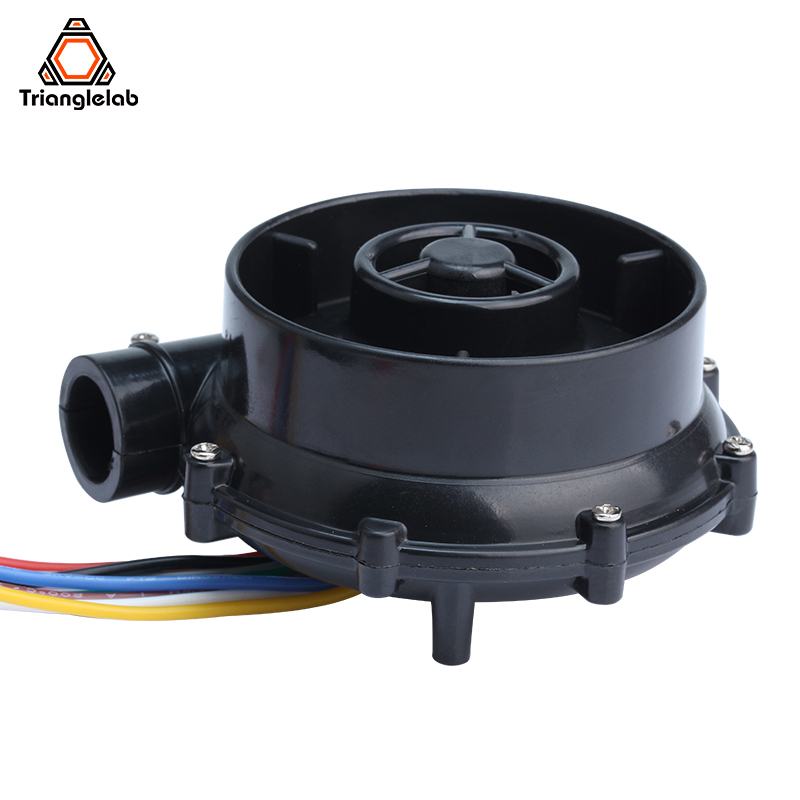

7040 Fan

• Before ordering, please note that all our products do not include tax, you need to declare your own tax!

• If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.

• Technical questions e-mail：[email protected]

• Sales questions e-mail：[email protected]

• The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.

• Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

▉Description:

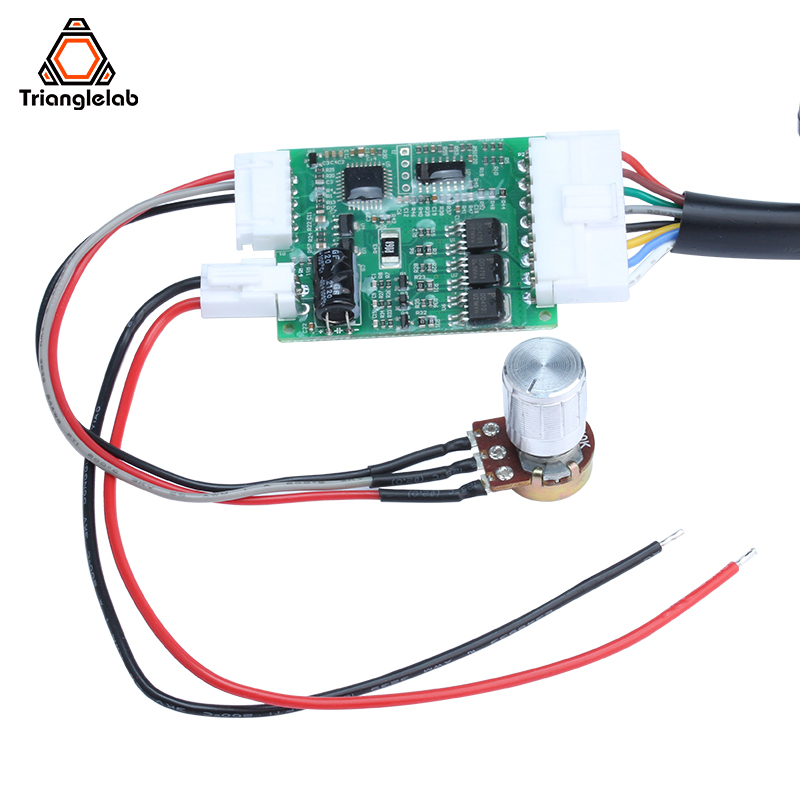

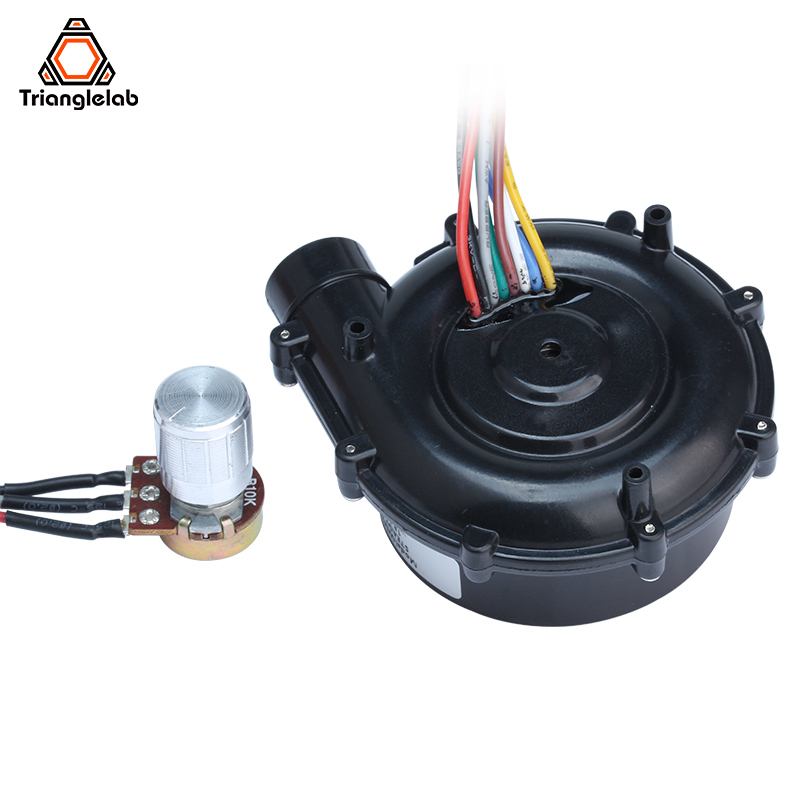

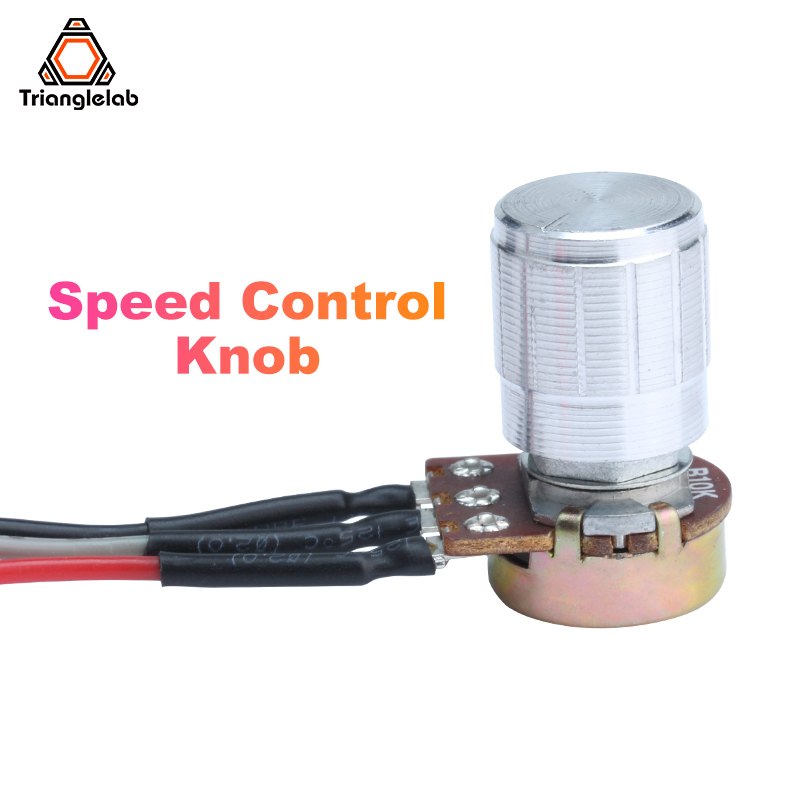

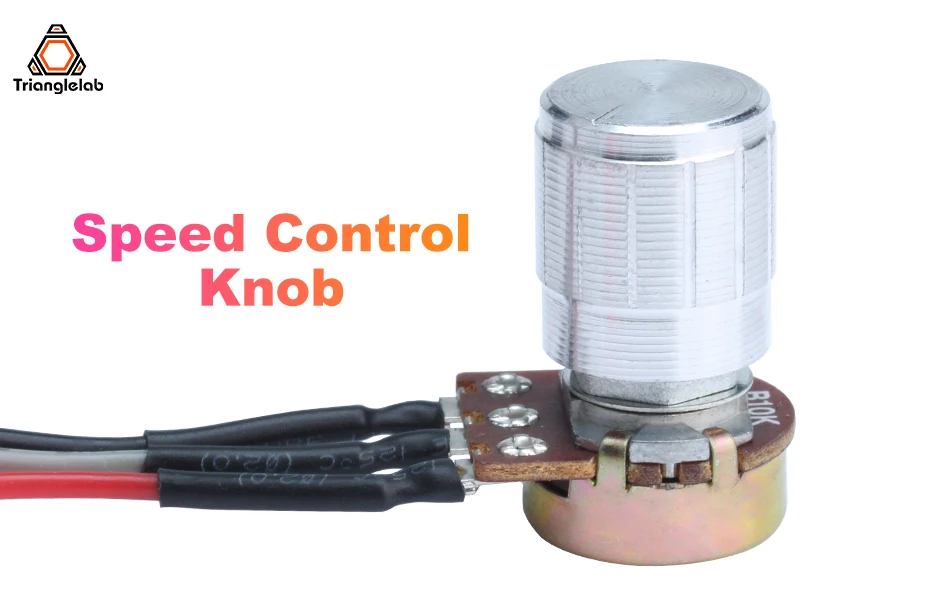

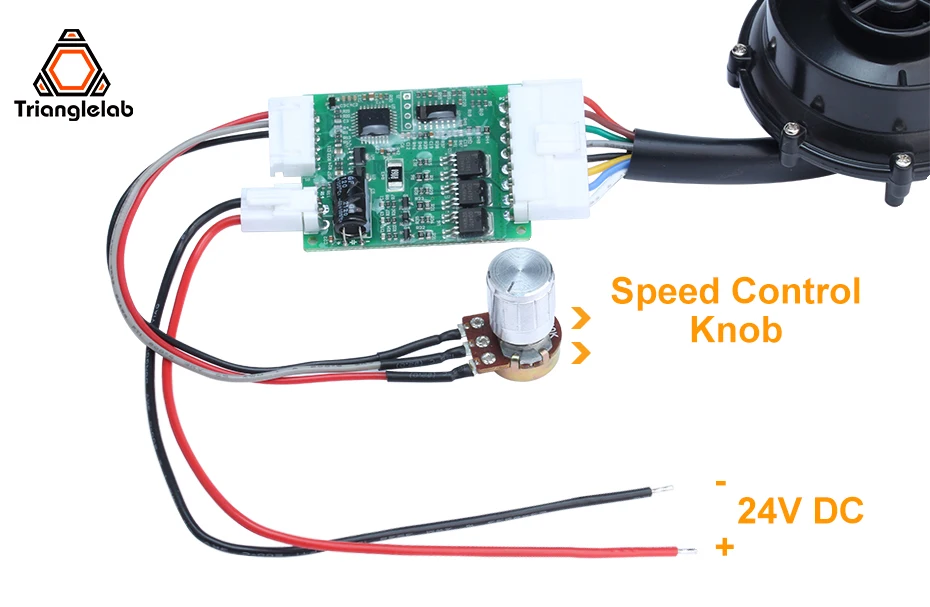

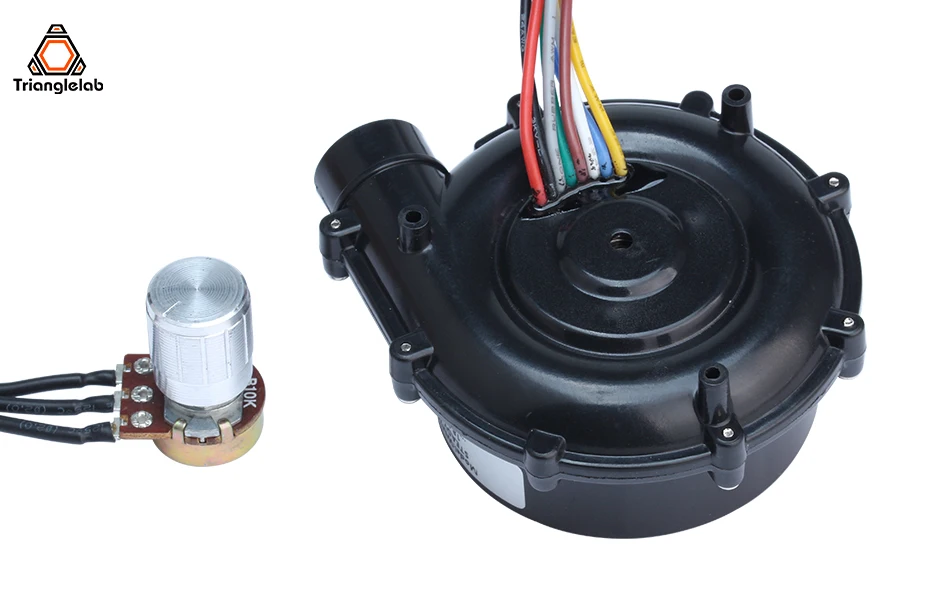

First, connect the 24V DC power supply and control the fan speed with the potentiometer knob on the driver board

 Unplug the potentiometer knob and connect the PWM control cable

 Please find an extra pin X on the printer control board, such as limit switch, etc. 5-3.3V logic voltage

connected to the blower's driver board control wire to it Red wire to pinX Black wire to GND

Change the default fan pin in the pins file (marlin)

MARLIN:

 enable “FAN_SOFT_PWM” and set ”SOFT_PWM_SCALE”to 5

klipper：

[fan]

pin: X

hardware_pwm: False

cycle_time: 0.005

 Duetboard:

https://duet3d.dozuki.com/Wiki/Connecting_and_configuring_fans

▉Testing:

https://www.youtube.com/watch?v=W8hgutyGDiQ

▉Display:

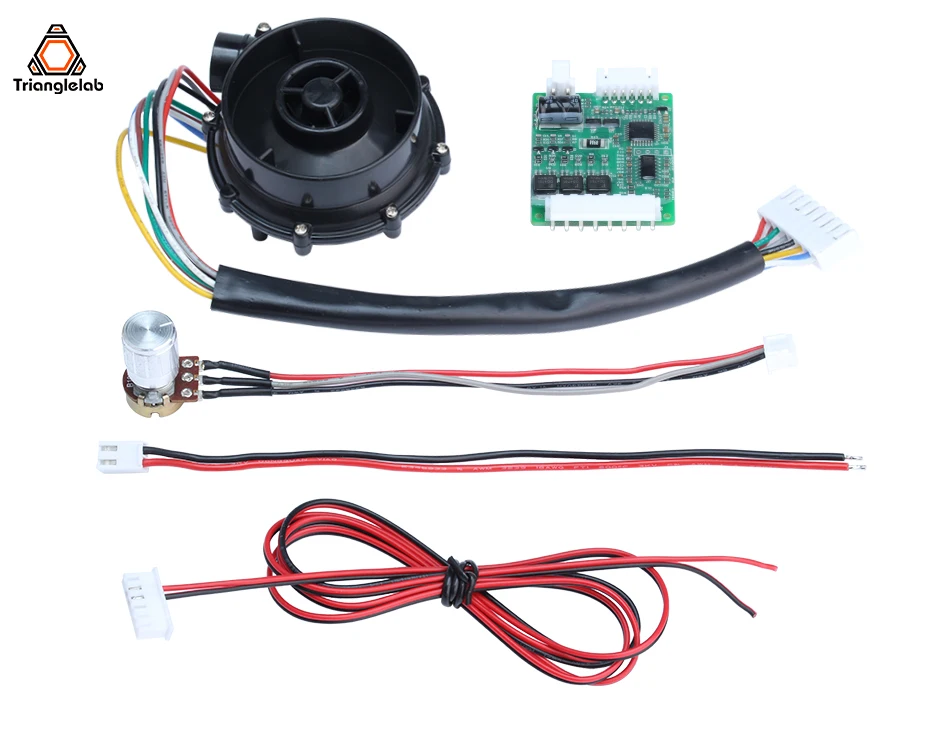

▉What's in the box:
