▉Name:

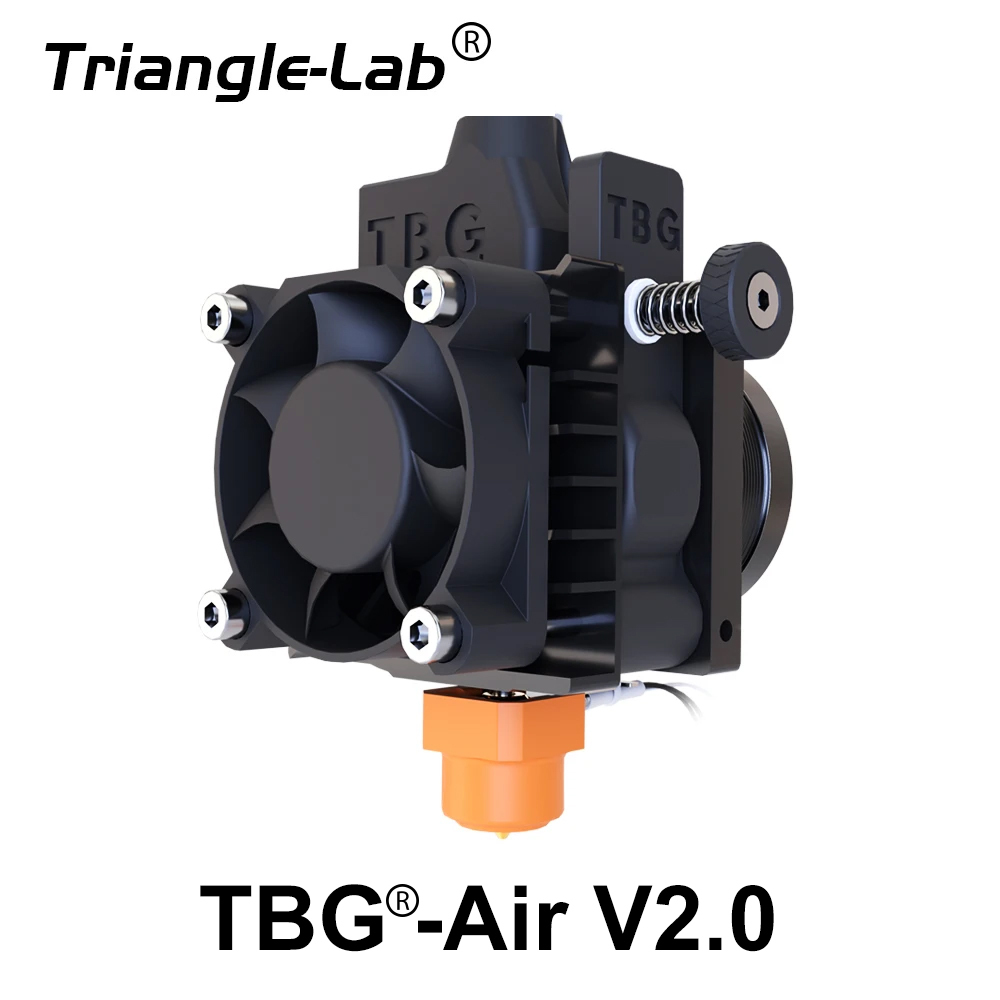

Trianglelab TBG-AIR V2.0 Extruder

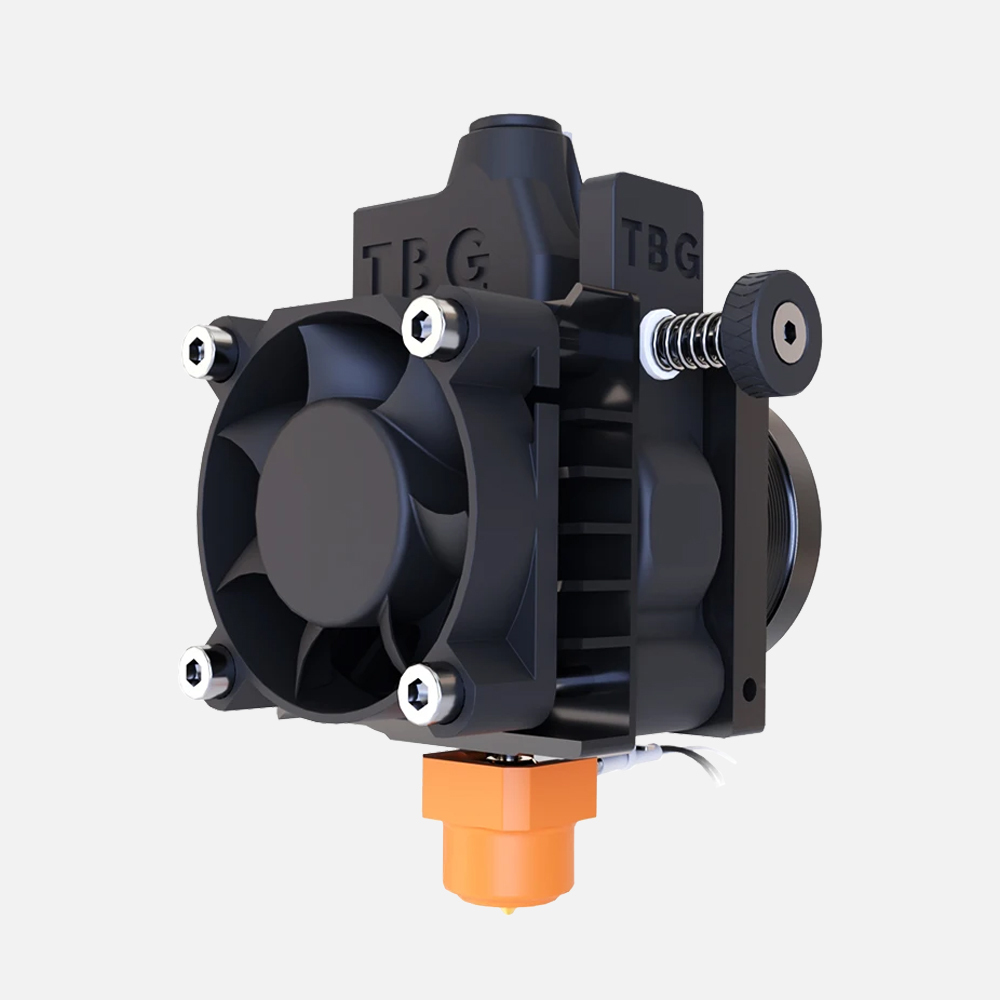

The TBG air v2 is an extruder with an integrated hotend using one pair large dual drive gears.It has a reliable design with excellent heat dissipation. It has large (the largest in the field) dual drive drives that allow for a larger contact area with the filament so that it can feed the filament more reliably. Thanks to the shorter filament path, it is compatible with very soft flexible filaments, the softest can reach 75AThe filament sensor is already integrated (removable).

It has a compact form factor and very light weight.Multiple mounting points on the side of the extruder allow for free design of part cooling fan bed leveling sensors etc.A variety of compatible printer accessories are available, and STEP files are available.

▉More information:

https://drive.google.com/drive/folders/10oaf_JKIFIPbKWLJnUDA1cEeA0Clbekh?usp=drive_link

▉Compare to the previous version:

1. Increases the gear ratio and resolution
2. The drive gearsl uses precision bearings to improve the overall accuracy

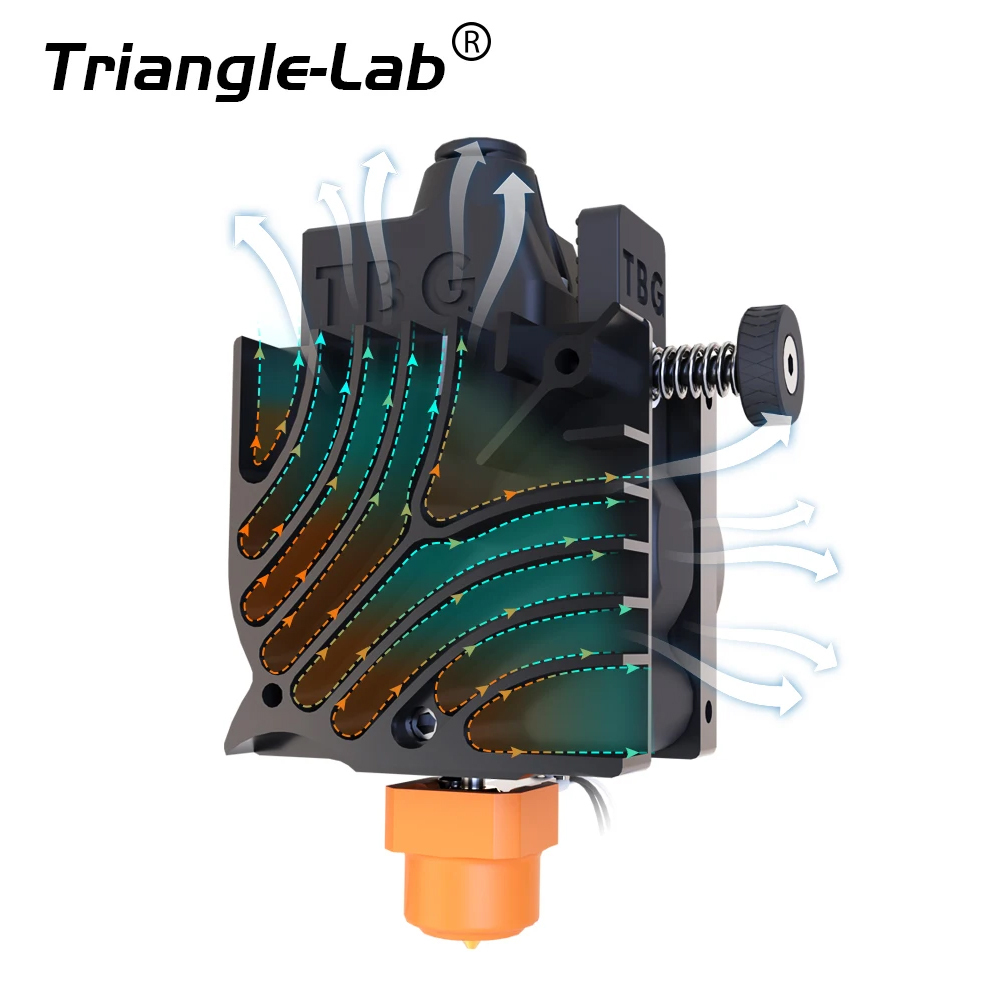

3. Larger cooling fin area, stronger heat dissipation capability
4. Integrated filament presence sensor
5. Lighter weight
6. More filament pushing force

▉Summary:

• Drive type: large dual drive with adjustable tension idler (Can be converted into ​single drive)
• Max printing temperature: 290°C (upgradable to 450°C)
• Mass: 214g (including Heat Cartridge Thermistor & Cooling Fan)
• Gear ratio:11.53125 : 1
• Nominal steps per mm (16x): 613 steps per mm (further calibration required)
• Motor current: 1.0A
• Filament diameter and tolerances: 1.75±0.1mm
• Max pushing force: 6.3kg Generic PLA 10mm/min @24V
• Maximum static pushing force that the heat breaker tube
• clamping system can withstand: 15KG 147 N
•

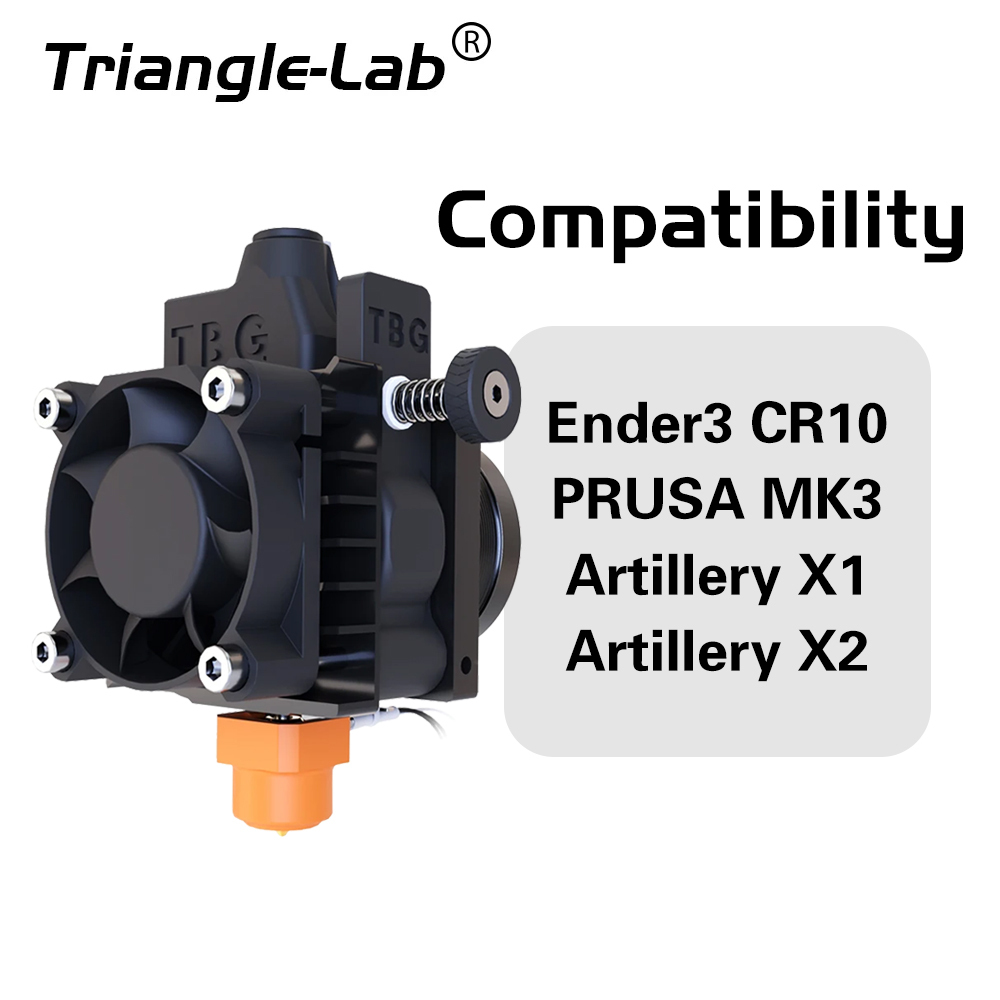

▉Hotside Compatibility:

Ender3 CR10/ Prusa /ArtilleryX1/

​Artilleryx2

V6,Volcano,super volcano,CHC, CHC Pro

▉Dimension:

▉What's in the box:

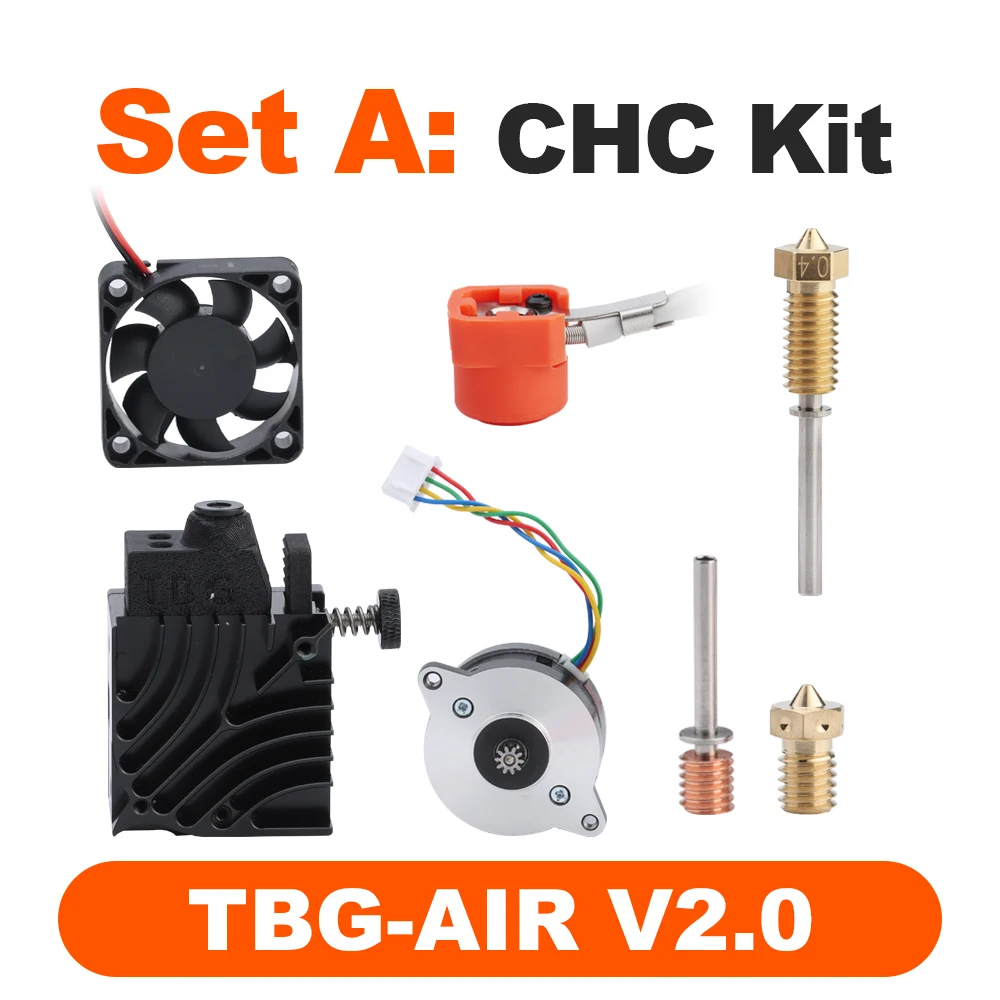

Set A: TBG-AIR V2.0 CHC Kit

TBG-AIR Extruder(Pre-installed)

LDO Motor

4010 Fan

CHC Kit

TUN Brass Nozzle 0.4mm

Matrix Heatbreak

E3D V6 Brass nozzle 0.4mm

Screw Pack

Tool kits

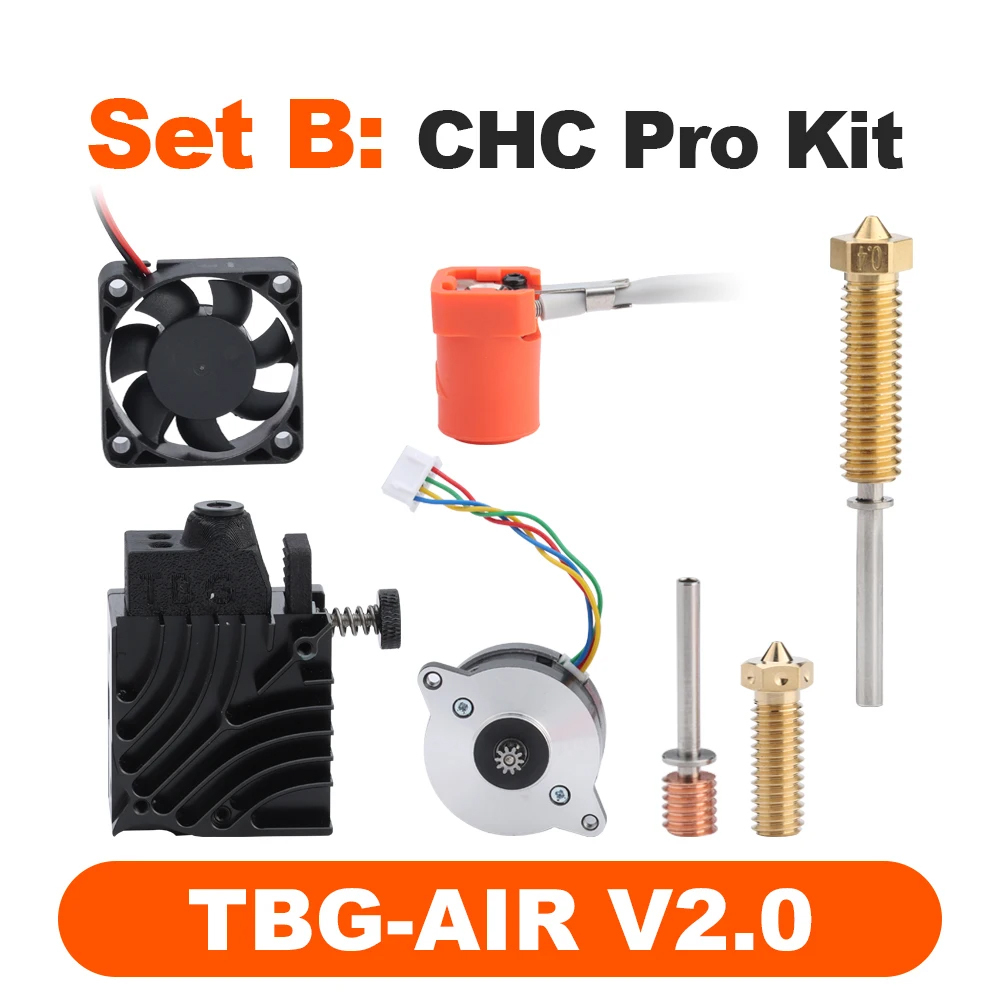

Set B: TBG-AIR V2.0 CHC Pro Kit

TBG-AIR Extruder(Pre-installed)

LDO Motor

4010 Fan

CHC PRO KIT

TUN Pro Brass nozzle 0.4mm

Matrix Heatbreak

E3D V6 Brass Nozzle 0.4mm

Screw Pack

Tool kits

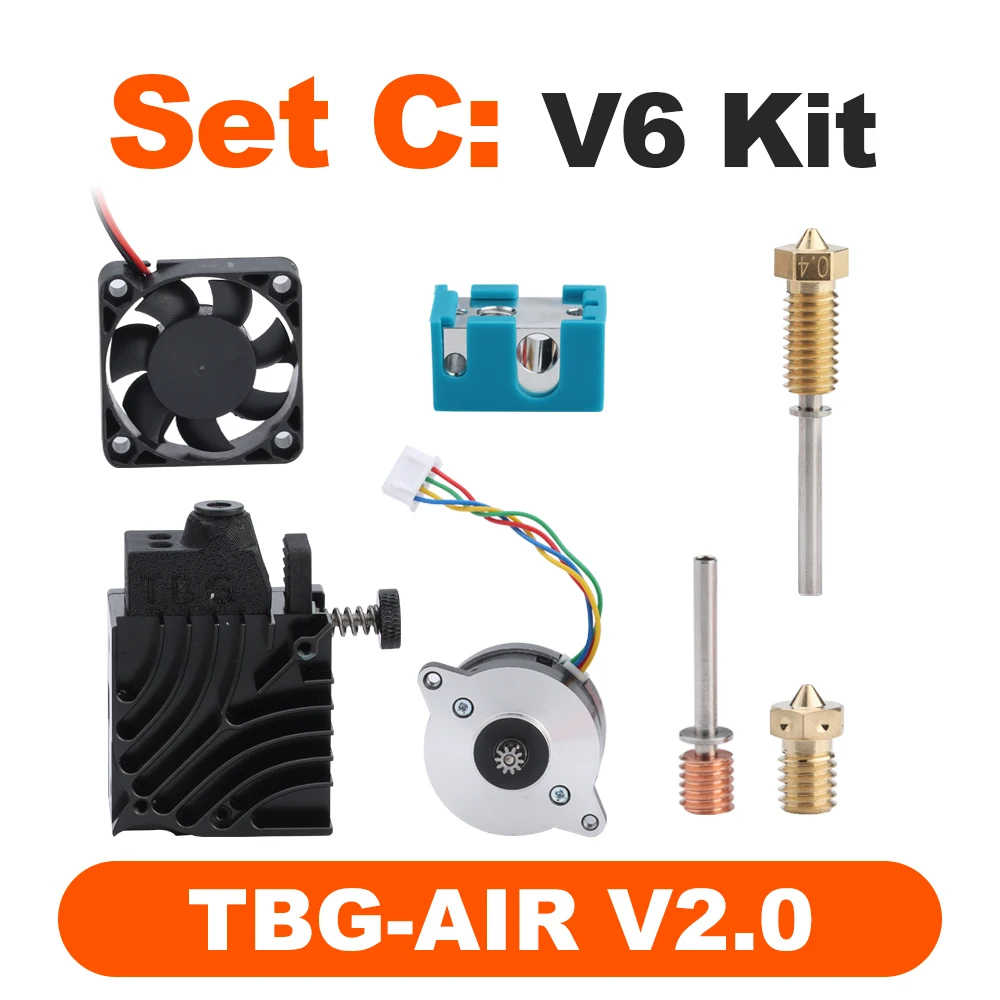

SET C TBG-AIR V2.0 V6 Kit

TBG-AIR Extruder(Pre-installed)

LDO Motor

4010 Fan

E3D V6 Aluminium Heatblock

Matrix Heatbreak

E3D V6 Brass Nozzle 0.4mm

E3D V6 Silicone Sock

40W Heater Cartridge

104NT-4-R025H42G Thermistor

TUN Brass Nozzle 0.4mm

Screw Pack

Tool kits

▉Display:
