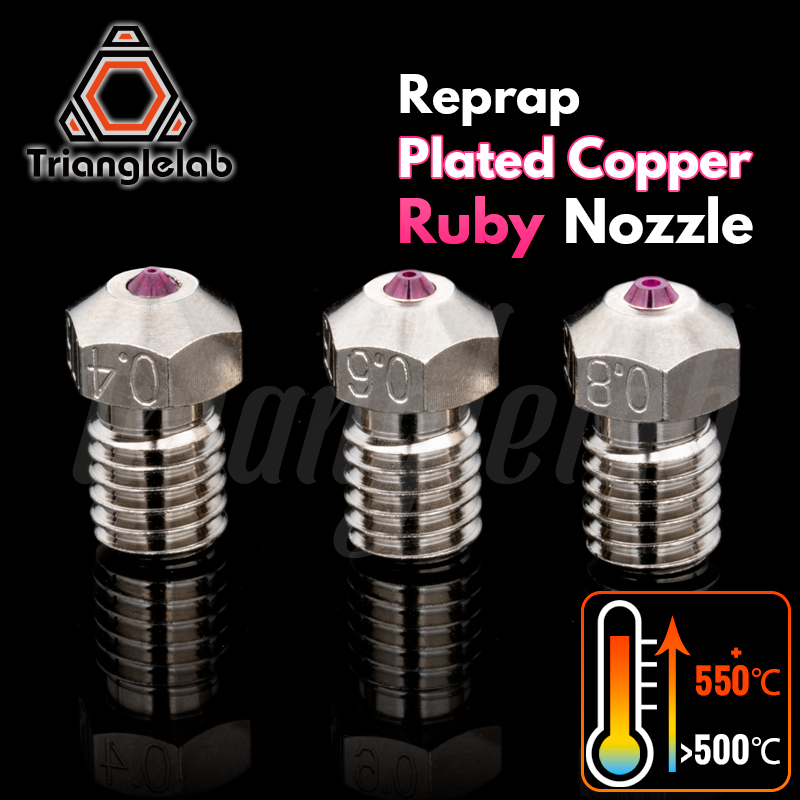

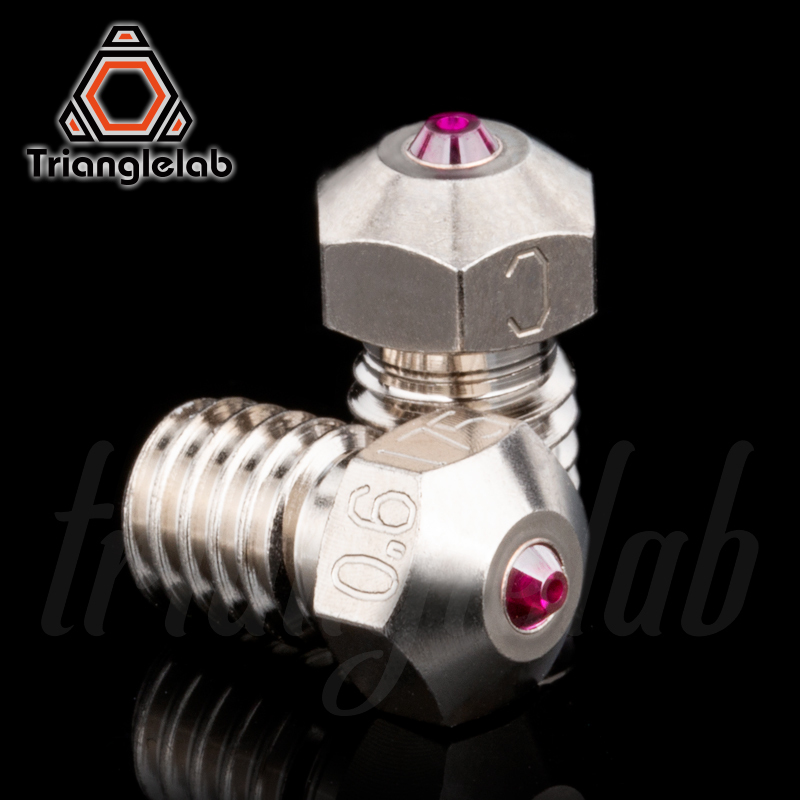

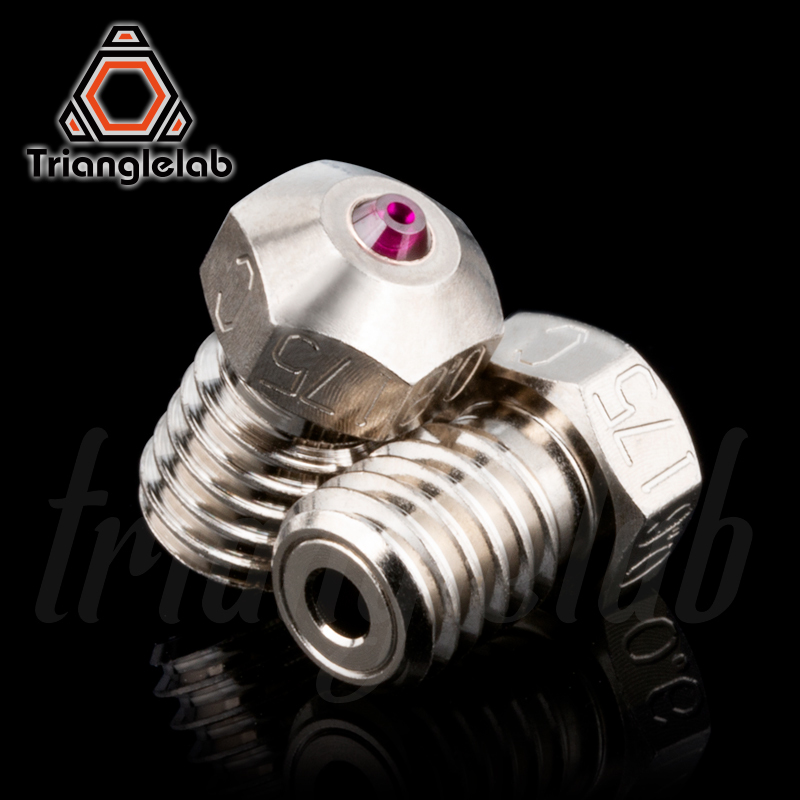

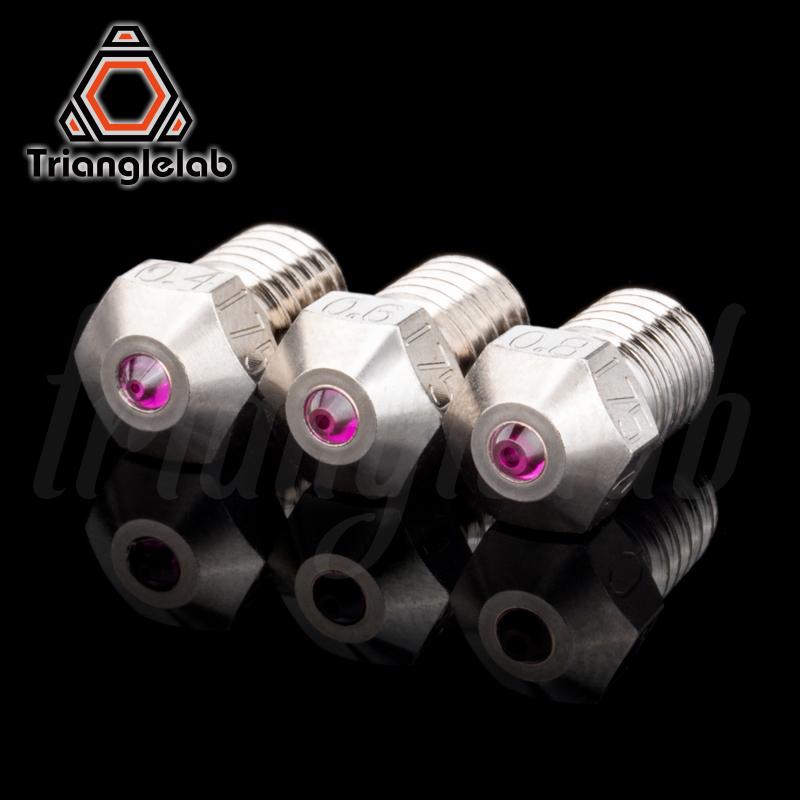

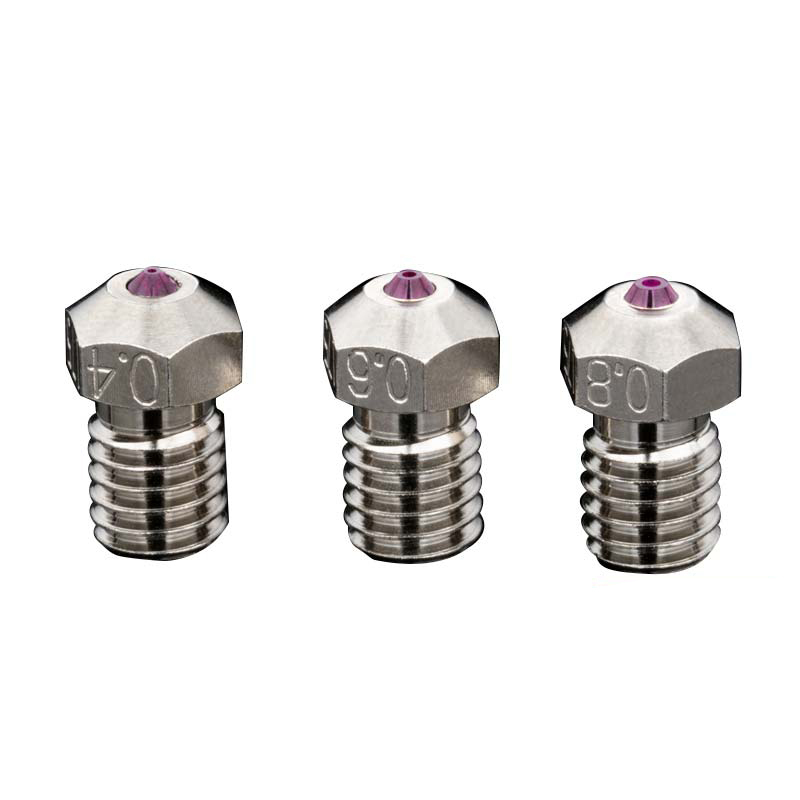

The T-V6 ruby nozzle is perfectly compatible with various materials such as PEI, PEEK, nylon, PC, etc. The nozzle has strong anti-corrosion and anti-wear ability, and can still maintain excellent performance during long-term use. Since the nozzles are valuable, we only accept the following logistics methods.
*Plated Copper Ruby Nozzle has more thermal conductivity than Brass Ruby Nozzle, which melts special high temperature materials faster. It is a perfect match for nylon, PEI and PEEK materials. You can even easily print these high temperature materials at ultra high temperatures of 500 °C.
1.The corresponding model of the ruby nozzle isT-V6. The body of the nozzle isa kind of alloy copper, the gemstone is artificial gemstone, we still maintain the world's top workmanship, each ruby nozzle will go through a lot of processes in the manufacturing process, I hope that our rigorous attitude can be recognized by customers.
2.A torque wrench is required during the installation of the nozzle. The nozzle is subjected to a maximum torque of 2.8 N.m. Exceeding this torque will damage the brass inlay. If you don't have a torque wrench. Then it doesn't matter. Don't use too much force during the installation process, please try to control your strength.
*Durable, non-stick, high temperature performance nozzles. This copper alloy is very temperature resilient, and will not start to soften or anneal until way beyond 500°C, making it perfect for the high-temperature 3D printing that other nozzles can't handle. These nozzles are fully integrated into the CR10 hotendand are compatible with Ender-3 CR-10 Ender-5 Etc.
Product details：
These nozzles are engineered for ultimate high temperature performance. Made from a special high temperature copper-alloy with a softening point of well above 500°C, and with much-increased thermal conductivity these copper nozzles are perfect for high temperature applications, while working perfectly with everyday filaments like PLA, ABS and spoolWorks EDGE.
In addition to high temperature performance these nozzles have an advanced nickel based plating, considerably reducing the adhesion of plastic to the nozzle. This is great for everyday filaments keeping things clean and shiny, but is particularly important at temperatures above 300°C where a silicone sock can't be used.
Copper has more than 3x the thermal conductivity of brass, and the copper alloy we use has been hardened and treated to reduce the oxidation that occurs in copper at high temperatures. The higher thermal conductivity will also slightly increase your heat-up times, and can provide tighter temperature control.
This copper-alloy is very temperature resilient, and will not start to soften or anneal until way beyond 500°C, making it perfect for the high-temperature printing that other nozzles can't handle.
*T-V6 pated Copper Ruby Nozzle only compatible with
1.75MMwire diameter materials.
All features of the T-V6 nozzle are similar to those of the V6. The T-V6 model is a perfect replacement for the V6 nozzle. Its thread is M6. Can support PT100 V6 BLOCK. And support all series products. The nozzle has a higher face value. And more advanced manufacturing processes. I hope my customers can like it.
▉Size:
0.4mm/1.75mm
0.6mm/1.75mm
0.8mm/1.75mm
▉Compatible:
Compatible with V6 HOTEND
Compatible with PT100 V6 HOTEND
Compatible with V6 Heat Block
Compatible with PT100 V6 Heat Block
Compatible with Prusa I3 3D printer
Compatible with M6 threaded port third-party custom Heat Block
▉What's in the box:
Trianglelab - T-V6Plated Copper Nozzle X 1
♦Dimension
In order to protect our technology, the drawings are not exactly the same as the actual nozzles. We have hidden some details. As the nozzles are constantly upgraded, the dimensions may not be exactly the same as the drawings, but this will not affect your device match. We will only make this product more perfect. thank you for your support.
PEEK(USE MK8 RUBY NOZZLE)
PEI 1010(USE Hardened steel V6 NOZZLE)
Printed display of PEI And PEEK materials.
▼
