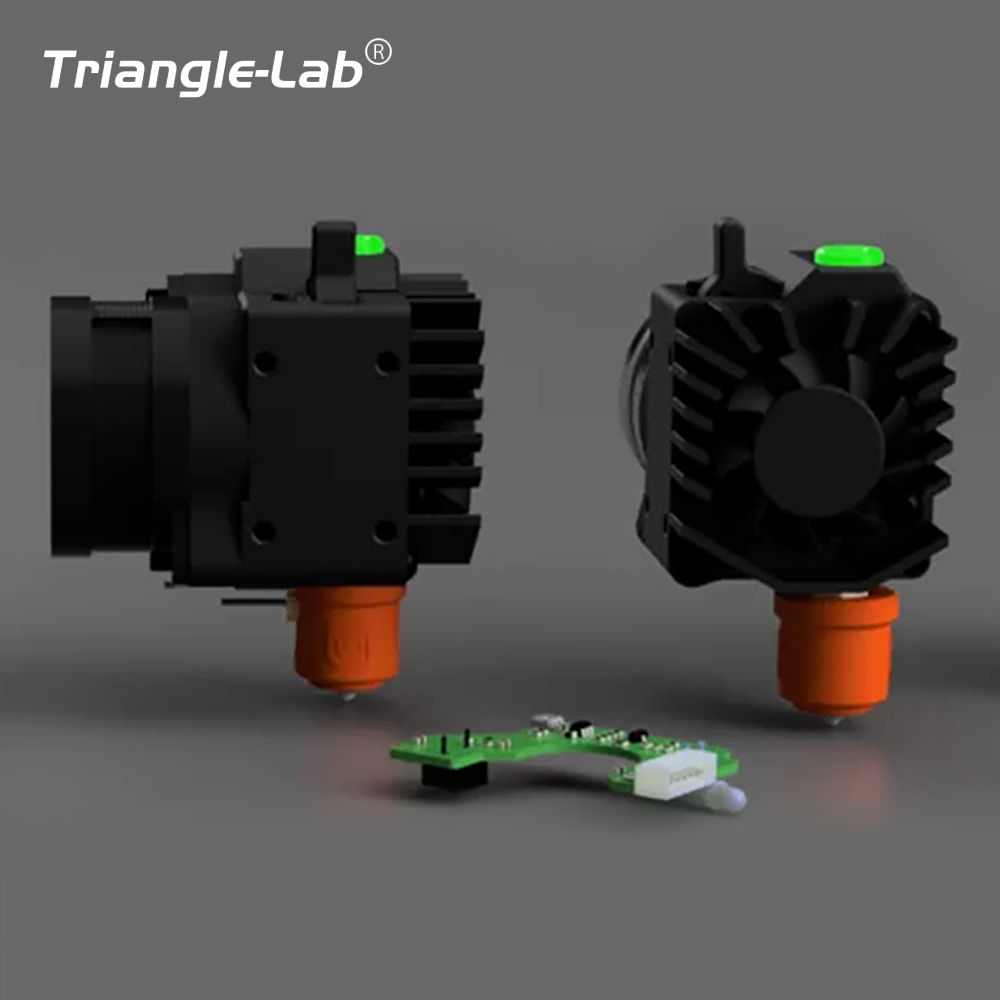

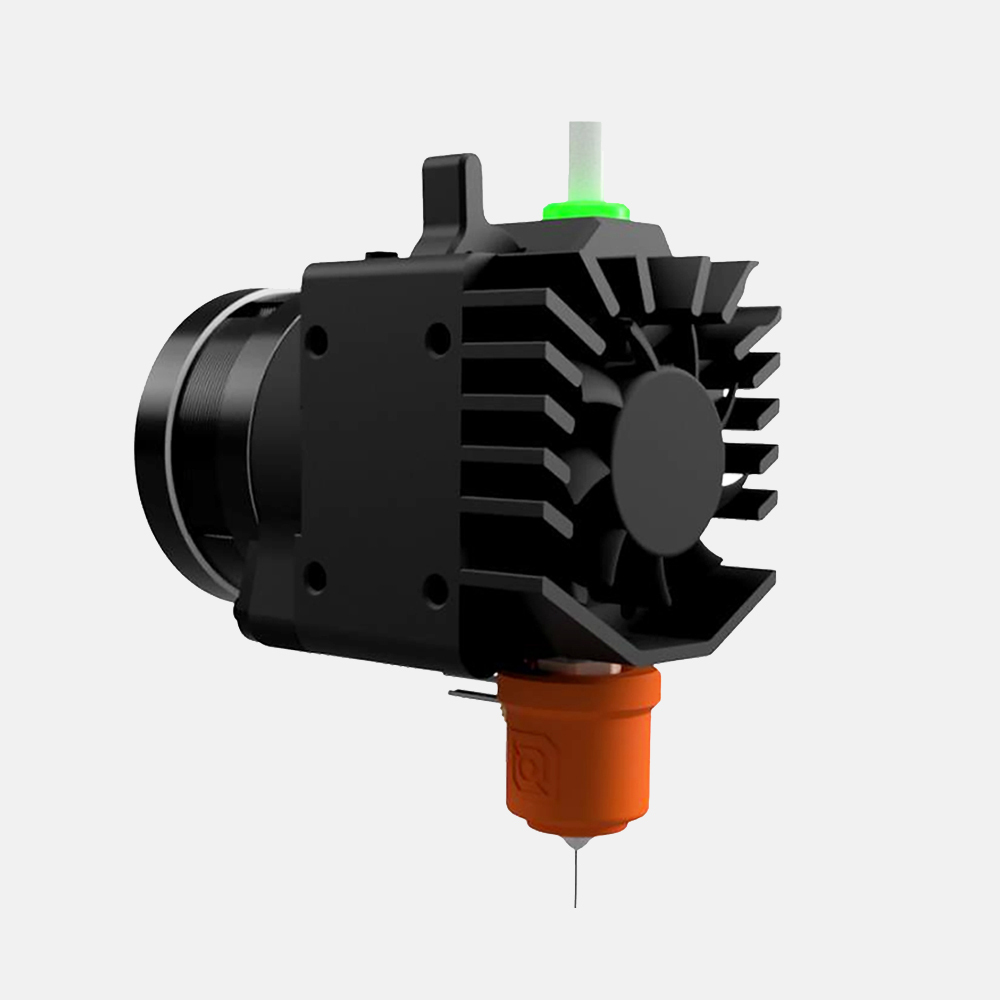

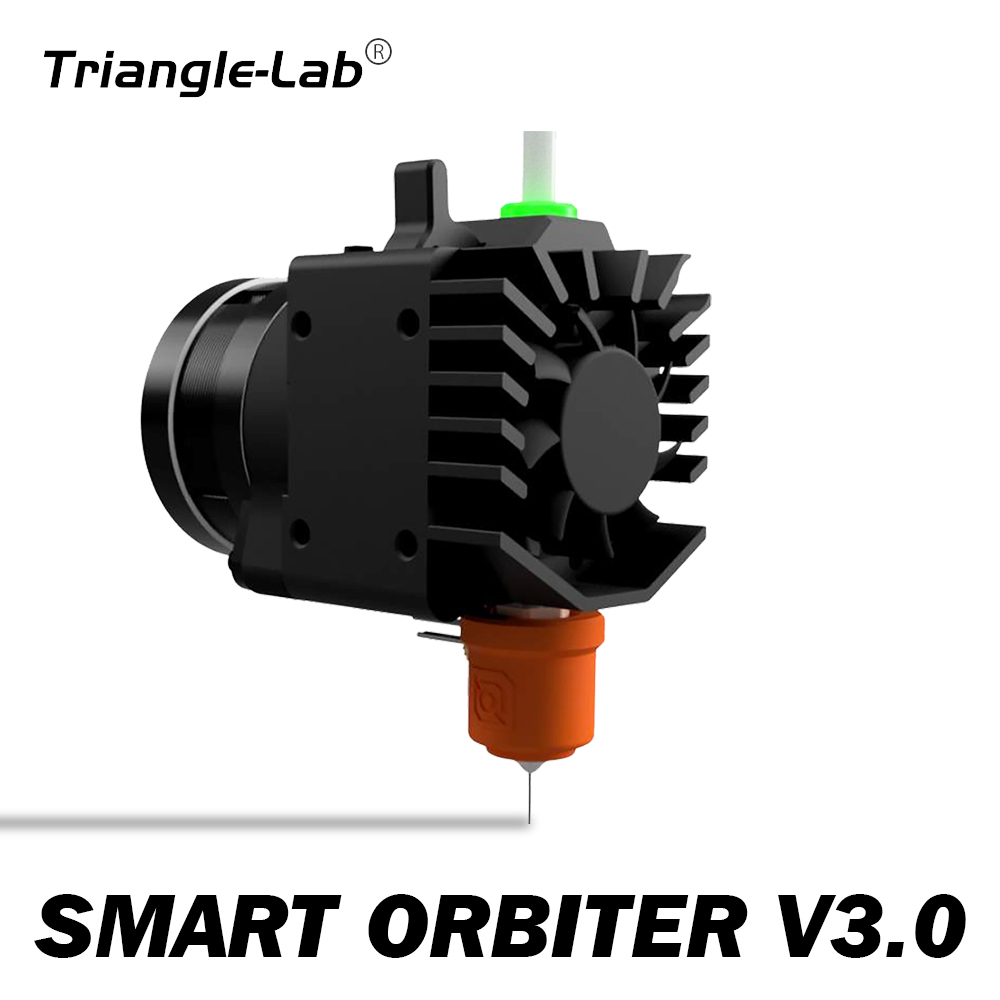

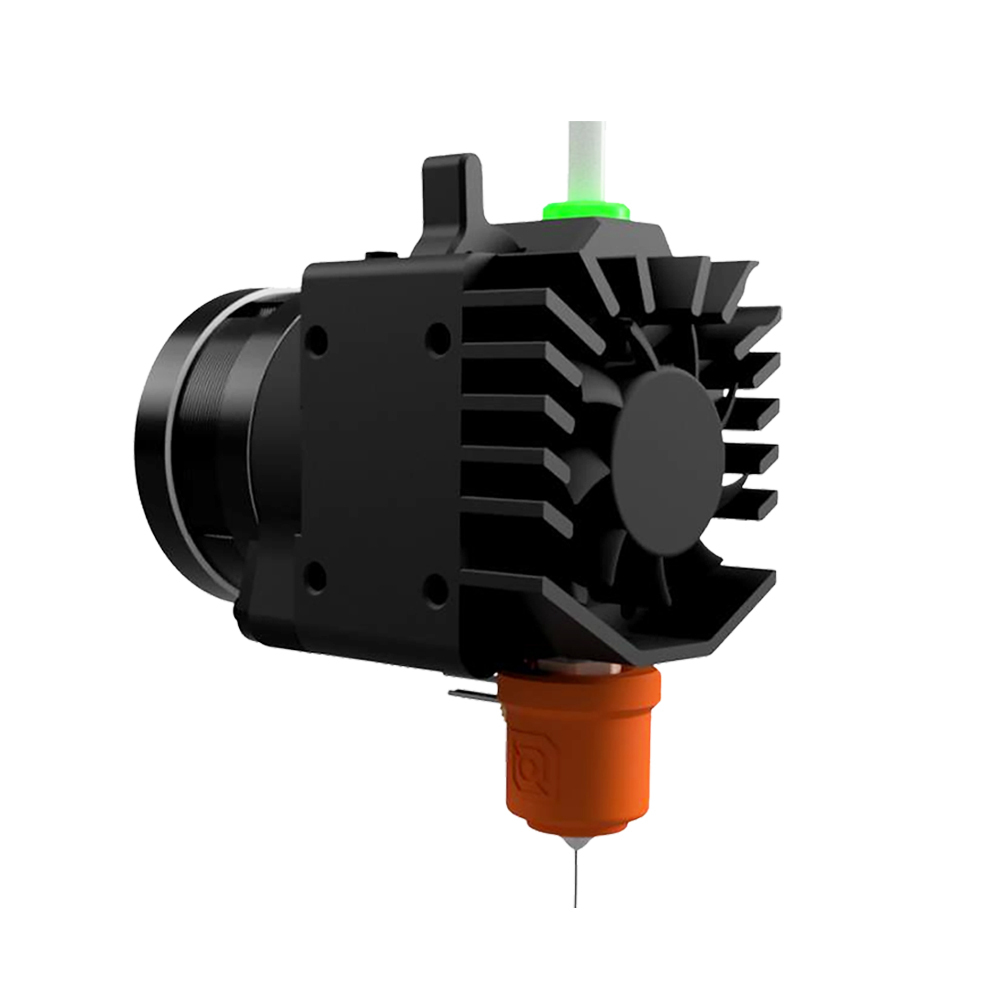

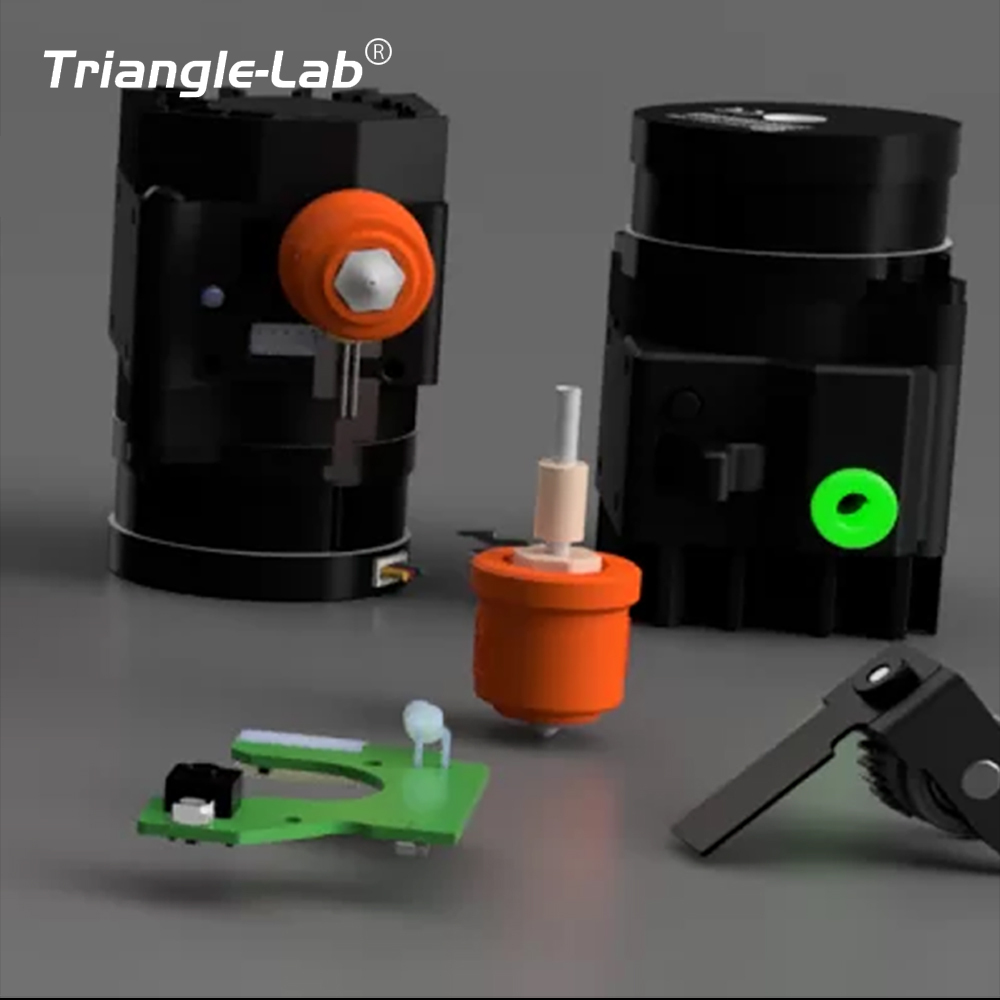

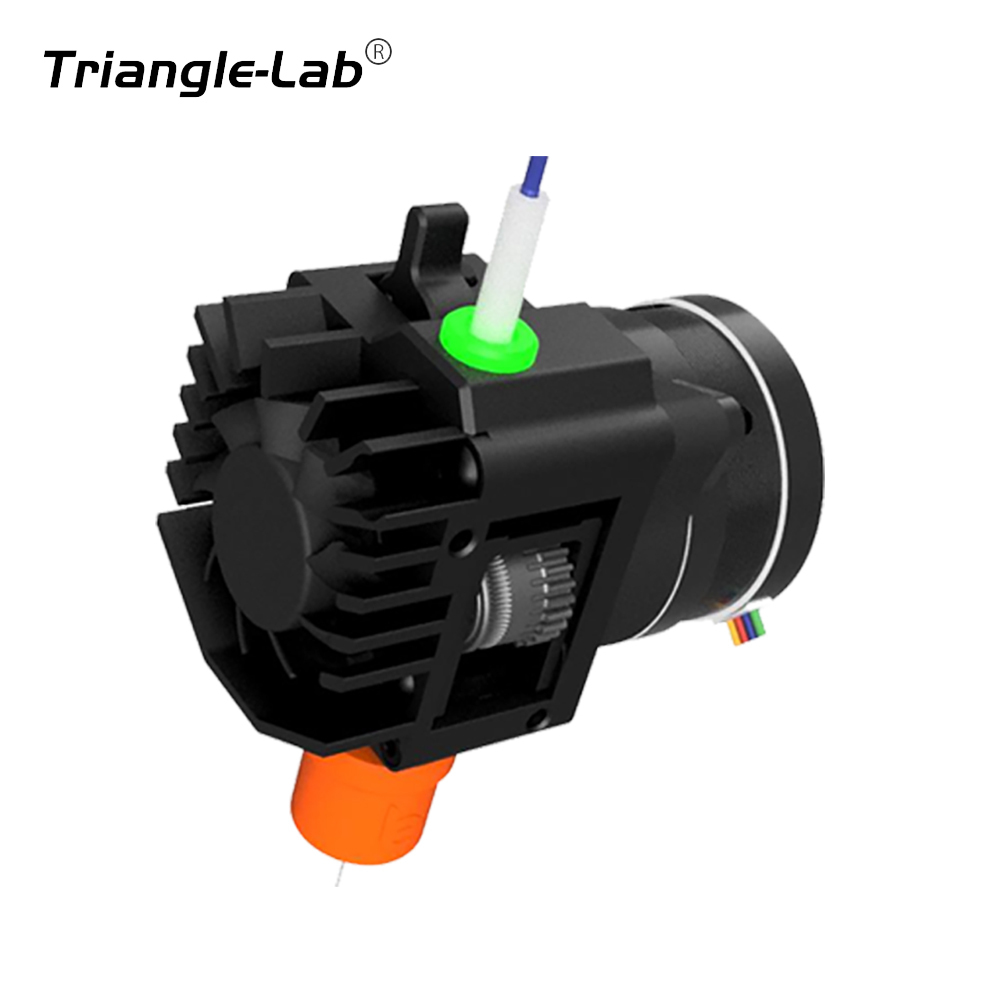

SMART ORBITER V3.0 Extruder

• Unique tensioning mechanism with ​predefined tensioning levels.

• Frameless recessed fan to reduce ​extruder dimension and weight

• Large RNC coated dual drive gears with ​planetary gear reduction similar to Orbiter v2.0

• Precision main shaft for lowest possible ​drive gear eccentricity

• Full aluminum housing and plastic gears for ​low noise and long lifetime

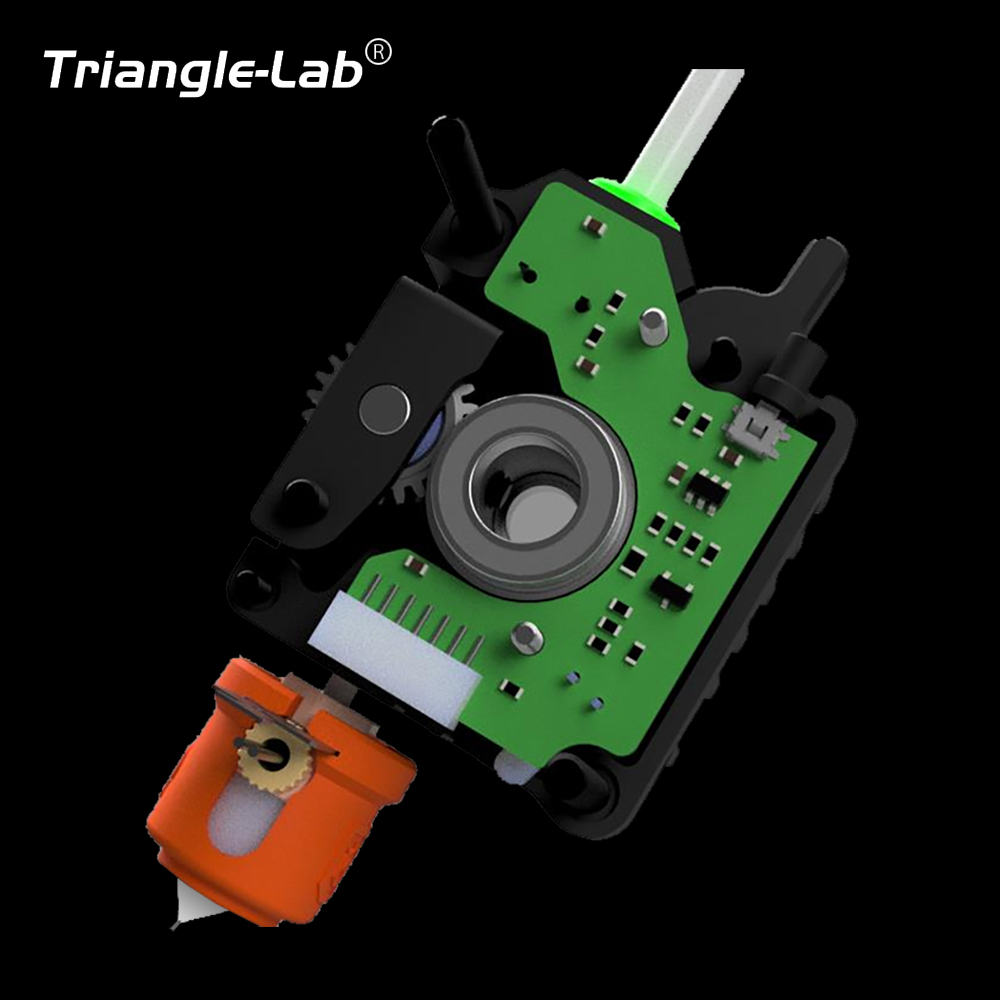

• Integrated electronics

• Easy remove system for the secondary drive ​gear for easy cleaning and maintenance

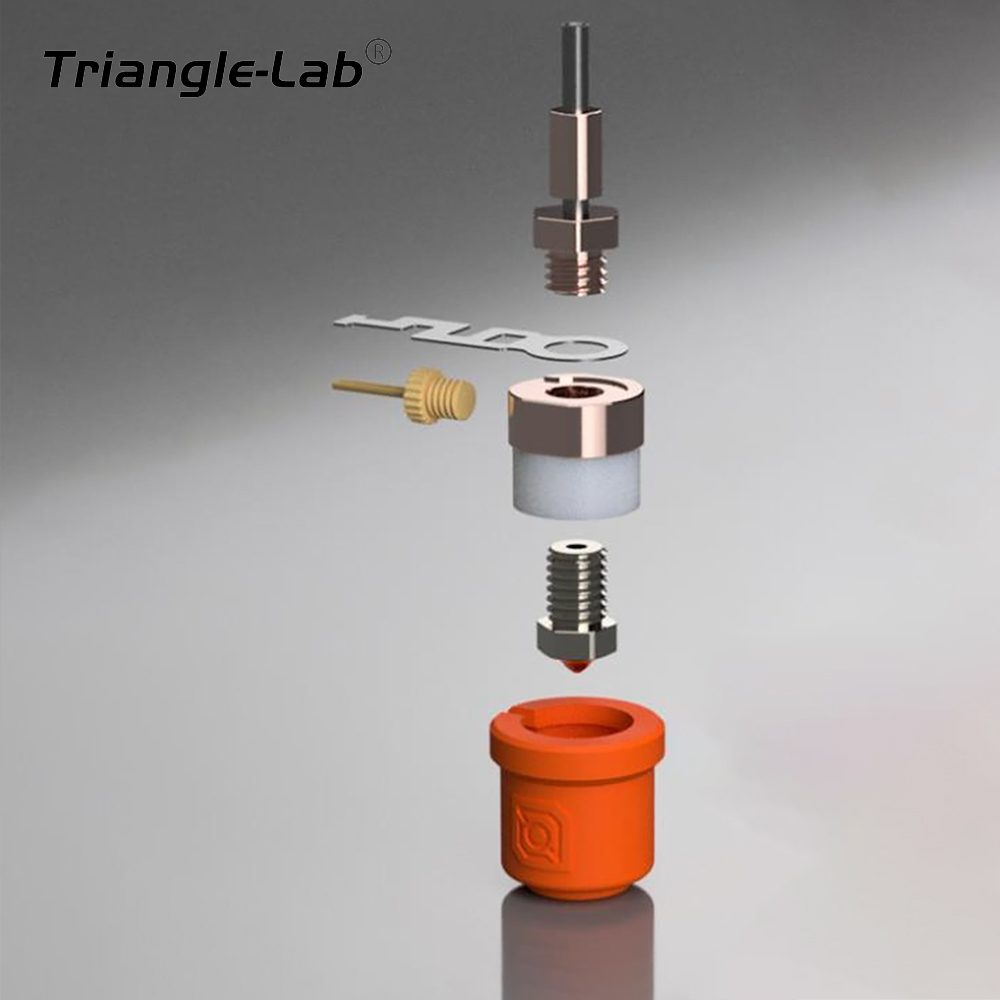

New ceramic heater with Bondtech CHT nozzle for highest flow/weight ratio

▪ Bi-metallic heat-break with    extreme temperature    gradient to ensure clogless printing
▪ Very short distance between drive \   gears and hotend    (17.7mm)
▪ Wire strain release with low    thermal loss
▪ Best possible filament exit    guide using center and    side guides – filament has    no space where to escape,
  for excellent TPU printing experience
▪ Easy and fast nozzle +    heat-block swap – single    screw release

• The double filament exit guide forces the into     the hotend – no space to exit sideways
• Together with the high grip from the big dual    drive gears the double filament exit guide
   ensures excellent printing performance with    soft filaments

• Filament sensing and auto load
• Filament auto unload
• RGB LED lit filament input
• White LED hotend lit
• Internal temperature sensor
• ESD and short circuit protection
• Optimized for Klipper
