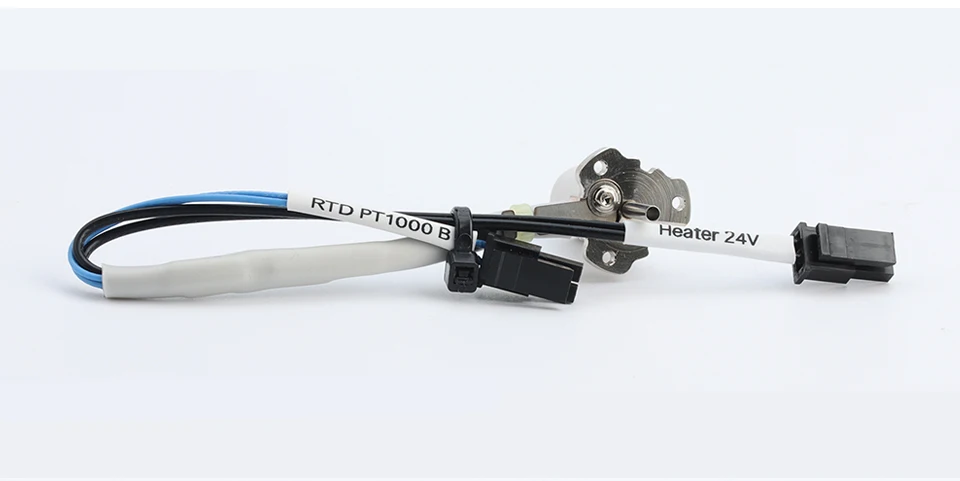

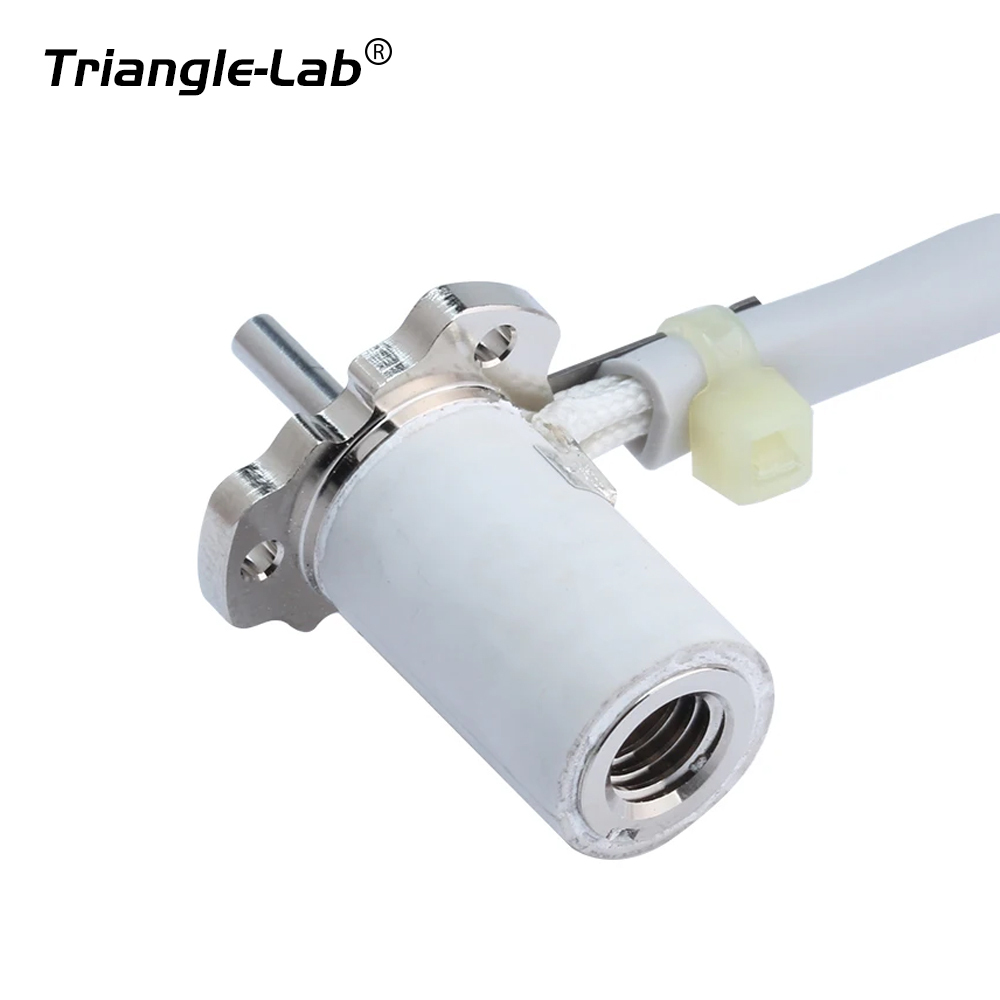

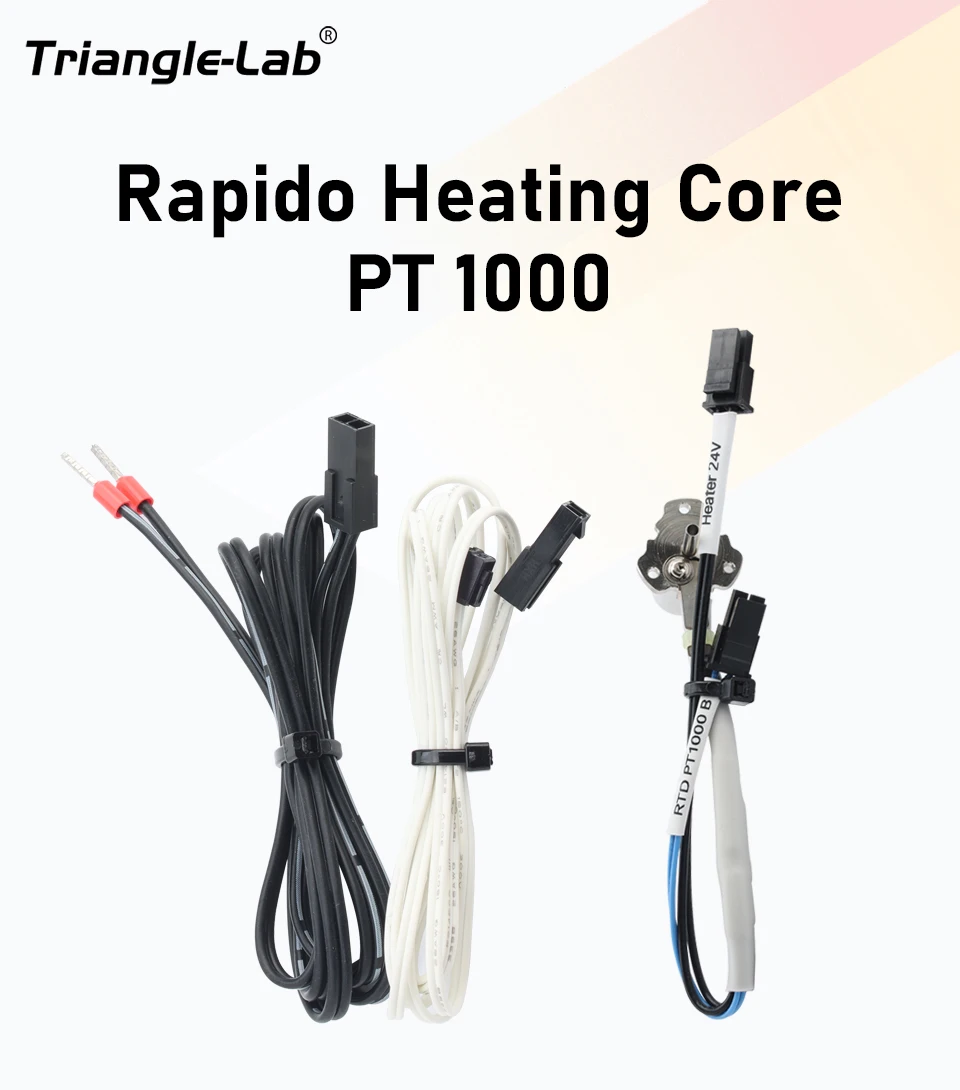

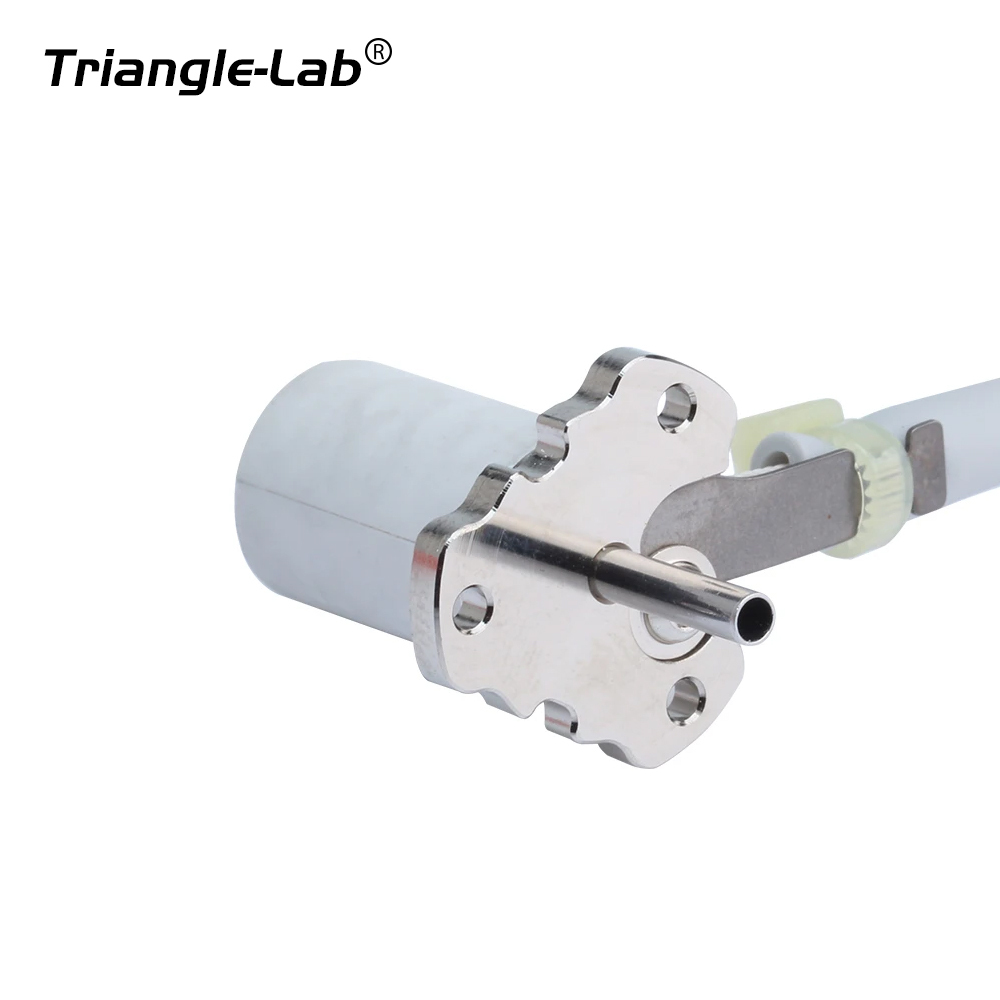

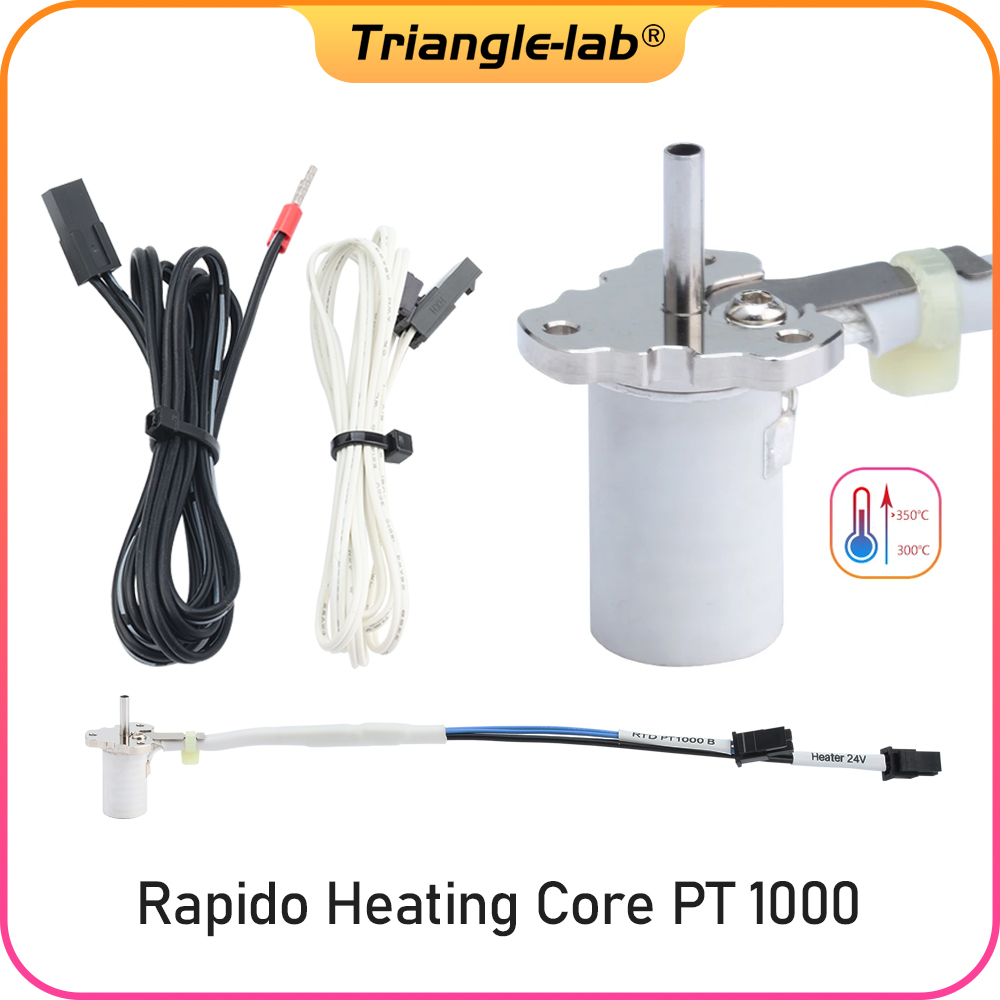

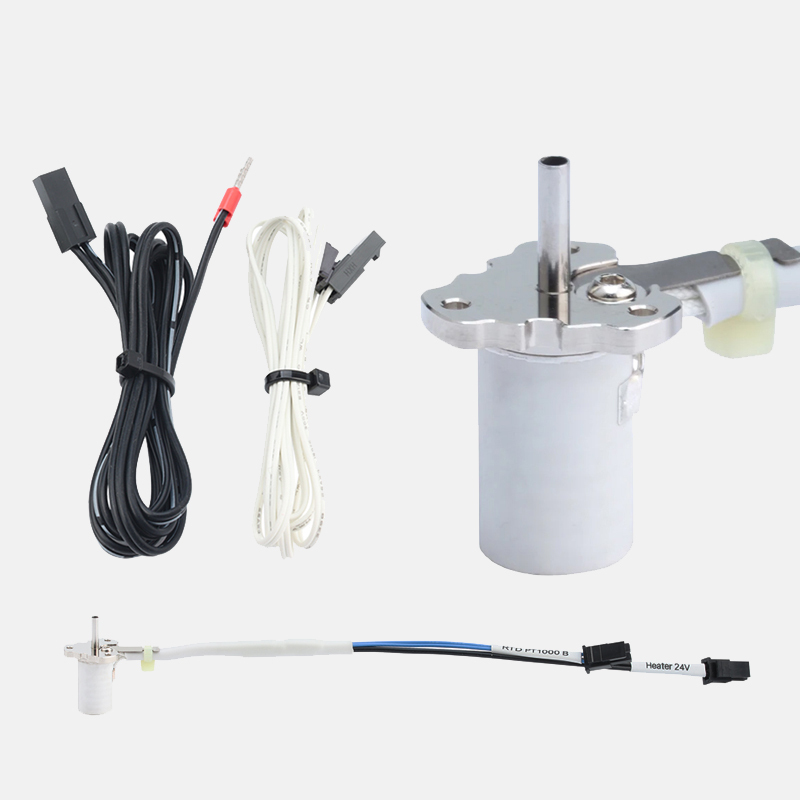

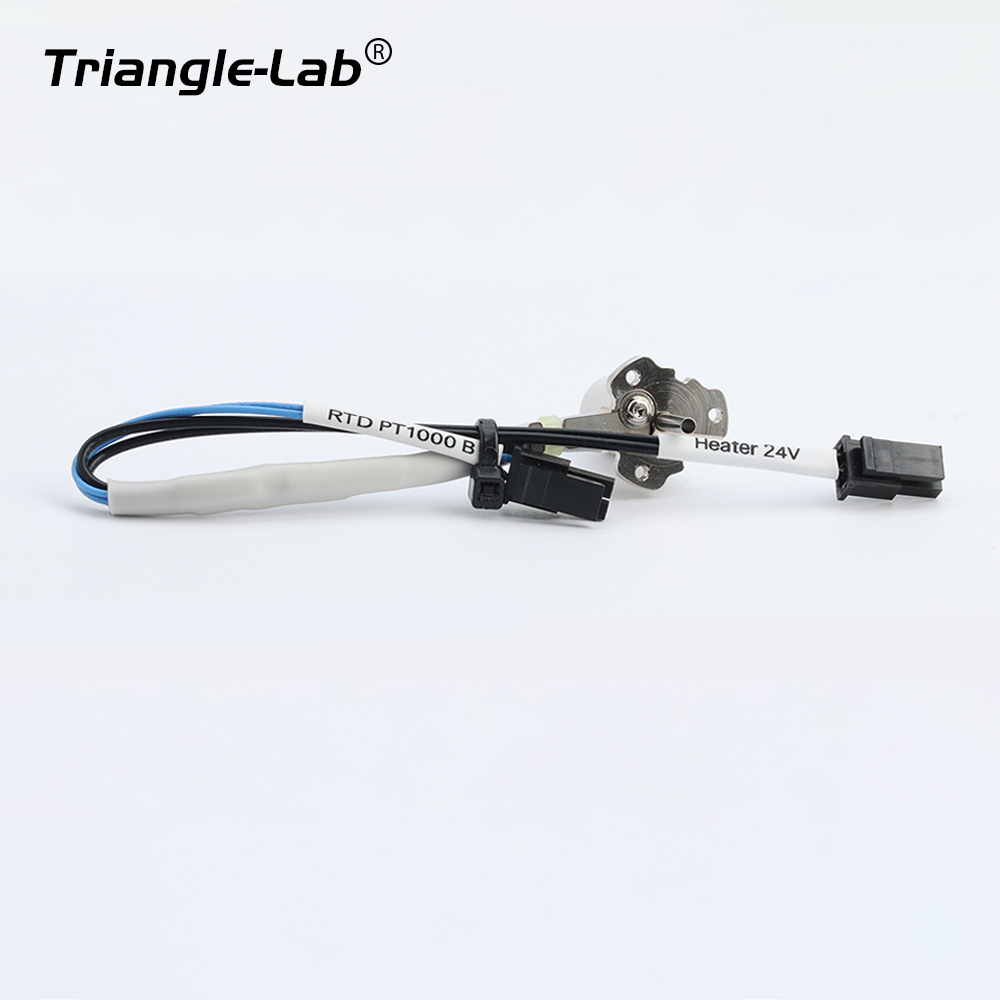

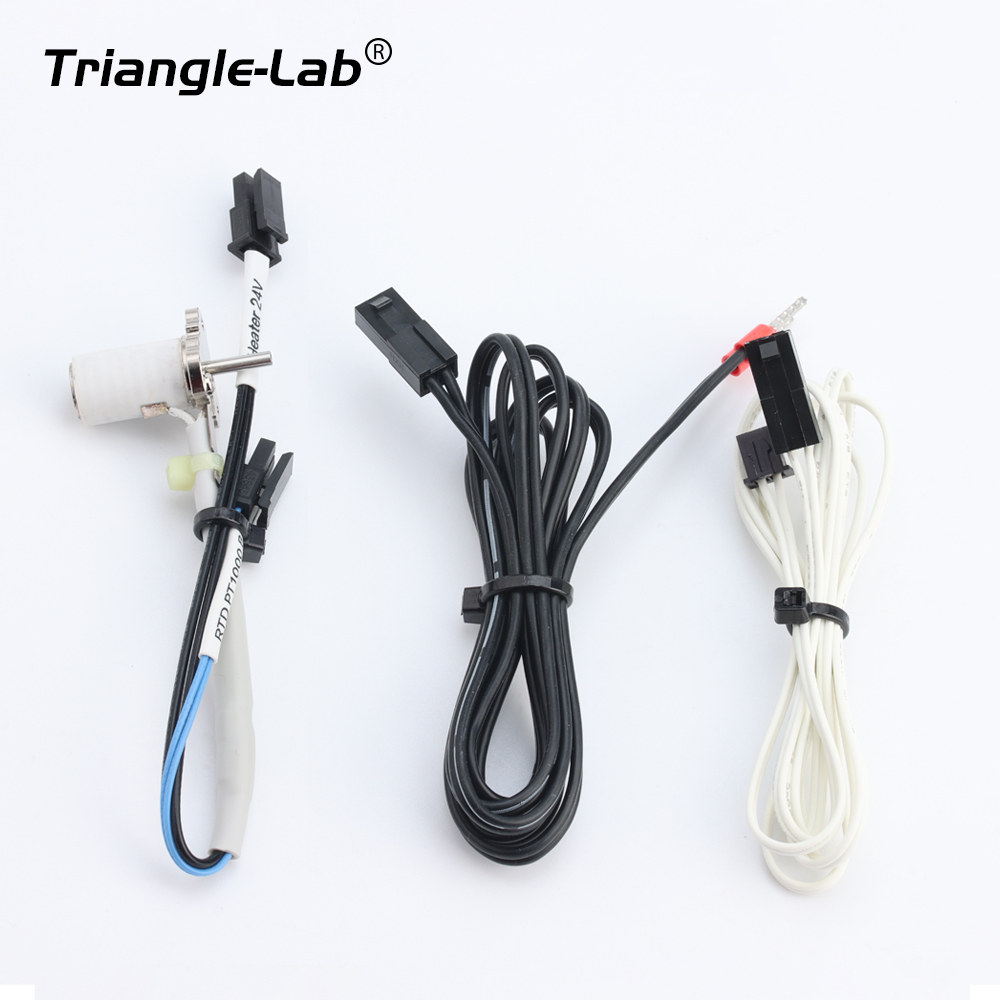

Rapido Heating Core PT1000 KIT

• All products purchased on this website are not include tax, including and not limited to: Consumption tax, Value added tax, customs duties, etc,Before placing an order, please check your country's policies and regulations on online shopping taxes.
• If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.
• Technical questions e-mail：[email protected]
• Sales questions e-mail：[email protected]

​▉Name:

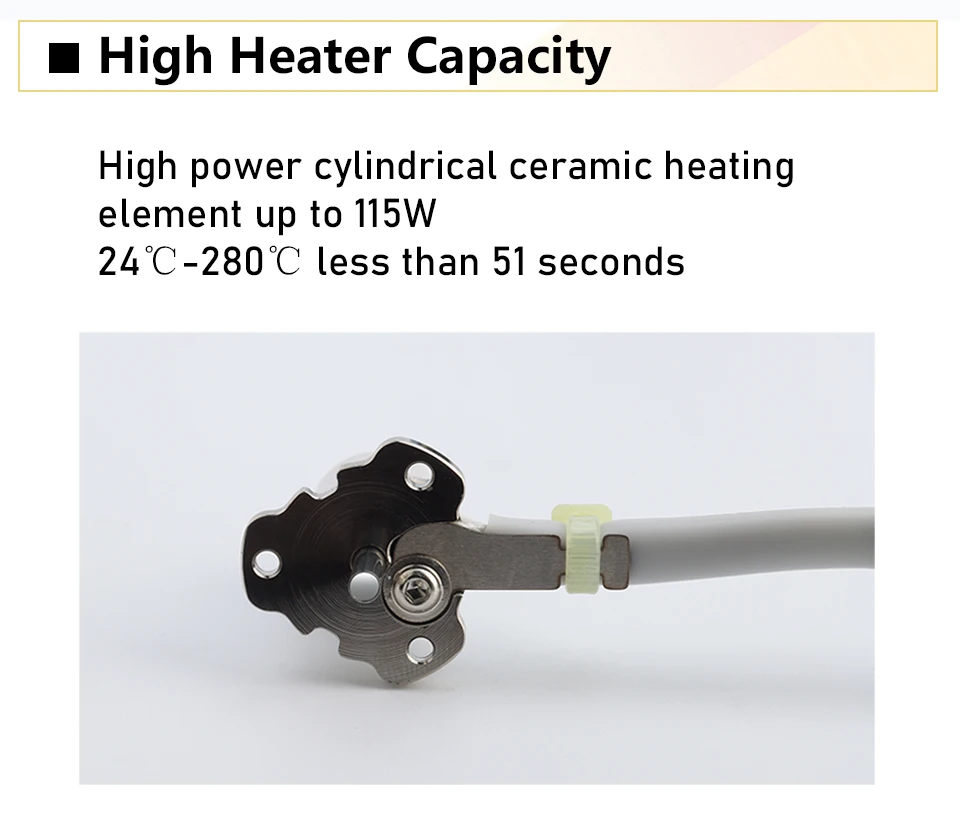

24℃-280℃ less than 51 seconds

▉Marlin Firmware Configuration:

Connect directly to the thermal interface of the control board and then determine which one to choose according to the pull-up resistor of the interface. In most cases it is 4.7K ohms, please check your motherboard manual for details.

* 1010 : Pt1000 with 1kΩ pullup

* 1022 : Pt1000 with 2.2kΩ pullup

* 1047 : Pt1000 with 4.7kΩ pullup

https://marlinfw.org/docs/configuration/configuration.html#thermal-settings

▉Klipper documentation:

Directly connected PT1000 sensor. The following parameters are available in heater sections that use one of these sensors.

sensor_type: PT1000

sensor_pin:

# Analog input pin connected to the sensor. This parameter must be

# provided.

#pullup_resistor: 4700

# The resistance (in ohms) of the pullup attached to the sensor. The

# default is 4700 ohms.

https://www.klipper3d.org/Config_Reference.html.

▉Durt 3D:

https://docs.duet3d.com/en/User_manual/Connecting_hardware/Temperature_connecting_thermistors_PT1000

▉More information:

https://drive.google.com/drive/folders/11nulzVIvAlsGdDPtfe6u3rfM7EOrzPxF?usp=share_link
