The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.
Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

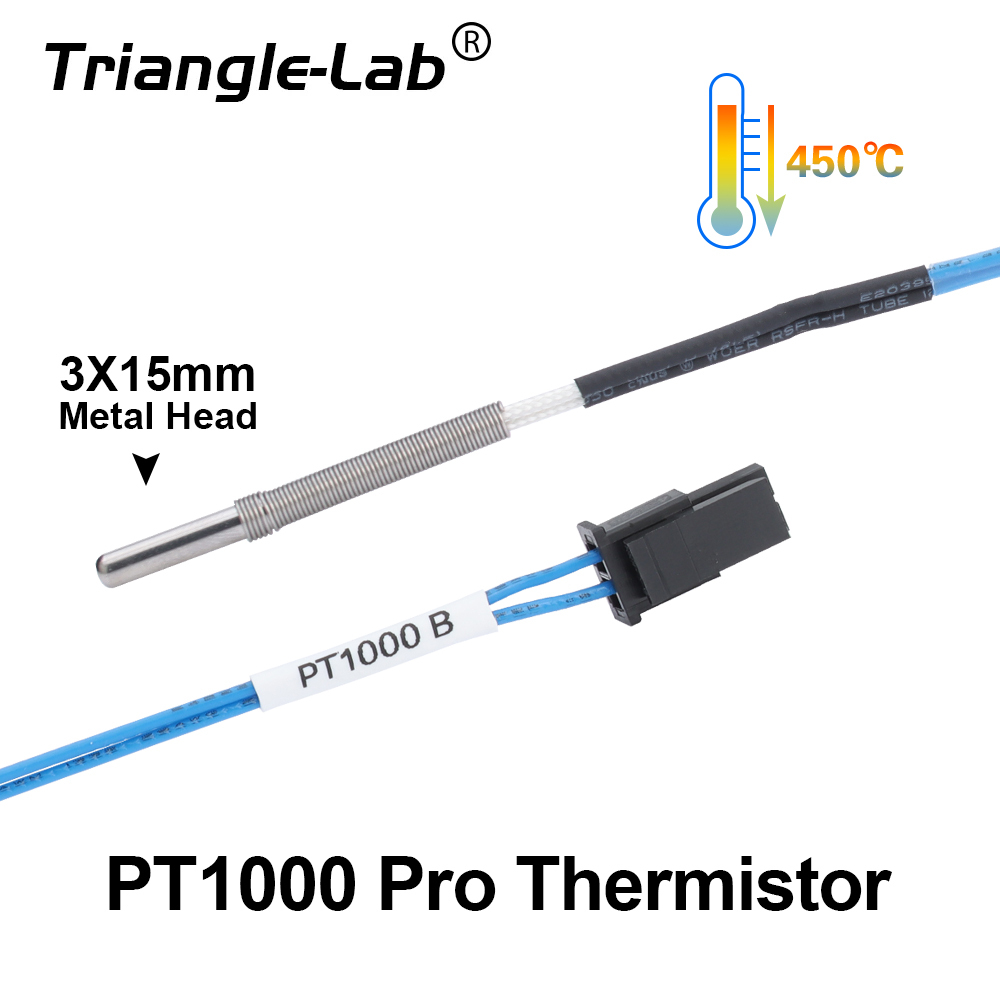

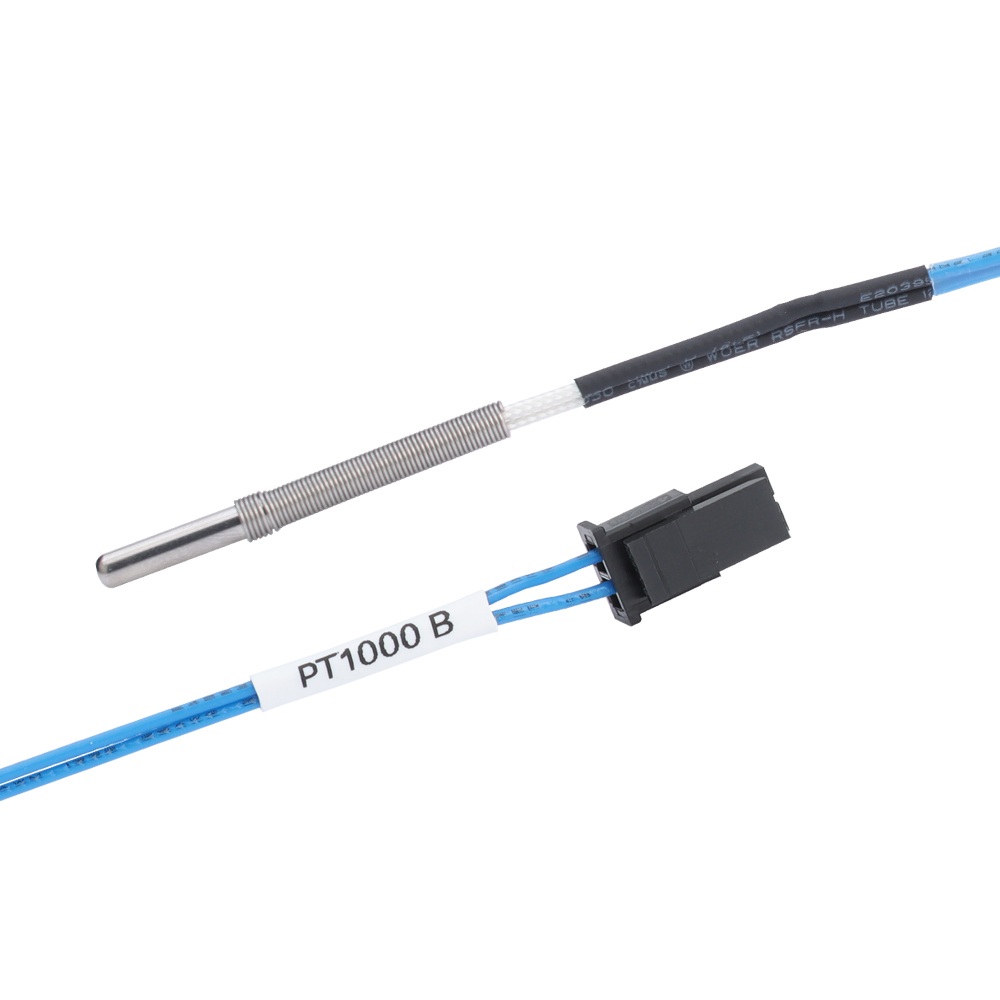

▉Name:

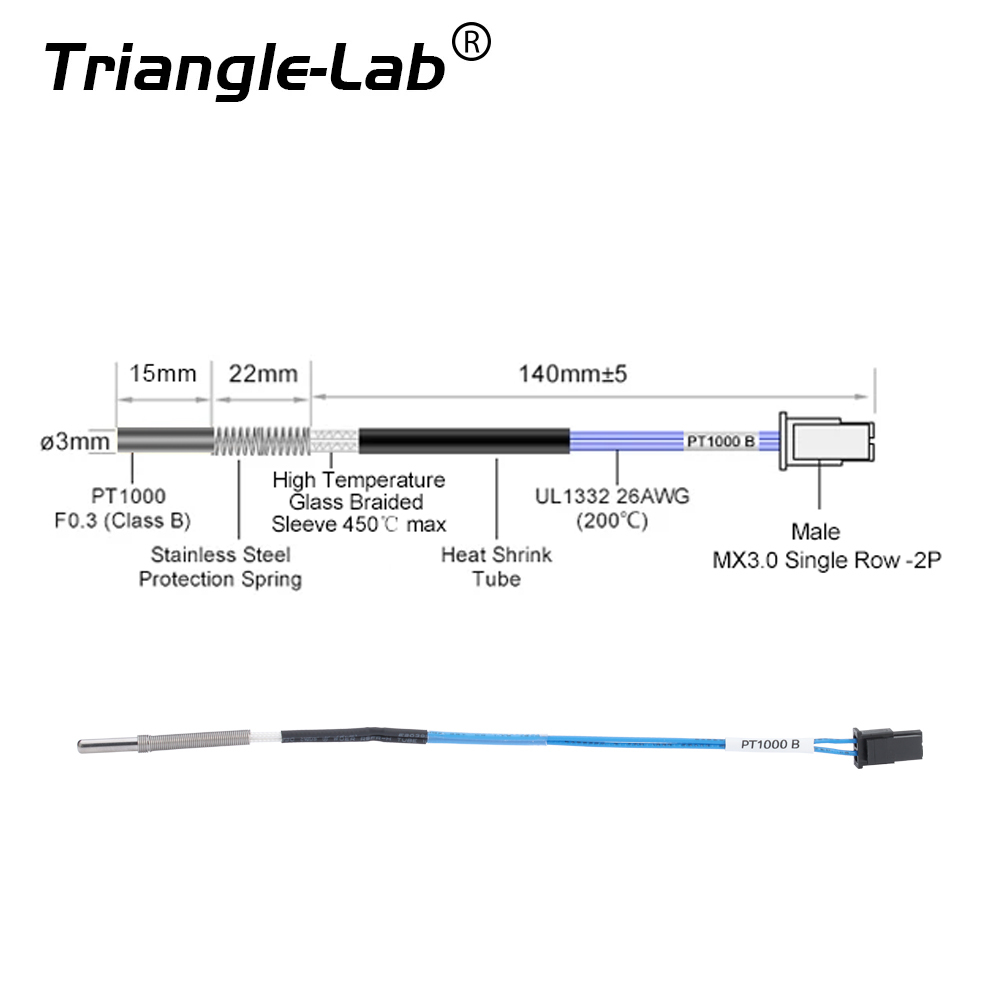

▉Technical Details:
Thermistor Specifications:https://drive.google.com/drive/folders/11nulzVIvAlsGdDPtfe6u3rfM7EOrzPxF?usp=sharing
▉Marlin Firmware Configuration:
Connect directly to the thermal interface of the control board and then determine which one to choose according to the pull-up resistor of the interface. In most cases it is 4.7K ohms, please check your motherboard manual for details.
* 1010 : Pt1000 with 1kΩ pullup
* 1022 : Pt1000 with 2.2kΩ pullup
* 1047 : Pt1000 with 4.7kΩ pullup
https://marlinfw.org/docs/configuration/configuration.html#thermal-settings
▉Klipper documentation:
Directly connected PT1000 sensor. The following parameters are available in heater sections that use one of these sensors.
sensor_type: PT1000
sensor_pin:
# Analog input pin connected to the sensor. This parameter must be
# provided.
#pullup_resistor: 4700
# The resistance (in ohms) of the pullup attached to the sensor. The
# default is 4700 ohms.
https://www.klipper3d.org/Config_Reference.html.
▉Durt 3D:
https://docs.duet3d.com/en/User_manual/Connecting_hardware/Temperature_connecting_thermistors_PT1000
▉More information:
https://drive.google.com/drive/folders/11nulzVIvAlsGdDPtfe6u3rfM7EOrzPxF?usp=share_link
