▉Name:

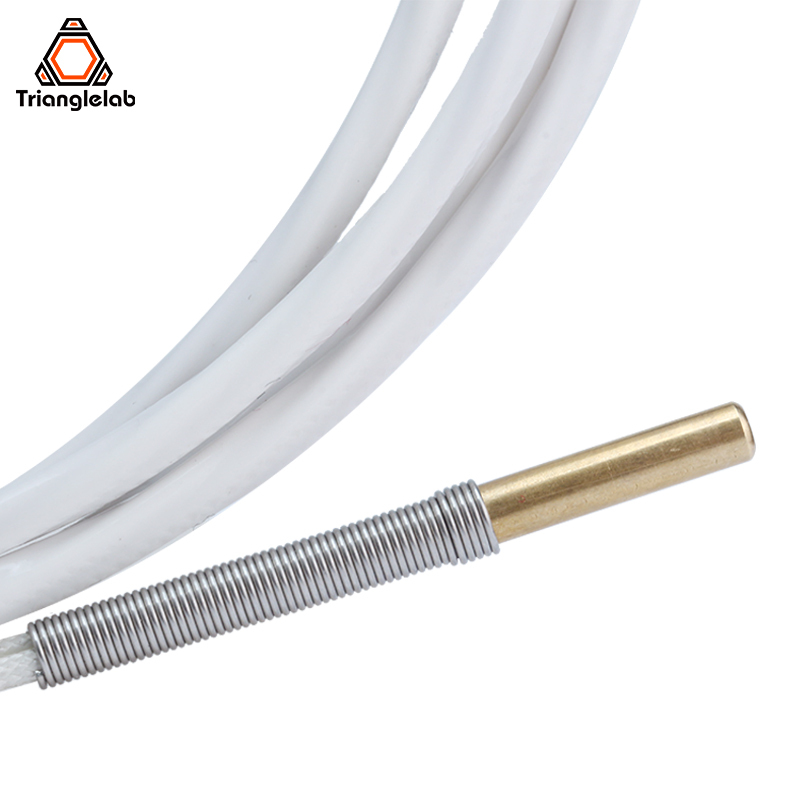

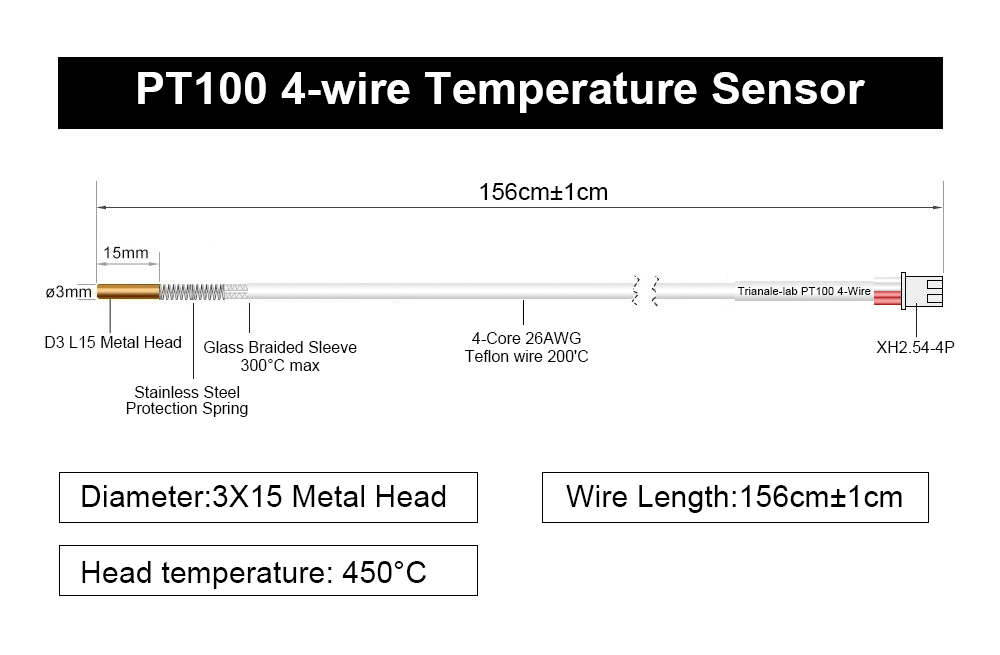

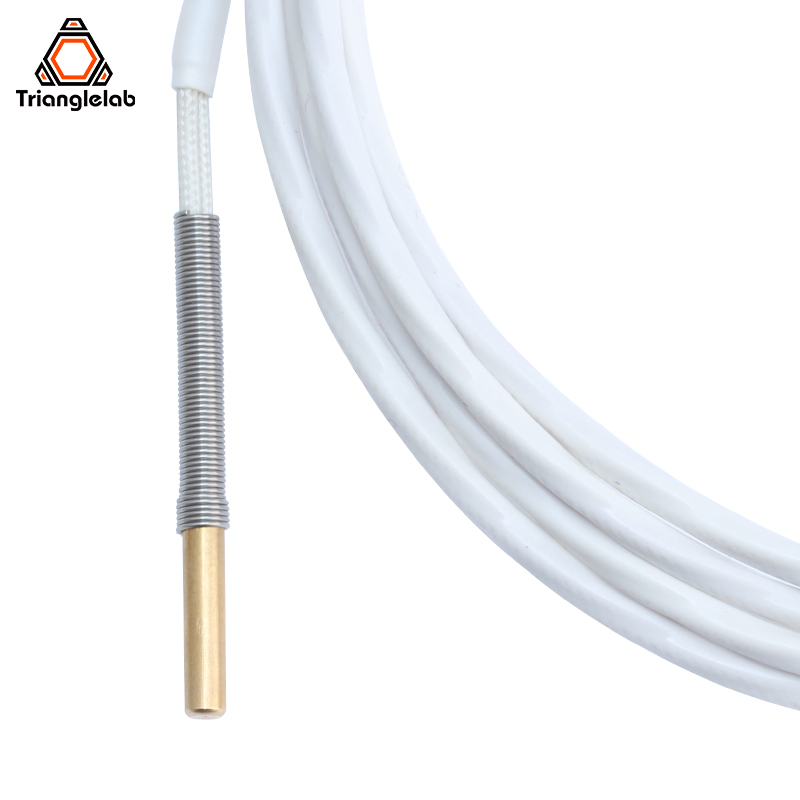

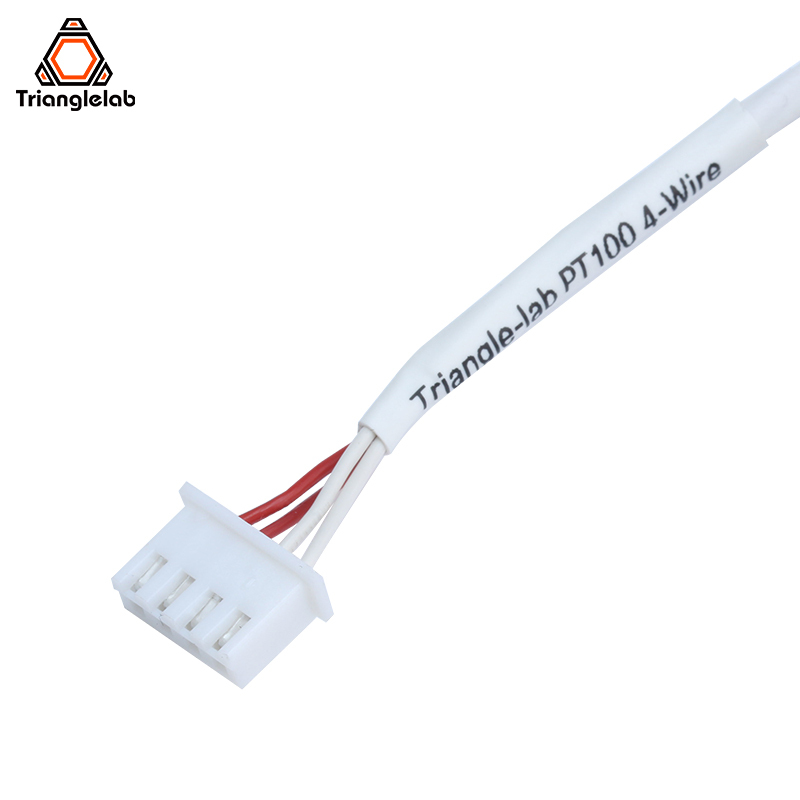

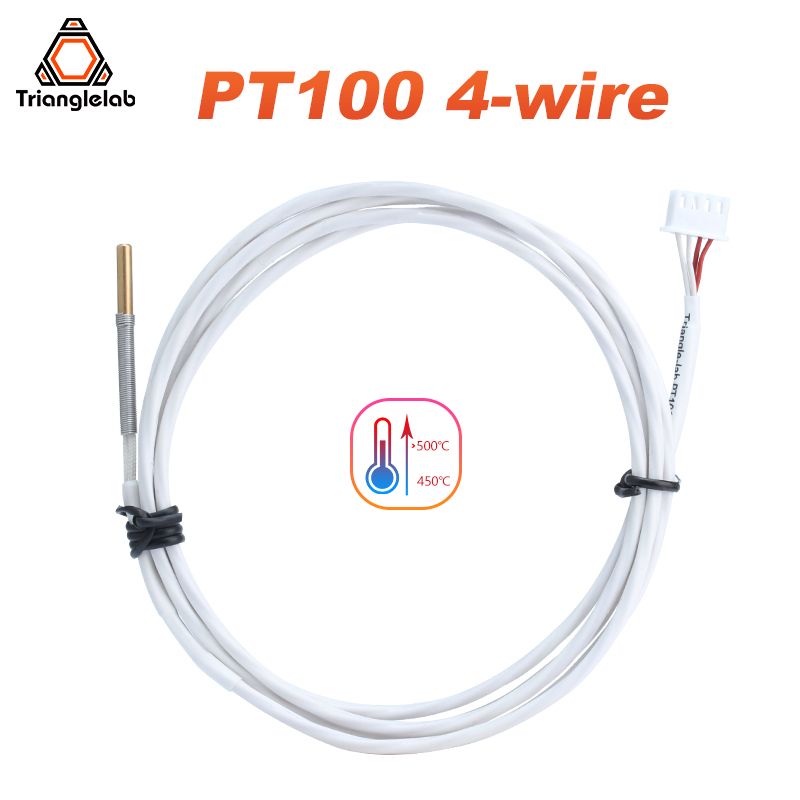

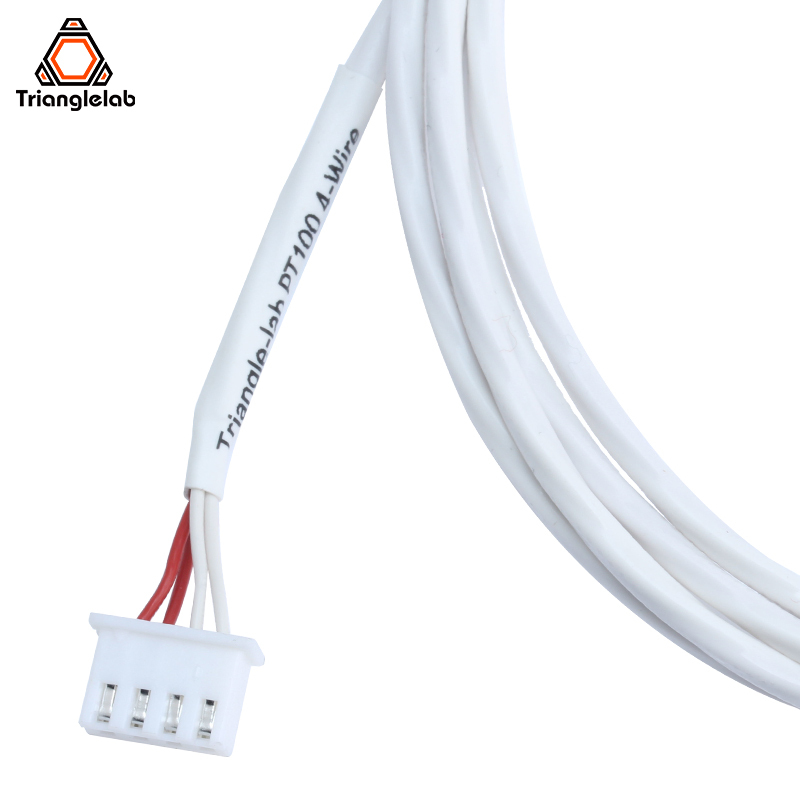

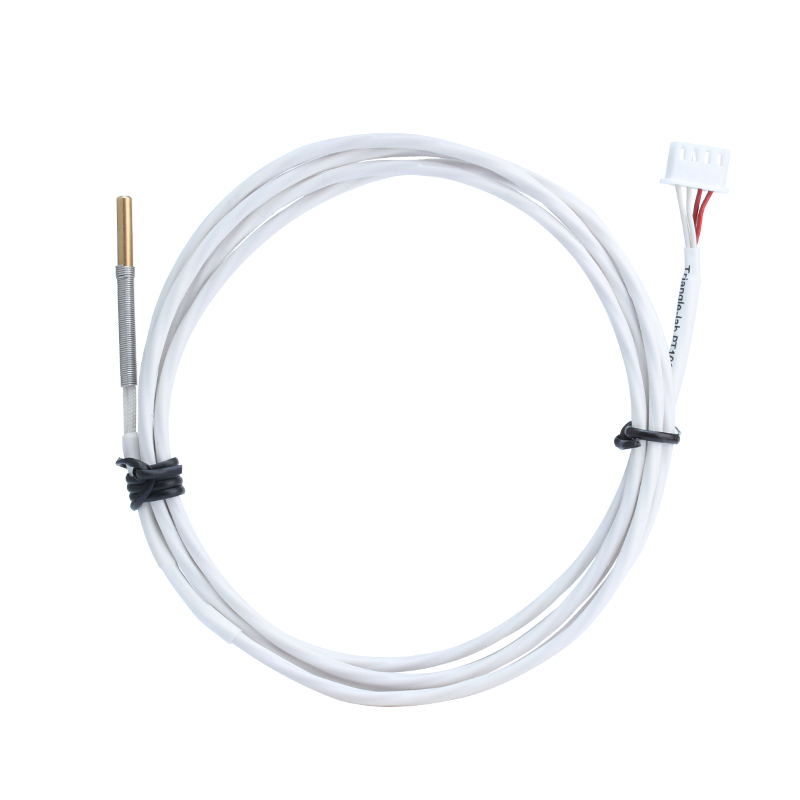

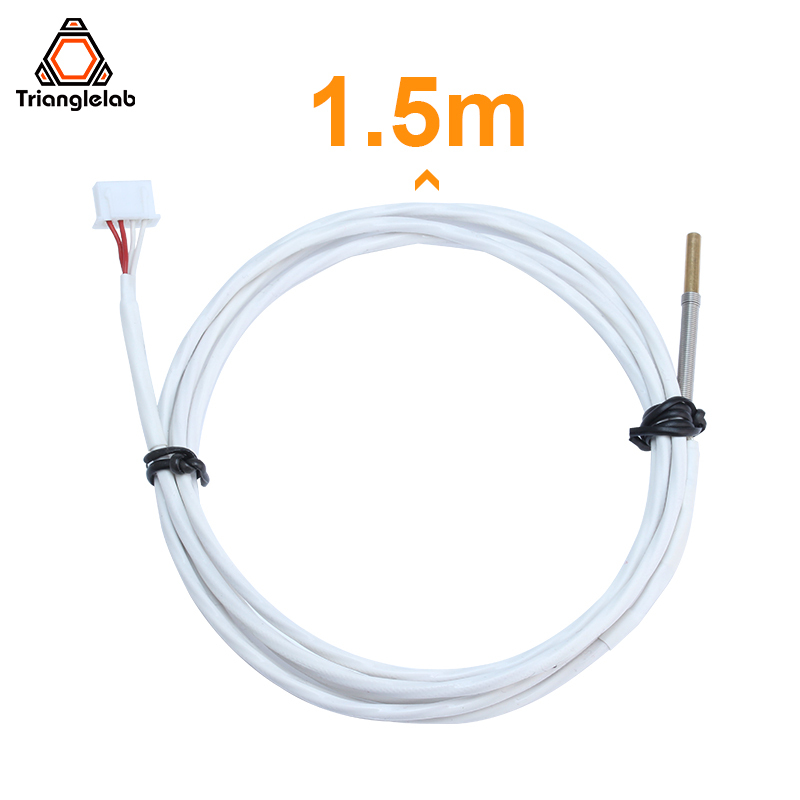

PT100 4-wire Temperature Sensor

▉Connection:

▉Description:

PT100 high temperature, high accuracy temperature sensors that you can now use on your V6 HotEnd instead of a thermistor or thermocouple. PT100's are able to measure higher temperatures than thermistors-upto 400degC, and are more accurate then both thermistors and thermocouples in general.
The PT100 sensor will not fit in the standard V6 Hotends, but can be used with V6, Chimera, Lite6, and Kraken by using the PT100 Heater Block available in the spares and extras section.

https://duet3d.dozuki.com/Wiki/Connecting_PT100_temperature_sensors

▉MAX31865 V2.0:

This module uses the MAX31865 chip, supports two-wire, three-wire, and four-wire PT1000 and PT100 temperature sensors, uses the same package as the motor drive module, which is easy to install, and uses VCCIO part of the power supply. Support 3.3V-5V power input.
https://github.com/bigtreetech/BIGTREETECH-MAX31865/tree/master/BIGTREETECH%20MAX31865%20V2.0

▉What's in the box:

set1:PT100 4-wire All Kit Temperature Sensor

set2:MAX31865 V2.0

set3:Only PT100 4-wire

▉Display:
