Trianglelab 3D printer V6 hotend PT100 sensor upgrade kit PT100 temperature control panel sensor for HOTEND heating block

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Trianglelab 3D printer V6 hotend PT100 sensor upgrade kit

PT100's are high temperature,high accuracy temperature sensors that you can now on your V6 HotEnd instead of a thermistor or thermocouple.PT100's are able to measure higher temperatures than thermistors-upto 400C,and are more accurate then both thermistors and thermocouples in general.Our PT100 sensors are also very easy to handle,being of a metal cartridge construction that is secured with a set screw,no more fiberglass sleeving or clamping washer.
If you want experiment with printing the crazy high temperature materials,get more accurate temperature readings,and have a much more robust and easy to assemble temperature sensor then a PT100 is an ideal option.
This is a kit that provides everything you need to get up and running with a PT100 sensor on most machines.Requires a controller board that is running Marlin or Repetier with a spare analog input pin.

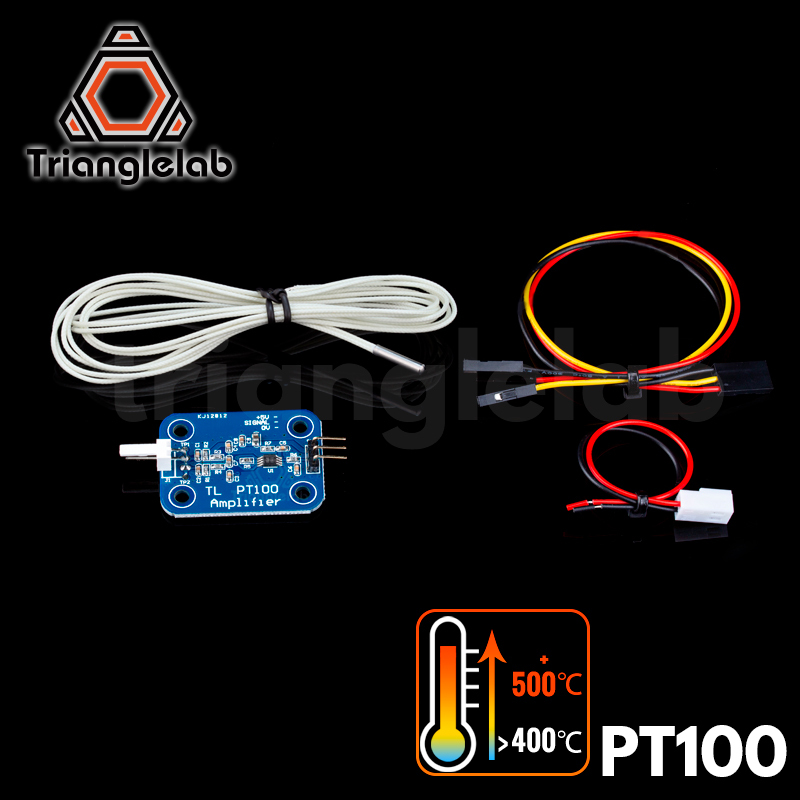

This kit contains a PT100 sensor,a heater block that is compatible with that sensor,an electrical amplifier board to connect the PT100 to your printer controller board,and the required screws for holding everything together.This kit is compatible with all HotEnds except for Cyclops and Volcano.
The PT100 sensor will not fit in the standard Hotends,but can be used with-v6,Chimera,Lite6,and Kraken by using the PT100 Heater Block available in the spares and extras section.
Please be aware that a PT100 is not the same as a thermistor and unless your electronics explicitly supports RTD Sensing devices you will need an amplifier board.
The Ultimaker 2 uses PT100 sensors by default,and this sensor allows you to connect your Hotend and Ultimaker electronics with no alteration to the electronics or firmware of the Ultimaker 2.
If you want the thermistor sensor that can fits on your hotend please click below.

Set 1:

We also provide:
PT100 Temperature Sensors inHRER
PT100 Amplifyer Board inHERE

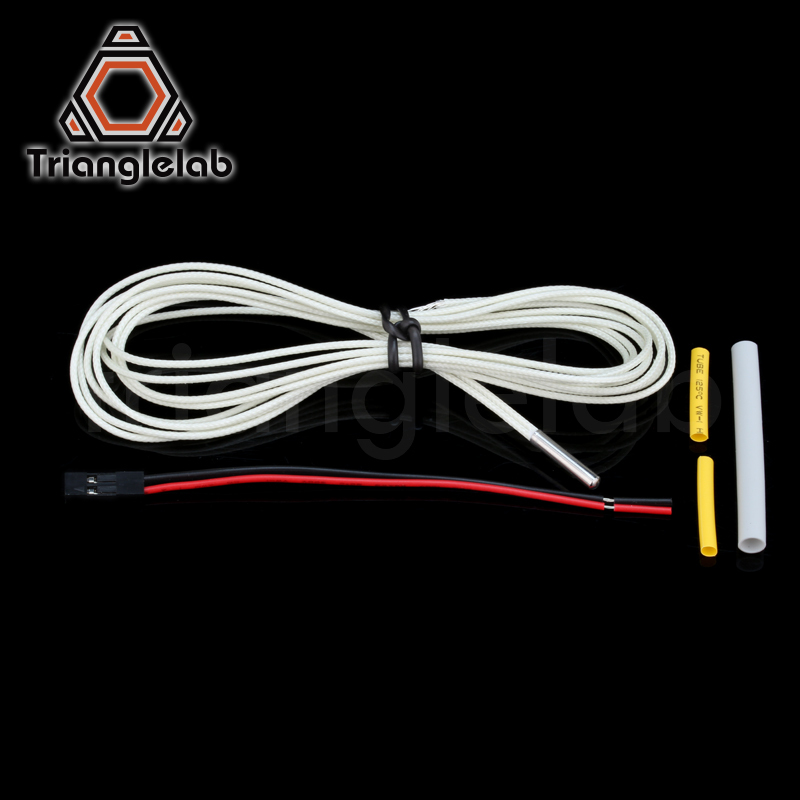

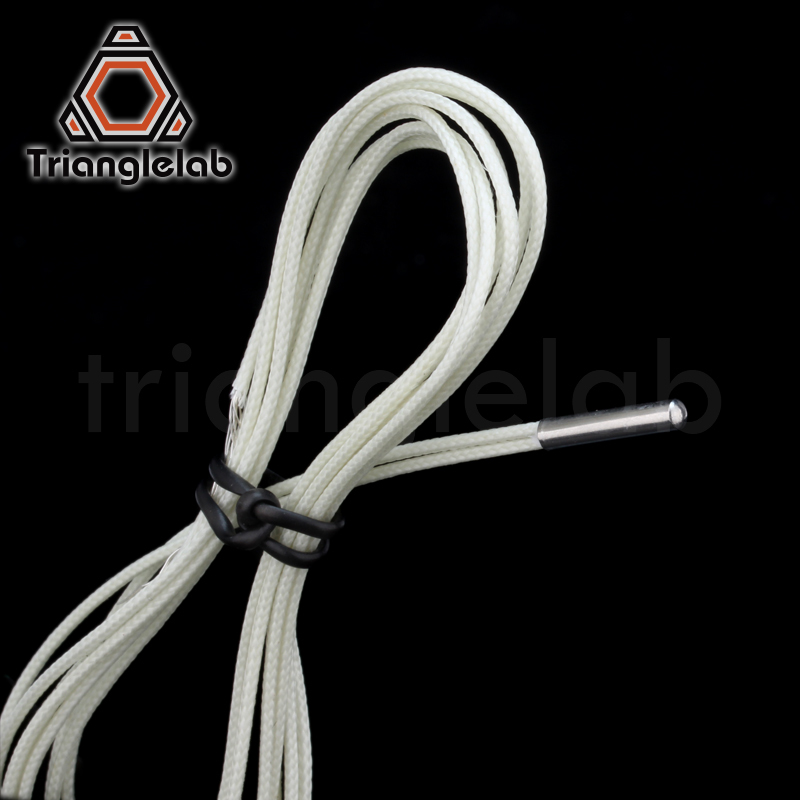

1 X PT100 Thermistor Cartridge

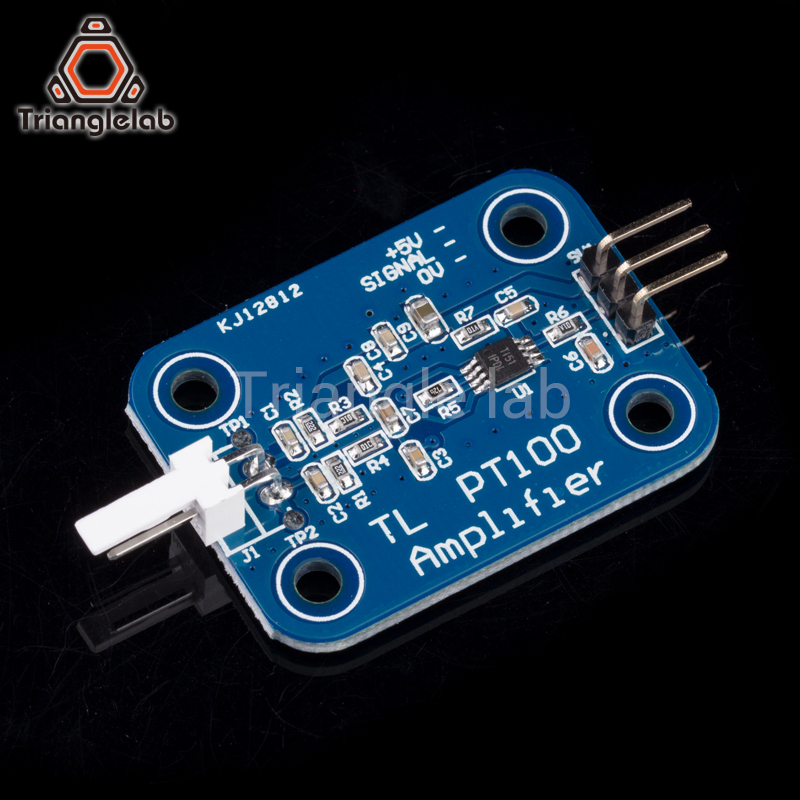

1 X PT100 Amplifier Board
Cables For Connect To Main Board
2 x M3 x 10 Socket Dome Screw(for securing heater cartridge)
2 x M3 Grub Screws(for securing thermistor)
