▉Name:

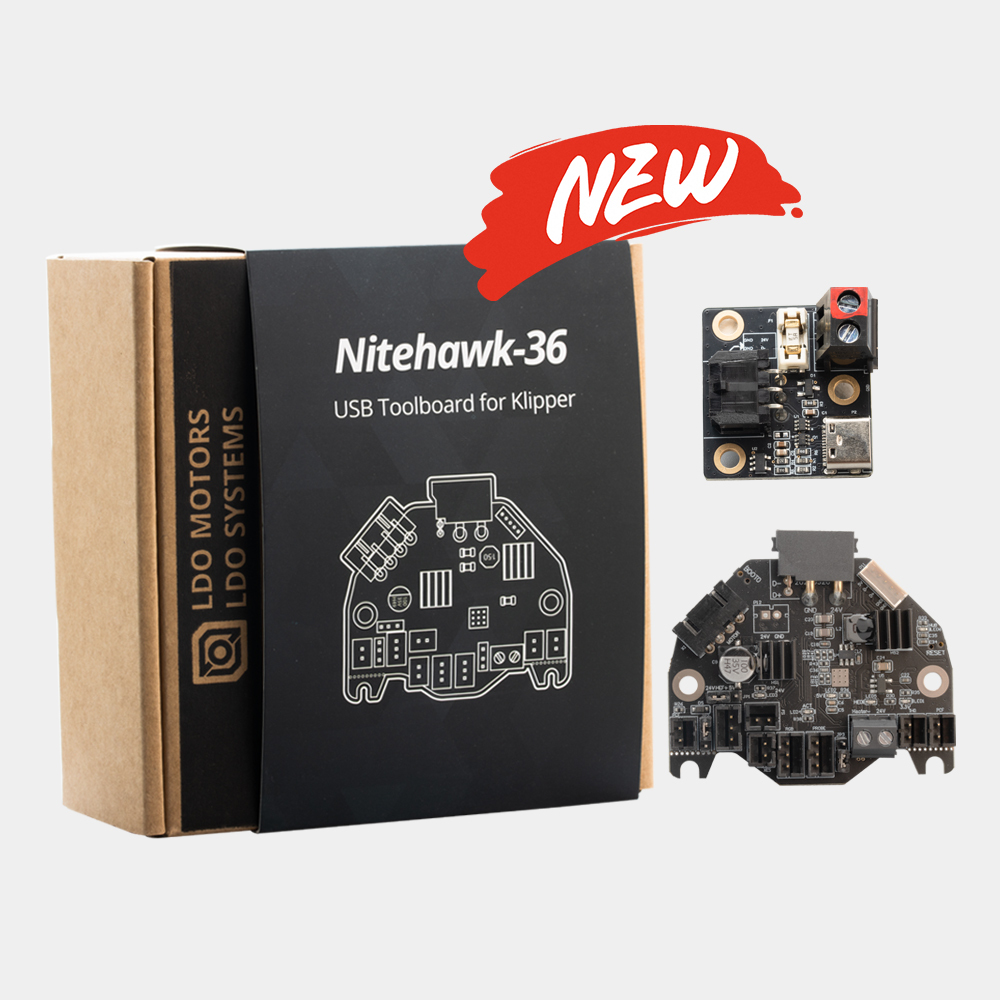

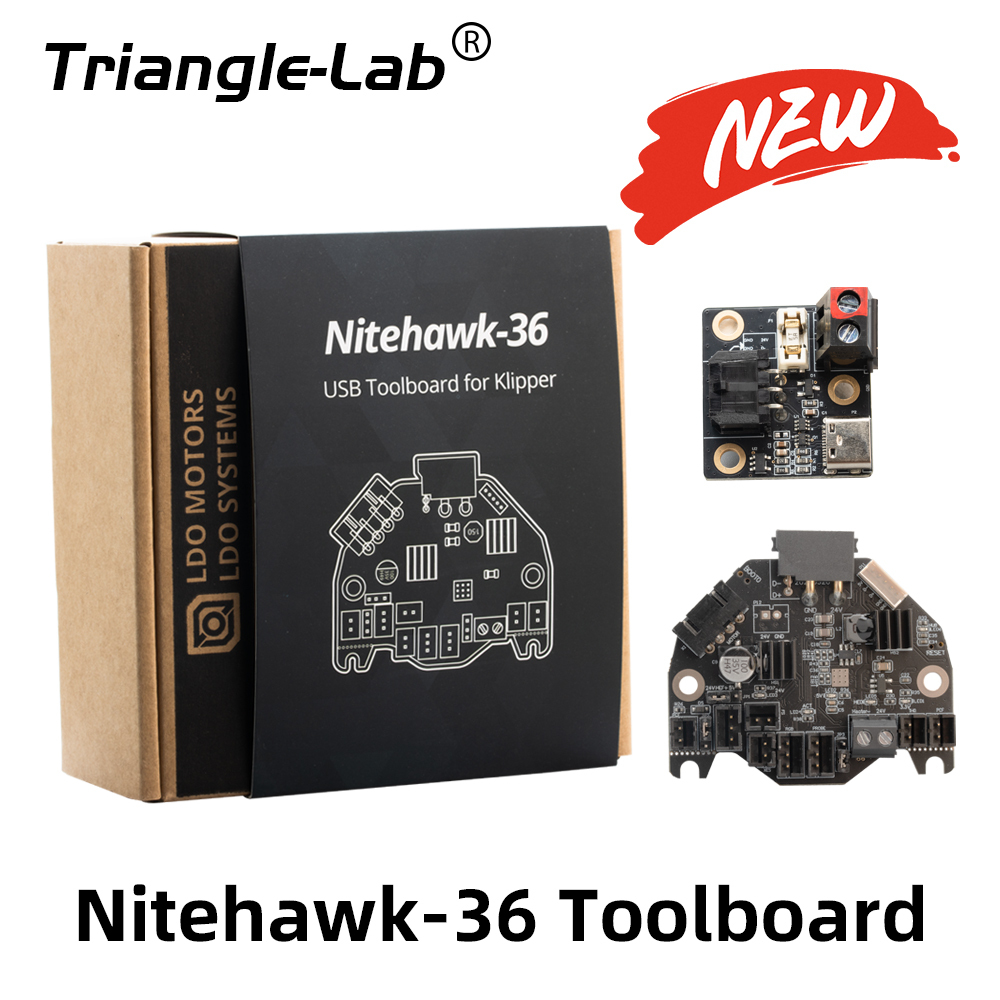

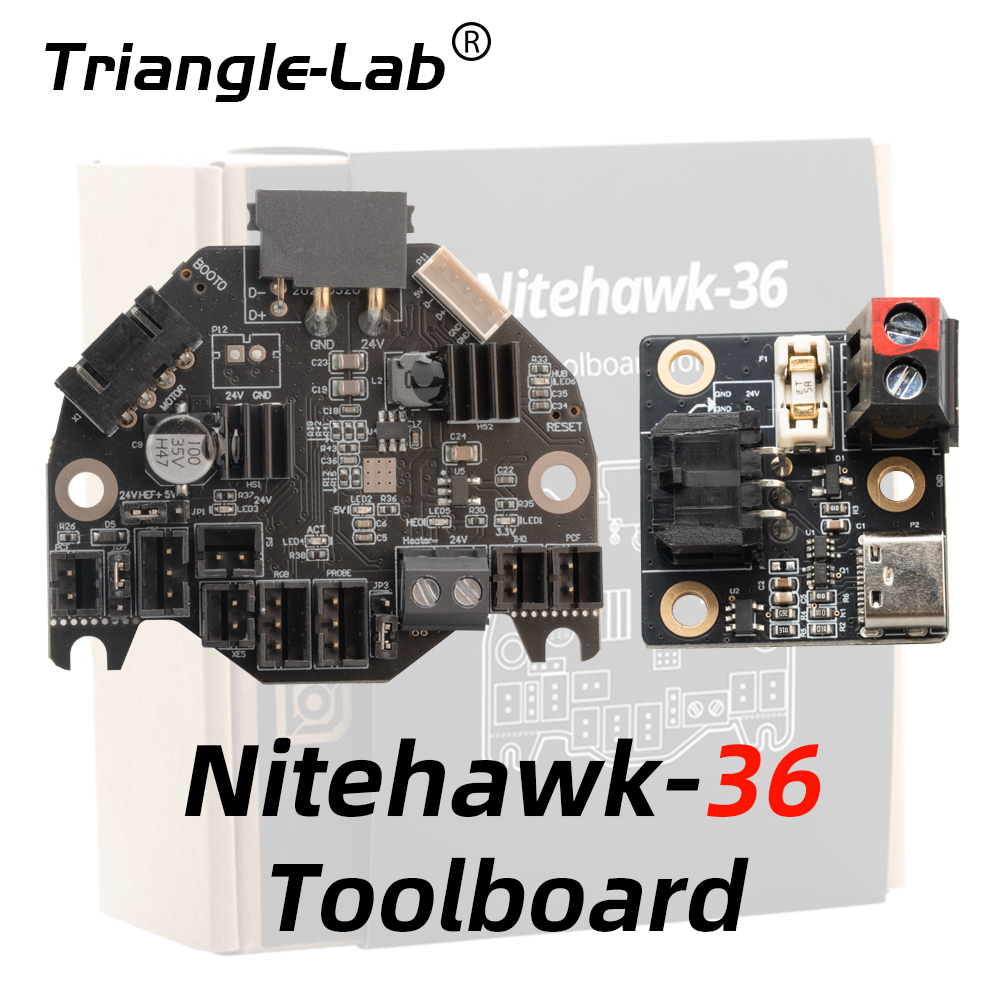

New Nitehawk-36 Toolboard
▉Introduction:

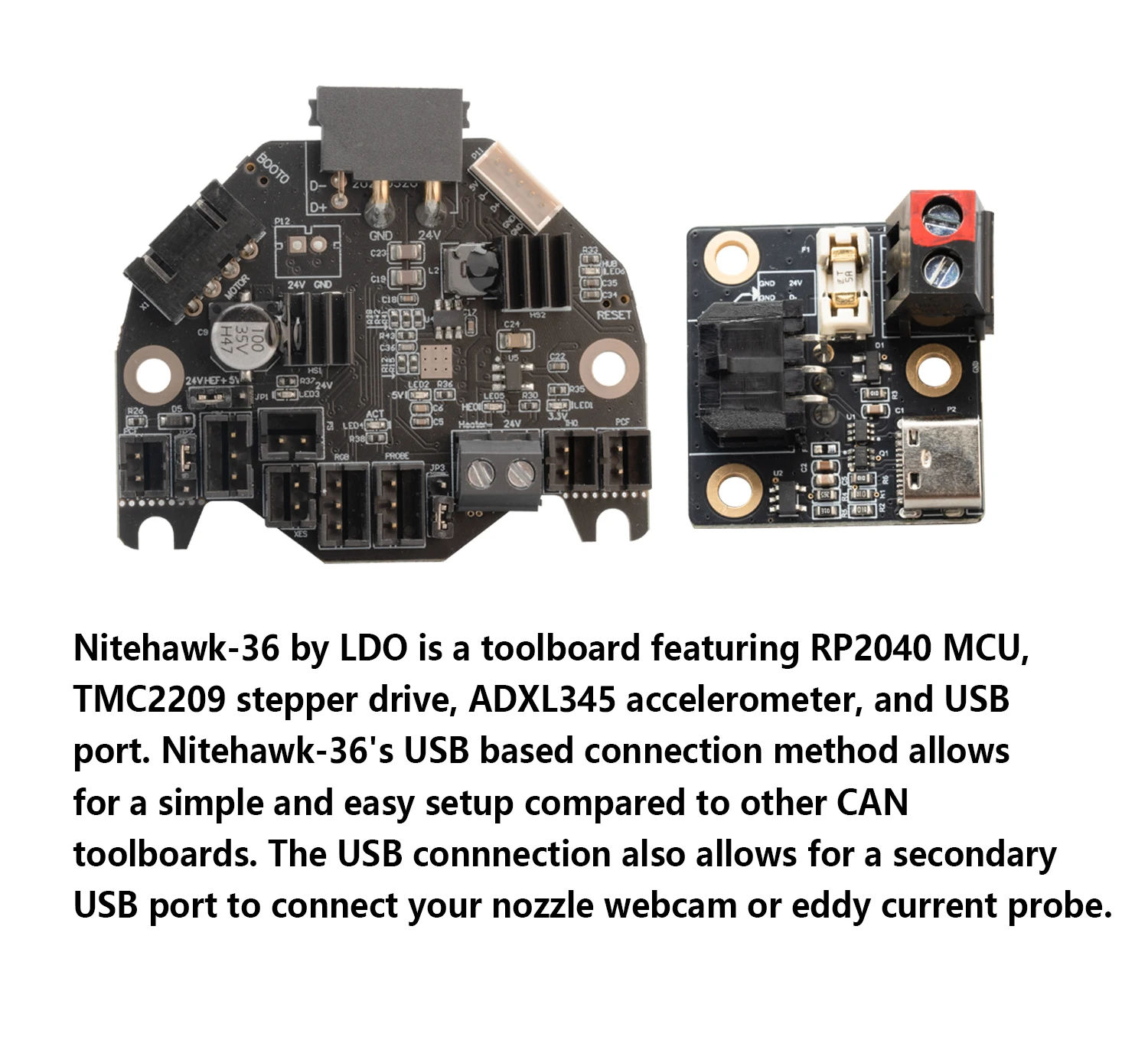

Nitehawk-36 by LDO is a toolboard featuring RP2040 MCU, TMC2209 stepper drive, ADXL345 accelerometer, and USB port. Nitehawk-36's USB based connection method allows for a simple and easy setup compared to other CAN toolboards. The USB connnection also allows for a secondary USB port to connect your nozzle webcam or eddy current probe.

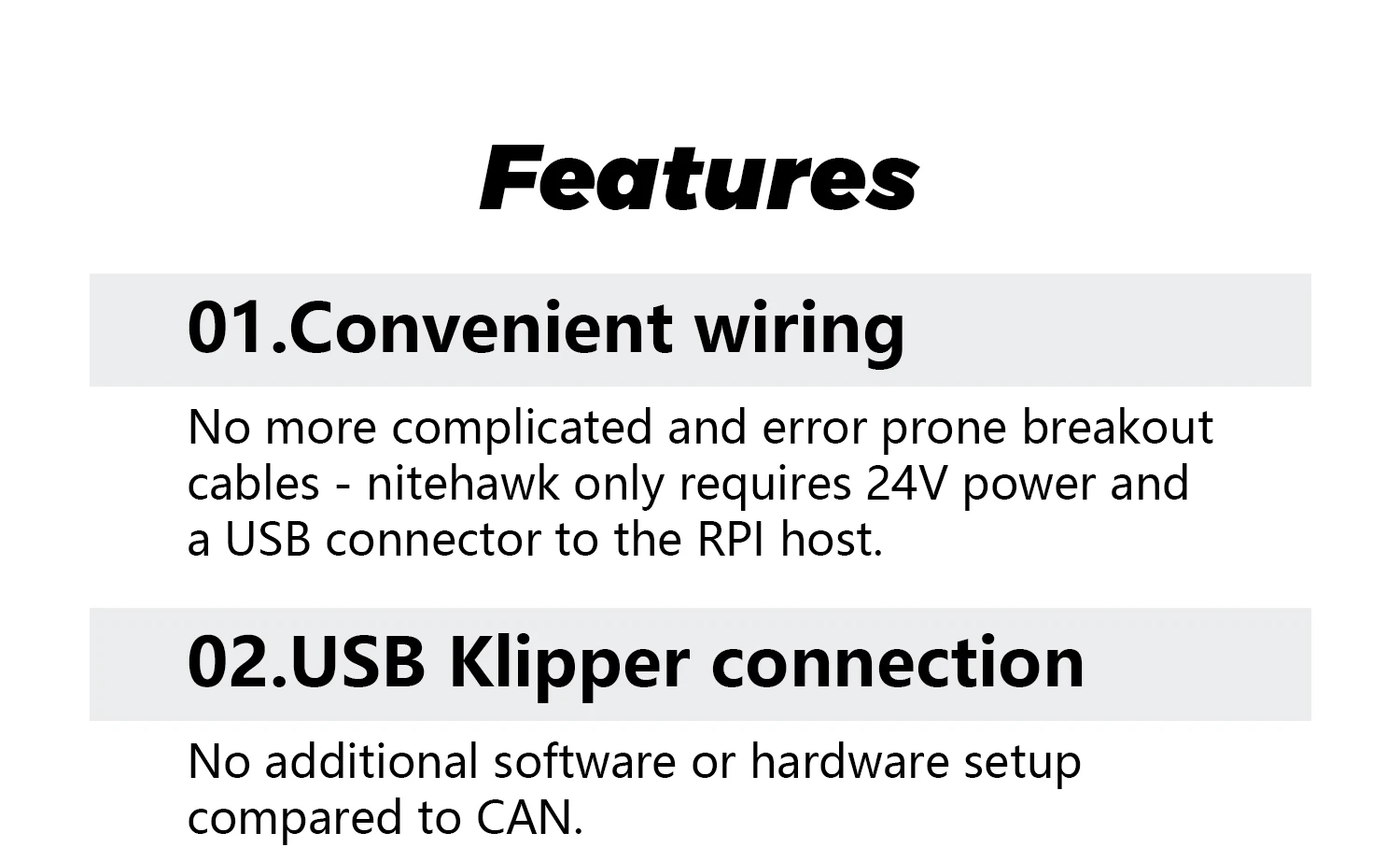

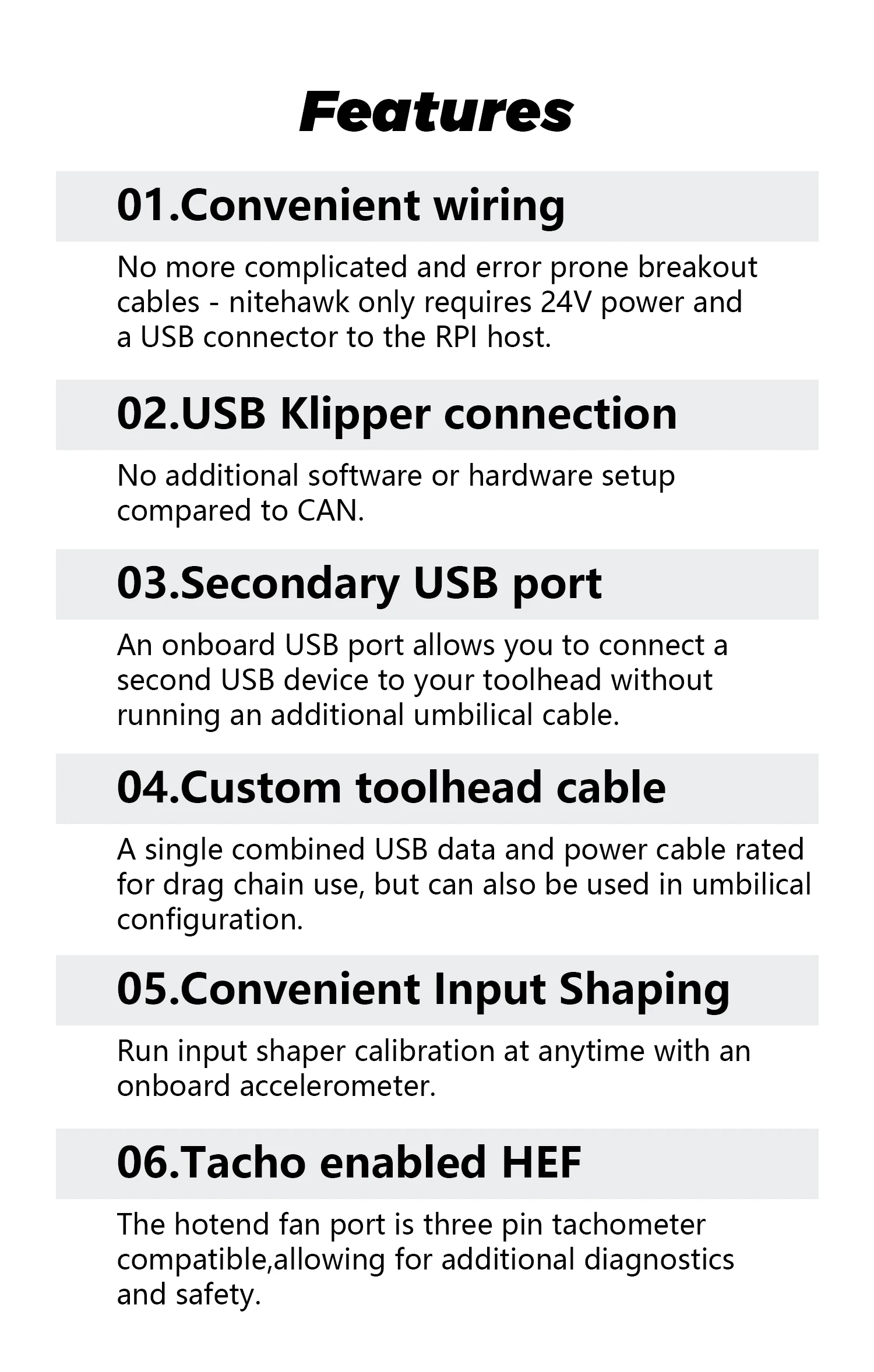

▉Features:
01.Convenient wiring
No more complicated and error prone breakout cables - nitehawk only requires 24V power and a USB connector to the RPI host.
02.USB Klipper connection
No additional software or hardware setup compared to CAN.
03.Secondary USB port
An onboard USB port allows you to connect a second USB device to your toolhead without running an additional umbilical cable.
04.Custom toolhead cable
A single combined USB data and power cable rated for drag chain use, but can also be used in umbilical configuration.
05.Convenient Input Shaping
Run input shaper calibration at anytime with an onboard accelerometer.
06.Tacho enabled HEF
The hotend fan port is three pin tachometer compatible,allowing for additional diagnostics and safety.

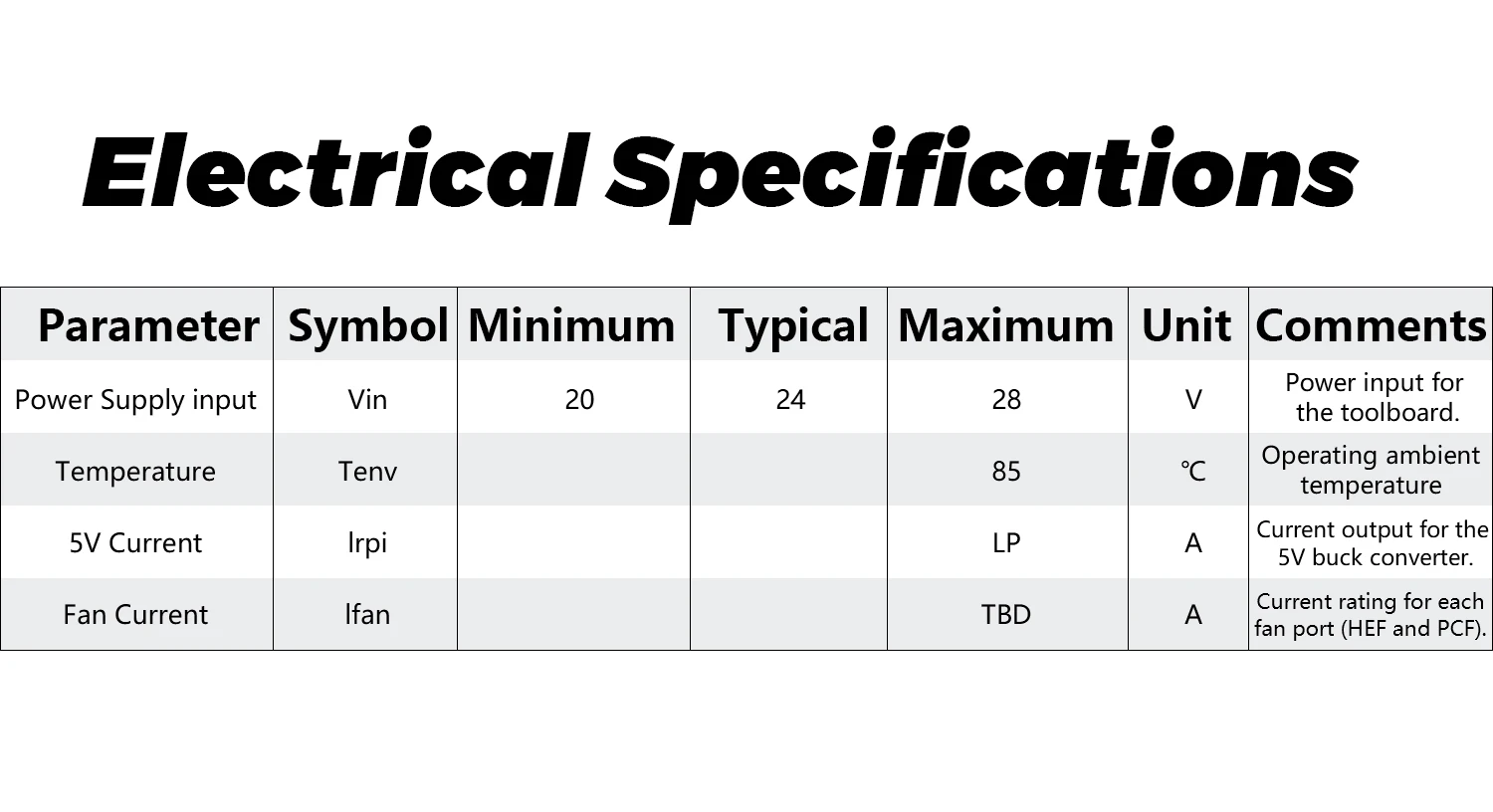

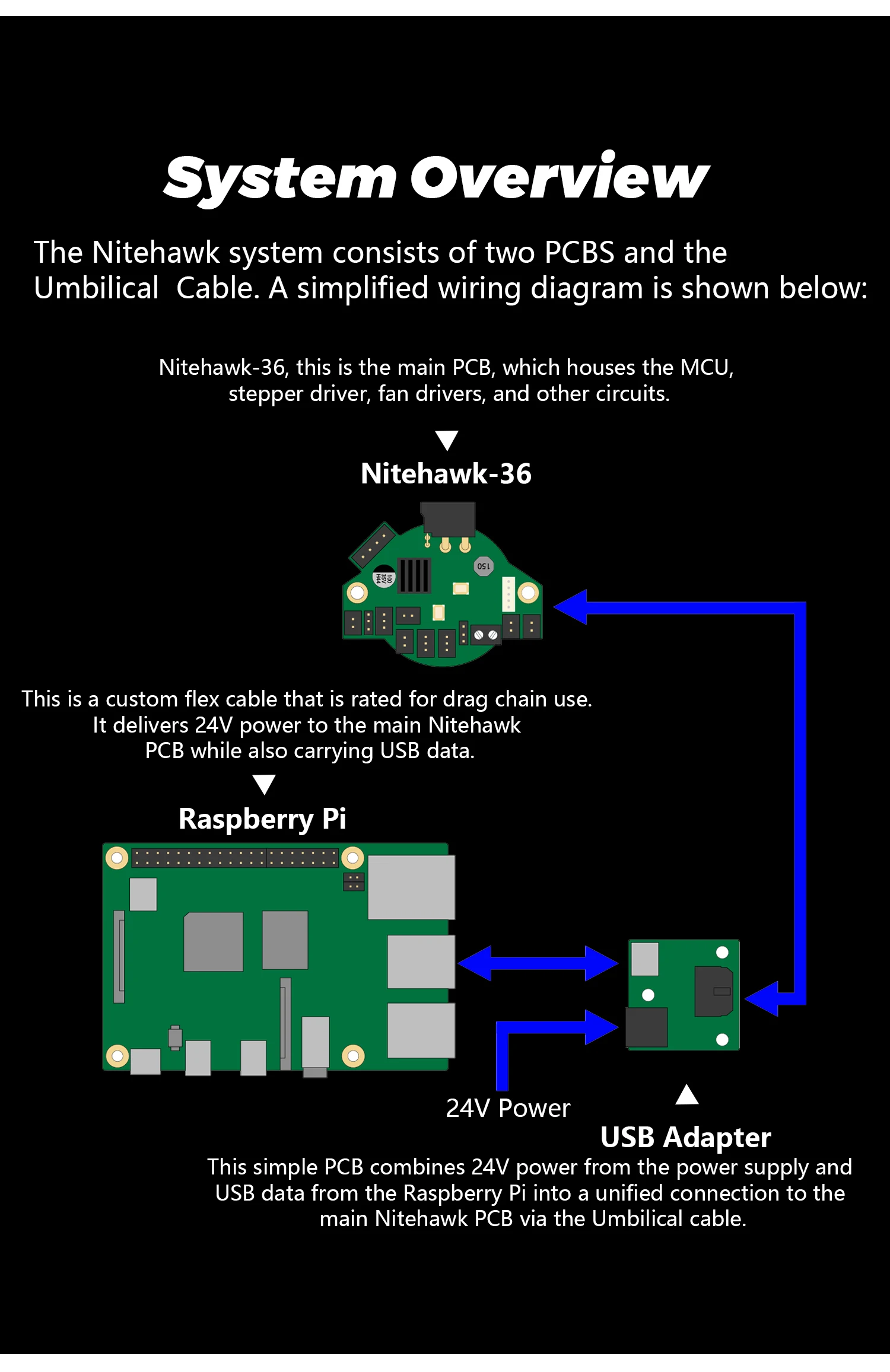

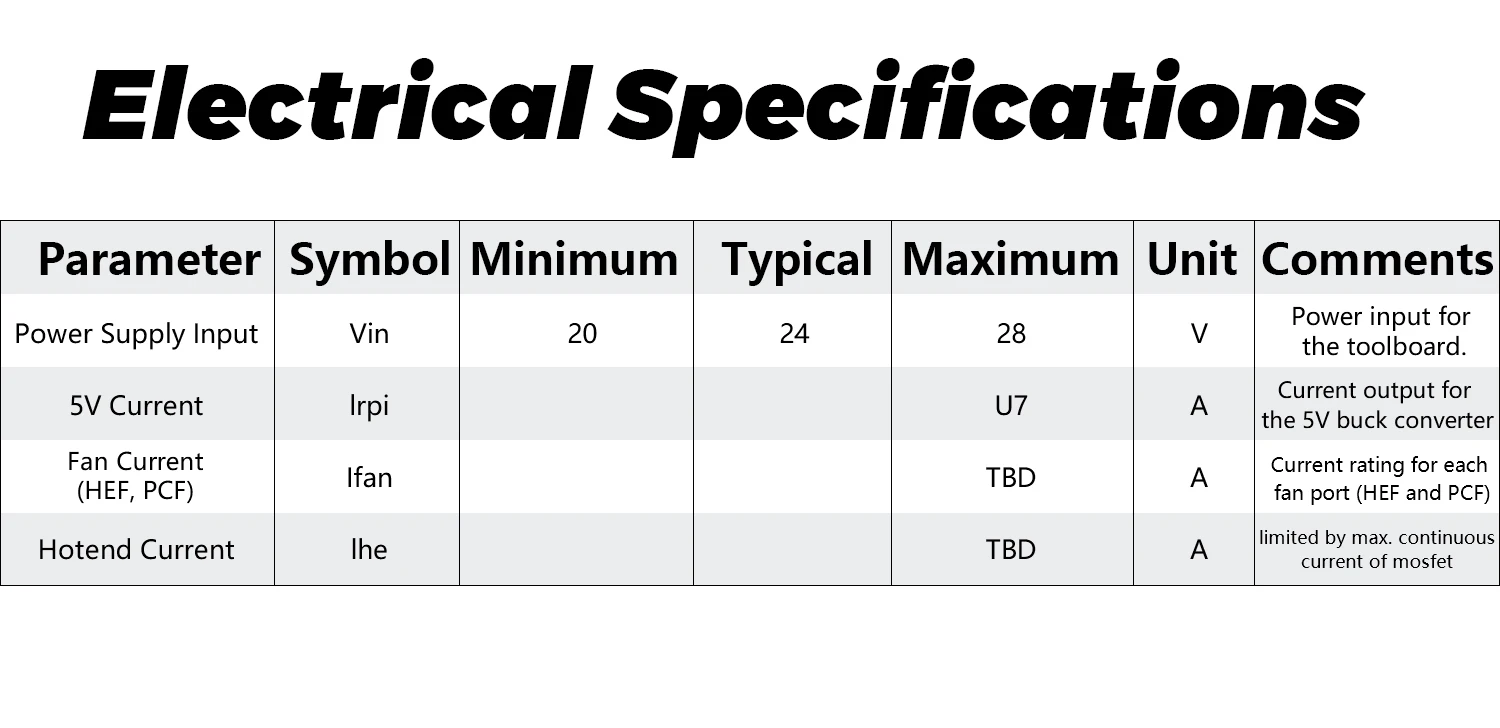

▉System Overview:

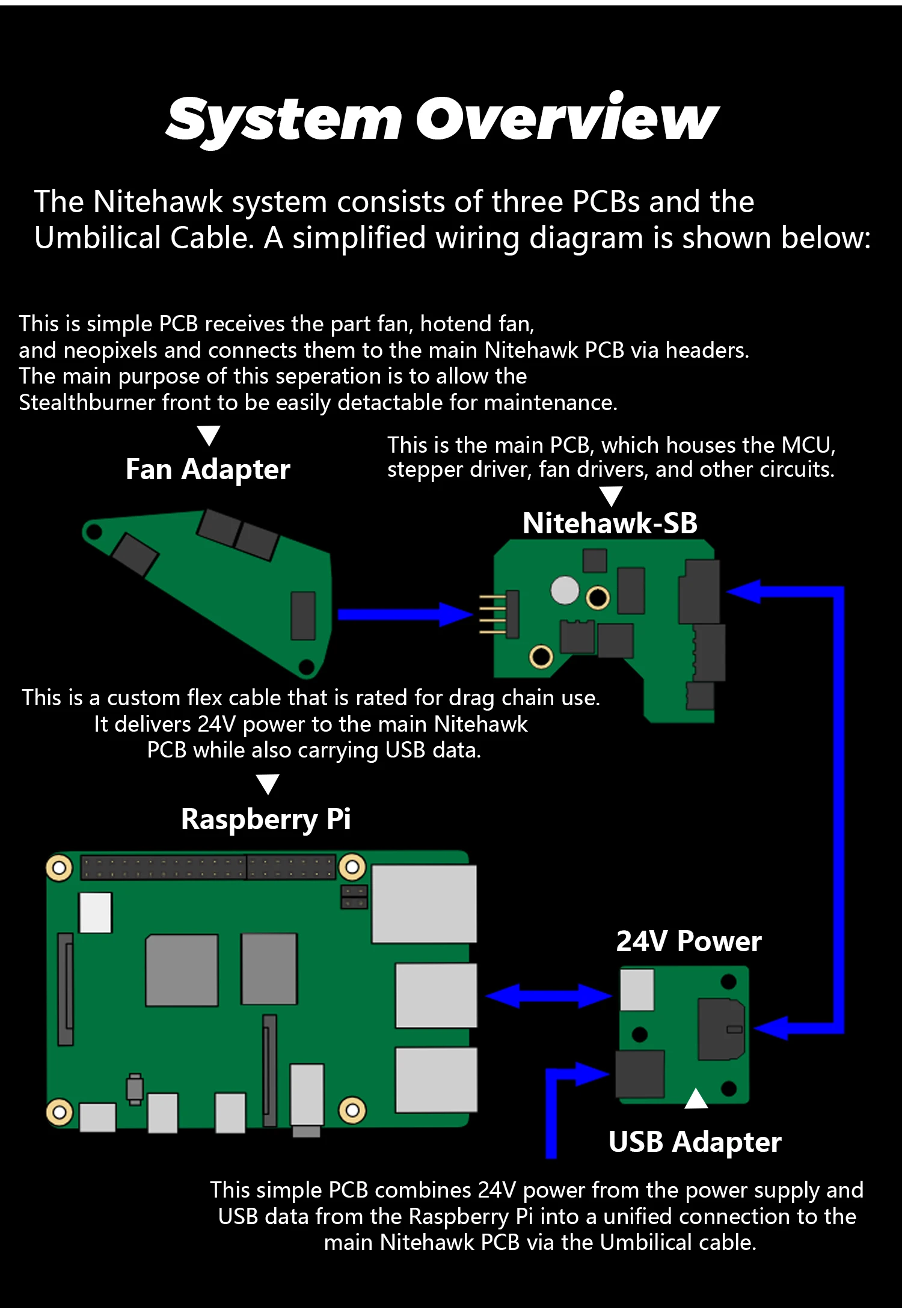

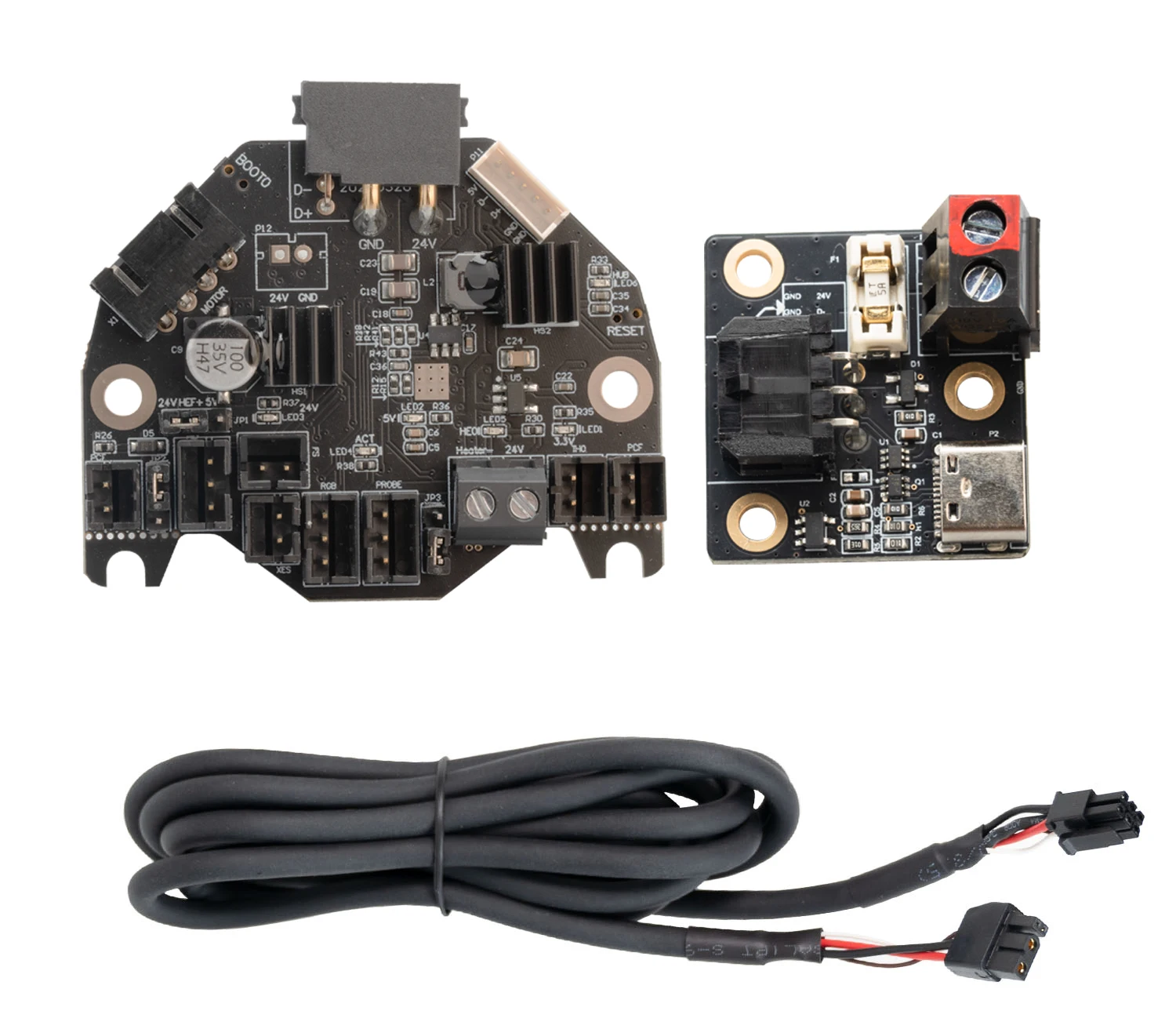

The Nitehawk system consists of two PCBS and the Umbilical Cable. A simplified wiring diagram is shown below:
Nitehawk-36, this is the main PCB, which houses the MCU, stepper driver, fan drivers, and other circuits.This is a custom flex cable that is rated for drag chain use. It delivers 24V power to the main Nitehawk PCB while also carrying USB data.This simple PCB combines 24V power from the power supply and USB data from the Raspberry Pi into a unified connection to the main Nitehawk PCB via the Umbilical cable.
▉System Overview:

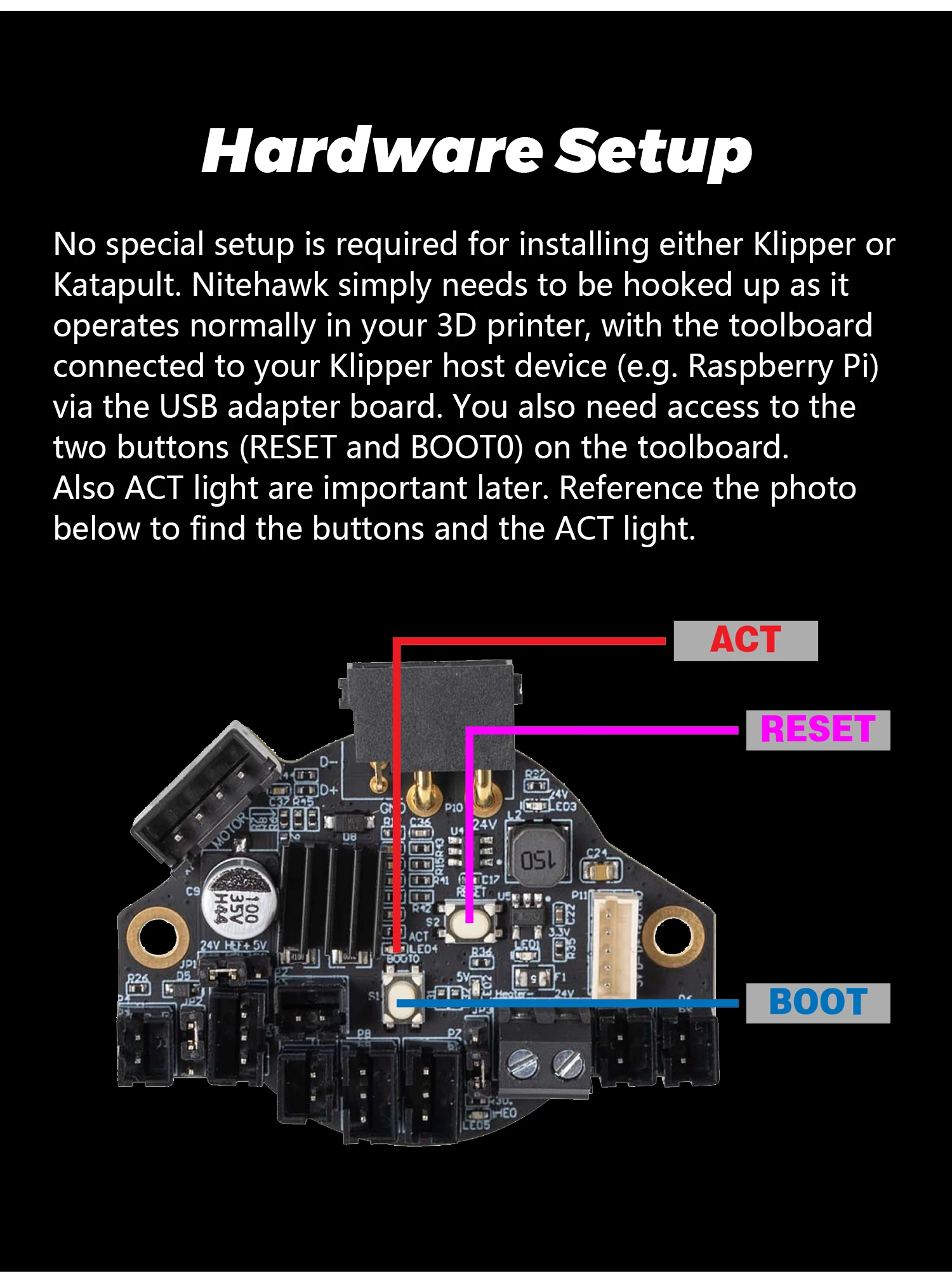

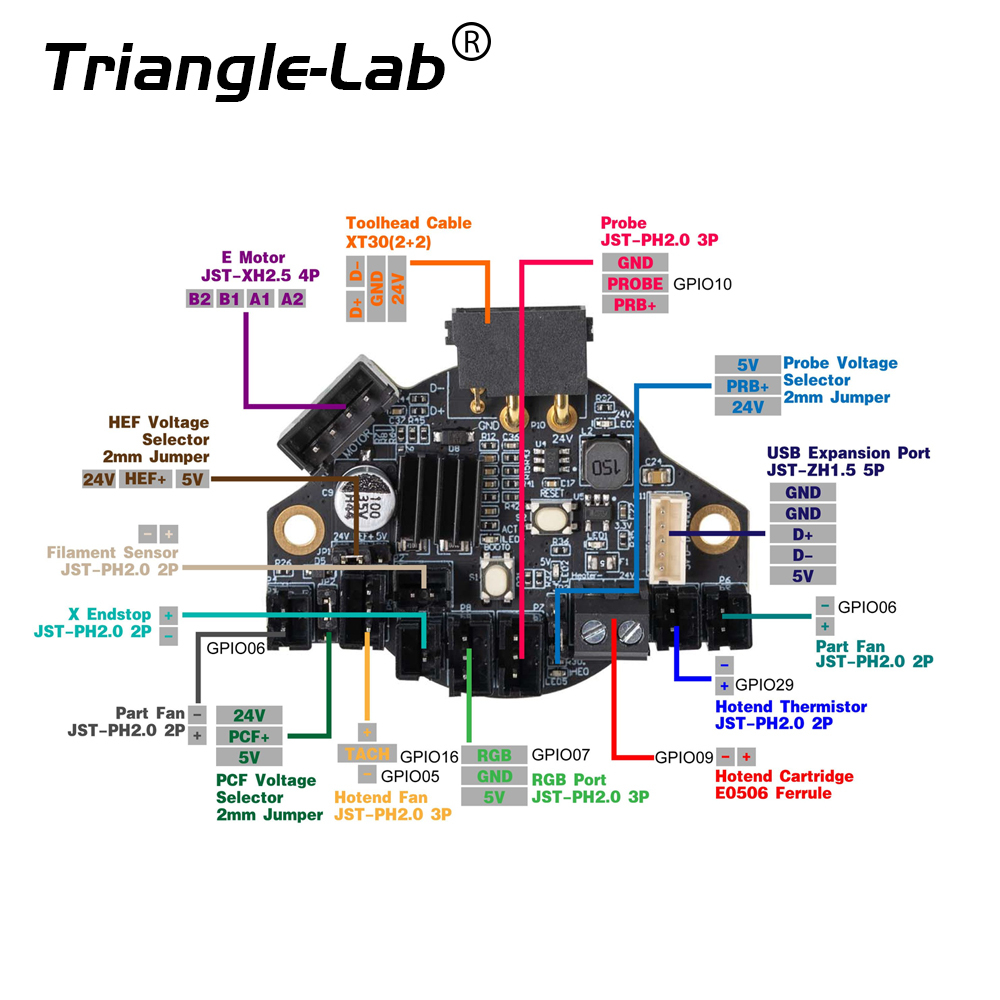

No special setup is required for installing either Klipper or Katapult. Nitehawk simply needs to be hooked up as it operates normally in your 3D printer, with the toolboard connected to your Klipper host device (e.g. Raspberry Pi) via the USB adapter board. You also need access to the two buttons (RESET and BOOT0) on the toolboard. Also ACT light are important later. Reference the photo below to find the buttons and the ACT light.

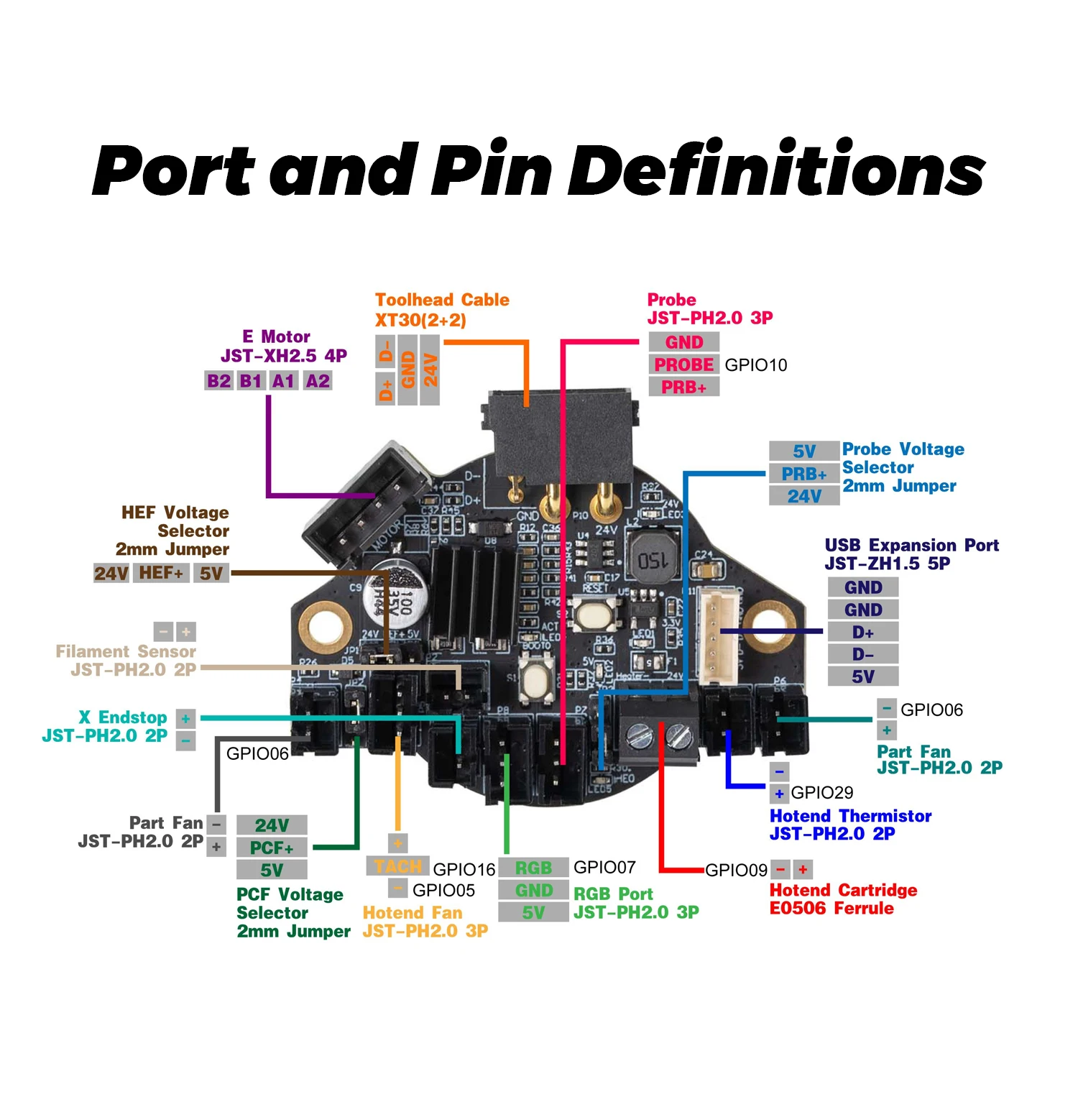

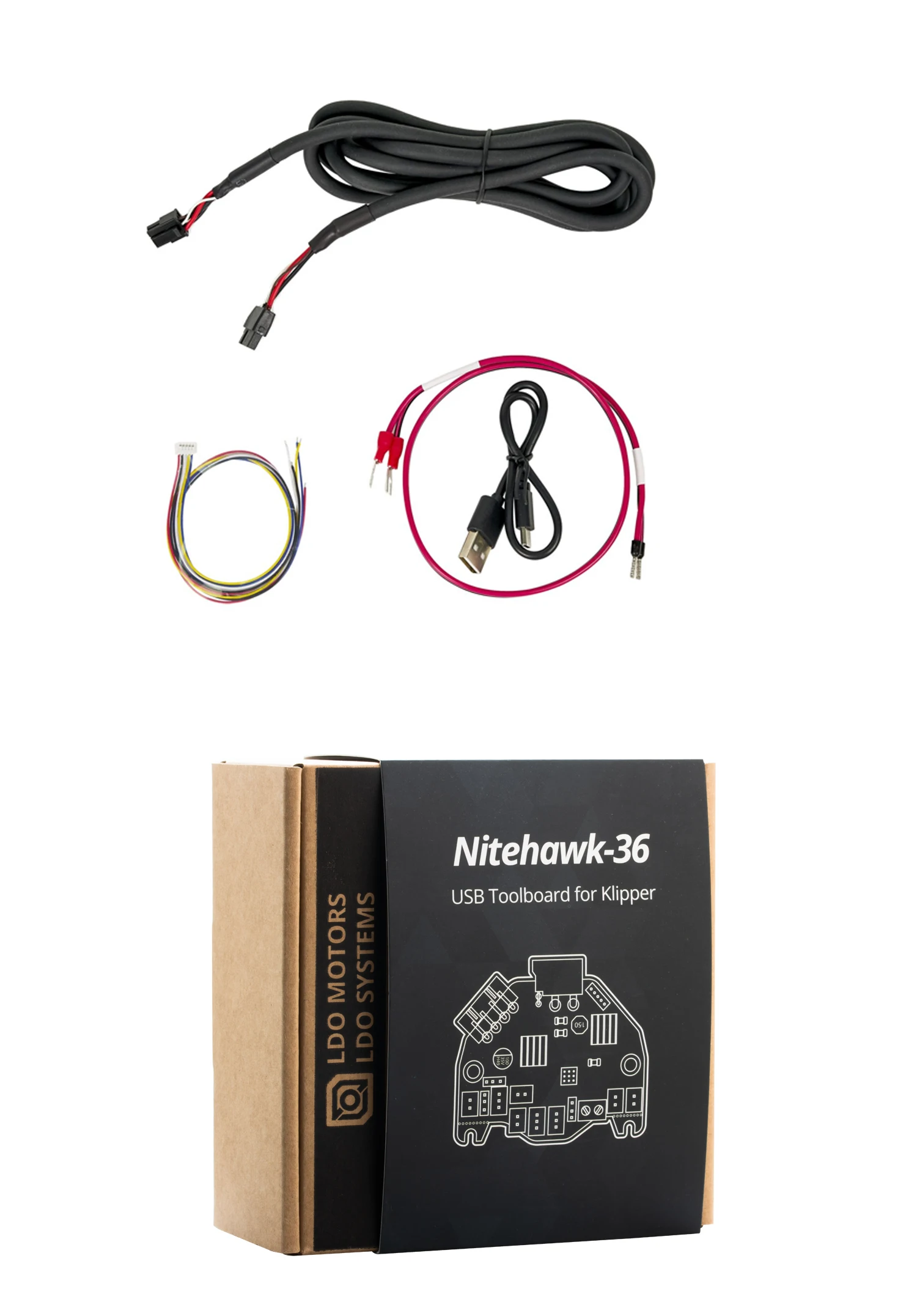

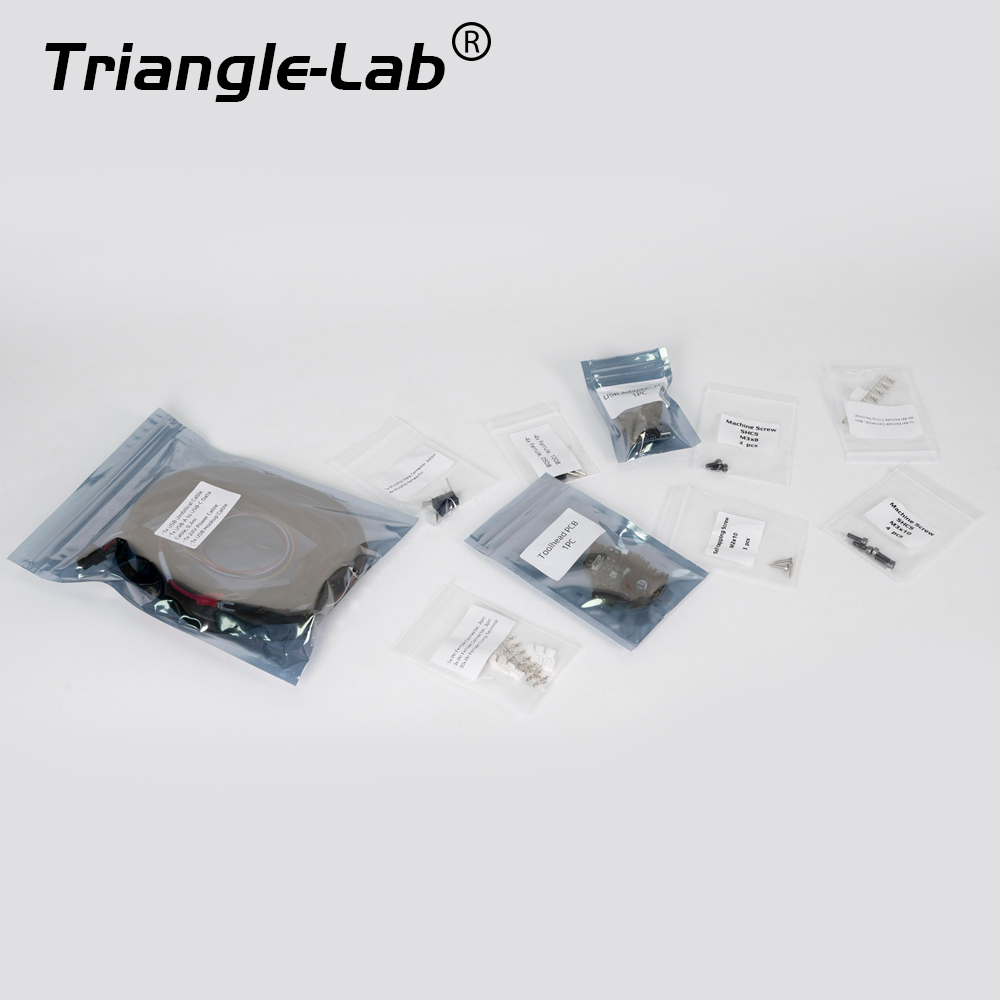

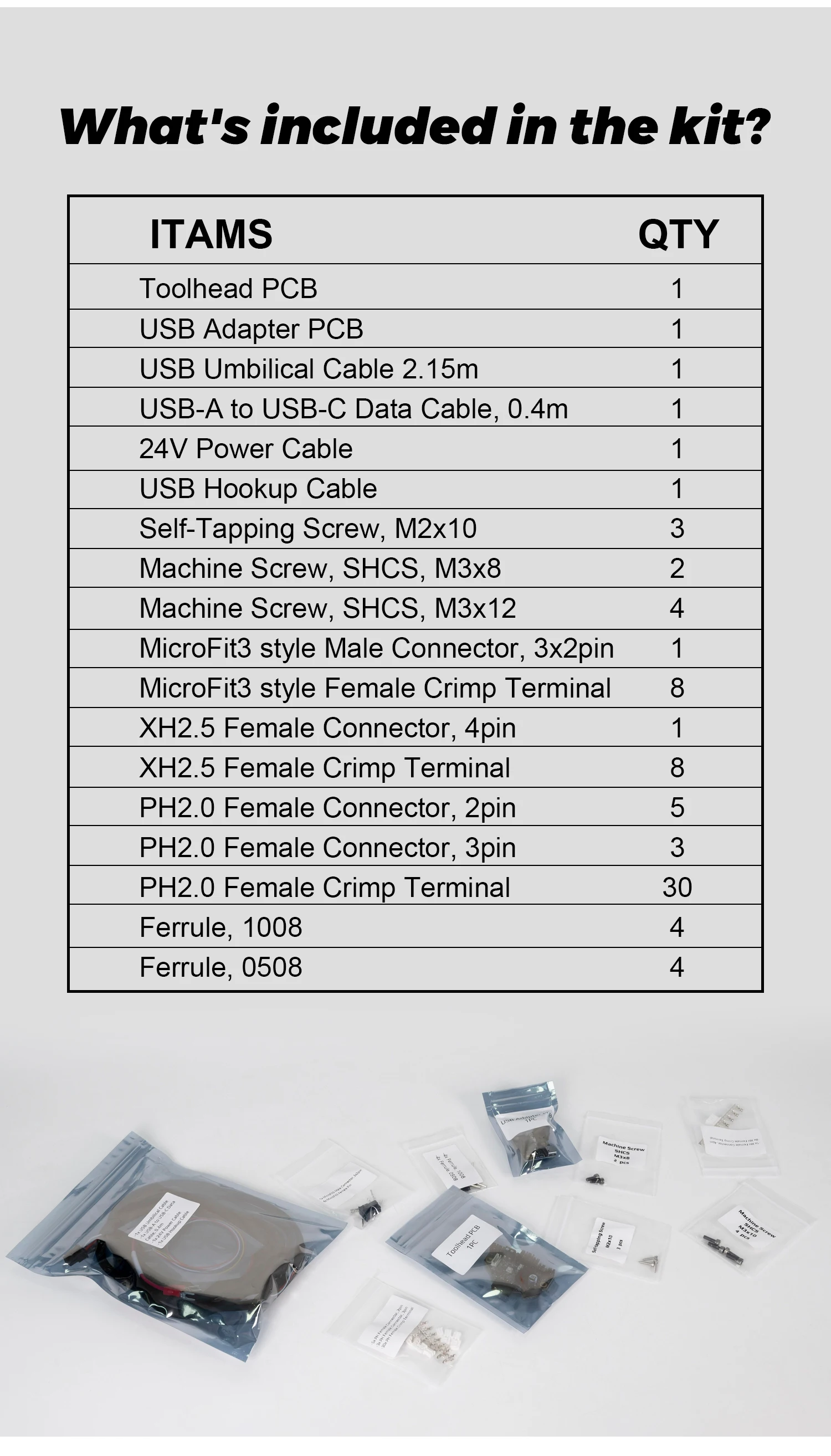

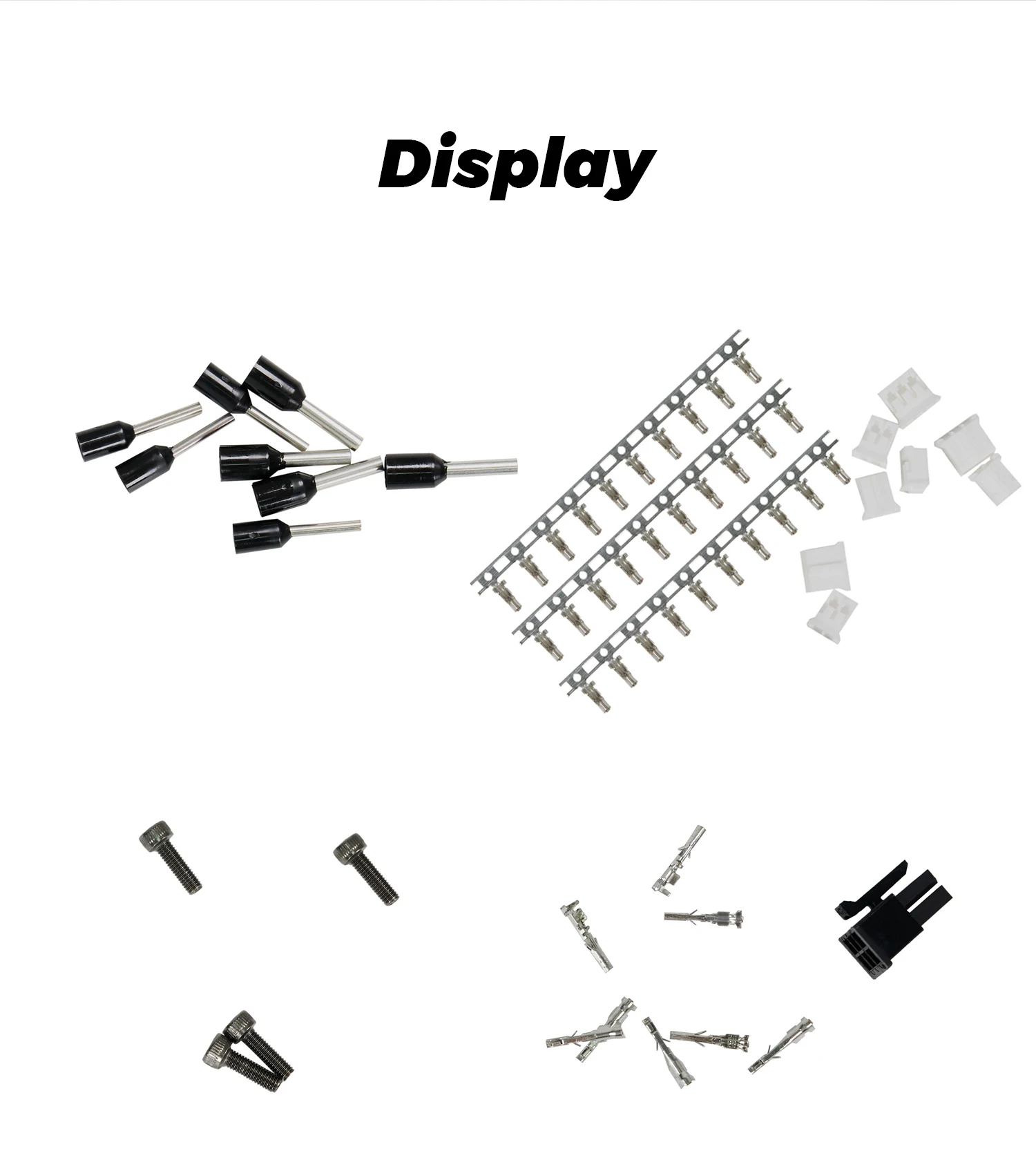

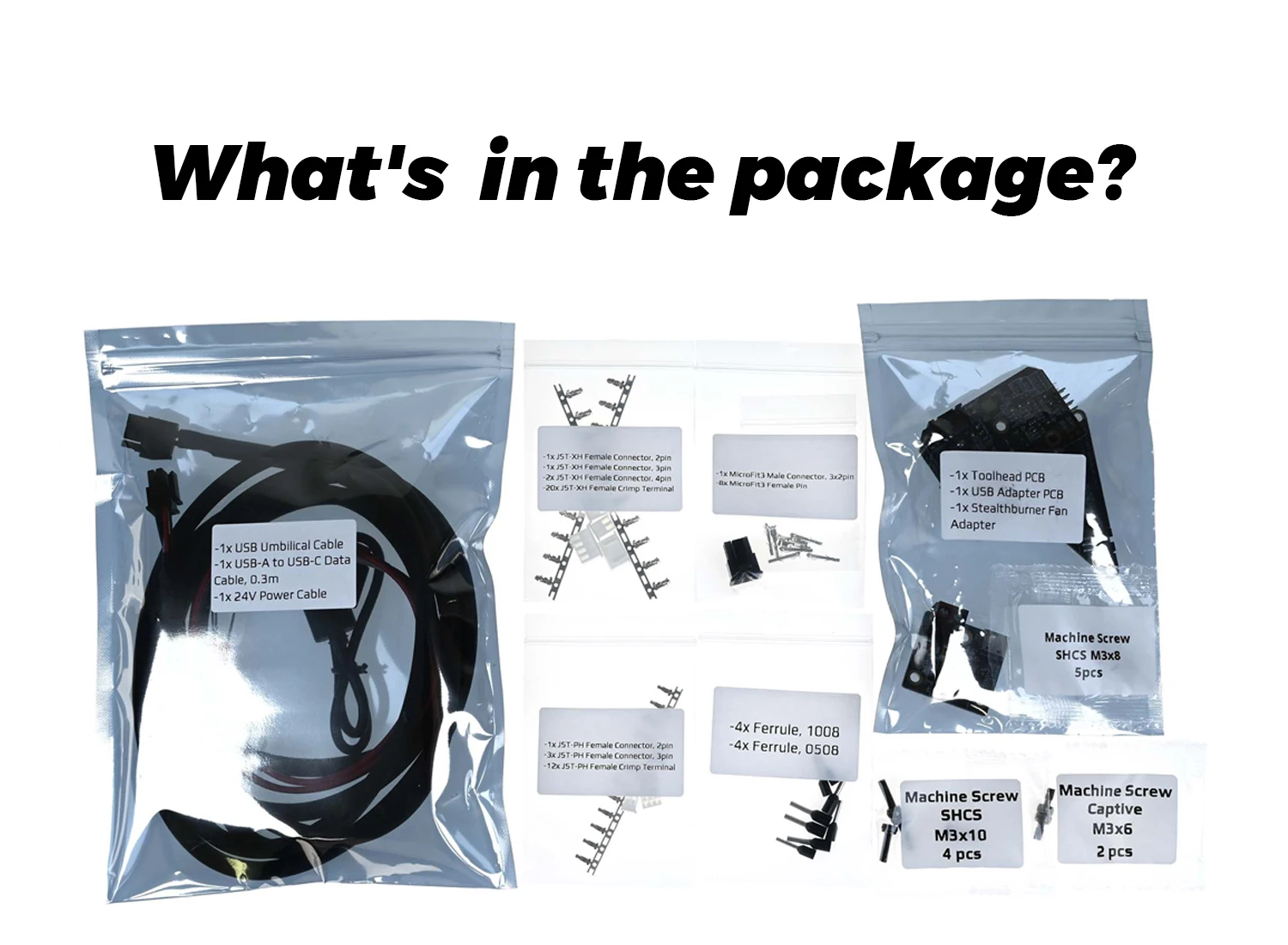

▉What's included in the kit?
Toolhead PCB 1
USB Adapter PCB 1
USB Umbilical Cable 2.15m 1
USB-A to USB-C Data Cable, 0.4m 1

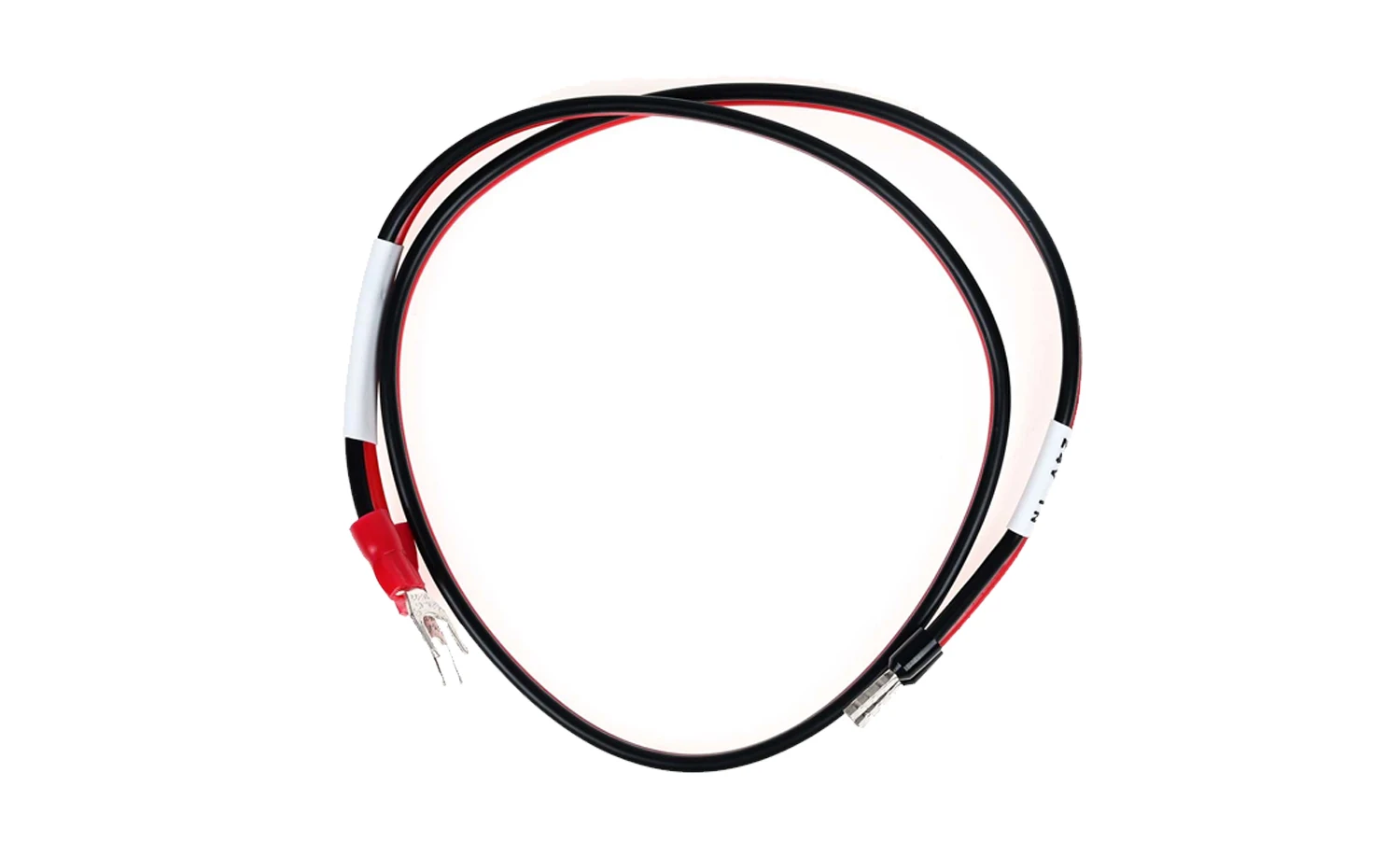

24V Power Cable 1
USB Hookup Cable 1
Self-Tapping Screw, M2x10 3
Machine Screw, SHCS, M3x8 2
Machine Screw, SHCS, M3x12 4
MicroFit3 style Male Connector, 3x2pin 1
MicroFit3 style Female Crimp Terminal 8
XH2.5 Female Connector, 4pin 1
XH2.5 Female Crimp Terminal 8
PH2.0 Female Connector, 2pin 5
PH2.0 Female Connector, 3pin 3
PH2.0 Female Crimp Terminal 30
Ferrule, 1008 4
Ferrule, 0508 4

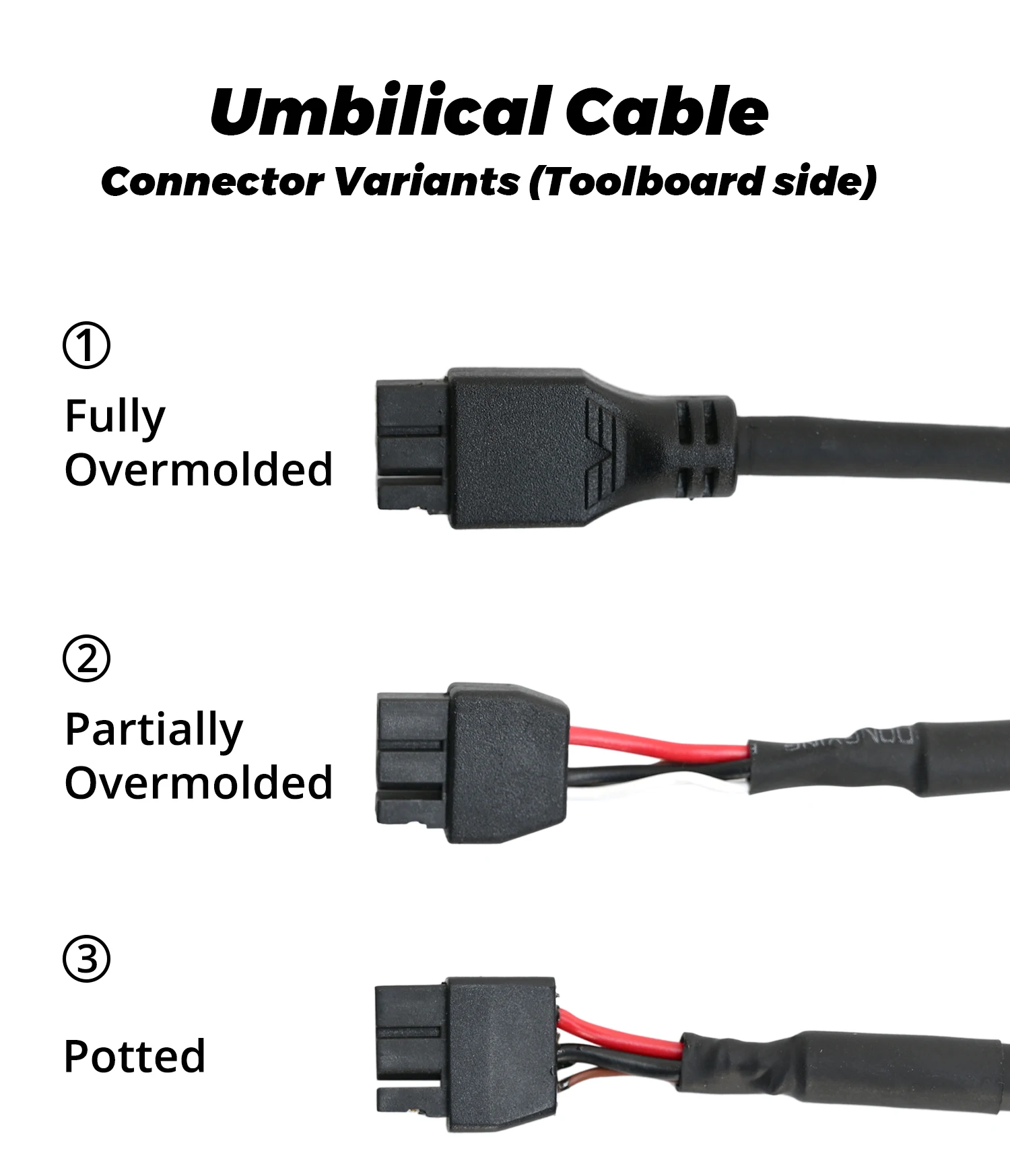

The connector used at the toolboard side is Amass XT30(2+2)-F. You may encounter three variants. all variants are compatible with Nitehawk-36, Nitehawk-SB, and Orbitool Toolboards but have different form factors,
Fully Overmolded, this is the default version shipped with the Nitehawk-36 KIT Rev C and later. It offers good strain relief but does not have the same flexibility at the connector end as variants #2 or #3.Note: This version is NOT included in the recall since it would have further delayed the replacement of the defective boards. We apologize for any confusion. We are working to produce more and will offer them at cost to existing customers once they become available. Partially Overmolded, this is the default version that is shipped with Nitehawk-SB and Voron kits. This version has a length of exposed wiring which allows the cable to bend easily at the toolboard side (needed when using Stealthburner + cable chains) Potted, this variant shipped with the old Nitehawk-36 V1.2 and Nitehawk-SB kits. This variant has now been replaced by variant #1 and #2. *The rated bend radius of the cable is 28mm and the nominal remperature of the cable is 105C.

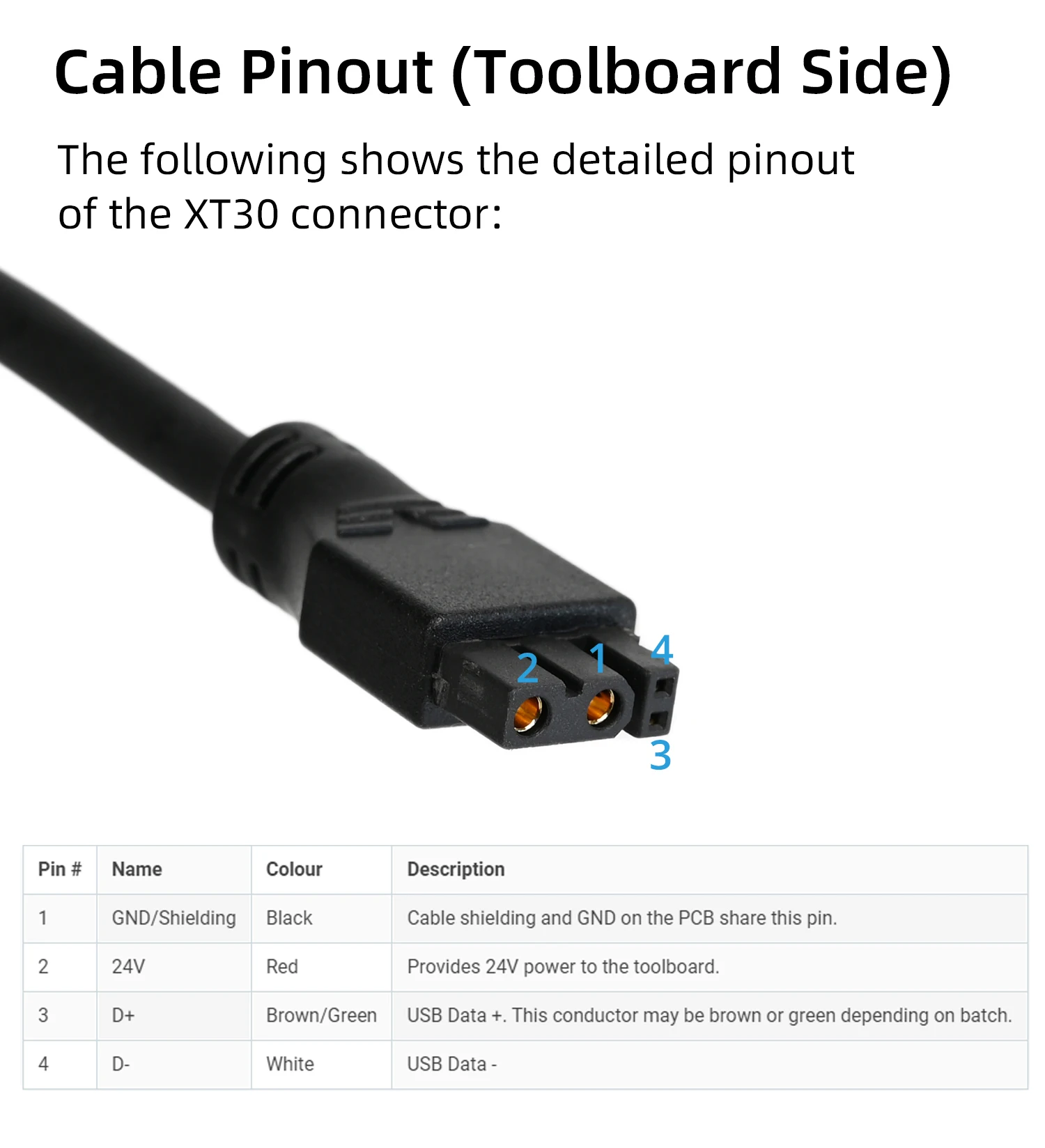

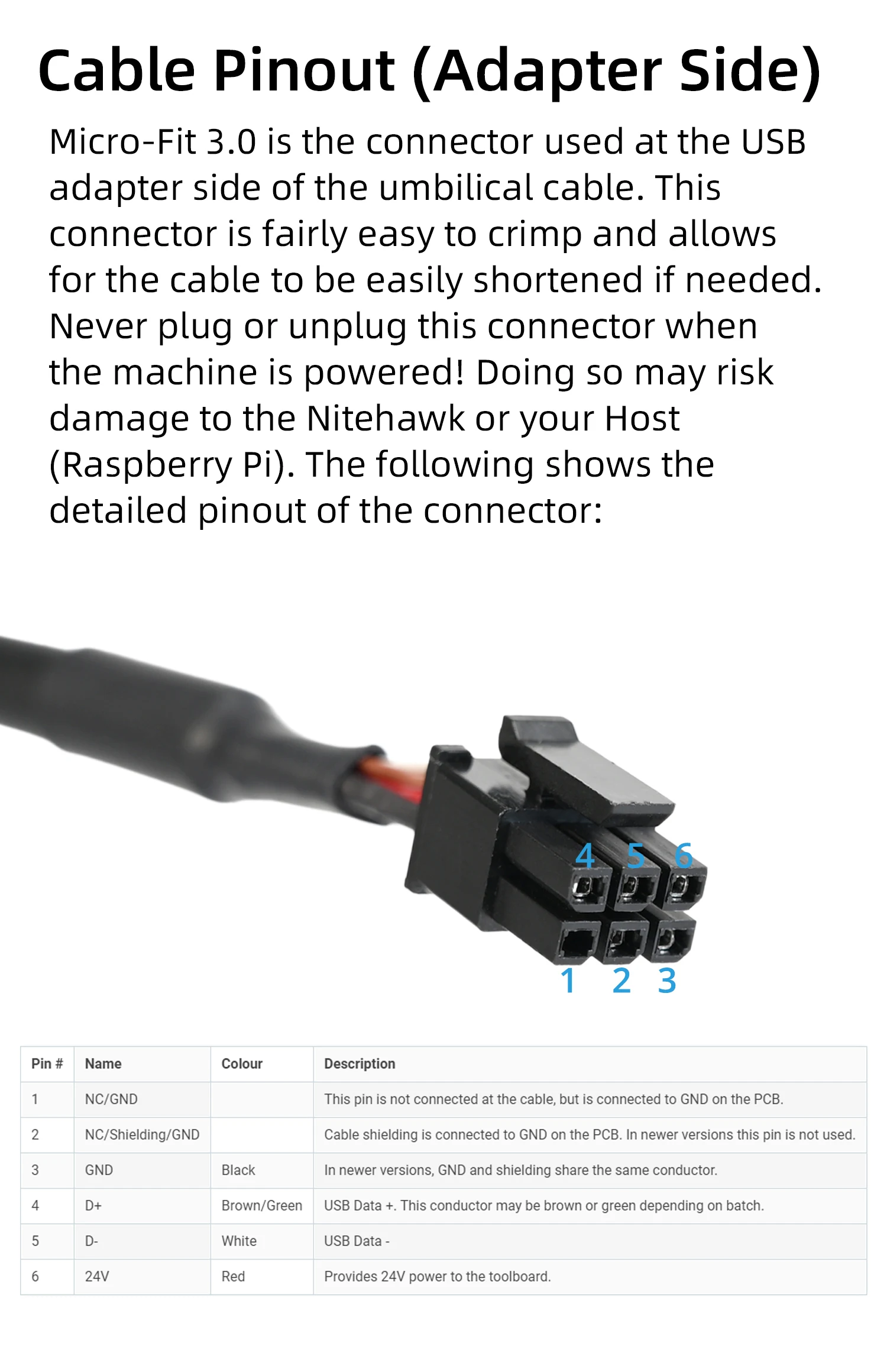

Cable Pinout (Toolboard side)
The following shows the detailed pinoutof the XT30 connector:
