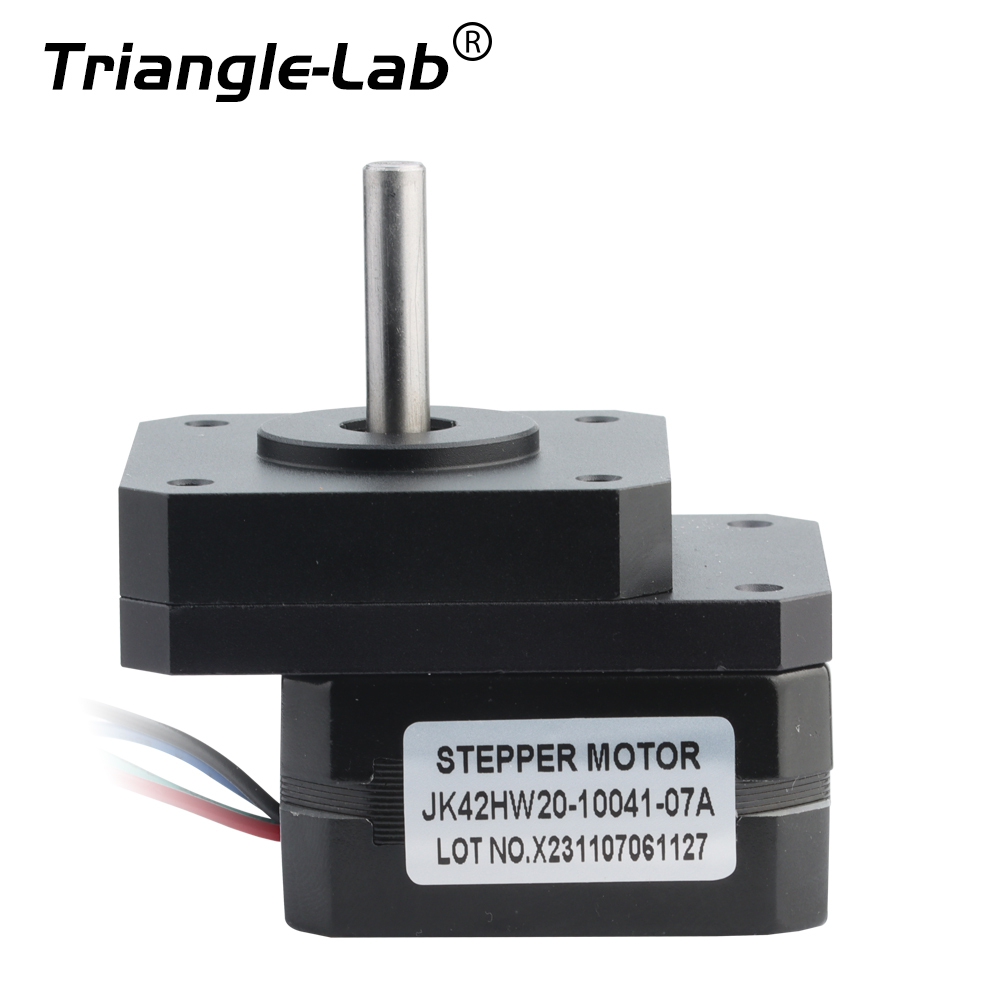

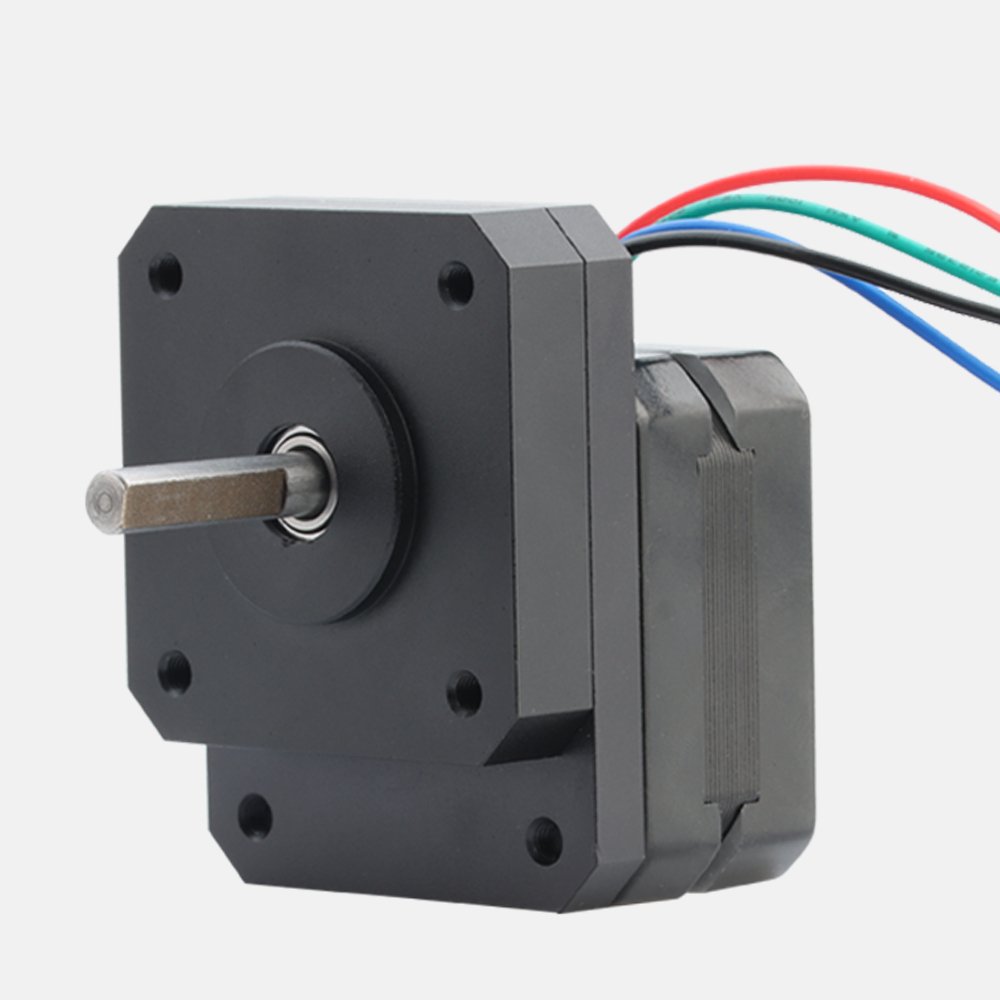

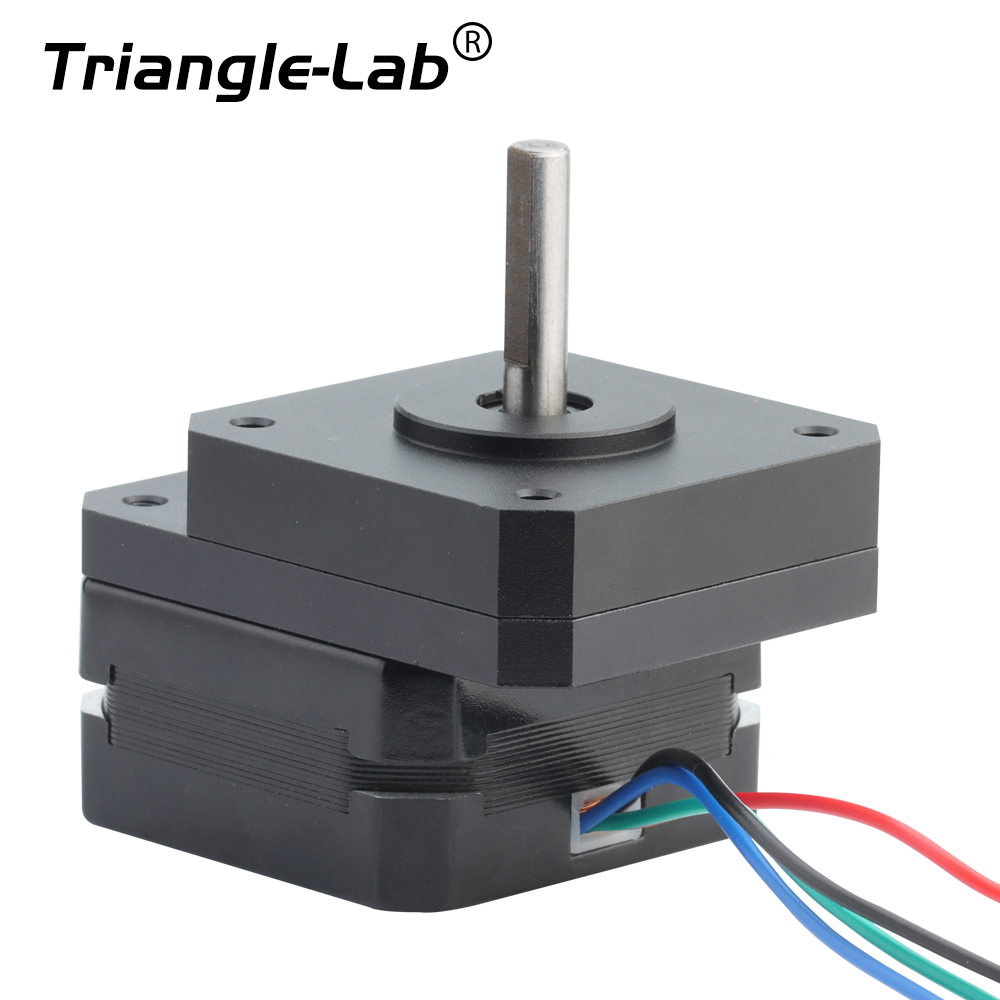

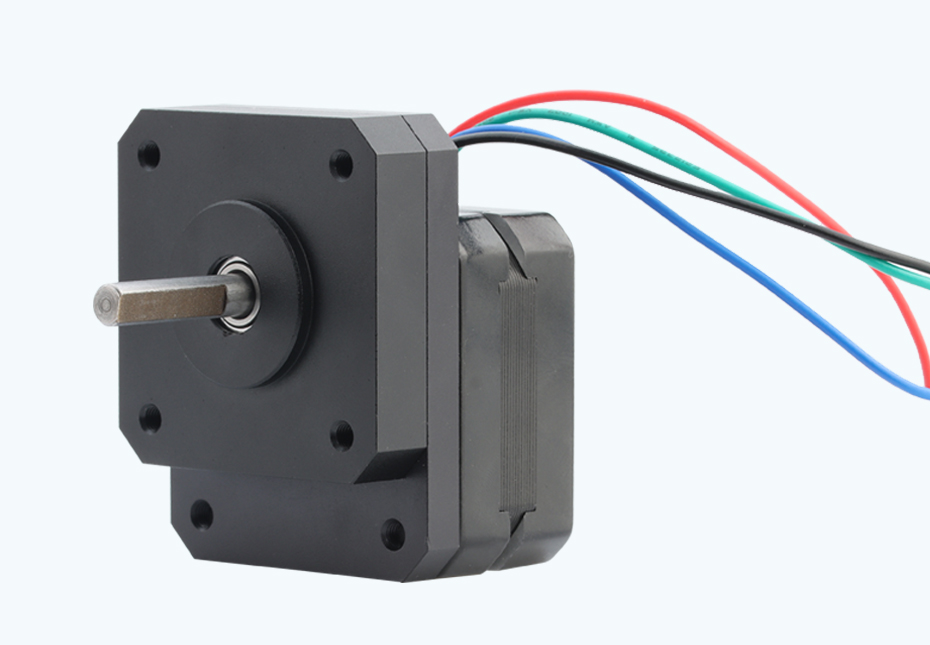

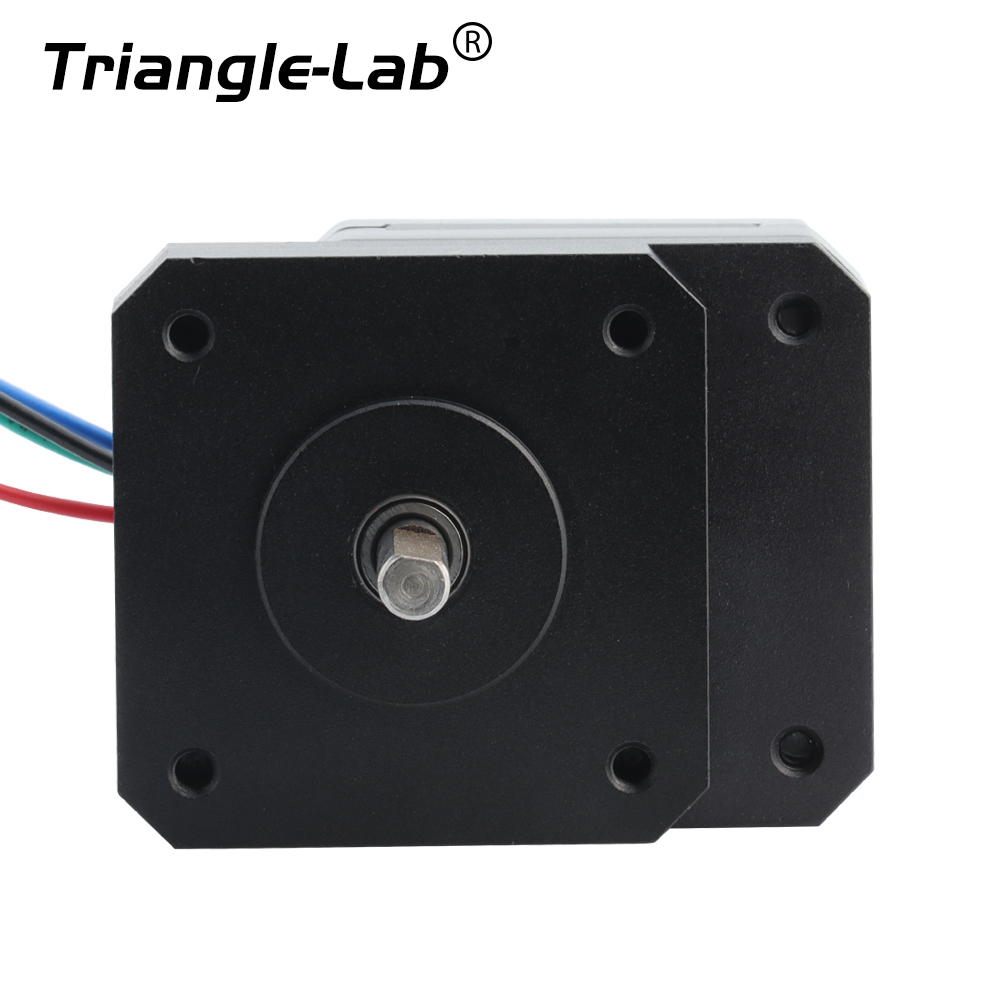

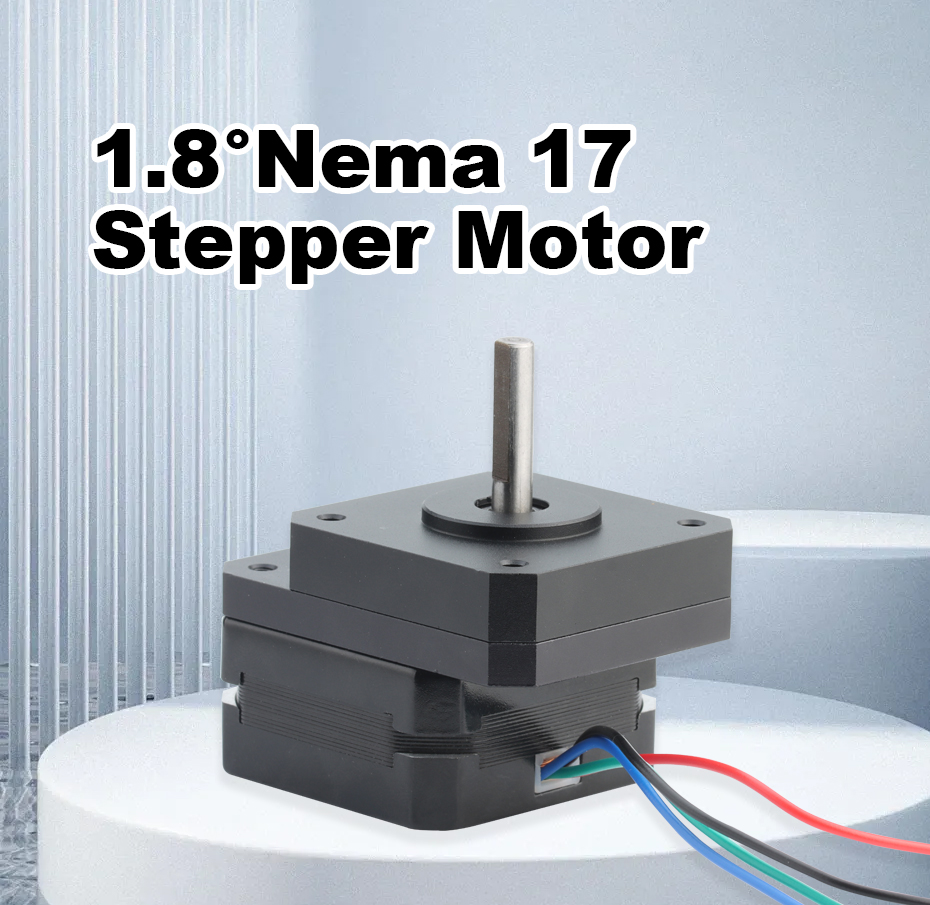

Nema 17 Geared Stepper Motor

SKU:

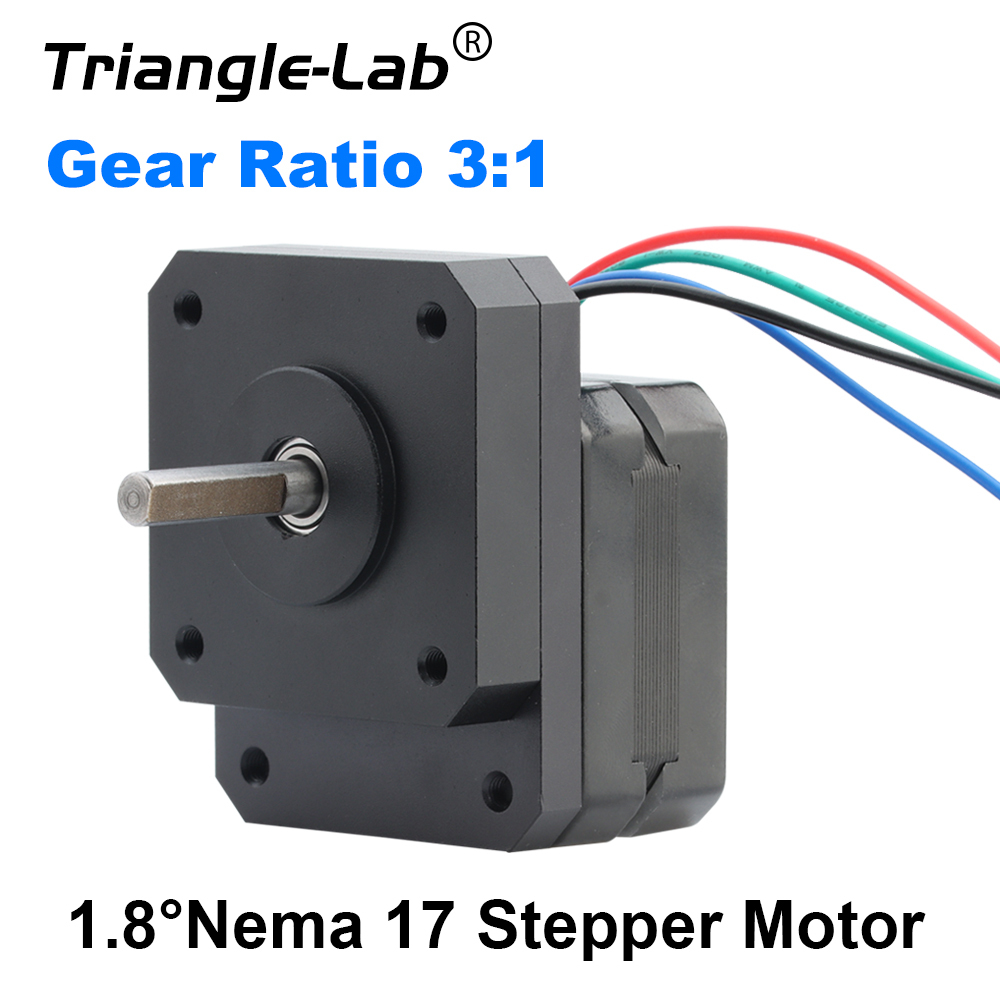

Trianglelab Nema 17 Geared Stepper Motor 1:3 Reducting Stepping Motor For Prusa I3 MK3S Extruder Change 1:3 Gear Ratio
Limited Offer!
5.0 (0 Reviews)
27 Sold
$33.90 $26.45
-22%
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Nema 17 Geared Stepper Motor
  • Nema 17 Geared Stepper Motor
  • Nema 17 Geared Stepper Motor
  • Nema 17 Geared Stepper Motor
  • Nema 17 Geared Stepper Motor
  • Nema 17 Geared Stepper Motor
  • Nema 17 Geared Stepper Motor
  • Nema 17 Geared Stepper Motor
  • Nema 17 Geared Stepper Motor
  • Nema 17 Geared Stepper Motor
  • Nema 17 Geared Stepper Motor
  • Nema 17 Geared Stepper Motor
1/1
  • Nema 17 Geared Stepper Motor
  • Nema 17 Geared Stepper Motor
  • Nema 17 Geared Stepper Motor
  • Nema 17 Geared Stepper Motor
  • Nema 17 Geared Stepper Motor
  • Nema 17 Geared Stepper Motor

ABOUT TAX

Prices for the US and EU are tax-inclusive. All prices are tax-exclusive.  For other countries/regions,(Except the EU and the US) import duties, VAT, and other charges are the recipient’s responsibility upon customs clearance.Any delays, returns, or fees resulting from failure to pay duties and taxes shall be borne by the recipient.
ABOUT TAX
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Before ordering, please note that all our products do not include tax, you need to declare your own tax!

  • If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.

  • Technical questions e-mail:support@trianglelab.net

  • Sales questions e-mail:sales@trianglelab.net

  • The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.

  • Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

Name:
Trianglelab - Nema 17 Geared Stepper Motor

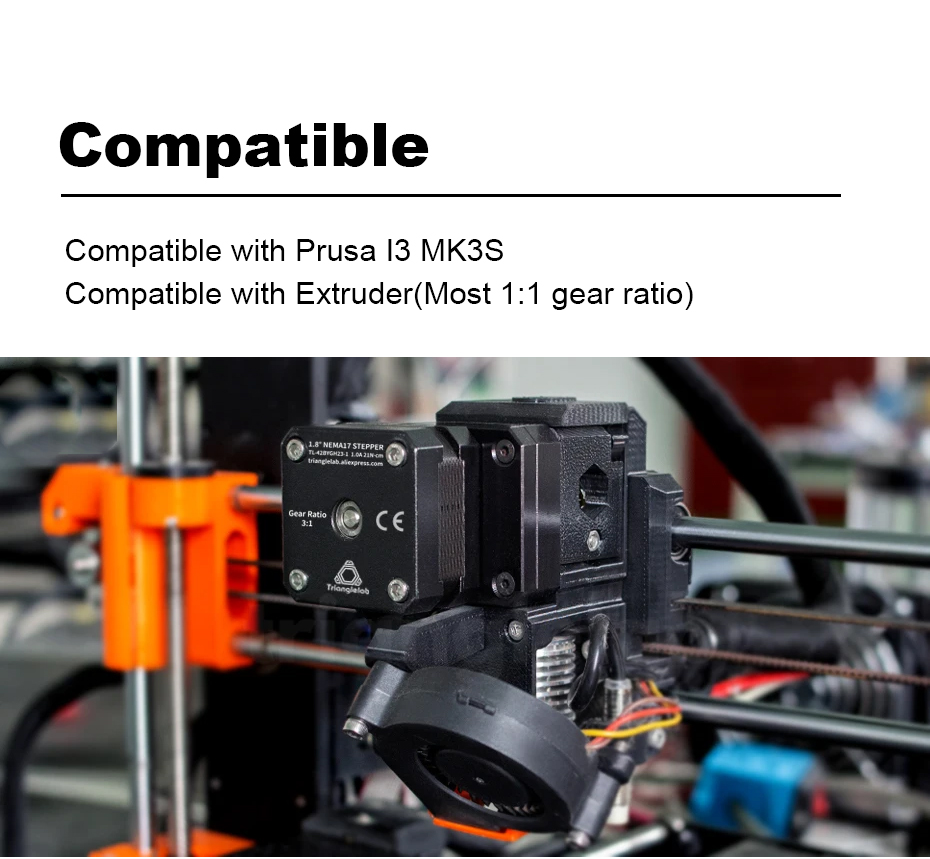

Prusa MK3S installation effect display
For Prusa MK3/S Extruder
M350 E16  ; set mircostep to 16
M92 E420 ; set e-steps value
M500

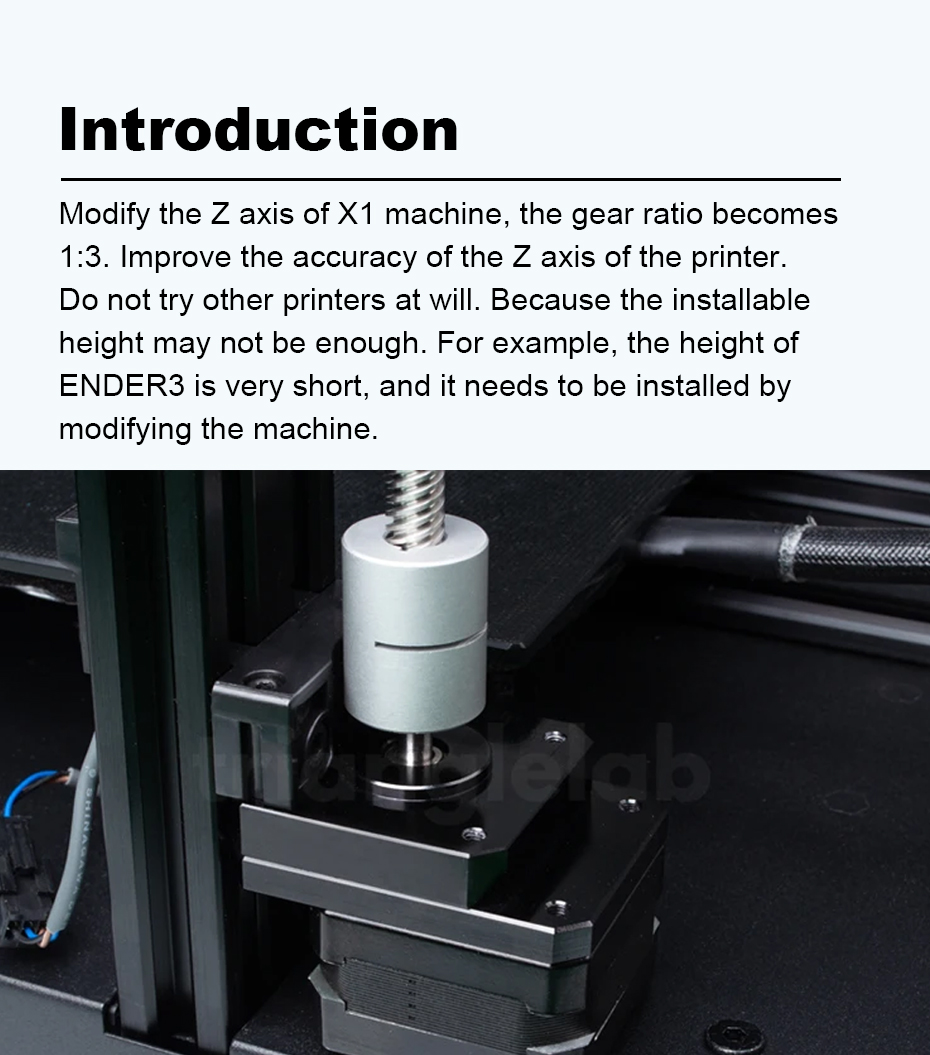

▉Introduction

Modify the Z axis of X1 machine, the gear ratio becomes 1:3. Improve the accuracy of the Z axis of the printer. Do not try other printers at will. Because the installable height may not be enough. For example, the height of ENDER3 is very short, and it needs to be installed by modifying the machine.

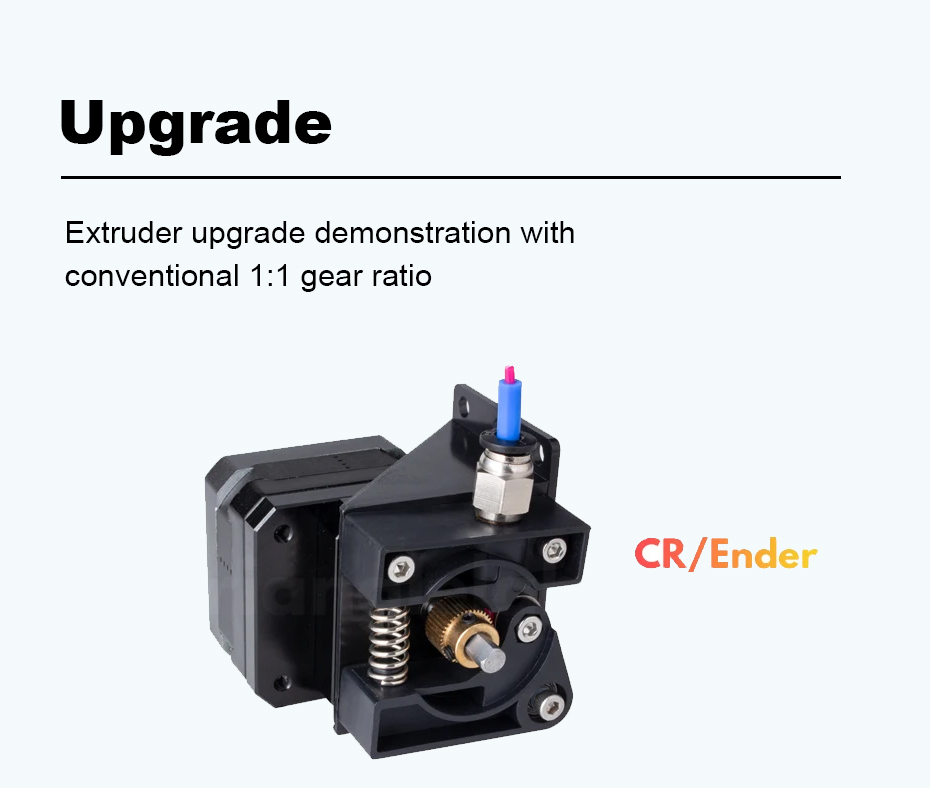

Extruder upgrade demonstration with conventional 1:1 gear ratio

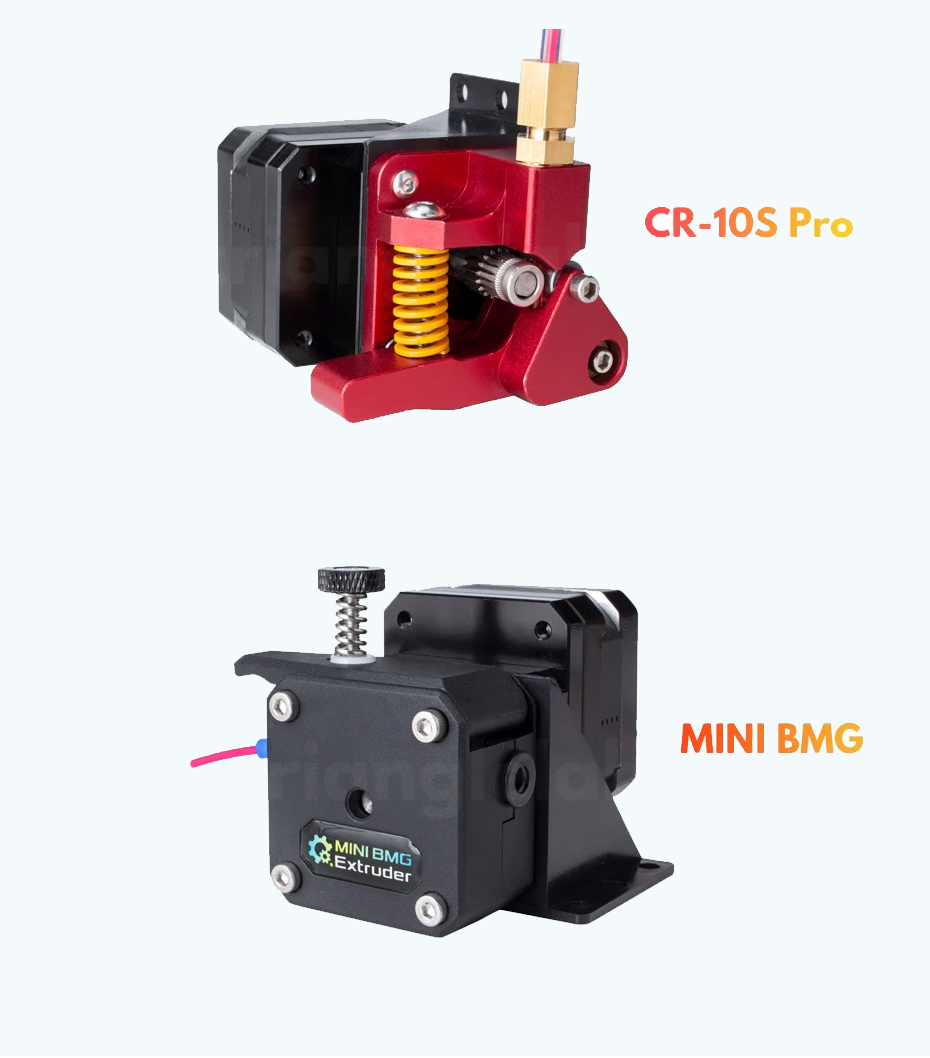

Compatible:
Compatible with Prusa I3 MK3S
Compatible withExtruder(Most 1:1 gear ratio)

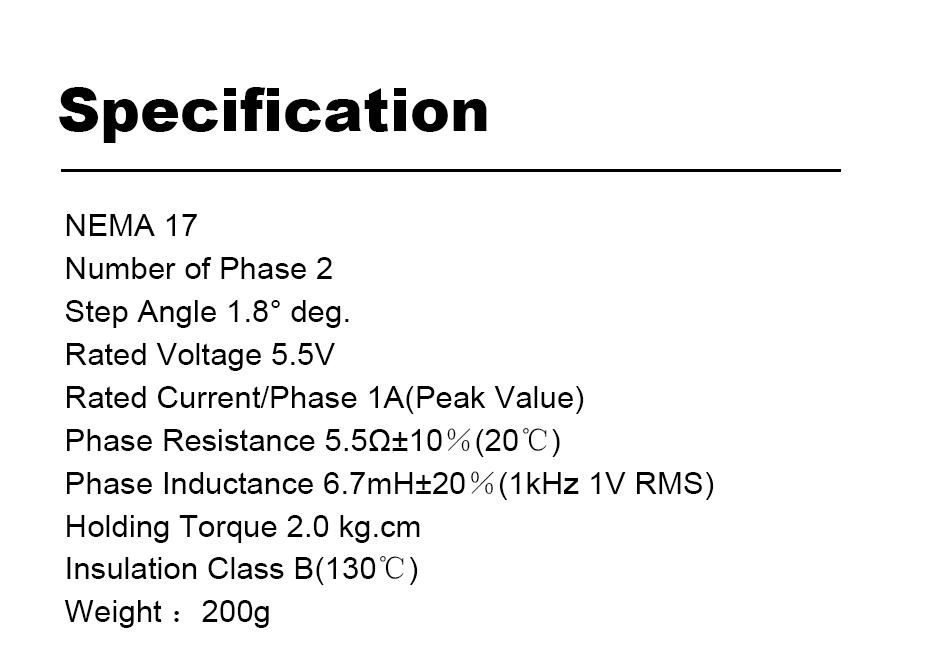

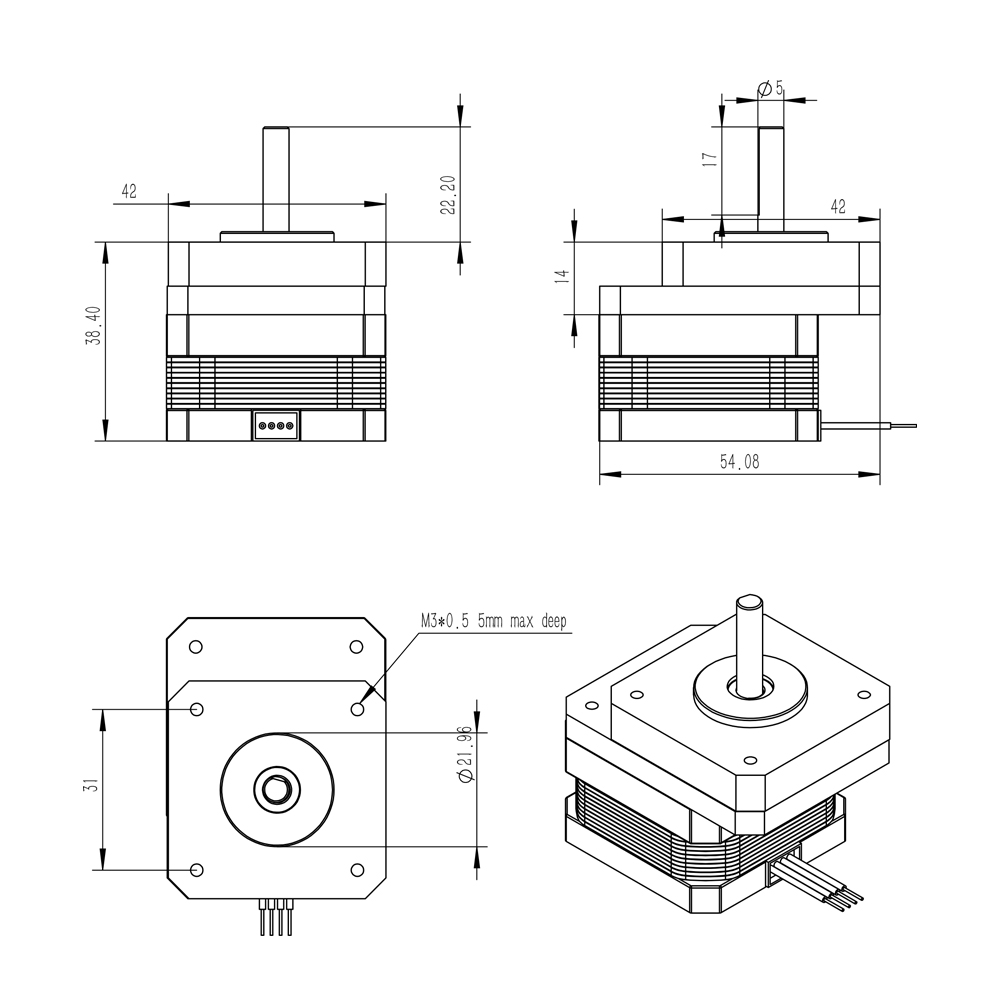

Specification

NEMA 17
Number of Phase 2
Step Angle 1.8° deg.
Rated Voltage 5.5V
Rated Current/Phase 1A(Peak Value)
Phase Resistance 5.5Ω±10%(20℃)
Phase Inductance 6.7mH±20%(1kHz 1V RMS)
Holding Torque 2.0 kg.cm
Insulation Class B(130℃)
Weight :200g

https://forum.prusaprinters.org/forum/original-prusa-i3-mk3s-mk3-user-mods-octoprint-enclosures-nozzles-.../bolt-on-gearbox-extruder-experiment/
