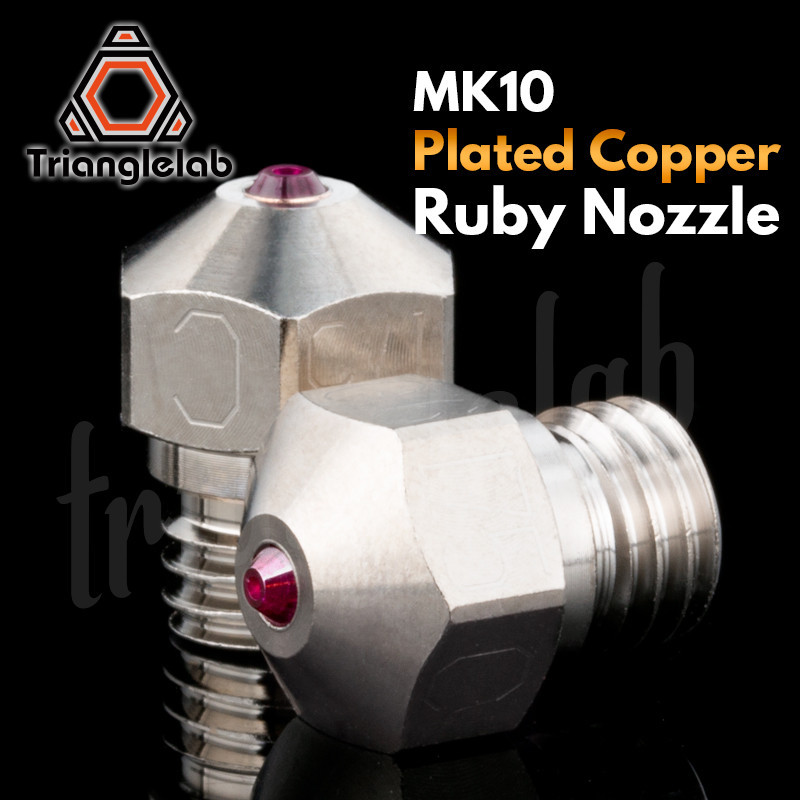

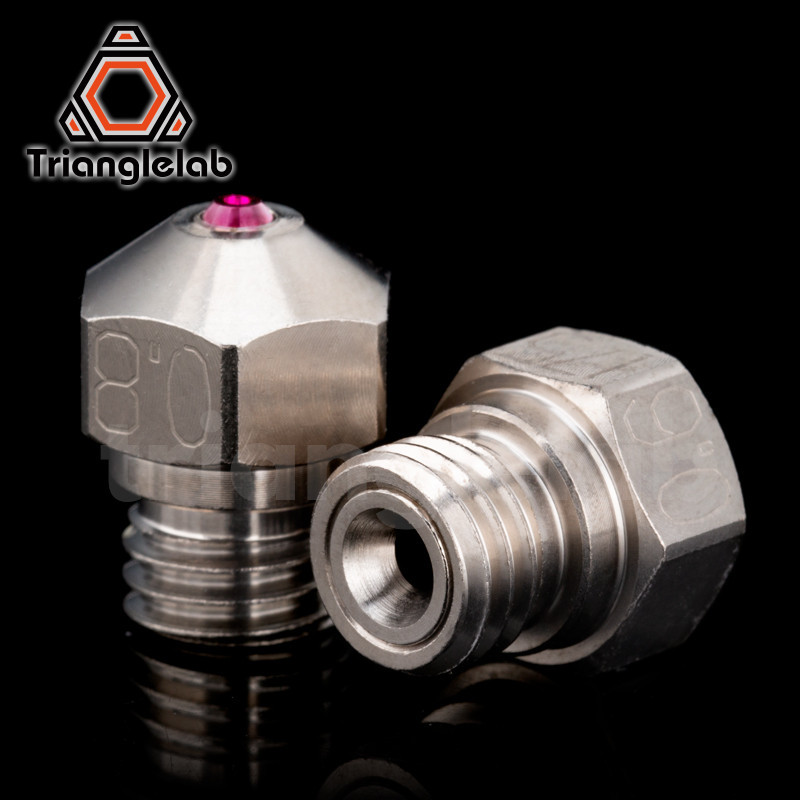

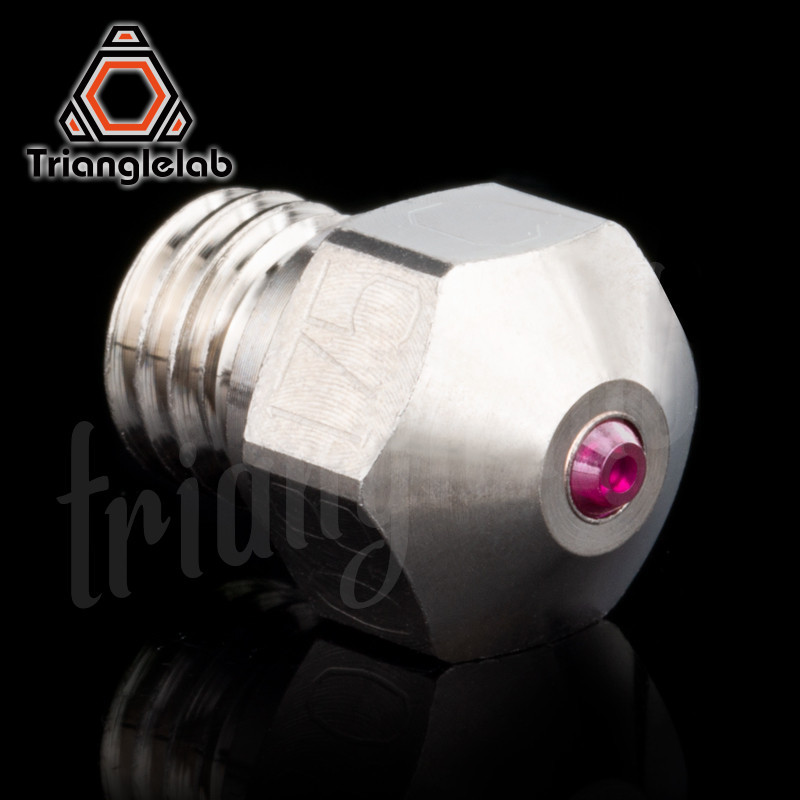

MK10 Plated Copper Ruby Nozzle

Trianglelab MK10 Plated Copper Ruby Nozzle Thread M7 for Micro Swiss MK10 HOTEND MK10 HEATER BLOCK PETG ABS PEI PEEK NYLON
0.0 (0 Reviews)
$73.90 $70.20
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • size:
    0.4 MK10 Plated Ruby
    0.6 MK10 Plated Ruby
    0.8 MK10 Plated Ruby
Quantity
-
+
  • Description
  • Before ordering, please note that all our products do not include tax, you need to declare your own tax!
  • If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.
  • Technical questions e-mail:[email protected]
  • Sales questions e-mail:[email protected]
  • The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.

  • Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

To purchase a tax-included products, please click the link below:
https://trianglelab.aliexpress.com/store/1654223

The MK10 Plated Copper Ruby nozzle is perfectly compatible with various materials such as PEI, PEEK, nylon, PC, etc. The nozzle has strong anti-corrosion and anti-wear ability, and can still maintain excellent performance during long-term use. Since the nozzles are valuable, we only accept the following logistics methods.
1.AliExpress Standard Shipping(Pleae do not choose Epacket)
2.DHL/UPS/Fedex/TNT (Please contact us)
*Plated Copper Ruby Nozzle(All-metal) has more thermal conductivity than Brass Ruby Nozzle, which melts special high temperature materials faster. It is a perfect match for nylon, PEI and PEEK materials. You can even easily print these high temperature materials at ultra high temperatures of 500 °C.
If you only want to buy brass ruby nozzles,please click here to buy.

1.The corresponding model of the ruby nozzle isMK10(All-metal). The body of the nozzle isa kind of alloy copper, the gemstone is artificial gemstone, we still maintain the world's top workmanship, each ruby nozzle will go through a lot of processes in the manufacturing process, I hope that our rigorous attitude can be recognized by customers.
2.A torque wrench is required during the installation of the nozzle. The nozzle is subjected to a maximum torque of 2.8 N.m. Exceeding this torque will damage the brass inlay. If you don't have a torque wrench. Then it doesn't matter. Don't use too much force during the installation process, please try to control your strength.
*Durable, non-stick, high temperature performance nozzles. This copper alloy is very temperature resilient, and will not start to soften or anneal until way beyond 500°C, making it perfect for the high-temperature 3D printing that other nozzles can't handle. These nozzles are fully integrated into the Swiss MK10 hotend and are compatible with Micro Swiss and WANHAO.
Product details:
These nozzles are engineered for ultimate high temperature performance. Made from a special high temperature copper-alloy with a softening point of well above 500°C, and with much-increased thermal conductivity these copper nozzles are perfect for high temperature applications, while working perfectly with everyday filaments like PLA, ABS and spoolWorks EDGE.
In addition to high temperature performance these nozzles have an advanced nickel based plating, considerably reducing the adhesion of plastic to the nozzle. This is great for everyday filaments keeping things clean and shiny, but is particularly important at temperatures above 300°C where a silicone sock can't be used.
Copper has more than 3x the thermal conductivity of brass, and the copper alloy we use has been hardened and treated to reduce the oxidation that occurs in copper at high temperatures. The higher thermal conductivity will also slightly increase your heat-up times, and can provide tighter temperature control.
This copper-alloy is very temperature resilient, and will not start to soften or anneal until way beyond 500°C, making it perfect for the high-temperature printing that other nozzles can't handle.
*MK10 pated Copper Ruby Nozzle only compatible with1.75MMwire diameter materials.

All features of the MK10 nozzle are similar to those of theMicro Swiss MK10. The MK10 model is a perfect replacement for theMicro Swiss MK10nozzle. Its thread is M7. Can supportMicro Swiss MK10BLOCK. And support allMicro Swiss MK10series products. The nozzle has a higher face value. And more advanced manufacturing processes. I hope my customers can like it.

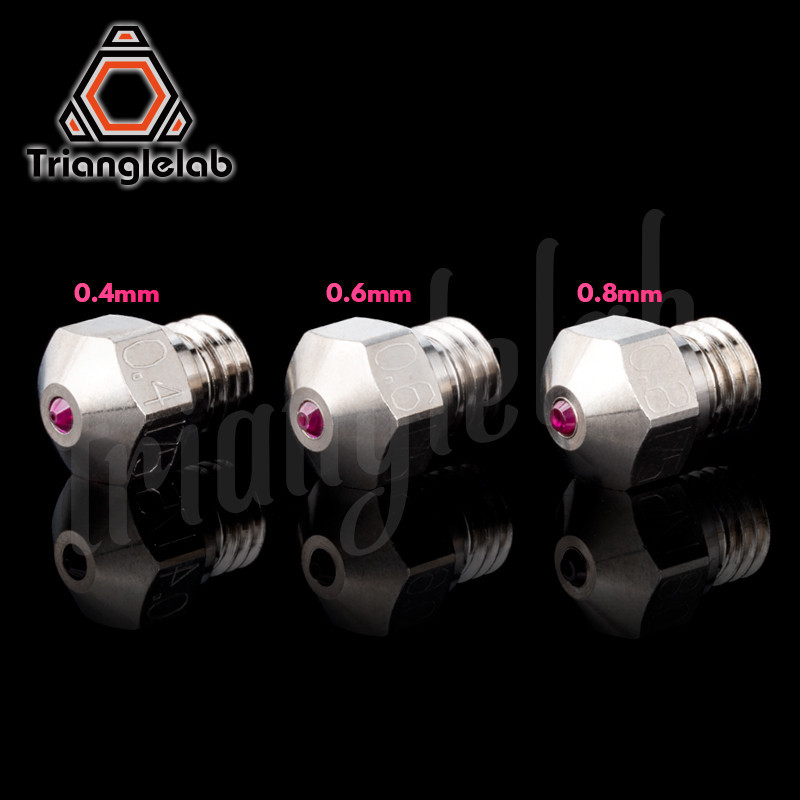

▉Size:
0.4mm/1.75mm
0.6mm/1.75mm
0.8mm/1.75mm
▉Compatible:
FlashForge Creator Pro
FlashForge Creator X
FlashForge Dreamer
FlashForge Finder
Qidi Tech X-One
Qidi Tech I
Dremel Idea Builder
Dremel 3D40 Idea Builder
PowerSpec 3D Pro
PowerSpec 3D X
Wanhao Duplicator 4S
Wanhao Duplicator 4X
Wanhao i3
Monoprice Maker Select 3D Printer v2
Monoprice Maker Select Plus
Cocoon Create 3D Printer
▉What's in the box:

Trianglelab - MK10Plated Copper Ruby Nozzle  X  1



♦Dimension



In order to protect our technology, the drawings are not exactly the same as the actual nozzles. We have hidden some details. As the nozzles are constantly upgraded, the dimensions may not be exactly the same as the drawings, but this will not affect your device match. We will only make this product more perfect. thank you for your support.
PEEK(USE MK8 RUBY NOZZLE)

PEI 1010(USE Hardened steel V6 NOZZLE)
Printed display of PEI And PEEK materials.
