▉About logistics description:
Because the package contains strong magnets, ordinary logistics cannot be transported. So no matter which kind of logistics you choose. We will modify the logistics you choose. The package will be transported by air transportation of special dangerous goods, or other logistics. We will ensure that your package arrives as soon as possible. Thanks for your trust.
▉Name:

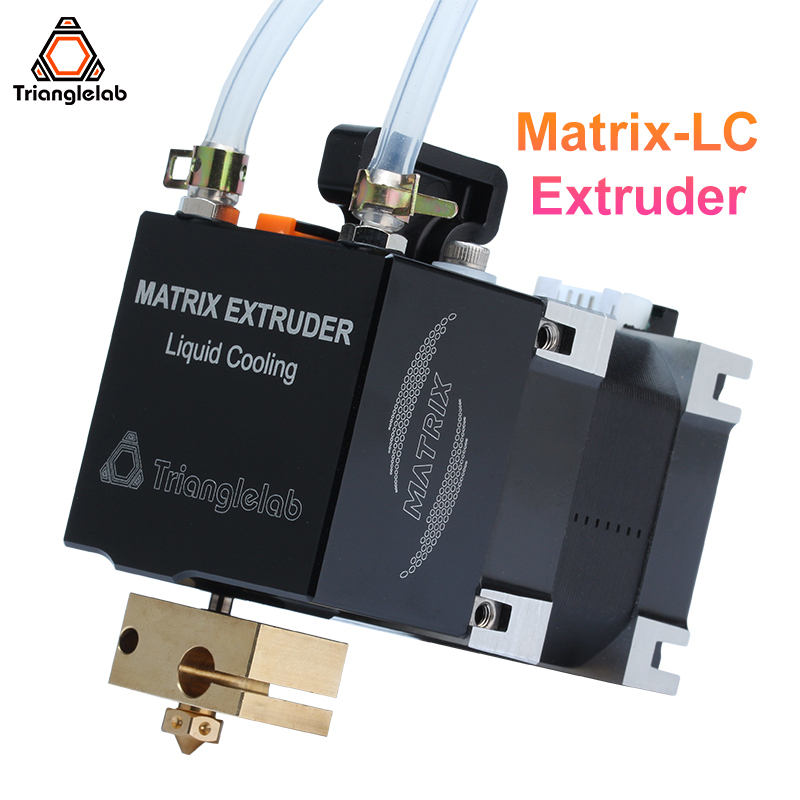

Triangle Lab - Matrix-LC Extruder
▉Installation guide:
https://drive.google.com/drive/folders/1BaA0yB884PwnFRJbrZf9LXR3cdbqjpFT?usp=sharing
▉Highlight:
·120℃chamberworking temperature Guaranteed!
·Hotside upgradable to 450°C
·High temperature resistant motor wires
·Dual drive with adjustable tension idler
·Very short filament path
·Compact extrusion system
▉Coolant selection:
·Antifreeze/Coolant for cars (cheap and easy to get)
·Coolant for PC(overpriced not recommend)
▉Compatible:
Compatible with Prusa
Compatible with Ender 3 /3 PRO/ 5
Compatible with CR-10/CR-10S
Other models can find brackets here. Search for the term HE?ER?(Sorry I have to cover this term. You should know how to search.)
https://www.thingiverse.com/
♥Matrix Extruder-3D printing time-lapse:
https://youtu.be/GREhHw2ynsc
◆
Summary
Drive type: Dual drive with adjustable tension idler
Max printing temperature: 285°C(upgradable to 450°C)
Mass: 357g(including hotside)
Nominal steps per mm(16x): 335.4 steps per mm(further calibration required)
Motor current: 1.23
Filament diameter and tolerances: 1.75±0.05mm
Max pushing force: 8.6kg Generic PLA 10mm/min @24V Driver
◆
XYZ Dimensions
68x44x78.1mm
◆Matrix-LCHeatBreak M4Thread(please note. This is different from the MATRIX air-cooled version)
*If you buy M4 Thread HEATBREAK, please click here.
◆Hotside Compatibility
V6 Volcano Super Volcano
Electrical
Heater power 40W 12/24V optional
Thermistor Semitec 104NT-4-R025H42G
Motor
▉What's in the box:
Trianglelab -Matrix-LC ExtruderX 1

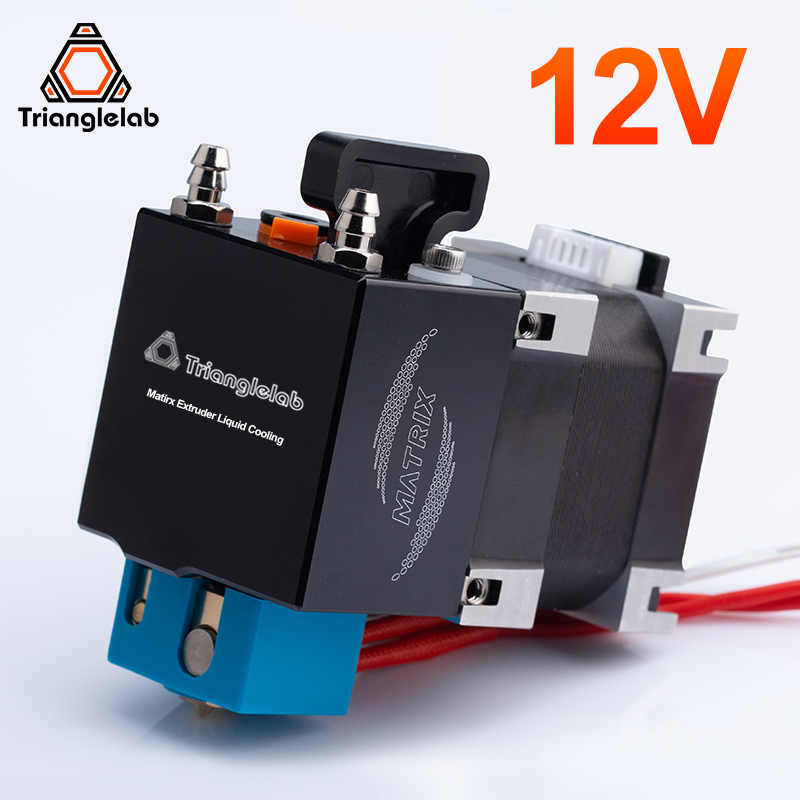

*Friendly reminder. Choose the right voltage*
MATRIX-LC EXTRUDER PACKAGING LIST
Matrix-LC Extruder (pre-assembled) x1
M3 square nuts x6
M3x12 screw x3
M3x10 screw x8
M3x8 screw x8
M3x6 screw x8
M3 spring washer x8
Hi-temp Extruder motor cables 90cm with connector x1
Thermistor ATC Semitec 104NT-4-R025H42G x1
40W Heater cartridge (12/24V optional) x1
Silicone Rubber Tube OD5 ID3MM L=200CM x1
Spring Hose Clip x4
Silicone Socks for heater blcok x1
Heater block x1
0.4mm Nozzle Brass x1
Allen key set (1.5 2.0 2.5) x1
Wrench-8mm x1
Zip-ties x3
Filament guide tube 10cm x1
Thermal paste x1
Thermistor cartridge shell x1

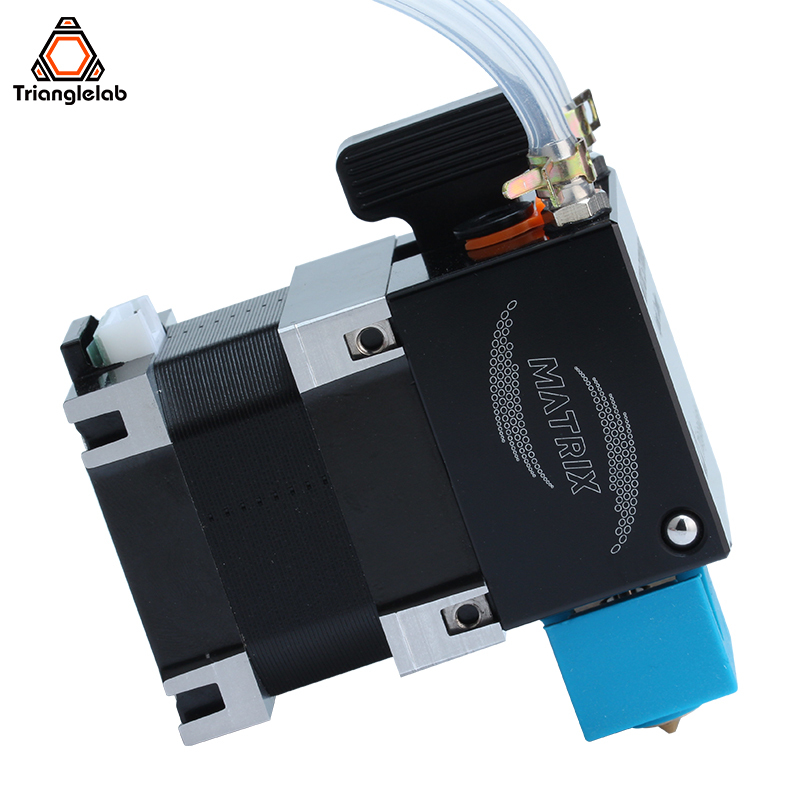

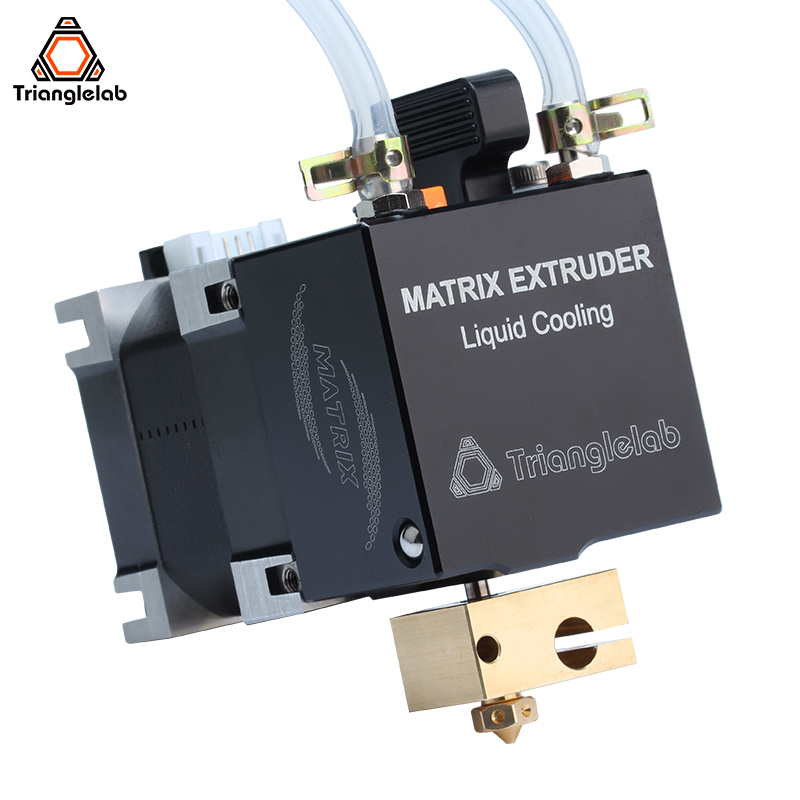

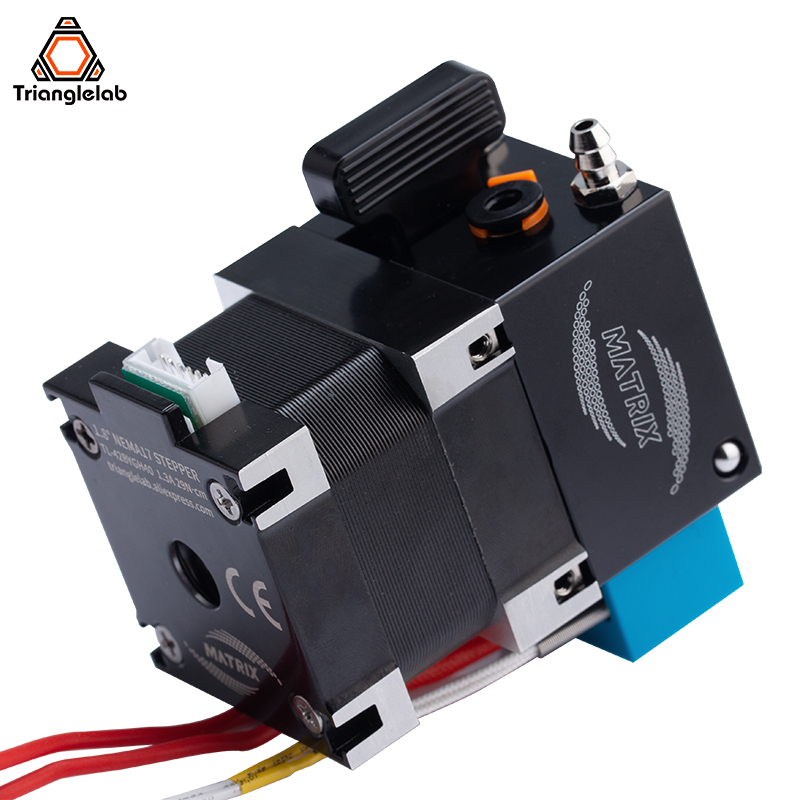

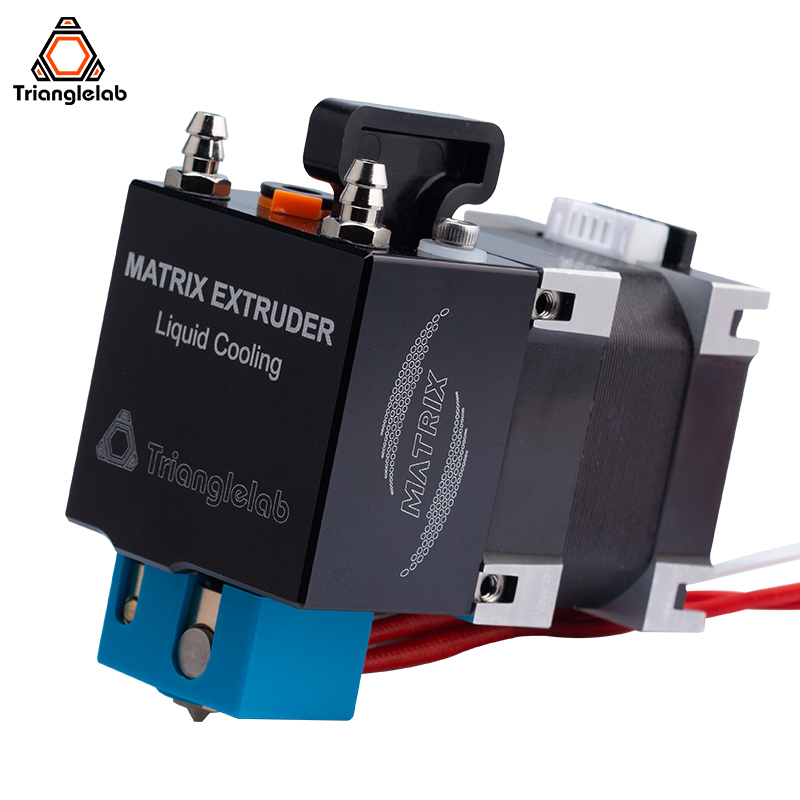

▉Photo display:






▉Test machine printing effect display:
*The machine models participating in the test are:
A:Ender 3
B: CR-10S
C:X1
