Matrix Extruder

Note
All products purchased on this website are not include tax, including and not limited to: Consumption tax, Value added tax, customs duties, etc,
Before placing an order, please check your country's policies and regulations on online shopping taxes.
The amount you pay does not include tax and you will need to pay it yourself.
To purchase a tax-included products, please click the link below：
https://trianglelab.aliexpress.com/store/1654223
▉About logistics description:
Because the package contains strong magnets, ordinary logistics cannot be transported. So no matter which kind of logistics you choose. We will modify the logistics you choose. The package will be transported by air transportation of special dangerous goods, or other logistics. We will ensure that your package arrives as soon as possible. Thanks for your trust.
▉Name:
Triangle Lab - Matrix Extruder
▉Installation guide:
https://drive.google.com/drive/folders/1K_Jj4JfczDlKiNnwk-SYakOIQqm4zllD?usp=sharing
▉Highlight:
·dual drive with adjustable tension idler
·very short filament path
·thin-walled bi-metal heat breaker
·compact extrusion system
▉Compatible:
Compatible with Prusa
Compatible with Ender 3 /3 PRO/ 5
Compatible with CR-10/CR-10S
Other models can find brackets here. Search for the term HE?ER?(Sorry I have to cover this term. You should know how to search.)
https://www.thingiverse.com/
Netizens submit:
1: for Lulzbot Taz printer
https://www.thingiverse.com/thing:4686413
♥Matrix Extruder-3D printing time-lapse:
https://youtu.be/GREhHw2ynsc
◆Summary
Drive type: Dual drive with adjustable tension idler
Max printing temperature: 285°C(upgradable to 450°C)
Mass: 357g(including hotside)
Nominal steps per mm(16x): 335.4 steps per mm(further calibration required)
Motor current: 1.2A
Filament diameter and tolerances: 1.75±0.05mm
Max pushing force: 8.6kg Generic PLA 10mm/min @24V Driver
◆XYZ Dimensions
66.7x44x78.7mm

◆Hotside Compatibility

V6       Volcano      Super Volcano

Electrical
Heater power 40W                         12/24V optional
Fan 40x40x10mm DC Ball Bearing    12/24V optional
Thermistor Semitec 104NT-4-R025H42G

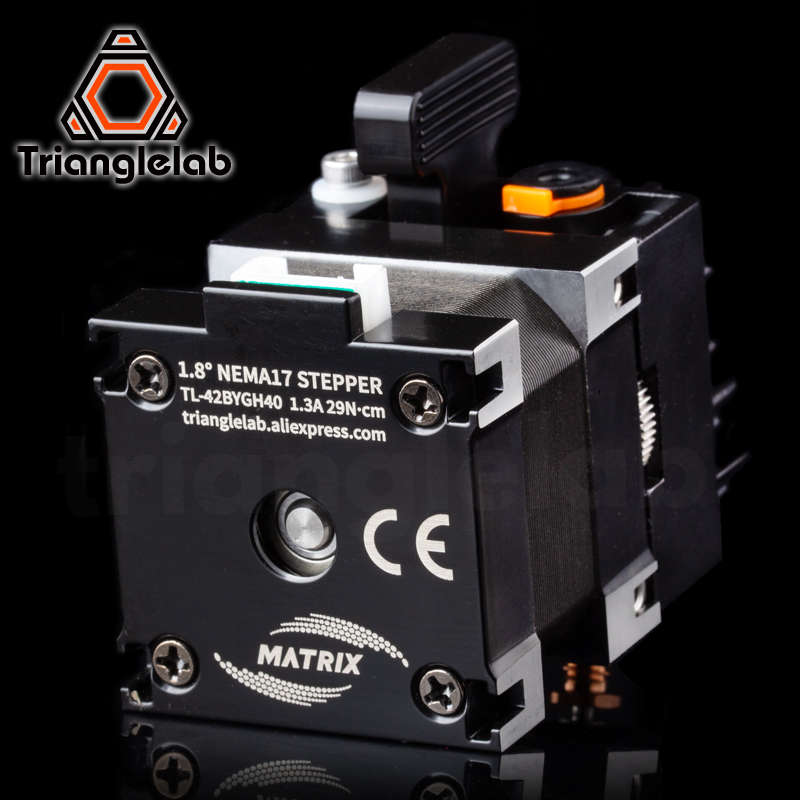

Motor
Phase no                   2phases
Resistance                 2oum
Holding torque           29 N cm
Current                     1.2A
Motor cable length     90CM


▉What's in the box:
Trianglelab -Matrix ExtruderX 1
*Friendly reminder. Choose the right voltage*

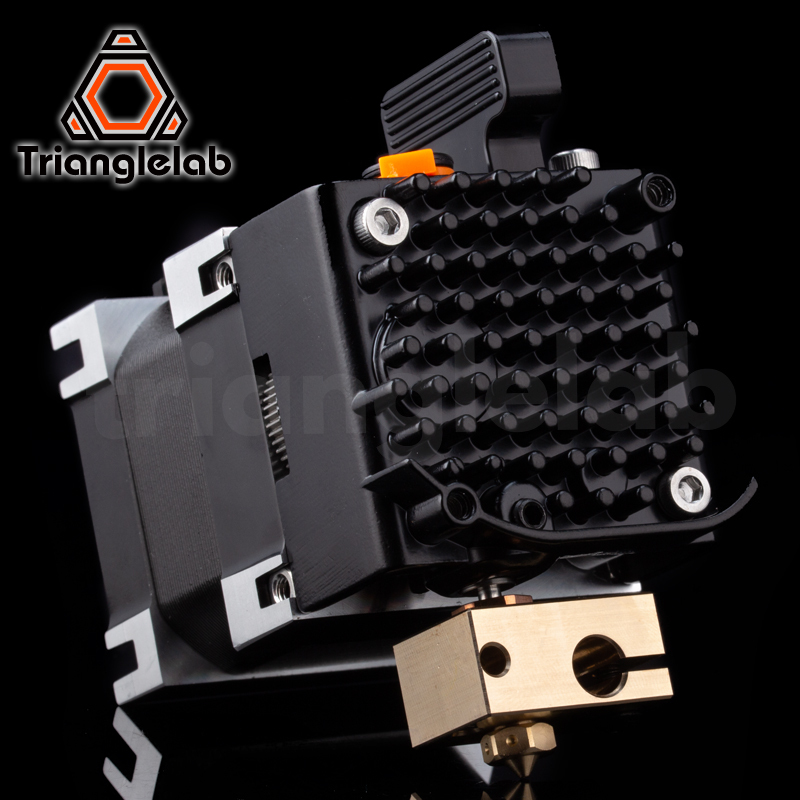

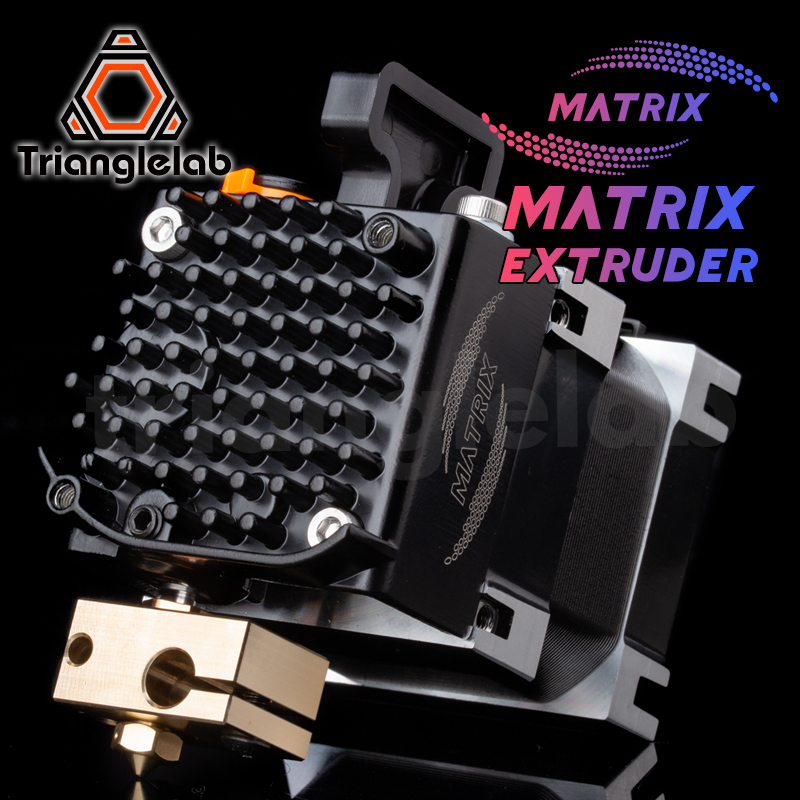

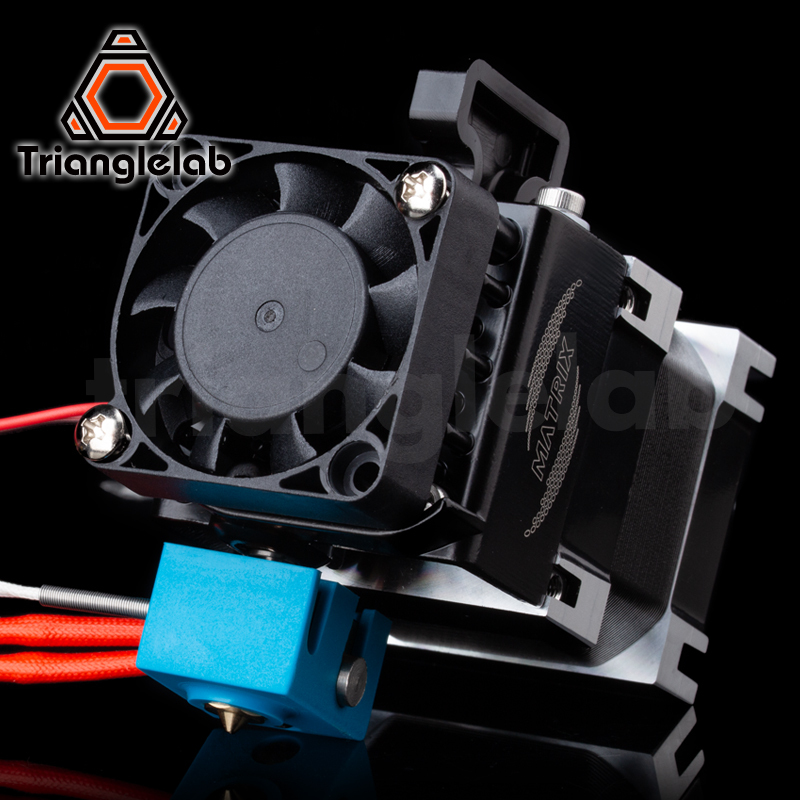

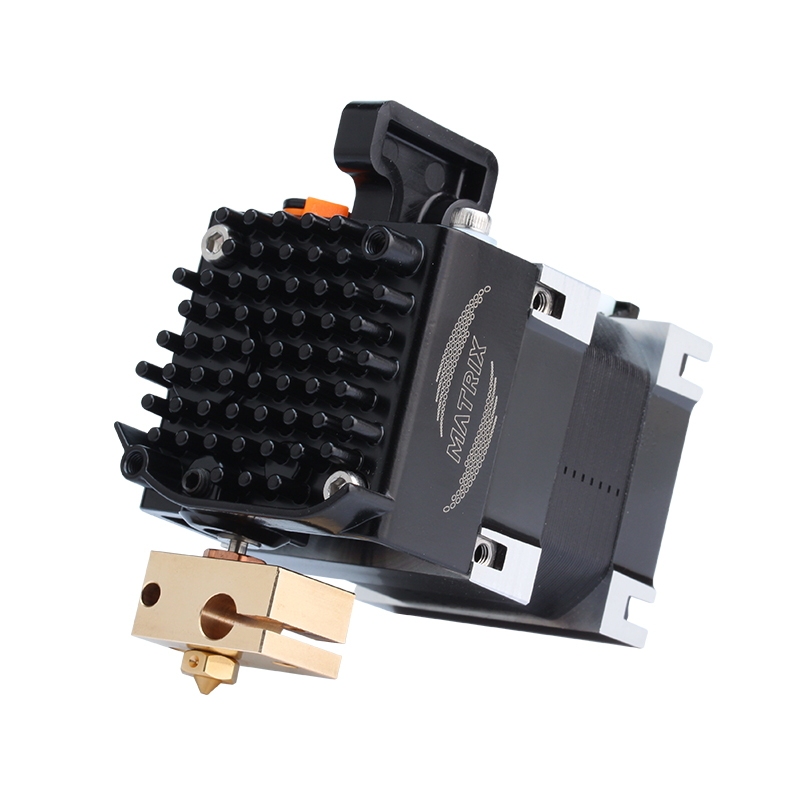

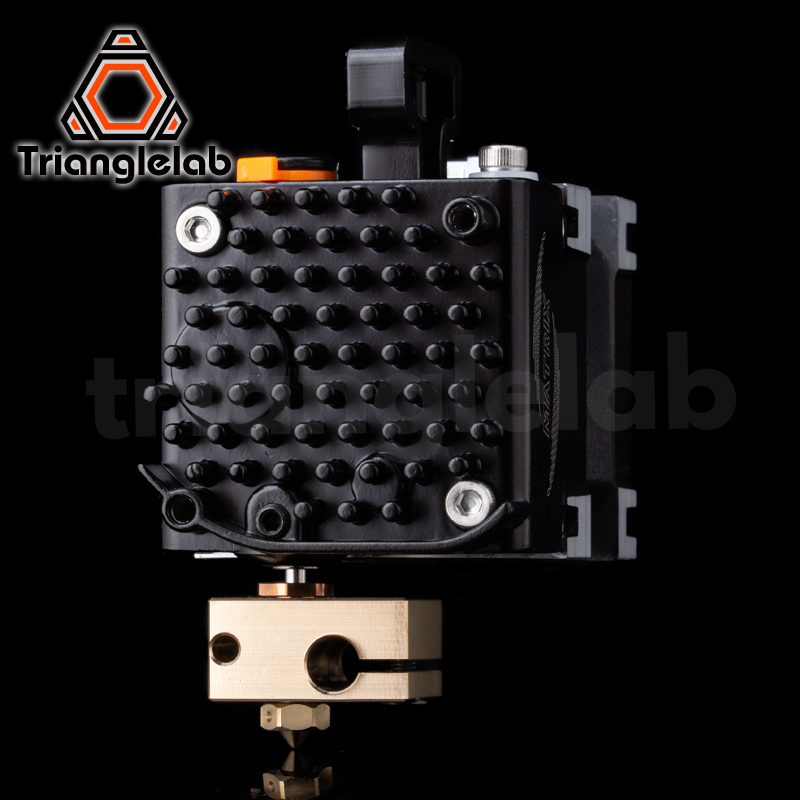

▉Photo display:




▉Test machine printing effect display:

*The machine models participating in the test are:
A:Ender 3
B: CR-10S
C:X1
