Name:

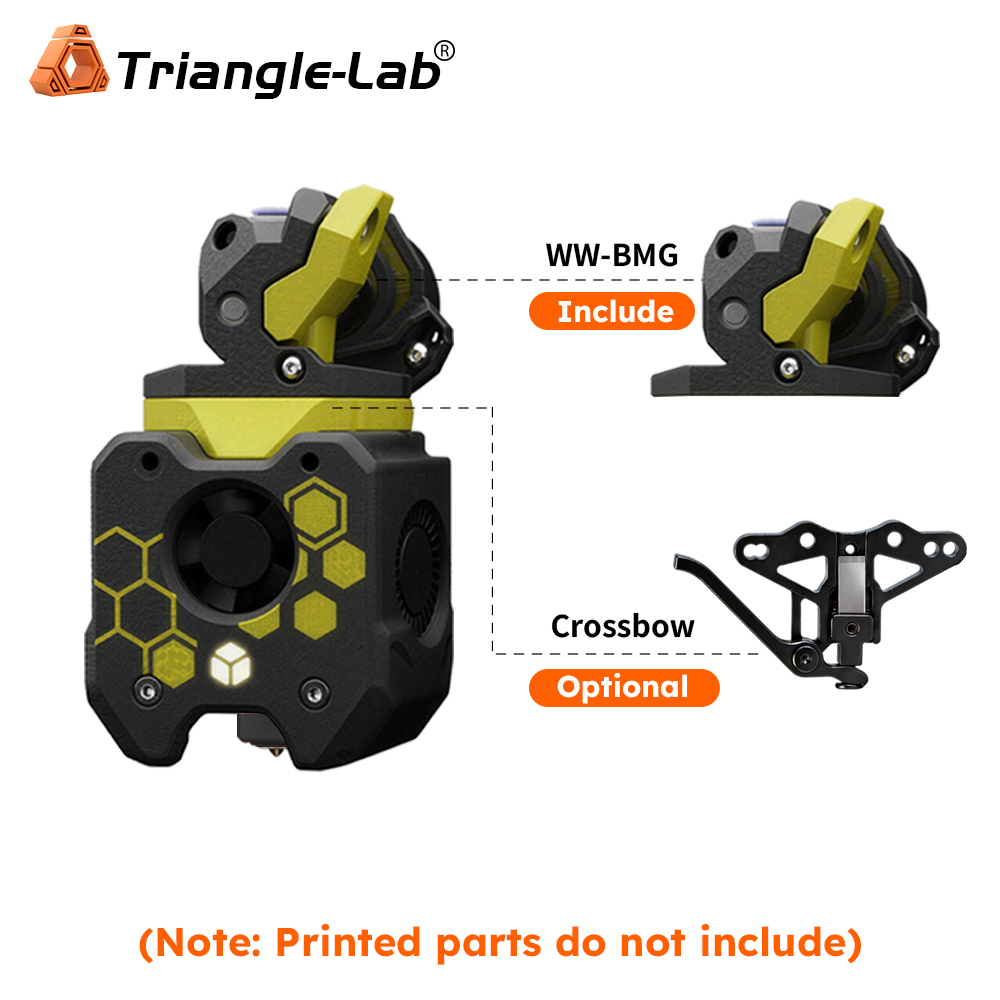

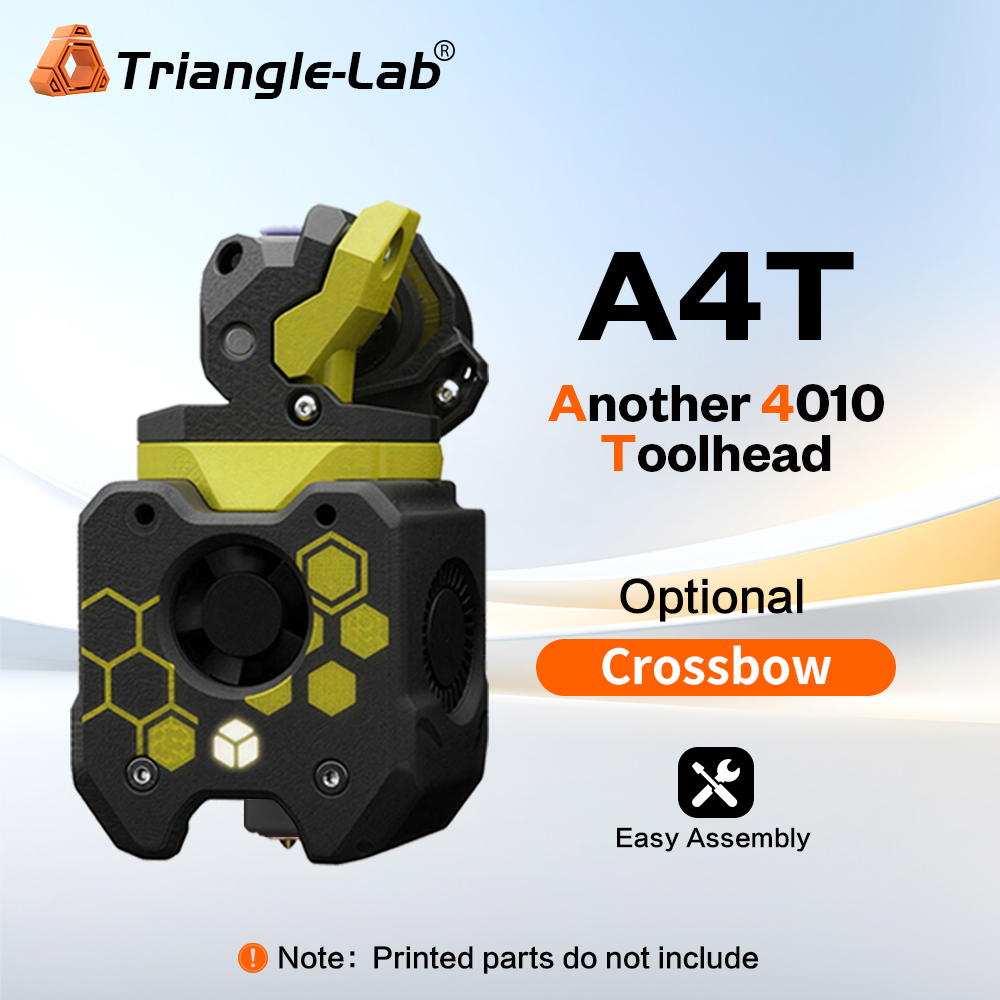

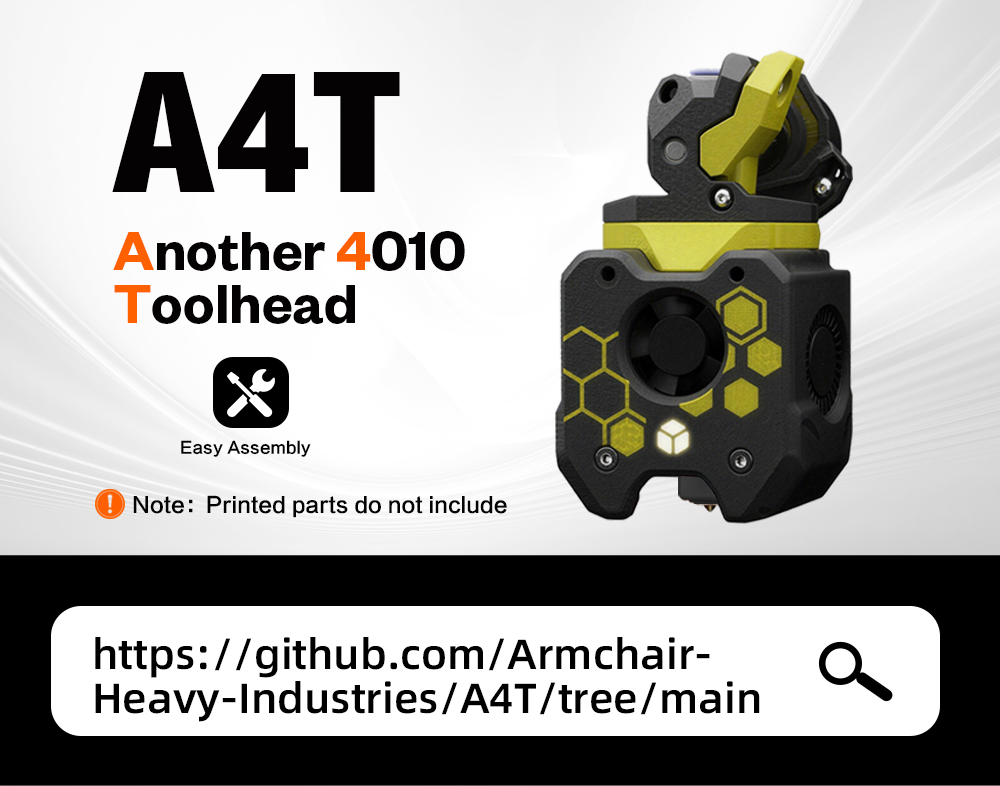

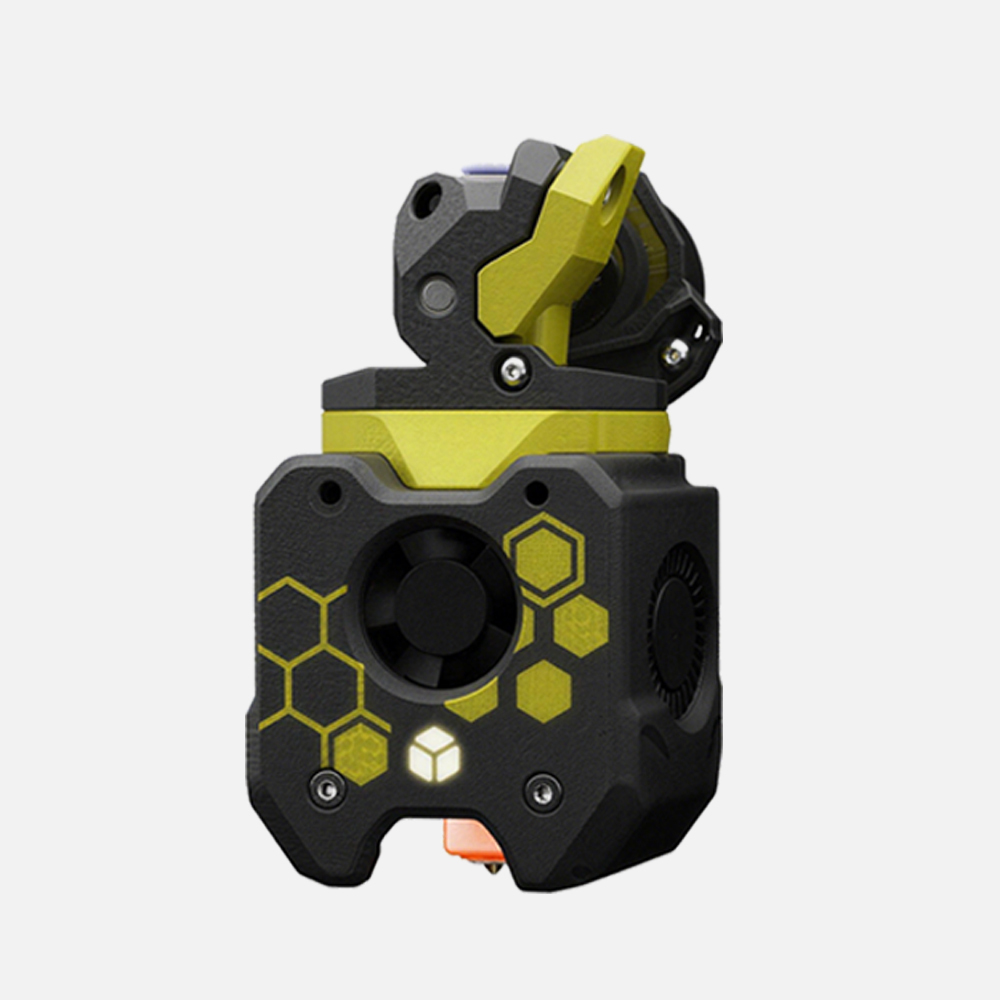

A4T Another 4010 Toolhead
More information:
https://github.com/Armchair-Heavy-Industries/A4T/tree/main

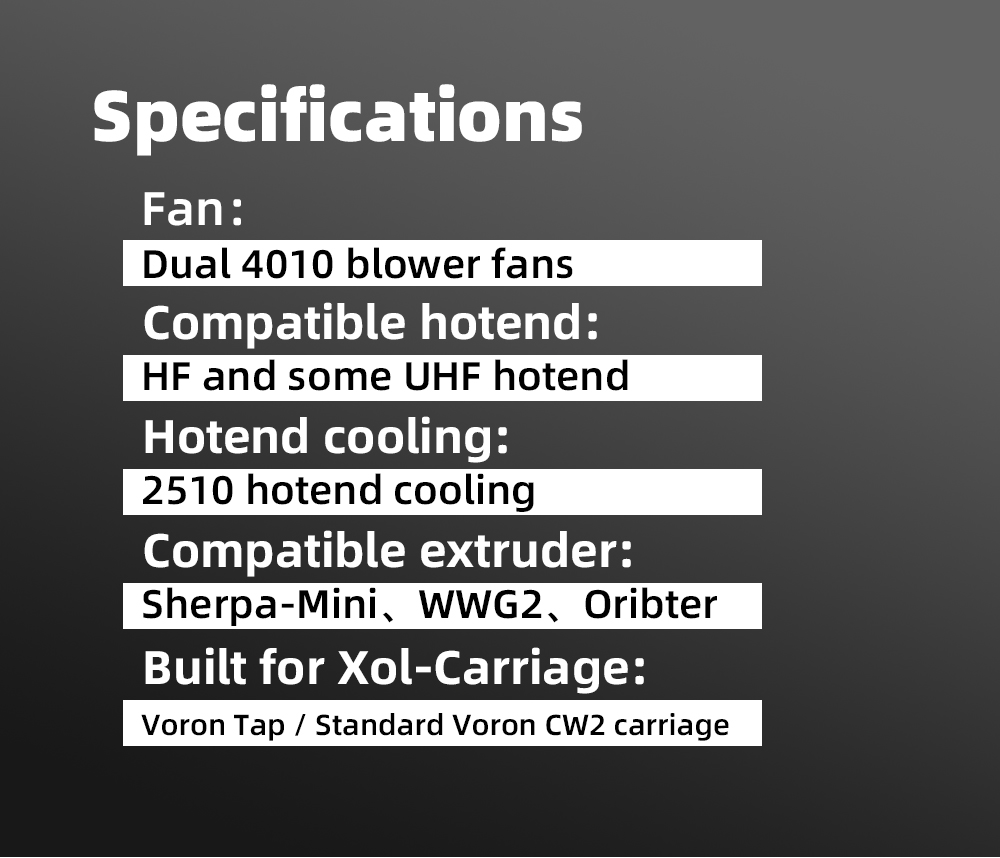

Specifications:
Fan:Dual 4010 blower fans
Compatible hotend:HF and some UHF hotend
Hotend cooling:2510 hotend cooling
Compatible extruder:Sherpa-Mini, WwG2, Oribter
Built for Xol-Carriage: Voron Tap / Standard Voron CW2 carriage

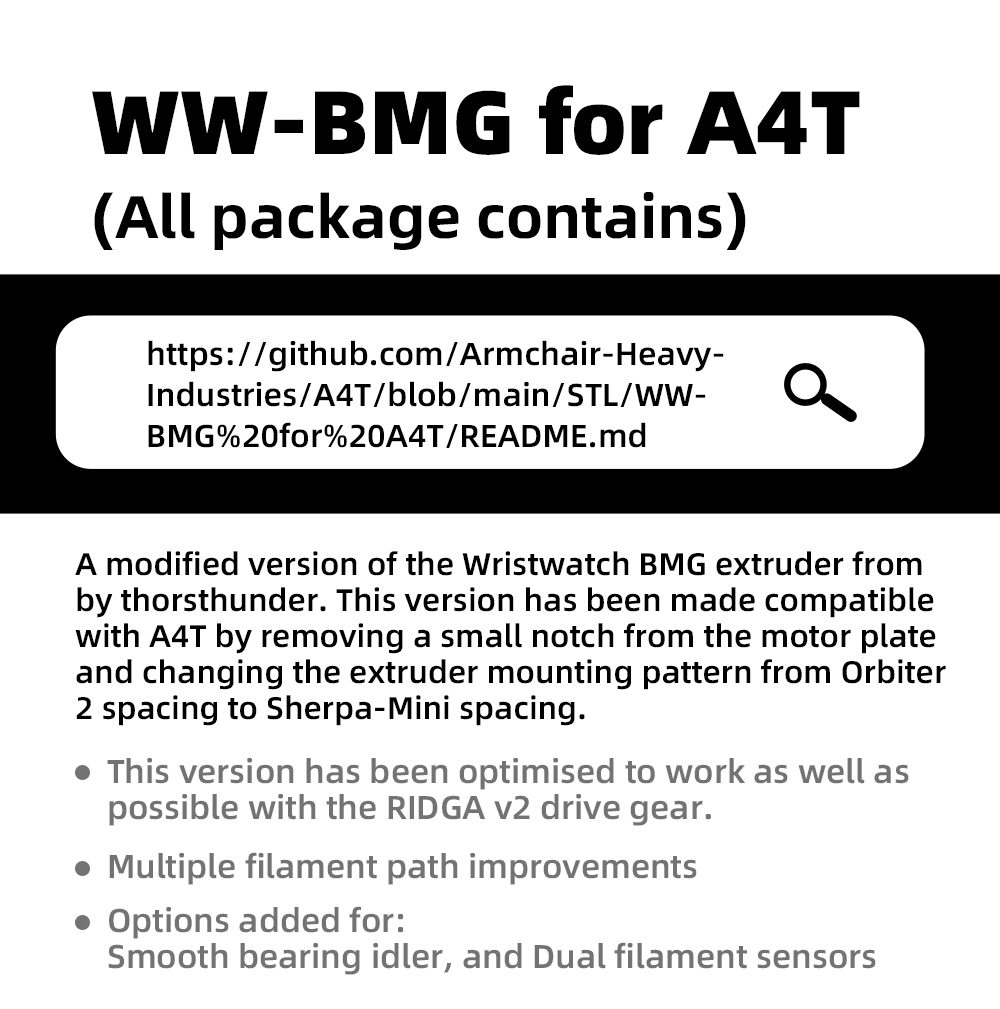

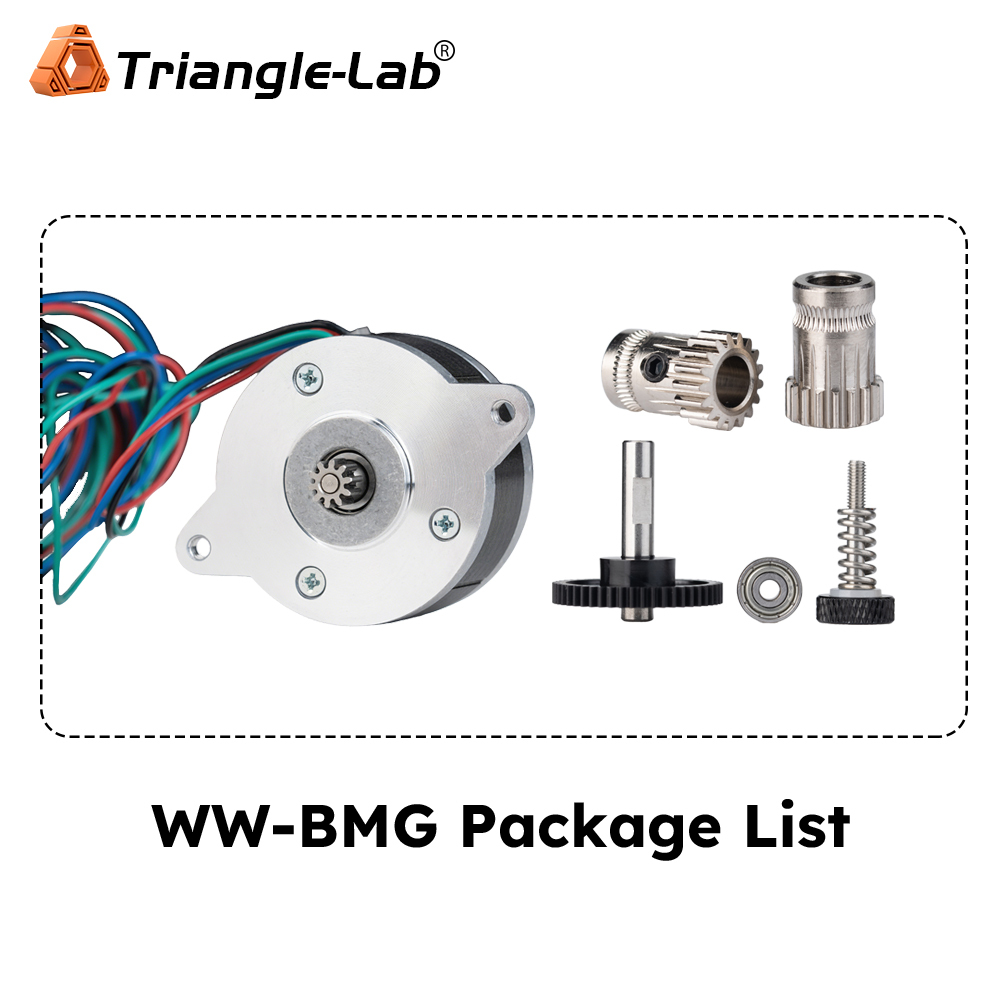

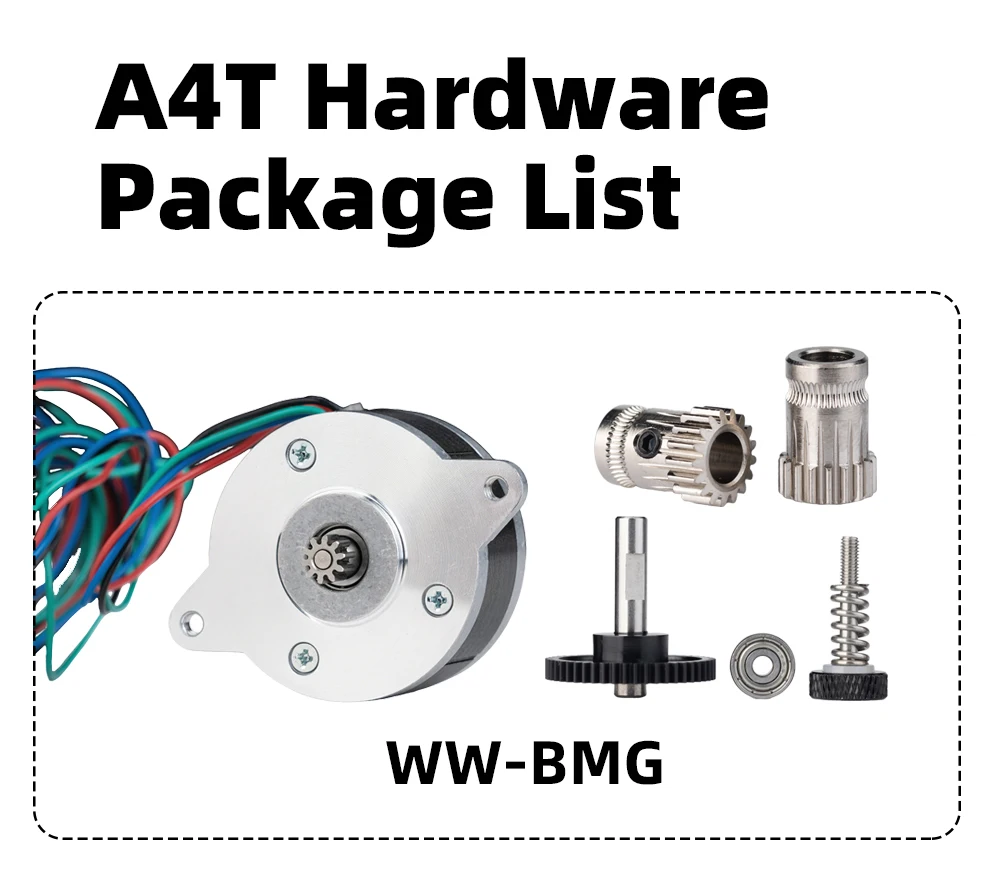

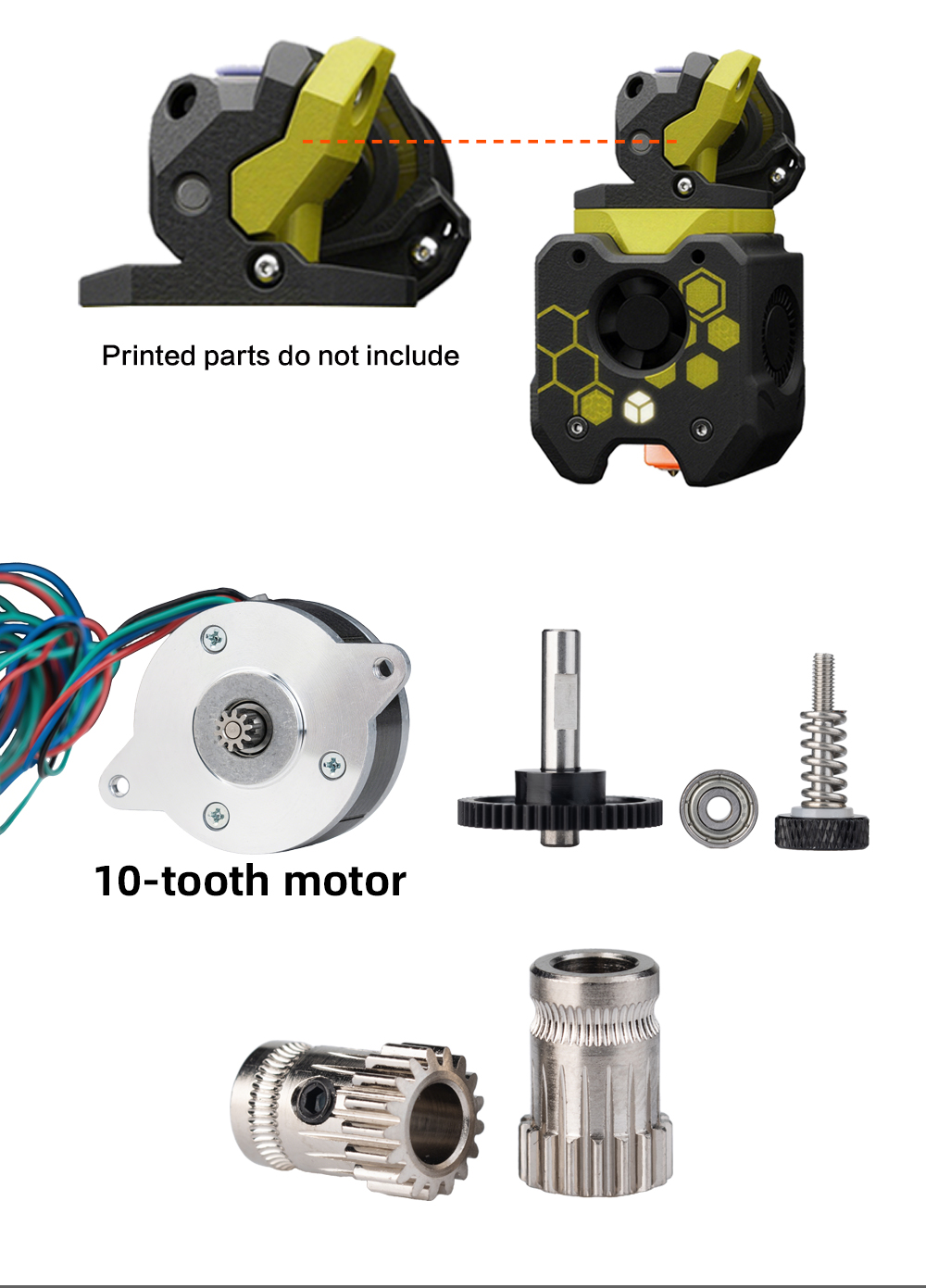

WW-BMG for A4T (All package contains) :
More information
https://github.com/Armchair-Heavy-Industries/A4T/ blob/main/STL/WW-BMG%20for%20A4T/README.md
A modified version of the Wrist watch BMG extruder from by thorsthunder. This version has been made compatible with A4T by removing a small notch from the motor plate and changing the extruder mounting pattern from Orbiter 2 spacing to Sherpa-Mini spacing.
●This version has been optimised to work as well as possible with the RIDGA v2 drive gear.
●Multiple filament path improvements
●Options added for: Smooth bearing idler, and Dual filament sensors

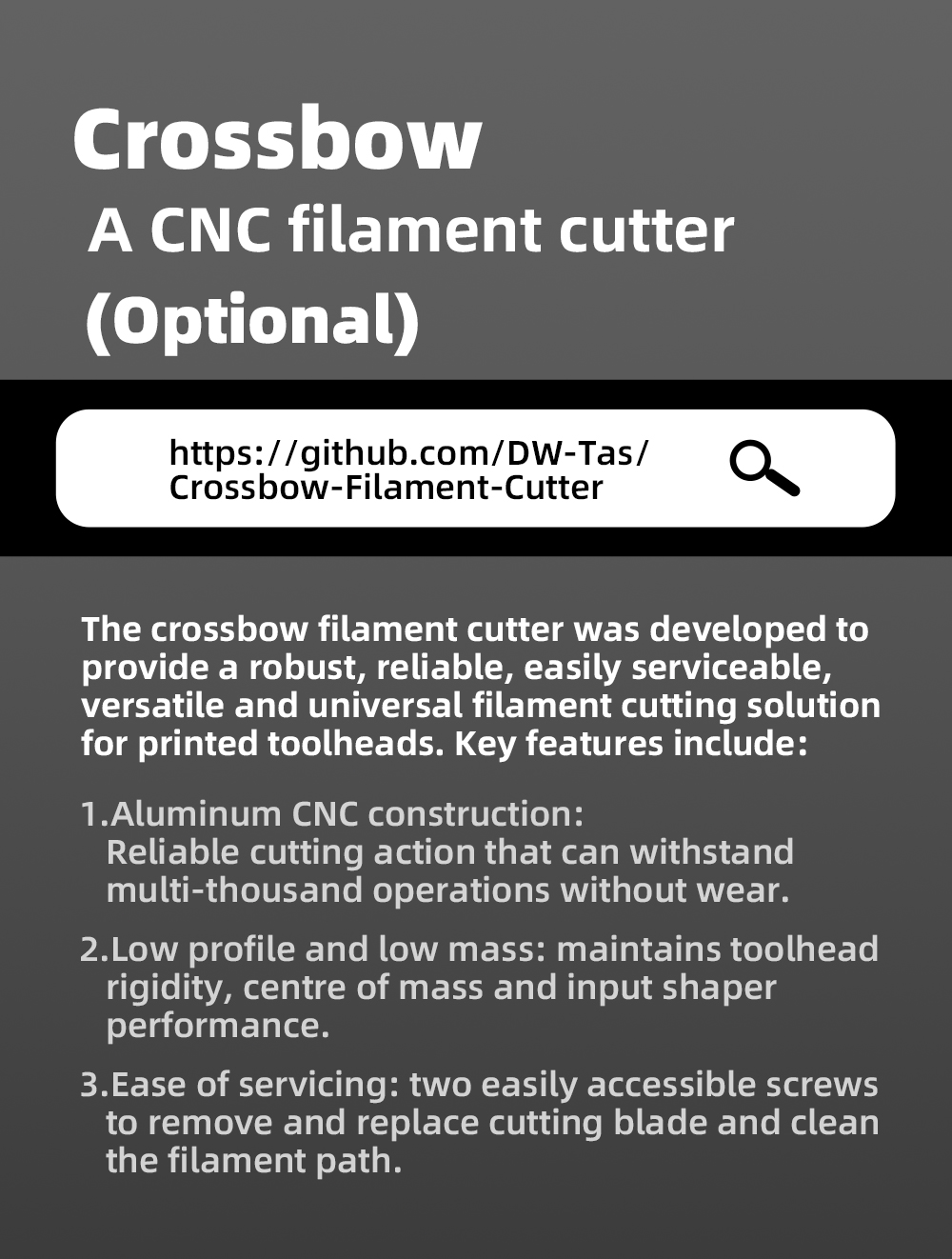

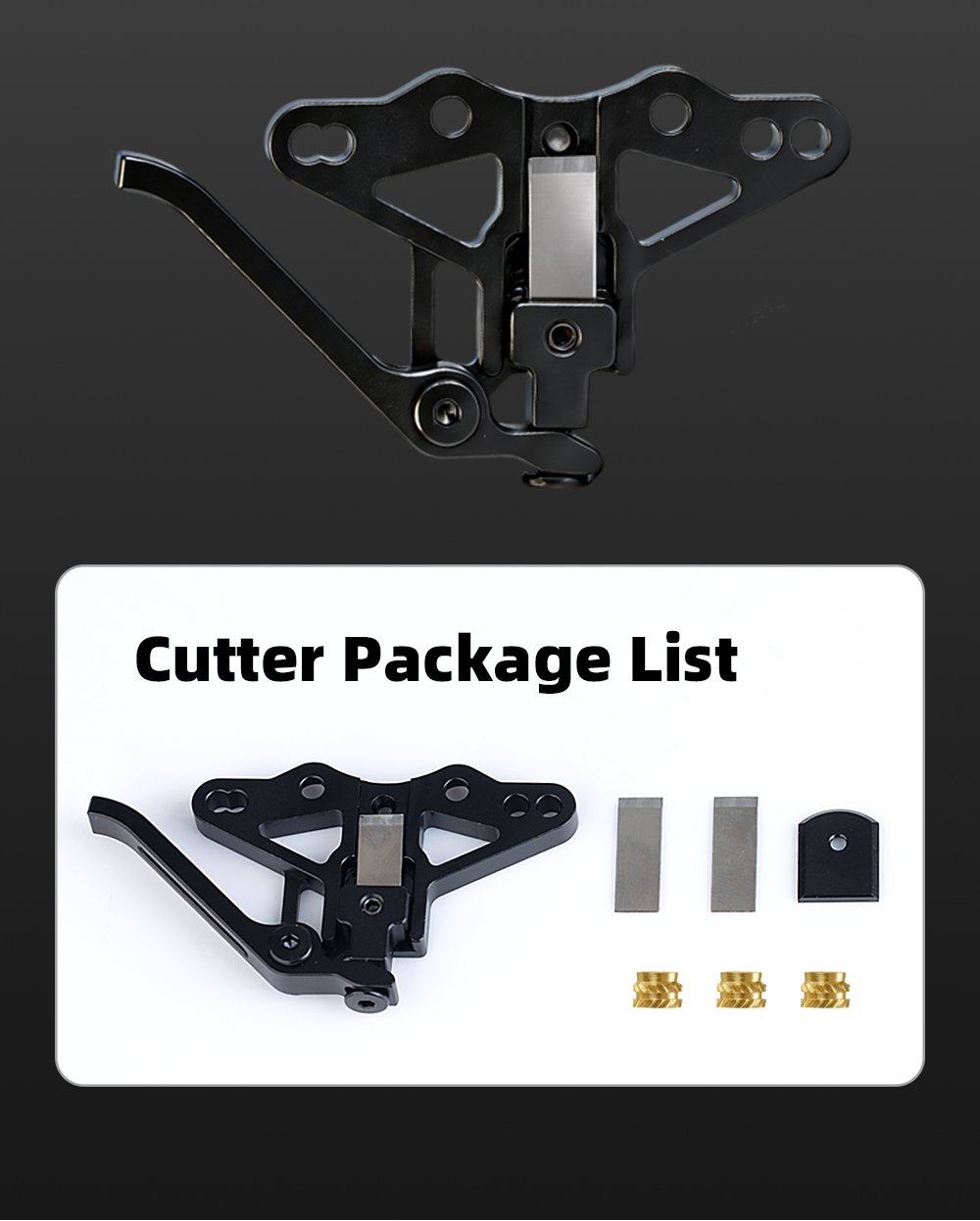

Crossbow A CNC filament cutter (Optional) :
More information
https://github.com/DW-Tas/Crossbow-Filament-Cutter
The crossbow filament cutter was developed to provide a robust, reliable, easily serviceable, versatile and universal filament cutting solution for printed toolheads. Key features include:
●Aluminum CNC construction: Reliable cutting action that can withstand multi-thousand operations without wear.
●Low profile and low mass: maintains toolhead rigidity, centre of mass and input shaper performance.
●Ease of servicing: two easily accessible screws to remove and replace cutting blade and clean the filament path.

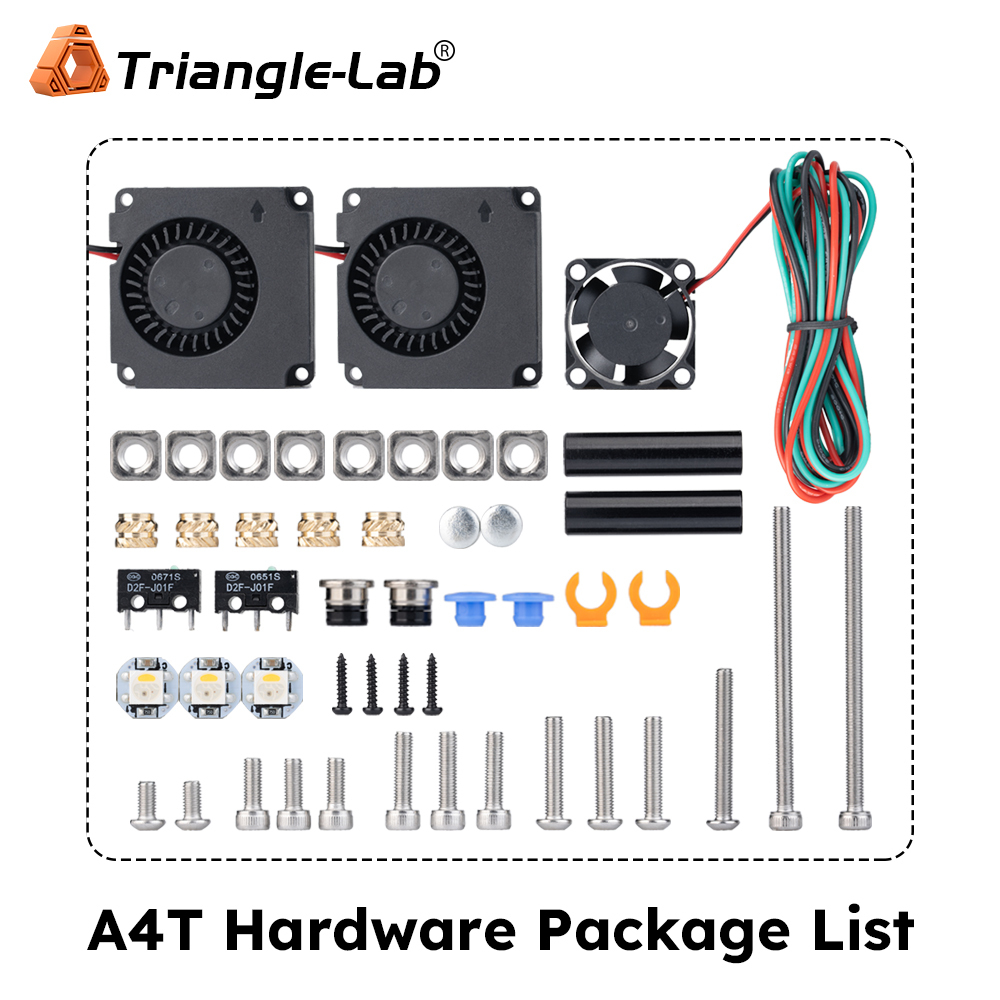

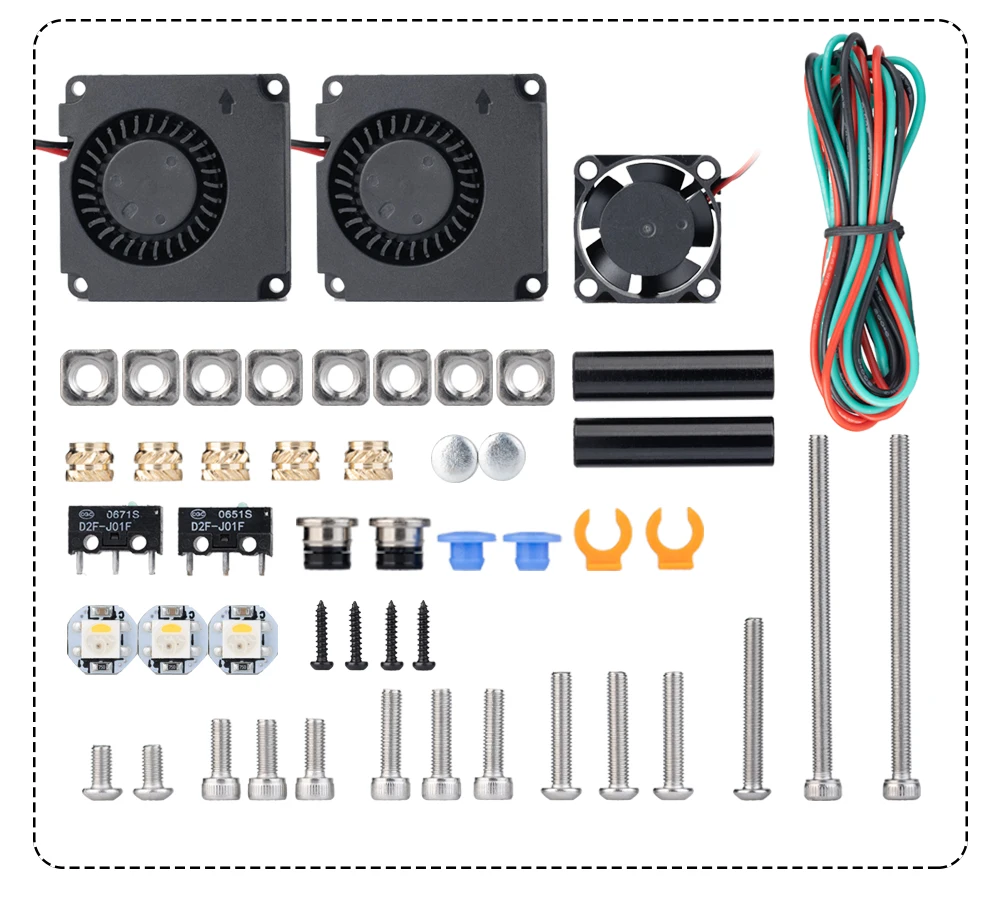

What's in the set? （Printed parts do not include）

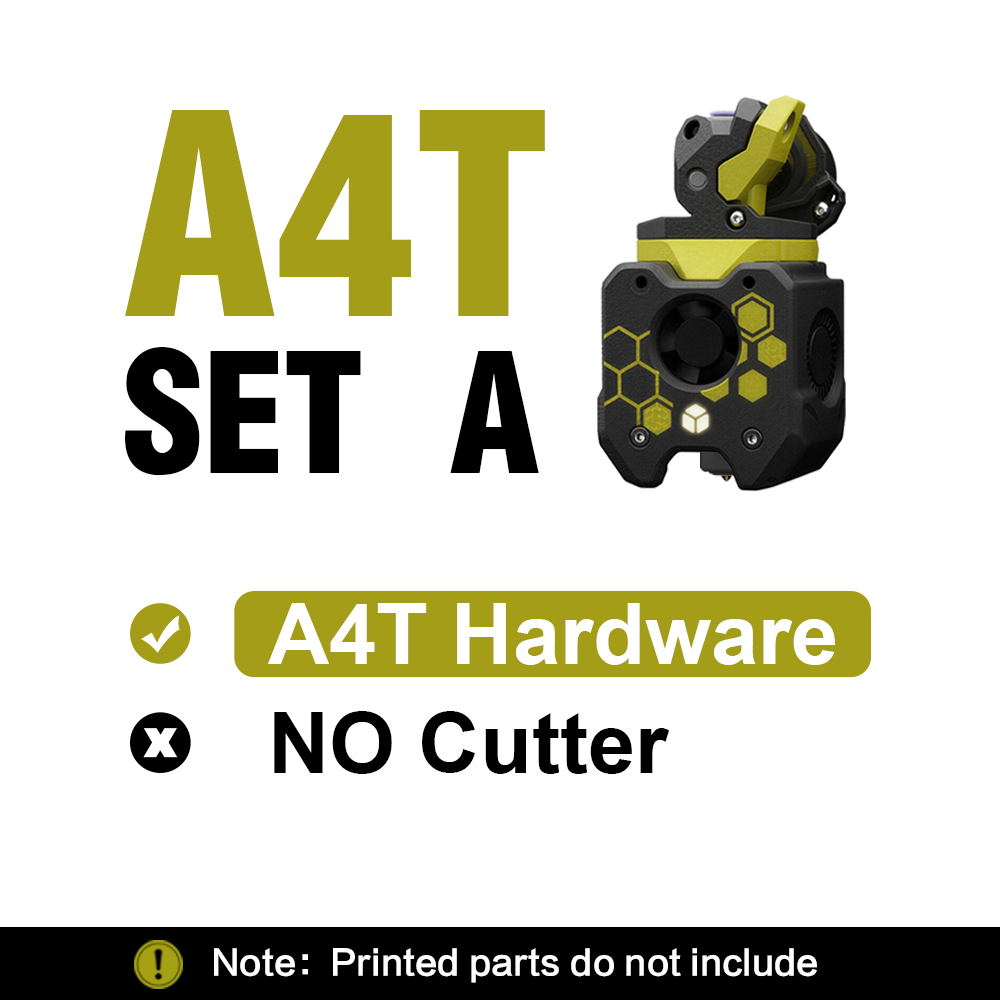

Set A：A4T Hardware NO Cutter

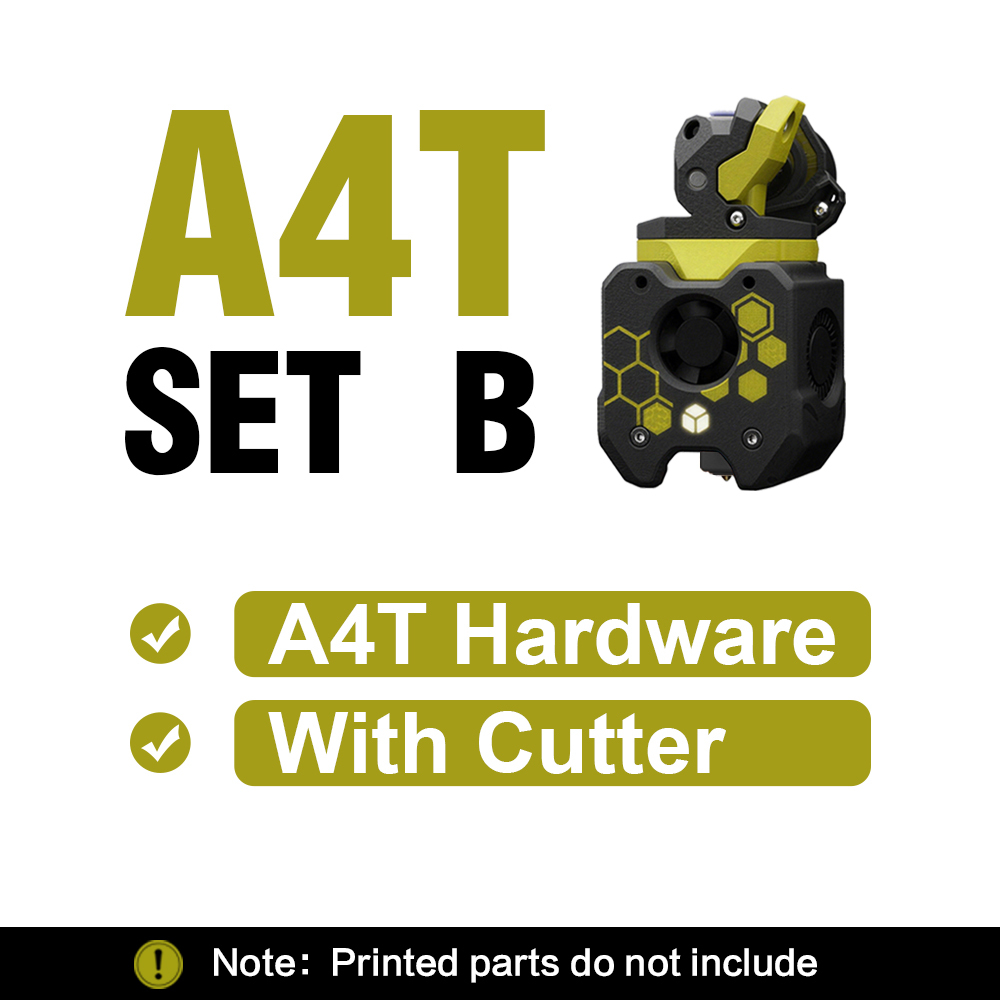

Set B：A4T Hardware With Cutter

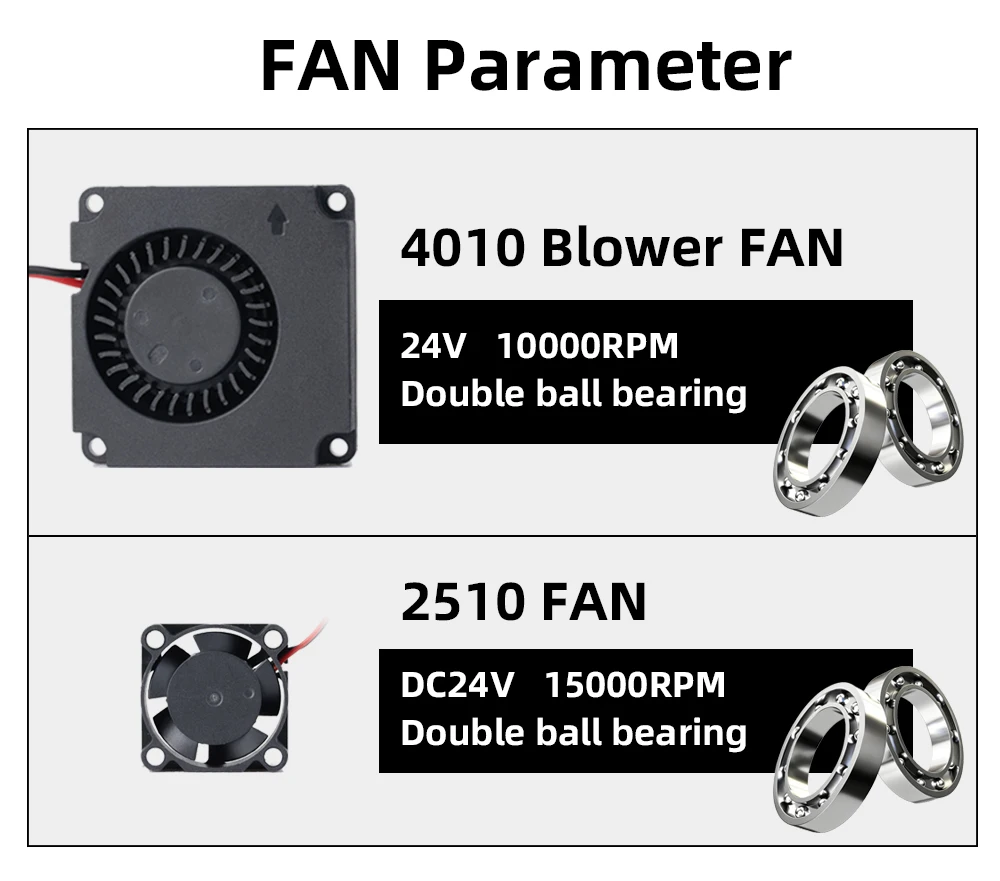

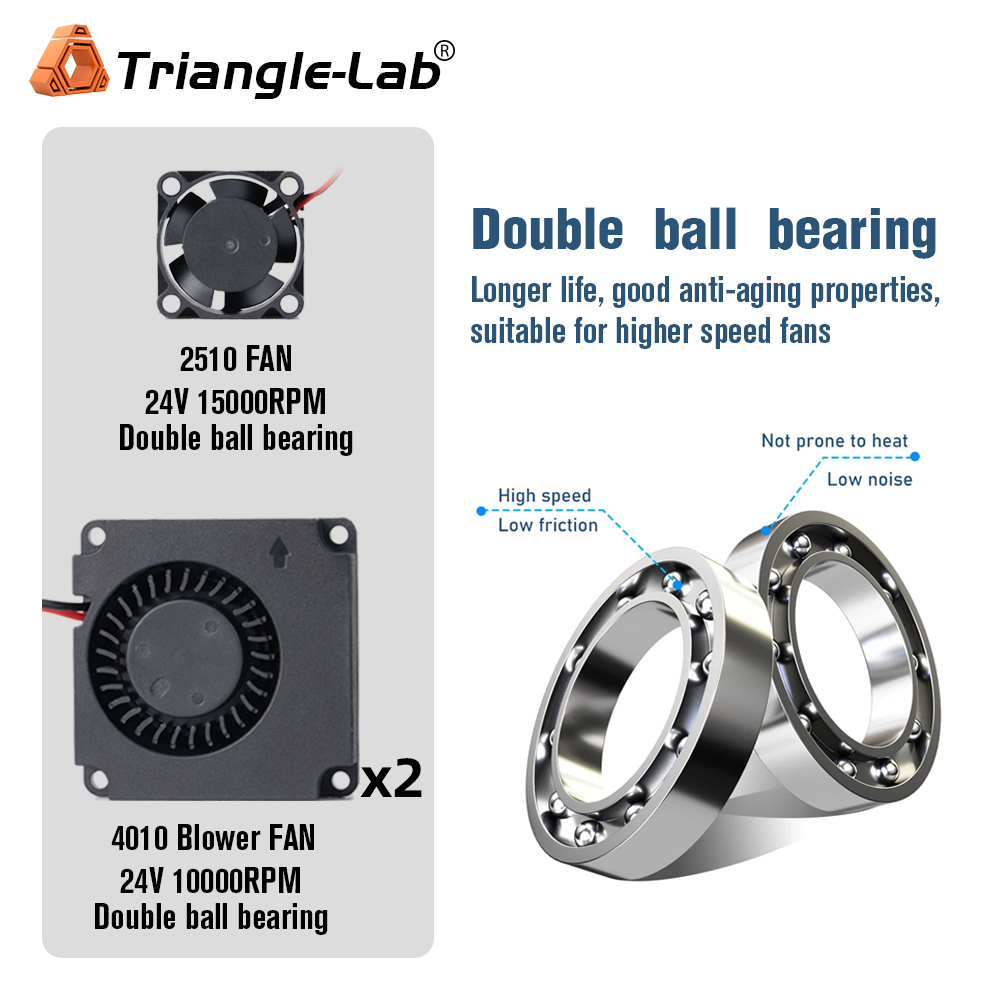

FAN Parameter
4010 Blower FAN 24V 10000RPM Double ball bearing
2510 Blower FAN DC24V 15000RPM Double ball bearing

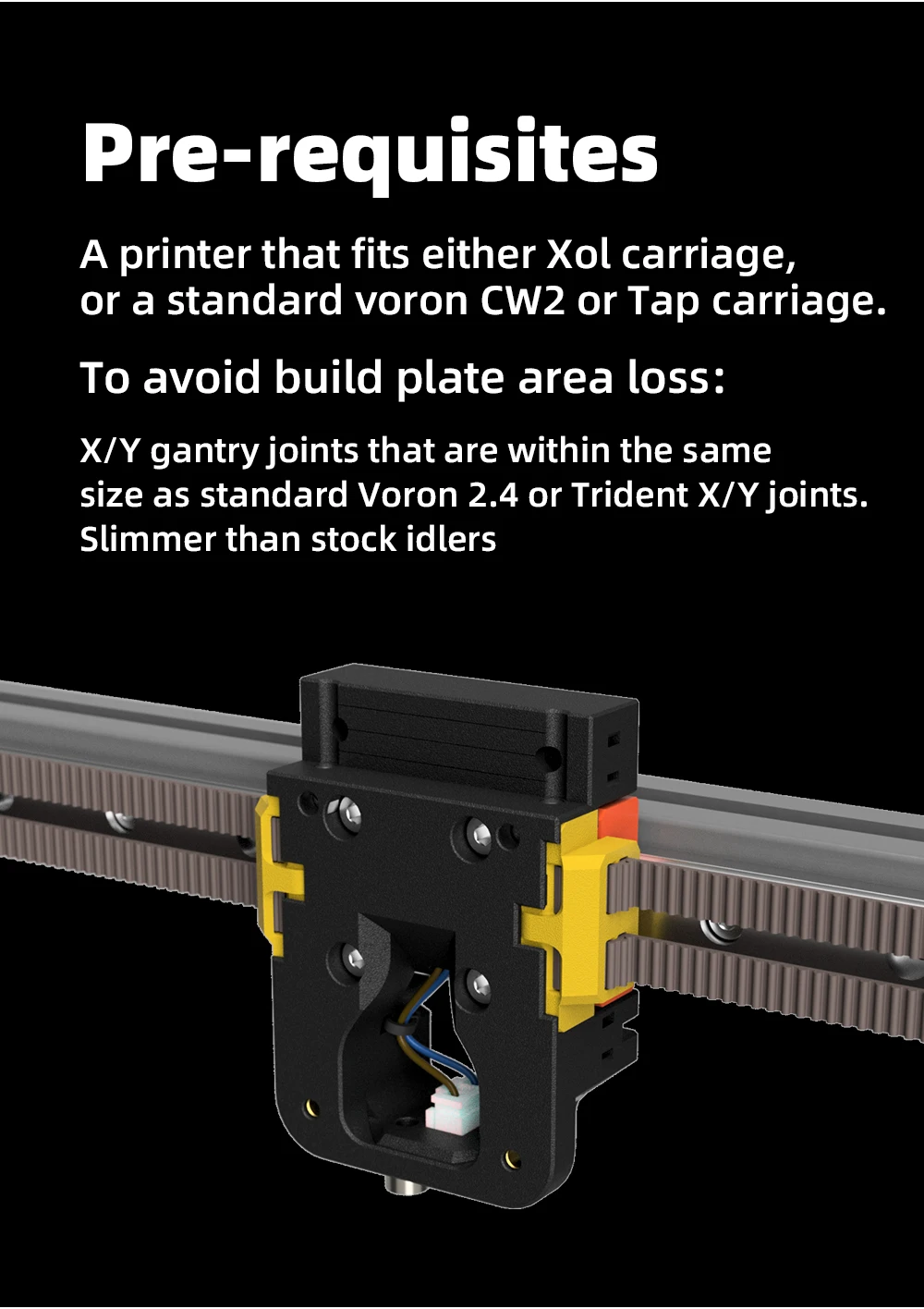

Pre-requisites
A printer that fits either Xol carriage,or a standard voron CW2 or Tap carriage.
To avoid build plate area loss:
X/Y gantry joints that are within the samesize as standard Voron 2.4 or Trident X/Y joints.Slimmer than stock idlers

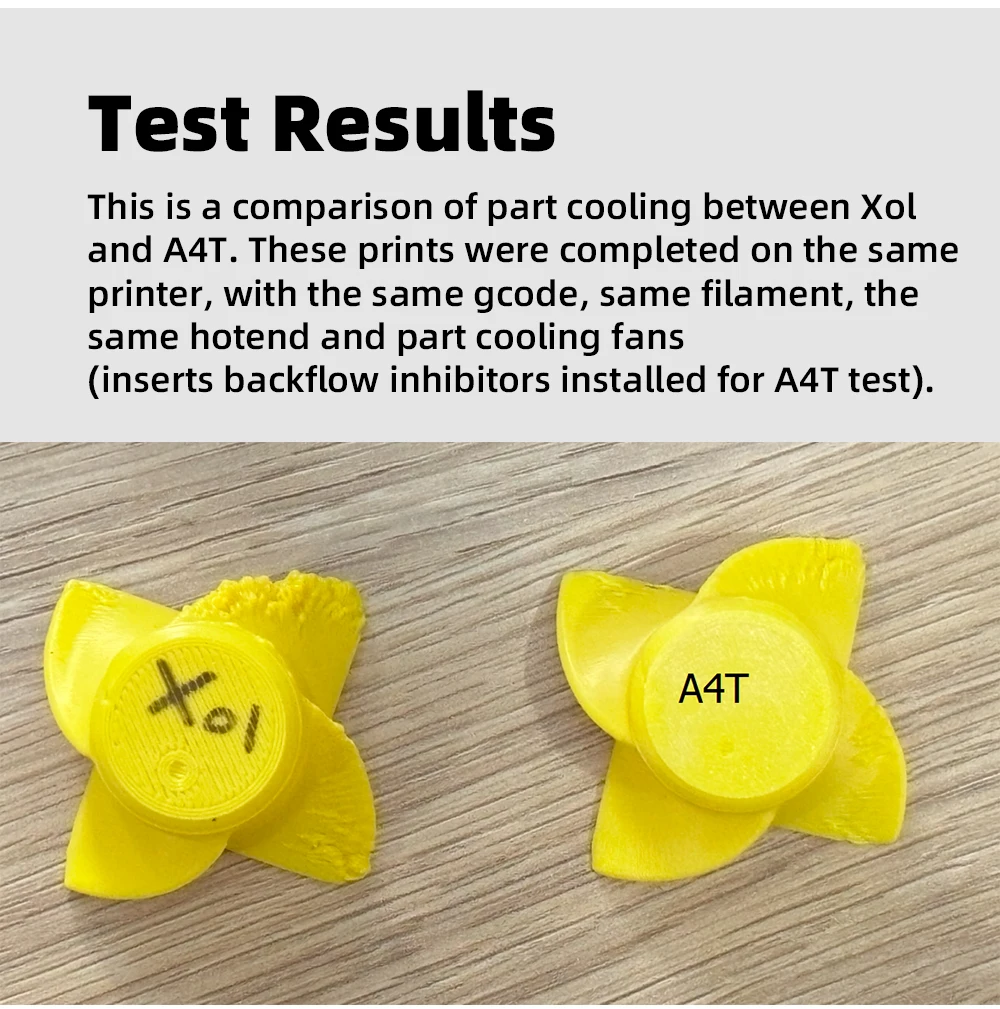

Test Results
This is a comparison of part cooling between Xoland A4T. These prints were completed on the sameprinter, with the same gcode, same filament, thesame hotend and part cooling fans(inserts backflow inhibitors installed for A4T test).
