The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.
-
Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.
☀Important! Installation Notes:
A: Hemera assembly demonstration
B: Hemera HOTEND assembly demo
☀ ecosystem compatibility:

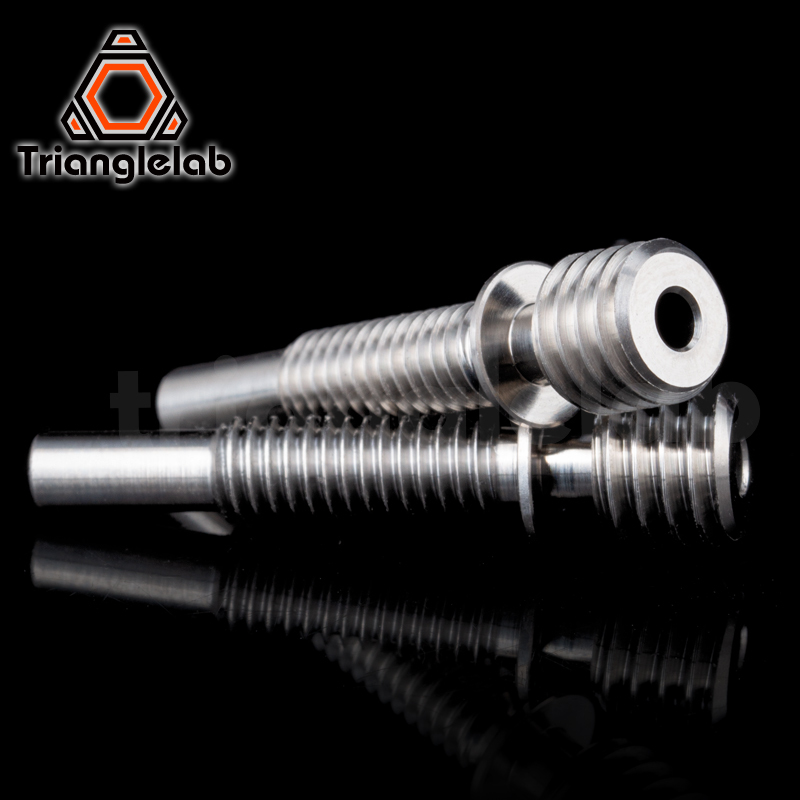

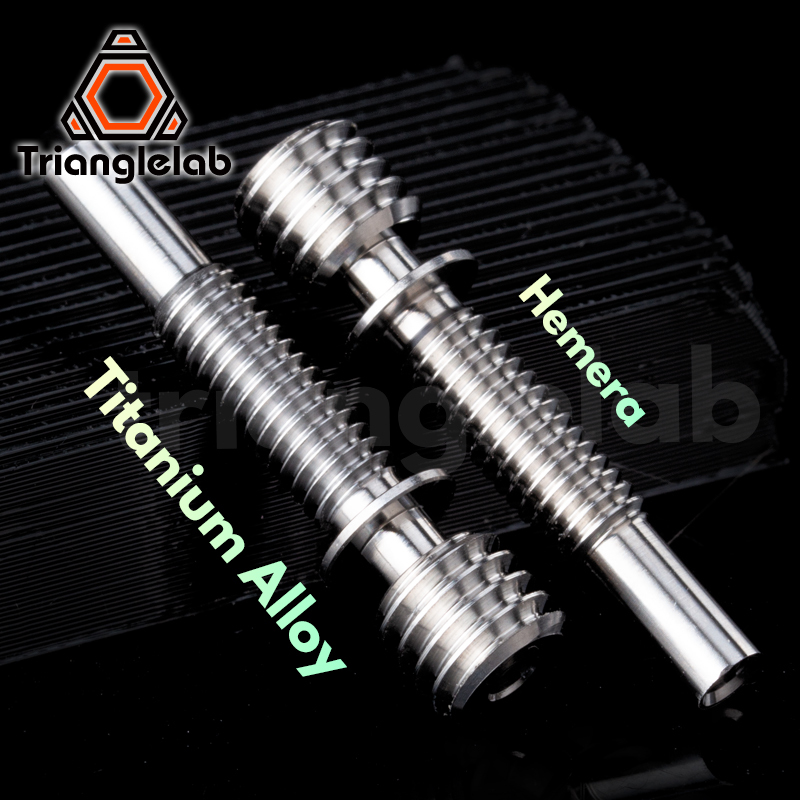

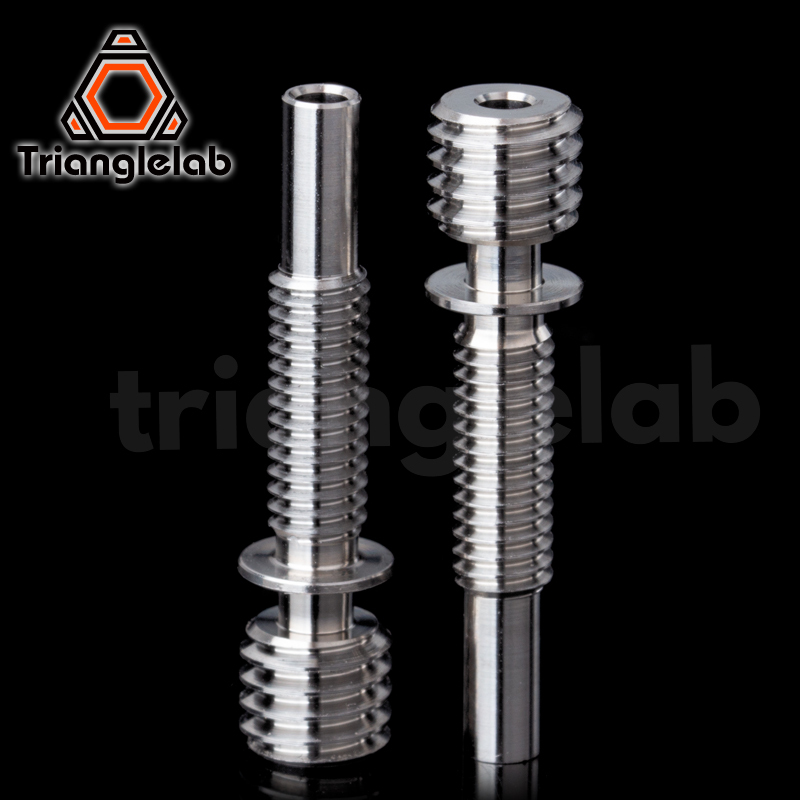

'' Hemera features a new heatbreak with an M4 thread on the coldside to improve heat transfer.
The flange on the heatbreak ensures a precise mate between the heatbreak and the heatsink. This guarantees perfect positioning of the break between the drive gears, giving that fantastic constraint.
The hot side makes use of the standard M6 thread which maintains full compatibility with the ecosystem of nozzles, heater blocks, temperature sensors, and heater cartridges. ''
Additional note:Hemera HeatSink has the same specifications as V6 Heatsink. You can use it as a V6 HOTEND specification.
It supports two methods of use.
1:far-end feeding;2:near-end feeding
☀Size:
☀Compatible:
Compatible with HemeraHeatsink
Compatible with Hemera Extruder
Additional note:
HemeraHeatsinkCompatible with Titan Extruder
HemeraHeatsinkCompatible withtrianglelab Titan Extruder
HemeraHeatsinkCompatible withtrianglelab DDE
HemeraHeatsinkCompatible withtrianglelab DDB Extruder
HemeraHeatsinkCompatible with Prusa MK3/MK3S
*If you want to buy Trianglelab DDB Extruder,please click here to buy.
*If you want to buy Trianglelab Titan Extruder,please click here to buy.
*If you want to buy Trianglelab DDE ,please click here to buy.
*If you want to buy Trianglelab PrusaMK3S , please click here to buy.
*If you want to buy Trianglelab Prusa Bear MK3S ,please click here to buy.
*If you want to buy Trianglelab V6 NOZZLE,please click here to buy.
*If you want to buy Trianglelab V6 HeatBlock,please click here to buy.
*If you want to buy Trianglelab T-V6 NOZZLE,please click here to buy.
Heatebreaker performance comparison test
prusa I3 MKS3 print head
nozzle temperature 215℃
ambient temperature 22℃
temperature probe depth 40+-0.5mm from top plate of heatsink
cooling fan Noctua NF-A4x10 5V
Read the temperature 15mins after nozzle stable at 215℃
thermal paste was applied in between the heatbreak and heatsink model:shin-etsu 7868 6.2W/m °K
both setup share the same heater block thermistor nozzle and cooling fan
only the heatebreaker and heatsink is diffent
Result: lower is better
. V6 standard(M7) stainless-steel heat breaker39.1℃
. M4(hemera) stainless-steel heat breaker34.7℃
. M4(hemera) titanium alloy heat breaker30.5℃
☀What's in the box:

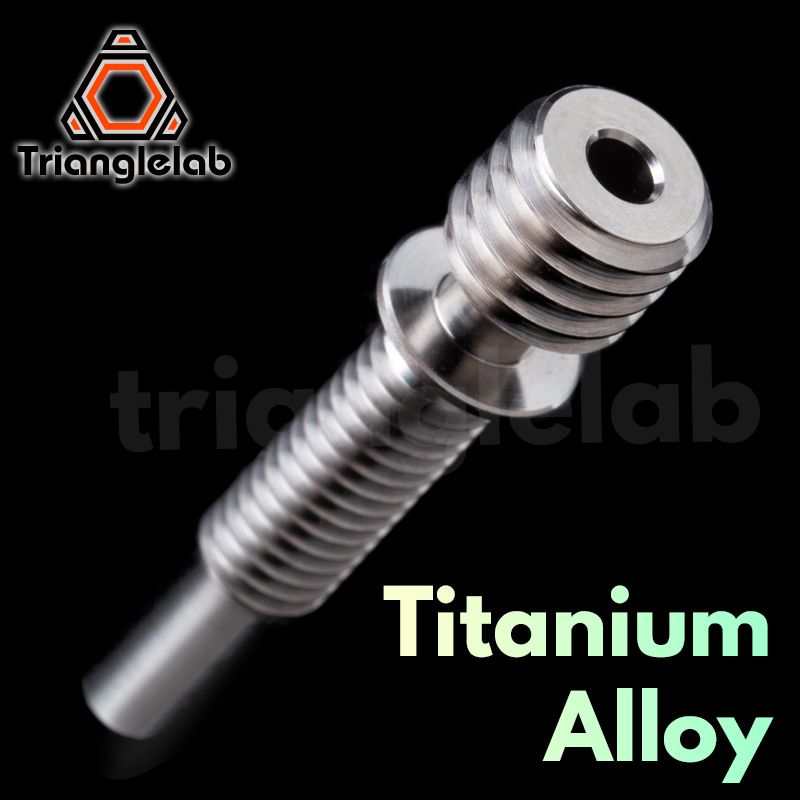

SET1:Only Hemera Heatbreak(Titanium alloy)
trianglelab - Hemera Heatbreak(Titanium alloy)X 1

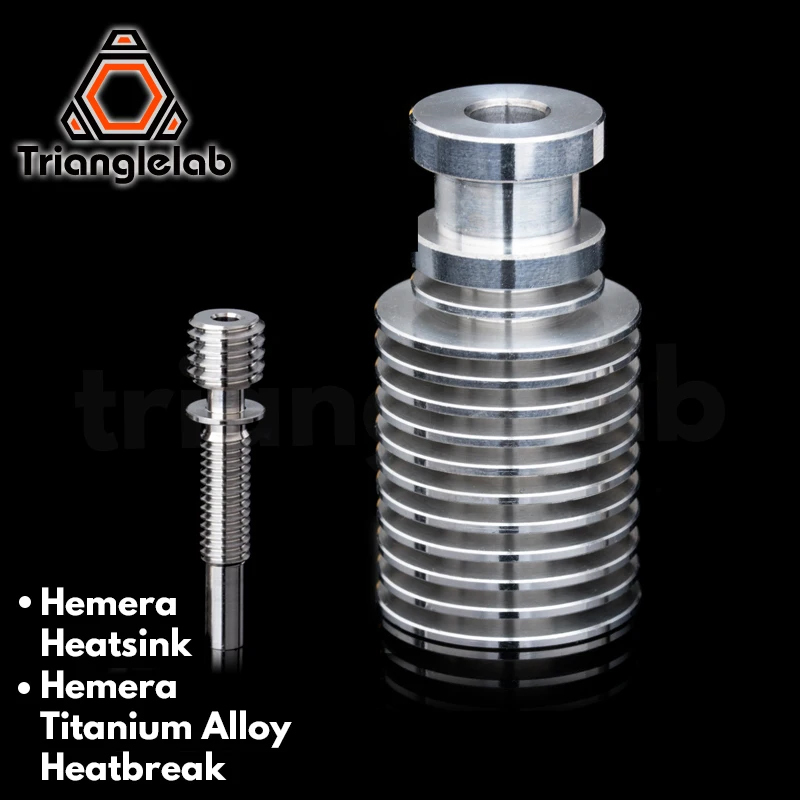

SET2：Hemera HeatSink KIT
trianglelab - Hemera Heatbreak(Titanium alloy) X 1
trianglelab - Hemera HeatSink X 1
SET3：Hemera HeatSink KIT

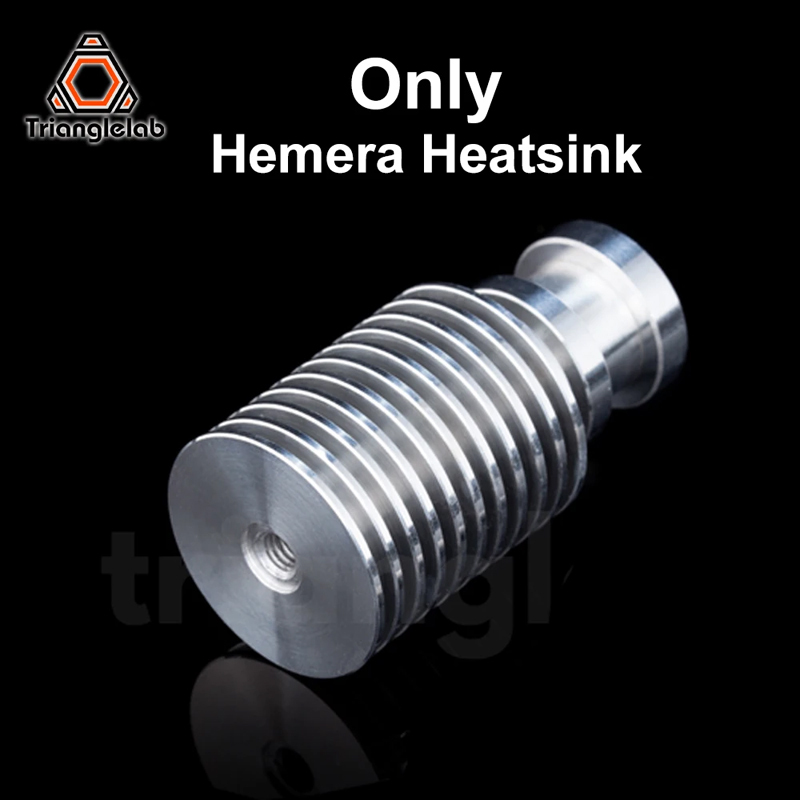

trianglelab - Hemera HeatSink X 1
☀Photo display:
Please enjoy the excellent quality of art.
PEI 1010(USE Hardened steel V6 NOZZLE)
PEI Mixed material(Plated Copper Test)
