Ender 3 CR10 titanium alloy HEATBREAK

Name: Ender 3 CR10 titanium alloy HEATBREAK
Brand: Trianglelab Official Website
SKU: 169
Price: 4.92 USD
Availability: InStock

trianglelab high quality GRADE5 Ender 3 CR10 titanium alloy HEATBREAK for CR10 HOTEND heater block 1.75MM Filament heat break

0.0 (0 Reviews)

~~$5.86~~ $4.92

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Before ordering, please note that all our products do not include tax, you need to declare your own tax!
If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.
Technical questions e-mail：[email protected]
Sales questions e-mail：[email protected]
The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.
Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

▉High quality CR10 titanium alloy heat break

▉NEWS:
Titanium Alloy BREAK was officially upgraded on September 1, 2019.
Upgrade content:
1 Replaced by TC4 material into GRADE5
2 Replacement with advanced machines for processing
3 modified heat treatment method
Performance after the upgrade:
1 The appearance is more shiny
2 thread precision improvement
2 The inner wall of the tube is smoother (reducing the chance of filament clogging)
3 The interface is smoother and more precise (can effectively prevent the filament from leaking)
▉Size:
FOR 1.75mm filament

▉Compatible:

Compatible with Ender3/CR10 HOTENED
▉What's in the box:

Trianglelab - CR10 titanium alloy heat break X 1

▉NOTE：

We found that many customers do not know how to properly install the nozzle.
Remember the core issues in the installation process.
Just make sure your nozzle and HEAT BREAK front end are tight and sealed. Otherwise, the melted consumables will leak along the screw holes.

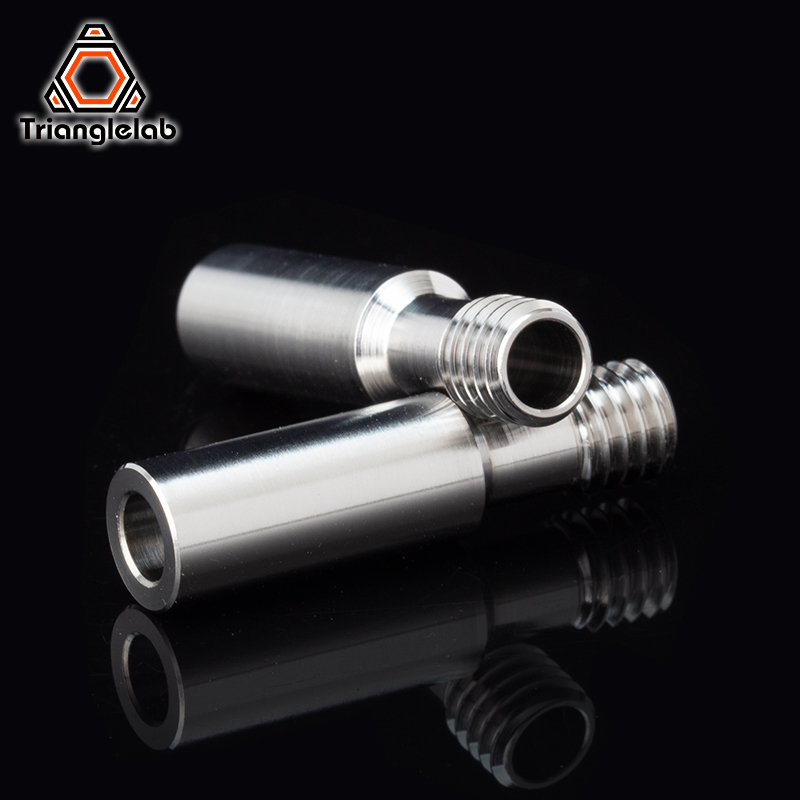

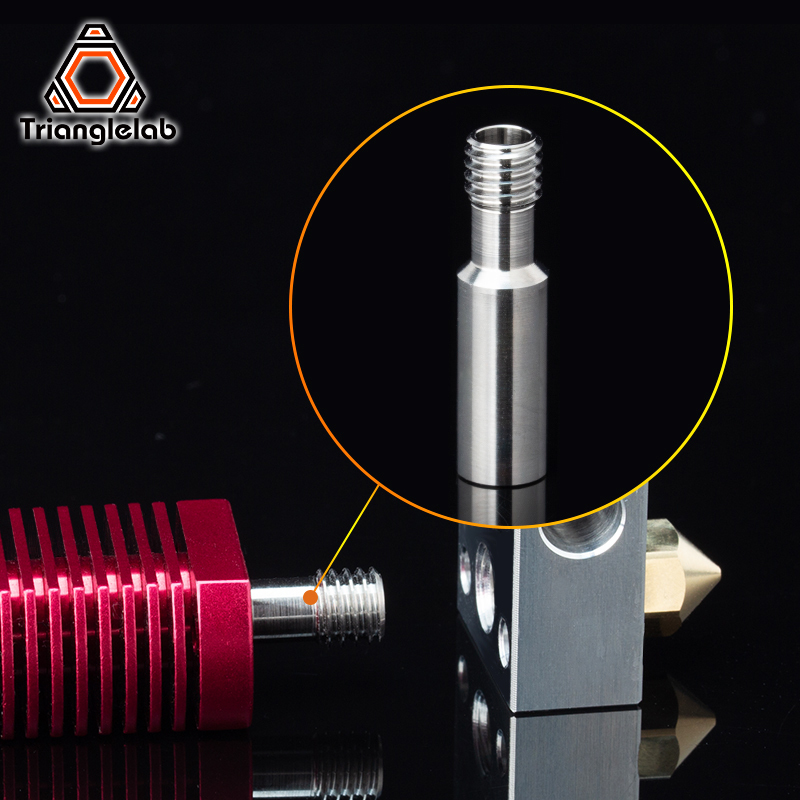

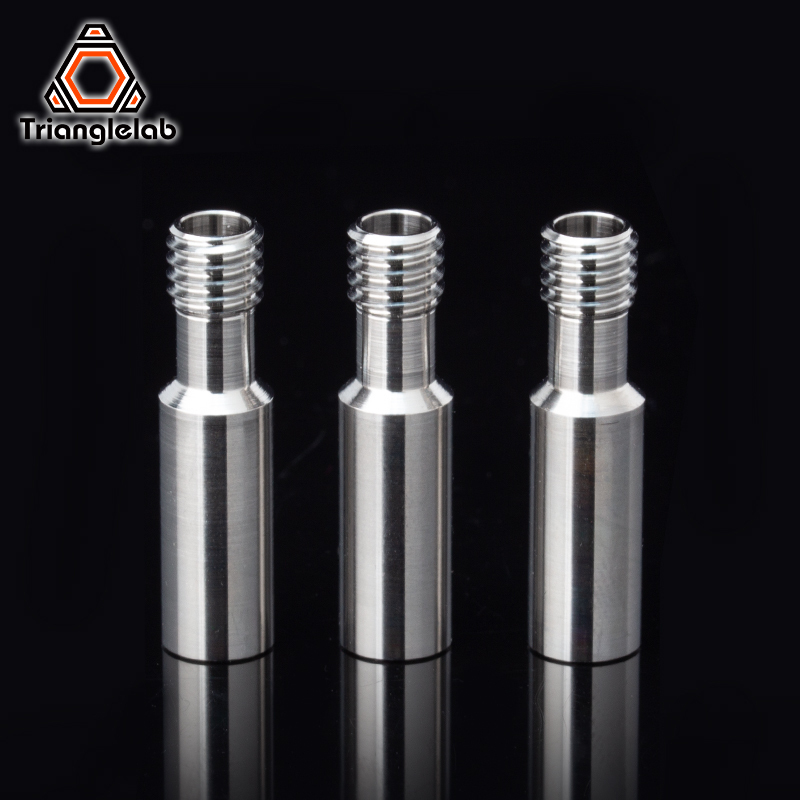

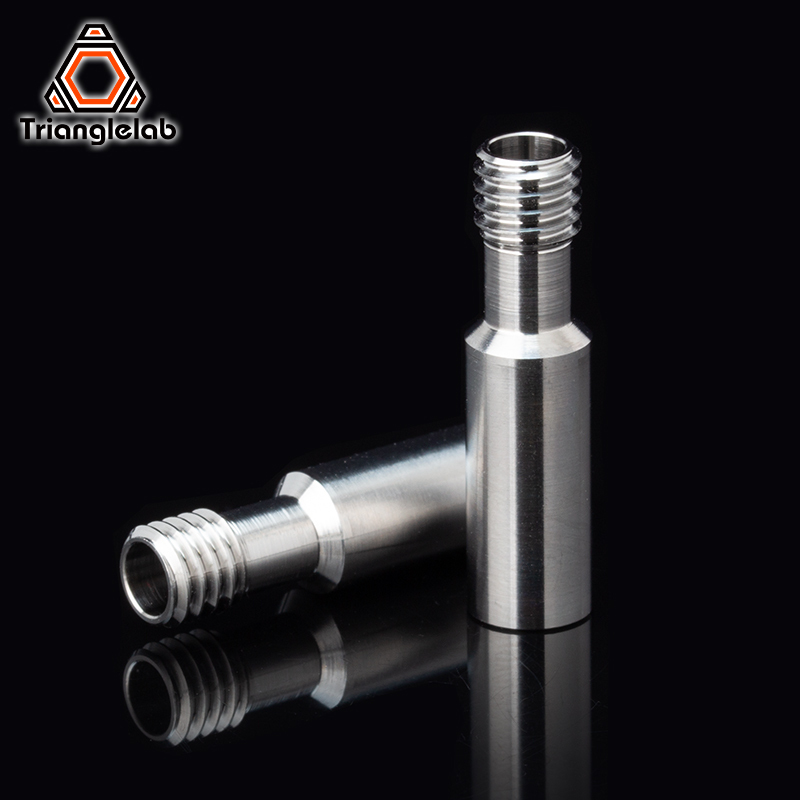

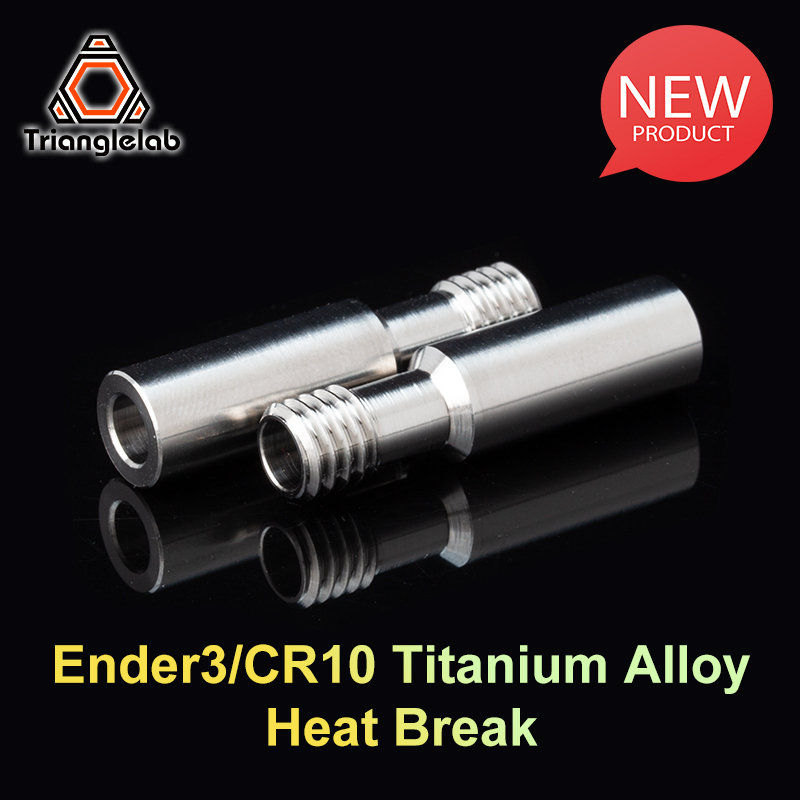

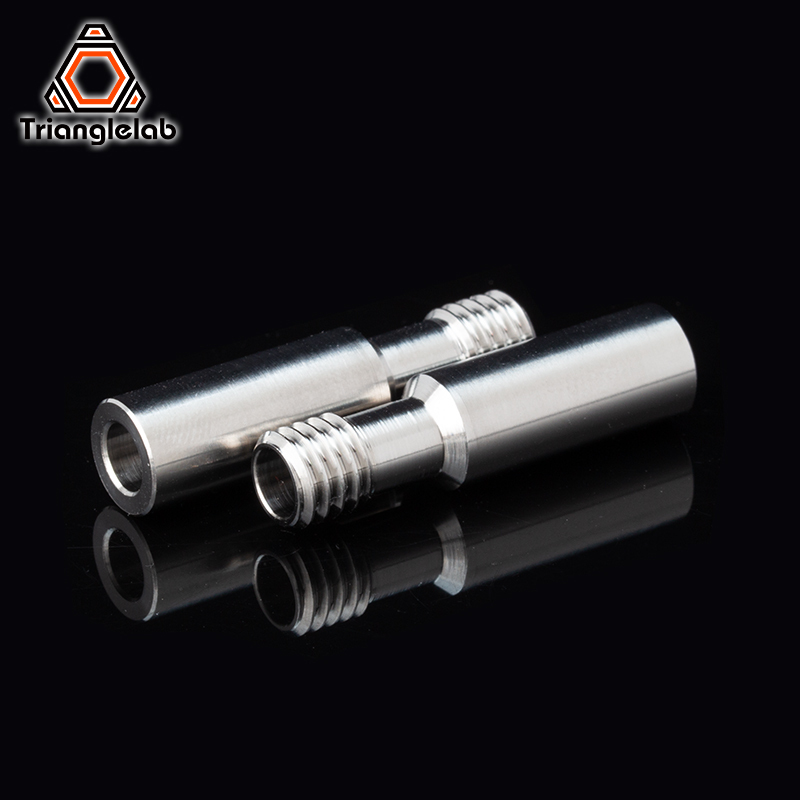

▉Photo display:

Please enjoy the excellent quality of art.

▉Creality CR-10/EDNER-3 universal print head
nozzle temperature 220℃
ambient temperature 18℃
temperature probe inside of the PTFE tube and 1mm above the center of set screw hole of the heat sink .
cooling fan Noctua NF-A4x10 5V
▉Set the nozzle at 220℃ wait untill it stabled.
Wait for all temperature readings to stabilize. Read the temperature of prob which inside the heat break.
Thermal paste was applied in between the heatbreak and heatsink model: shin-etsu 7868 6.2W/m °K
both setup are share the same heatsink heater block thermistor nozzle and cooling fan
only the heate break is diffent

Result： lower is better

ENDER-3/CR-10 stock stainless steel heat break 41.1℃

ENDER-3/CR-10 titanium heat break 4.1 inner bore 39.5℃
