▉Highlight:
Superior heat break performance.
Increased structural rigidity.
450°C rated for larger temperature operating range.
Drop in replacement for E3D V6 hotend. Such as PRUSA printer.
The HF version(High Flow Capacity) is the same overall dimensions as the standard one -Painless volcano experience.
Collision will not break your heaterbreaker anymore.
Nozzles can be changed with one hand, without grasping the hot block Nickel plating copper alloy in the hot block will not soften at high temperatures in excess of 550℃.
Maximum extrusion flowrate test result (PLA@215C)
E3D V6 HOTEND copper heater block 1020mm/min ≈ 40.01 mm³/second
Dragon hotend 1150 mm/min ≈46.08 mm³/second
Dragon hotend HF 1560 mm/min ≈62.51 mm³/second
▉Important! Installation Notes:
https://drive.google.com/drive/folders/1wKiOkN9tjFBUedO0_rnUapyTuY2EGqRj
caveat:
Please do not disassemble it at will. If you must disassemble it, please prepare a complete tool box. The 2 small screws in BLOCK
require professional tools.
*Use high-quality screwdriver tools for disassembly
Screwdriver tool
▉Name:

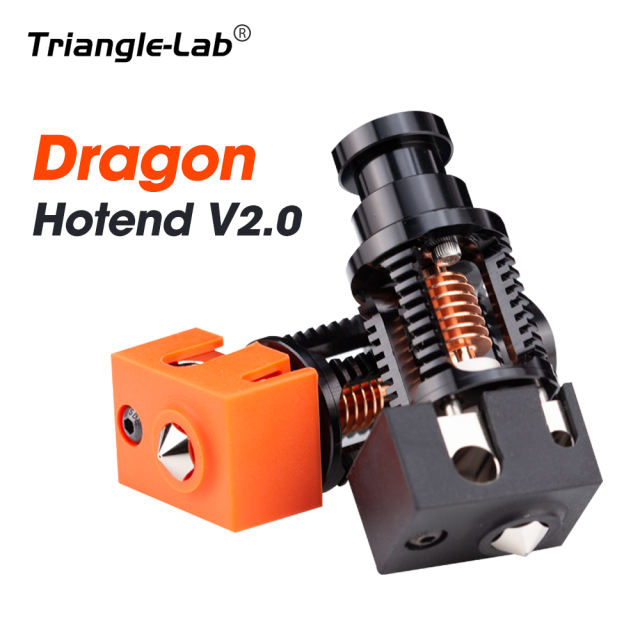

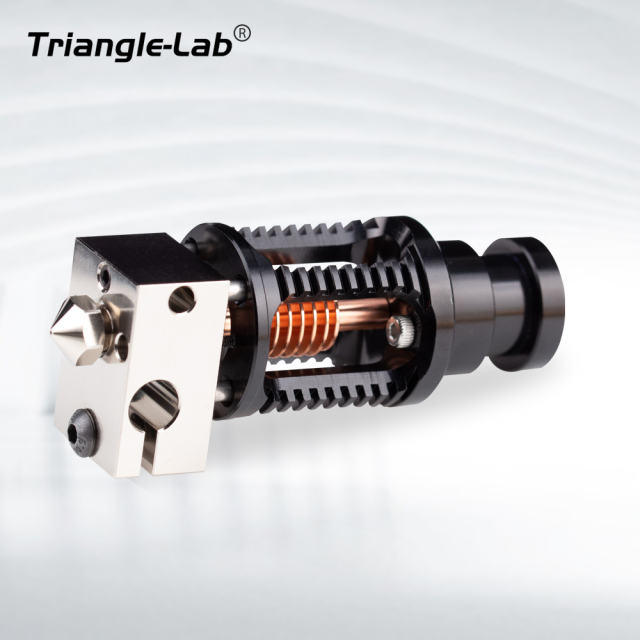

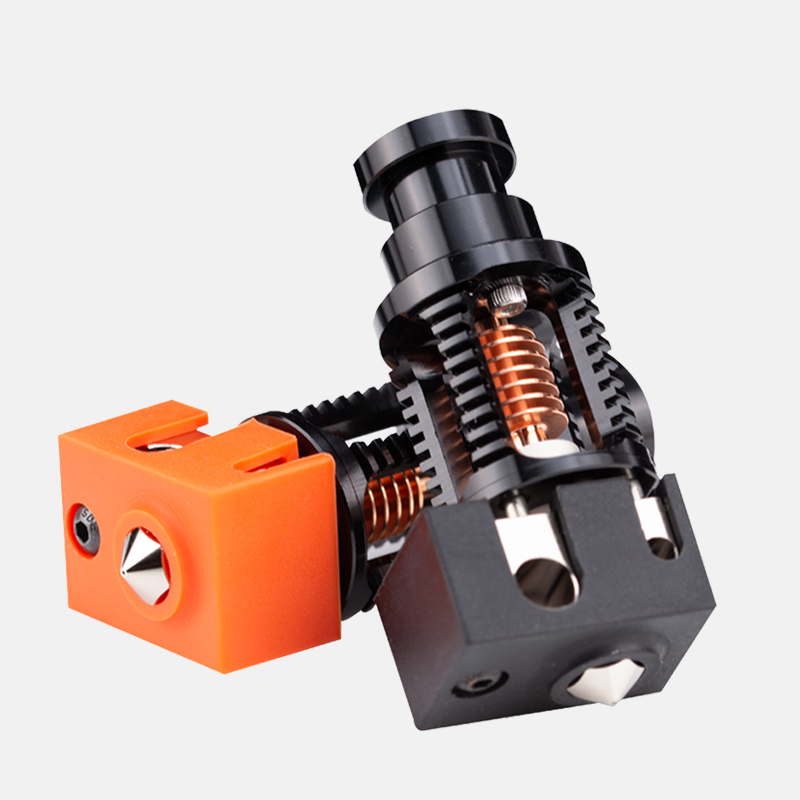

Trianglelab - Dragon Hotend V2.0
▉Size:
Nozzle 0.4MM/1.75MM filament
Hotendcompatible 1.75MM filament
▉Compatible:
①No V6 adapter status
Compatible withdiy design
②V6 adapter status
Compatible with all V6 HOTEND interfaces
Compatible with Prusa I3 MK3/MK3S
Compatible with Titan Extruder
Compatible with DDB Extruder
* Use your imagination to design a better extrusion head module for it.
▉What's in the box:
Dragon-Heatsink X1
Dragon-Customize Break X1
Dragon-Plated Copper Block X1
T-V6 Plated Copper Nozzle X1
V6 adapter X1 (GIFT)
Screw X1 package
Flow rate description:

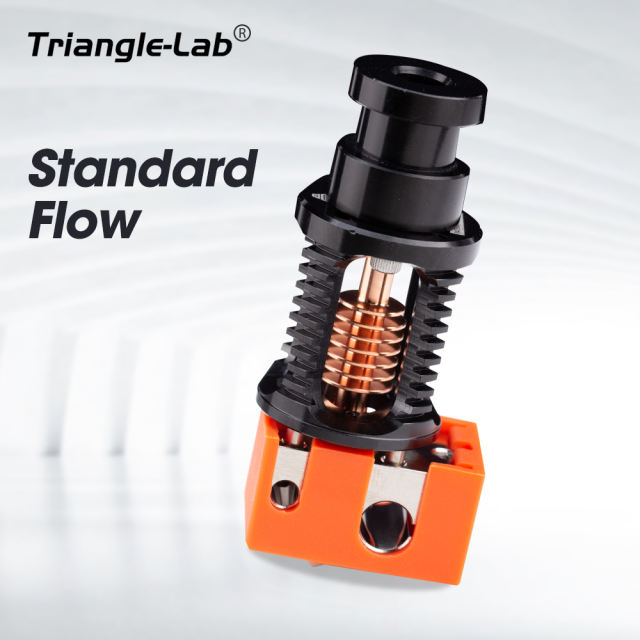

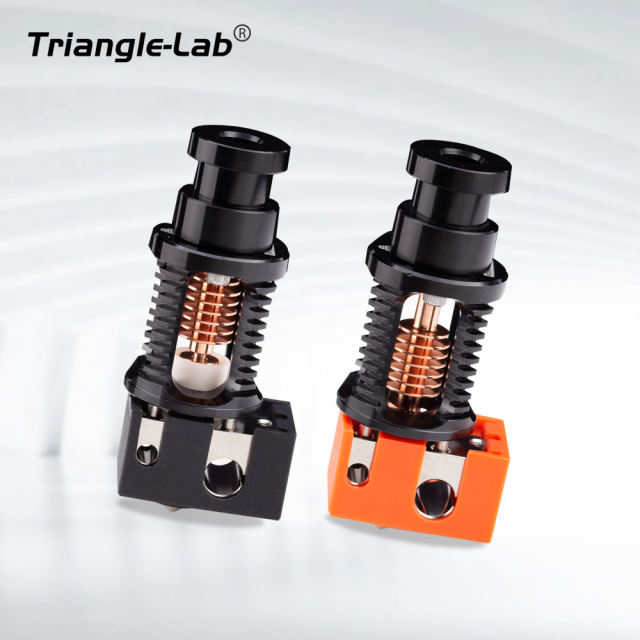

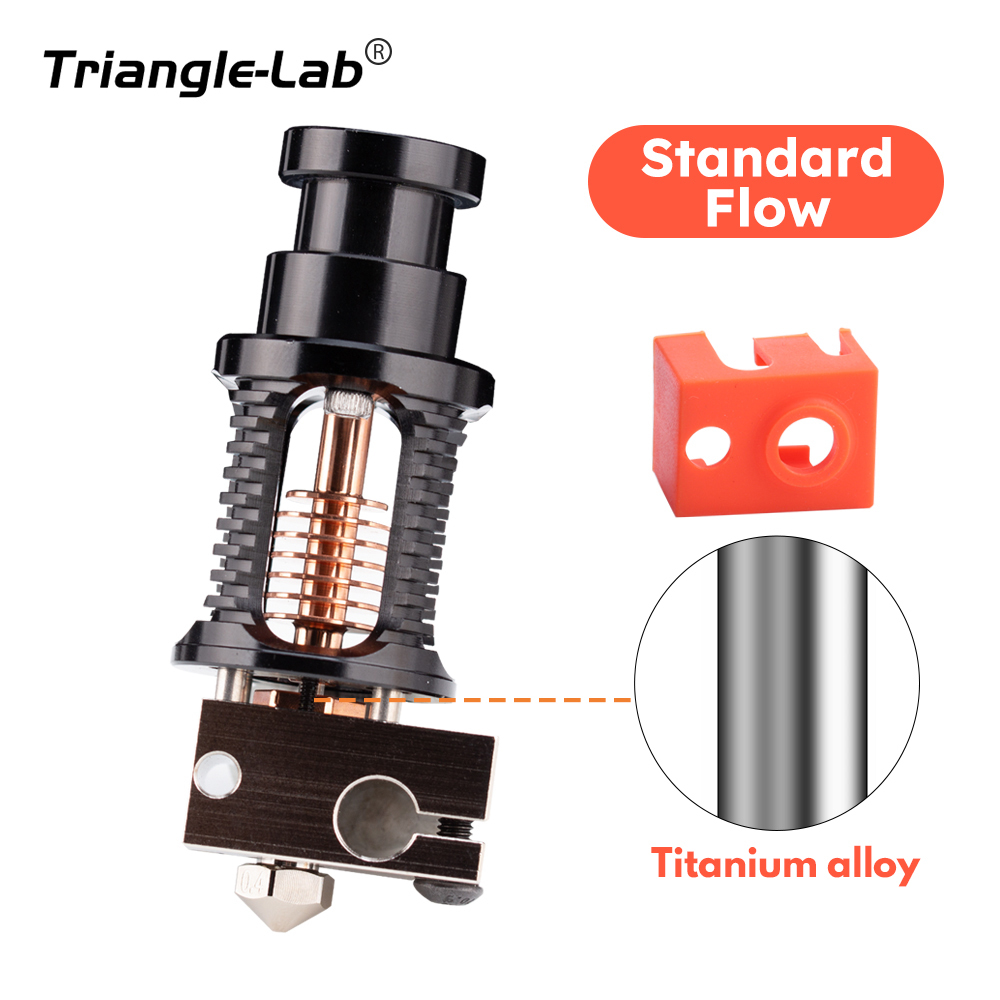

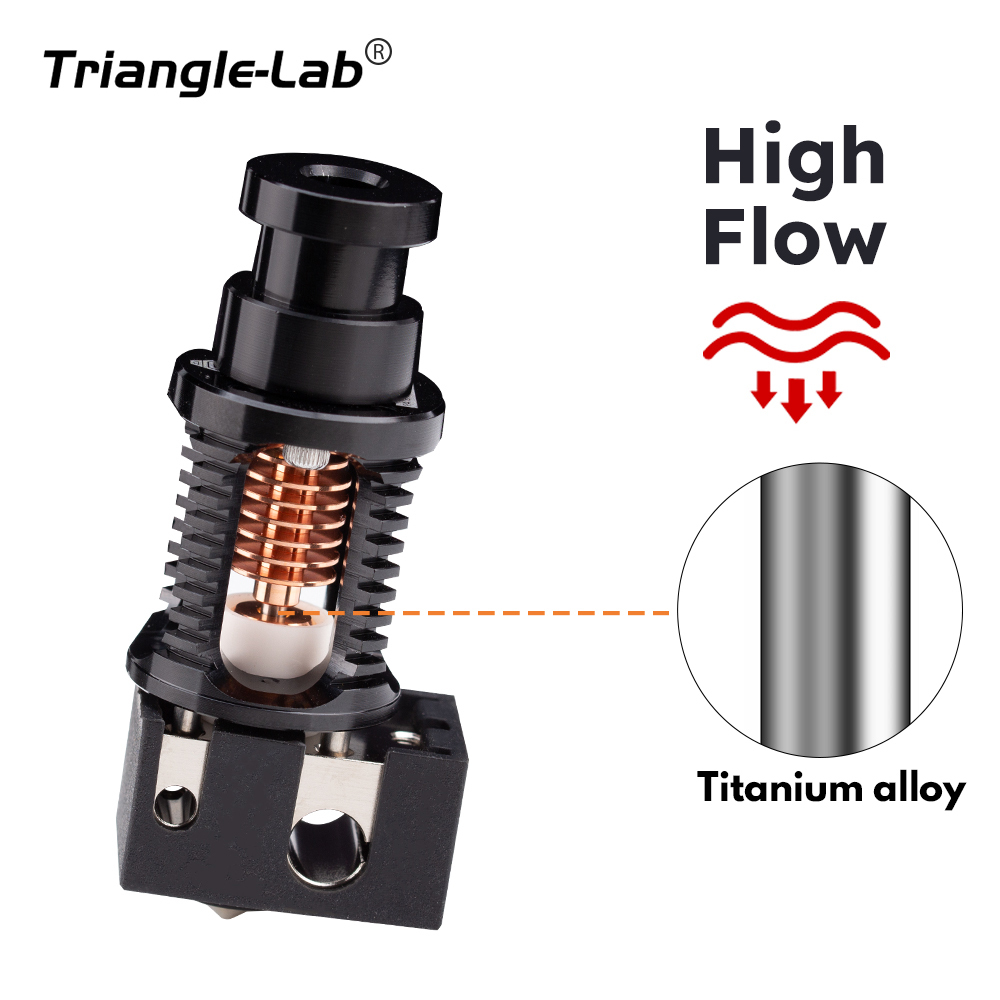

The appearance of the two specifications is almost similar.only their BREAK is different, and the High flowhas a larger copper heat sink.
Material Description:

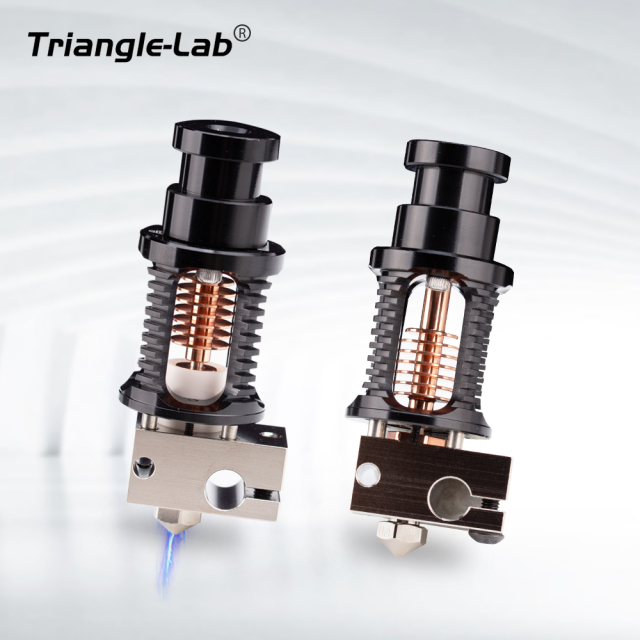

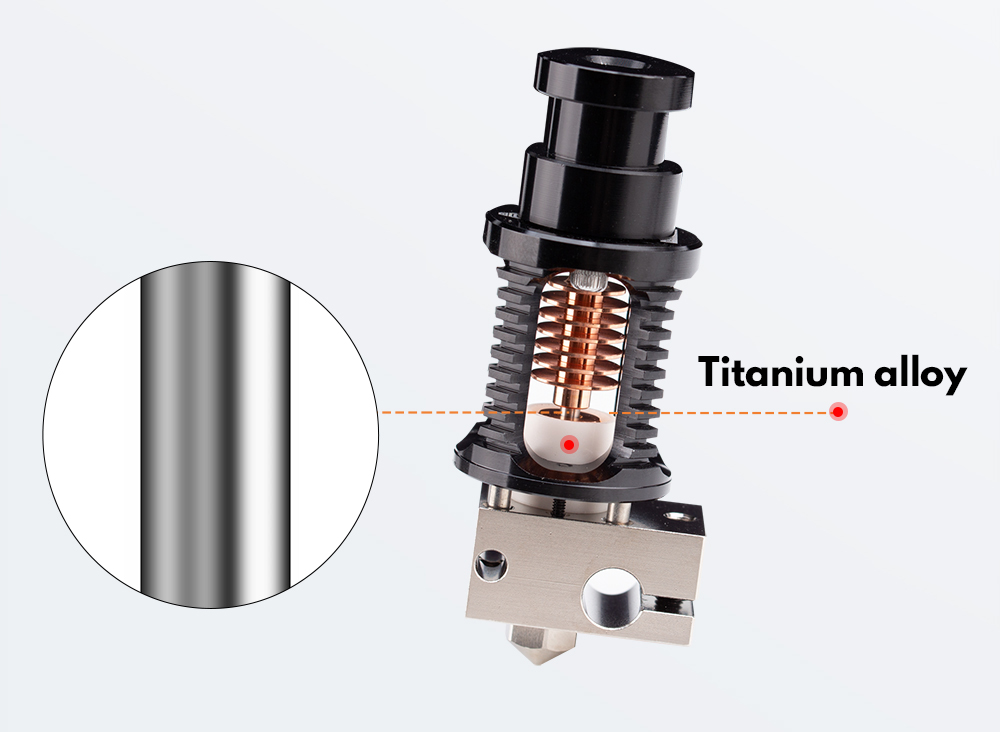

The two sizes are almost similar in appearance.except that the middle part of the pipe is made of different materialsone of which is made of aluminum alloy and one of whichis made of ceramic.
Different packaging:
Display:
Physical products:
PEI 1010(USE Hardened steel V6 NOZZLE) PEI Mixed material(Plated Copper Test)
PEI 1010(USE Hardened steel V6 NOZZLE) PEI Mixed material(Plated Copper Test)
