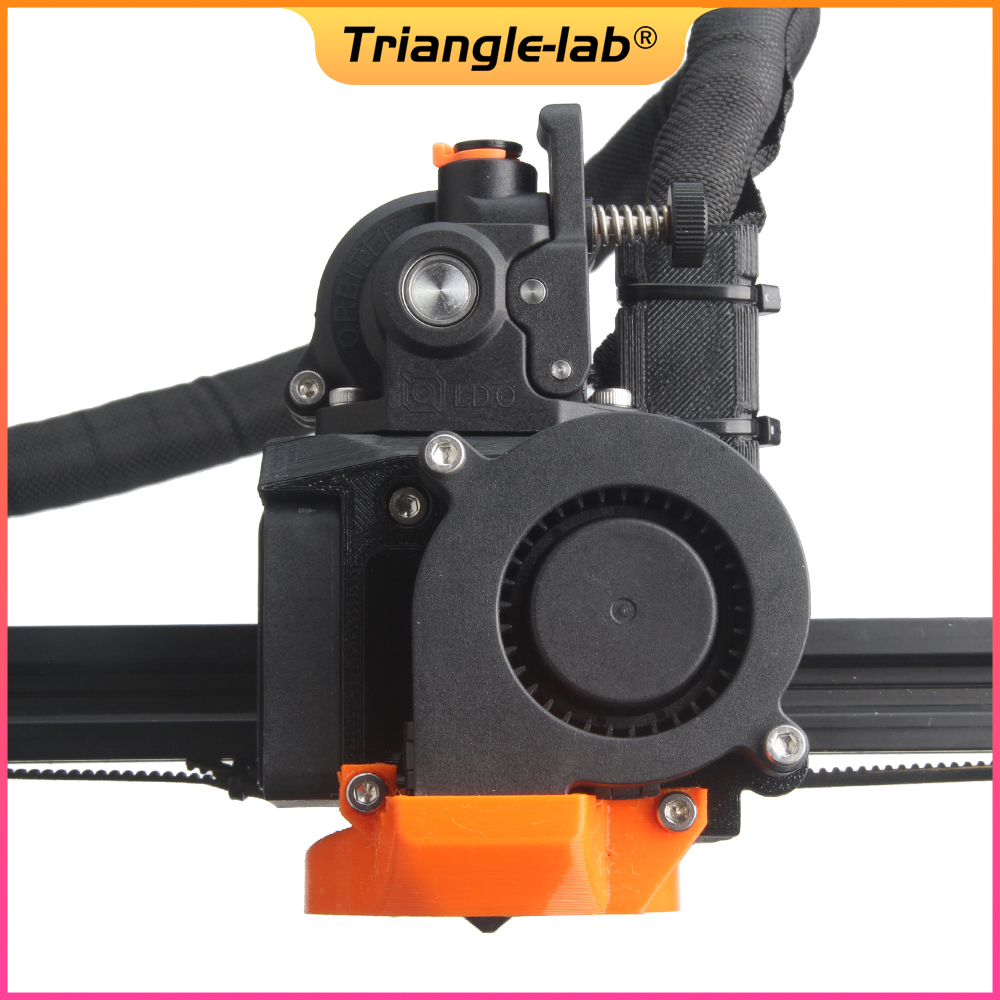

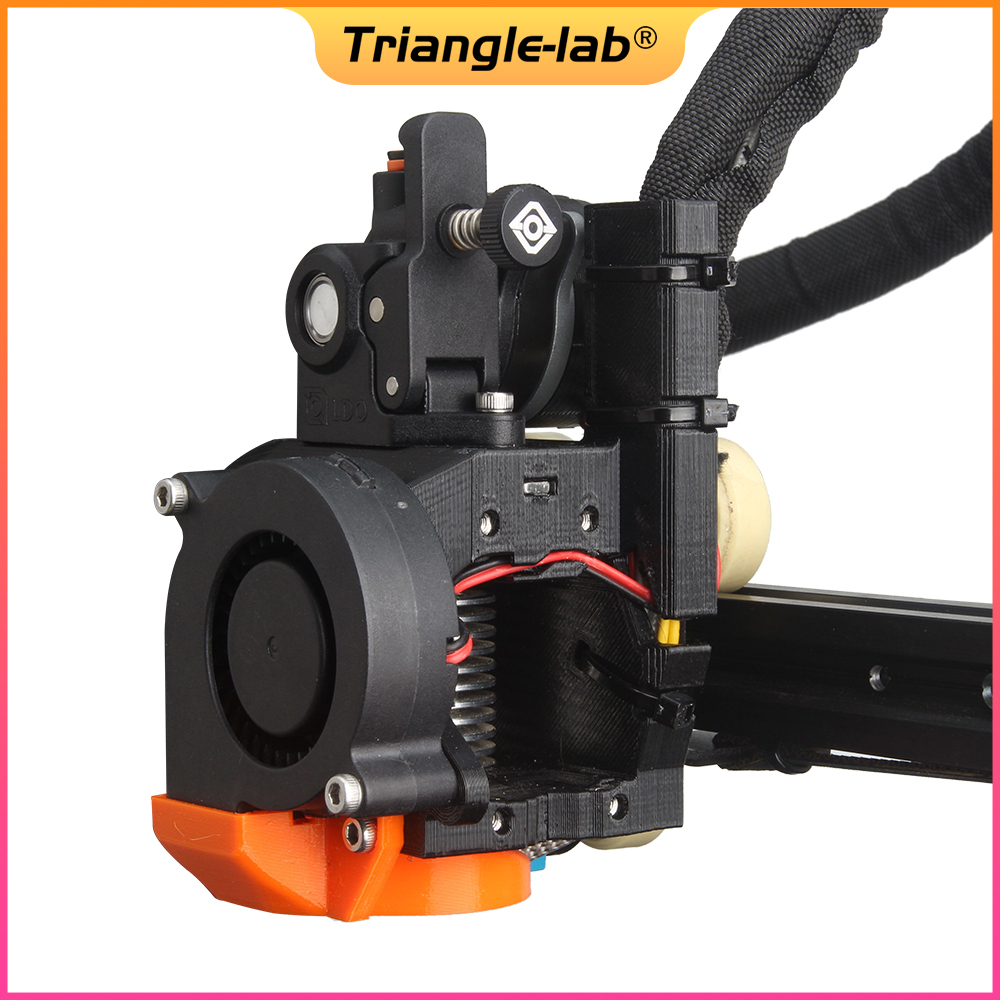

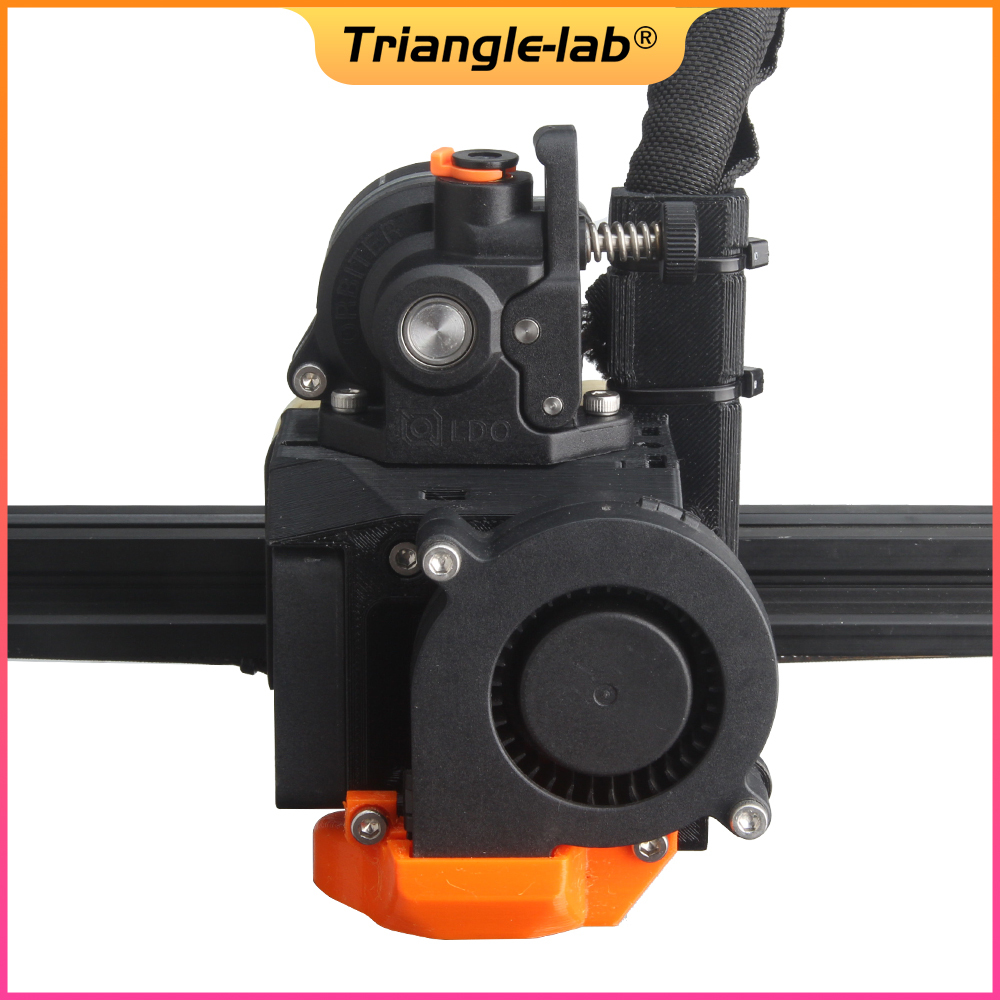

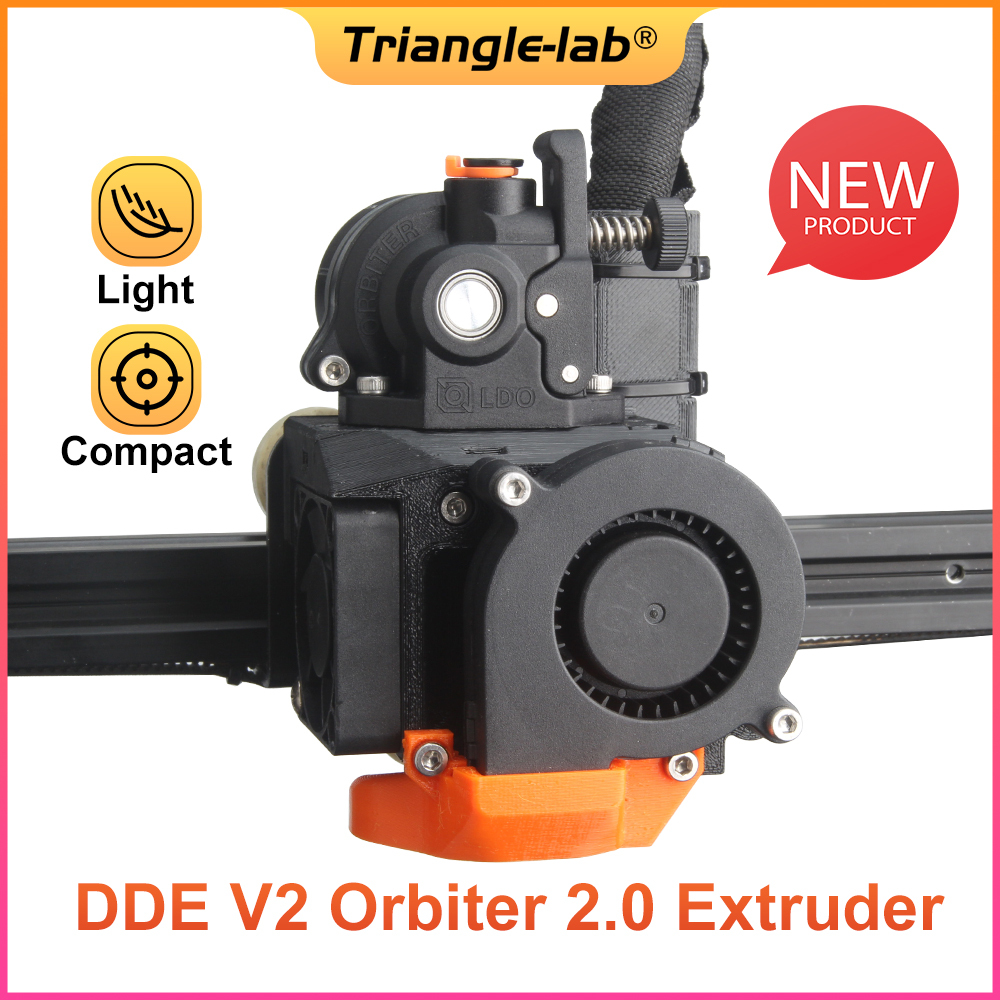

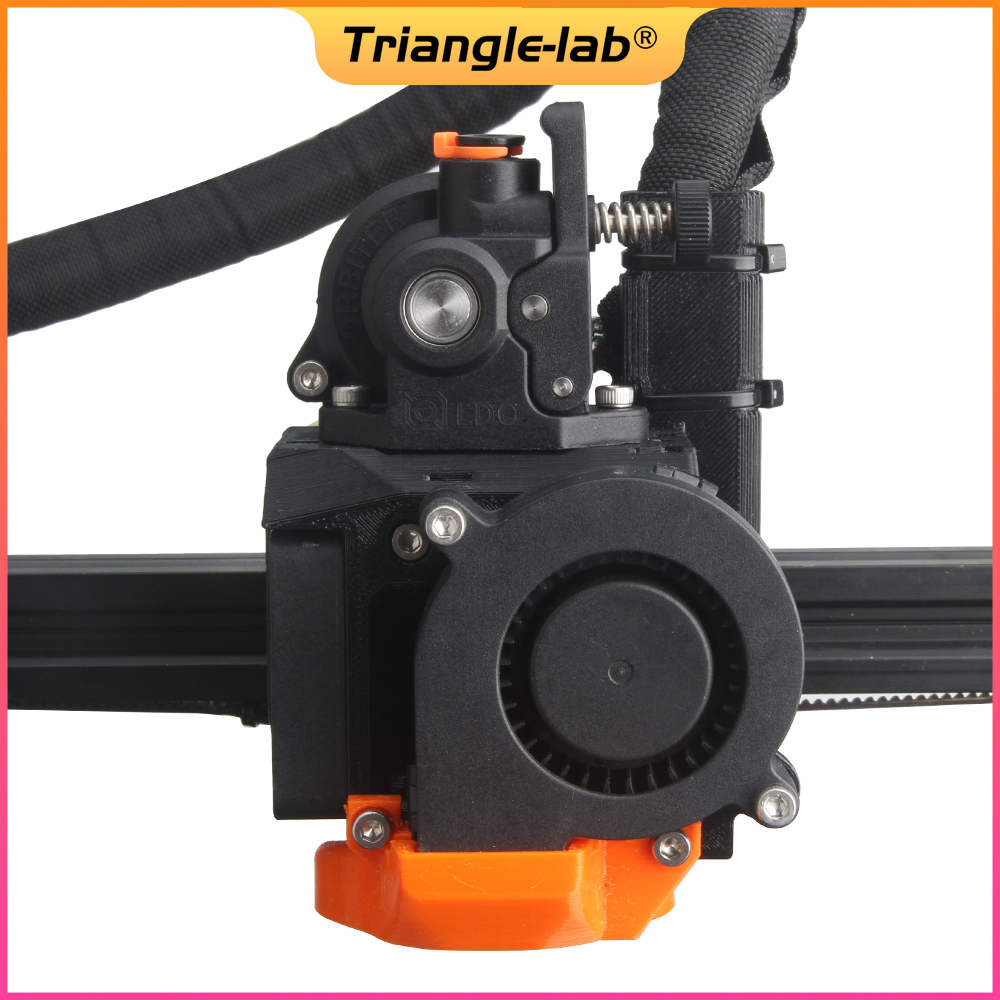

DDE V2-Orbiter 2.0 Extruder
Warning:
Installation tutorial & STL & DDE V2.0 Packaging List:
Features:
Compatible:
Note
This kit fits some early models of the ENDER3 CR10/S&PRO ENDER5 and some other brands that cloned Creality printer. All of these printers must have the same or similar X-axis sled back plate. See drawing down below.
Composition
High quality component parts.
1.Orbiter 2.0 Extruder
2.LDO stepper motor
3.V6 All Metal hotend
4.DDE V2.0 Basic Kit
The new DDE V2.0 extruder,it is possible to print even more precise 3D printed parts.
Excellent compatibility
Compatible with DDB Extruder,Orbiter Extruder 2.0,TBG-Lite Extruder.
DDE V2.0 Support a wide range of sensors.
Compatible with 3D Touch,M8,M12,M18inductive proximity sensor.
Orbiter 2.0 Extruder
Steps: 690 steps/mm @ 16 micro-stepping
Max. instantaneous speed change (jerk): 600mm/min(RRF), 10mm/s
(Marlin) (recommended 300/5)
Pressure advance: 0.02~0.03s - to be calibrated
Retraction: 1~1.5mm - to be calibrated
Retraction speed: 120mm/s
Motor current: 1.2A Peak or 0.85A RMS (LDO-36STH20-1004AHG)
Acceleration: 10000 mm/s2 *
Normal motor operating temperature: 60-75°C
*The extruder itself without filament can handle acceleration up to
25000mm/s2. Adding weight of the filament it drags along its
recommended to have acceleration limit set not above 10000mm/s2
Hotend
40W Heater Cartridge
V6 Aluminium Heatsink
All Metal Heatbreak
Aluminium Alloy Heat block
V6 Brass Nozzle
Details
Compatible not only with v6 heat block,
but also with volcano heat block.
Compatible with CHC Kit,CHC Pro
Dual ball bearing long life fan
5015 Blower fan,4010 fan
LDO Motor
Technical Details
What's in the box
DDE V2.0 Basic Kit List:
PETG Printed Parts
Wire Harness
Misc
SET1:12V DDE V2-Orbiter 2.0 All KIT
12V DDE V2.0 Basic Kit
Orbiter 2.0 Extruder

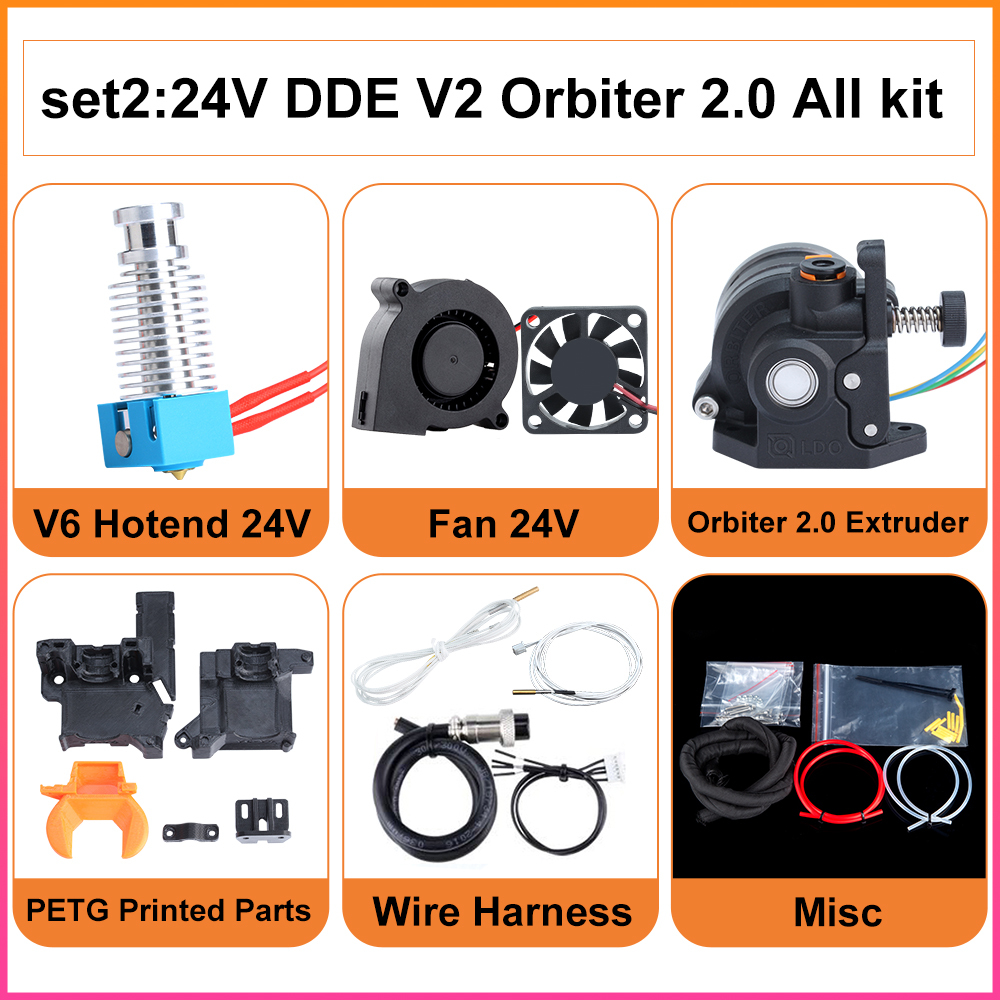

SET2:24V DDE V2-Orbiter 2.0 All KIT
24V DDE V2.0 Basic Kit
Orbiter 2.0 Extruder

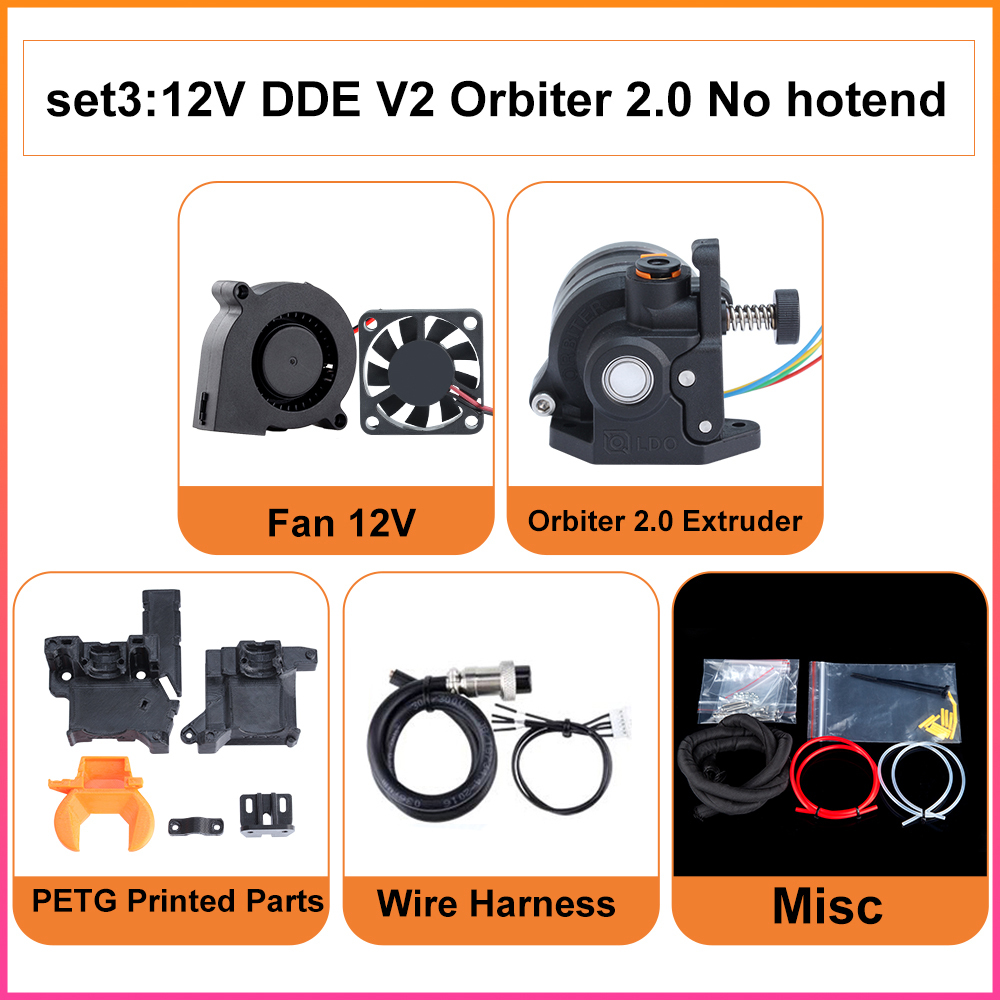

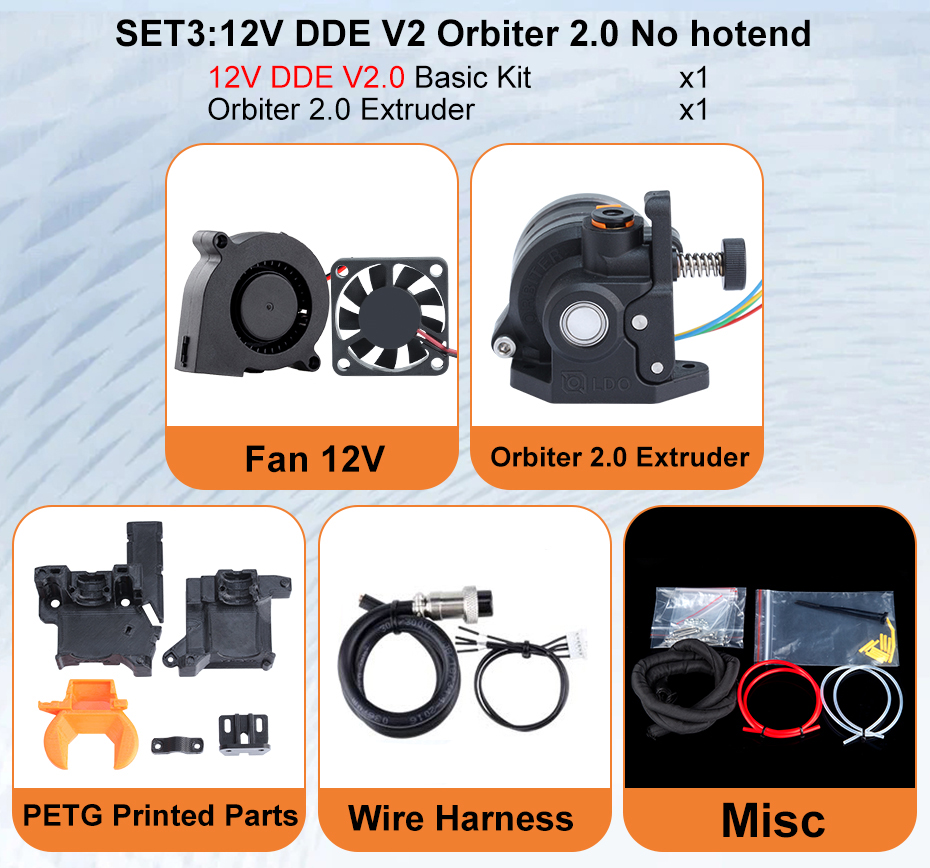

SET3:12V DDE V2-Orbiter 2.0 No hotend
12V DDE V2.0 Basic Kit
Orbiter 2.0 Extruder

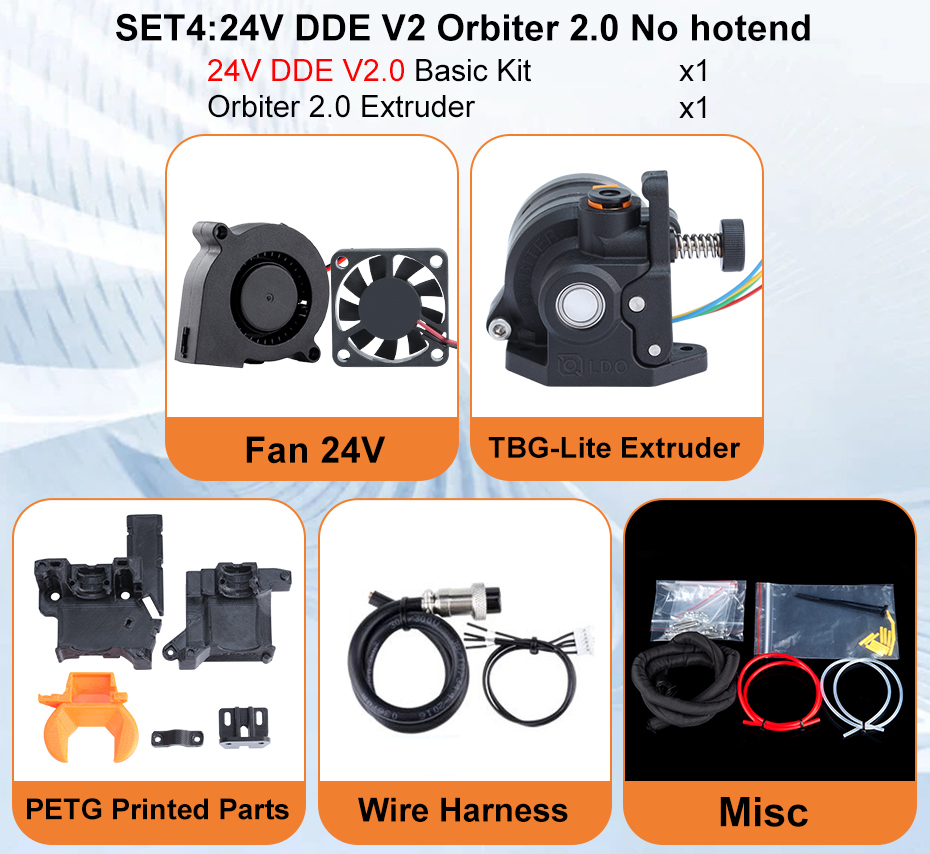

SET4:24V DDE V2-Orbiter 2.0 No hotend
24V DDE V2.0 Basic Kit
Orbiter 2.0 Extruder

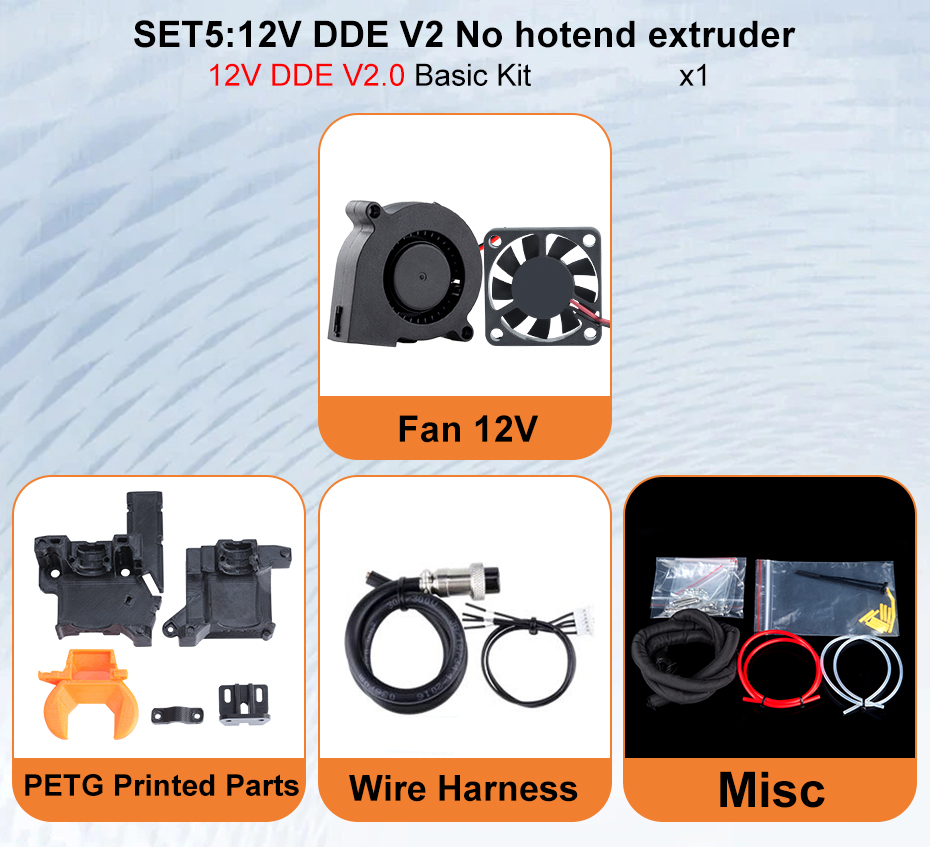

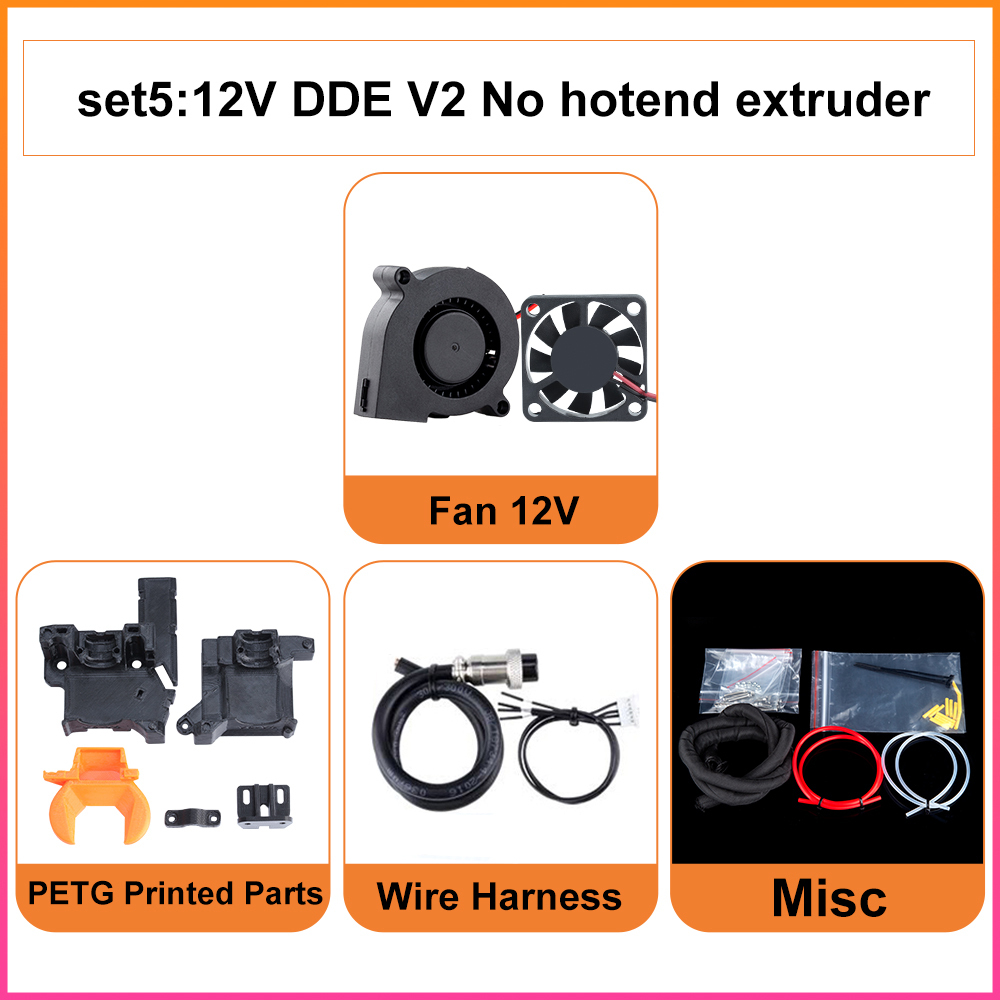

SET5:12V DDE V2-Orbiter 2.0 No hotend extruder
12V DDE V2.0 Basic Kit

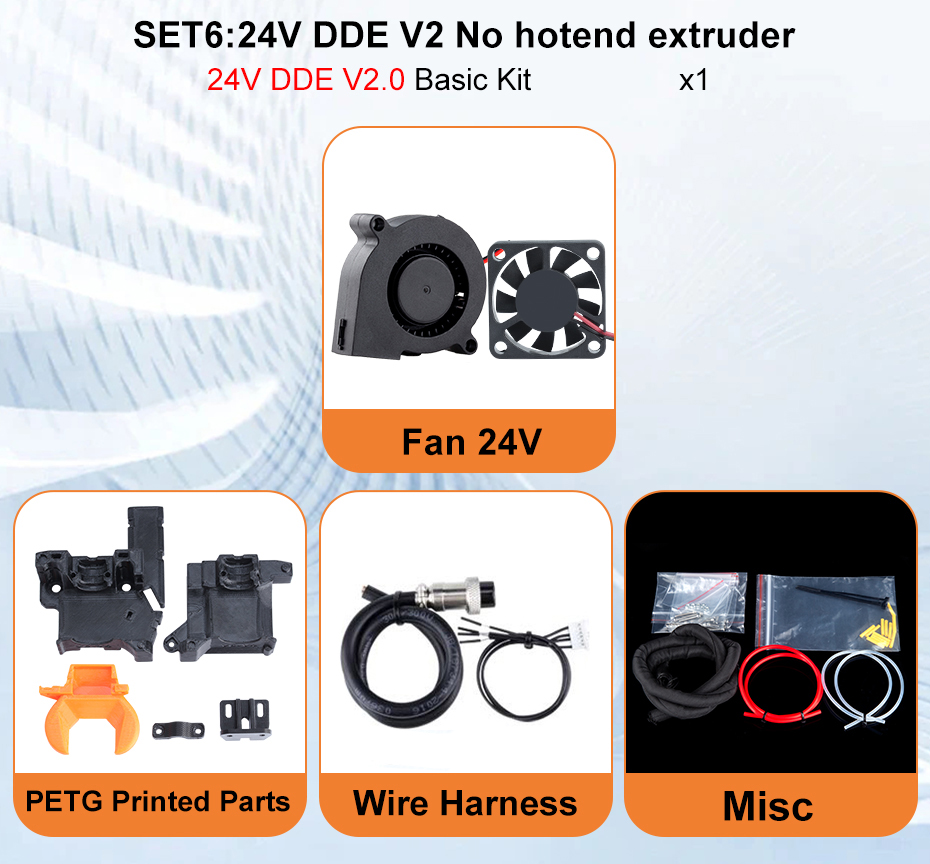

SET6:24V DDE V2-Orbiter 2.0 No hotend extruder
24V DDE V2.0 Basic Kit
