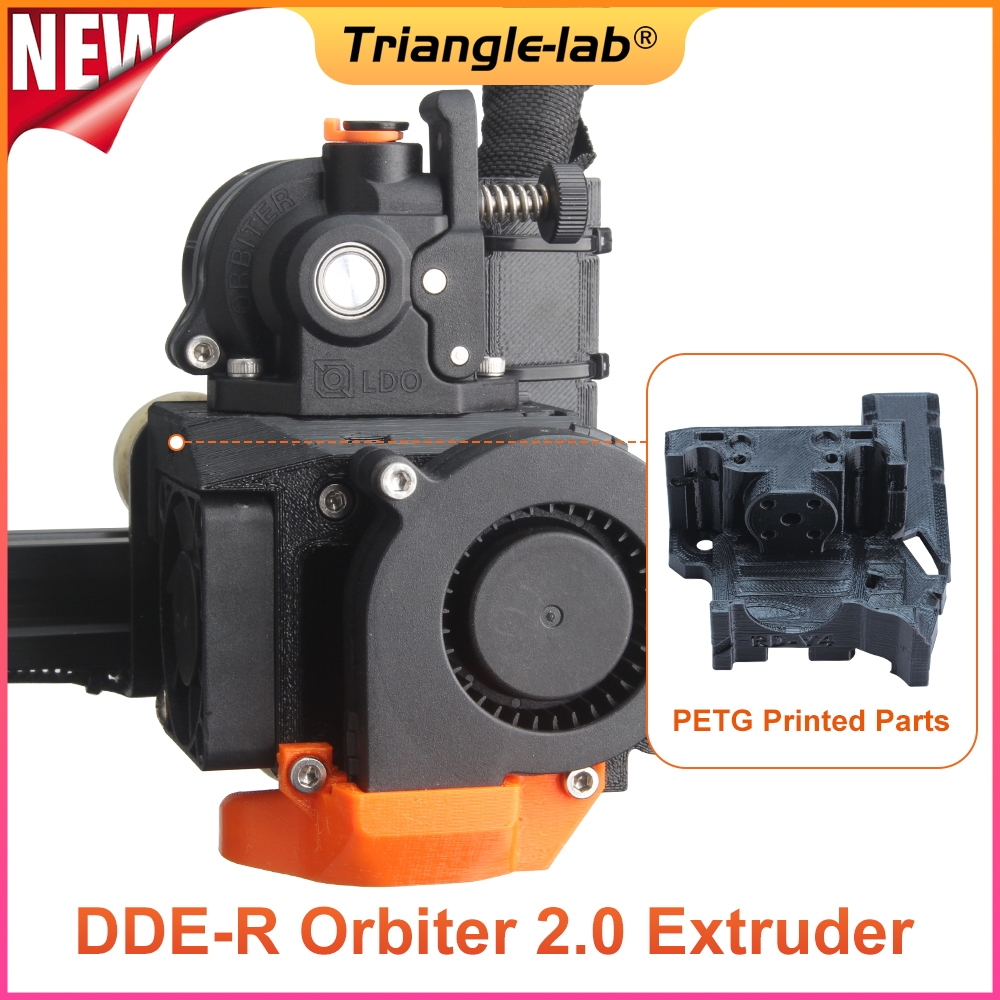

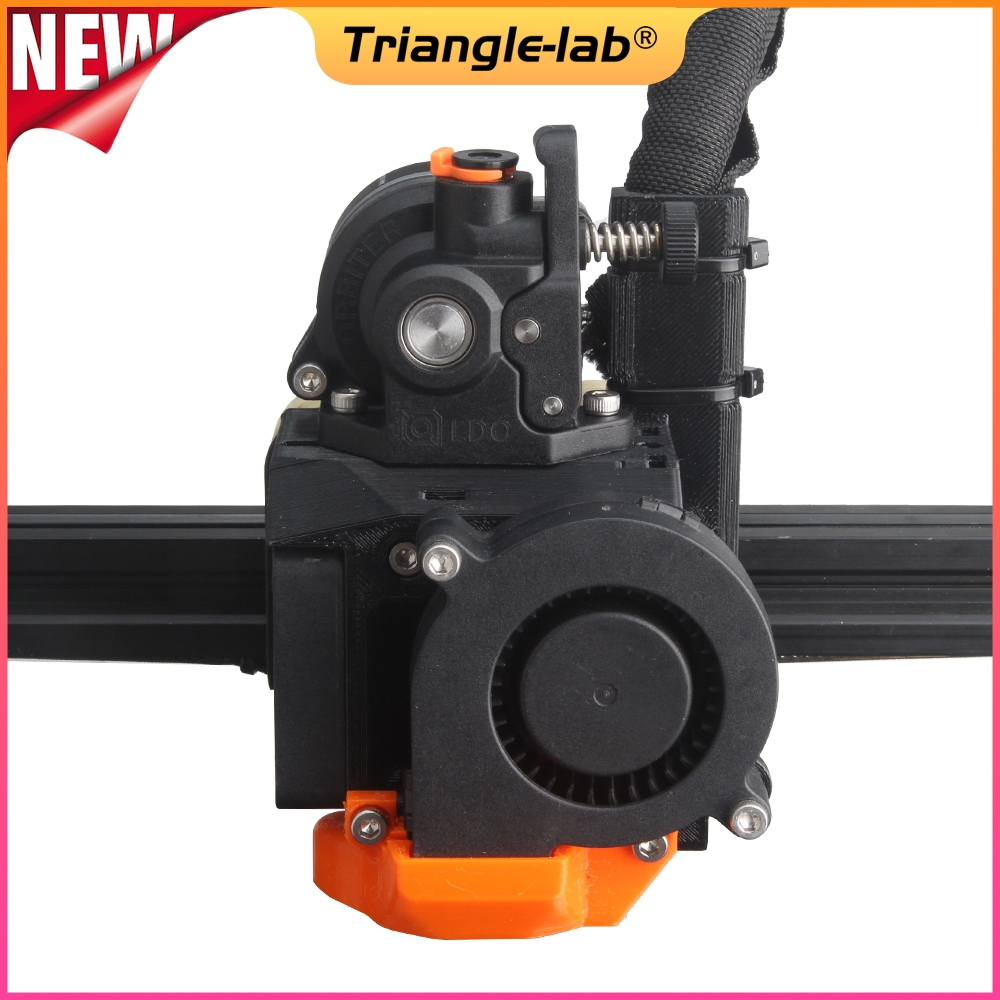

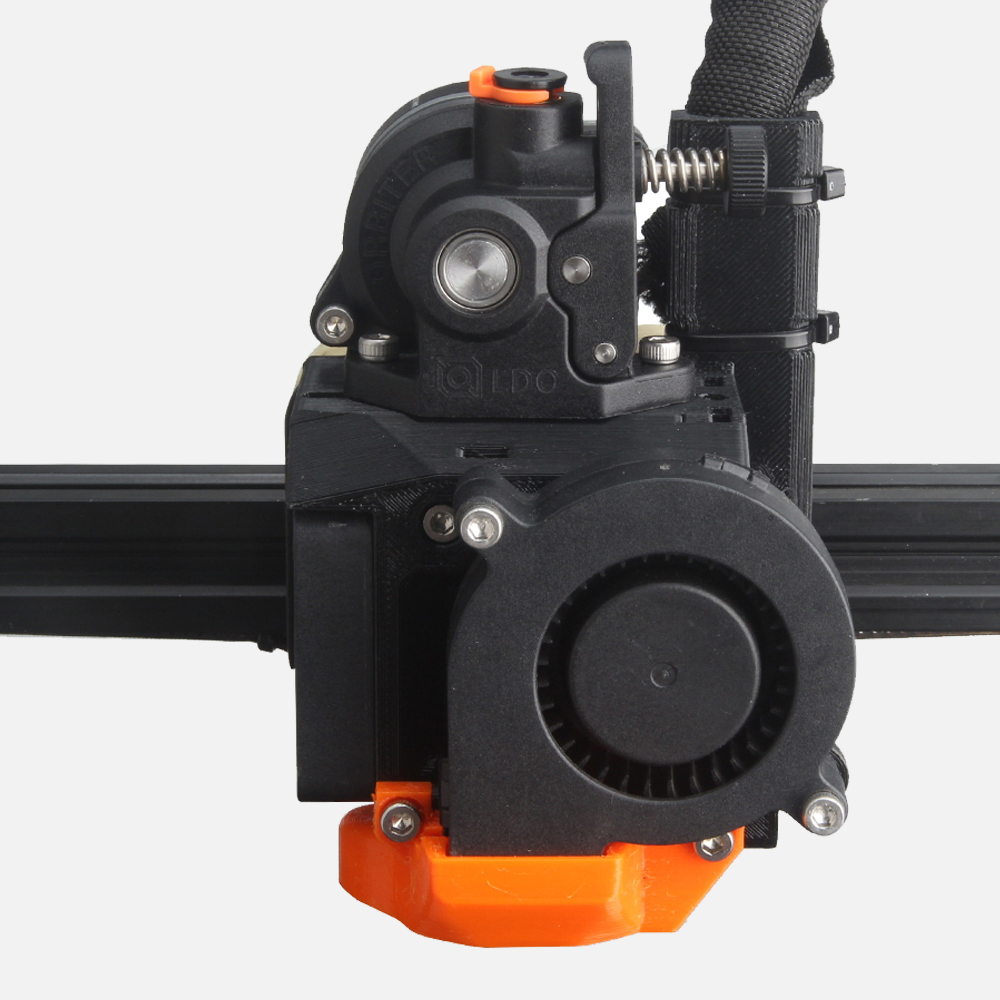

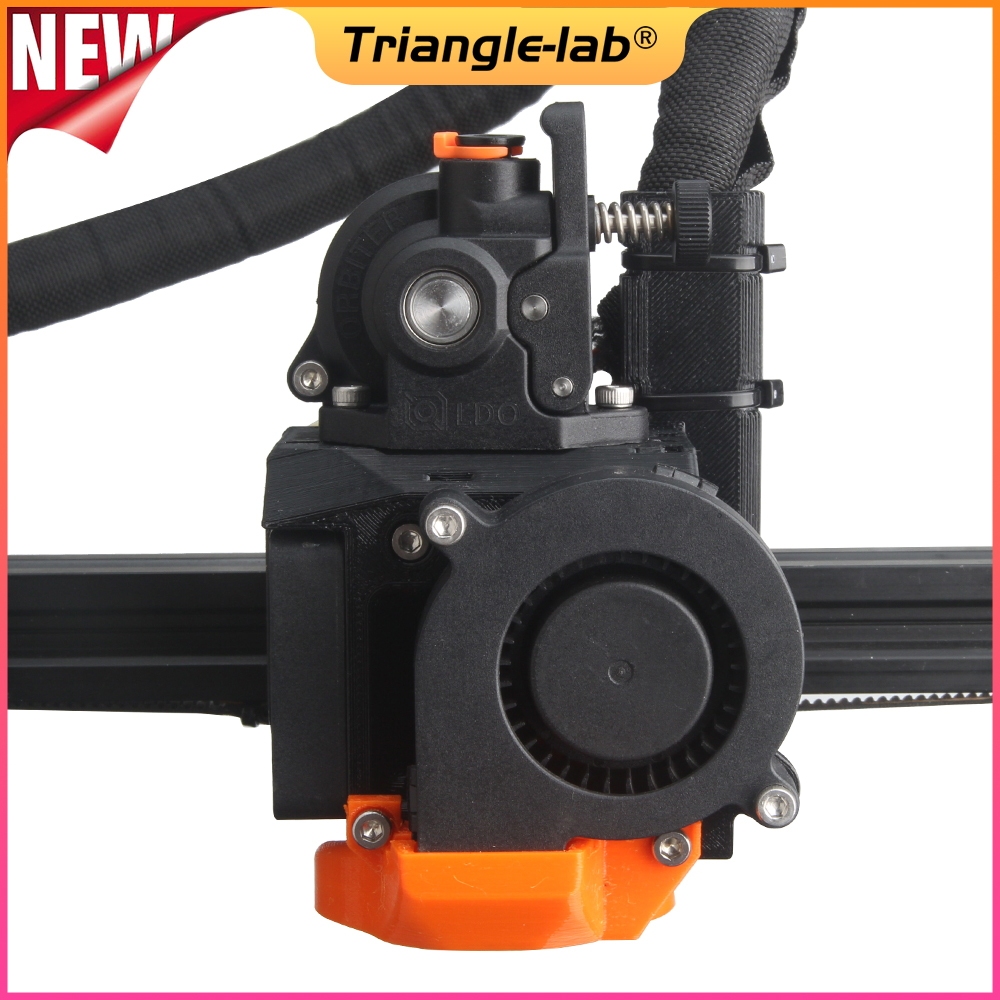

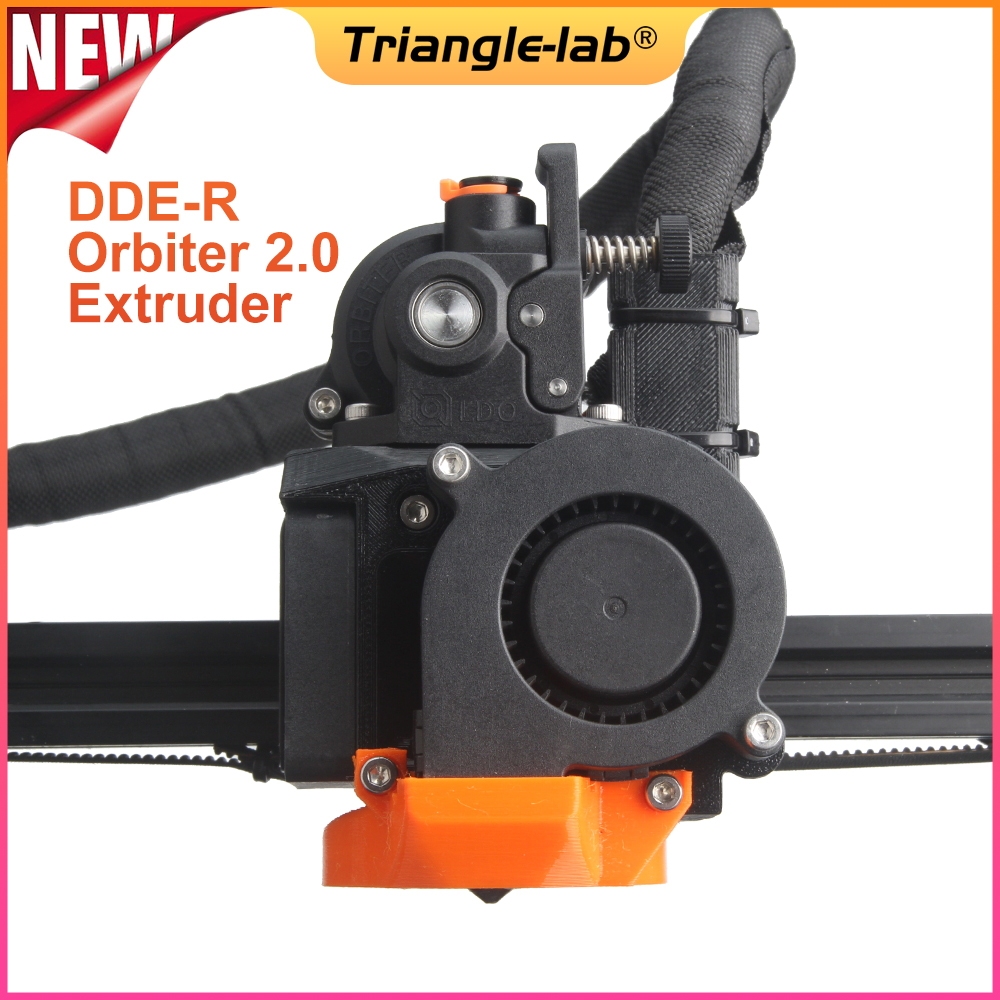

DDE-R Orbiter 2.0 Extruder

Warning:

Please check the instructions provided before purchasing. This product requires you to modify the cable. Need to patiently solder some cables and look at the circuit diagram. If you are not willing to do so. Then please do notpurchasing.

Installation tutorial & STL & DDE-R Packaging List:

Please click here!

Features:

Trianglelab DDE-R Extruder,Compatible with Dragon hotend, This will be a very amazing 3D printer upgrade kit. It can effectively improve the performance of your 3D printer. You may be shocked by such high upgrades. But it did. Please throw away the old extrusion head system on your machine. We welcome any creator to create a unique high performance monster.

Compatible:

Ender 3,CR10,CR10 S PRO,
And similar machines.*The connection line requires a little hands-on ability.
Alfawise u20 needs a backplane,click here to buy backplane.
Note

This kit fits some early models of the Ender3 CR10/S&PRO Ender5 and some other brands that cloned Creality printer. All of these printers must have the same or similar X-axis sled back plate. See drawing down below.

Composition

High quality component parts.

1.Orbiter 2.0 Extruder

2.LDO motor

3.DDE V2.0 Basic Kit

The new DDE V2.0 extruder,it is possible to print even more precise 3D printed parts.

Hotend

Compatible with Dragon hotend,Rapido hotend,TD6S hotend,
V6DM hotend.

Details

Compatible not only with v6 heat block,but also with volcano heat block.

Compatible with CHC Kit,CHC Pro.

Excellent compatibility

Compatible with DDB Extruder,Orbiter Extruder 2.0,TBG-Lite Extruder.

Orbiter 2.0 Extruder

Steps: 690 steps/mm @ 16 micro-stepping

Max. instantaneous speed change (jerk): 600mm/min(RRF), 10mm/s

(Marlin) (recommended 300/5)

Pressure advance: 0.02~0.03s - to be calibrated

Retraction: 1~1.5mm - to be calibrated

Retraction speed: 120mm/s

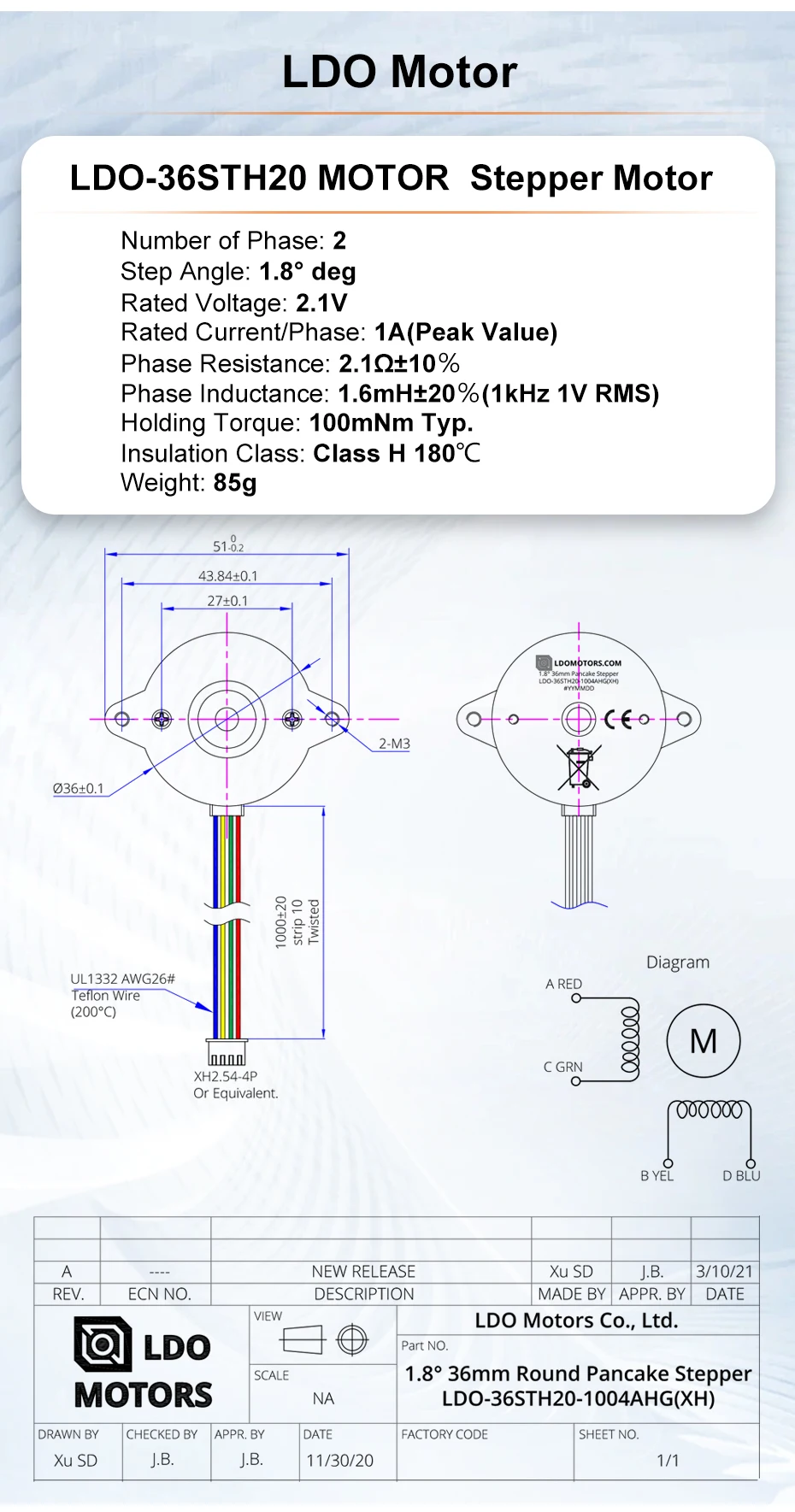

Motor current: 1.2A Peak or 0.85A RMS (LDO-36STH20-1004AHG)

Acceleration: 10000 mm/s2 *

Normal motor operating temperature: 60-75°C

*The extruder itself without filament can handle acceleration up to
25000mm/s2. Adding weight of the filament it drags along its
recommended to have acceleration limit set not above 10000mm/s2

Dual ball bearing long life fan

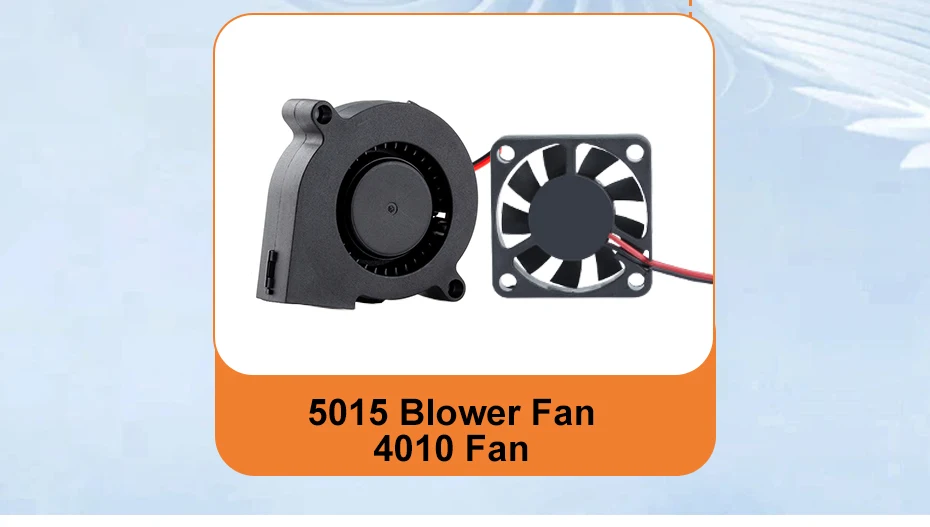

5015 Blower fan,4010 fan

Technical Details

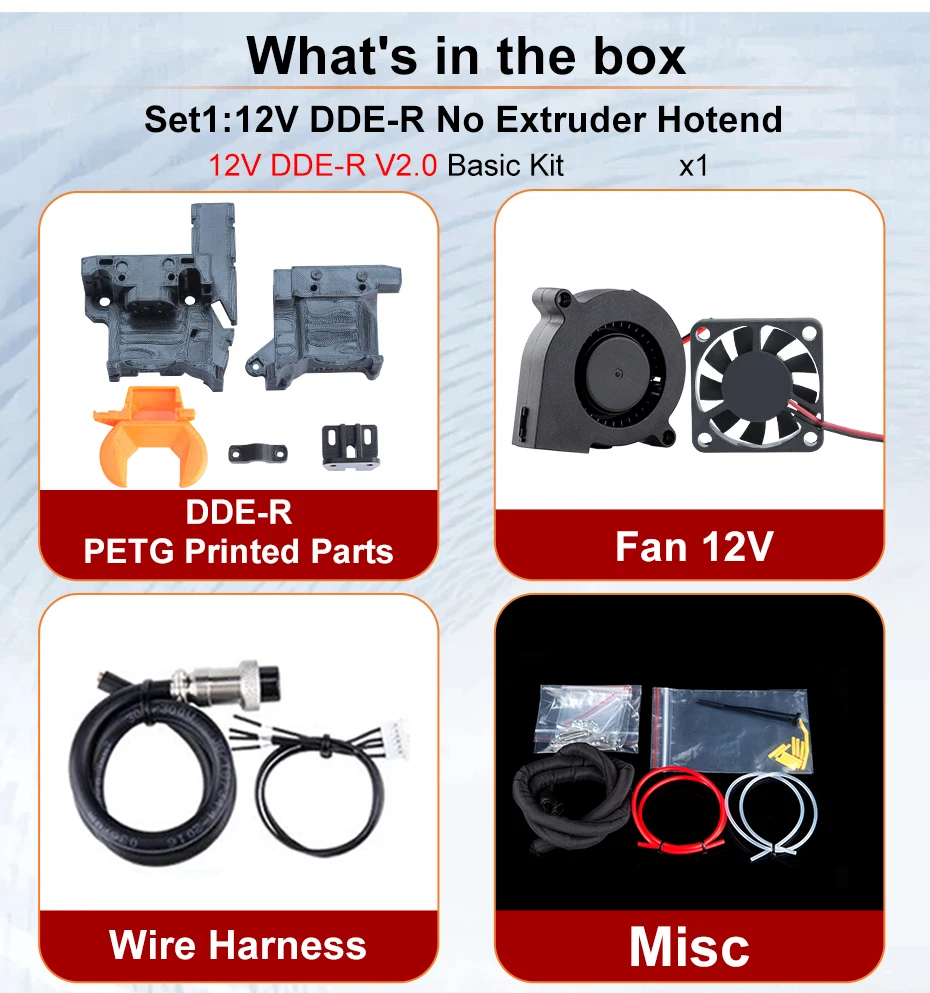

What's in the box

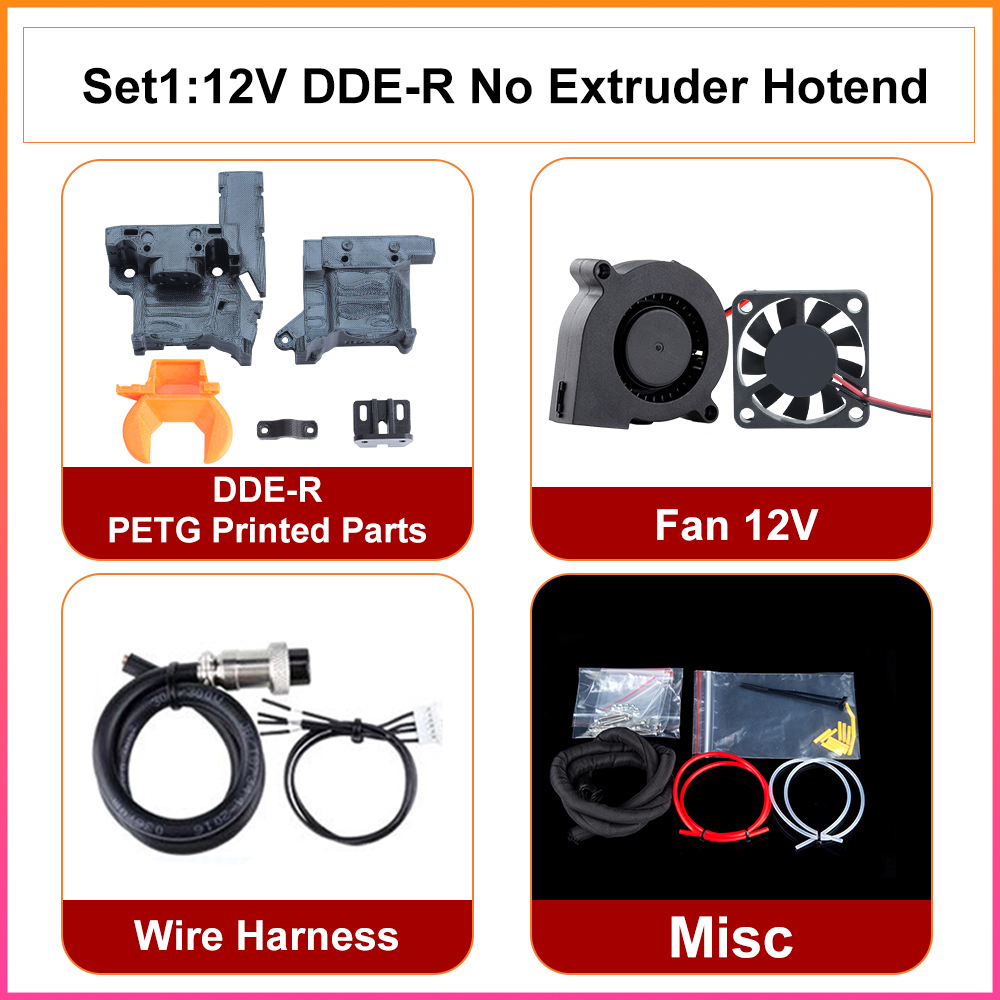

Set1:12V DDE-R No Extruder Hotend

12V DDE-R V2.0 Basic Kit

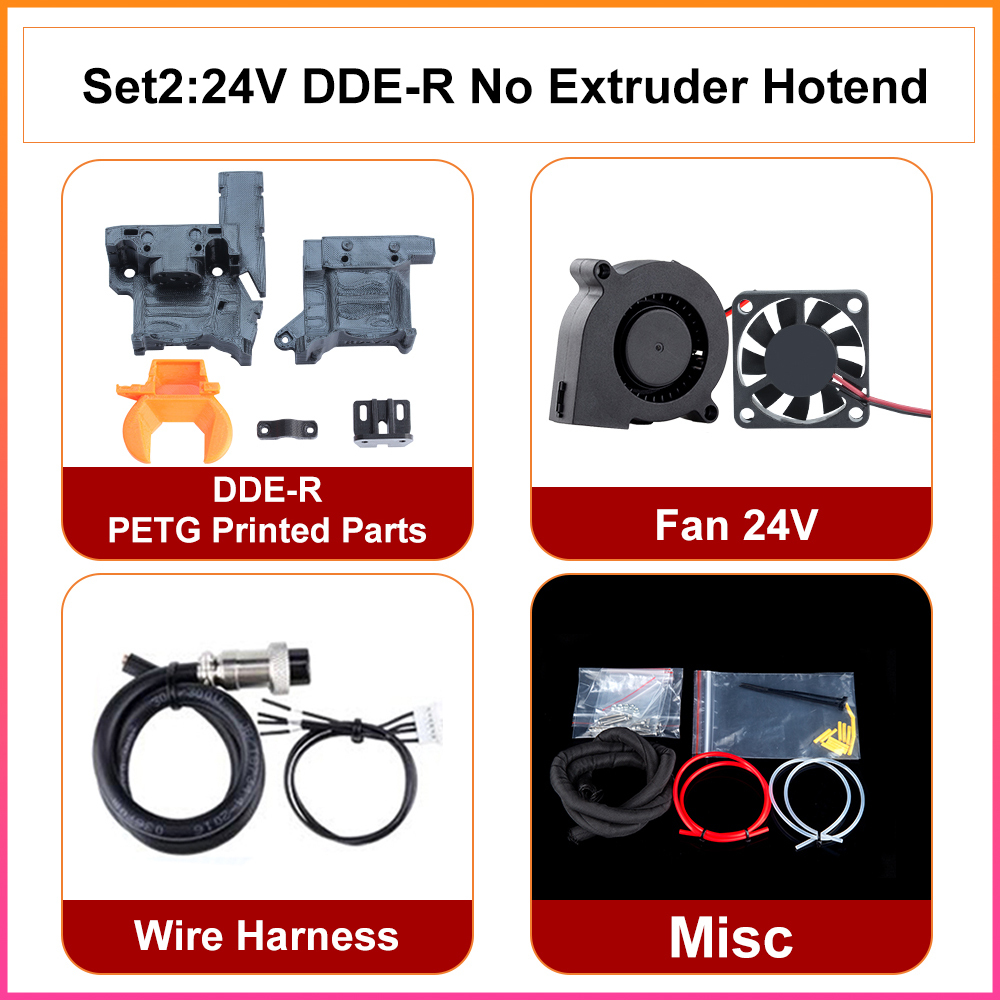

Set2:24V DDE-R No Extruder Hotend

24V DDE-R V2.0 Basic Kit

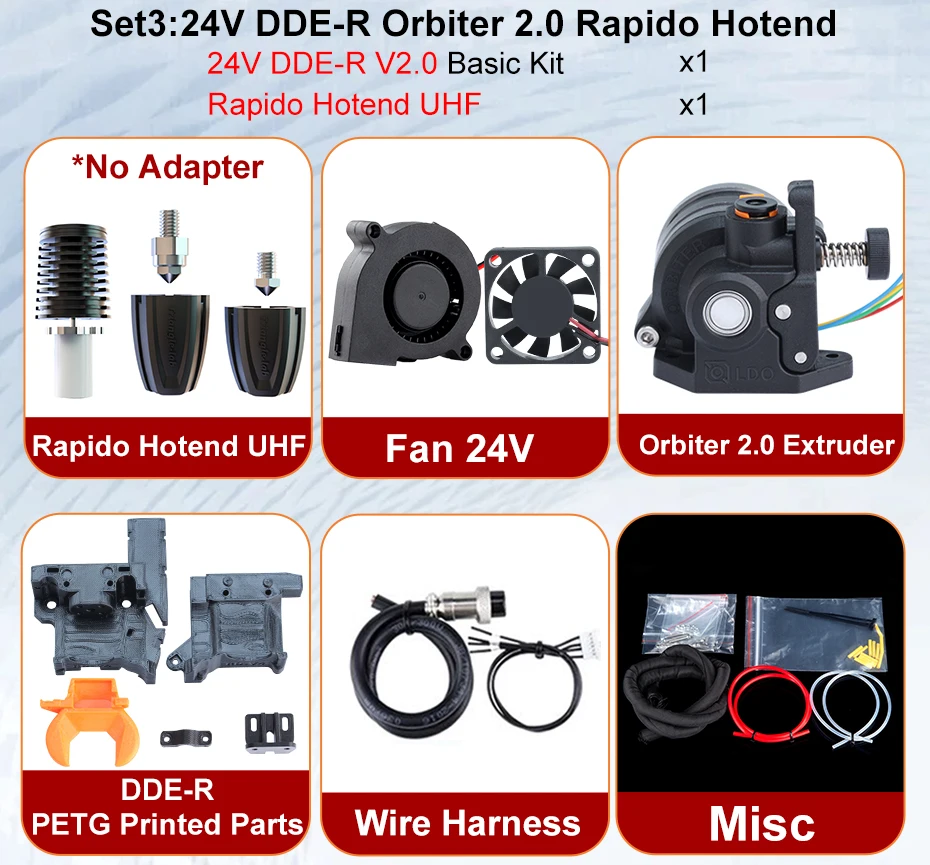

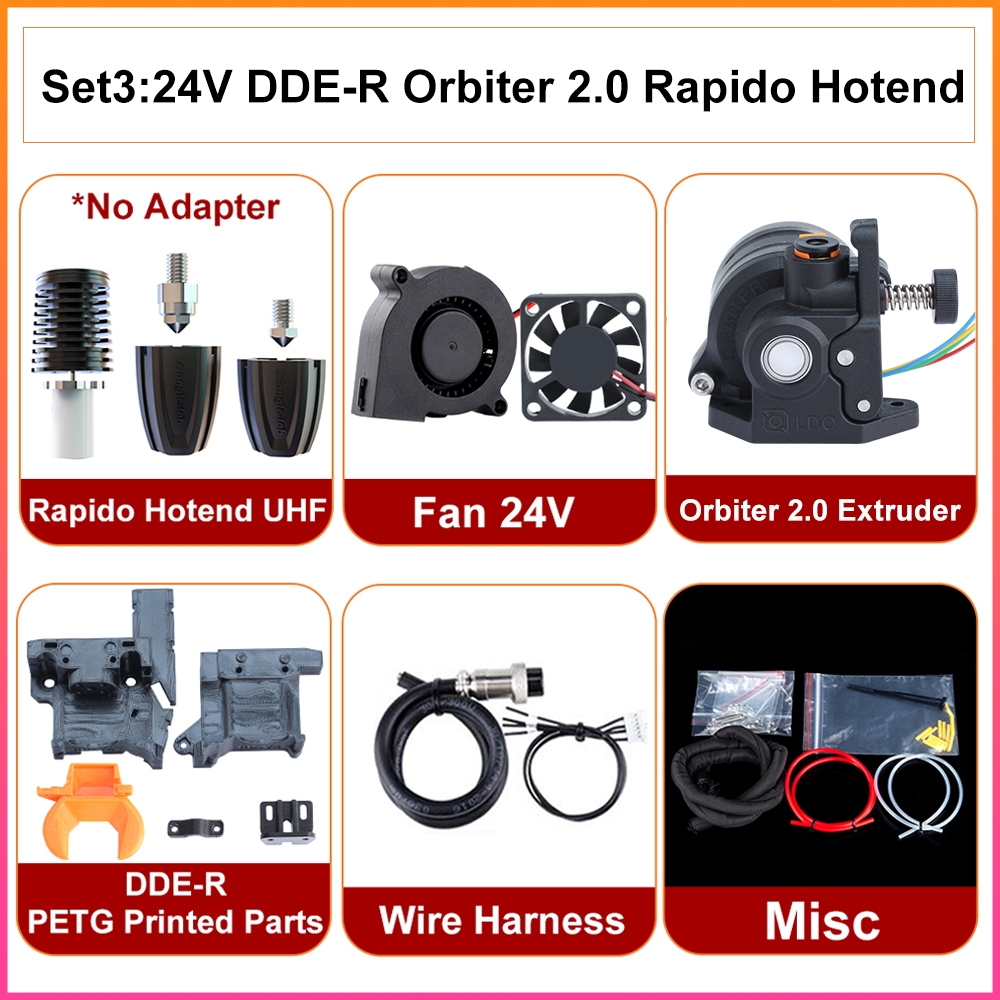

Set3:24V DDE-R Orbiter 2.0 Rapido Hotend

24V DDE-R V2.0 Basic Kit

Rapido Hotend UHF

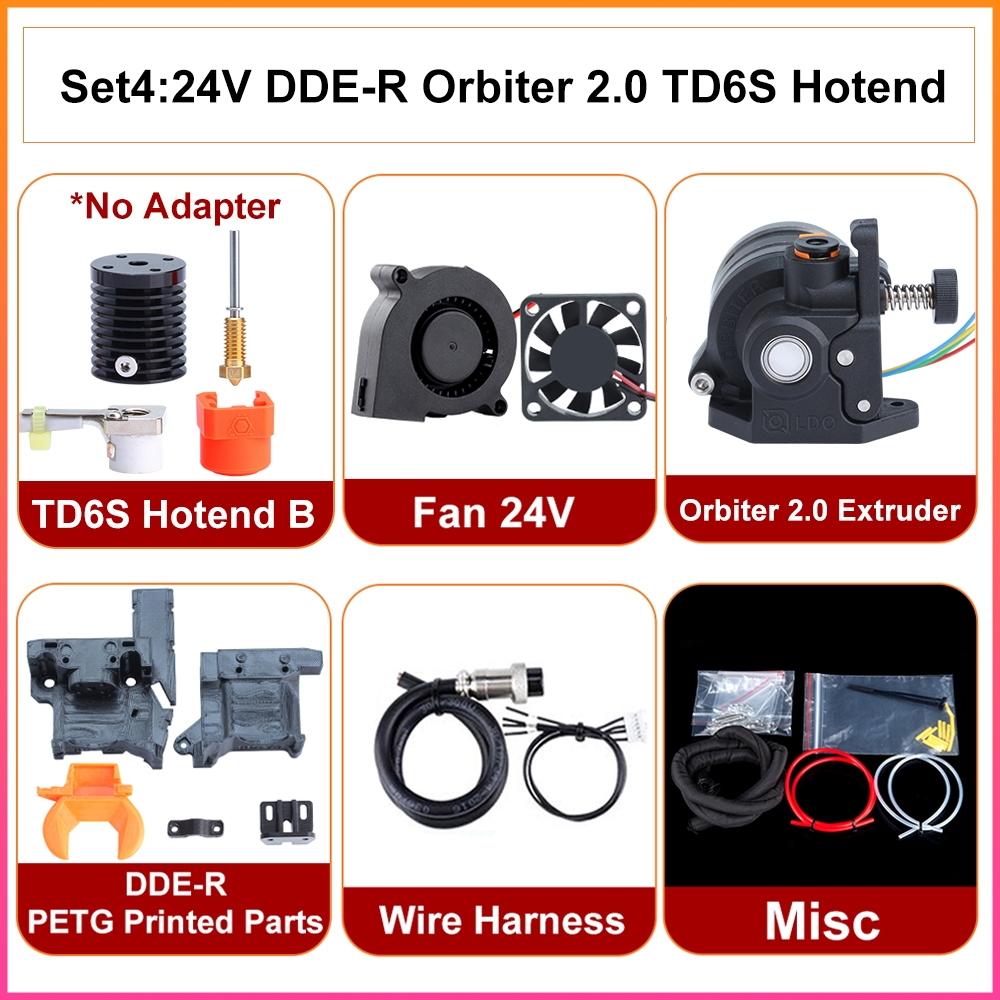

Set4:24V DDE-R Orbiter 2.0 TD6S Hotend

24V DDE-R V2.0 Basic Kit

TD6S Hotend B

Set5:24V DDE-R Orbiter 2.0 V6DM Hotend

24V DDE-R V2.0 Basic Kit

V6DM Hotend
