Home > Extruder > DDE Direct Drive Extruder

1/1

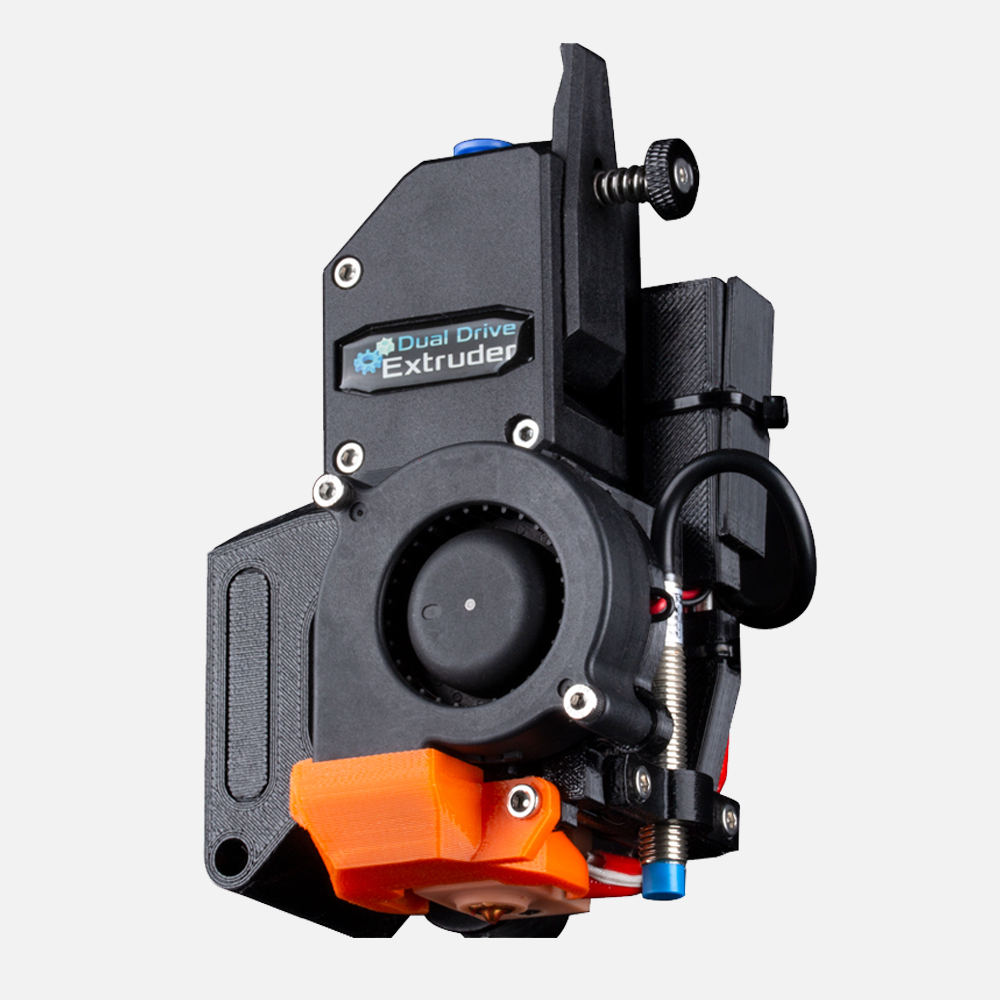

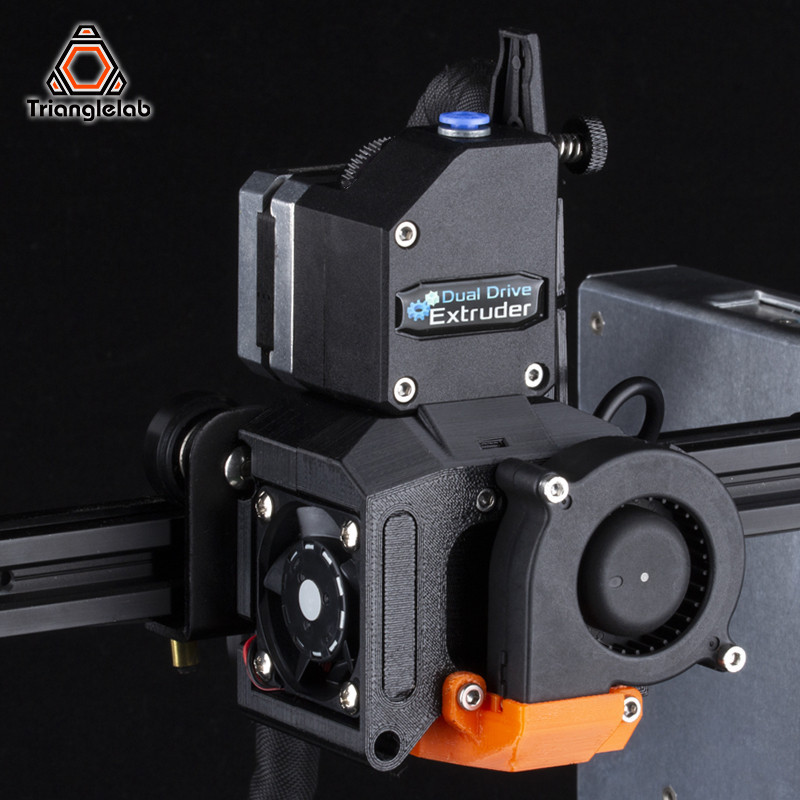

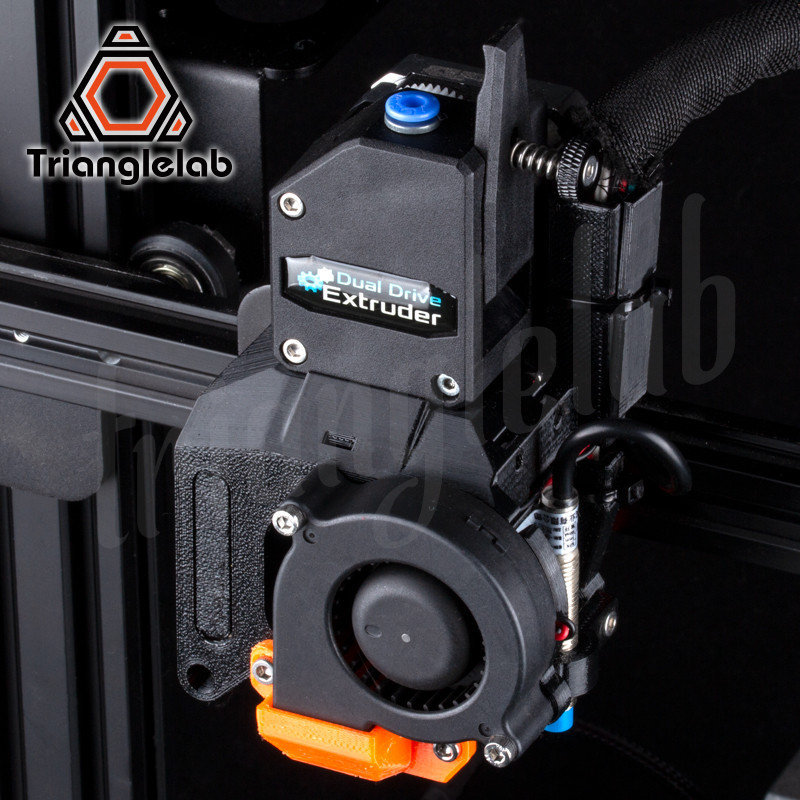

DDE Direct Drive Extruder

Name: DDE Direct Drive Extruder
Brand: Trianglelab Official Website
Price: 62.09 USD
Availability: InStock
Rating: 4.9 (6 reviews)

Trianglelab DDE Direct Drive Extruder Upgrade Kit For Creality3D Ender-3/CR-10 series 3D printer Great Performance Improvement

Limited Offer!

4.9 (6 Reviews)

121 Sold

~~$79.60~~ $62.09

-22%

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

SIZE:

12V DDE ALL KIT

24V DDE ALL KIT

12V DDE Basic kit

24V DDE Basic kit

12V DDE DDB Basic kit

24V DDE DDB Basic kit

CR-10S PRO Basic Kit

CR-10S PRO DDB Basic kit

Quantity:

Add to Favorites (84)

1/1

ABOUT TAX

Prices for the US and EU are tax-inclusive. All prices are tax-exclusive. For other countries/regions,（Except the EU and the US） import duties, VAT, and other charges are the recipient’s responsibility upon customs clearance.Any delays, returns, or fees resulting from failure to pay duties and taxes shall be borne by the recipient.

Description

Before ordering, please note that all our products do not include tax, you need to declare your own tax!
If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.
Technical questions e-mail：support@trianglelab.net
Sales questions e-mail：sales@trianglelab.net
The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.
Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

▉About logistics description:

Because the package contains strong magnets, ordinary logistics cannot be transported. So no matter which kind of logistics you choose. We will modify the logistics you choose. The package will be transported by air transportation of special dangerous goods, or other logistics. We will ensure that your package arrives as soon as possible. Thanks for your trust.
▉Warning:
Please check the instructions provided before purchasing. This product requires you to modify the cable. Need to patiently solder some cables and look at the circuit diagram. If you are not willing to do so. Then please do notpurchasing.

▉Installation tutorial & STL

https://drive.google.com/drive/folders/1KL6InrIttUU6s1C7EP5DR8_zmNnUmlQb
▉Features:
Trianglelab Direct Drive Extruder upgrade kit(T-DDE), This will be a very amazing 3D printer upgrade kit. It can effectively improve the performance of your 3D printer. You may be shocked by such high upgrades. But it did. Please throw away the old extrusion head system on your machine. We welcome any creator to create a unique high performance monster.
▉100% TESTED:
Because We test all units before shipping, Therefore, the accessories you receive may leave traces of installation. This is not because you have received the old item. This is the trace of our employees when testing the product for you.
▉Compatible:
Ender 3
CR10
CR10 S PRO
And similar machines.
*The connection line requires a little hands-on ability.
Upgrade Notice:Upgraded on August 23, 2019,adding customized harnesses, all customers who purchased after August 23, 2019 will receive an upgrade line.

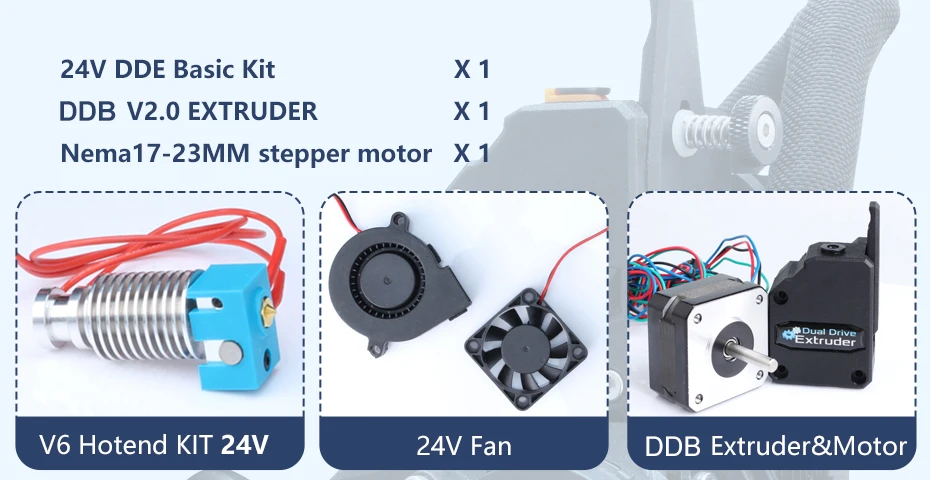

What is in the box?
A complete DDE consists of: DDB V2.0 EXTRUDER, Nema17-23MM stepper motor , All Metal V6 hotend, DDE Basic Kit. With the Trianglelab upgrade it is possible to print even more precise 3D printed parts.

DDE supports a wide range of sensors
3D Touch，M8 inductive proximity sensor，M8 mini inductive proximity sensor

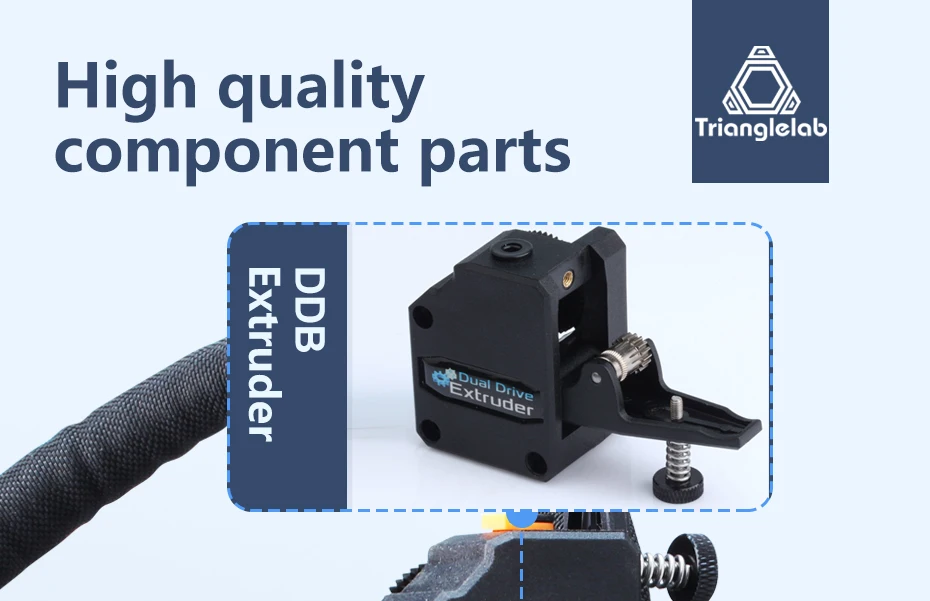

DDB V2.0 Extruder

The upgraded DDB V2.0 is designed with a skeletonized weight saving design, a hard shell, Hardened steel nickel plated dual drive gear, HRC60+, Driving force 15KG, Filament Guide made of POM-PTFE, which reduces the friction of the filament. Reduced filament friction.

Trianglelab Hardened steel nickel plated, compared to other brands of gears tested

Hybird stepping motor specification:

1.8° NEMA17 23mm Stepper Motor

NEMA 17
Number of Phase 2
Step Angle 1.8° deg.
Rated Voltage 5.5V
Rated Current/Phase 1A(Peak Value)
Phase Resistance 5.5Ω±10％(20℃)
Phase Inductance 6.7mH±20％(1kHz 1V RMS)
Holding Torque 2.0 kg.cm
Insulation Class B(130℃)
Weight 0.15kg

Low noise

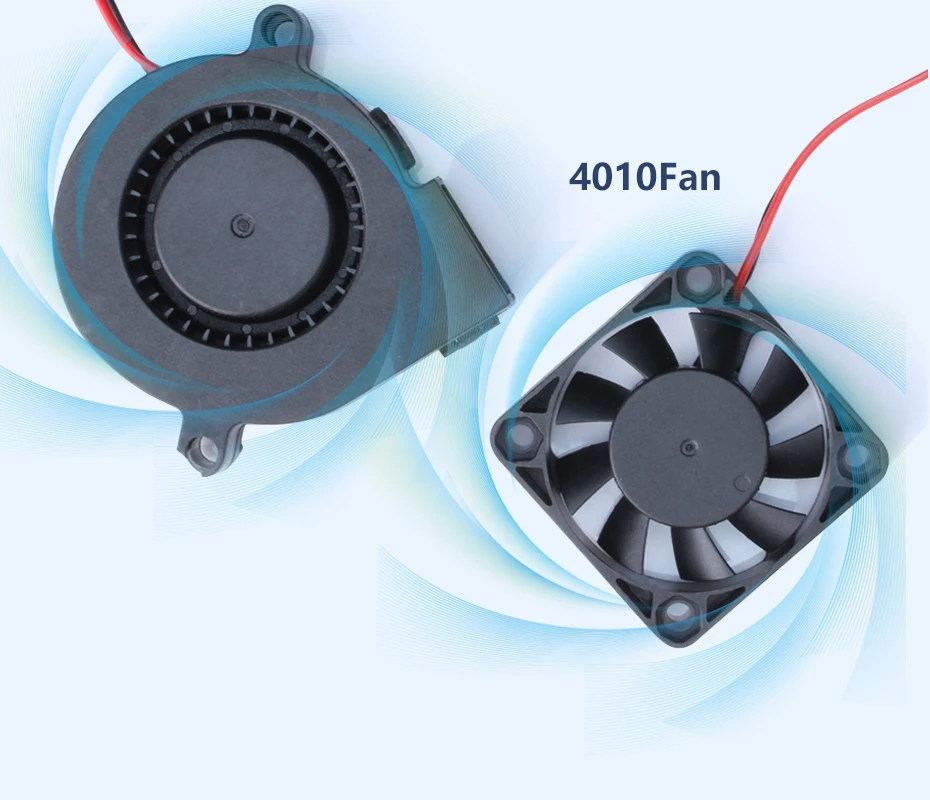

Strong wind cooling rapidly

1x Left hotend fan

1x Front print fan

Hight quality all meatl V6 Hotend KIT

40W Heater Cartridge Thermistor Cartridge

V6 Aluminium Heatsink

All Meat Heatbreak

Aluminium Alloy Heatblock

V6 Brass Nozzle

what is in the box
SET1: 12V DDE ALL KIT
12V DDE Basic Kit X 1
DDB V2.0 EXTRUDER X 1
Nema17-23MM stepper motor X 1

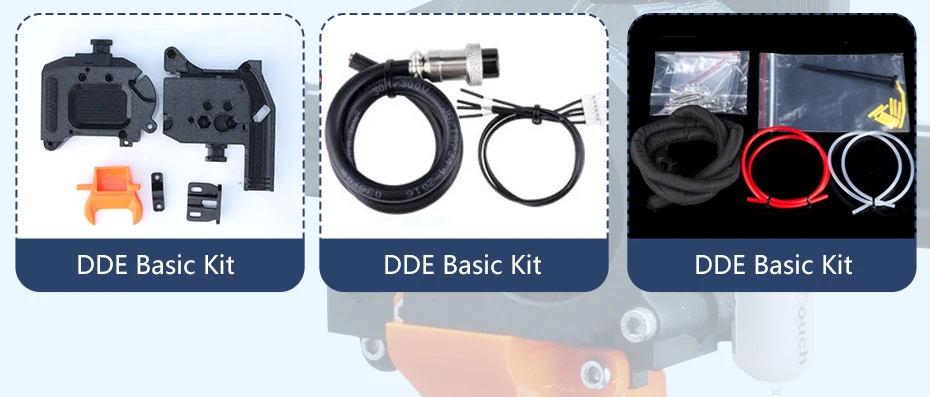

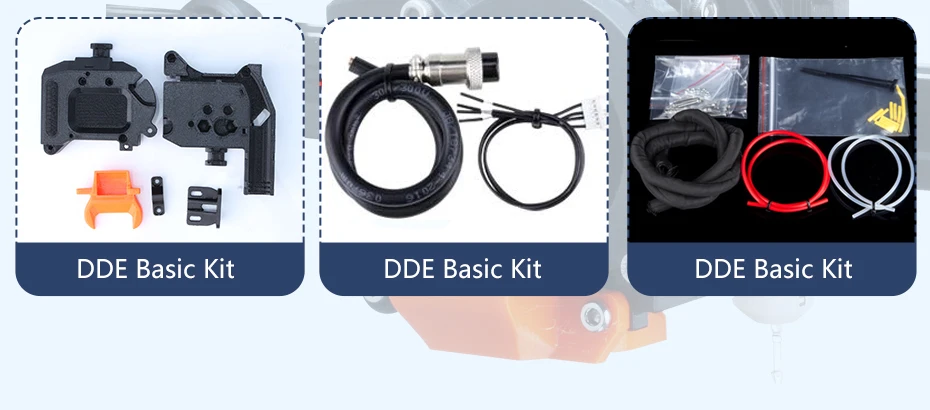

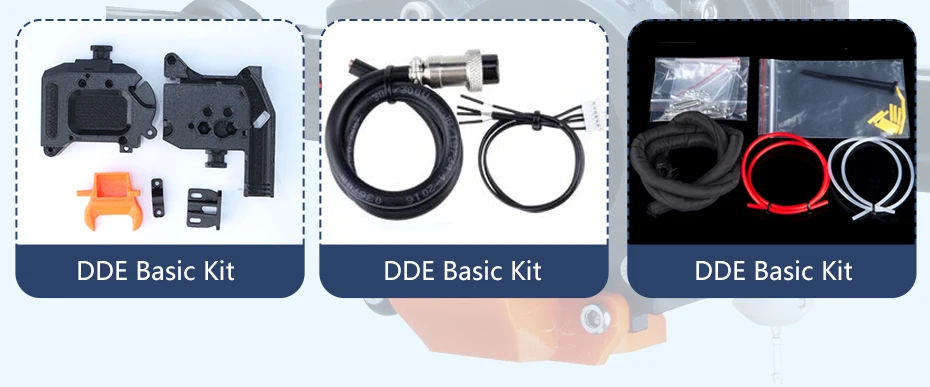

▉DDEBasic Kit List:
*PETG printedparts:
DDB_CR-10_printhead_base x 1
DDB_CR-10_printhead_upper x 1
Fan_duct x 1
cable_support_lid x 1
BLtouch_mounting_bracket x 1
PINDA_mounting_bracket x 1

SET2: 24V DDE ALL KIT

24V DDE Basic Kit X 1

DDB V2.0 EXTRUDER X 1

Nema17-23MM stepper motor X 1

SET3: 12VDDE Basic Kit

12V DDE Basic Kit X 1

SET4: 24VDDE Basic Kit

24V DDE Basic Kit X 1

SET5: 12V DDE DDB BasicKIT

12V DDE Basic Kit X 1
DDB V2.0 EXTRUDER X 1

SET6: 24VDDE DDBBasicKIT

24V DDE Basic Kit X 1

DDB V2.0 EXTRUDER X 1

SET7: CR-10S PRODDE Basic Kit
24V DDE Basic Kit X 1

SET8: CR-10S PRODDE DDBBasicKIT

24V DDE Basic Kit X 1

DDB V2.0 EXTRUDER X 1

*Fastener:
M3 Square nut x8
M3 Hex nut x5
Zip tie x3
M3X10 x10
M3x35 x4
M3x20 x4
M3 spring washer x4
*Electric:
4010 24v FAN 1meter wire with 4 self-tapping screws x 1
5015 24V FAN 1meter wire x 1
XH2.54 wire red x 2
XH2.54 wire black x 2
XH2.54 2P housing x 2
V6 hotend 1meter wire 24Vheater cartridge + 104GT or NTC 100K B3950 thermistor x 1
*Accessories:
4x2 PTFE TUBE L=58MM chamfered
OD=3MM L=90CM Nylon filament
Textile sleeve L=90CM
shrink tube

*The following are optional items (please buy in the store)*

Optional:

DDB V2.0 dual-drive extruder
Nema17-23MM stepper motor
M8 5V proximity sensor
TL-touch ABL sensor(3D TOUCH SENSOR)

▉NOTE:

1 We recommend that you purchase a full set of upgraded accessories directly. This is more convenient. If you already have a DDB extruder and a stepper motor, then please purchase the base kit.Please note that all packages do not include accessories for AUTO BED LEVELING, which need to be purchased separately.
2 DDE supports 3D Touch Sensor and M8 inductive proximity sensor
▉warning:
This kit may need you to cut wires on your machine. If you afraid of splice and soldering wires or can not study the circuit diagram or not be familiar with playing with firmware please do not purchase this kit.

▉Photo display:

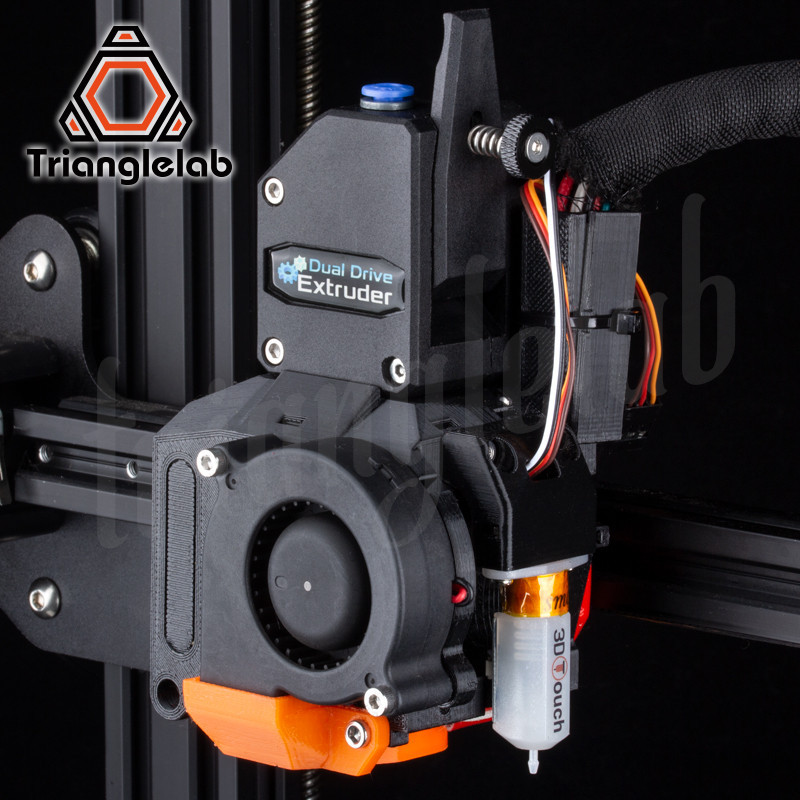

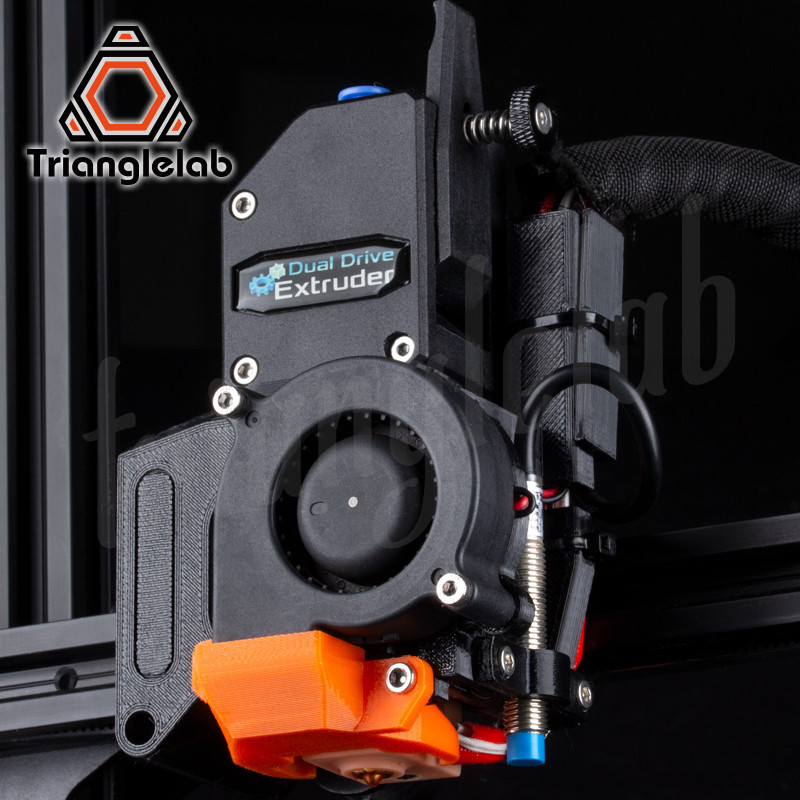

Two different sensors are demonstrated in our photo. for reference only.
The 3D touch or M8 inductive proximity sensor is not included in the product. They need to be purchased separately.

▉warning:
Please check the instructions provided before purchasing. This product requires you to modify the cable. Need to patiently solder some cables and look at the circuit diagram. If you are not willing to do so. Then please do not buy.

▉Installation tutorial & STL:

https://drive.google.com/drive/folders/1KL6InrIttUU6s1C7EP5DR8_zmNnUmlQb

▉Flexibility

The accessories in the photo are for demonstration purposes only.
This accessory is not included in the product.
