DDB Extruder

Trianglelab DDB Extruder V2.0 Bowden & Dual Drive Extruder For 3d Printer Ender 3 CR10  TEVO BLV Ender5 DDE dragonfly dragon
0.0 (0 Reviews)
42 Sold
$35.60 $26.70
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
  • MODE:
    Left DDB Extruder
    Right DDB Extruder
Quantity
-
+
  • Description
Note
All products purchased on this website are not include tax, including and not limited to: Consumption tax, Value added tax, customs duties, etc,
Before placing an order, please check your country's policies and regulations on online shopping taxes.
The amount you pay does not include tax and you will need to pay it yourself.
To purchase a tax-included products, please click the link below:
https://trianglelab.aliexpress.com/store/1654223
Thank you very much for purchasing high quality accessories manufactured by Trianglelab.Although our accessories are more expensive,we do not sell low-quality cheap products to our customers.Every customer is our good friend.We will treat every friend who trusts us sincerely.
The DDB utilizes an internal gearing ratio of 3:1 together with precision cnc-machined hardened steel drive gears to give you a compact powerhouse for all your applications.Whether you require high resolution prints with small nozzles or high-flow prints with big nozzles the optimized gearing ratio combined with our industry leading drive gears provides unparalleled pushing power and lightning fast retractions in a lightweight and compact package.
Very important notice!
Version upgrade notice:All DDB right-handed orders after September 19, 2020 will be upgraded to V2.0. The left-hand DDB still maintains the old model (no upgrade plan for the time being).
Orders made before September 19, 2020 will receive the old version of DDB. Please check the relevant upgrade analysis for specific upgrade content.
The old DDB only needs to purchase the new version of the shell to complete the upgrade.
*The purchase address of the right-hand version of the DDB shell:
https://www.aliexpress.com/item/1005001487288215.html

DDB Direct Drive & Bowden Extruder

▉Analysis of the highlights of the upgrade:
1: The position of the gear and the accuracy of all screw holes are calibrated.
2: Modified the new buckle, both sides of the V2.0 version of the DDB extruder support filament in and out (that is, it has no specified directionality, and you use either side of it as a material port)
3: The filament has an independent motion cabin inside the extruder. The white filament guide is made of a mixed material with lubricating properties. Its interior is very smooth, and it can withstand your crazy parameter settings.
4: A gap is reserved on the top to correspond to the threaded screw rod of the ender3 printer.
5: Brand new mixed materials, the shell is more rigid and tough.
DDB V2.0 Upgrade

Rigid Shell-Shell made of PA+GF30
Weight saving design
Nylon and glass fibre,The shell is sturdy and has a hollowed out interior which greatly reduces the weight of the case.

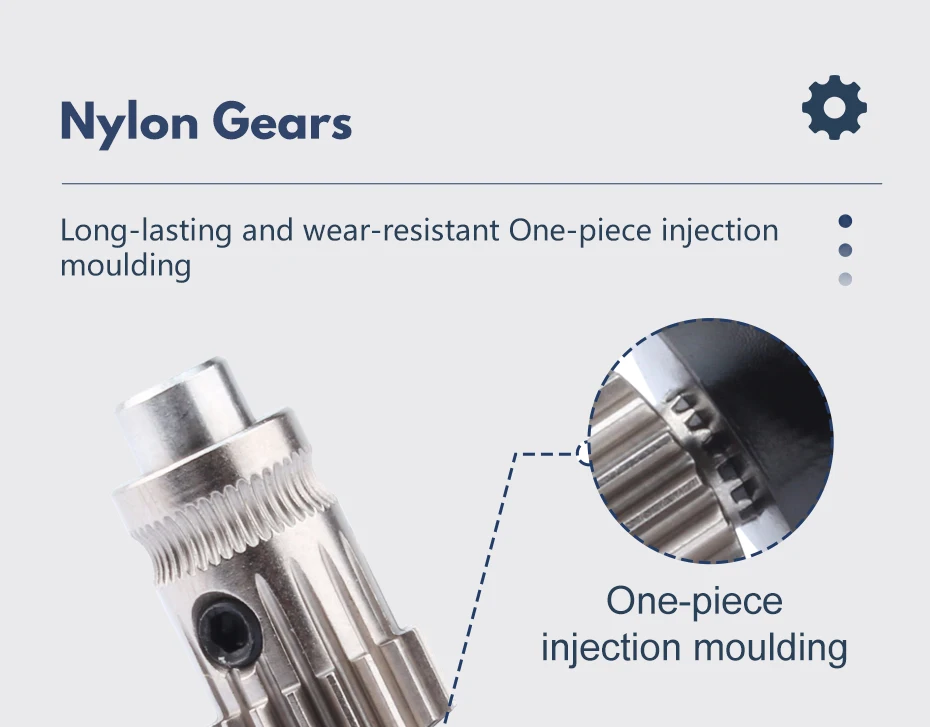

Nylon large gears
1.Nylon gears resistant to wear and tear.
2.One-piece construction of gears and metal bearings.

Driving force 15KG
Dual drive gear:Hardened steel nickel plated
Filament Guide:POM-PTFE
1.Smooth surface of POM-PTFE material
2.Low wear and self-lubrication is achieved when in contact with the filament.


Filament Guide-POM-PTFE:Low friction Self-lubricating
Friction comparison chart:
Other filament guides, after long hours of work, generate a lot of friction and the temperature rises causing them to wear out.
Trianglelab, Filament Guide, uses POM-PTFE as a raw material. Smooth surface, reduced friction and no wear after long working hours.

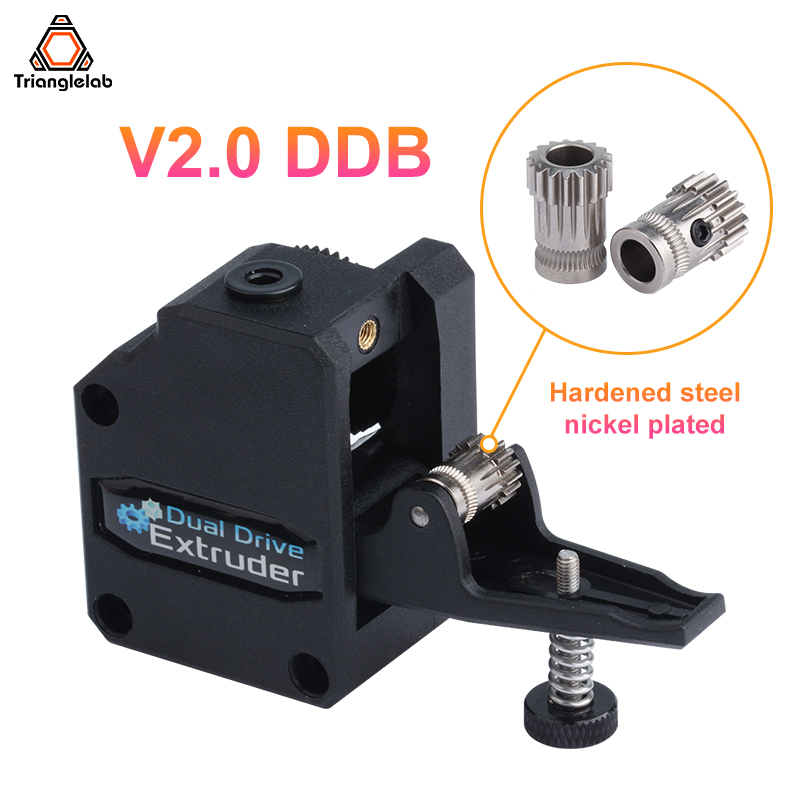

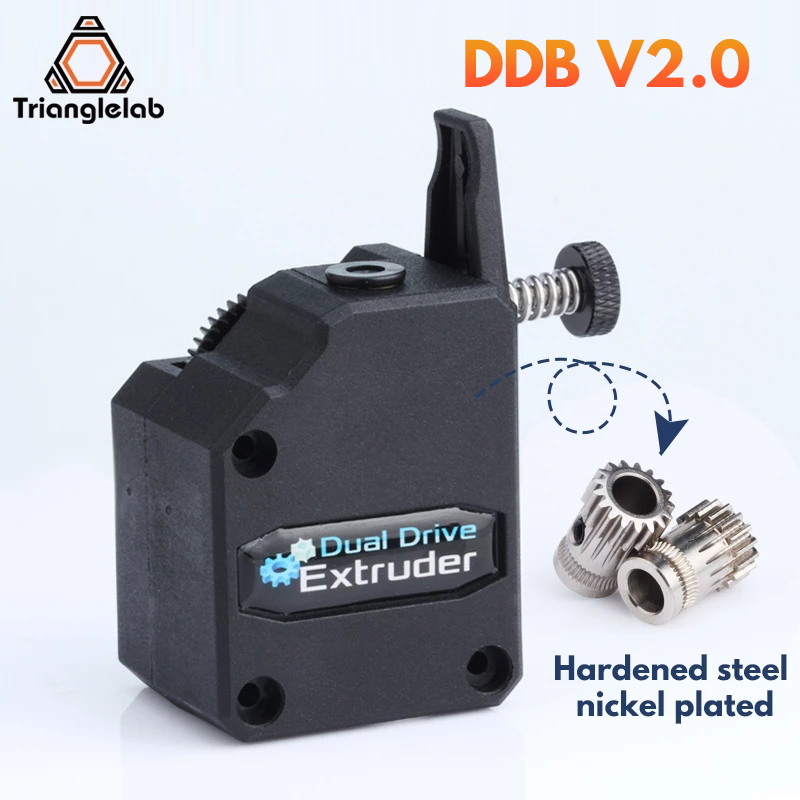

Dual drive gear:Hardened steel nickel plated
Hardness:HRC60+
Driving force:15KG
Concentricity of Inner Hole:0.0137
Inner Hole Diameter:ø5.033
Tooth Diameter:ø7.34

*Trianglelab Hardened steel nickel plated, compared to other brands of gears tested

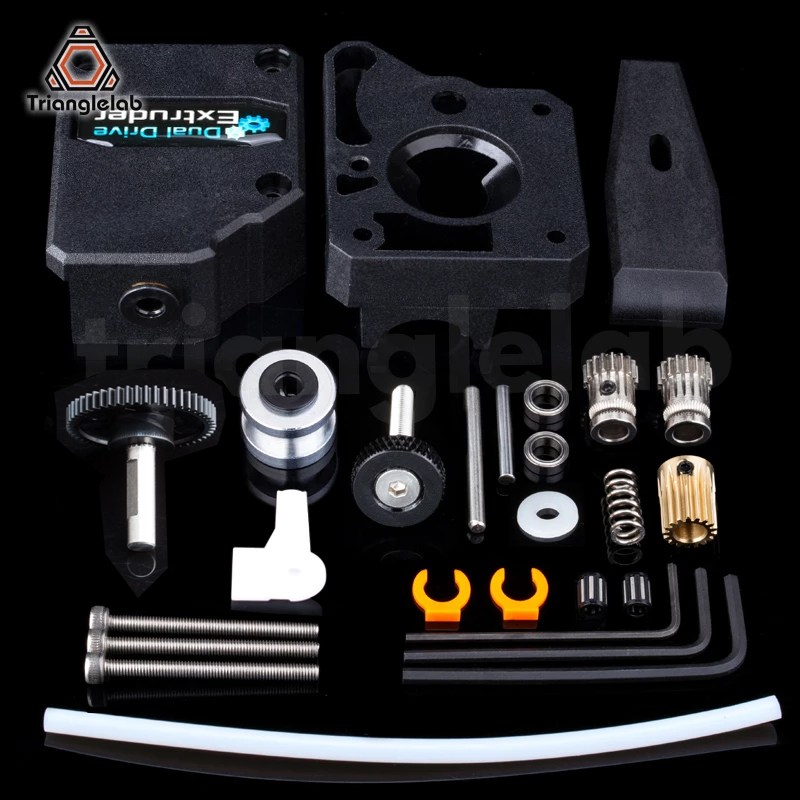

Package list
DDB Extruder X 1
screws A package
*Simple tool A package(Gift)
*stepper motor mounting bracket X 1(Gift:It is not guaranteed that all customers can use it.If it is not available,discard.)
◆Please read here carefully!
*In a long period of use.There may be a drop in color.But this does not affect the sharpness of the gear.


DDB dimensional analysis chart

Poduct display

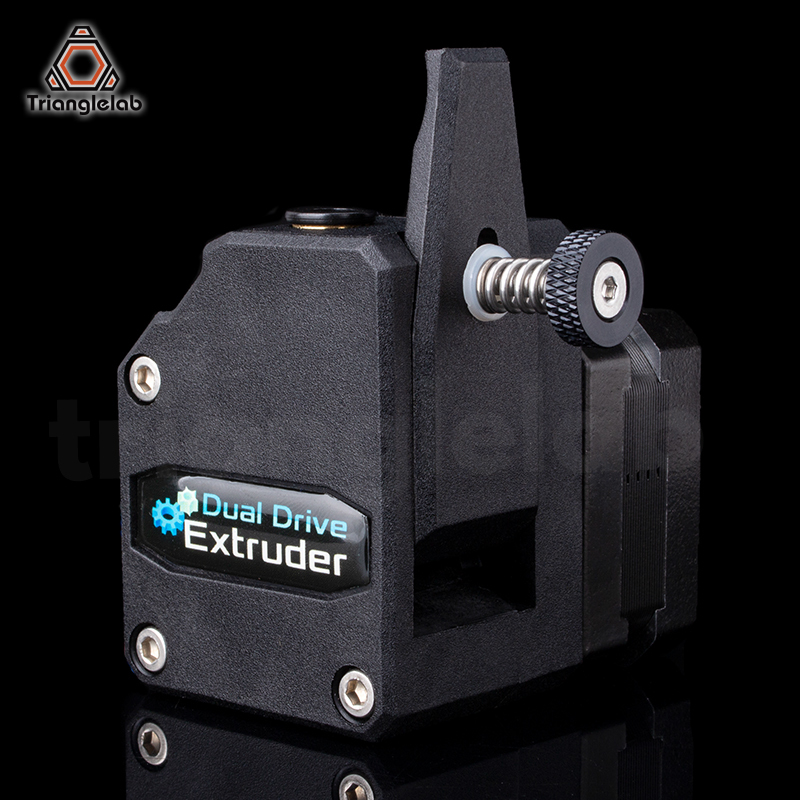

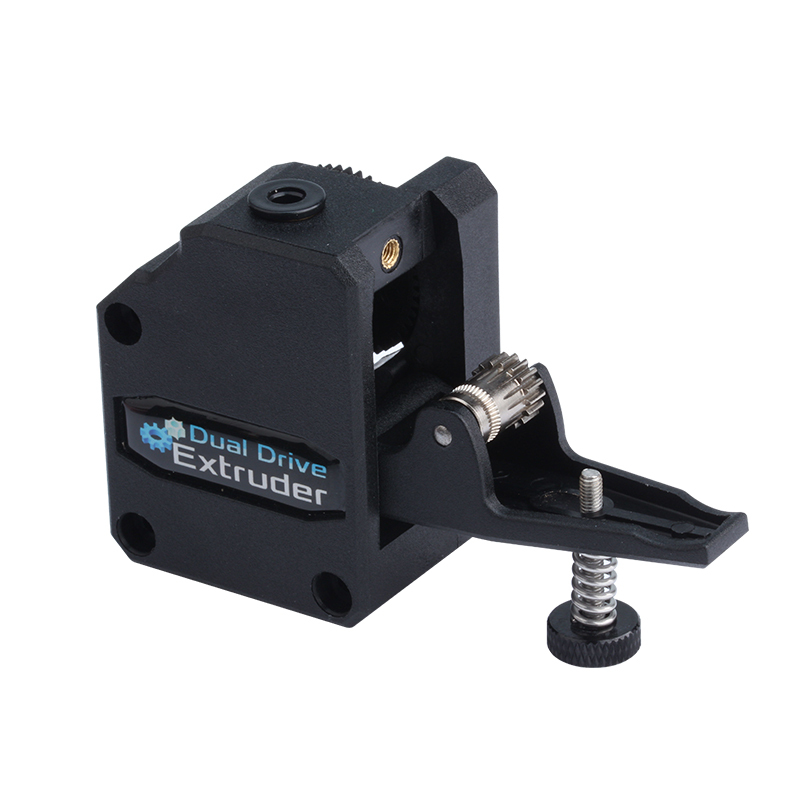

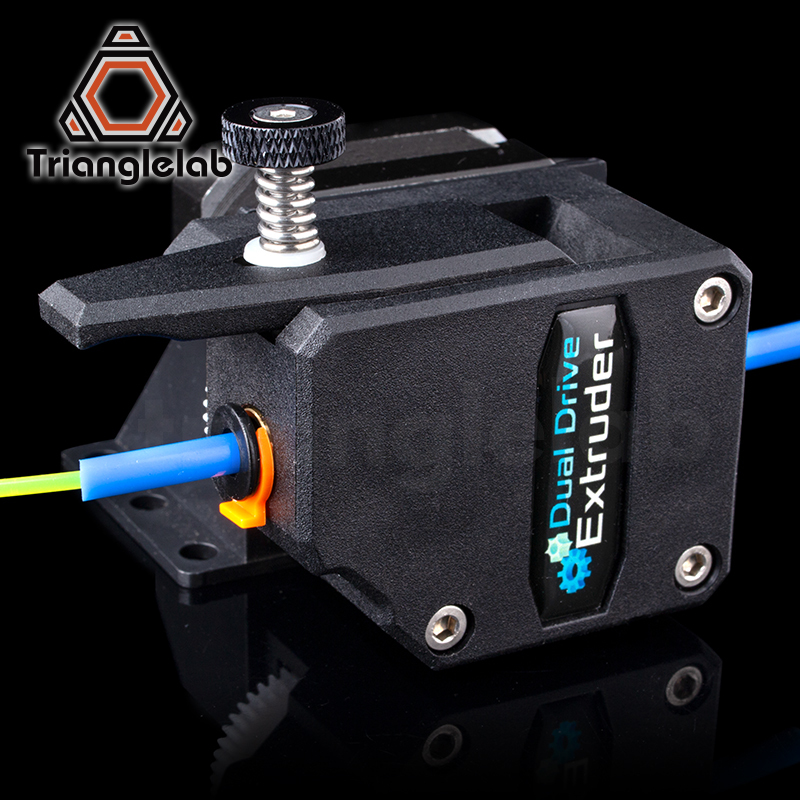

DDB Extruder V2.0

▉Diagram of DDB installation steps:




Conclusion

1.In terms of appearance, compared with other products,Trianglelab’s are smoother and finer, followed by the extrusion wheel of manufacturer B. Although there are knife lines, they are relatively fine and even

2.From the analysis of tooth profile, compared with triangular teeth, curved teeth can engage with filaments more deeply for grip force. In contrast, the tooth shape of Trianglelab is more smoother and more symmetrical, while the other tooth shapes have obvious knife lines, and the tooth bases are uneven. After a long time, there will be serious wear, resulting in the reduction of tooth life. The tooth shape of manufacturer D can not be distinguished, and the tooth tip can not be clearly distinguished, so the durability of manufacturer D is insufficient compared with other manufacturers’ products. The tooth surface and shaft of manufacturer C's product are slightly inclined, which may be due to the machining accuracy.

3.From the dimension analysis, the tooth diameter of manufacturer A, manufacturer B and Trianglelab is similar. Trianglelab’s tooth tip is thinner, makes it easier to cut into the filaments, and the next best is Manufacturer B, but manufacturer B's tooth beat is higher than Trianglelab’s. Manufacturer C's tooth tip is wider, so it is not conducive to access filaments. The tooth length analysis shows that the tooth length of Trianglelab is shorter and closer to the diameter of filaments, so the meshing of filaments is better than other’s.

4.Tension test method: Use DDB extruder, tighten the spring after the motor is energized, draw filaments. The filaments squeezed by the extrusion wheels of manufacturer A, C and D all slipped, and the filaments were pulled off by Trianglelab and manufacturer B.

5.In the hardness test, except the products of Trianglelab reached HRC50 or above, the highest hardness of the other products was HRC30, which is easy to wear, especially for printing composite fiber filaments.

6.Based on the above analysis, Trianglelab and manufacturer B’s appearance and size is better, Trianglelab’s hardness is higher, and the curved teeth of Trianglelab are recommended.



Comparison of prints before and after the upgrade
