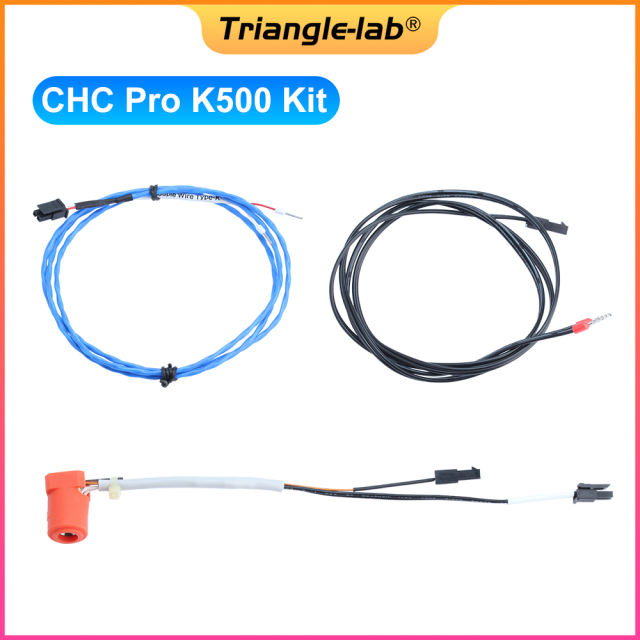

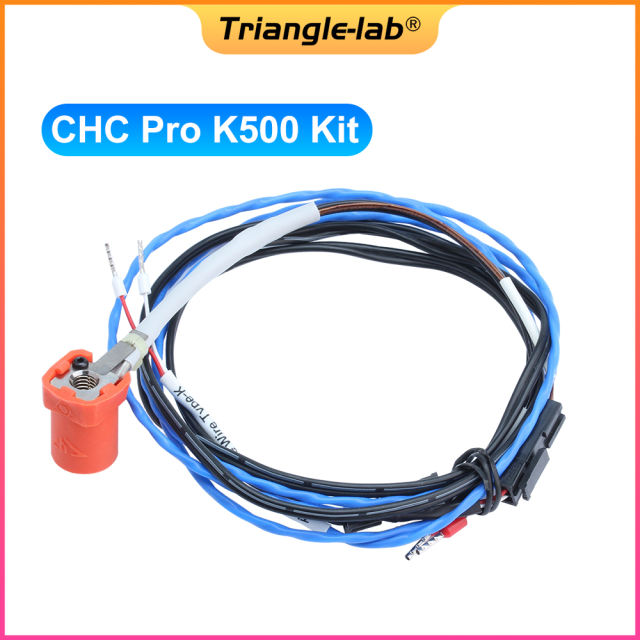

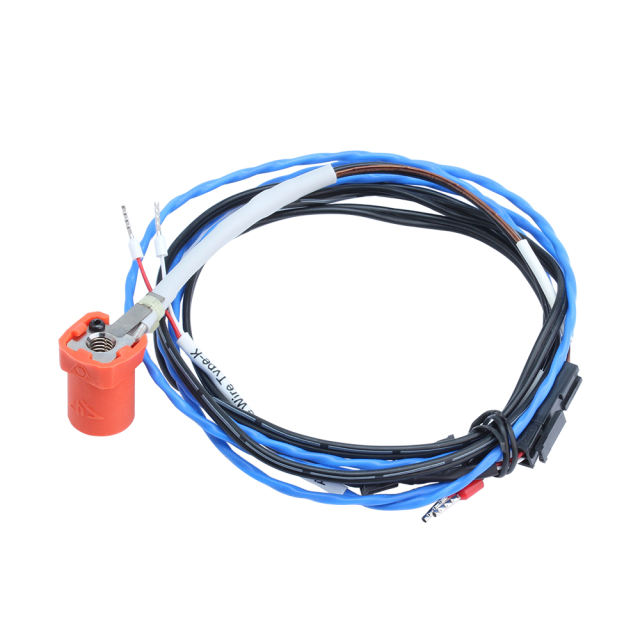

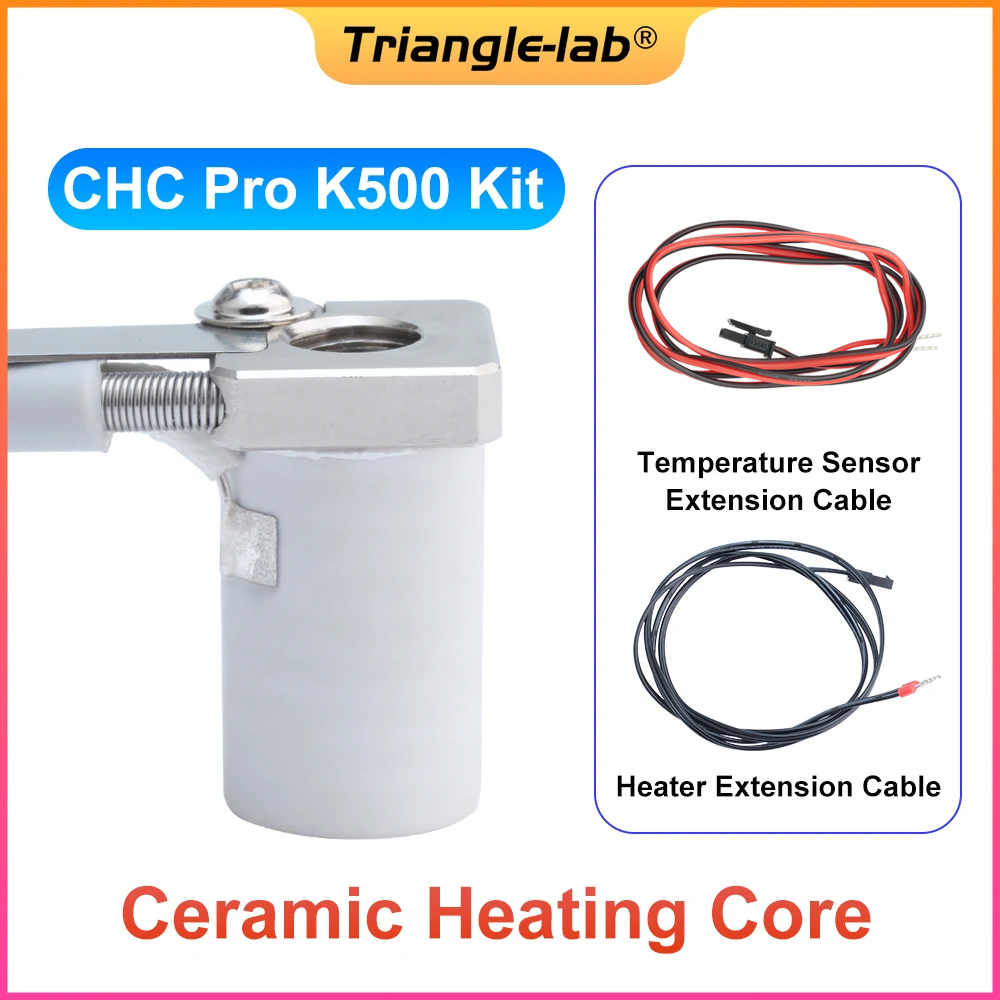

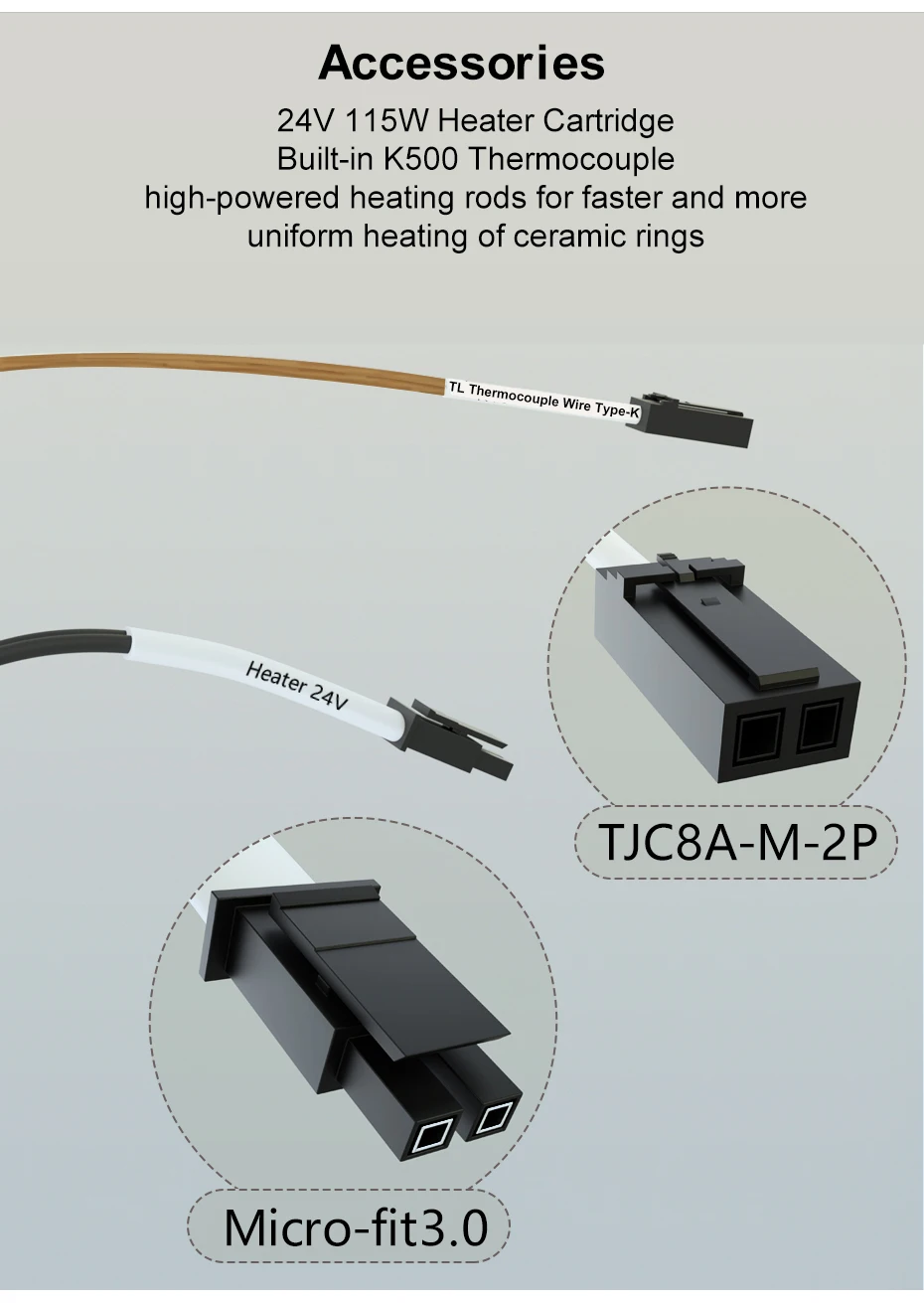

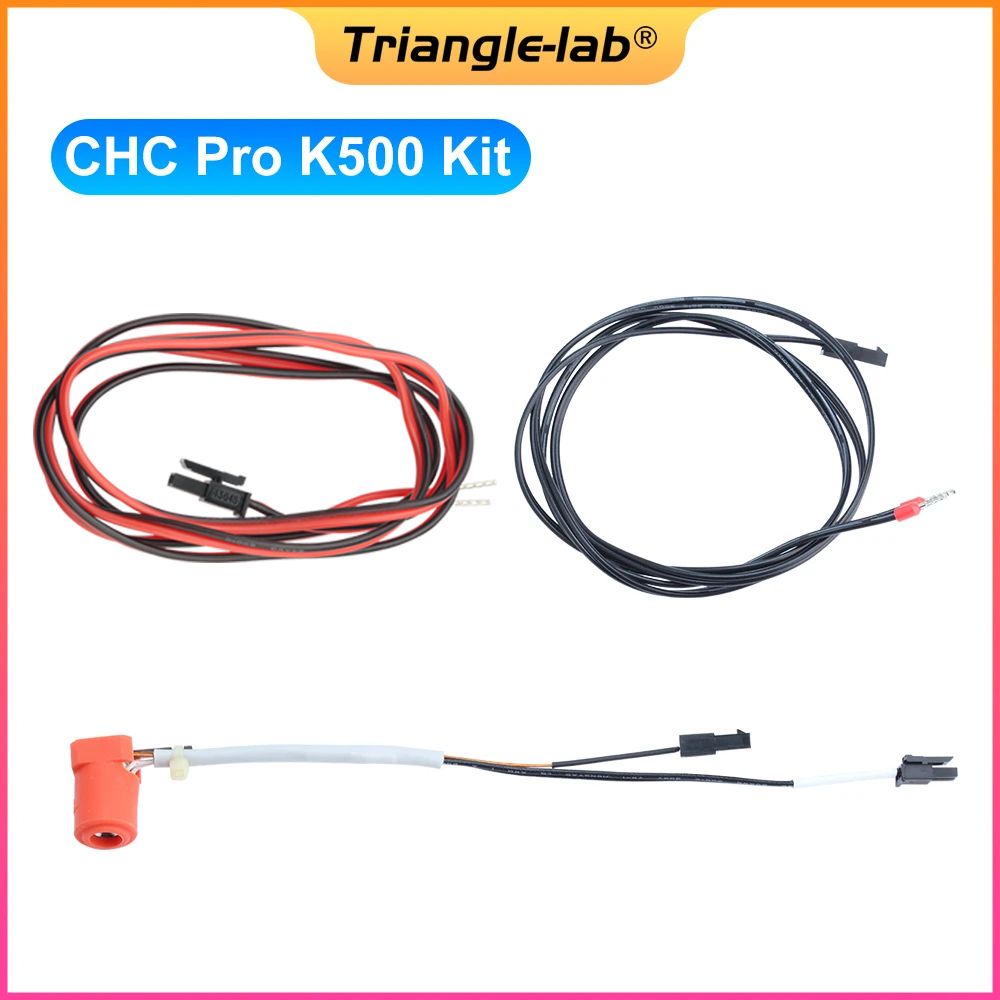

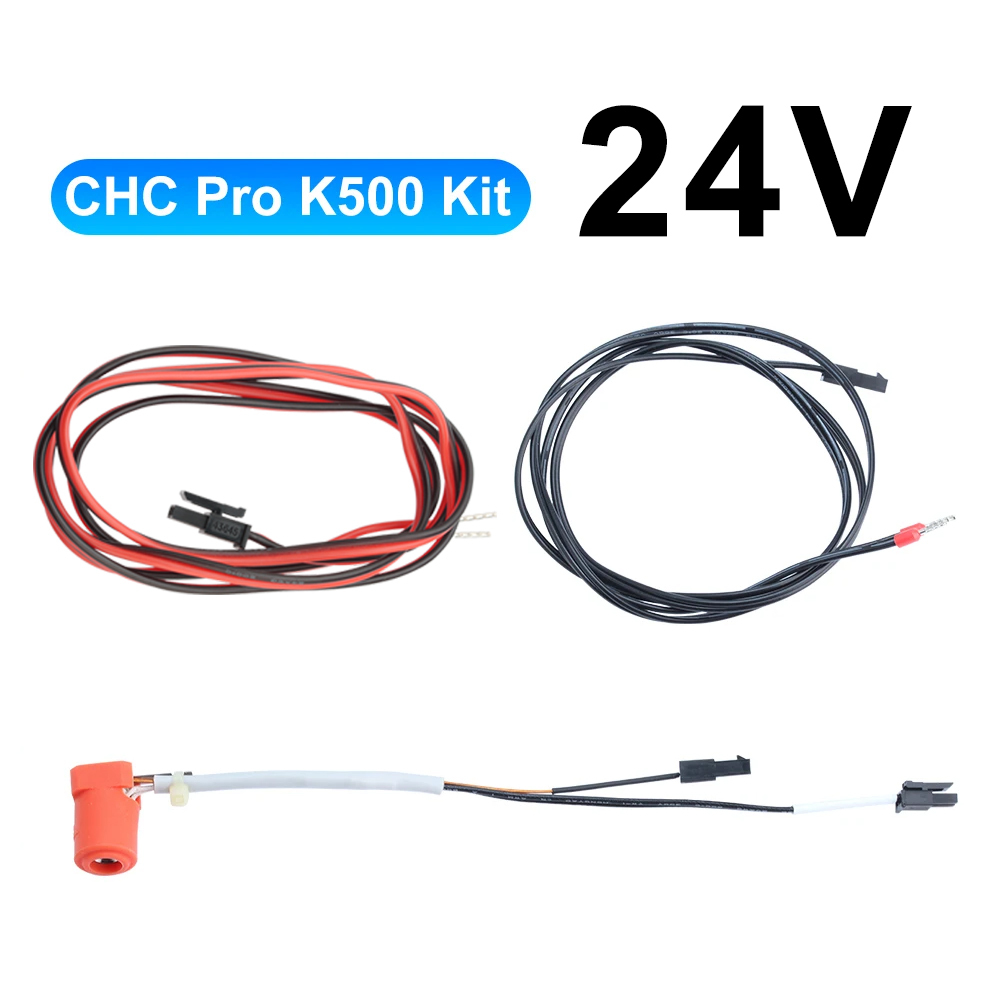

Trianglelab Ceramic Heating Core Pro KIT(Built-in K500 Thermocouple)

▉Technical details:Please click here!

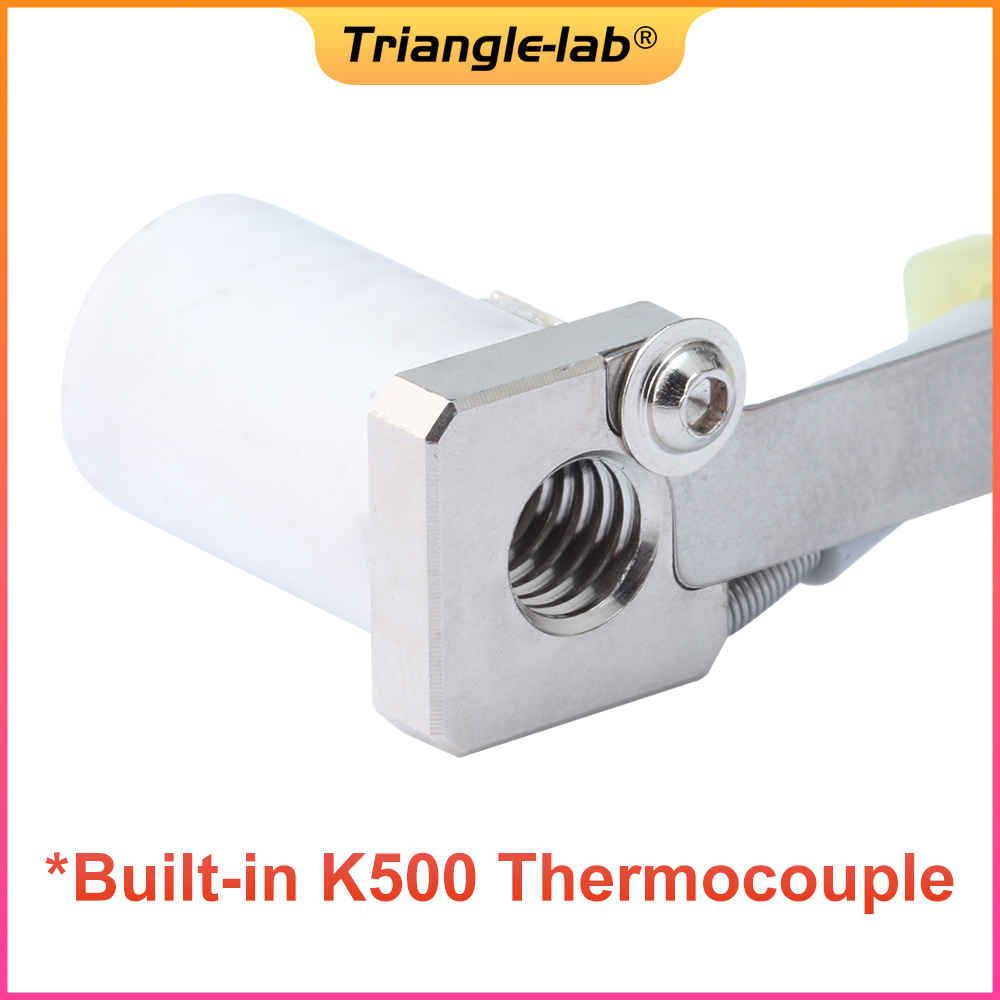

▉K500 thermocouples:Please click here!

▉Compatible:

Volcano Hotend,CR10 Hotend,Hemera Hotend,Matrix Extruder,Titan Aero,DDB Volcano Hotend KIT,TD6 Hotend,TD6S Hotend,TR6 Hotend,CHC Mini Hotend.

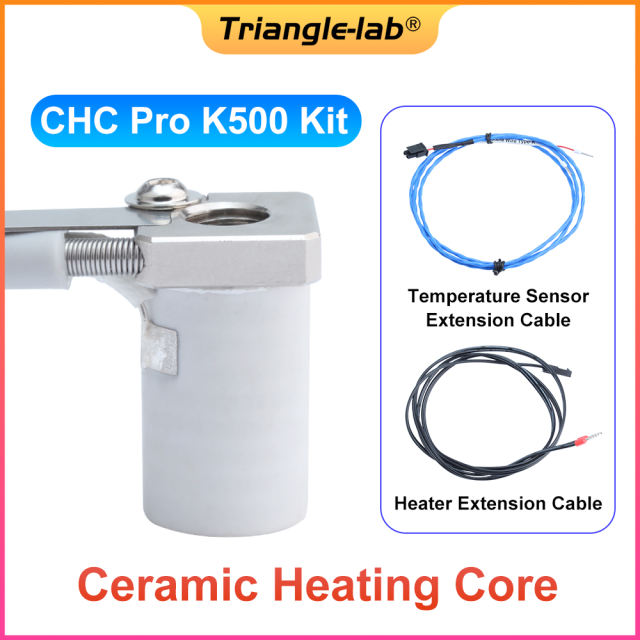

Ring Heating

Evenly heated to achieve 360° ring heating,Ceramic heating ring with built-in copper plated heating ring. The ceramic can

be heated evenly. Rapid heating. Realizes 360° ring heating.

Supports temperatures up to 300℃

ID09L16 ceramic heater power test

Roomtemperature 24℃

Controller BoardMKS BASE V1.4

Resistance at room temperature 5±1Ω 24V 115W MAX

Controller Boardpowervoltage24V DC

Firmware marlin2.0

No Firmwareheater power limiting

Read the temperature from the LCD

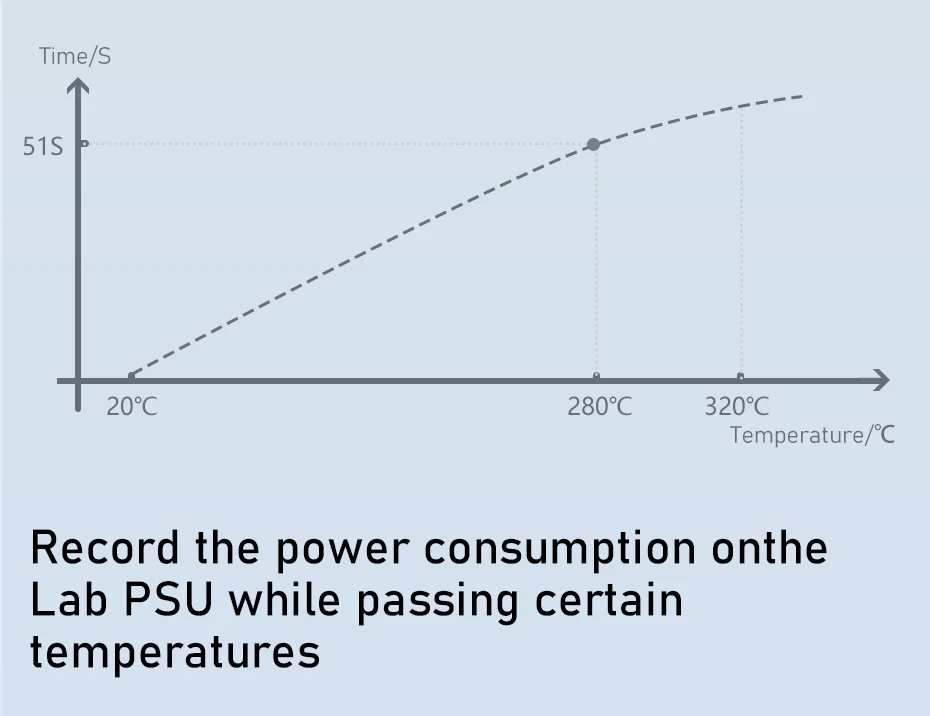

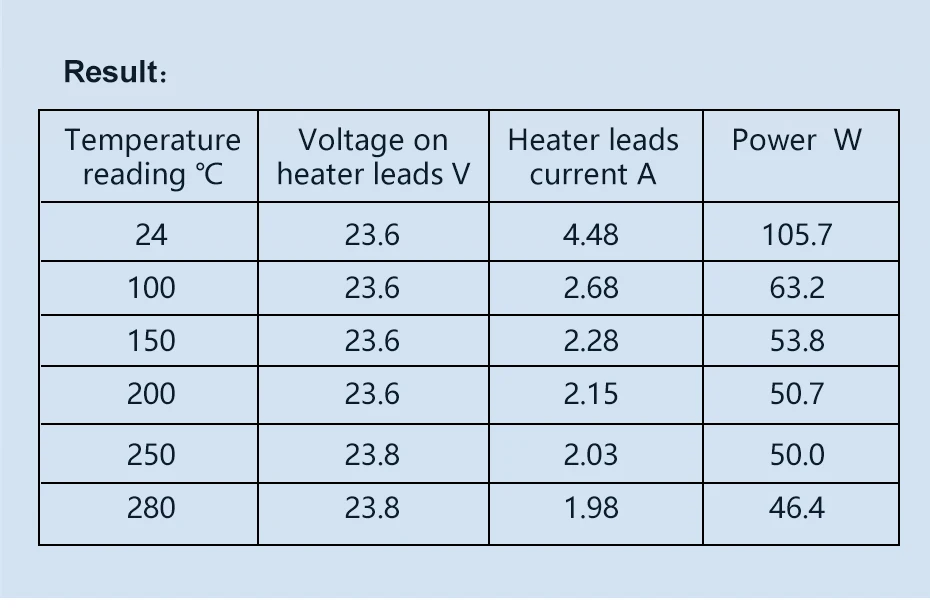

Record the power consumption onthe Lab PSU while passing certain temperaturesPlease note that the temperatures in the table are thermistor embedded in the melting zone not the actual temperatures of the heating element especially at low temperatures.

The power in the table above has been deducted from the consumption of the controller board and LCD 1.03W.

▉Features:

Cylindrical ceramic heaters can be optimized and symmetrically heated materials

The thermistor is directly installed in the BLOCK to obtain a more realistic temperature reading when the material comes out of the hot end

Lightweight design, suitable for fast printing

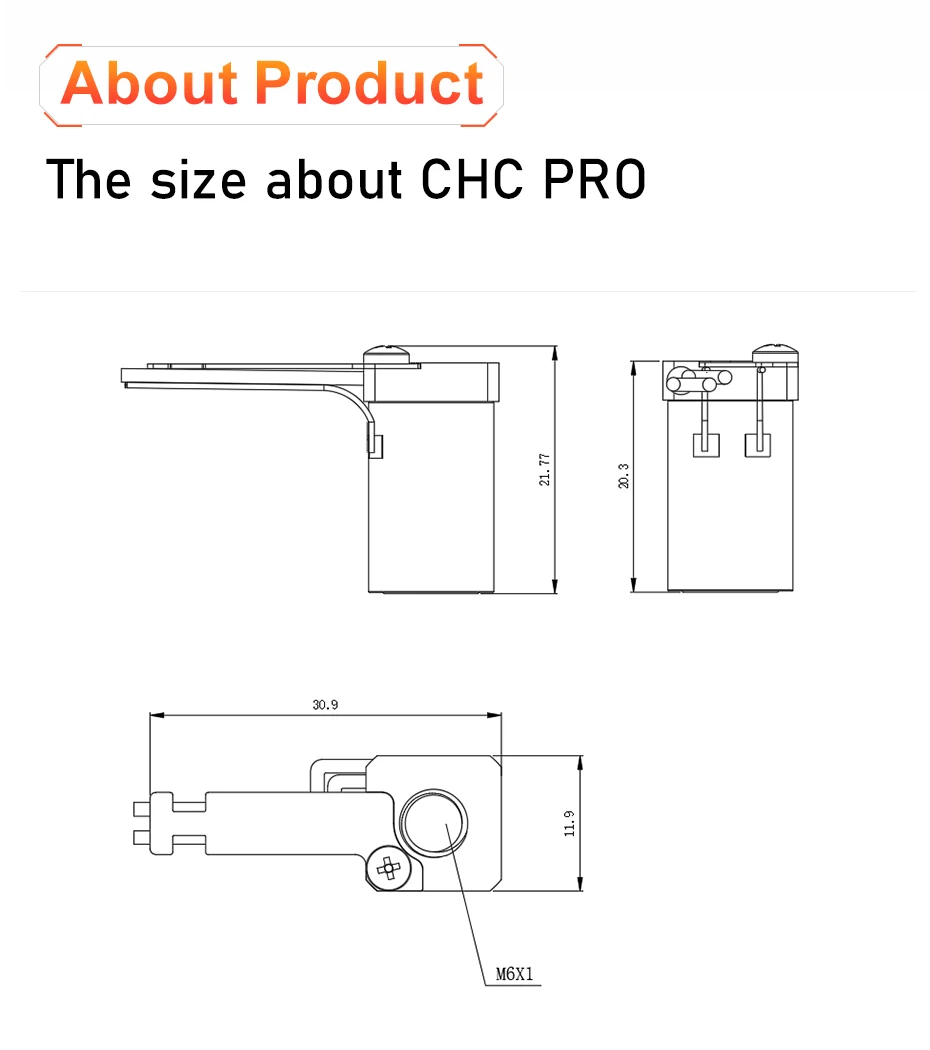

Small compression size
