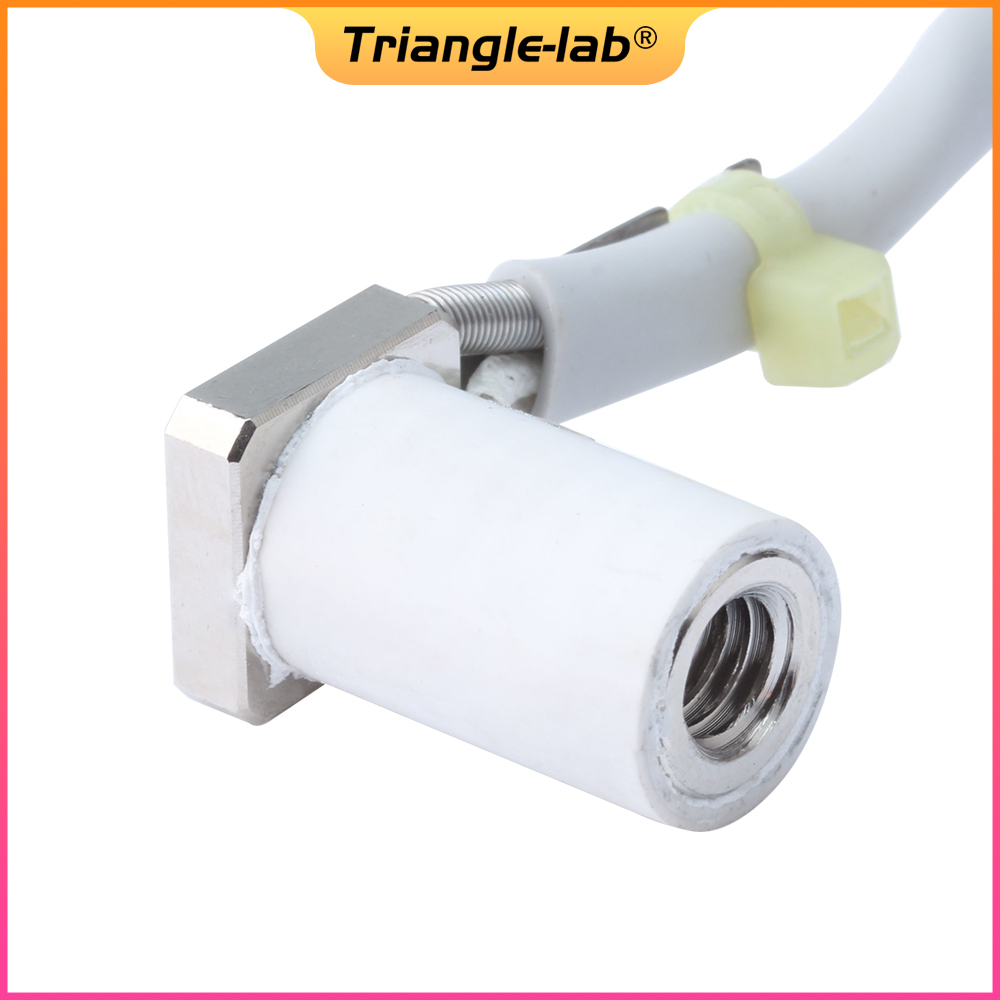

CHC Pro 115W NTC 100K B3950 Thermistor

Note
All products purchased on this website are not include tax, including and not limited to: Consumption tax, Value added tax, customs duties, etc,
Before placing an order, please check your country's policies and regulations on online shopping taxes.
The amount you pay does not include tax and you will need to pay it yourself.
To purchase a tax-included products, please click the link below：
https://trianglelab.aliexpress.com/store/1654223

▉Name:

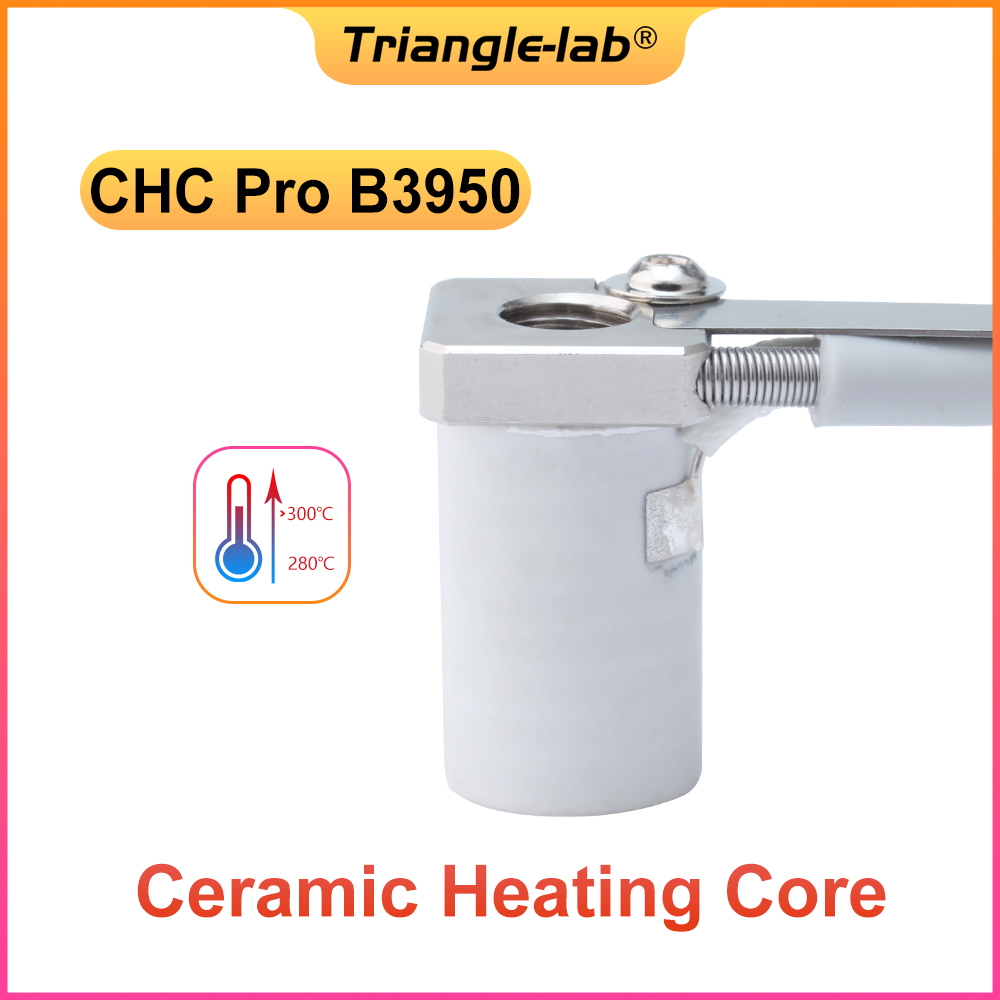

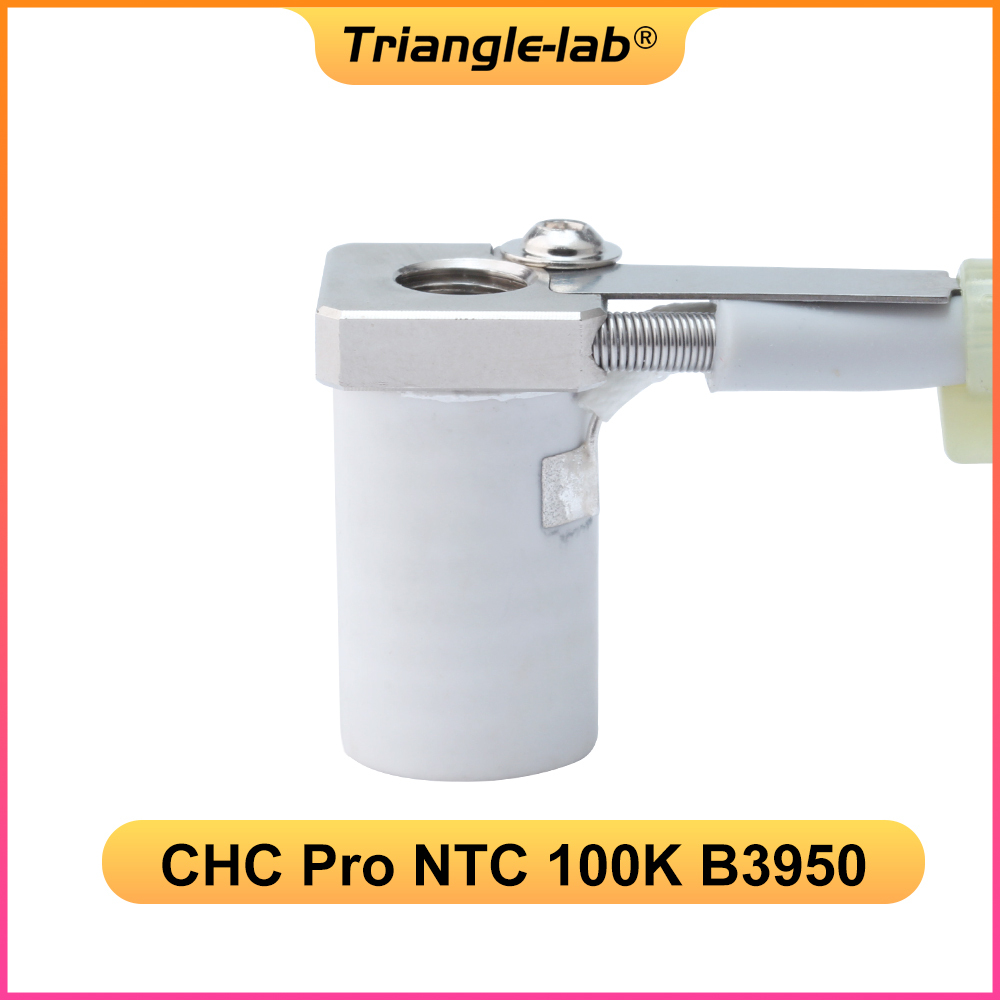

Trianglelab CHC(Ceramic Heating Core) Pro KIT(NTC 100K B3950)

NTC100K B3950 thermistor is used by most of the 3D printers from China, especially the low budget entry level models. If you don't know how to recompile and change the firmware or are afraid of losing the warranty,you may consider buying this CHC equipped with this thermistor

▉Compatible:

Volcano Hotend

CR10 Hotend

Hemera Htend

Matrix Extruder

Tatan AERO

DDB-Volcano Hotend KIT

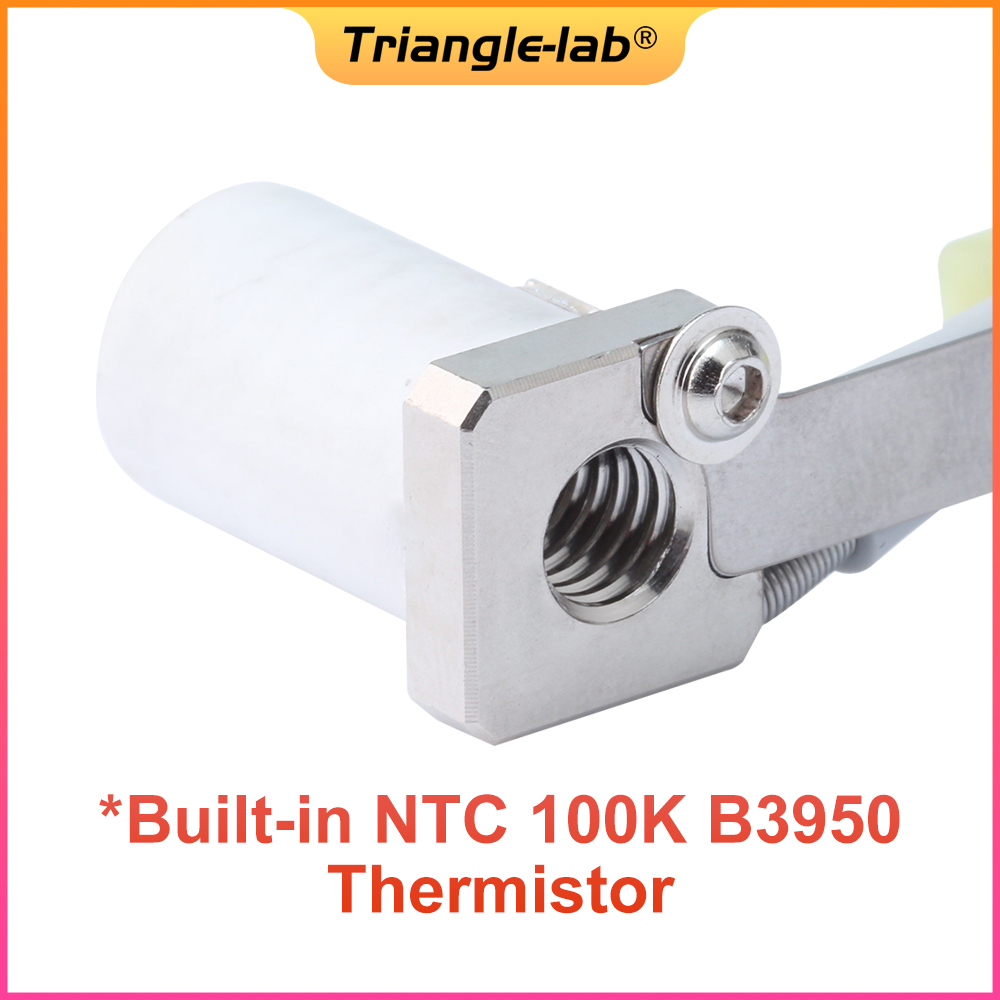

*Built-in NTC 100K B3950 Thermistor

Marlin Firmware Configuration

* 1 : 100kΩ EPCOS - Best choice for EPCOS thermistors

#define TEMP_SENSOR_0 1

Repetier

100K NTC 3950

Klipper

sensor_type: Generic 3950

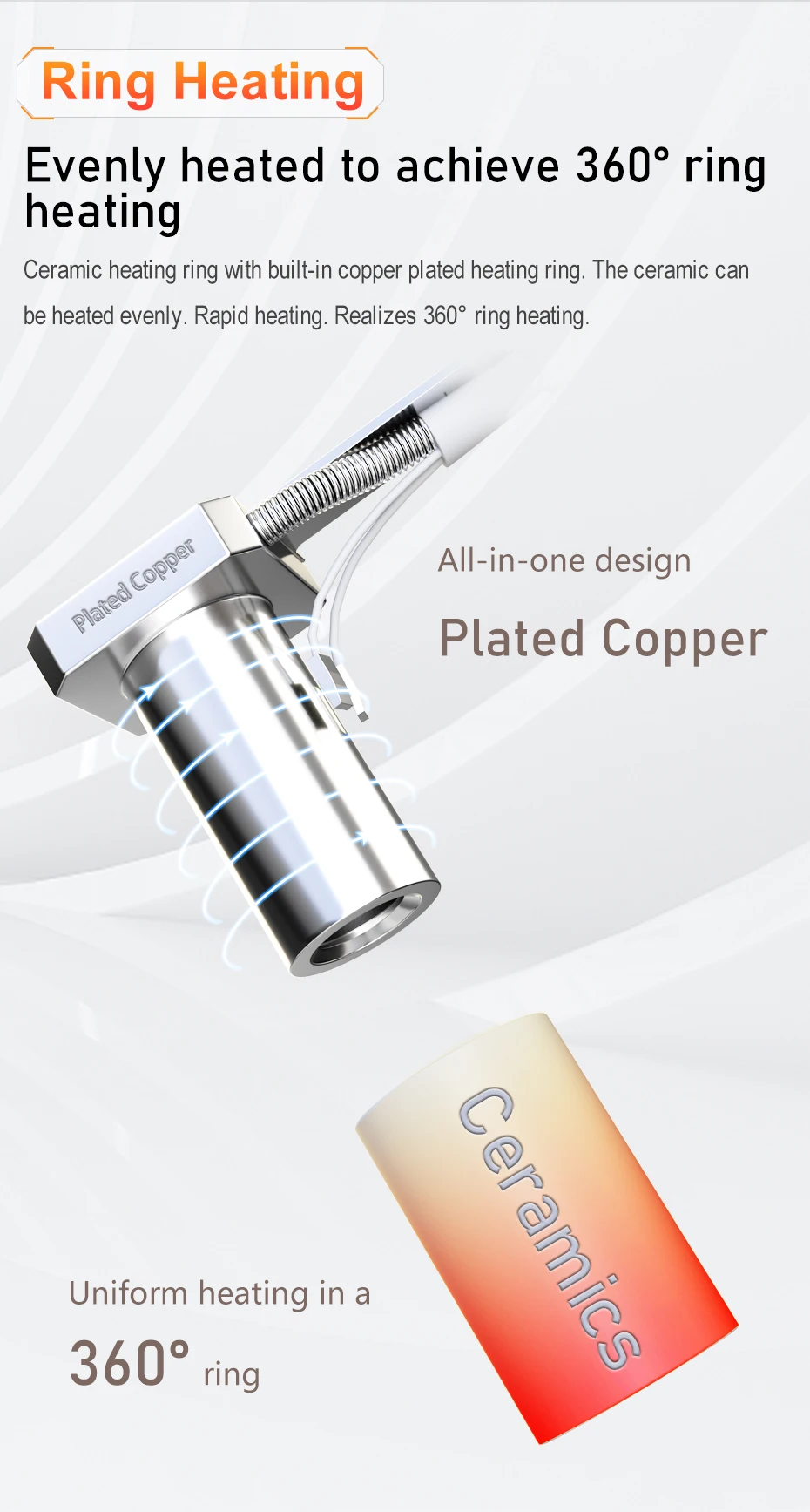

Ring Heating

Evenly heated to achieve 360° ring
heating ，Ceramic heating ring with built-in copper plated heating ring. The ceramic can
be heated evenly. Rapid heating. Realizes 360° ring heating.

Supports temperatures up to 300℃

ID09L16 ceramic heater power test

Roomtemperature 24℃

Controller BoardMKS BASE V1.4

Resistance at room temperature 5±1Ω 24V 115W MAX

Controller Boardpowervoltage24V DC

Firmware marlin2.0

No Firmwareheater power limiting

Read the temperature from the LCD

Record the power consumption onthe Lab PSU while passing certain temperatures

Please note that the temperatures in the table are thermistor embedded in the melting zone not the actual temperatures of the heating element especially at low temperatures.

The power in the table above has been deducted from the consumption of the controller board and LCD 1.03W.

▉Features:

Cylindrical ceramic heaters can be optimized and symmetrically heated materials

The thermistor is directly installed in the BLOCK to obtain a more realistic temperature reading when the material comes out of the hot end

Lightweight design, suitable for fast printing

Small compression size

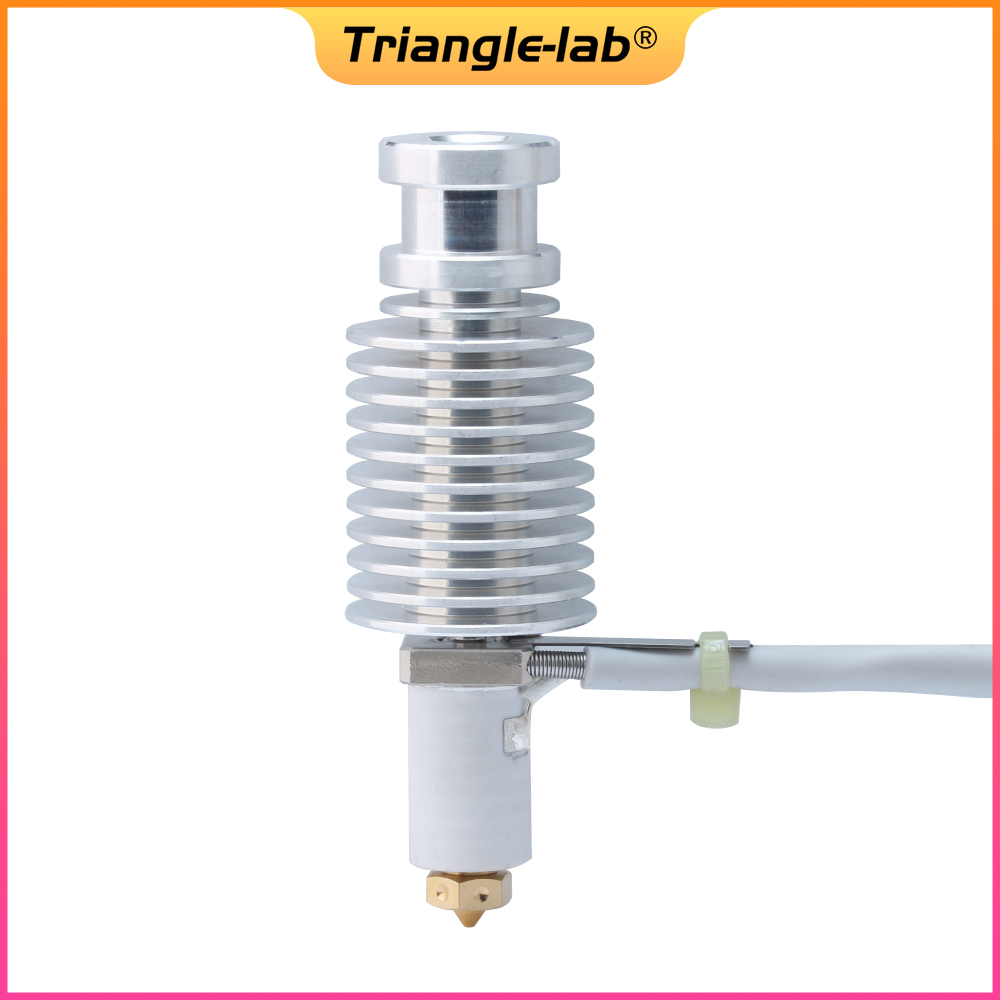

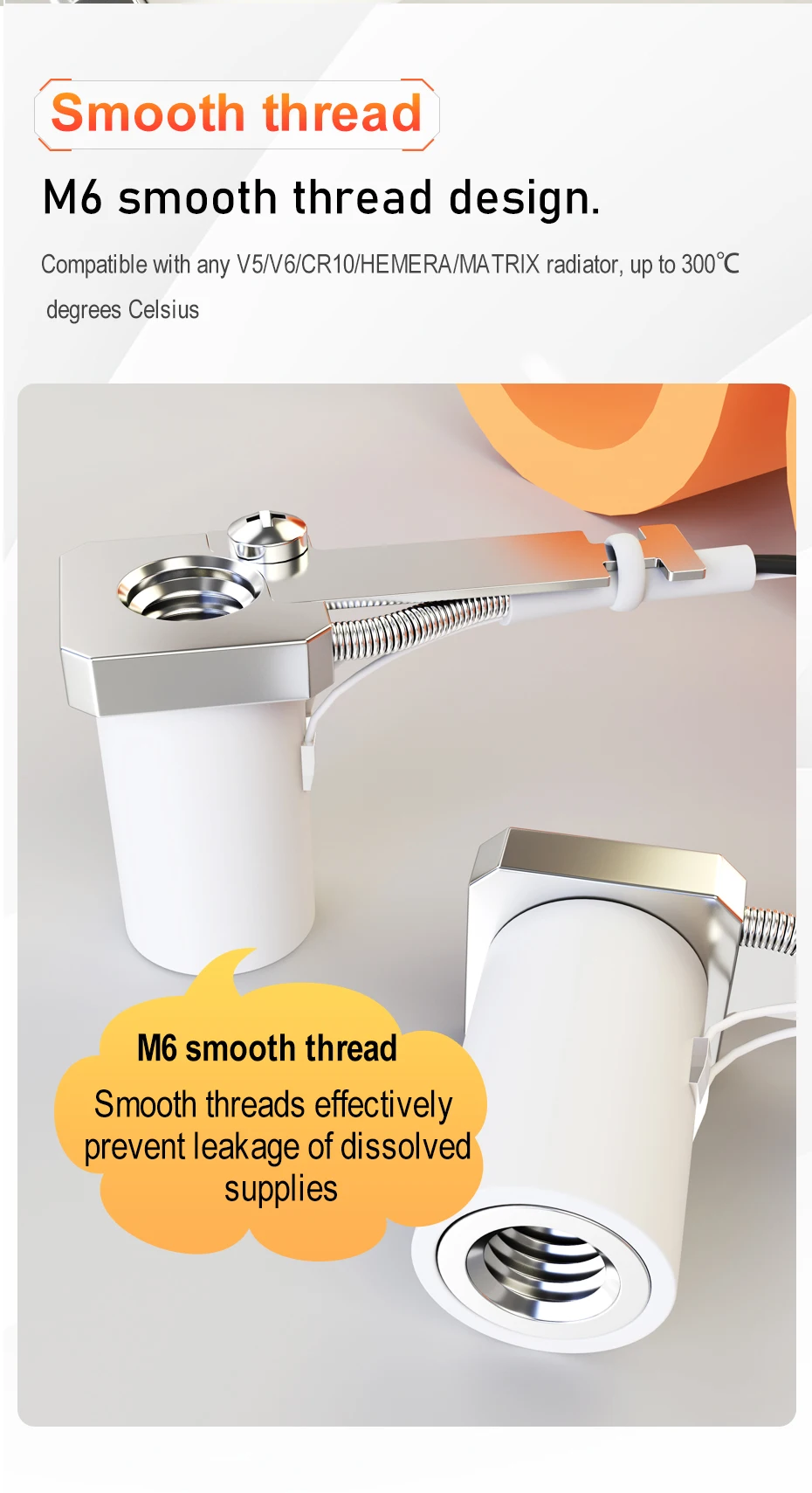

Compatible with any V5/V6/CR10/HEMERA/MATRIX radiator, up to 300℃ degrees Celsius
