▉Description:
Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference. Now we're happy to introduce an excellent analog-output amplifier. This is a very simple sensor to use, and if your microcontroller has analog input capability, you'll be ready to go really fast!

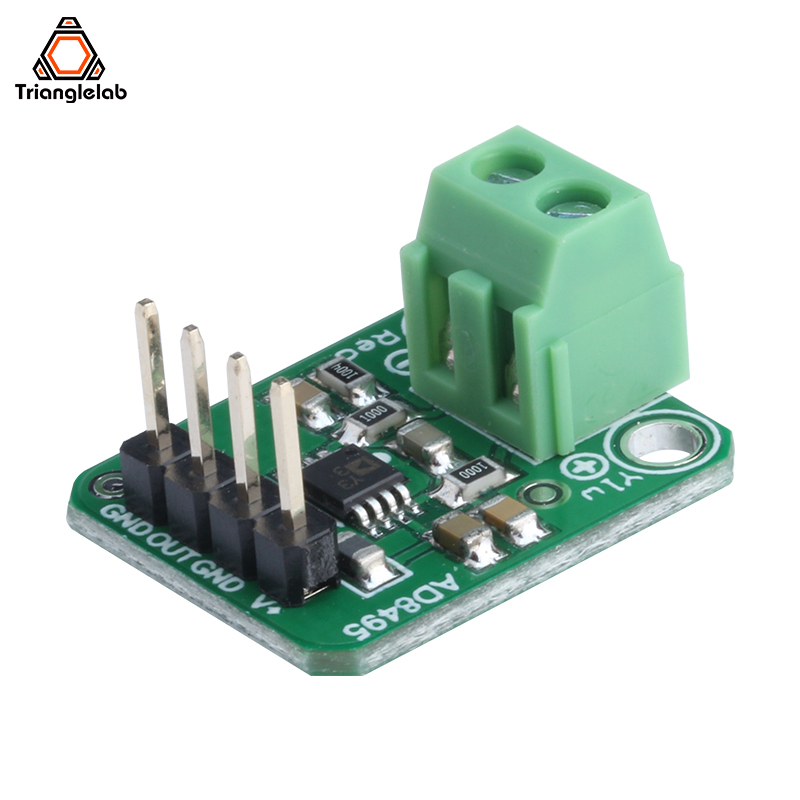

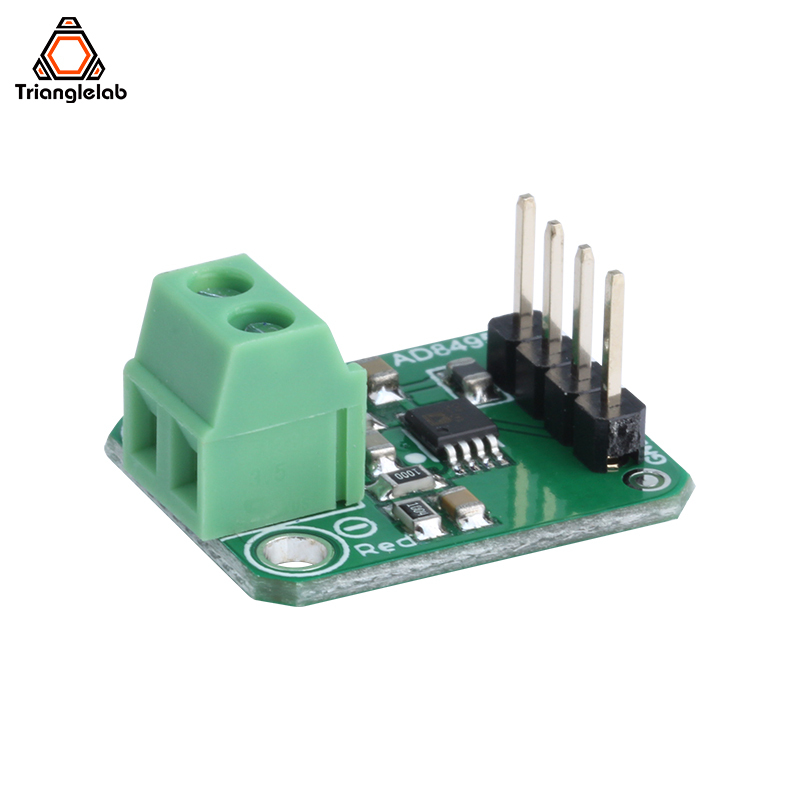

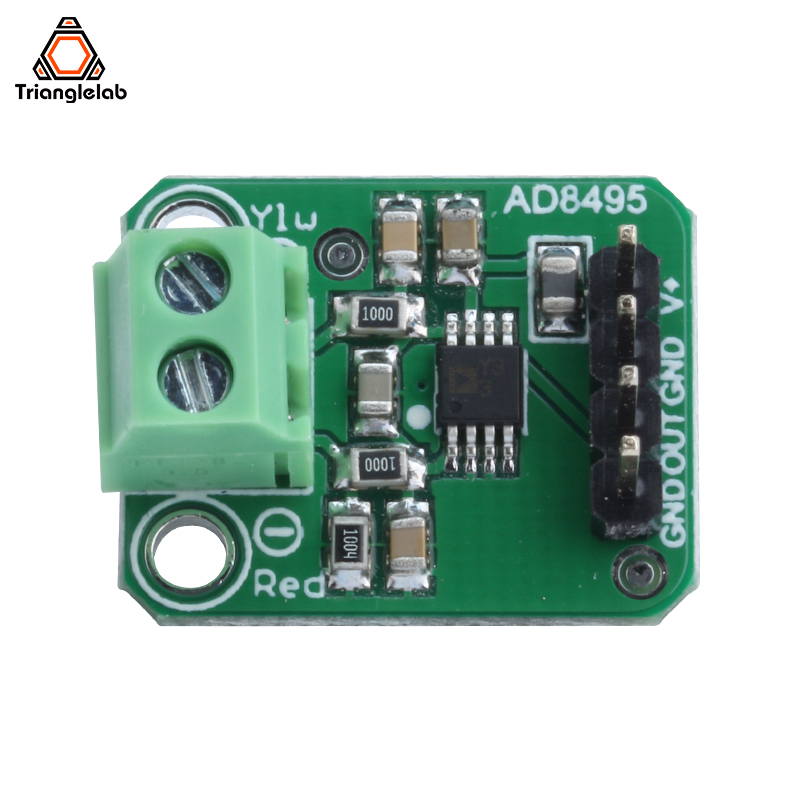

The AD8495 K-type thermocouple amplifier from Analog Devices is so easy to use, we documented the whole thing on the back of the tiny PCB. Power the board with 3-18VDC and measure the output voltage on the OUT pin. You can easily convert the voltage to temperature with the following equation: Temperature = Vout / 0.005 V. So for example, if the voltage is 0.9VDC, the temperature is 0.9 / 0.005 = 180℃
▉Notes:
Not for use with any other kind of thermocouple, K type only!
Not for use with any other kind of thermocouple, K type only!
Not for use with any other kind of thermocouple, K type only!
Works with any K type thermocouple
Will not work with any other kind of thermocouple other than K type
Easy to use analog output
Temp range with 5V power: 0 to 1000℃ output (0 to 5VDC) as long as the thermocouple can handle that range
Temp range with 3.3V power: 0 to 660℃ output (0 to 3.3VDC) as long as the thermocouple can handle that range
PCB Designed by Limor Fried/Ladyada for Adafruit Industries.
AD8495 borad operating temperature 0°C to 50°C

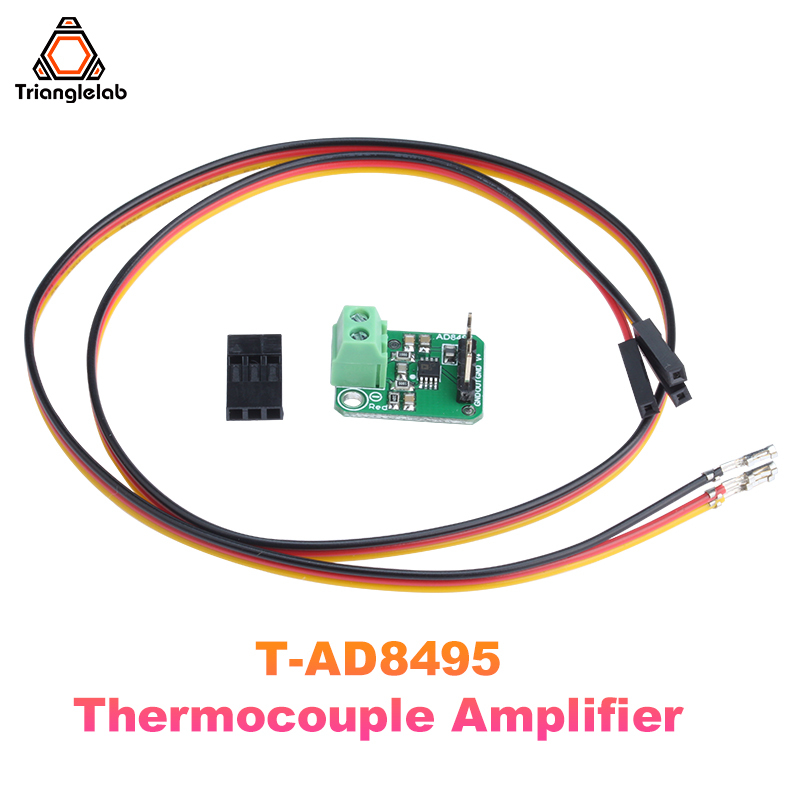

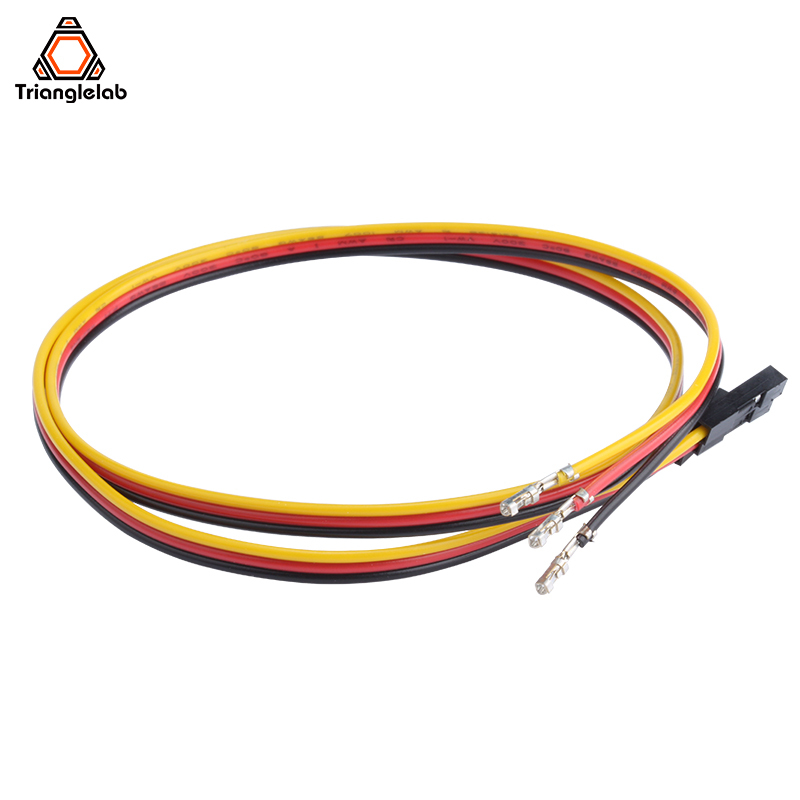

▉What's in the box:
If you want the thermistor sensor that can fits on your hotend please click below.
▉Photo display:
▉Photo display:
