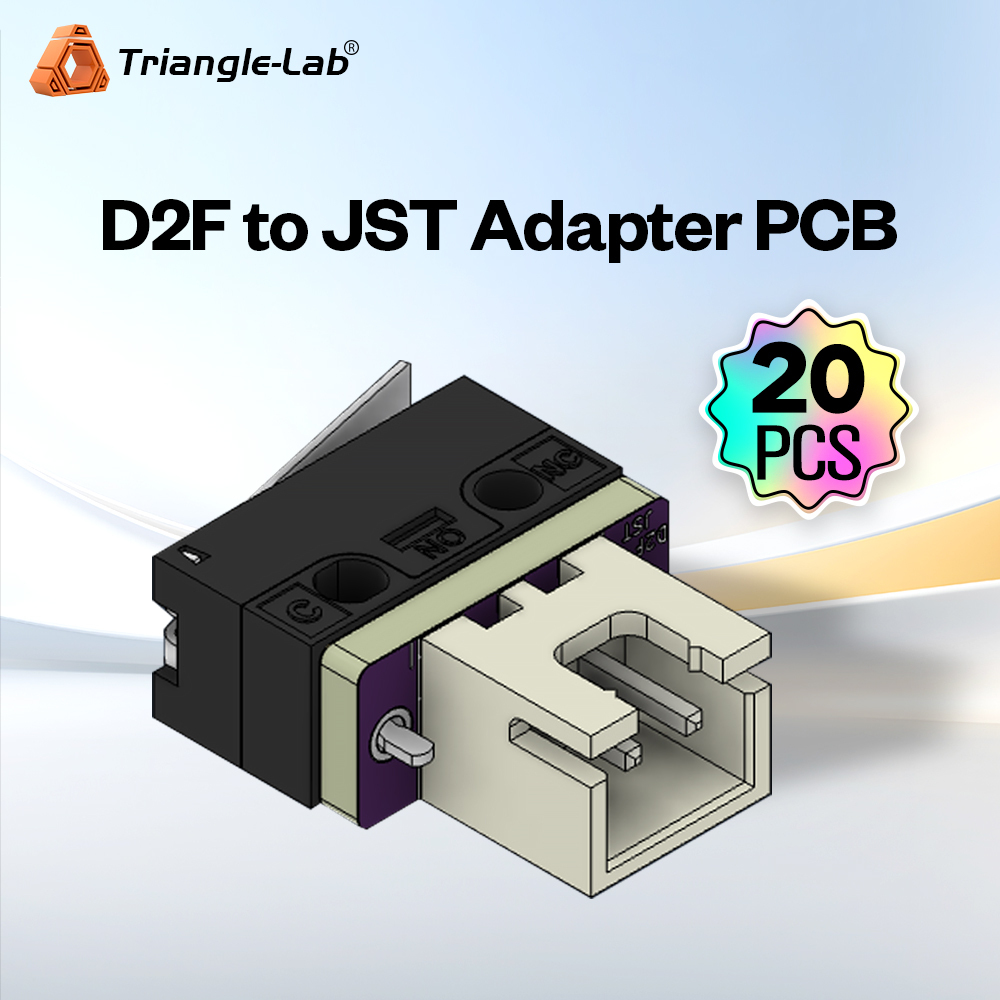

20 PCS D2F to JST adapter PCB

Name

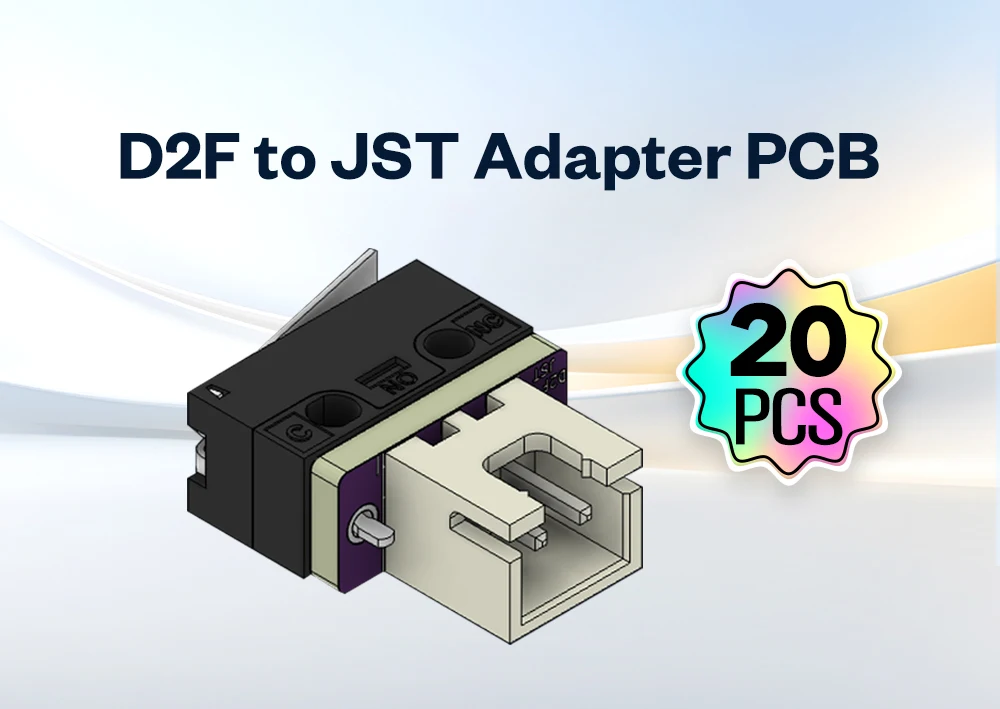

• D2F to JST Adapter PCB

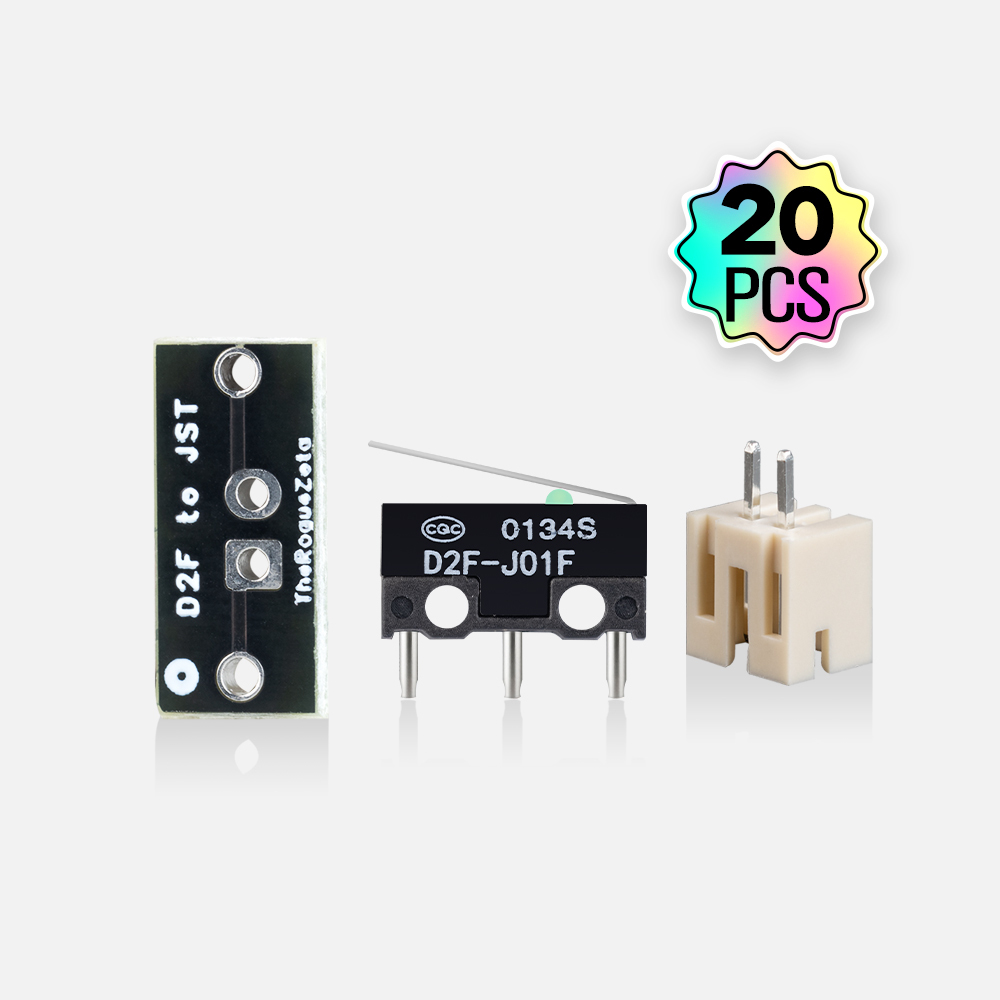

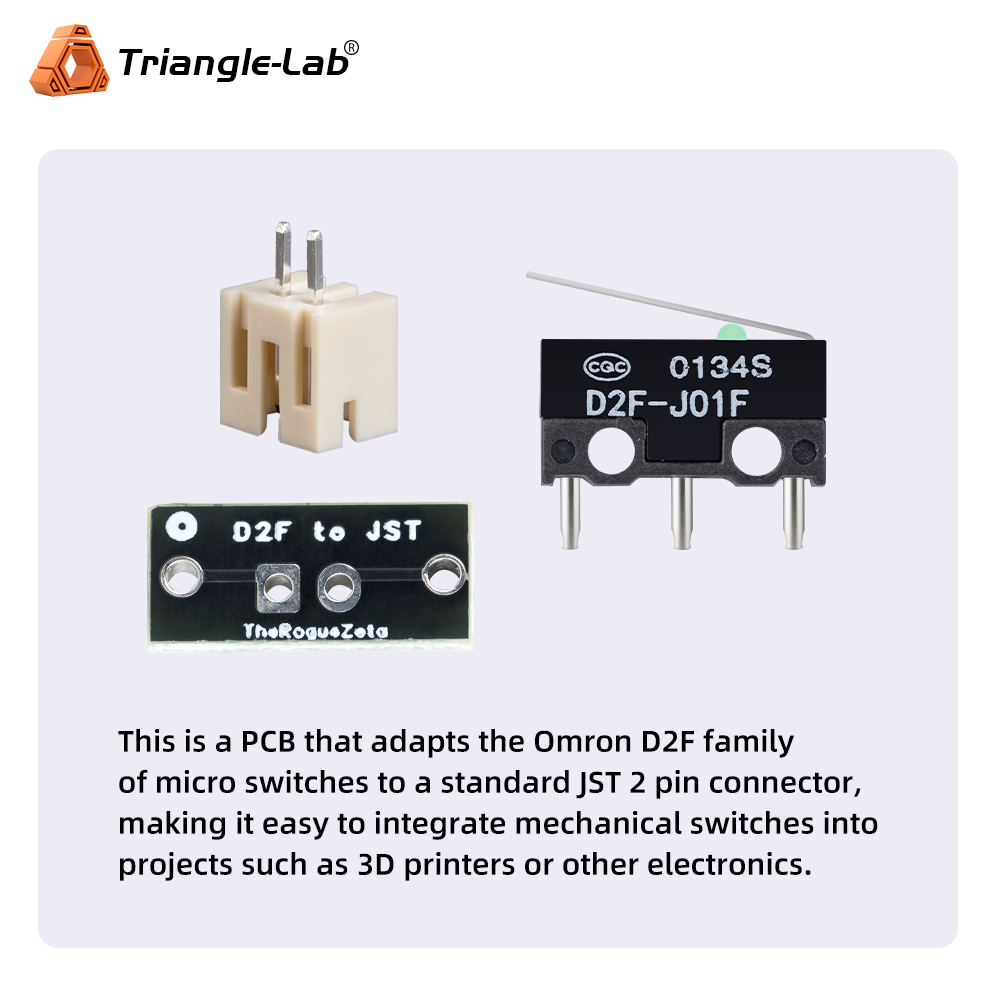

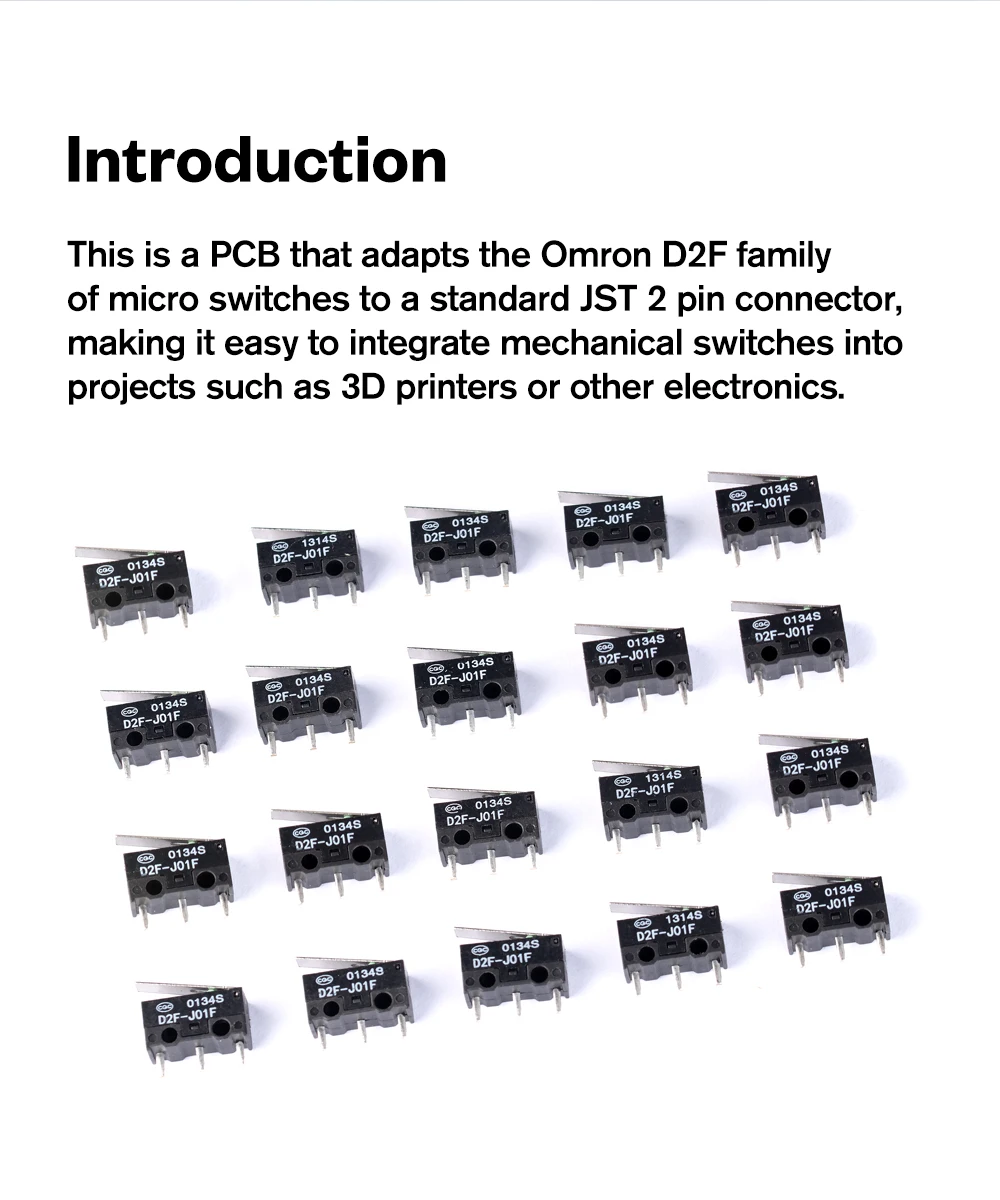

• This is a PCB that adapts the Omron D2F familyof micro switches to a standard JST 2 pin connectormaking it easy to integrate mechanical switches intoprojects such as 3D printers or other electronics.

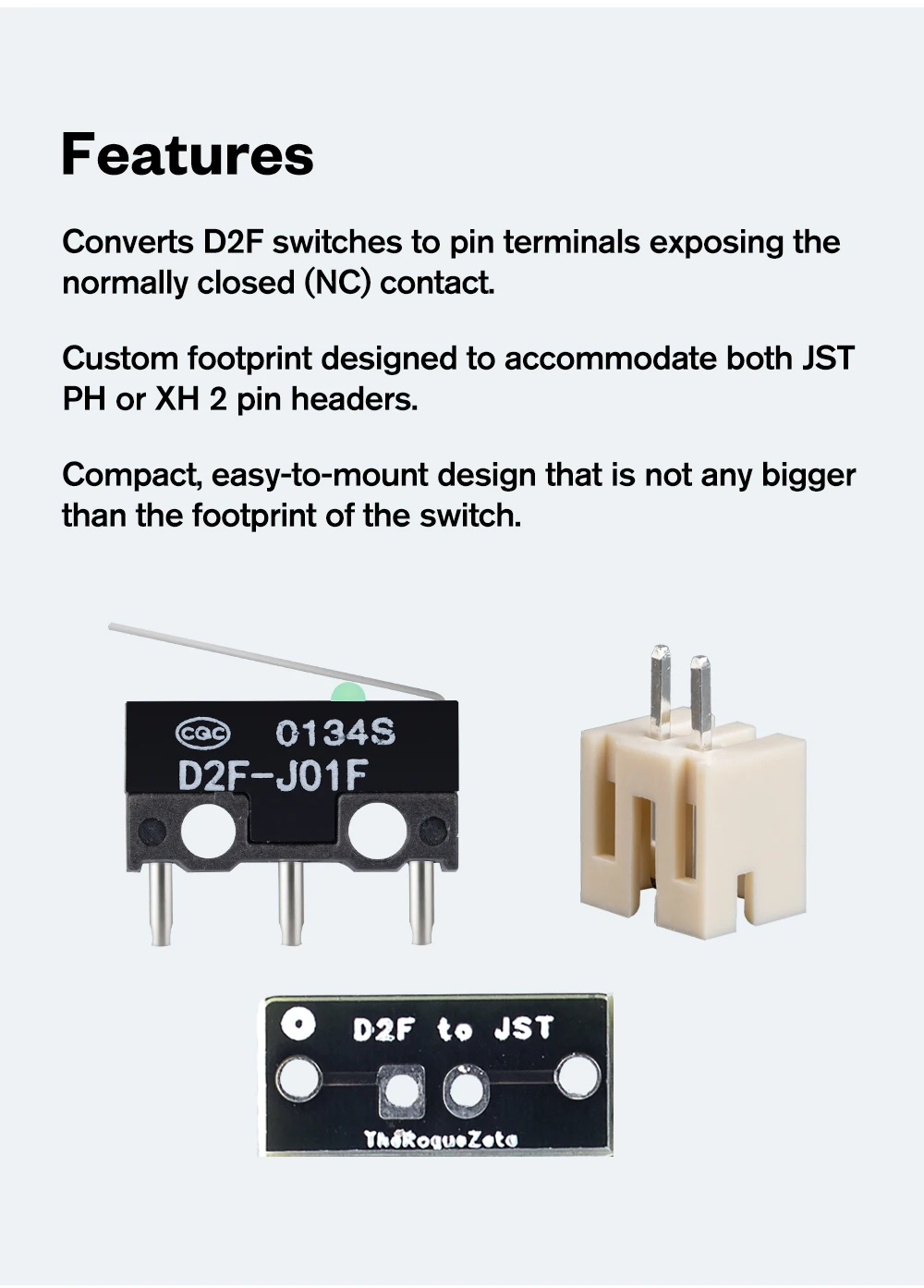

Features

• Converts D2F switches to pin terminals exposing the normally closed (NC) contact.

• Custom footprint designed to accommodate both JSTPH or XH 2 pin headers.

• Compact, easy-to-mount design that is not any bigger than the footprint of the switch.

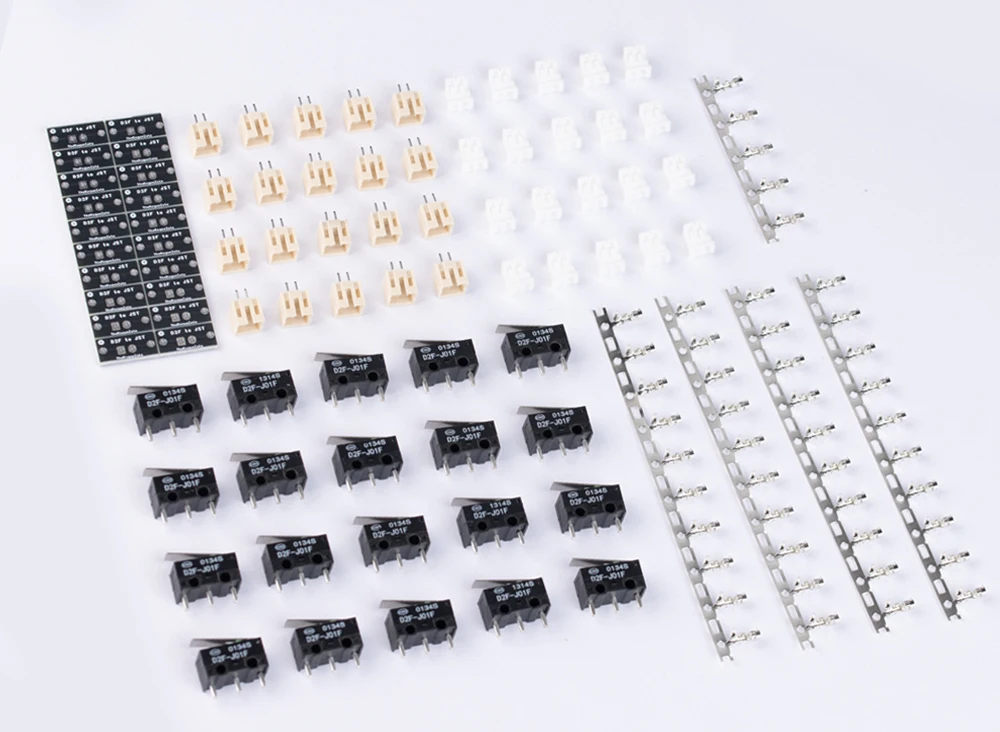

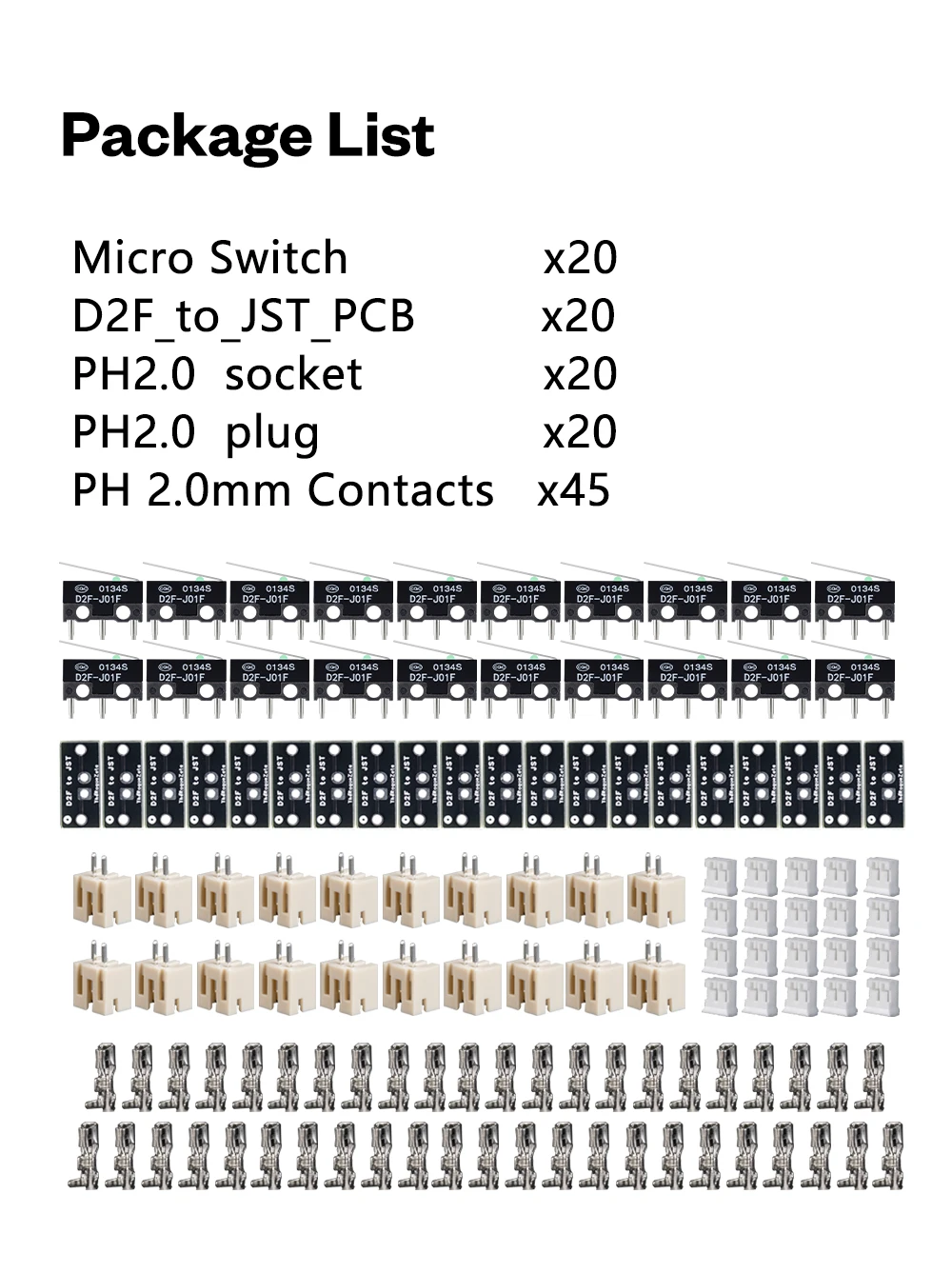

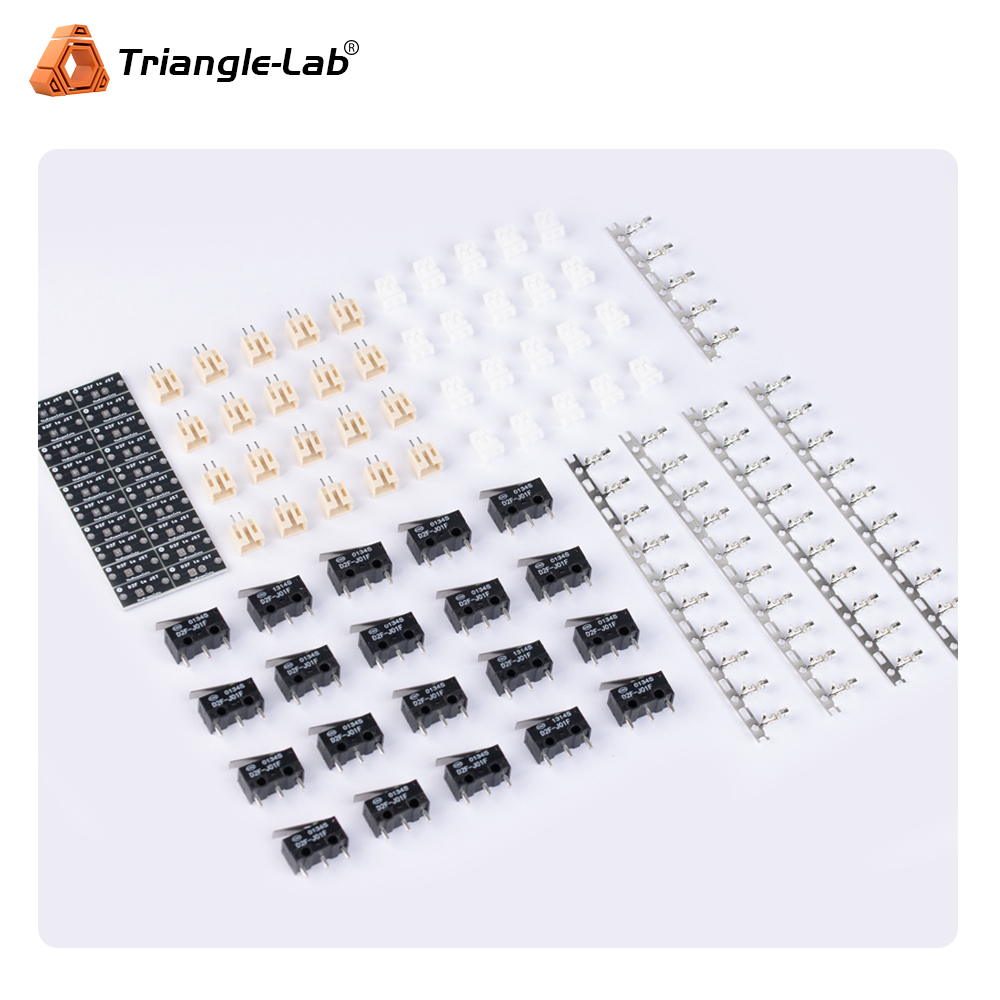

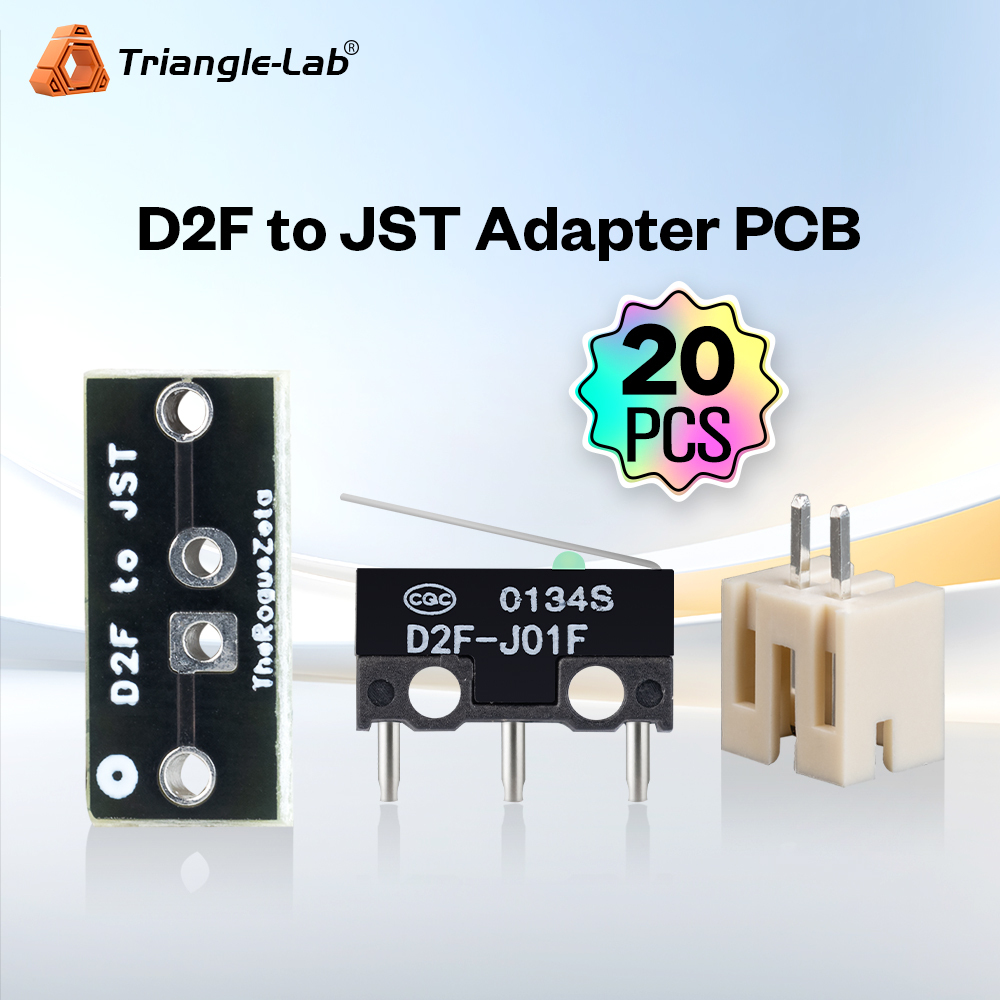

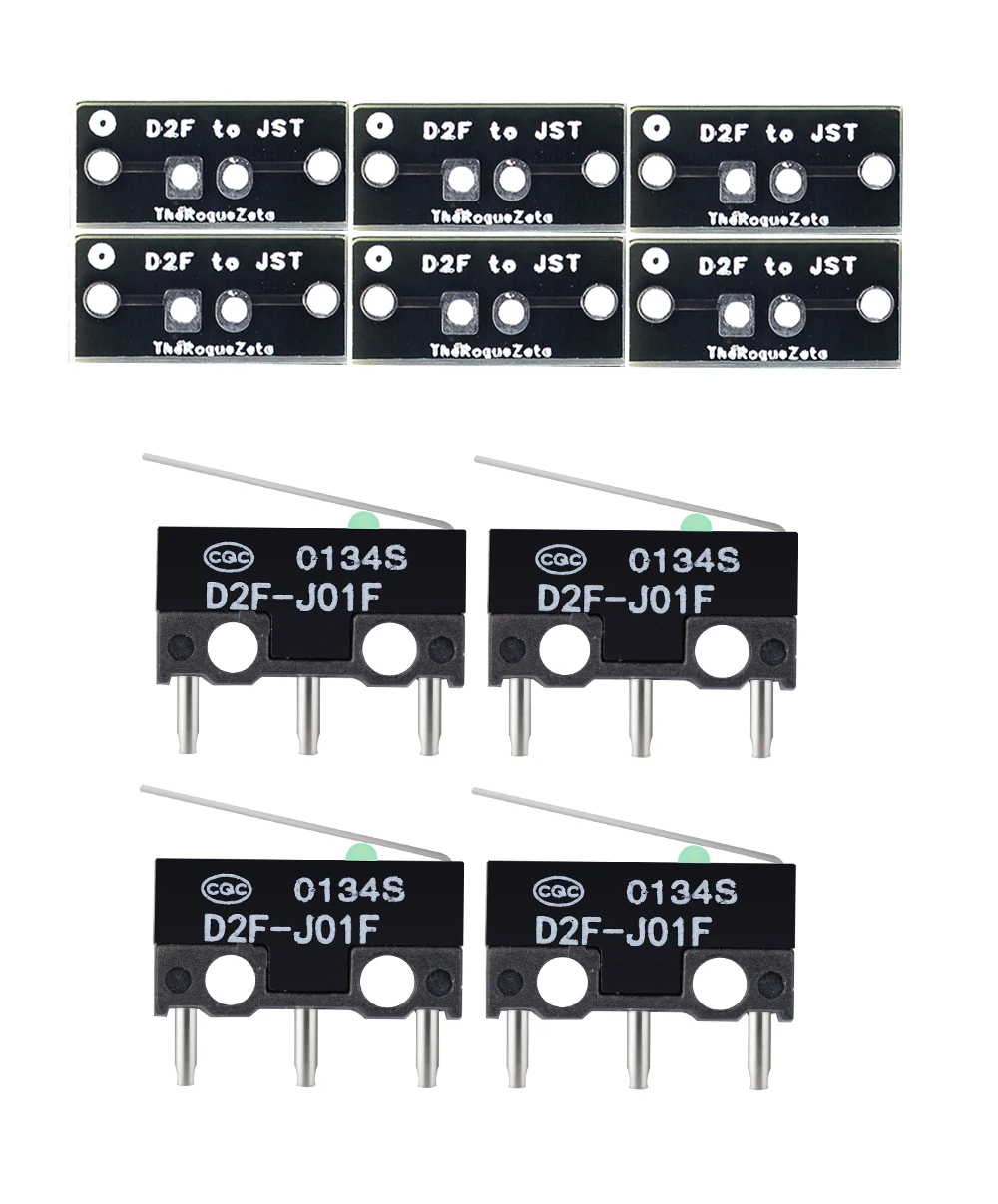

Package List

• Micro Switch x20

• D2F_to_JST_PCB x20

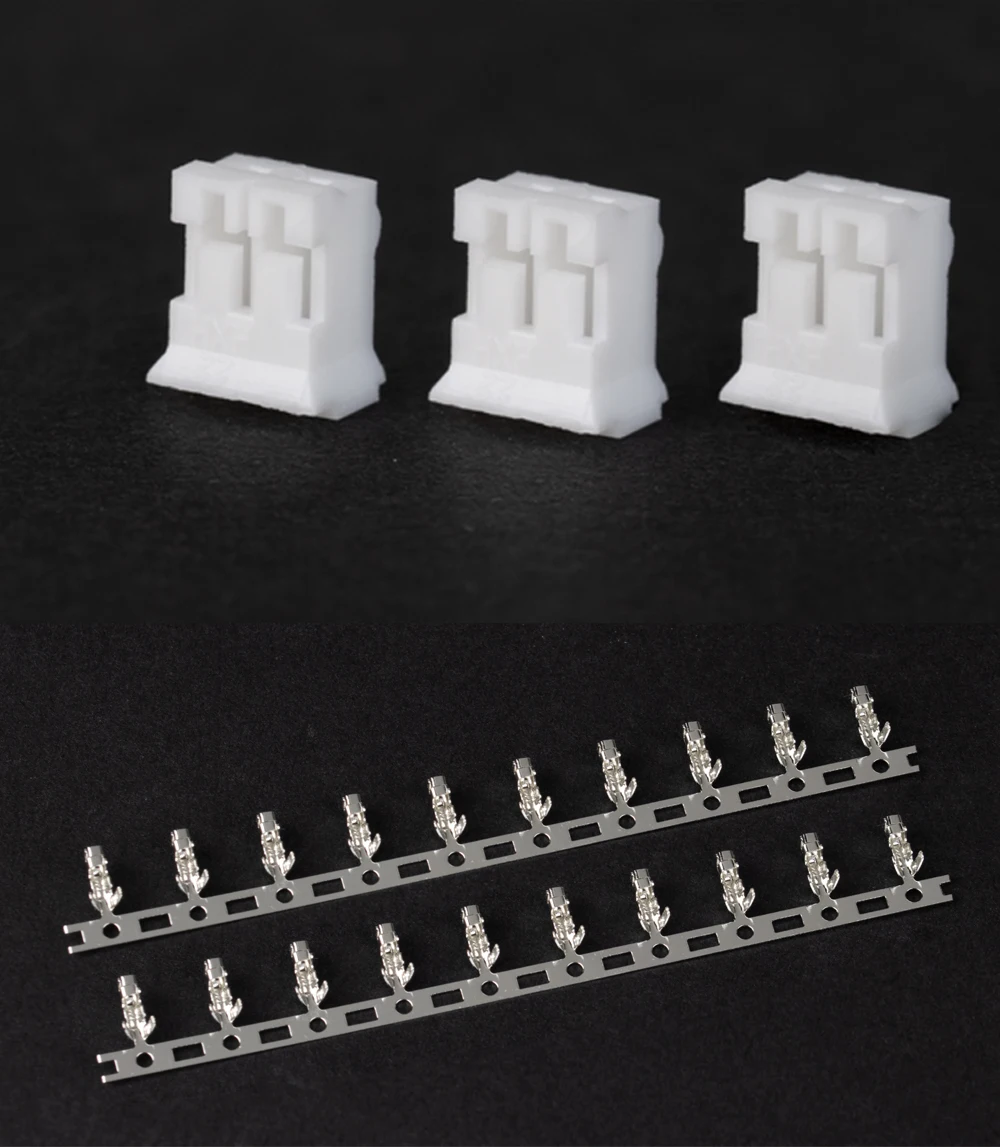

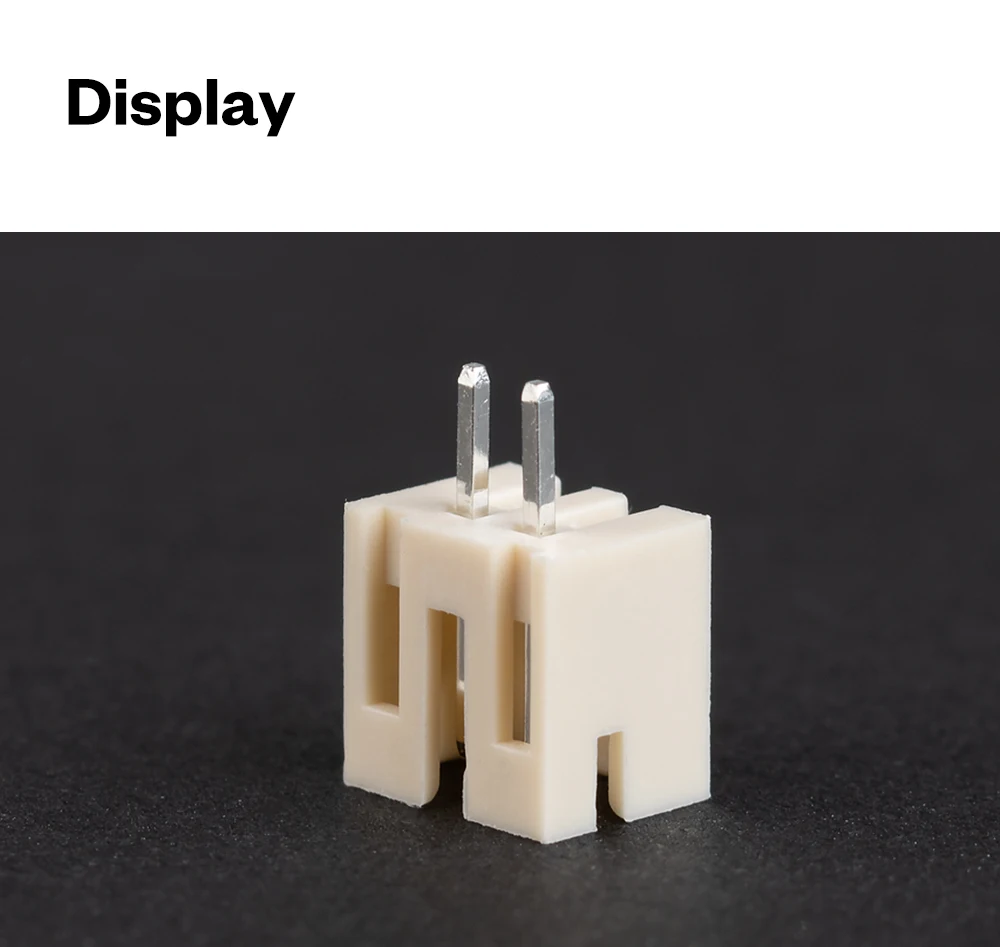

• PH2.0 socket x20

• PH2.0 plug x20

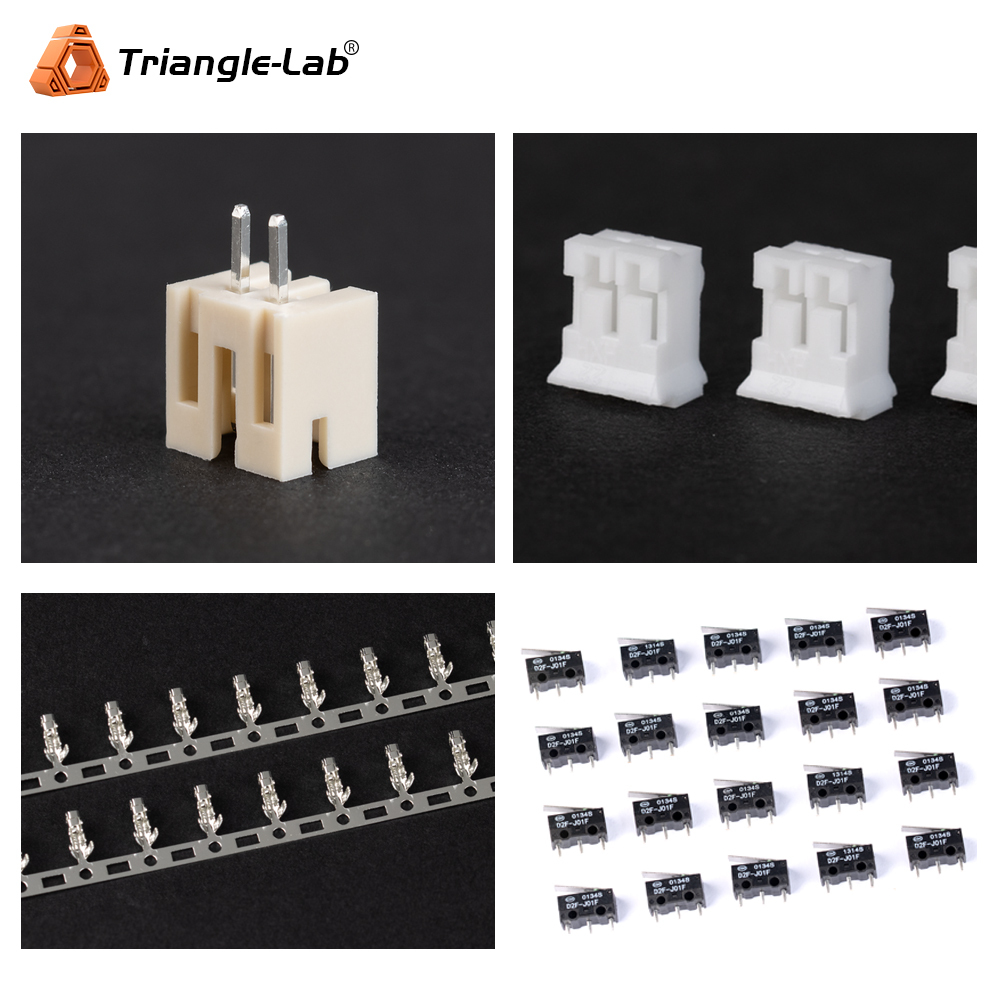

• PH 2.0mm Contacts x45Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

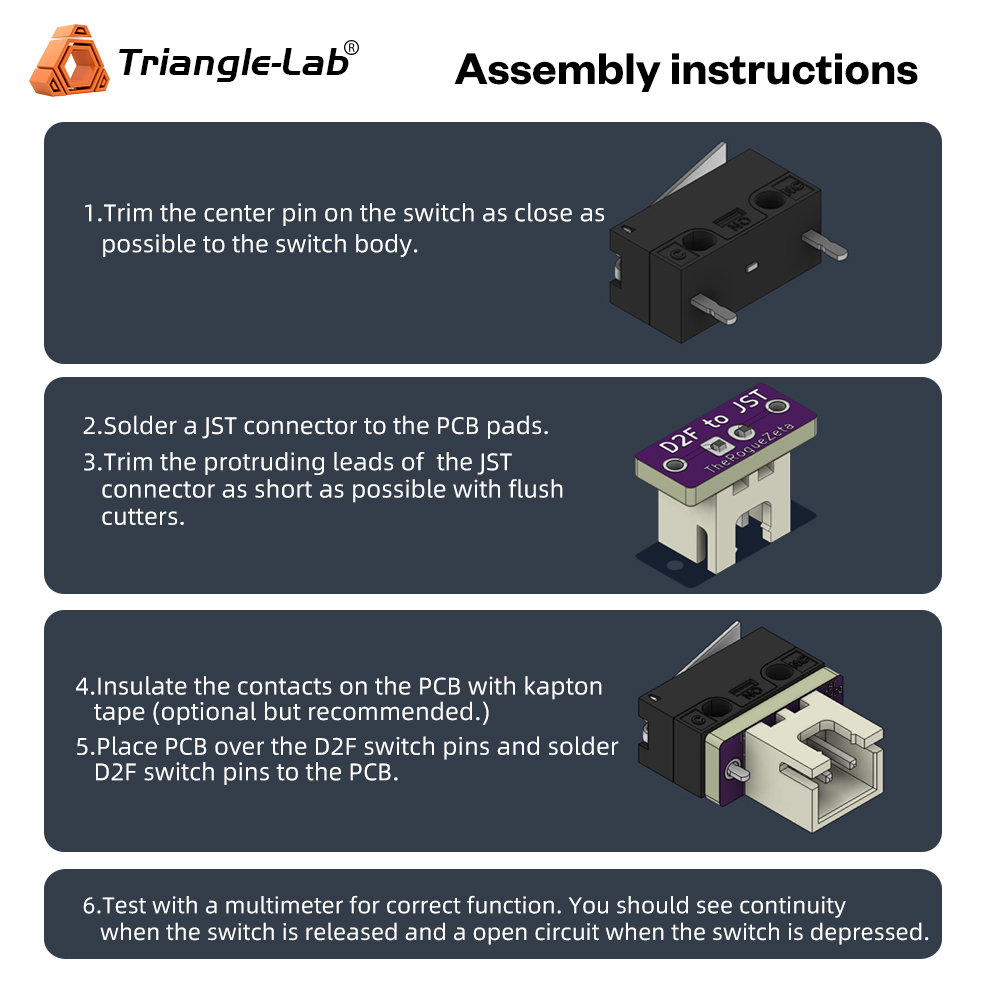

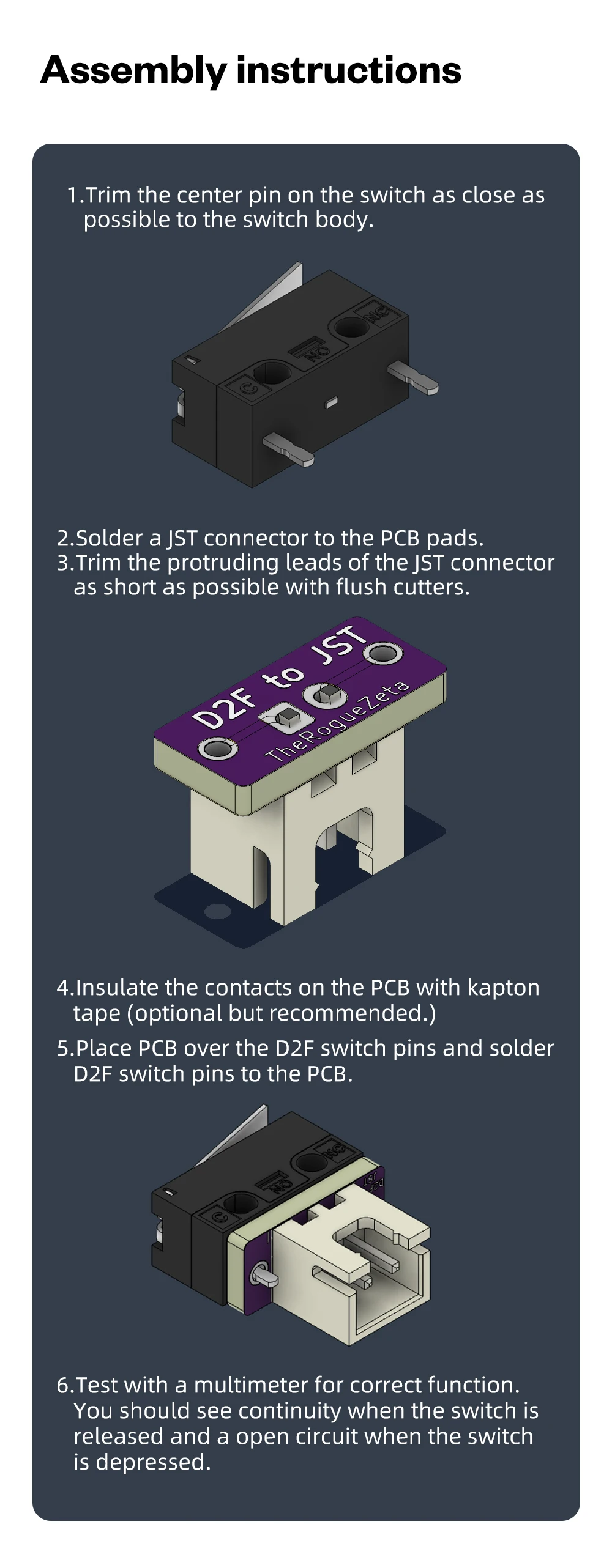

  Assembly instructions

•  1.Trim the center pin on the switch as close as possible to the switch body.

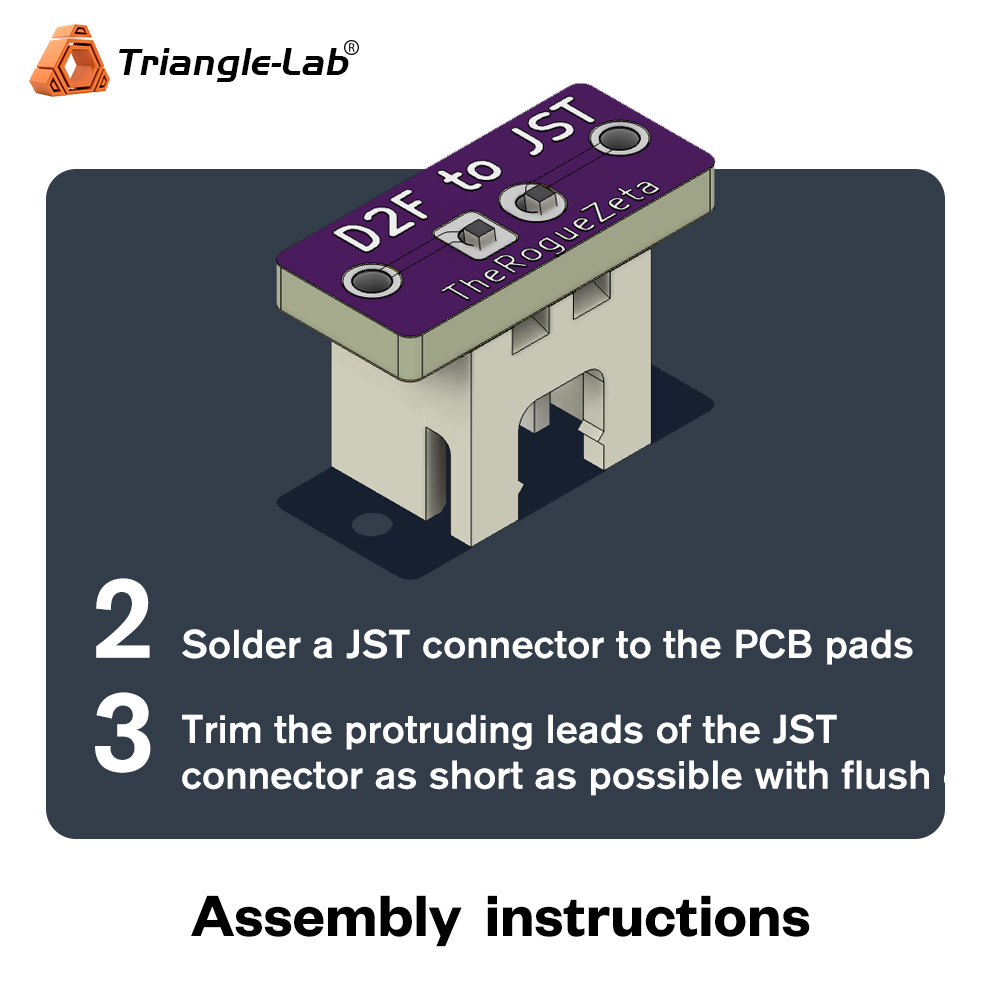

•  2.Solder a JST connector to the PCB pads.

•  3.Trim the protruding leads of the JST connector as short as possible with flush cutters.

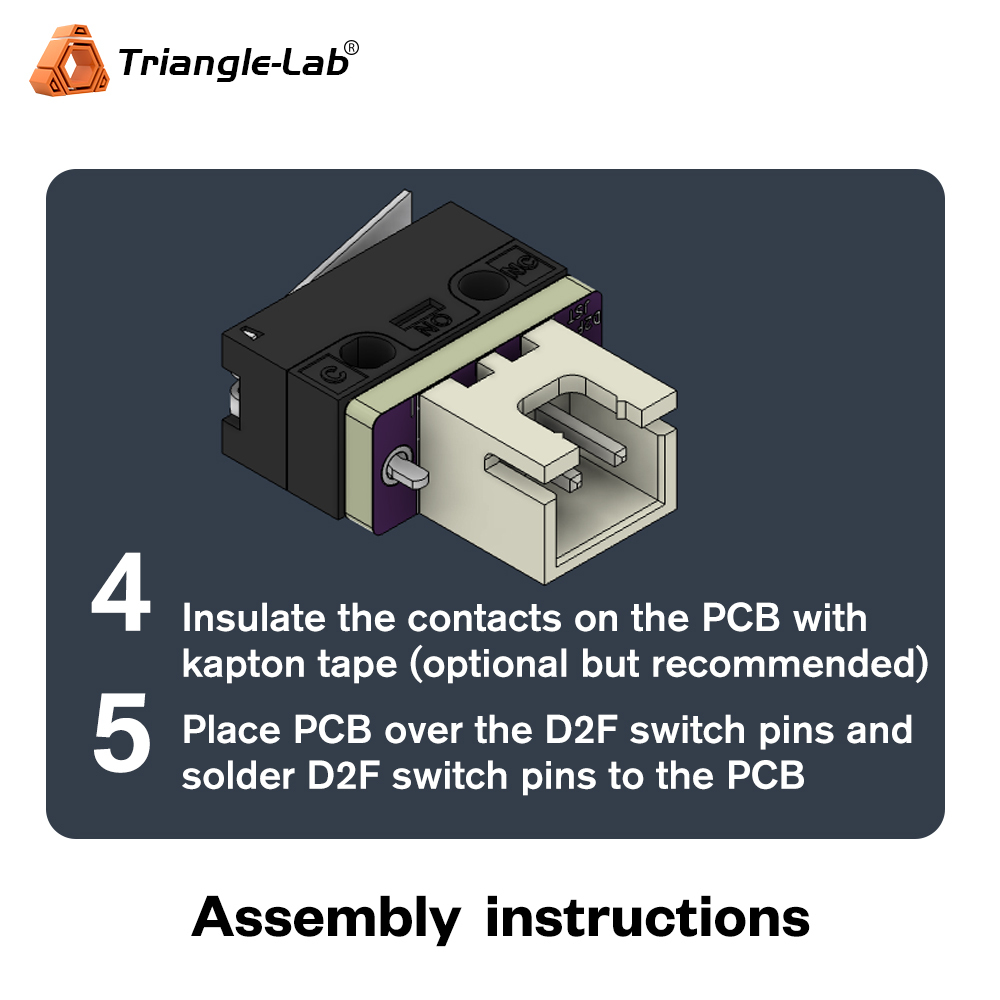

•  4.Insulate the contacts on the PCB with kapton tape (optional but recommended.)

•  5.Place PCB over the D2F switch pins and solder D2F switch pins to the PCB.

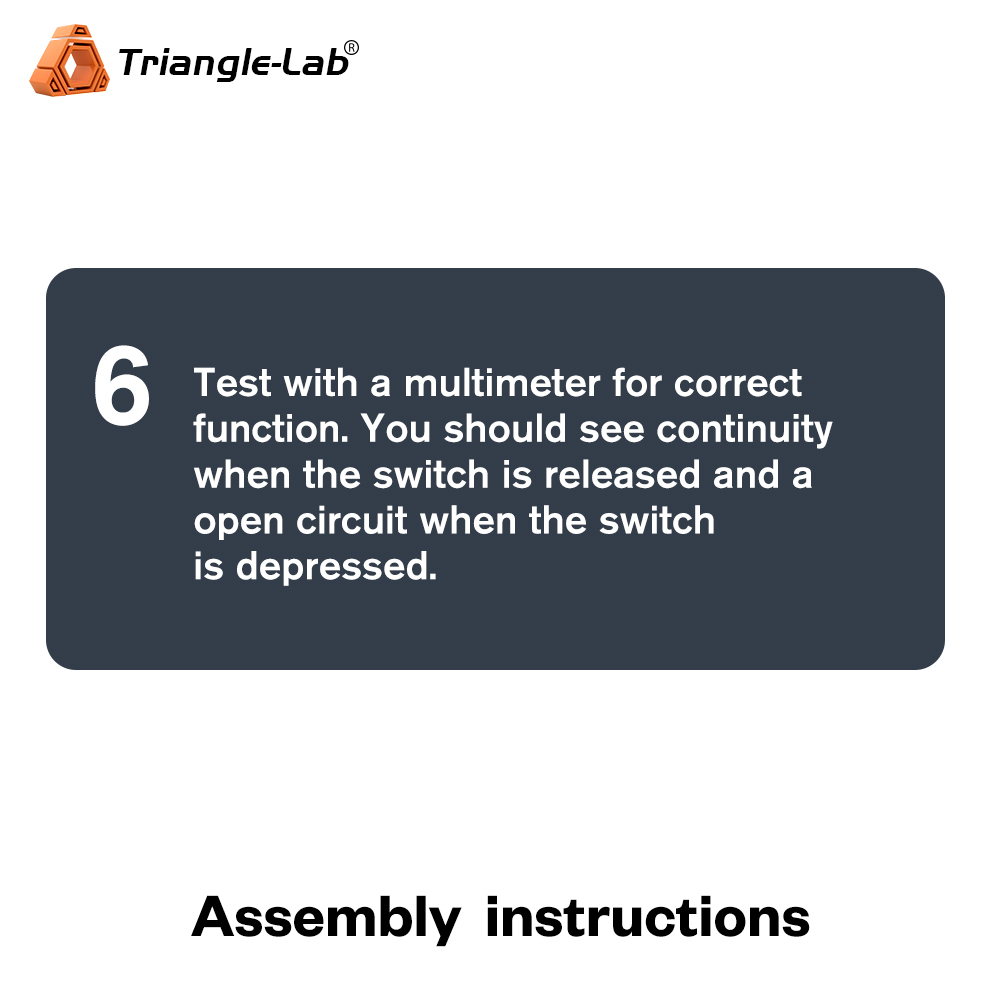

•  6.Test with a multimeter for correct function. You should see continuity when the switch is  released and a open circuit when the switch is depressed.

Applications

• 3D printer endstops

• Filament runout switches for filament changers

• Anywhere else where you want to easily disconnect your wire harness from the mounted switch!
