14 Channels MMU

• If you want to install an open-source MMU kit like thi on your printer, your printer must meet the following requirements: 1. It must be based on the open-source Klipper firmware. If it's factory-installed, you can root it and then install Klipper. 2. The main control board must have at least one USB port for expansion. 3. If necessary, install at least one filament sensor near the extruder (either in front of or behind the drive wheel). 4. If possible, install a filament cutter on the tool head. If a filament cutter isn't available, you can install an optional cutter module to cut off the tip near the MMU encoder to improve your success rate.
  If you can find other successful examples of printer modifications to accommodate these open-source MMUs, you should be able to follow their example.
• Before ordering, please note that all our products do not include tax, you need to declare your own tax!
• If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.
• Technical questions e-mail：support@trianglelab.net
• Sales questions e-mail：sales@trianglelab.net

• The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.

• Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.


If you want to install an open-source MMU kit like thi on your printer, your printer must meet the following requirements: 1. It must be based on the open-source Klipper firmware. If it's factory-installed, you can root it and then install Klipper. 2. The main control board must have at least one USB port for expansion. 3. If necessary, install at least one filament sensor near the extruder (either in front of or behind the drive wheel). 4. If possible, install a filament cutter on the tool head. If a filament cutter isn't available, you can install an optional cutter module to cut off the tip near the MMU encoder to improve your success rate.

If you can find other successful examples of printer modifications to accommodate these open-source MMUs, you should be able to follow their example.

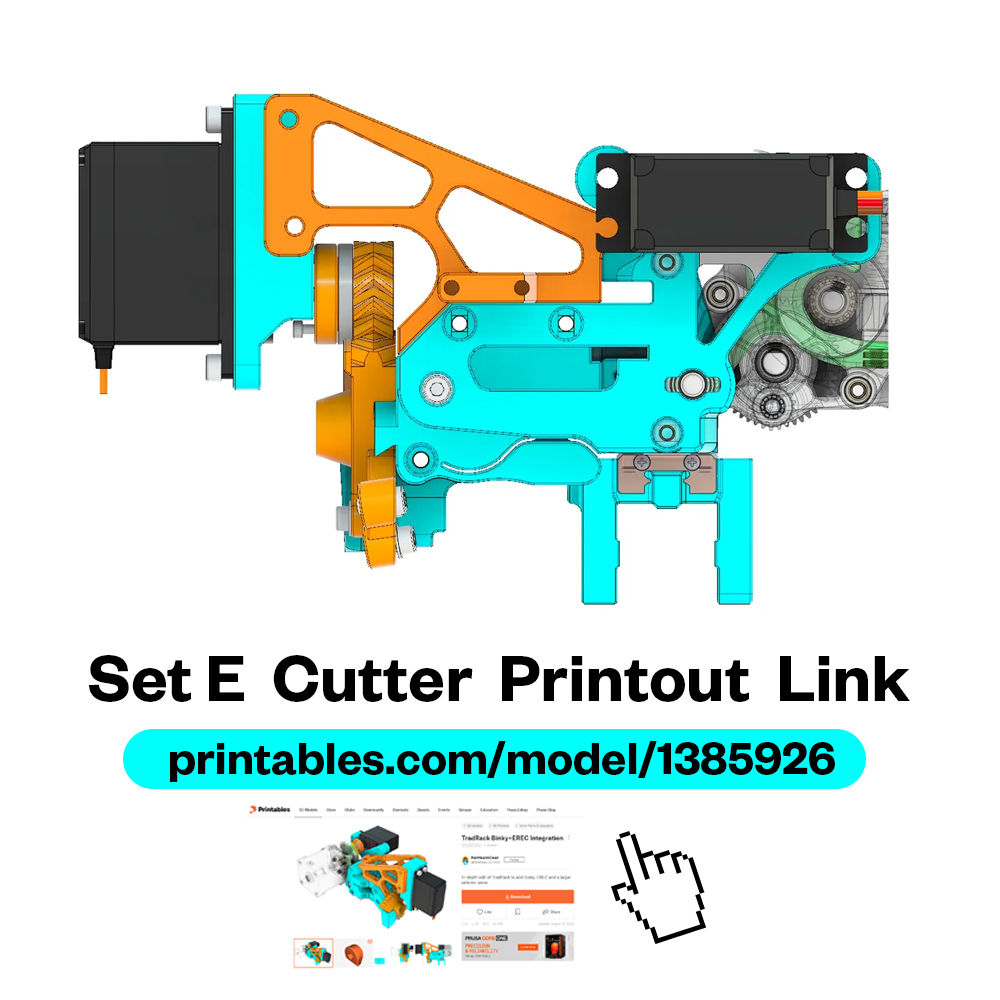

▇Set E Cutter Printout ink

printables.com/model/1385926

▇Installation guide connection

GitHub - Annex-Engineering/TradRack: A MMU system developed by ANNEX Engineering

This kit already contains all the necessary and optional hardware for you to assemble a working 14-channel MMU (driven by Happy-Hare software), including the tool head sensor, tool head filament cutter and even the extruder sync. sensor. The only difference between the whole hardware and the official Tradrack is the main control board.

There is a very detailed and easy-to-understand installation guide on Happy-Hare's github, and Happy-Hare natively supports Tradrack and easy-brd control board combination.

If you want to strictly follow the official Tradrack build plan, you can choose the SET-C or D package without easy-BRD, but it will still include all the necessary hardware, except the easy-brd. You can buy the Control board and wiring harness from the ANNEX Store to strictly follow the official bulid plan.

Regarding community mods, if you are in doubt you can completely ignore them and it will still work, for example the binky encoder.The ERF filament cutting and tool head sensor is an official ERCF V2 project, which is the missing part of tradrack project. You can easily integrate them into your MMU system through Happy-Hare software.

▉More information:

https://drive.google.com/drive/folders/15uikqsmkMnKs-W1NVWu3owomo34ZEpQp

▉Name:

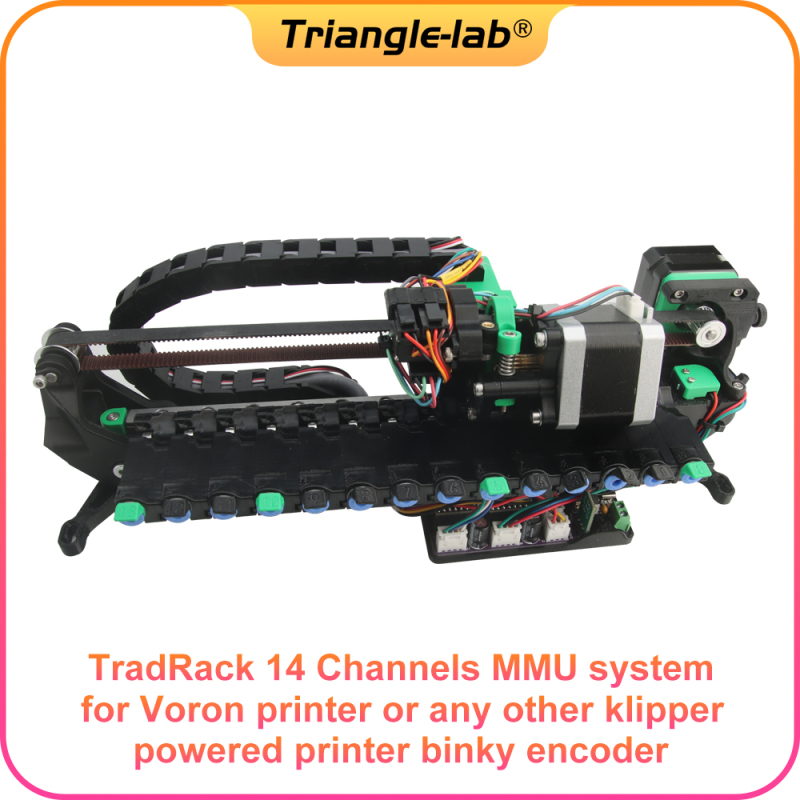

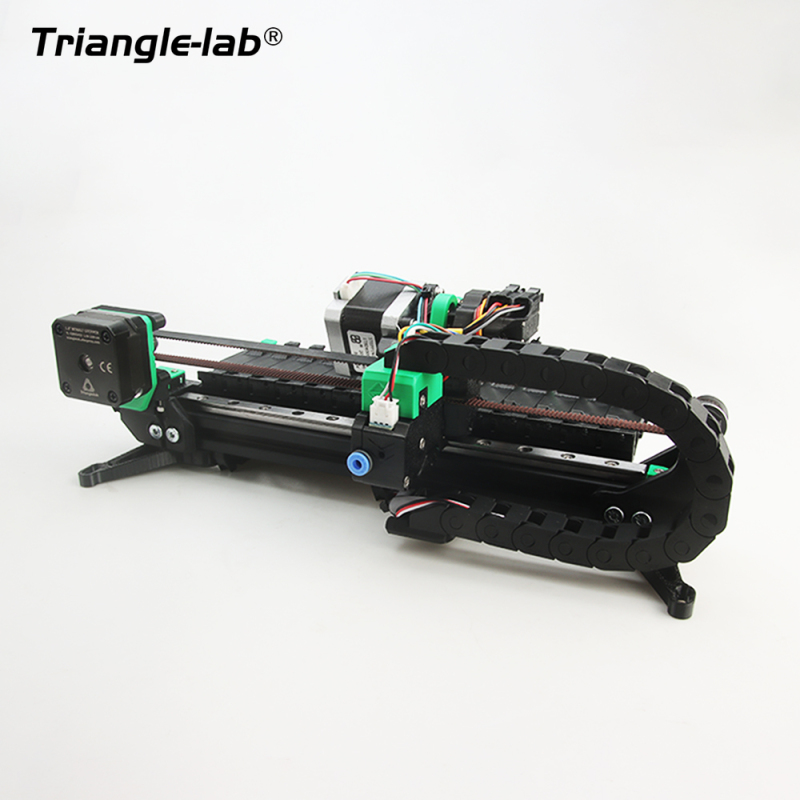

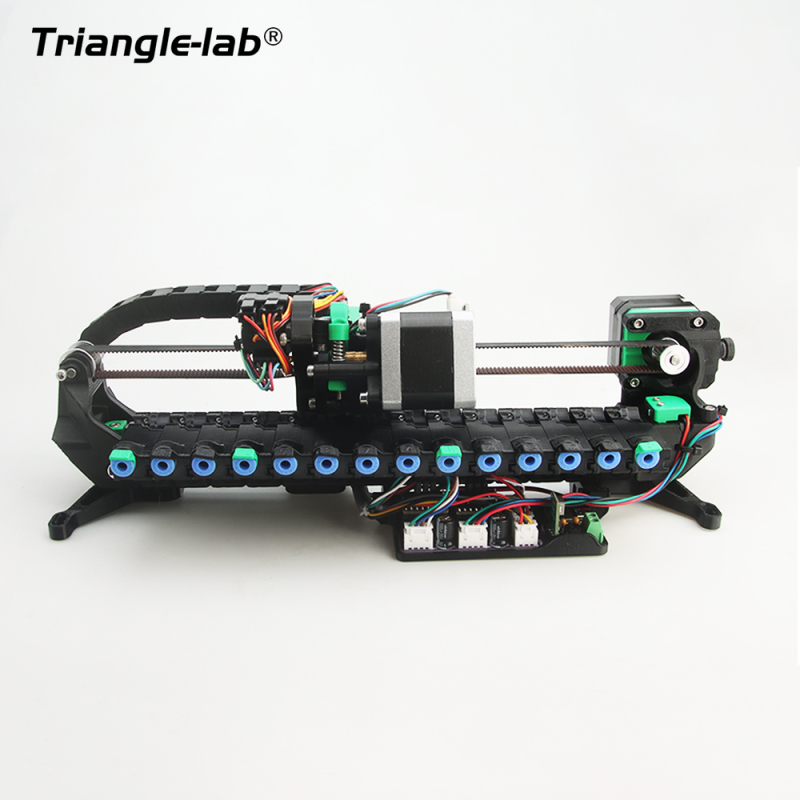

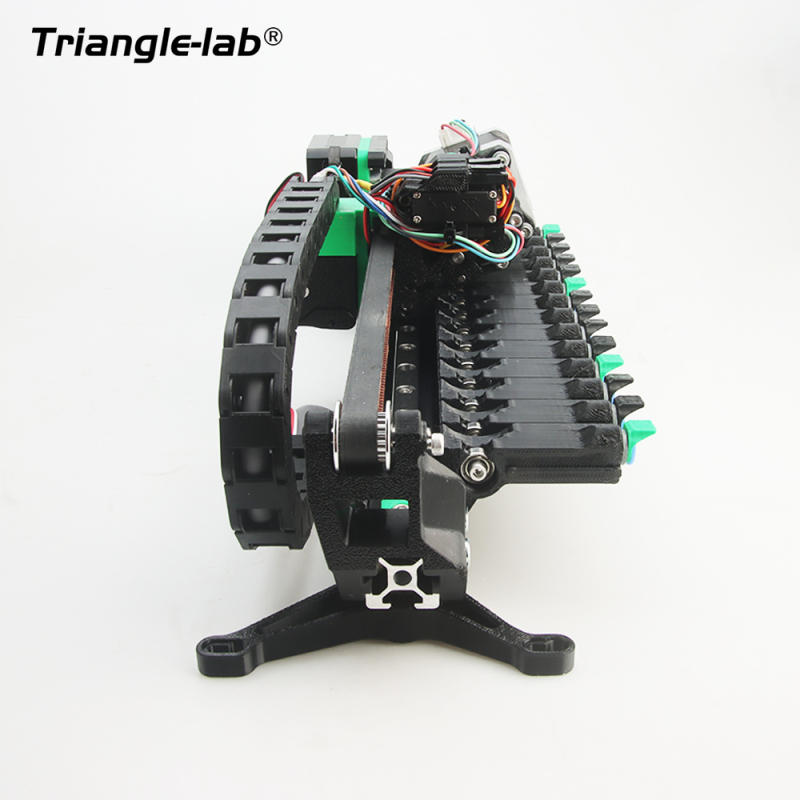

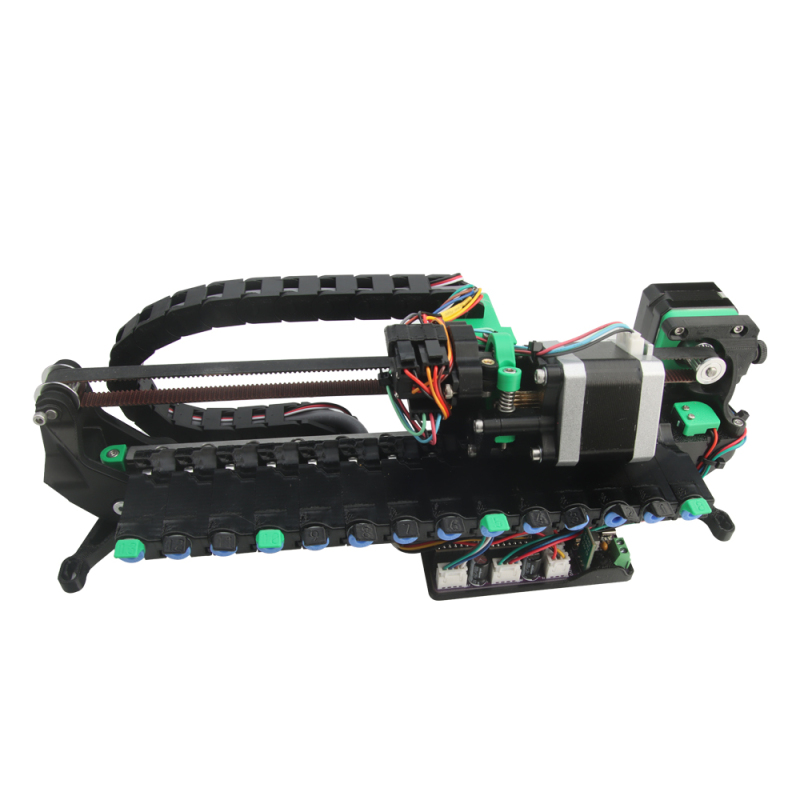

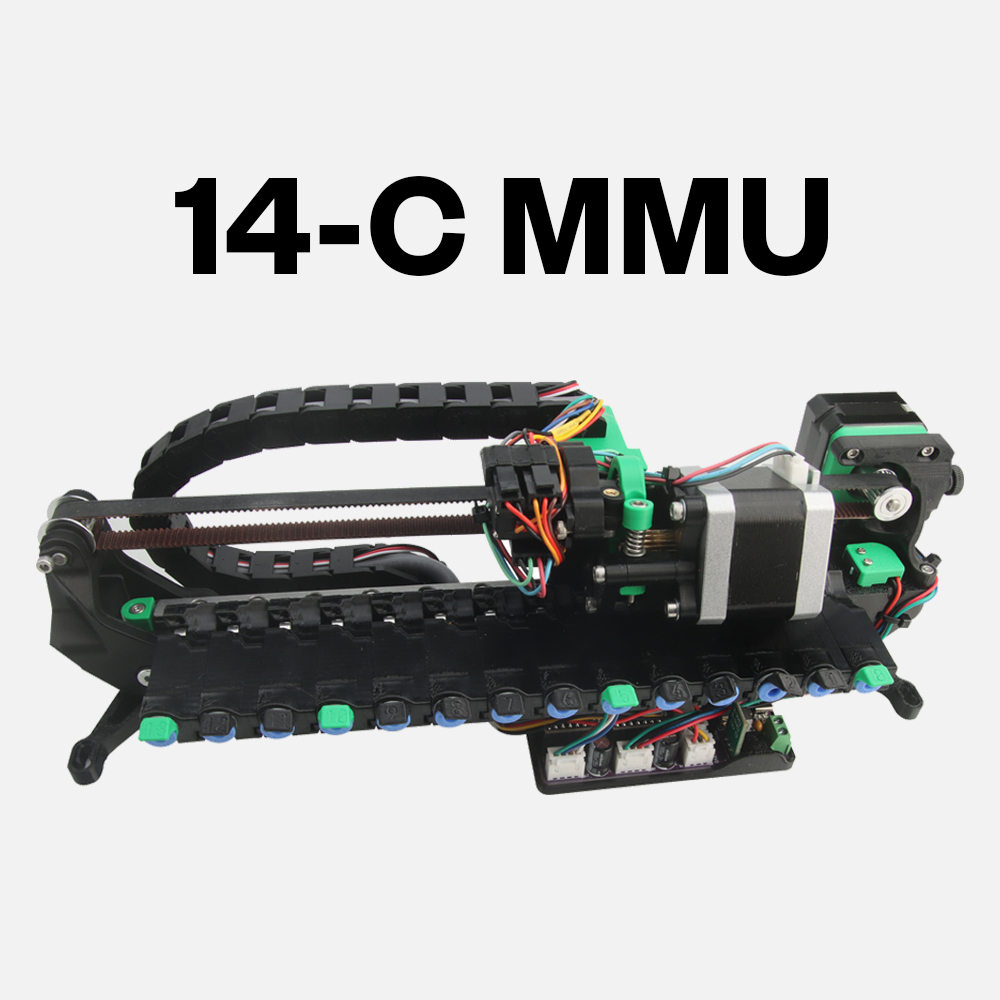

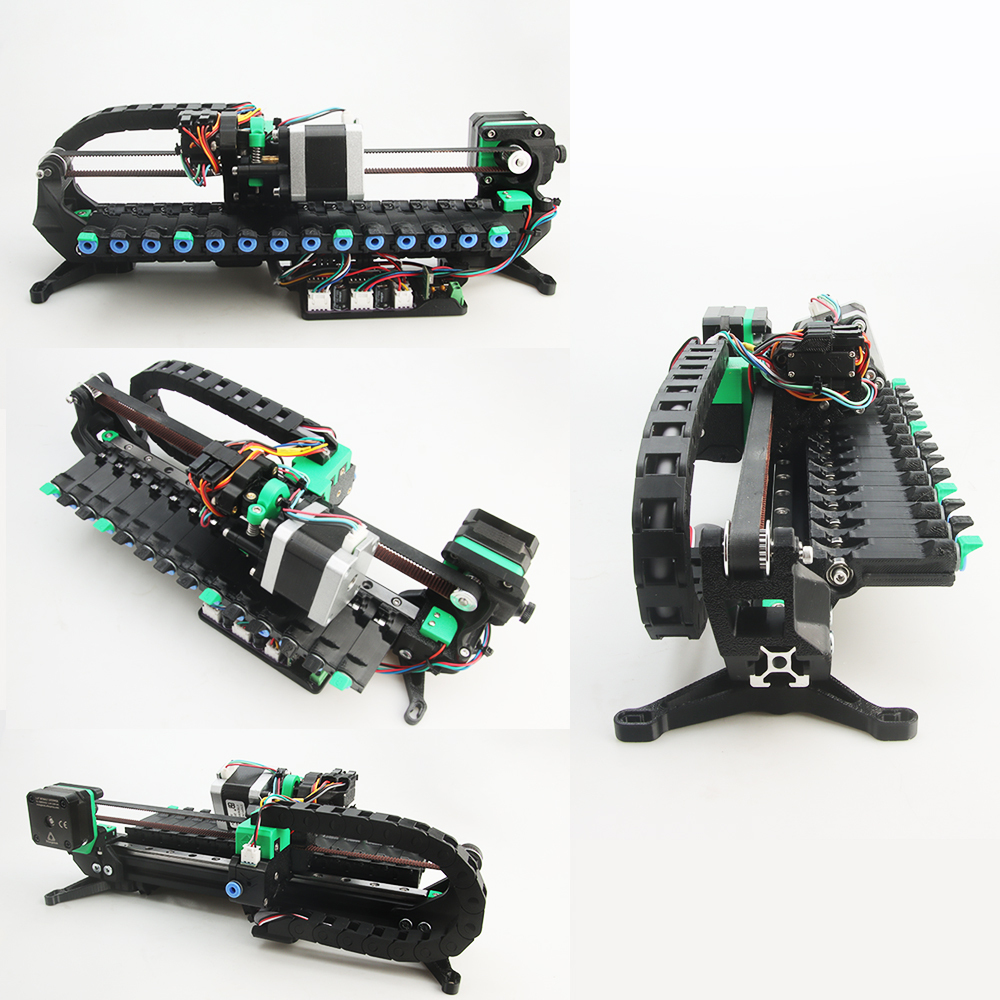

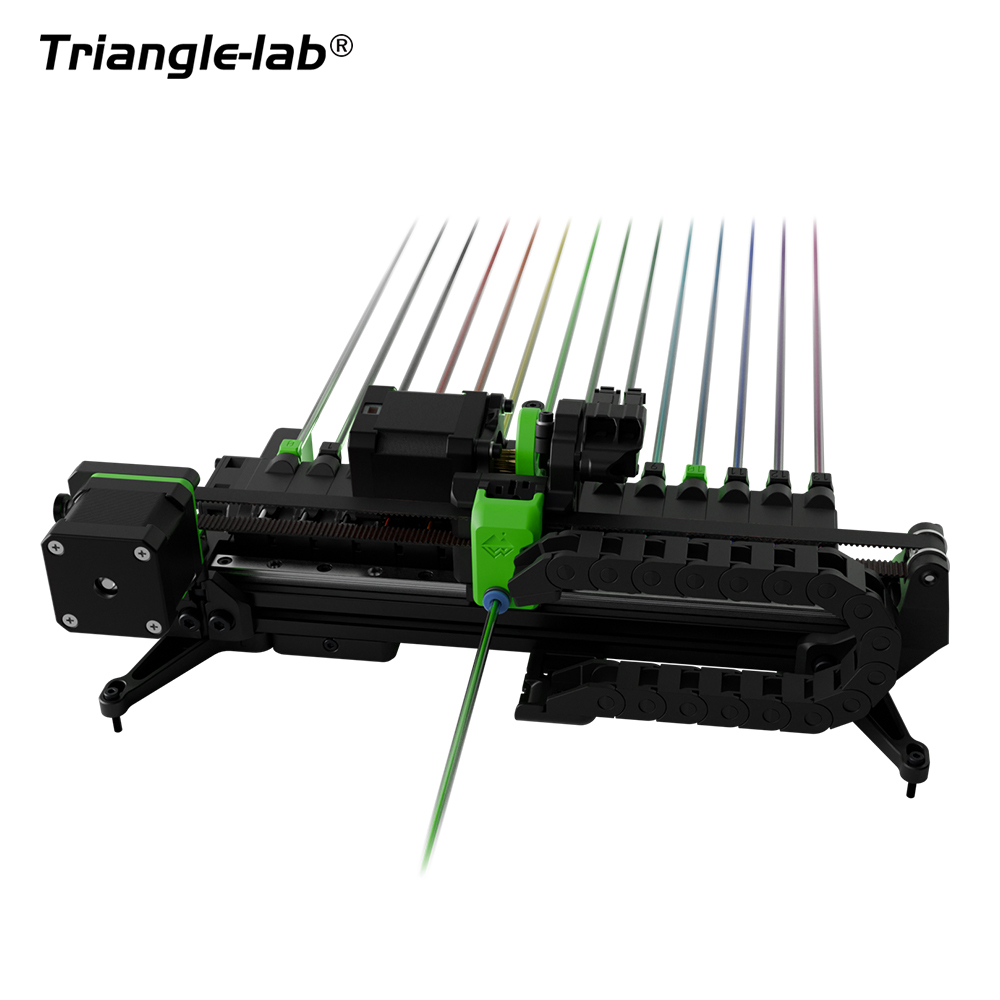

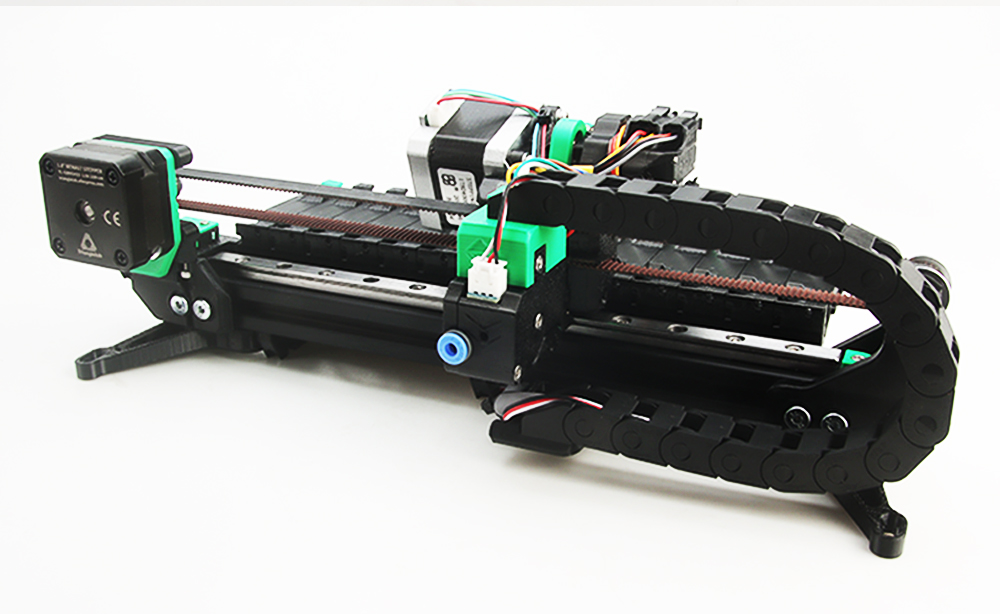

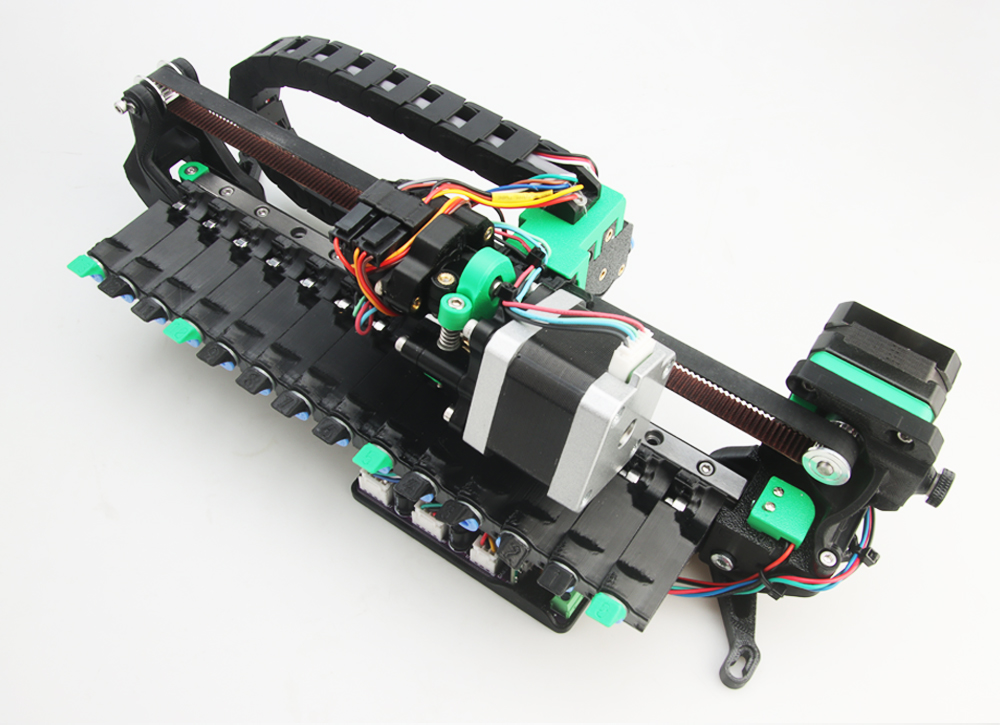

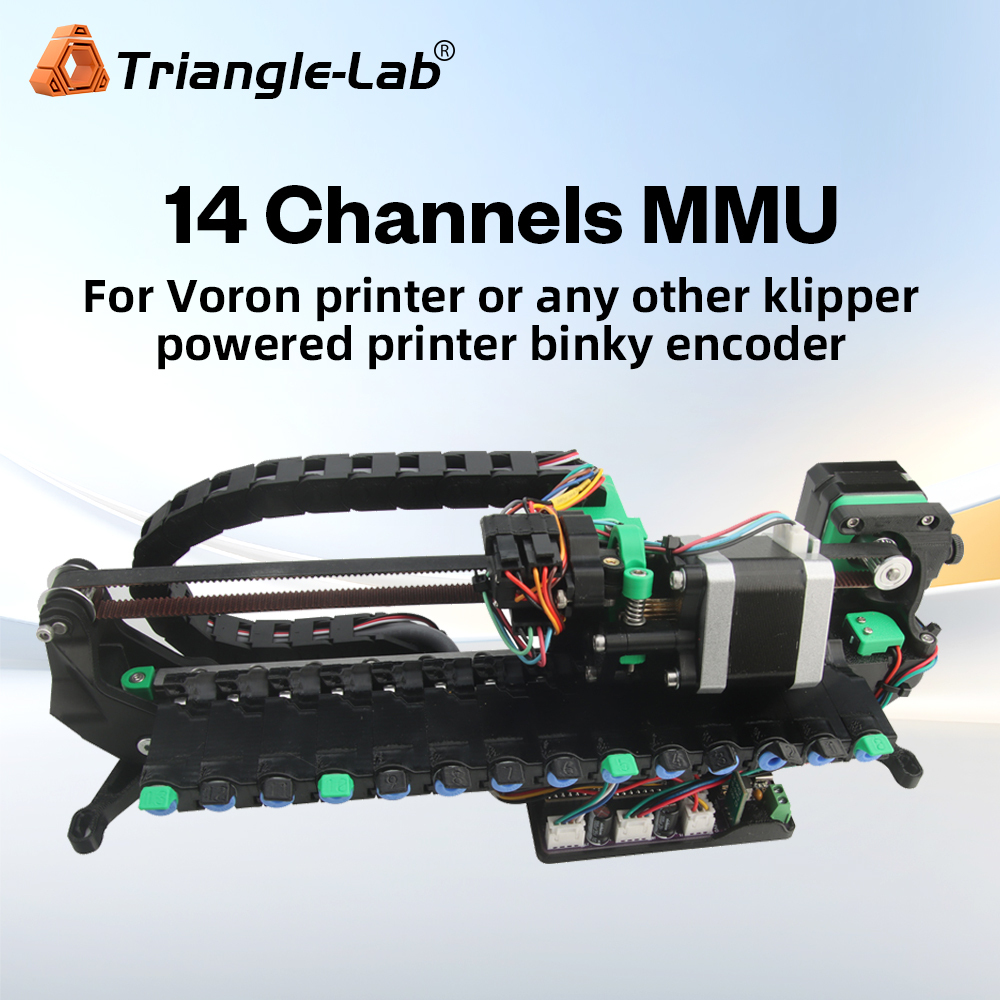

TradRack 14 Channels MMU system for Voron printer or any other klipper powered printer binky encoder

▉Description:

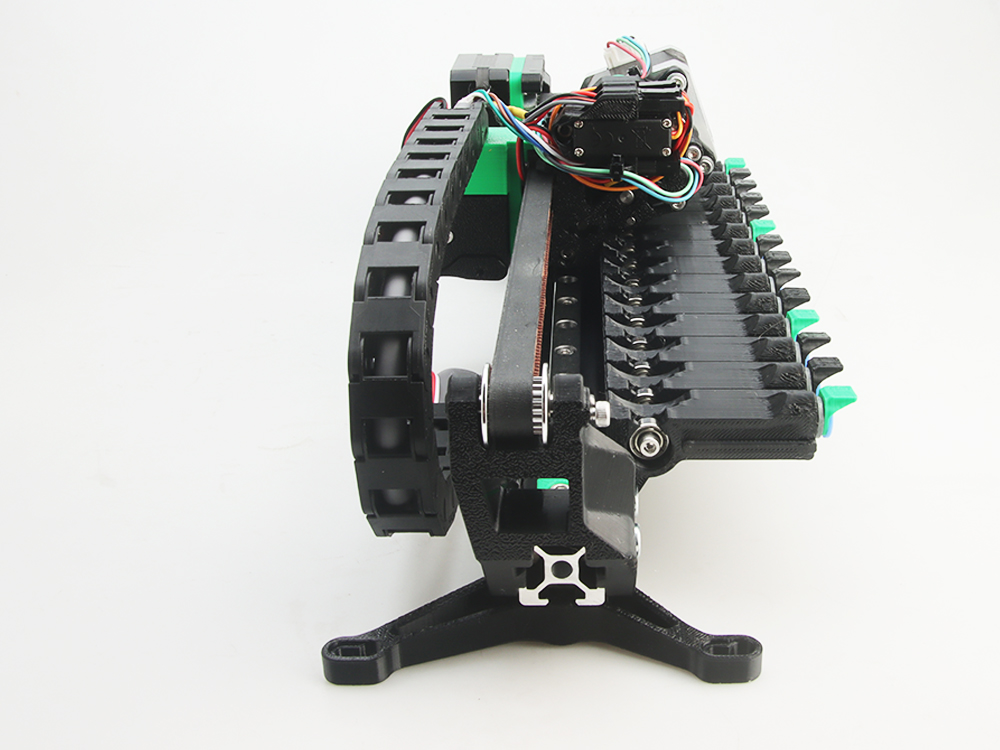

Trad Rack is a multimaterial system for FFF printerswith a focus on scalability at low cost, developed by Ryan G and the team at Annex Engineerin.

https://github.com/Annex-Engineering/TradRack

This kit sold by triangle-lab contains all the necessary parts to assemble 14 channels. This kit also comes ​with a binky encoder by default. Through these MODs, you can make TR feeding more precise and reliable, and reduce the chance of failure as much as possible. This kit utilizes the EASY-BRD control board, which is directly supported by the Happy-Hare software. This kit also has the option of adding Carrot Patch x14 as a spool holder and filament buffer if you need it.

▉Compatible

Voron printer equipped with SB/AB tool head ​All other printers with klipper firmware and ​direct drive extruder installed (In theory)

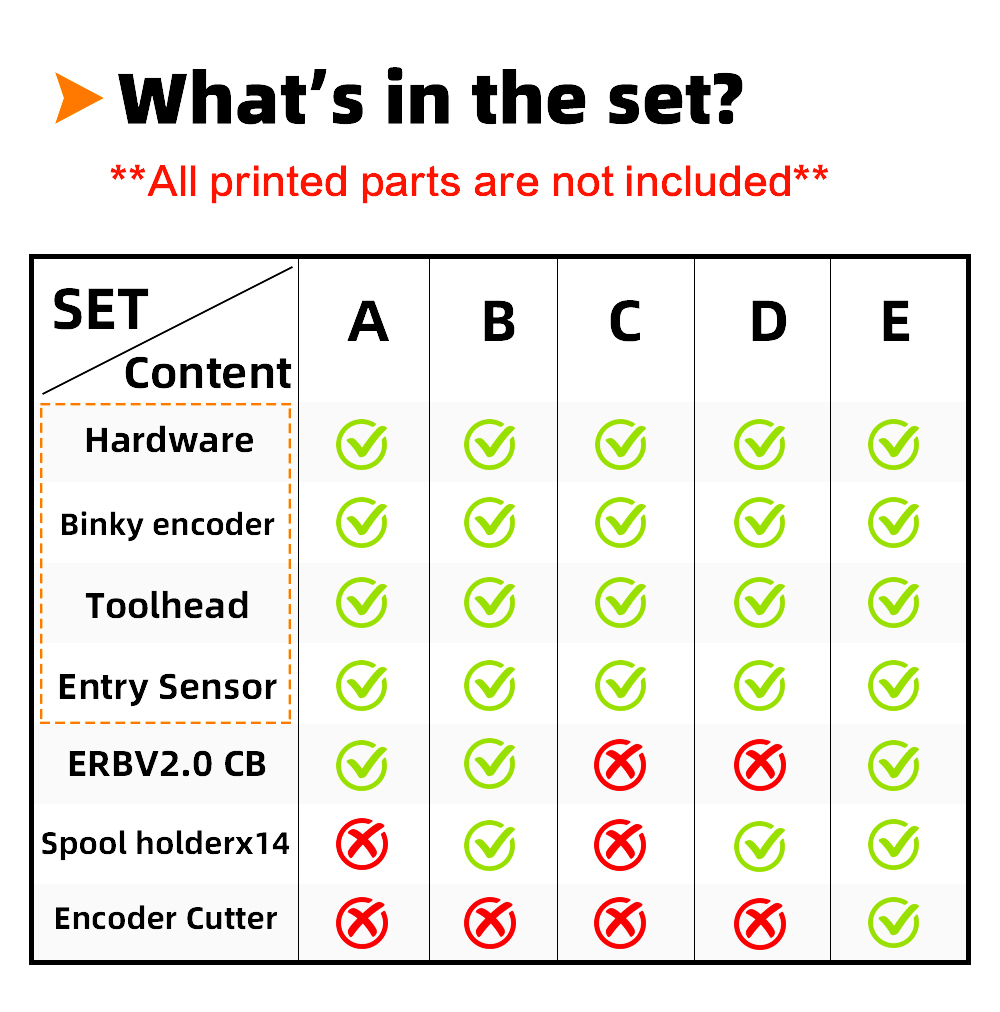

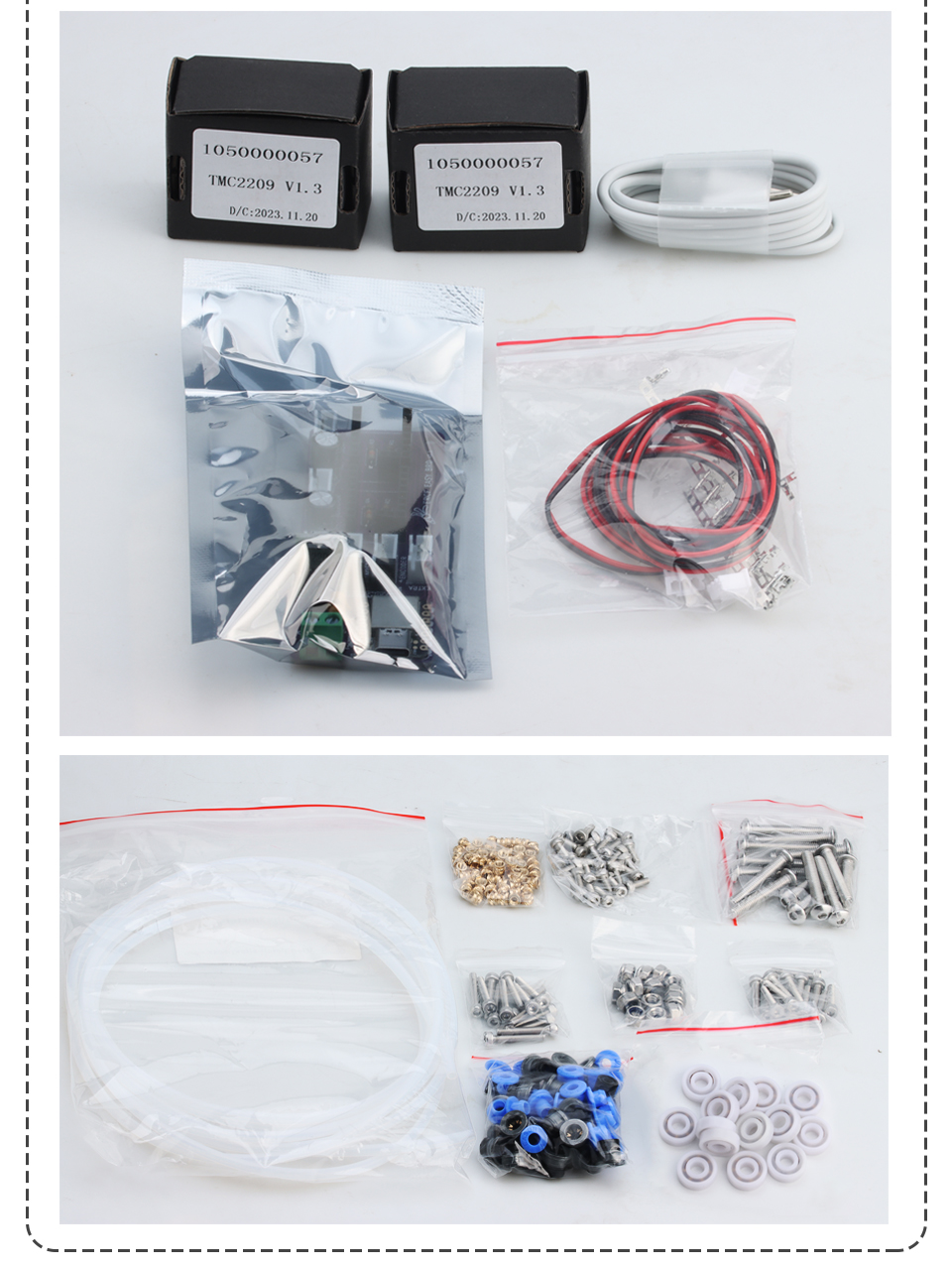

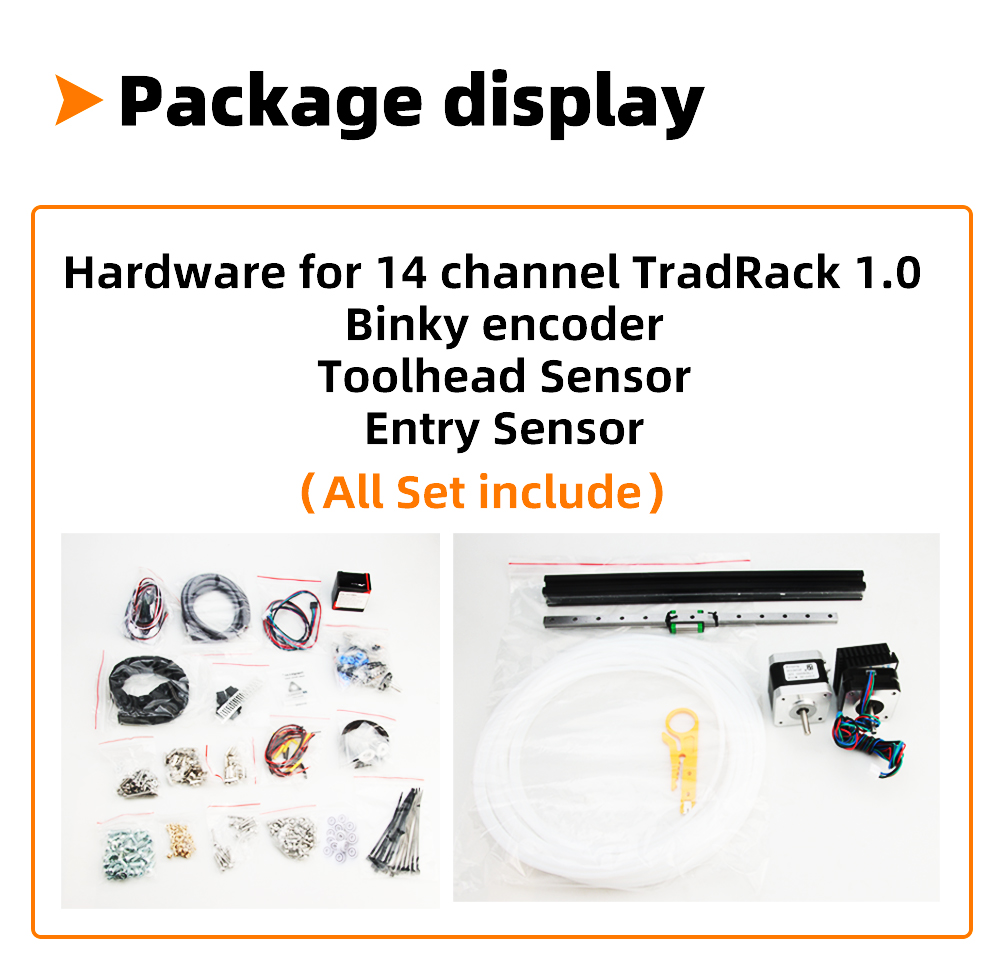

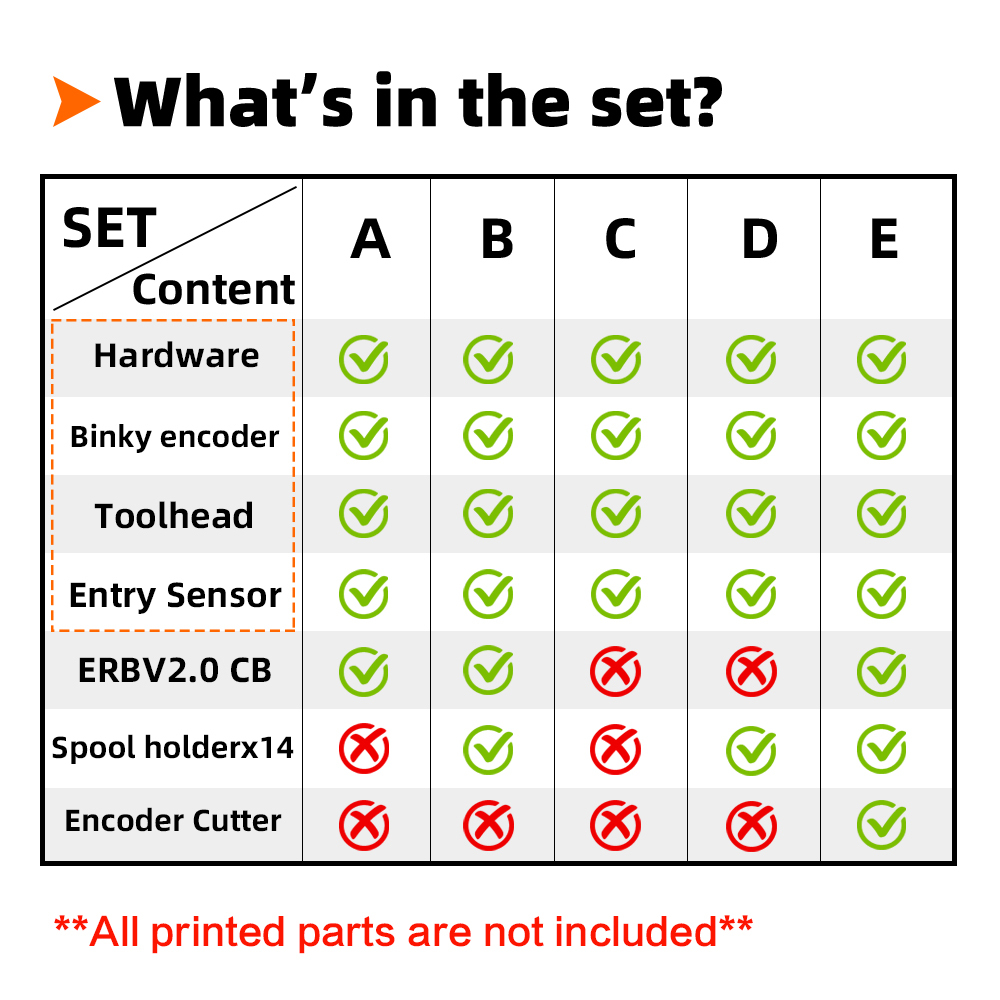

▉What's in the package?

  SET A:

Hardware for 14 channel TradRack 1.0

Binky encoder

Toolhead Sensor

Entry Sensor

Toolhead Cutter

EASY BRD V1.1

TMC2209/2226 driver x2

**All printed parts are not included**

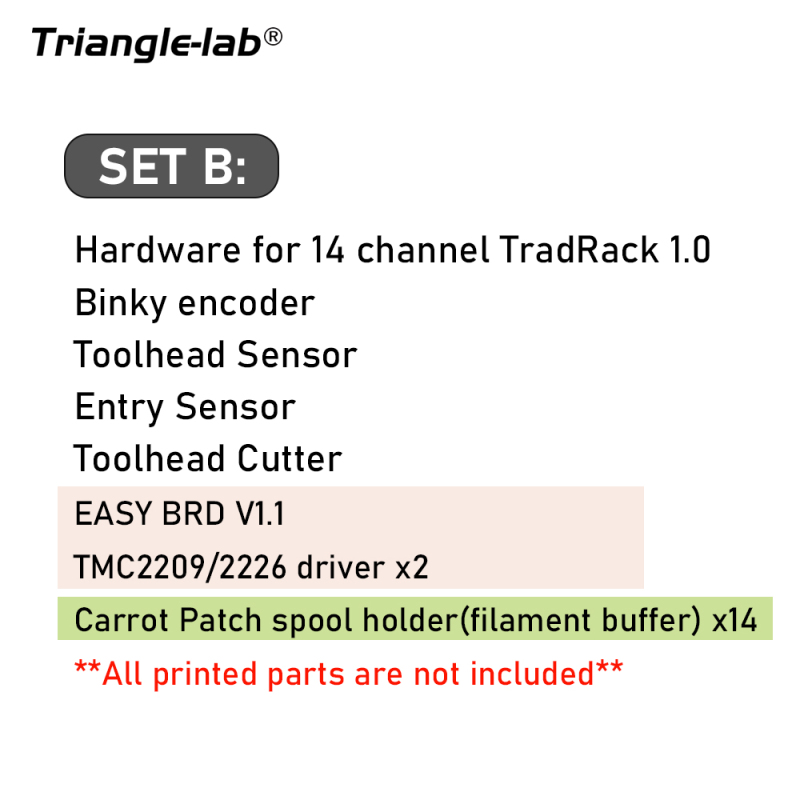

  SET B:

01.Hardware for 14 channel TradRack 1.0 Binky encoder Toolhead Sensor

Entry Sensor

Toolhead Cutter

EASY BRD V1.1

TMC2209/2226 driver x2

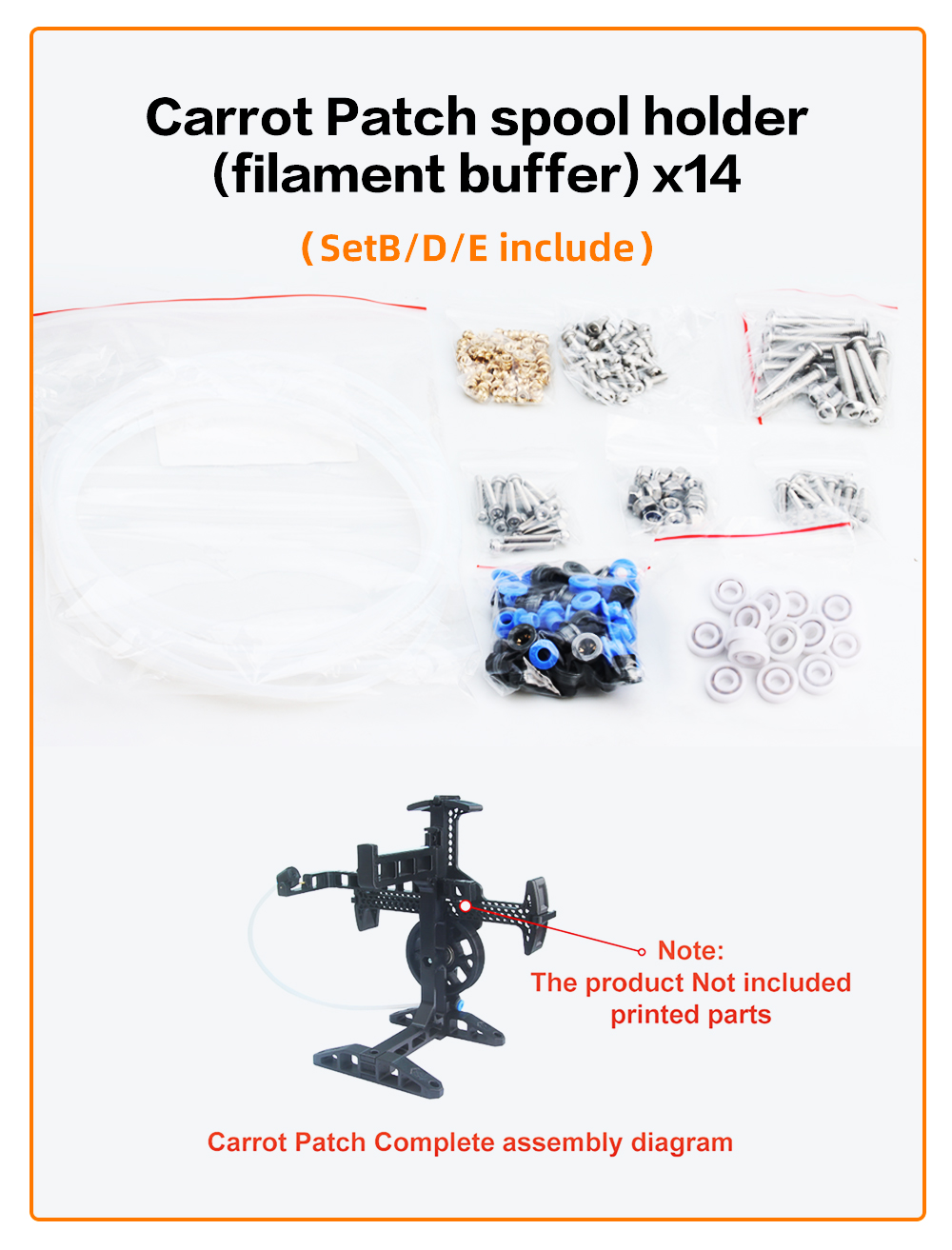

Carrot Patch spool holder(filament buffer) x14

**All printed parts are not included**

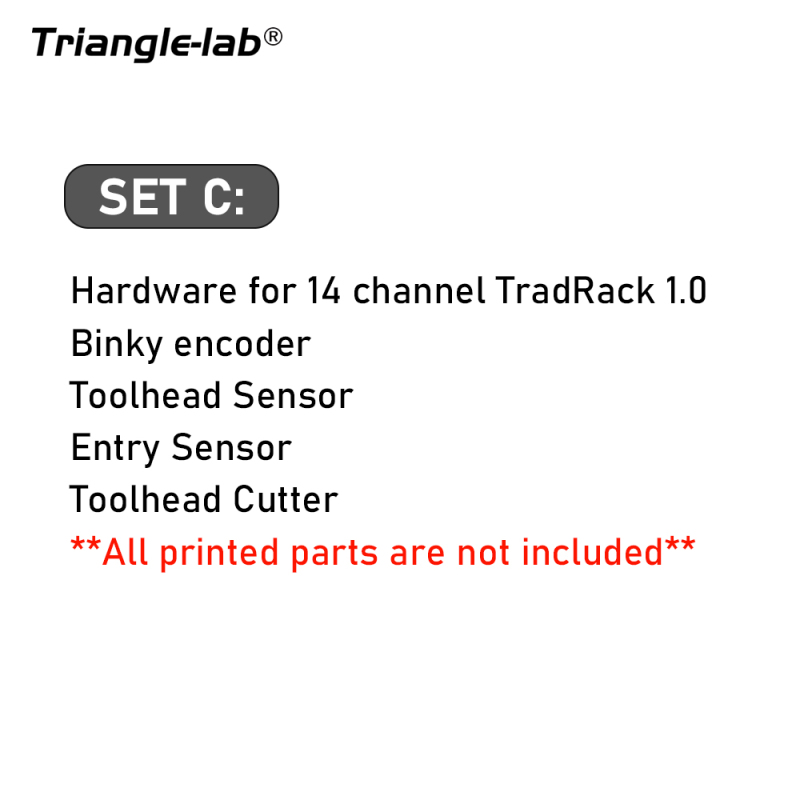

  SET C:

Hardware for 14 channel TradRack 1.0

Binky encoder

Toolhead Sensor

Entry Sensor

Toolhead Cutter

All printed parts are not included

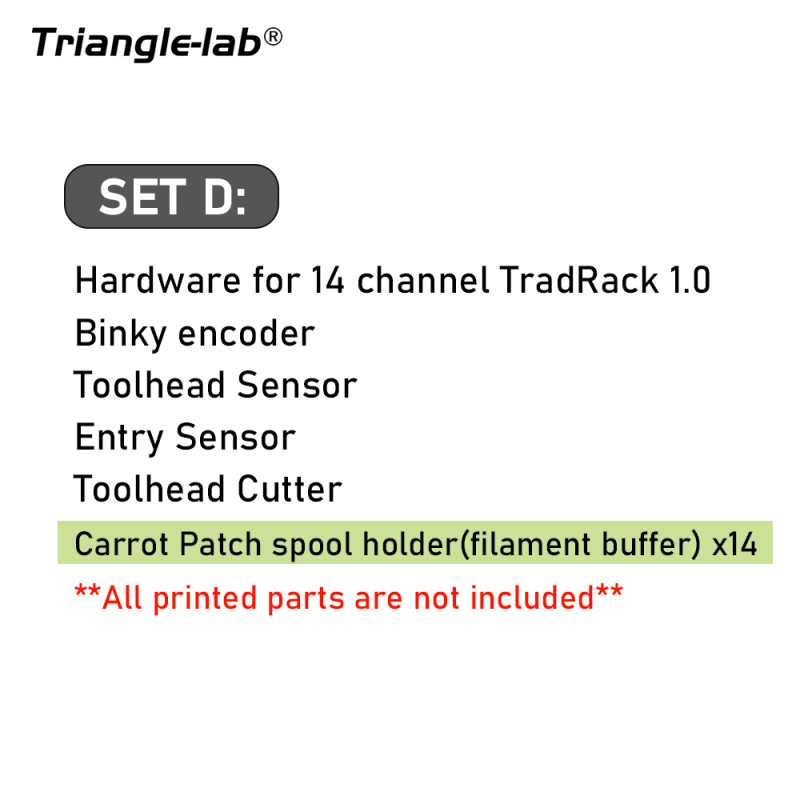

  SET D:

Hardware for 14 channel TradRack 1.0

Binky encoder

Toolhead Sensor

Entry Sensor

Toolhead Cutter

Carrot Patch spool holder(filament buffer) x14

All printed parts are not included

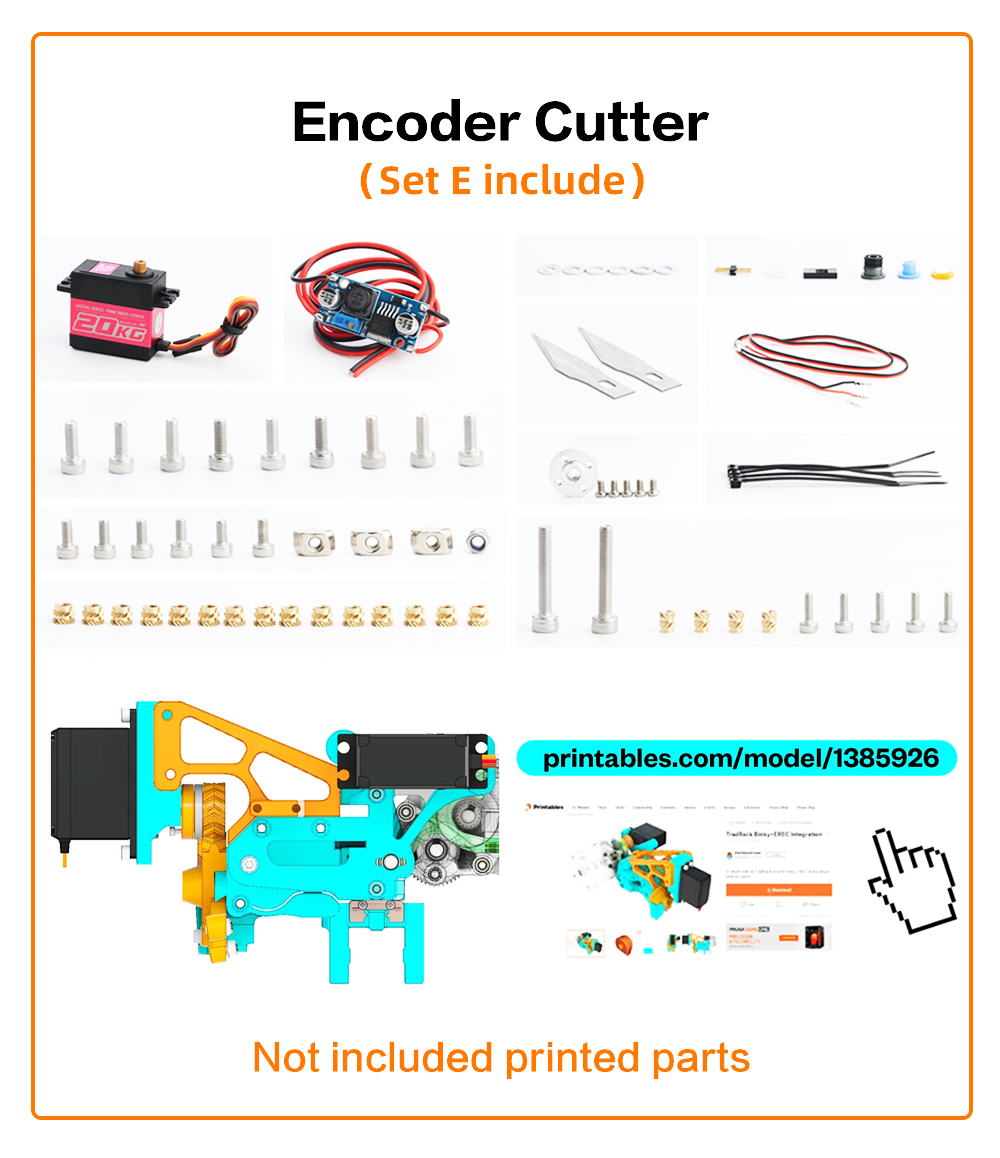

  SET E:

01.Hardware for 14 channel Trad Rack 1.0 Binky encoder Toolhead & Entry Sensor

02.EASY BRD V1.1 TMC2209/2226 driver x2

03.Carrot Patch spool holder(filament buffer) x14
04.Encoder Cutter

**All printed parts are not included**
