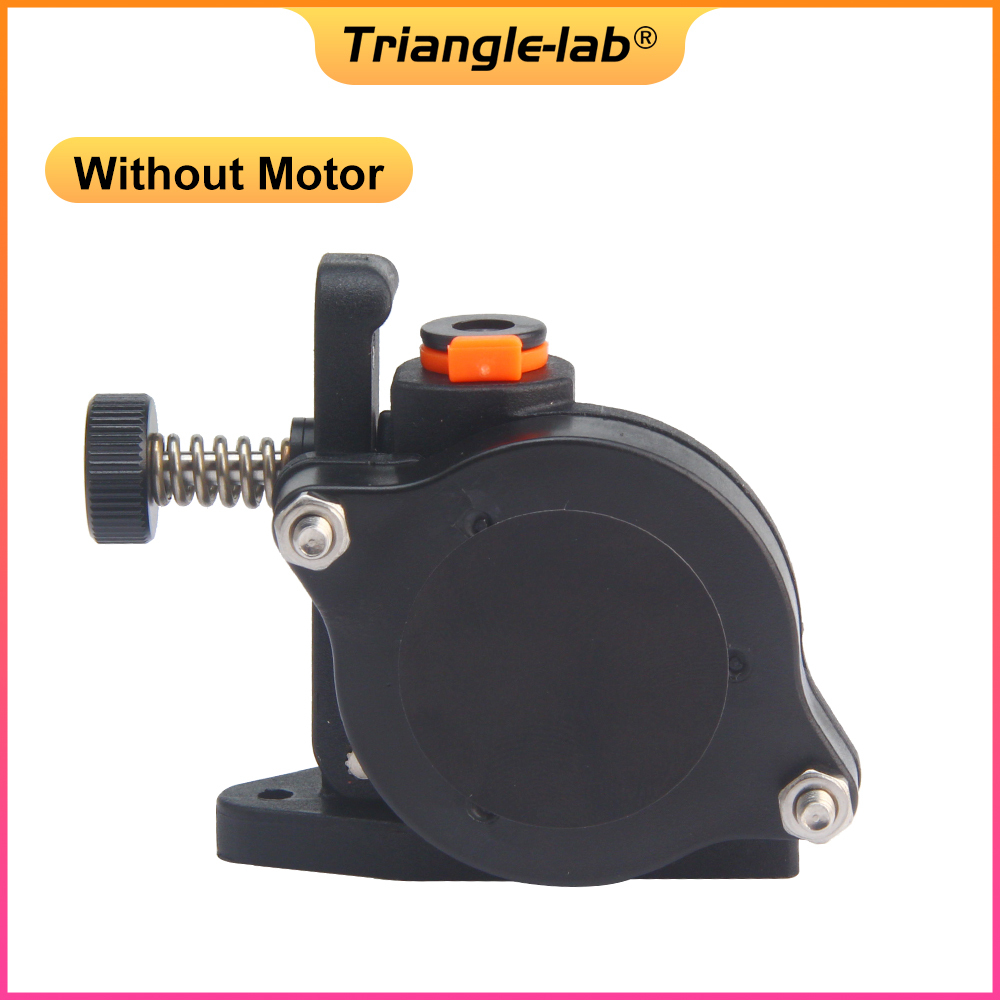

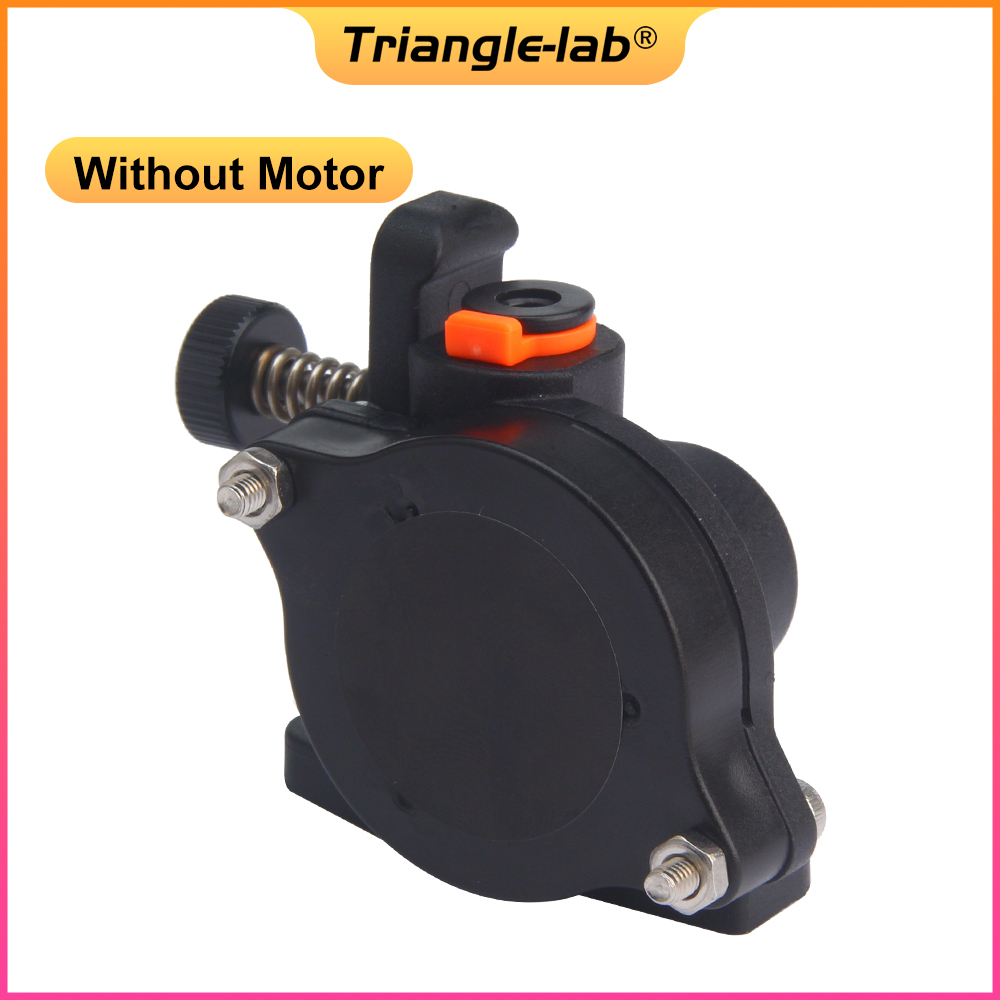

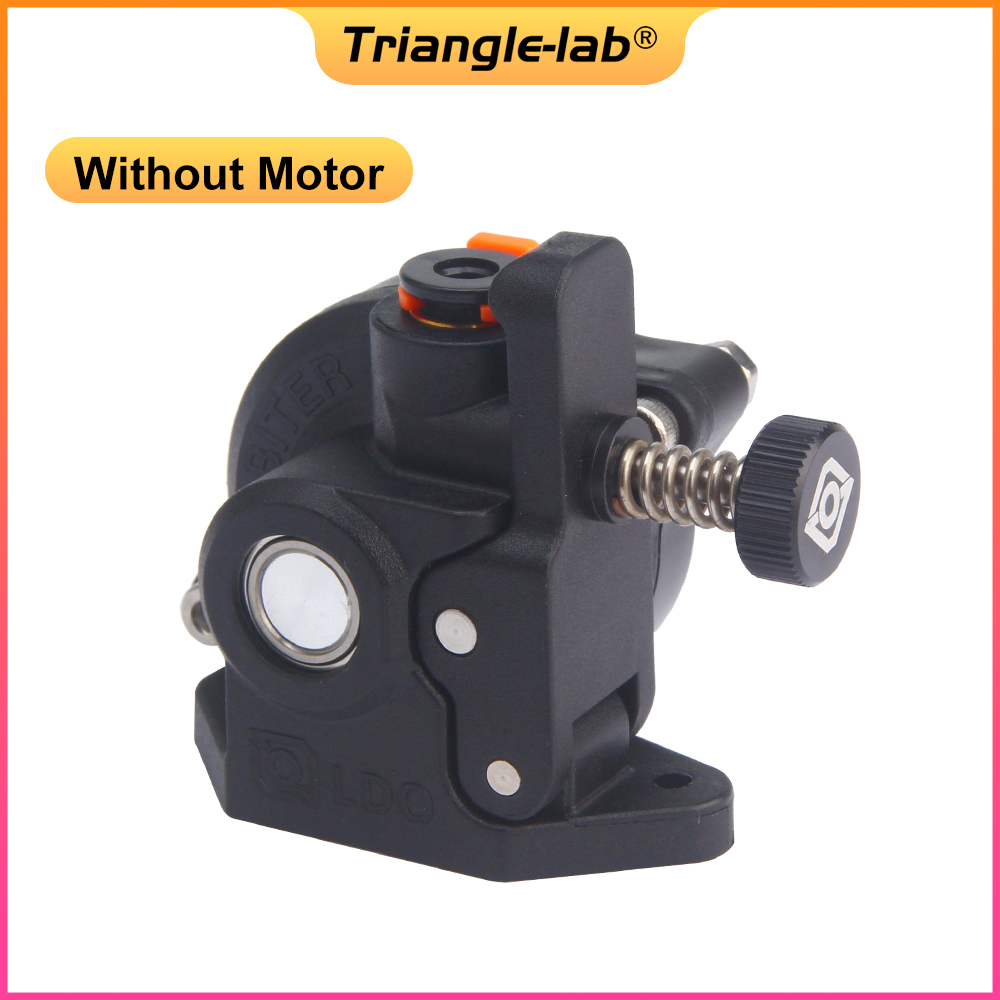

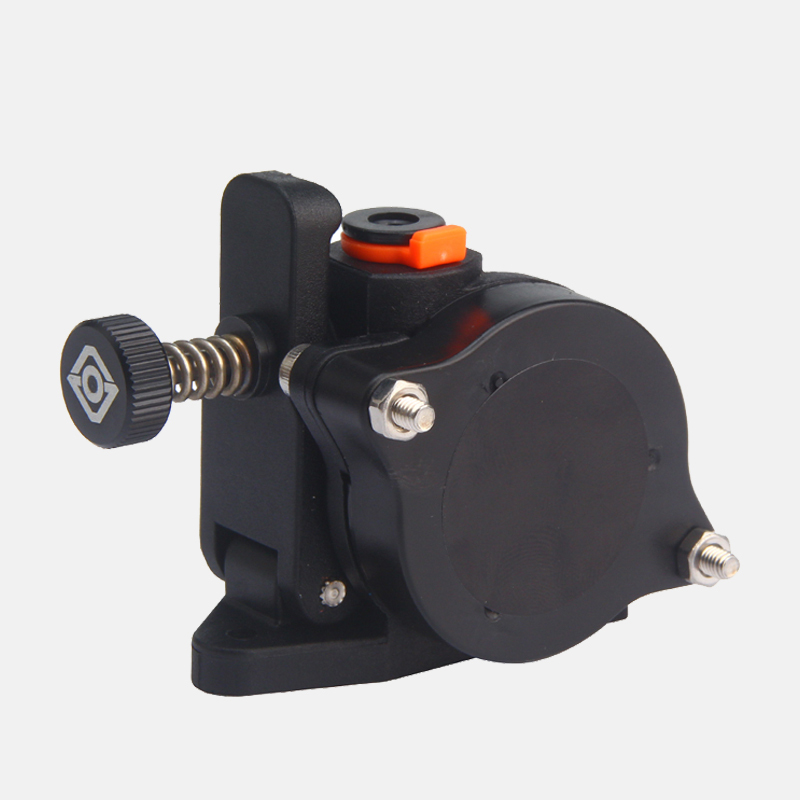

Orbiter V2.0 Without Motor

Trianglelab LDO Orbiter V2.0 Without Motor Double Gear Direct Drive Compatible ender3 CR10 PLA PEI TPU ABS filament 3D Printer
0.0 (0 Reviews)
0 Sold
$44.96 $43.16
Received successfully
Coupon Code
  • Description
If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.
The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.
Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

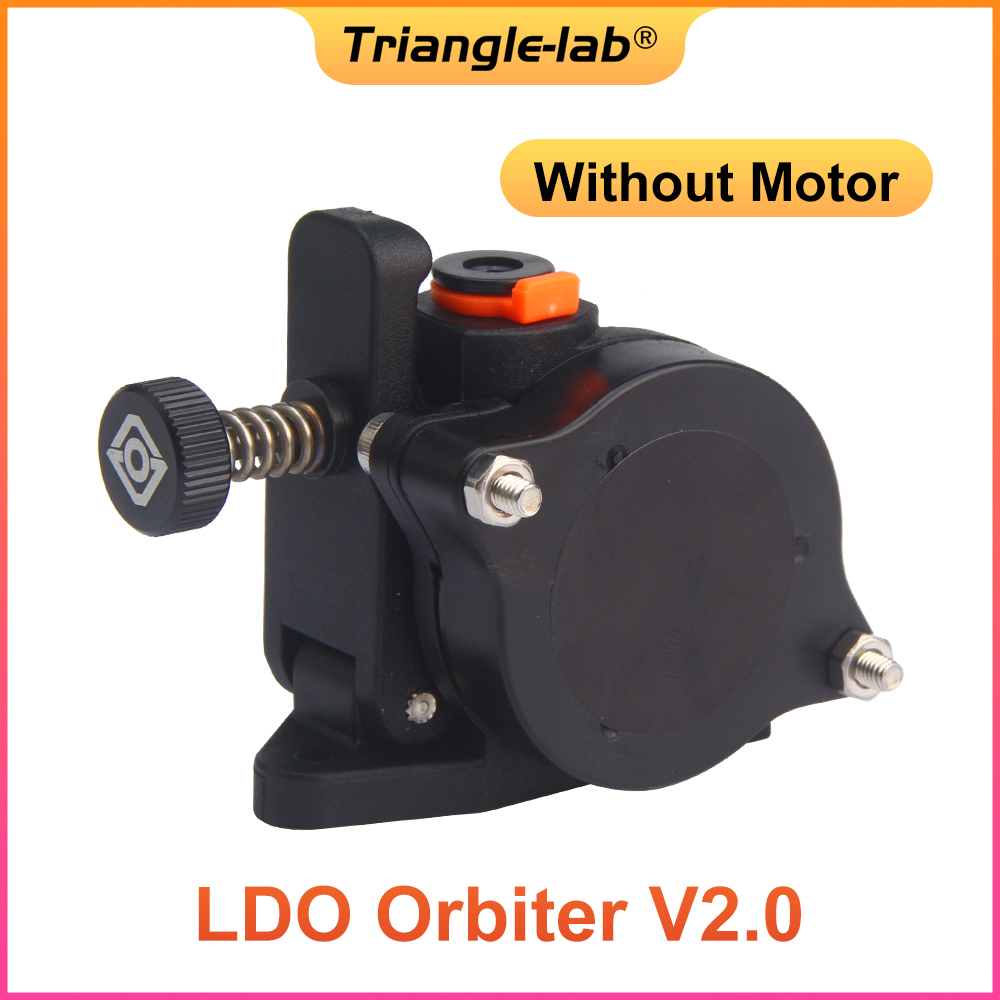

LDO Orbiter Extruder V2.0(1.75mm Without motor)
Warning: Orbiter V2.0 has special gears. This is different from V1.5 gears. We will soon find a way to sell gears compatible with V2.0. Please don't buy the wrong gear.
If you want to buy an Orbiter Extruder V2.0(including motor)click here!

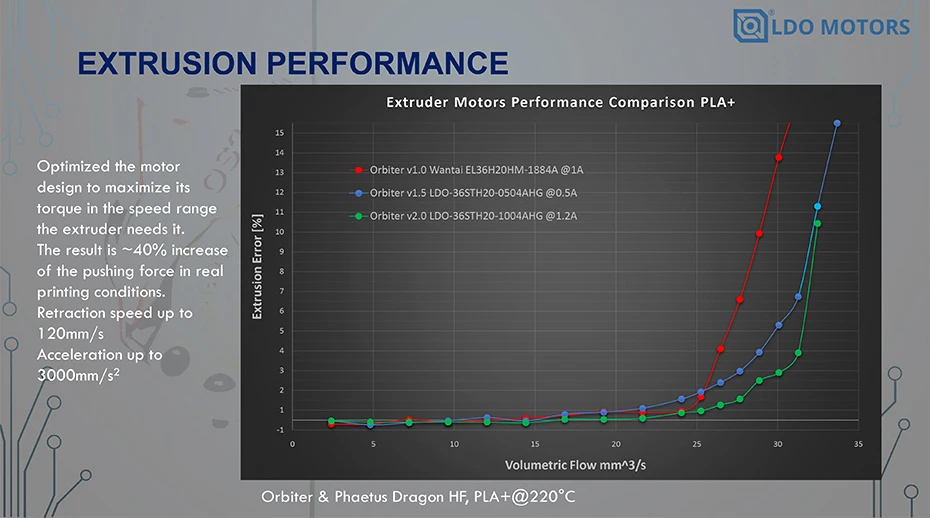

Optimized the motor
design to maximize its
torque in the speed range
the extruder needs it.
The result is ~40% increase
of the pushing force in real
printing conditions.
Retraction speed up to
Acceleration up to
▉Many new and improved design features:

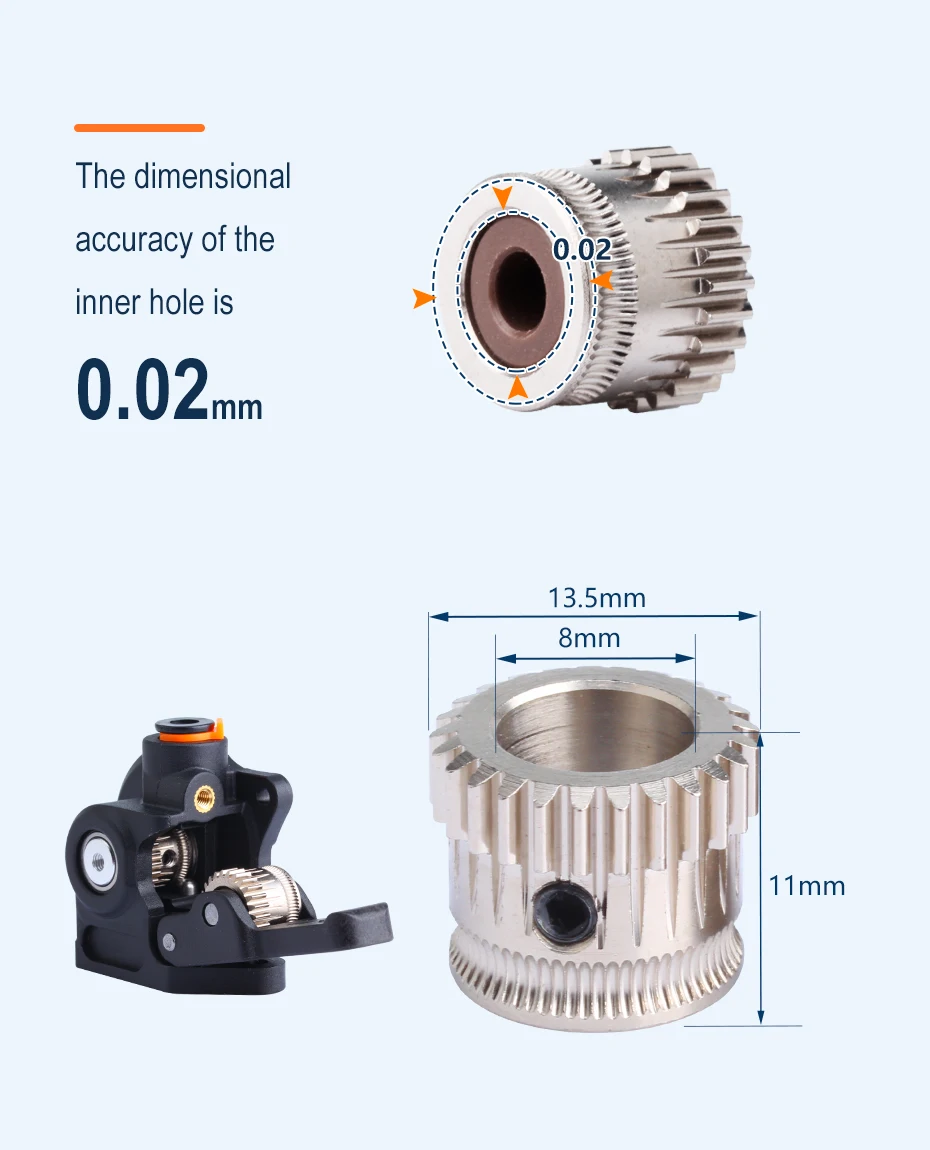

  • Shorter hardened drive gears 11mm vs 15mm manufactured by Bondtech
  • Weight reduced to ~135 grams
  • Smaller more compact dimensions (11.6% shorter)
  • Flipped drive gears – filament path closer to the extruder center for a more balanced design and perfect fit on delta printers as well
  • Stainless steel filament exit guide with 0.2-0.3mm clearance to drive gears for best TPU printing experience and extreme wear resistance when using abrasive filaments.
  • High temperature resistant housings, GPA12
  • Machined PEEK secondary drive gear sleeve
  • Tension mechanism with grab screw design
  • Mounting screws in line with filament exit path – improving housing stiffness and easier mounting
  • Perfectly aligned filament path
  • New smaller and more stylish PTFE tube input coupler
  • Extremely low backlash ~0.06mm
  • Filament sensor add on with auto load and unload button add on feature
  • And many more small changes to improve mechanical accuracy and design look
