▉Experiment and model links:
▉Name:

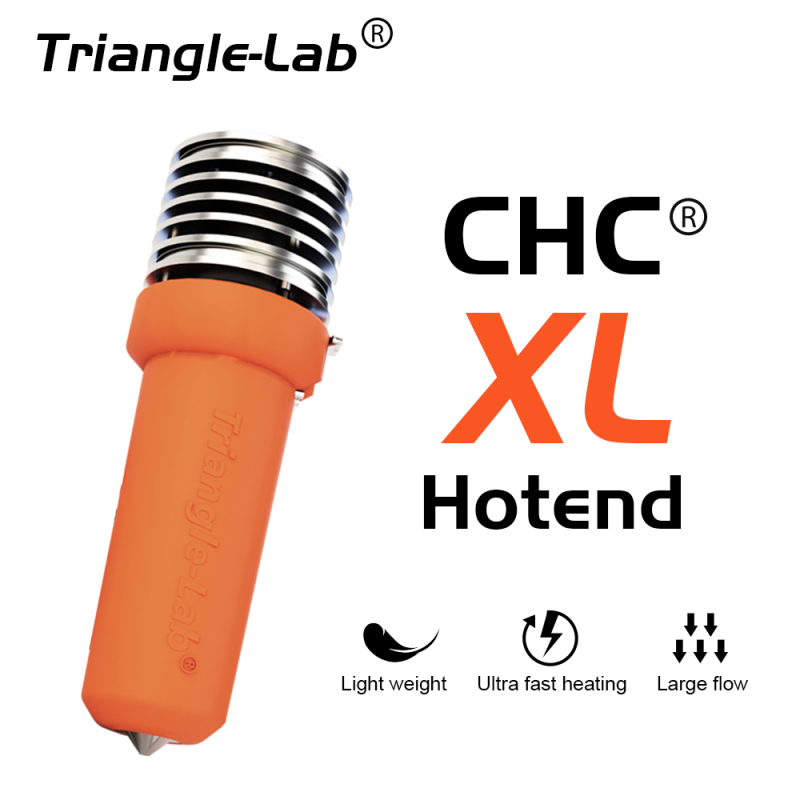

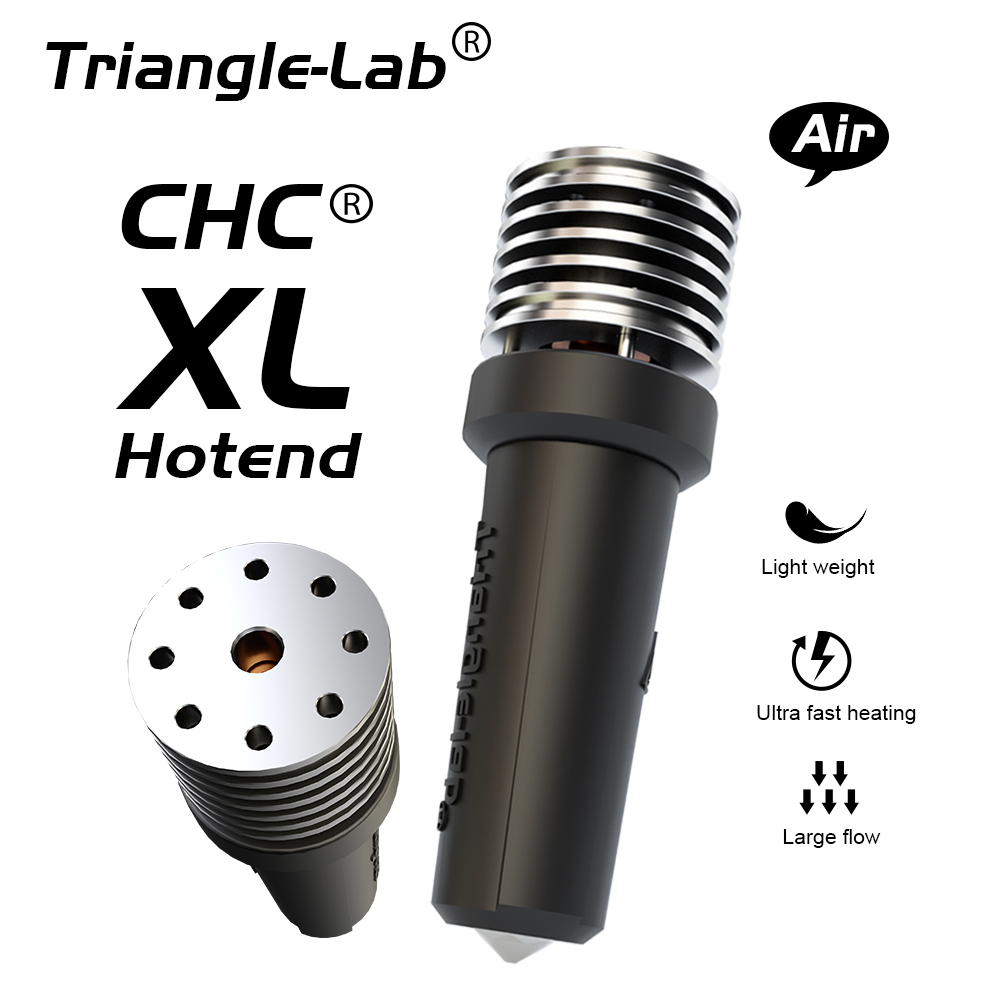

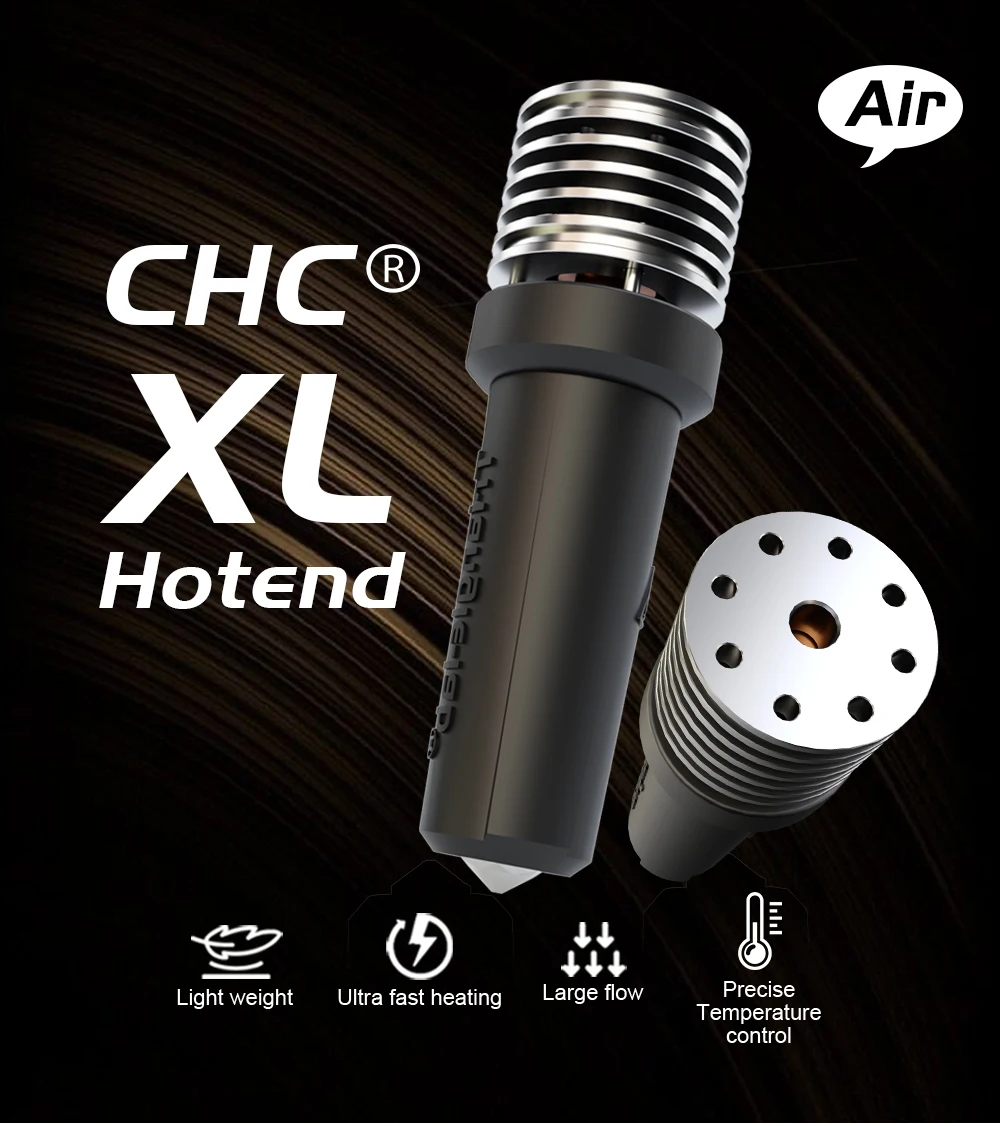

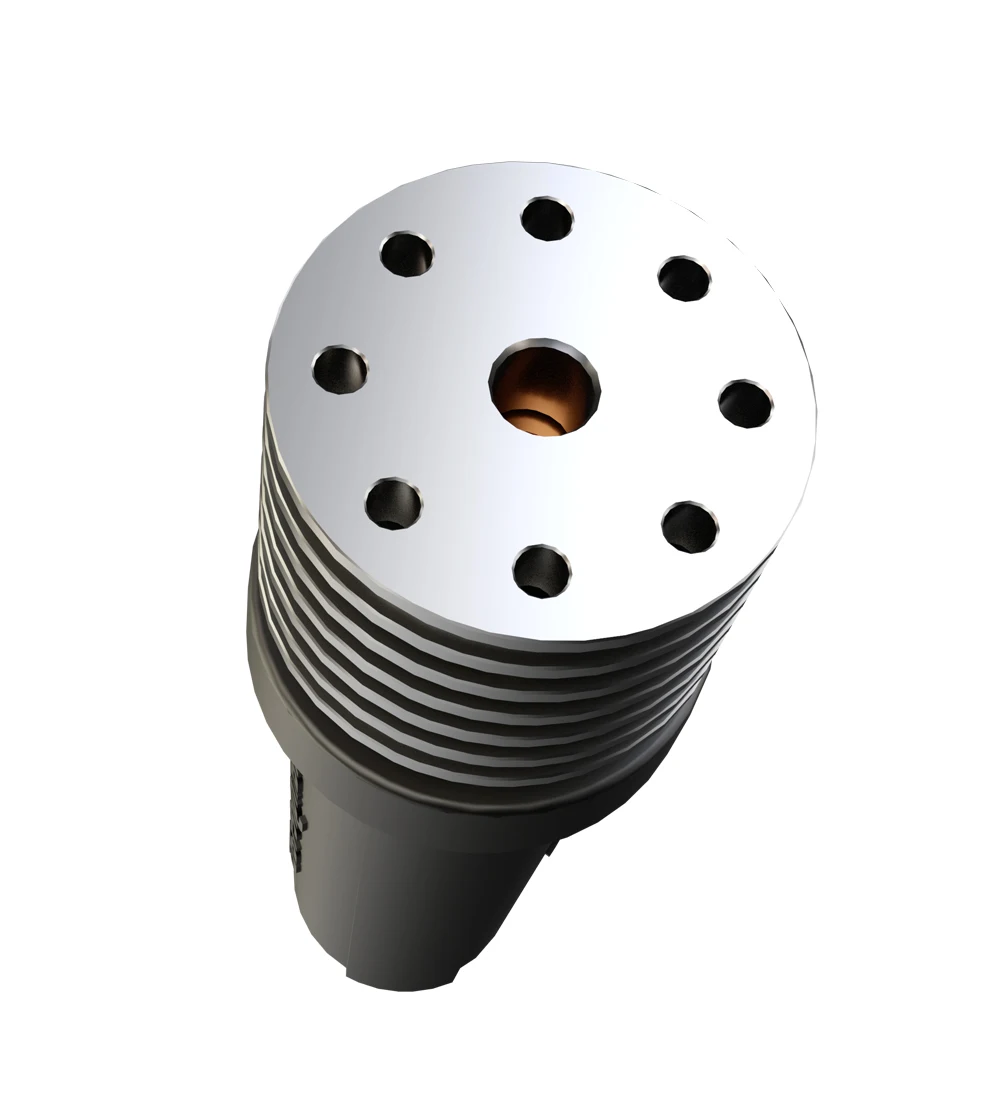

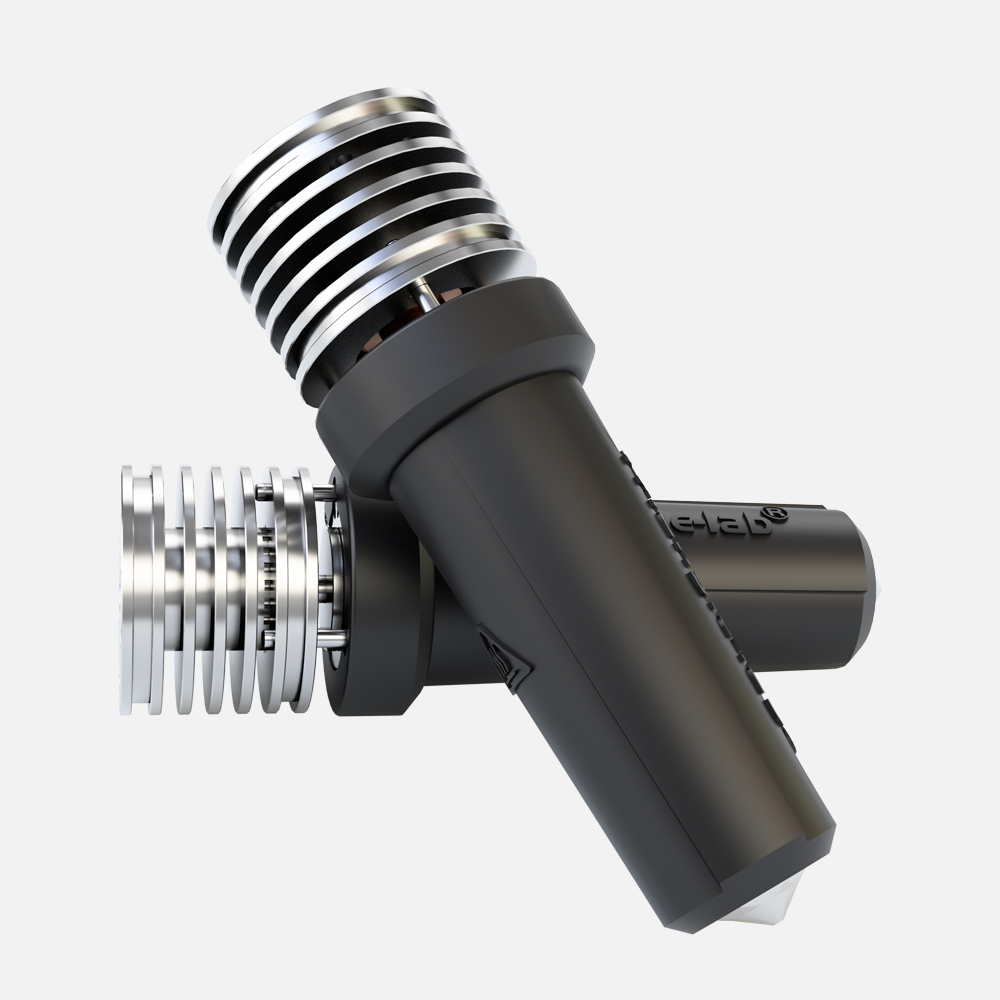

Triangle-lab® CHC XL Hotend (Light weight Large flow Easy to maintain)
▉Description:

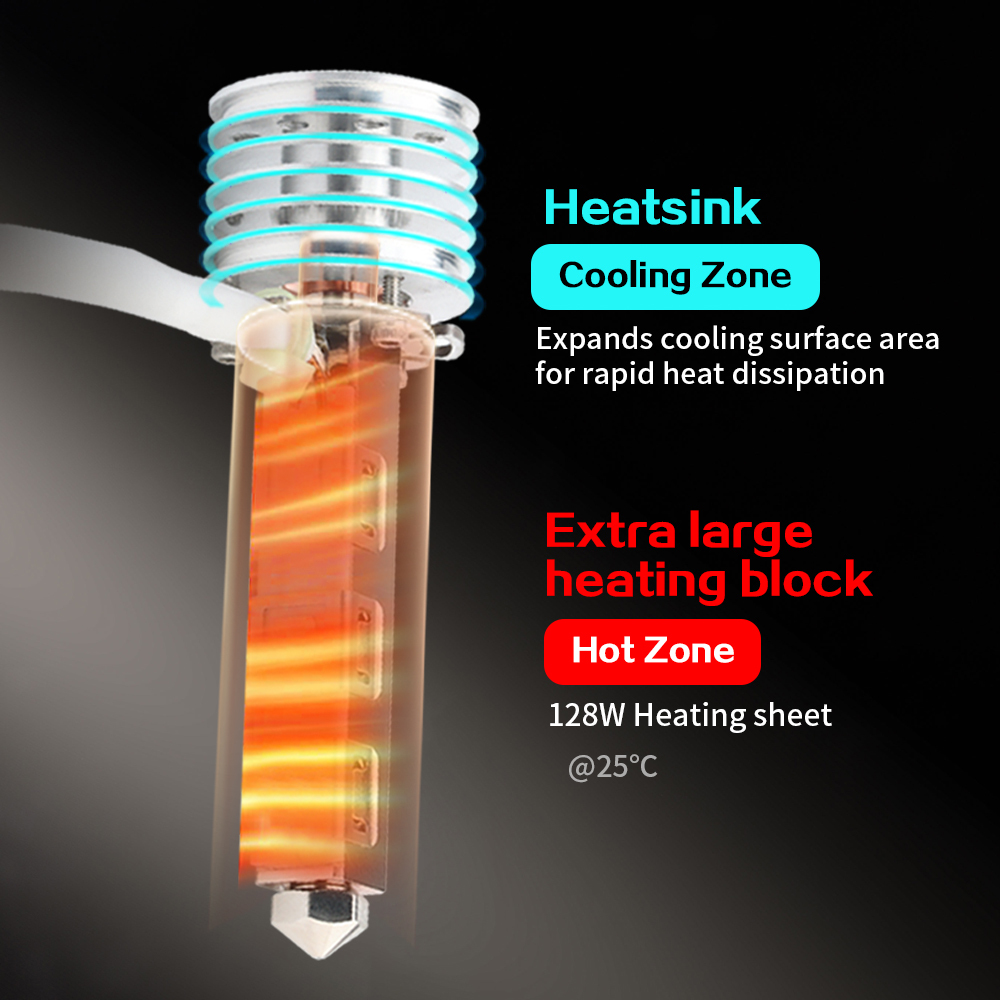

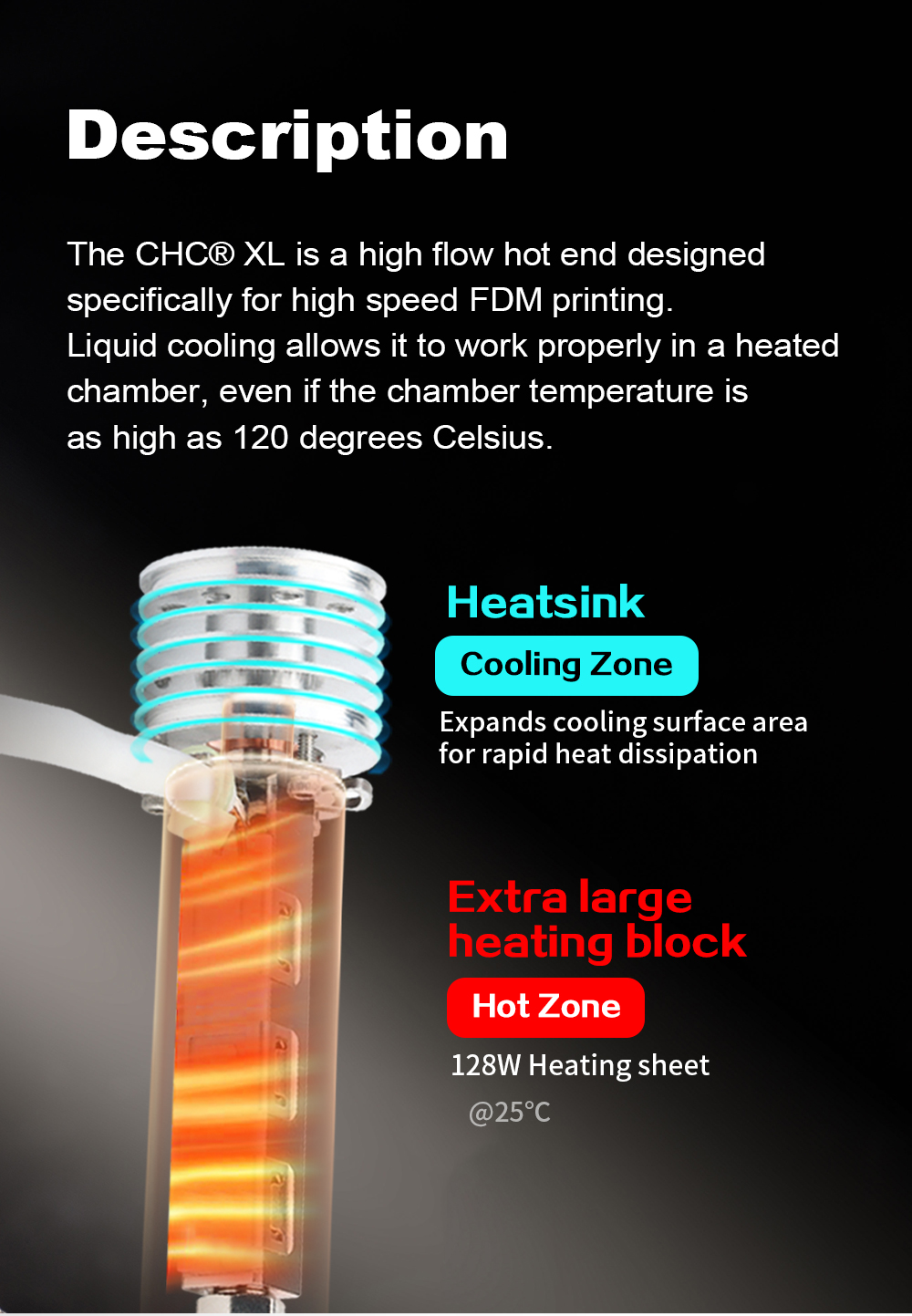

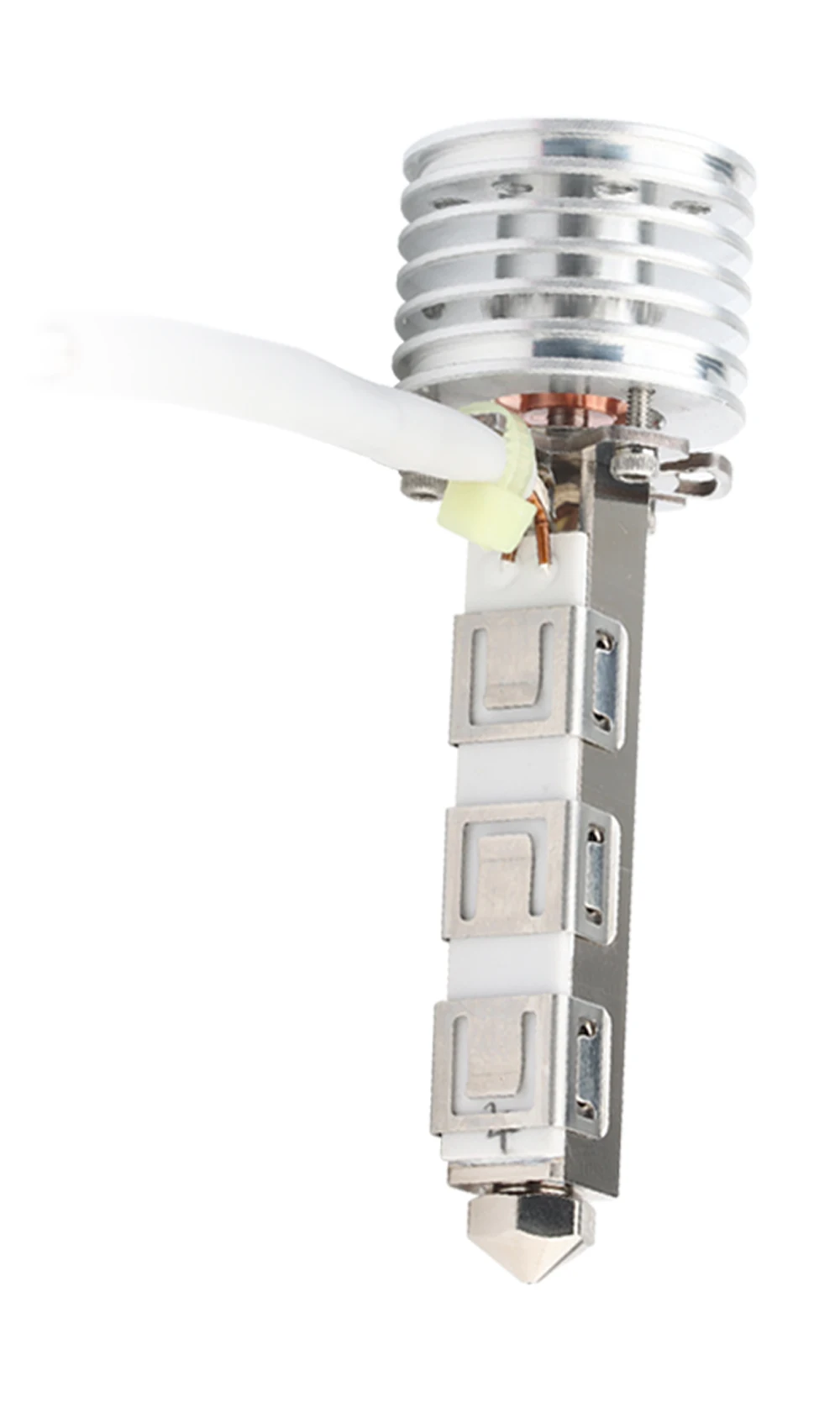

The CHC® XL is a high flow hot end designed specifically for high speed FDM printing. It has a lightweight design with ceramic heating elements to reduce dead weight at high speeds. It is compact and ruggedized to reduce your cost of operation.
▉Highlights:
-Compact form factor and light weight
-High flow rate to meet the requirements of high-speed printing.
-Air-cooled and water-cooled options, even if your heater chamber is up to 100 degrees it can still print normally.

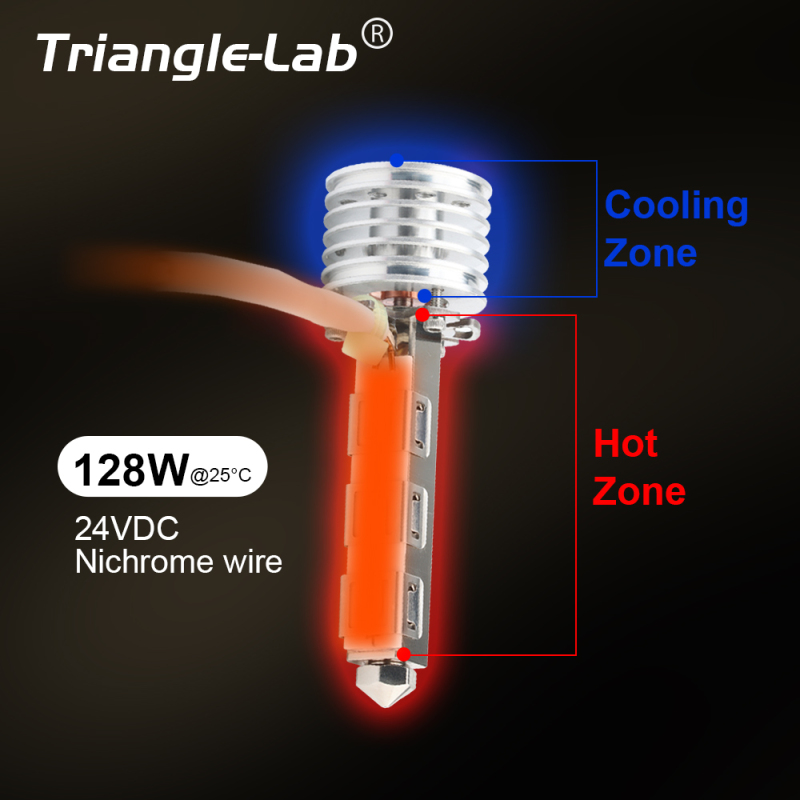

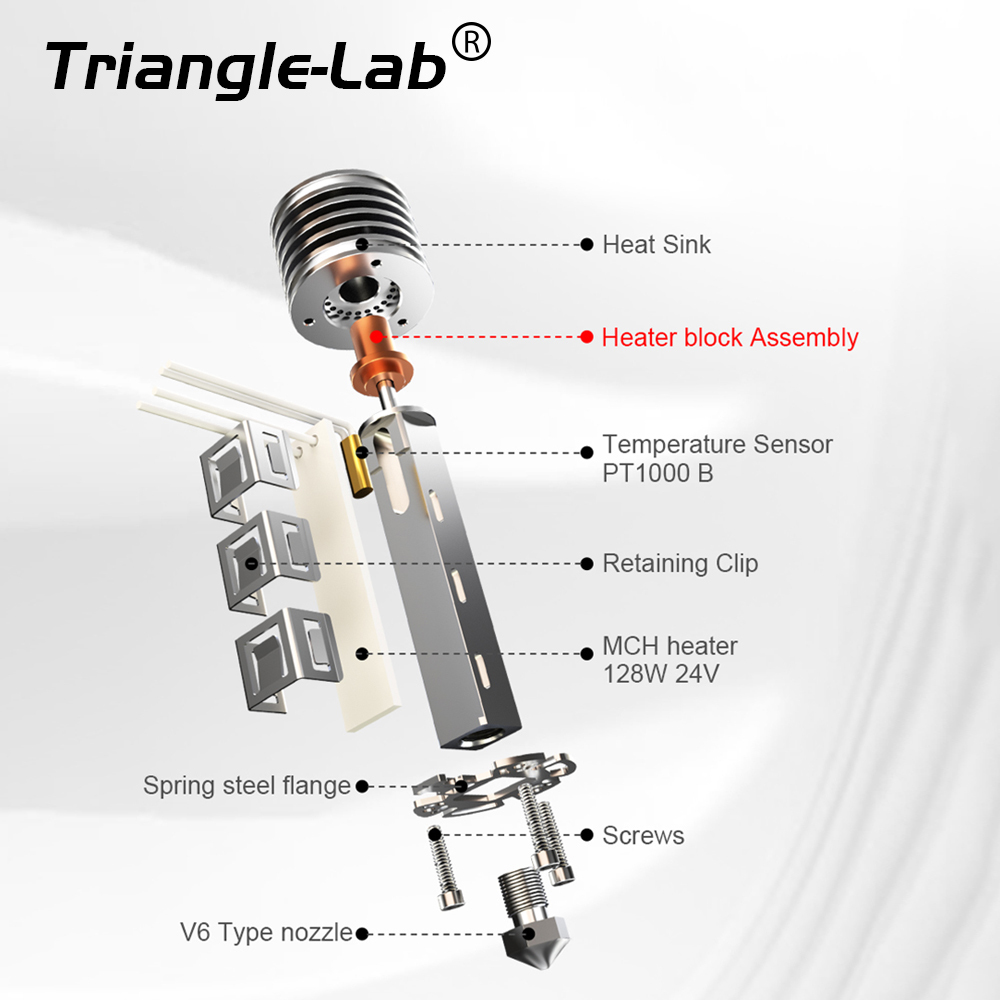

-Thanks to the patented multiple thermal break design, the cold end of the heat breaker can be kept at a lower temperature, which reduces the requirements for environment and heat dissipation, and also reduces the occurrence of thermal creep and improves the success rate of printing.
-Embedded temperature sensor for more accurate temperature control.
-Rugged, patented monolithic construction prevents damage to the thin-walled throat from nozzle changes or accidental collisions.

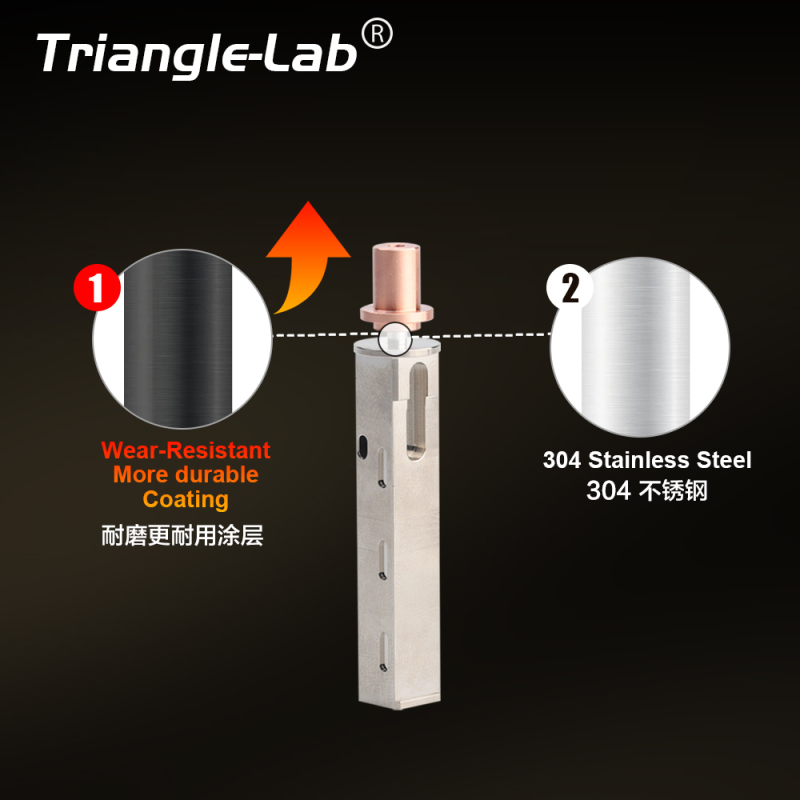

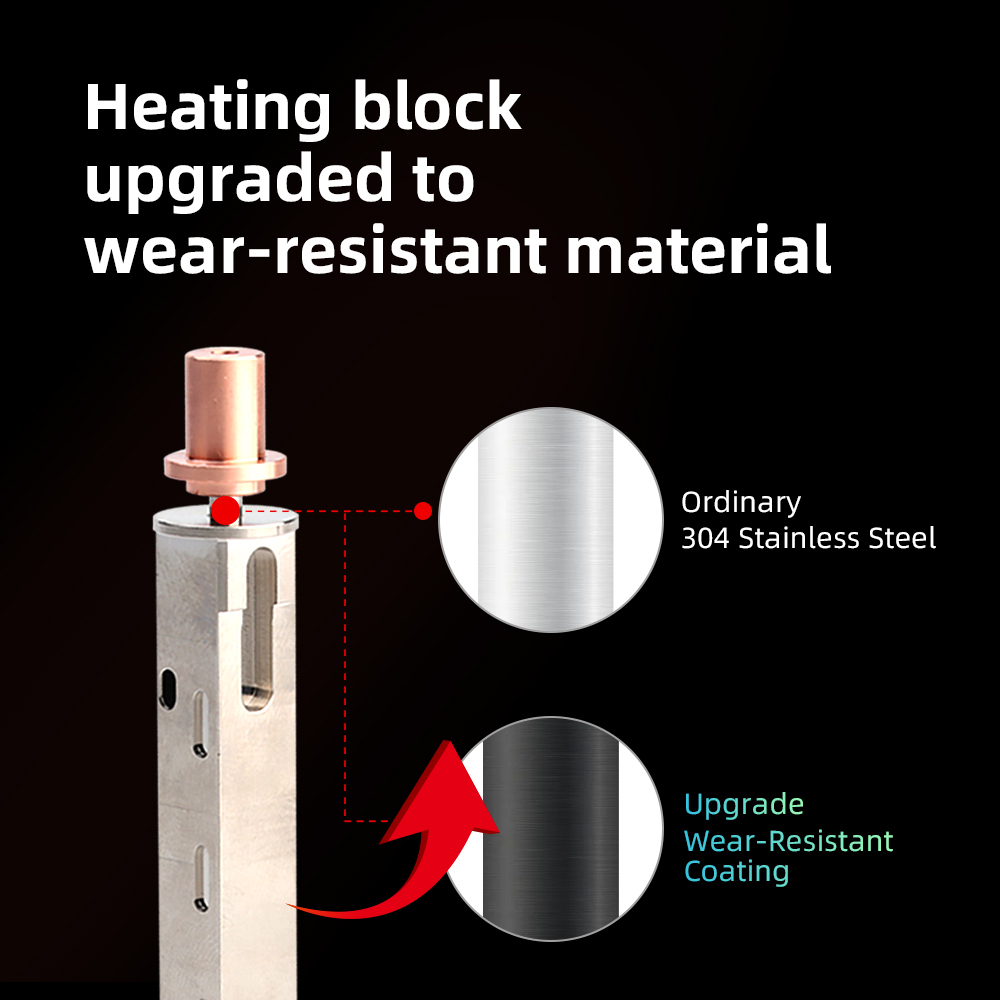

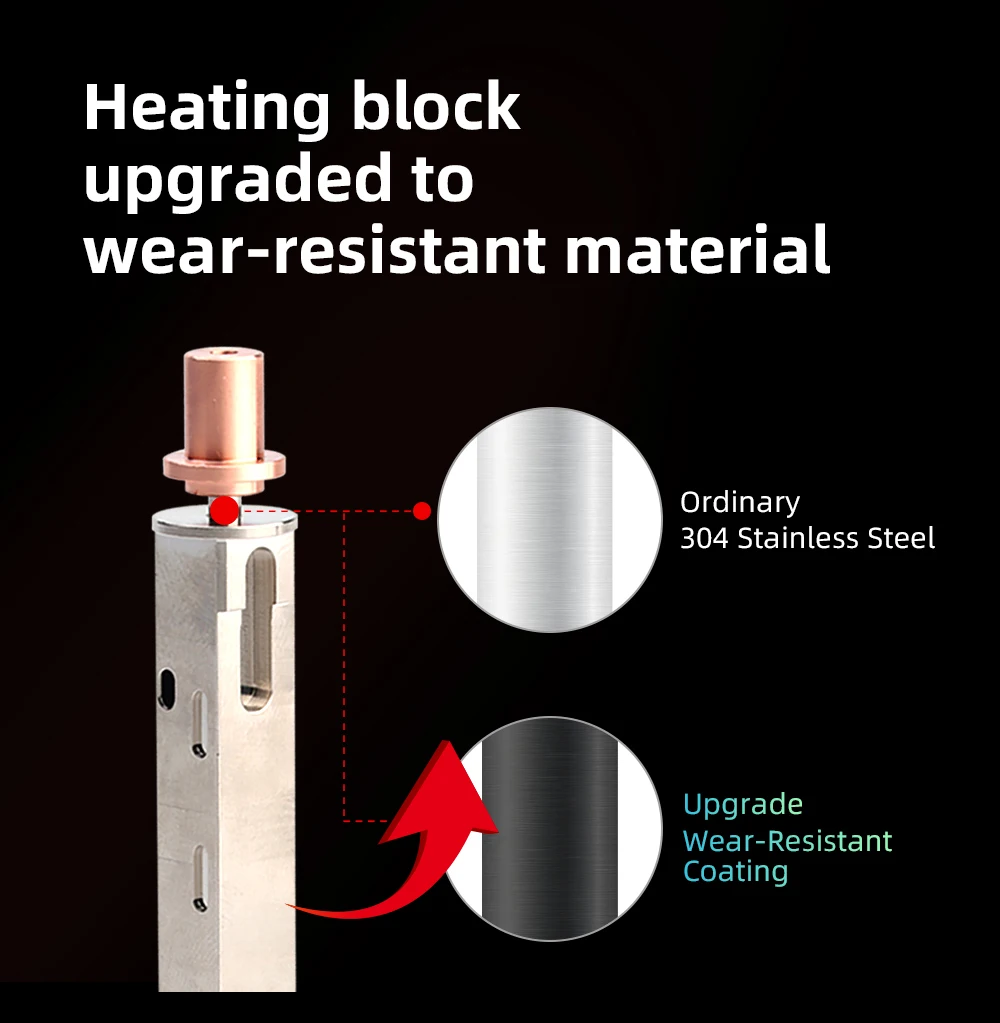

-Optional ceramic wear-resistant coated transition zone increases the life of the print wear filament by up to five times.
-Compatible with V6 style nozzles and can also be fitted with a melting zone extender to increase flow even further.

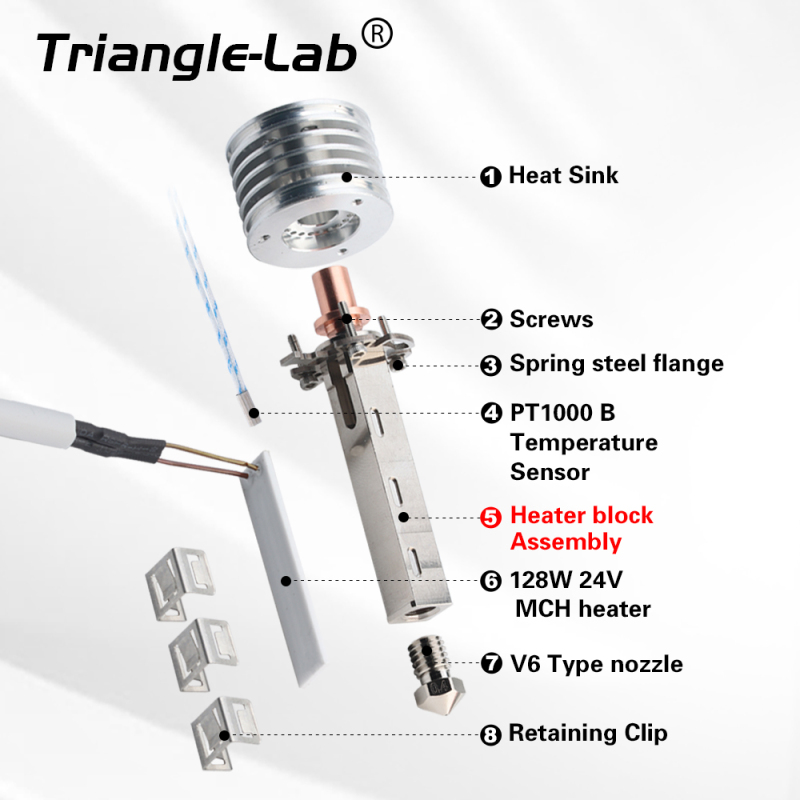

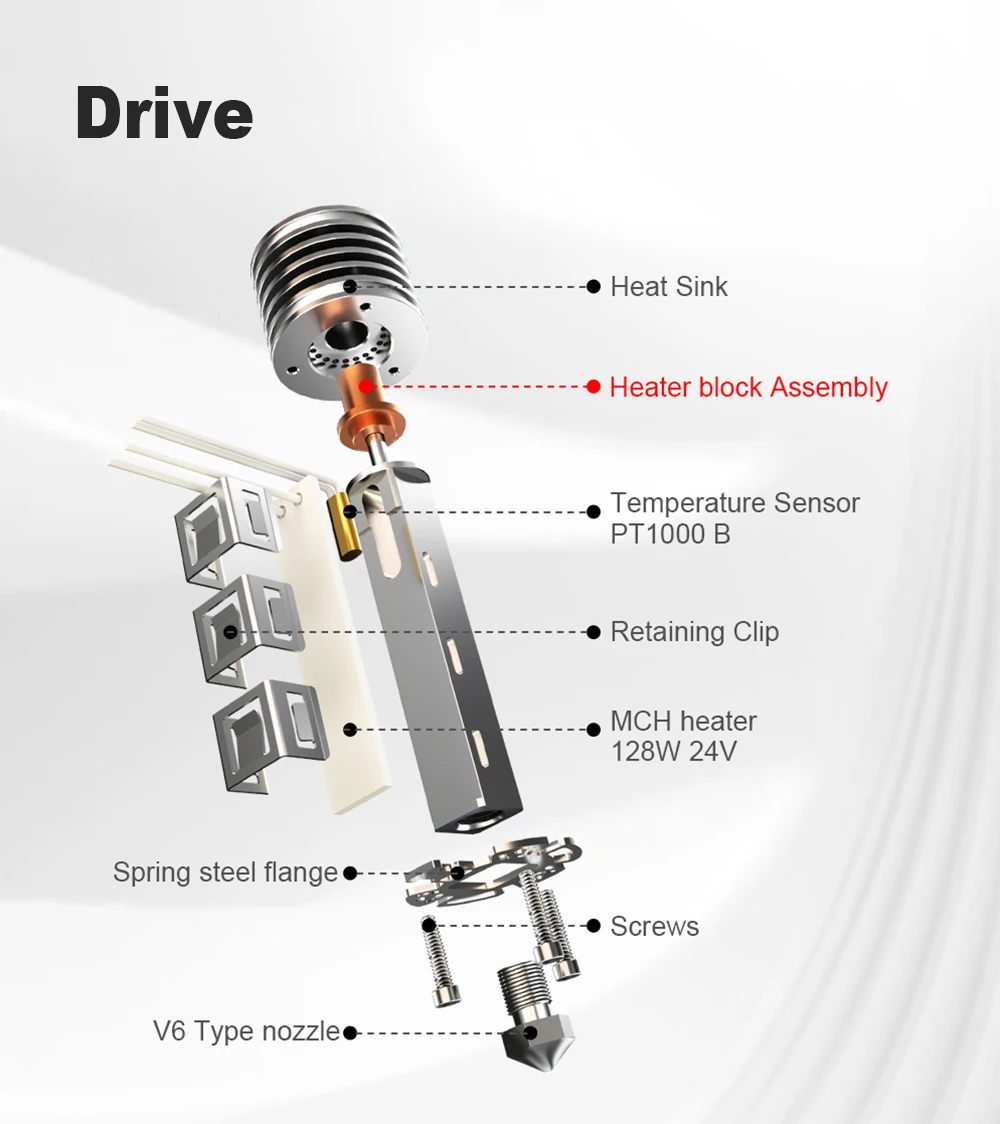

-Easy to maintain， Replacement of heating elements and temperature sensors is a breeze.
-Multiple temperature sensor options.

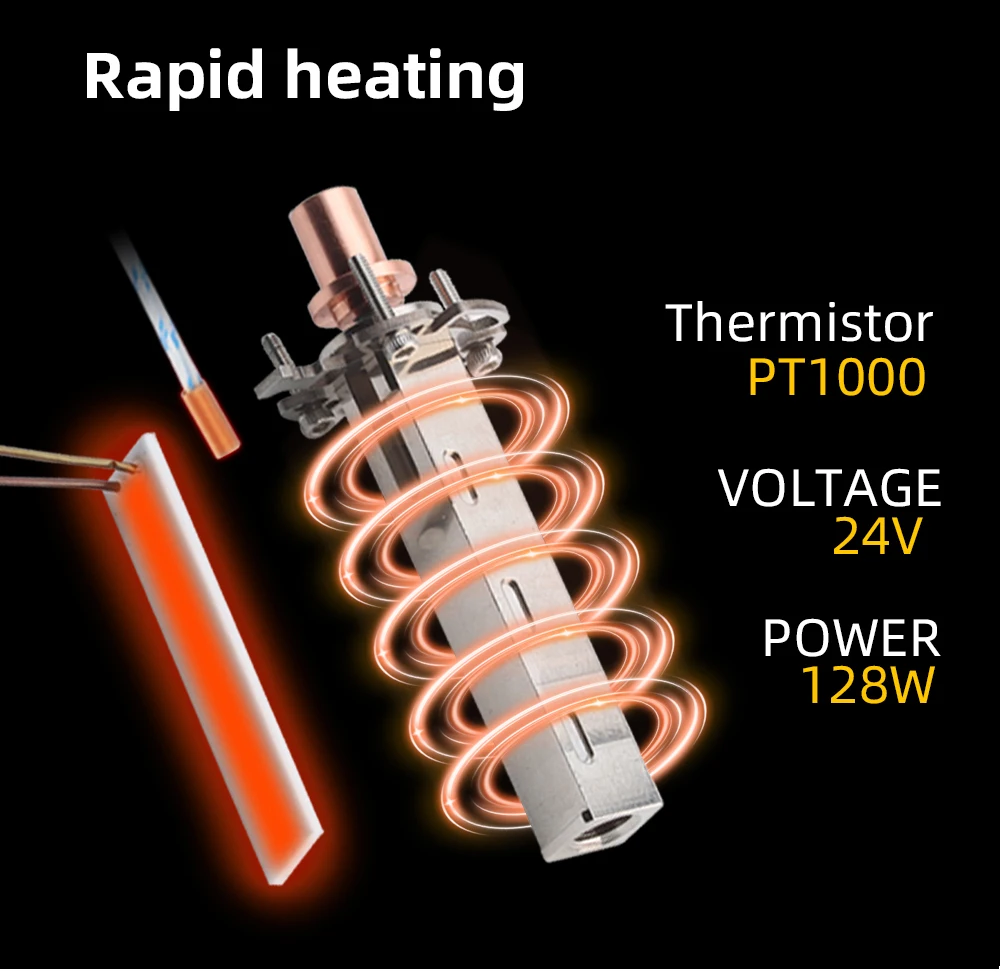

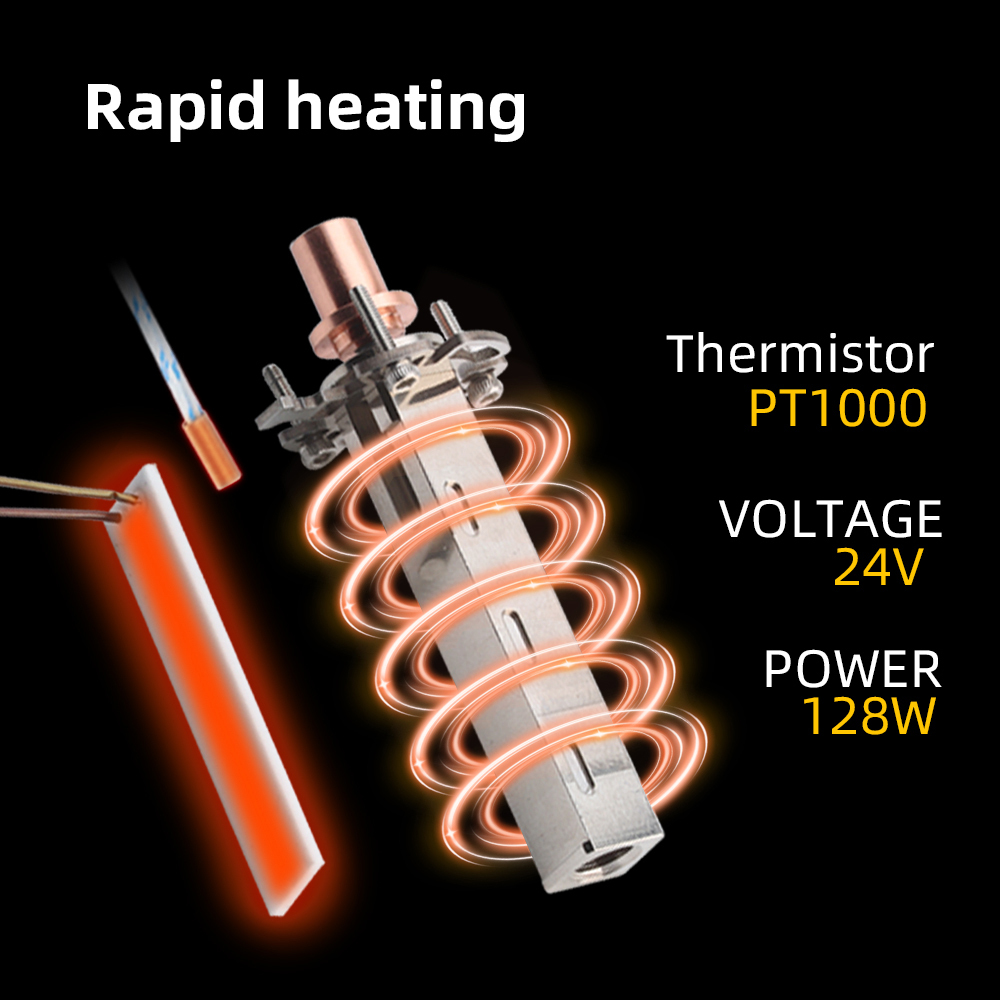

-MCH ceramic heating elements with low temperature resistance coefficient will not lose too much power even after the temperature rises.

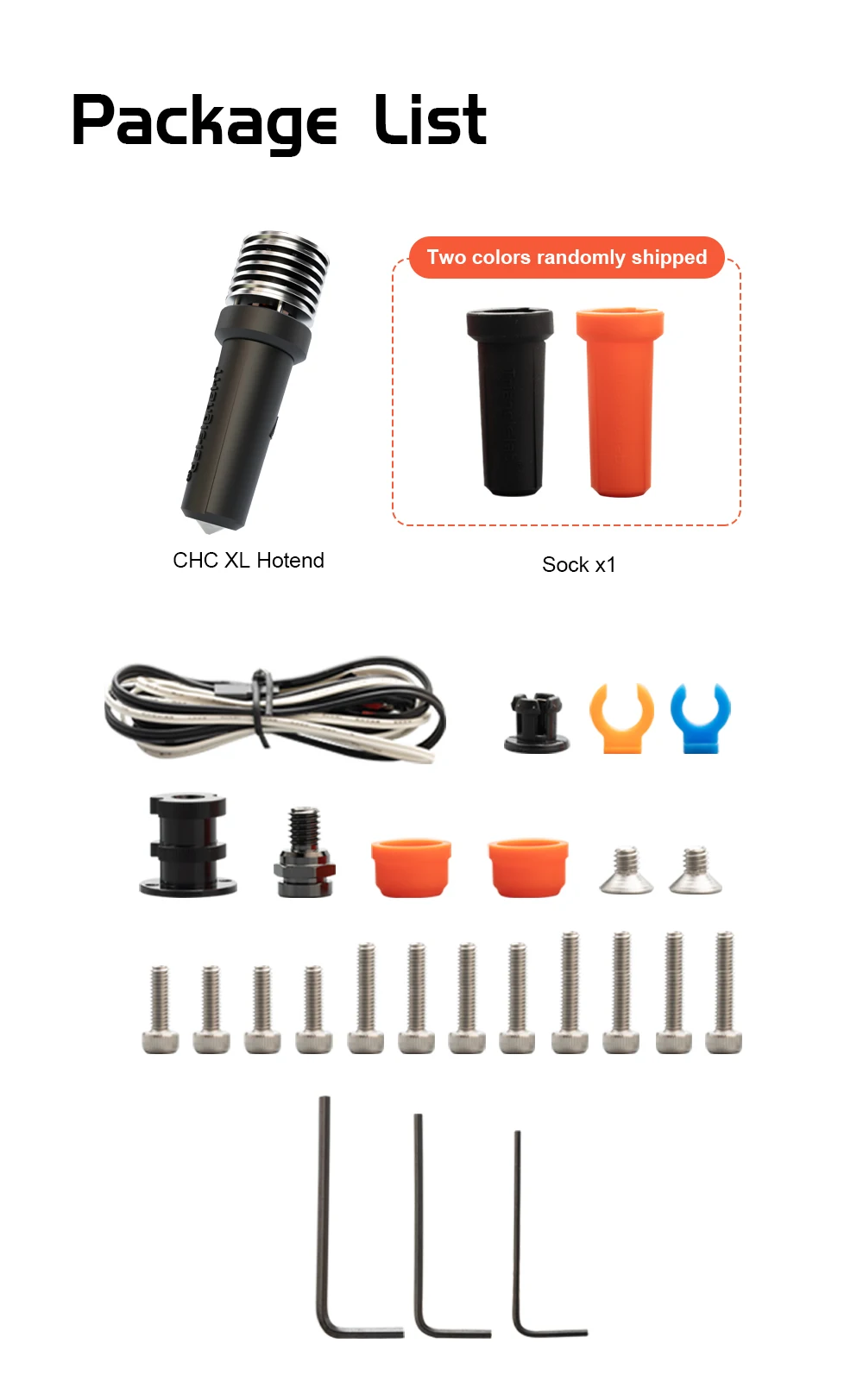

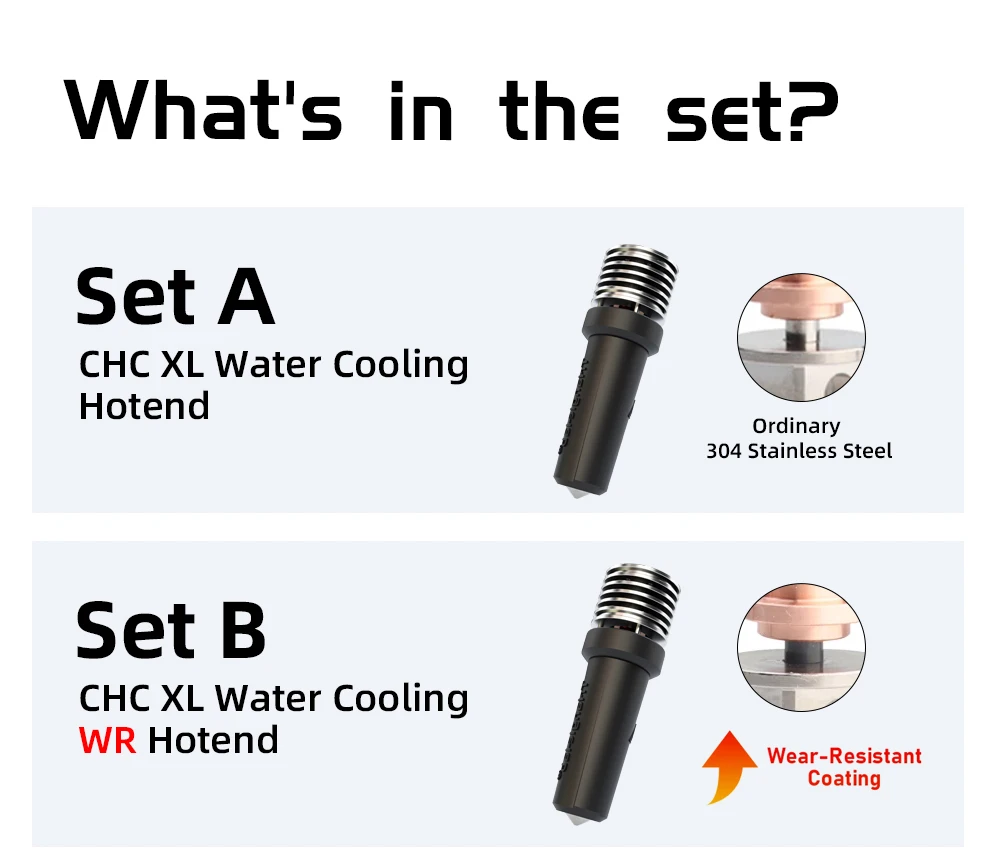

▉What's in the set?

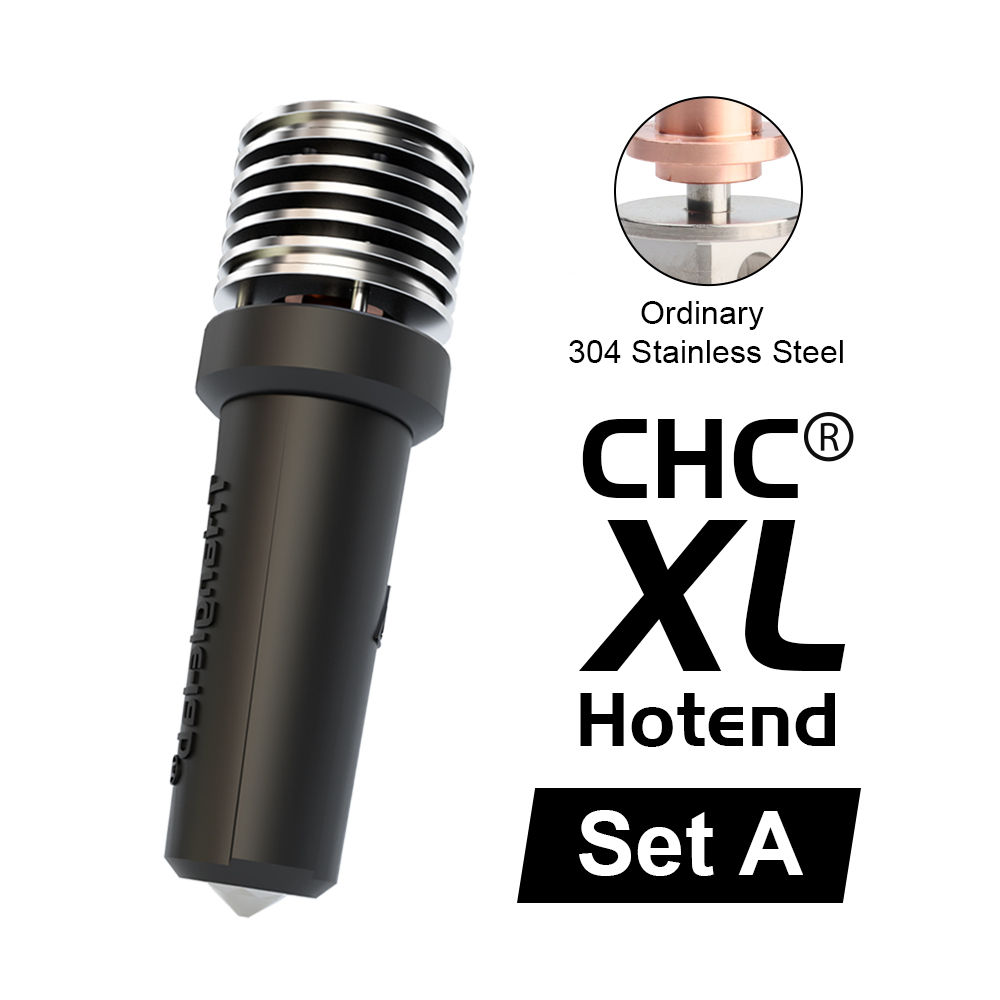

-Set A: CHC XL Hotend

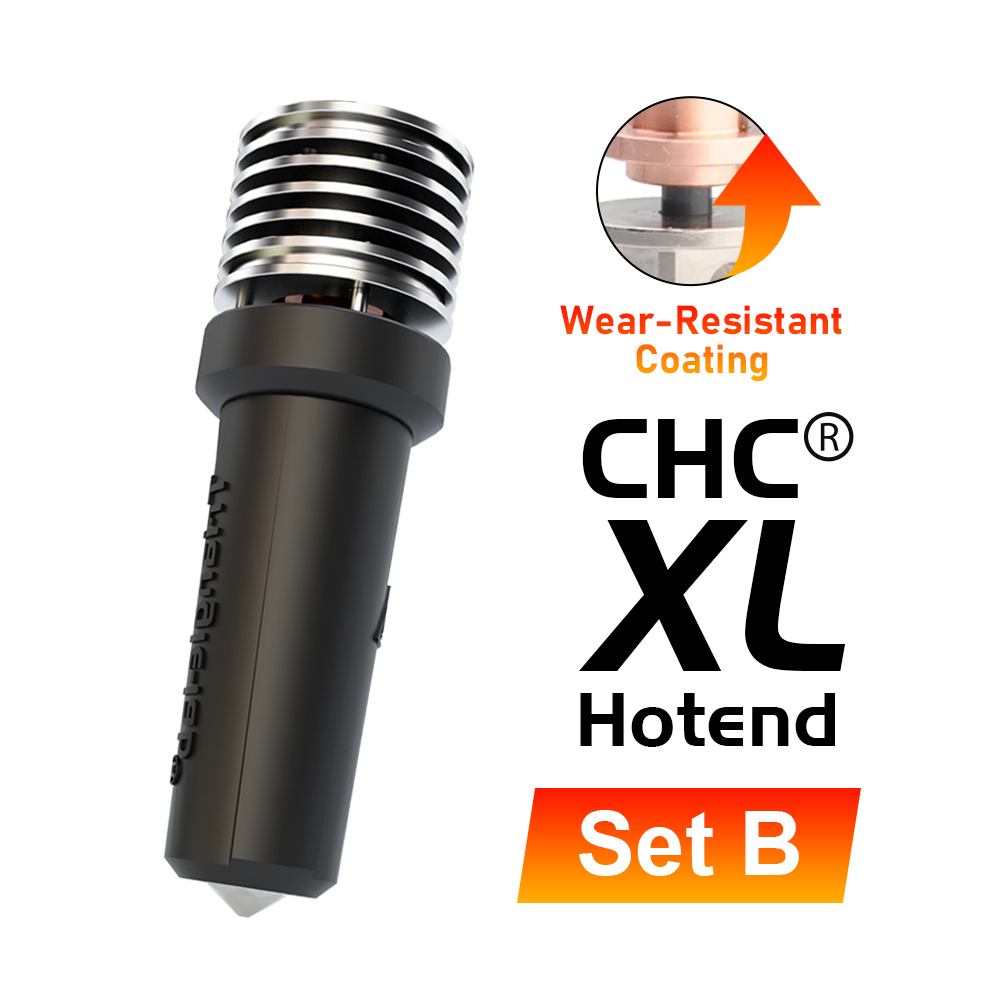

-Set B: CHC XL wr Hotend (Wear-Resistant More durable)

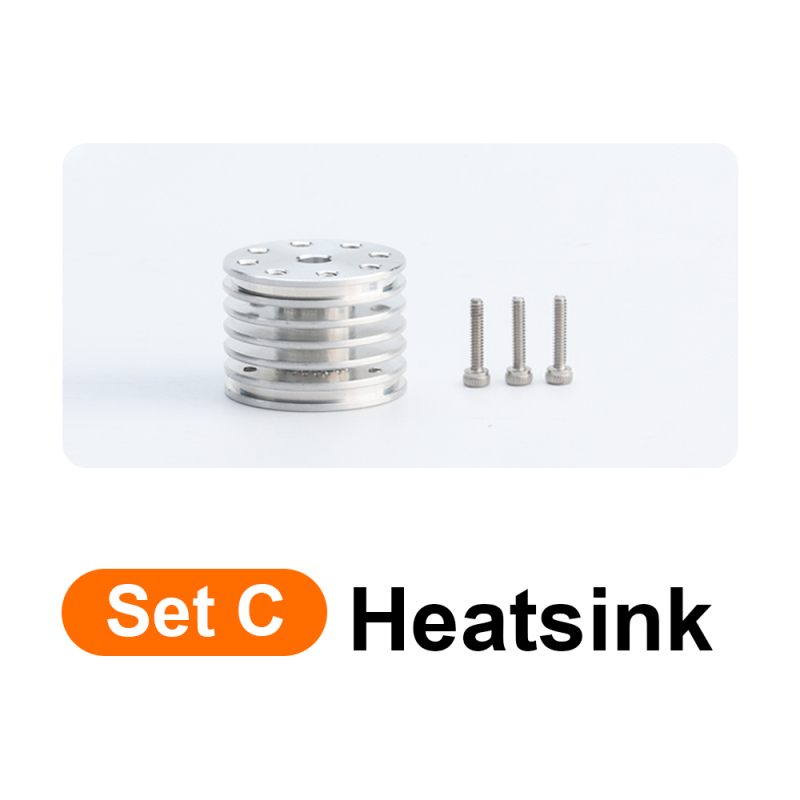

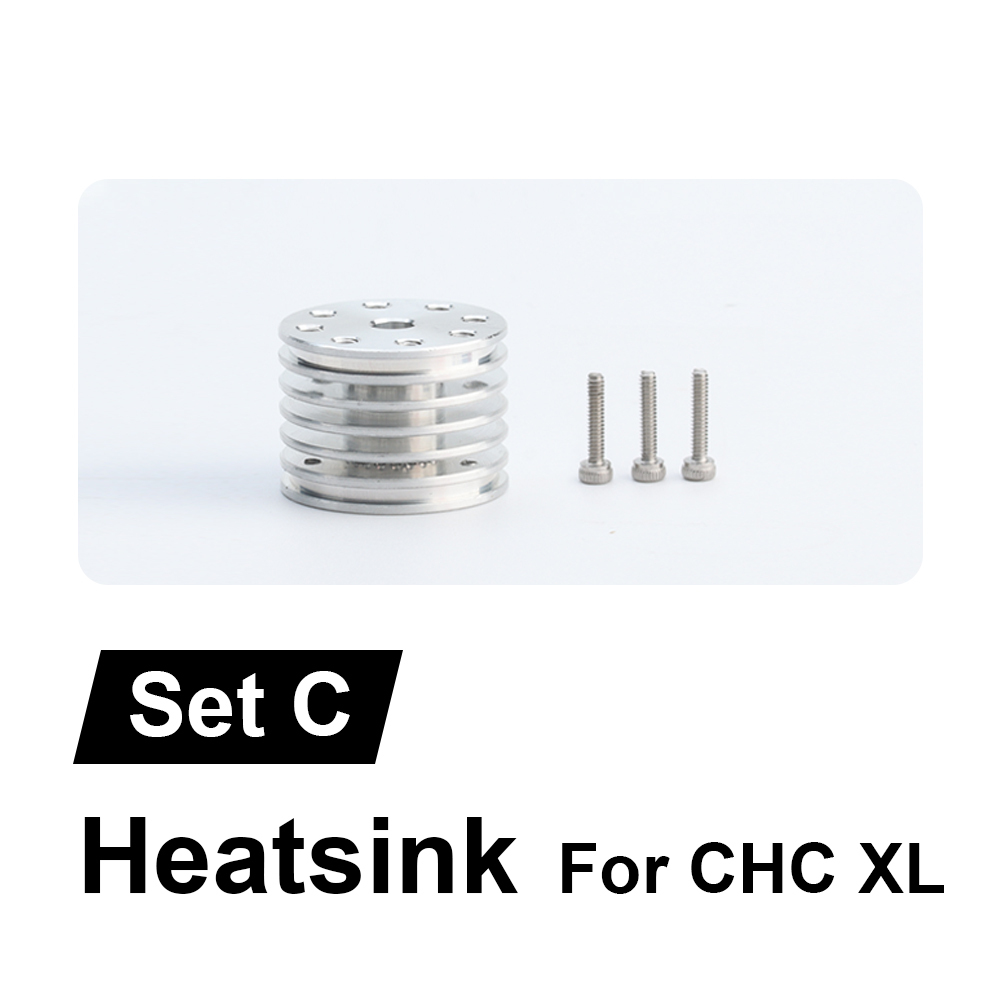

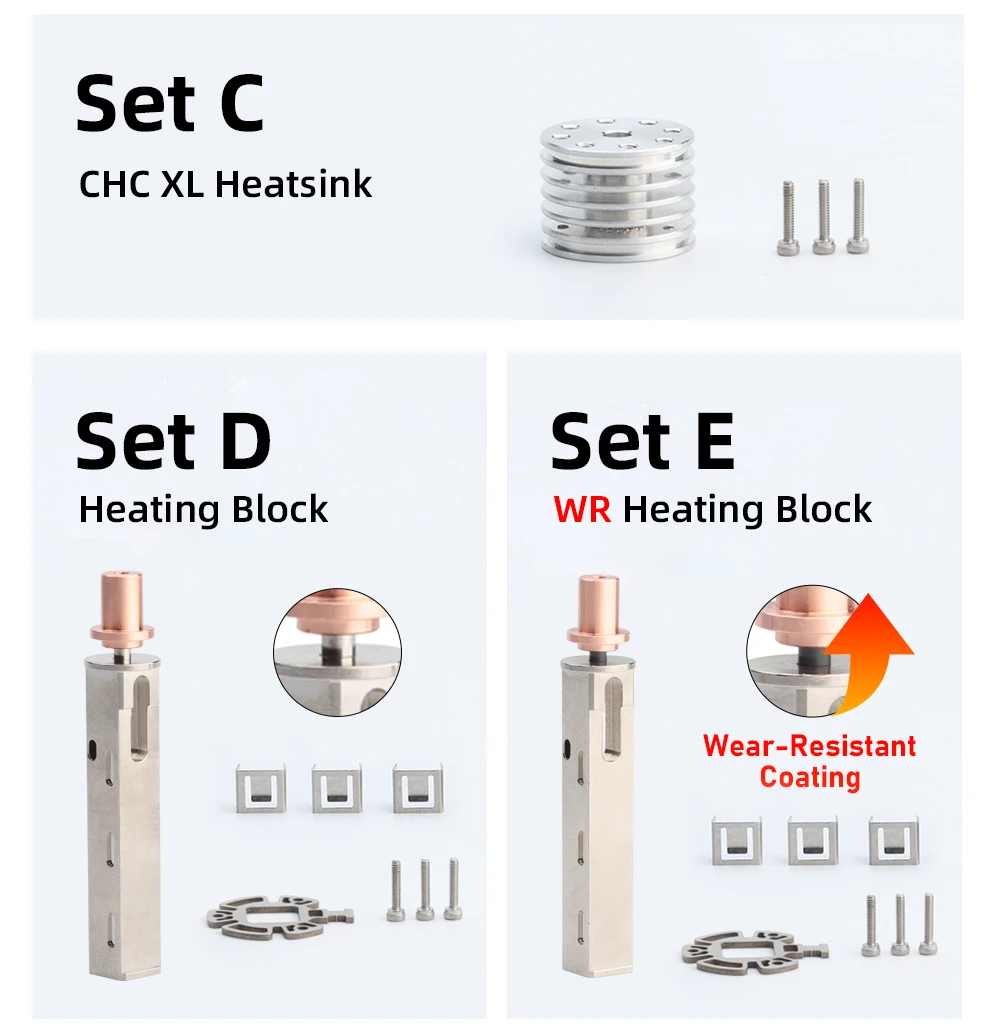

-Set C: Heatsink

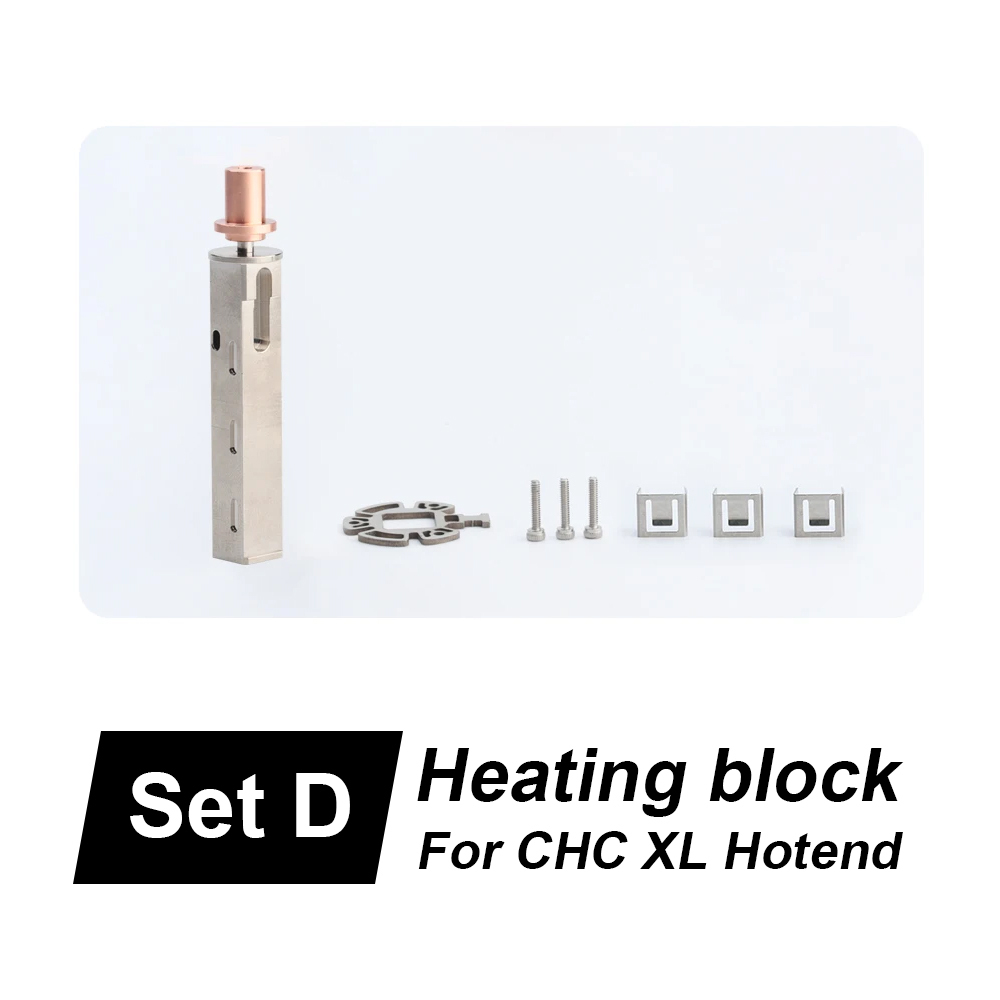

-Set D：Heating Block

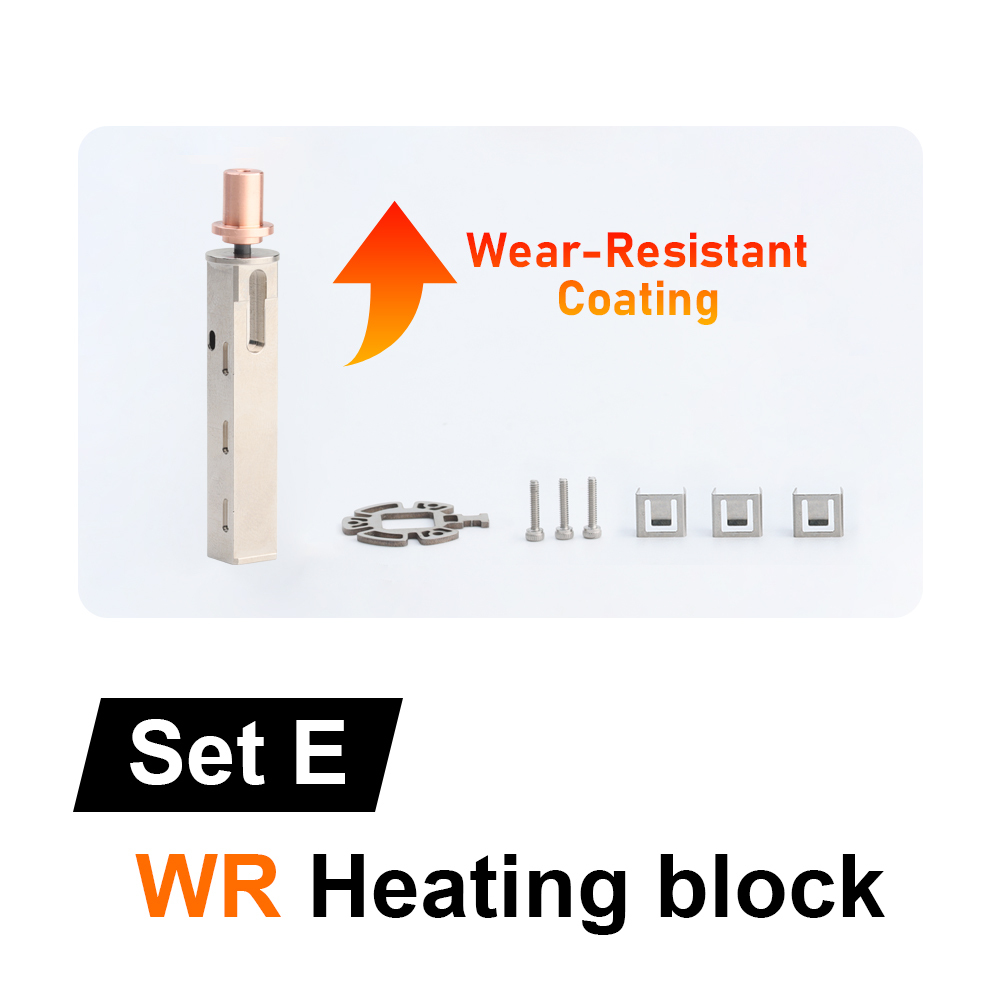

-Set E：wr Heating Block

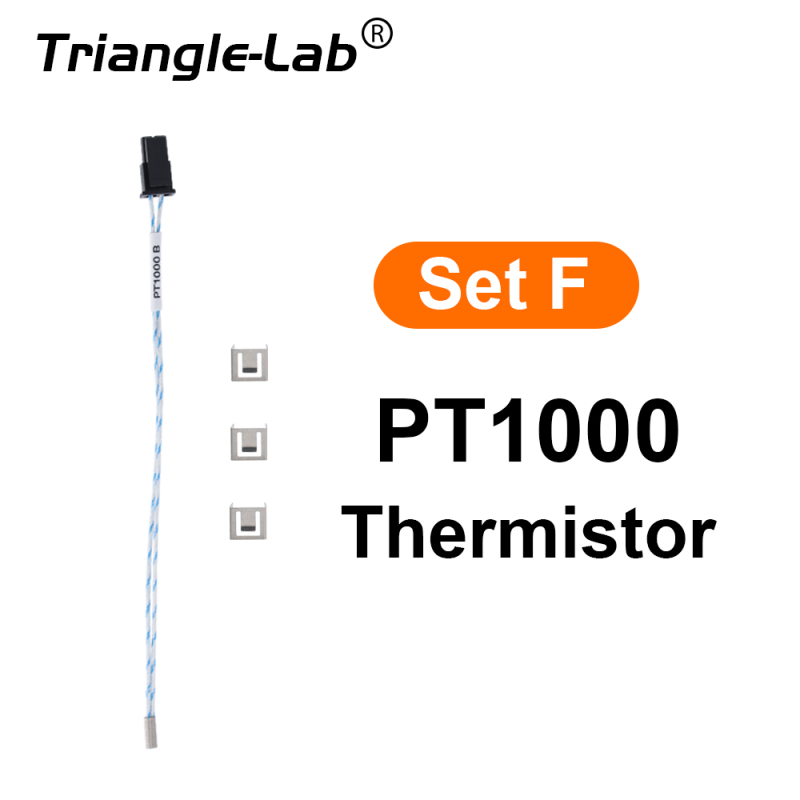

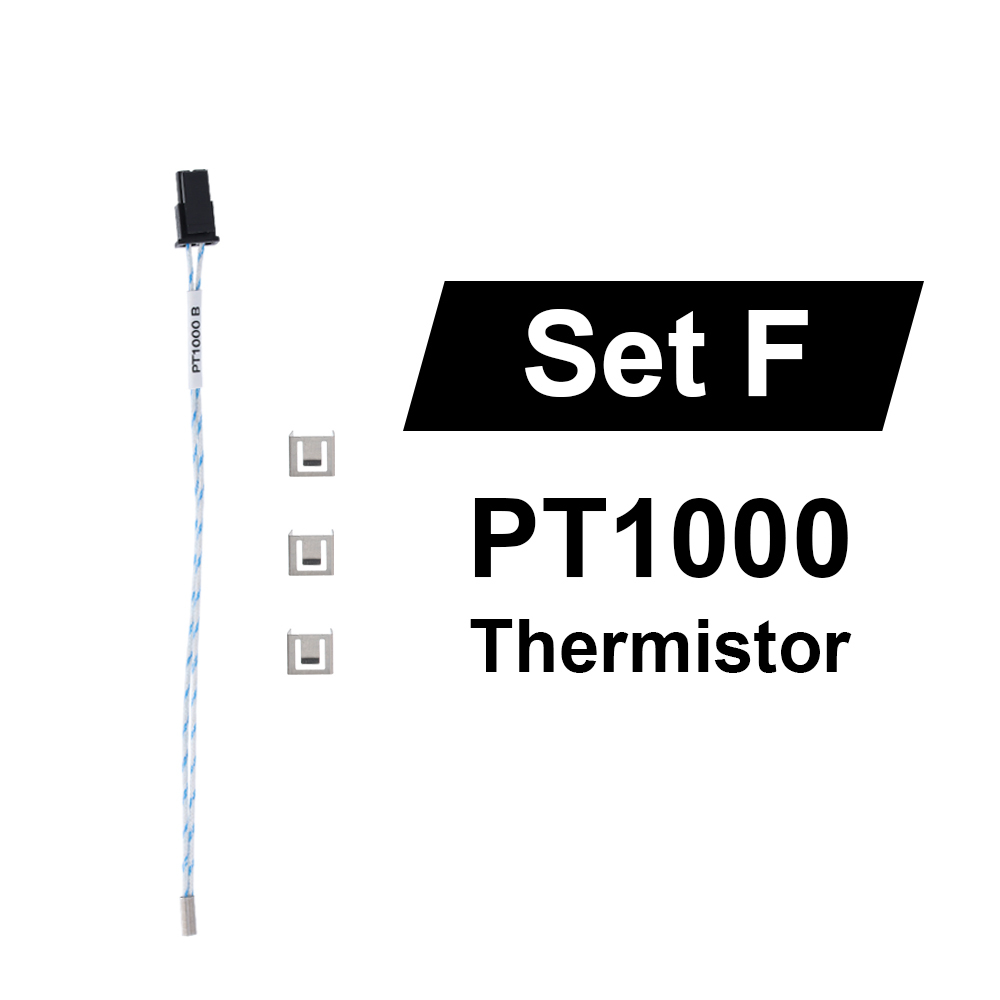

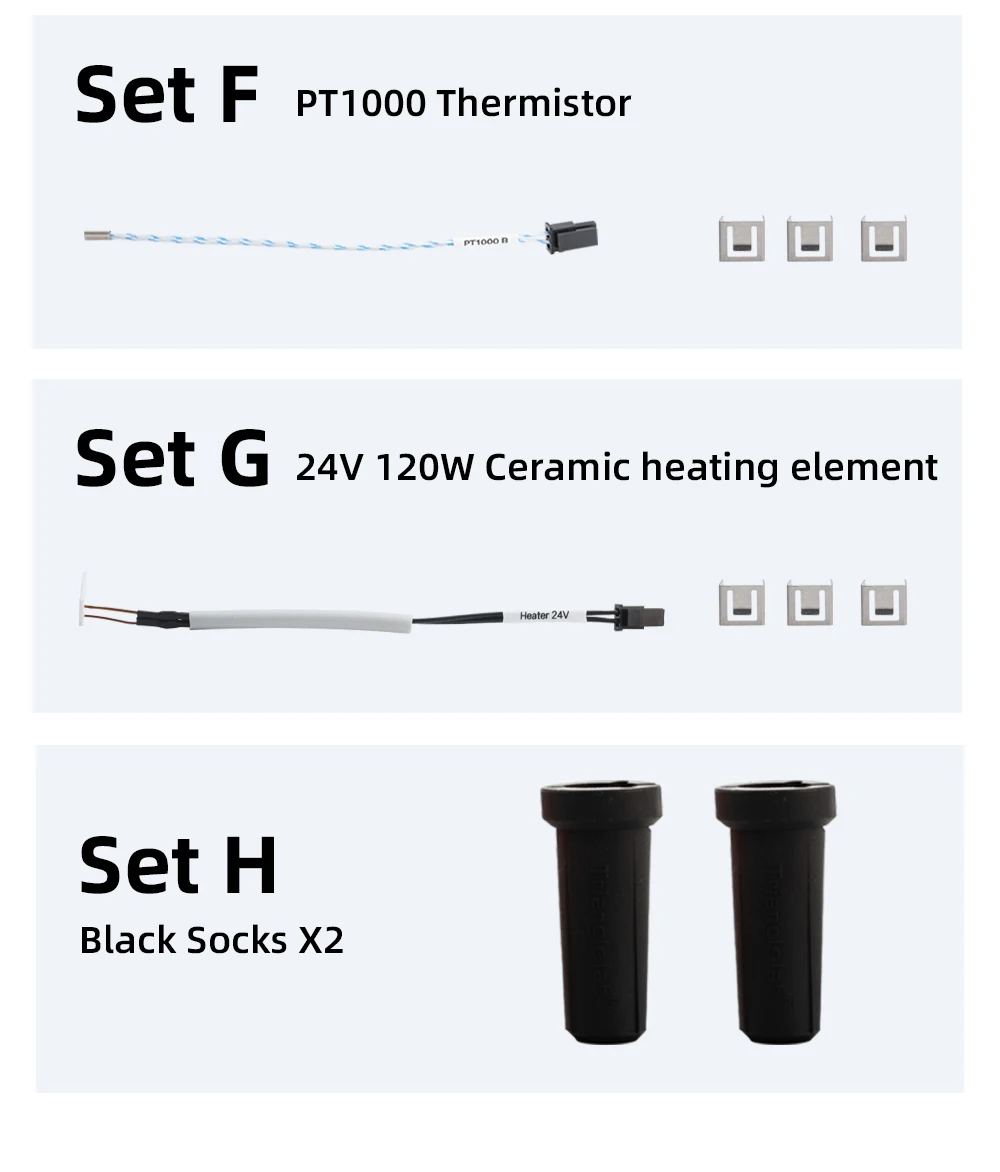

-Set F：PT1000 Thermistor

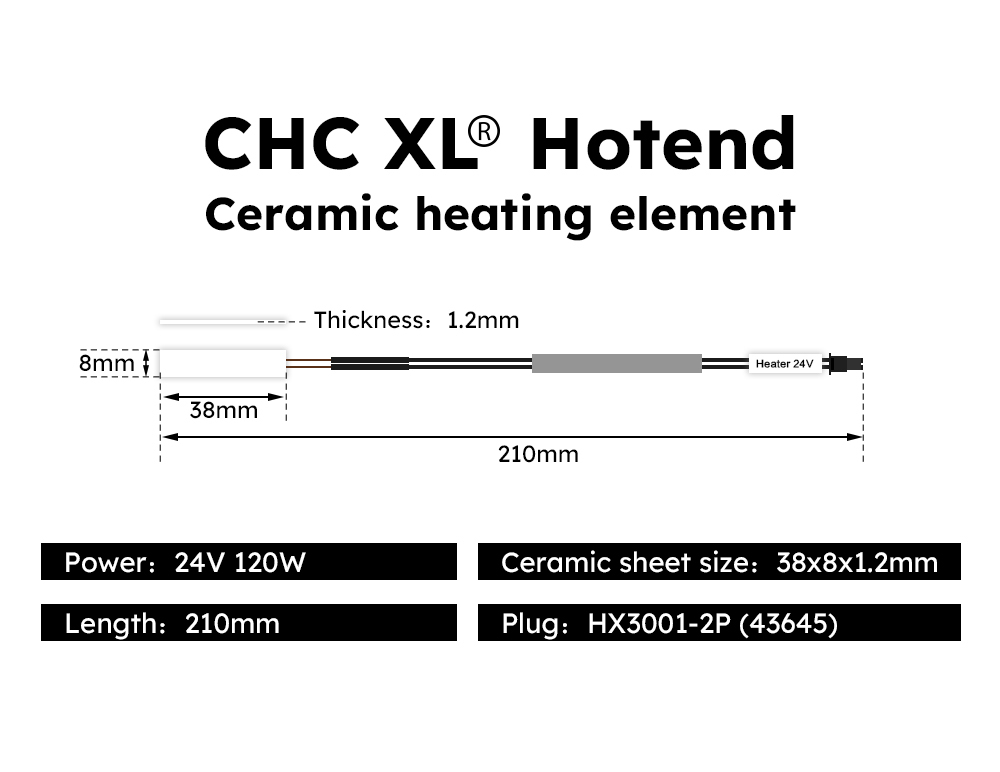

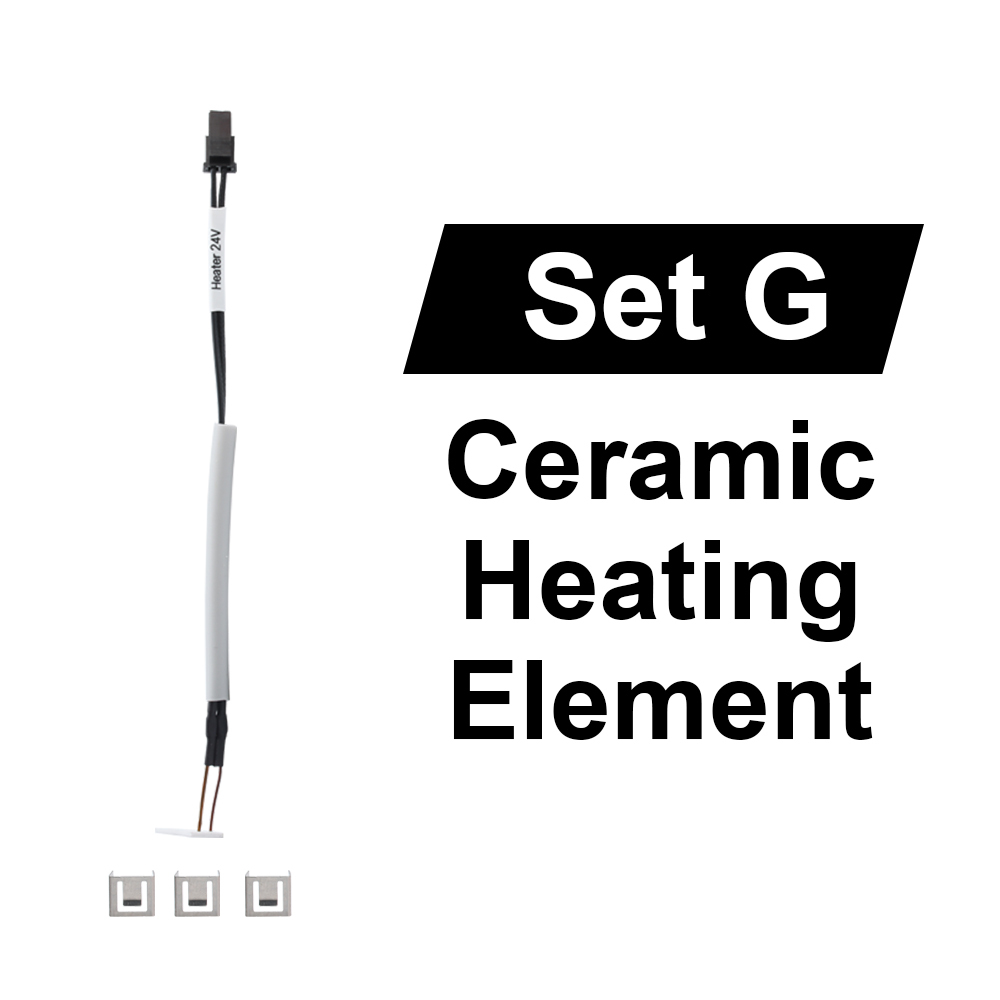

-Set G：Ceramic heating element
▉Experiment and model links:
▉Print Test
Hotend: CHC® XL hotend from Triangle-lab®
Experimental Platform: Modified CR-10 with klipper firmware Figure 5
Mounting method: Evantis 5015(S) Toolhead Figure 6
Slicing software: PrusaSlicer 2.8.0
Model: Flow Rate Test Geometry BY E3- online as in Figure 1
Nozzle type: V6 style Brass
Parameter setting: Vase mode
Extrusion multiplier: Adjust to the appropriate value according to the width of extrusion
There was no retraction during the whole process
The criteria for determining unacceptable cases are illustrated in Figures 2 and Figures 3.
▉Print Test
CHC® XL hotend with V6 style brass nozzle
CHC® XL hotend with Volcano style brass nozzle Plus MZE
